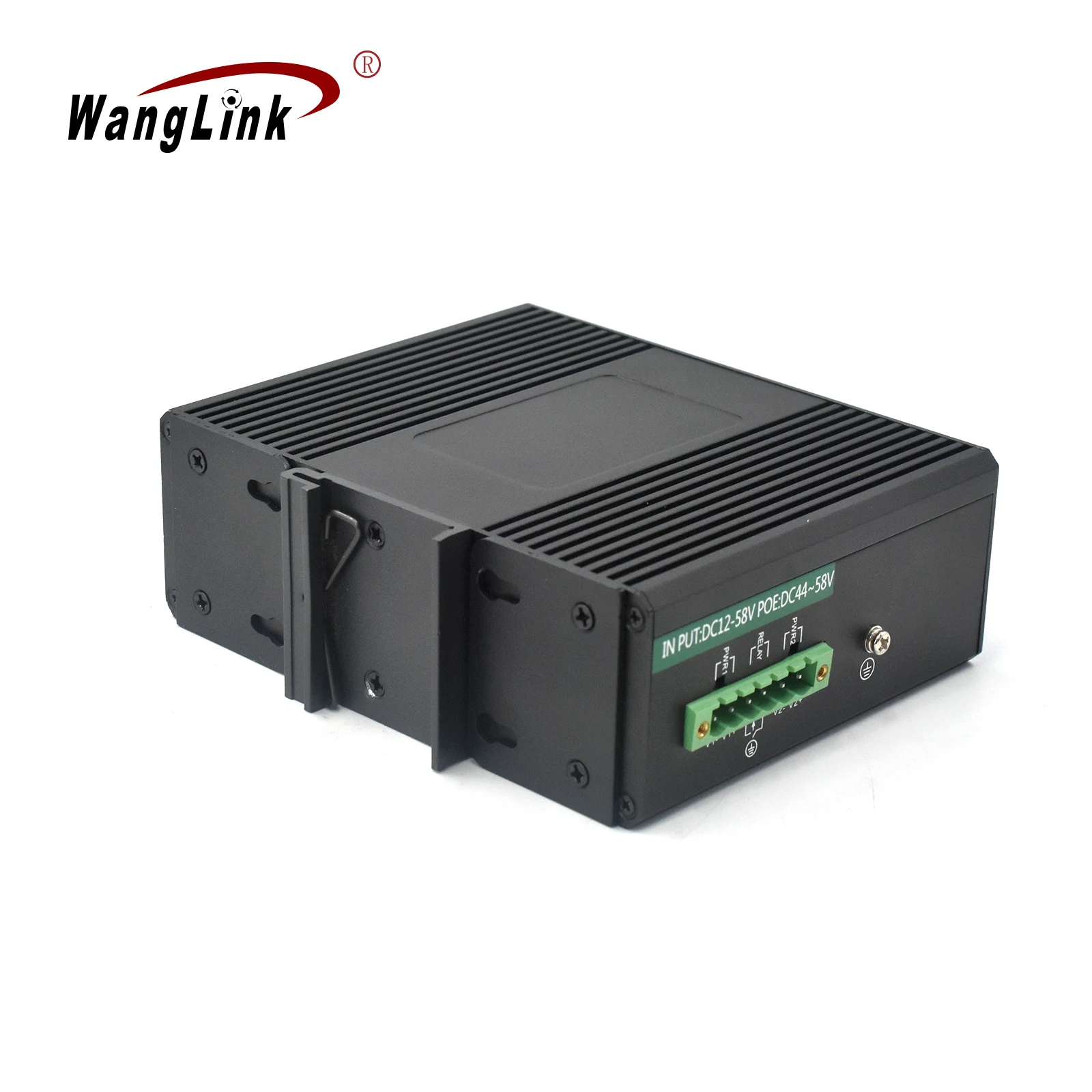

Wanglink Industrial PoE Switch 9 10/100Mbps RJ45 PoE Ports Switch PoE Industrial for CCTV Camera
- Category: >>>
- Supplier: Shenzhen Wangguang Technology Co. Ltd.
Share on (1601002640667):
Product Overview
Description
Recommend Products
Products Description
This is an Industrial grade PoE switch which designed for harsh/extreme industrial environments. It has 9 10/100Mbps Ethernet port. 1-8 Ports support IEEE802.3af/at Ethernet power supply standard PoE power supply. The Ethernet port supports a maximum power supply of 25.4W and has the function of automatically detecting whether the powered device supports PoE power supply. It only supplies power to powered devices that meet the standards, which can effectively prevent damage to non-PoE powered devices.
It adopts industrial-grade standard design and supports dual redundant power supplies. Dust-proof, moisture-proof, lightning-proof, high and low temperature resistant. The mean time between failures reaches 300,000 hours and can be widely used in industrial control automation, road traffic control automation, building automation systems, etc. , computer room monitoring systems and other industrial application scenarios, the work is stable, reliable, and efficient, can help create a rock-solid industrial Internet of Things, suitable for long-term work in various harsh environments.
Products Feature
* 9 10/100Base-TX RJ45 port;
* 8 RJ45 ethernet port supports IEEE802.3af/at Protocol, can provide maximum output power of 25.4W.
* Support 10/100mpbs speed adaptation.
* All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
* Support line-speed forwarding
* Adopt imported lightning protection devices to protect against lightning strikes, resist induced high voltage, and prevent surges, etc.;
* -45℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments
* Supports dual redundant power supply, overload protection and reverse connection protection;
* Plug and play, simple operation, no configuration required;
* IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
* IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility.
* 8 RJ45 ethernet port supports IEEE802.3af/at Protocol, can provide maximum output power of 25.4W.
* Support 10/100mpbs speed adaptation.
* All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
* Support line-speed forwarding
* Adopt imported lightning protection devices to protect against lightning strikes, resist induced high voltage, and prevent surges, etc.;
* -45℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments
* Supports dual redundant power supply, overload protection and reverse connection protection;
* Plug and play, simple operation, no configuration required;
* IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
* IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility.
Specification
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control | |
Interface information | RJ45 network port: 9 10/100M Base-T network port (standard RJ45) |
10/100Mbps adaptive | |
10Base-T: ≤100m (CAT3,4,5 UTP) | |
100Base-TX: ≤100m (CAT3,4,5 UTP) | |
Mechanical properties | Shell material: metal shell |

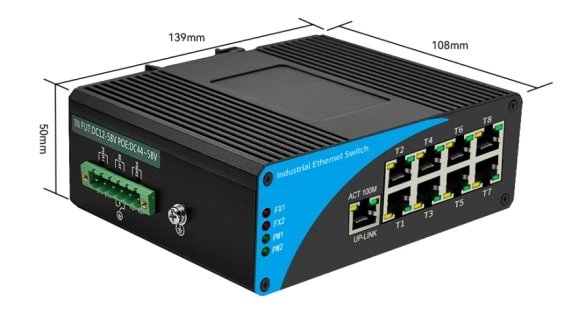

Appearance dimensions (length*depth*height): 139 mm× 108 mm× 50 mm | |
Installation method: DIN rail type | |
Heat dissipation method: natural cooling, no fan | |
Weight: < 0.6KG | |
Environmental properties | Working temperature: -40 ℃～+ 85 ℃ |
Storage temperature: -40 ℃～+85℃ | |
Relative humidity: 5% ~ 95% (non-condensing) | |
Exchange properties | Bandwidth: 2.0Gbps |
Packet forwarding rate (whole machine) : 1.488Mpps | |
Exchange method: store-and-forward | |
MAC table : 2K | |
Case space : 512K | |
Jumbo frame: 2048B | |
Power supply | Input voltage: DC44V-58V (dual redundant) |
Power interface: 6- core Phoenix terminal | |
Power supply protection: positive and negative pole misconnection protection | |
Power consumption: < 5 W | |
PoE output | 802.3AF/AT(1/2+, 3/6-) |
(Full load) AF mode ≤ 125W, AT mode ≤ 240W | |
Indicator light | Port light (fluctuation switch control): Ø Indicator light: 1000M Link/ACT Yellow; Ø PoE Indicator: PoE Green; |
Optical port indicator: Red (FX1/FX2) | |
Power light: Green (PW1-PW2) | |
Security properties | Shell protection: IP40 |
Surge impact IEC61000-4-5: | |
Signal end: common mode ±4KV, differential mode ±2KV | |
Power supply end: common mode ±4KV, differential mode ±2KV | |
Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
Shock: IEC 60068-2-27 | |
Free fall: IEC 60068-2-32 | |
Vibration: IEC 60068-2-6 | |
MTBF: 300000 hours | |
Warranty | 3 Years |

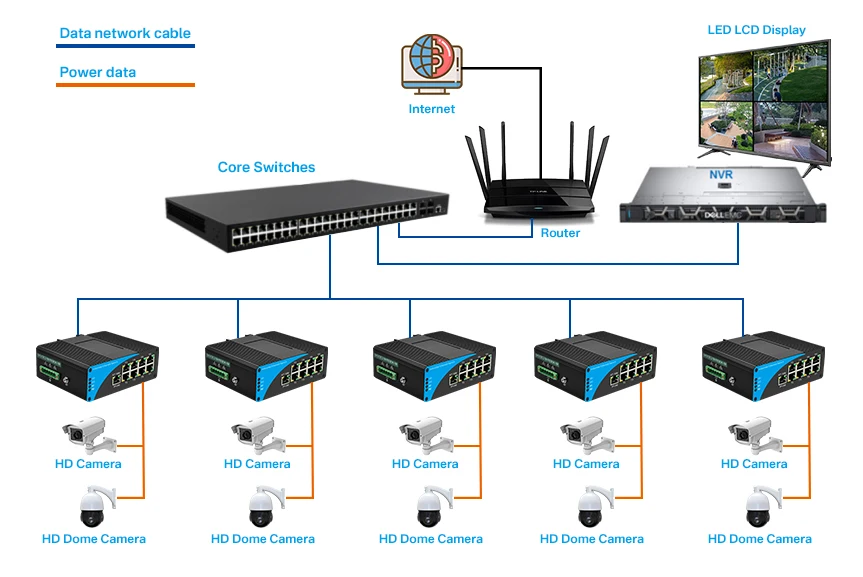

Applications
Packaging and Shipping
Why Choose Us
Company Profile
FAQ
What is your main products？
We focus on FTTX product, main products is poe switch, media converter, ONU, SFP and its accessories.
Can I get sample for free?
Yes, we have limited free sample rules(full payment the first and bulk order give back). For details, please feel free to contact with your service manager.
Can you print my logo on the product?
Yes, sure. We accept the OEM/ ODM order, you can print your logo on the product face, packing box, carton even on the software manage page and so on.
What is the delivery time?
Instock products - 24h
OEM products lower than 1000pcs - 5 days about.
Over 10,000pcs, 15days about.
What is the Payment Terms that you accepted?
With the world change, we also adjusting our payment terms. For bulk order, we accept the deposit in advance and full in the final.
How About The After-sales Services?
24 Hours Online service, remote technical support, face to face meeting or send our technical expert if need.
What about the warranty?
For most of our product, we provide 1 year warranty(non-human damage).
and lifetime limited warranty.
What will my goods delivery from?
We have two factories. The one is in China, and the other is in India. We default send it from China, but if you have requirement, we can send it from India.
