Product Overview

Description

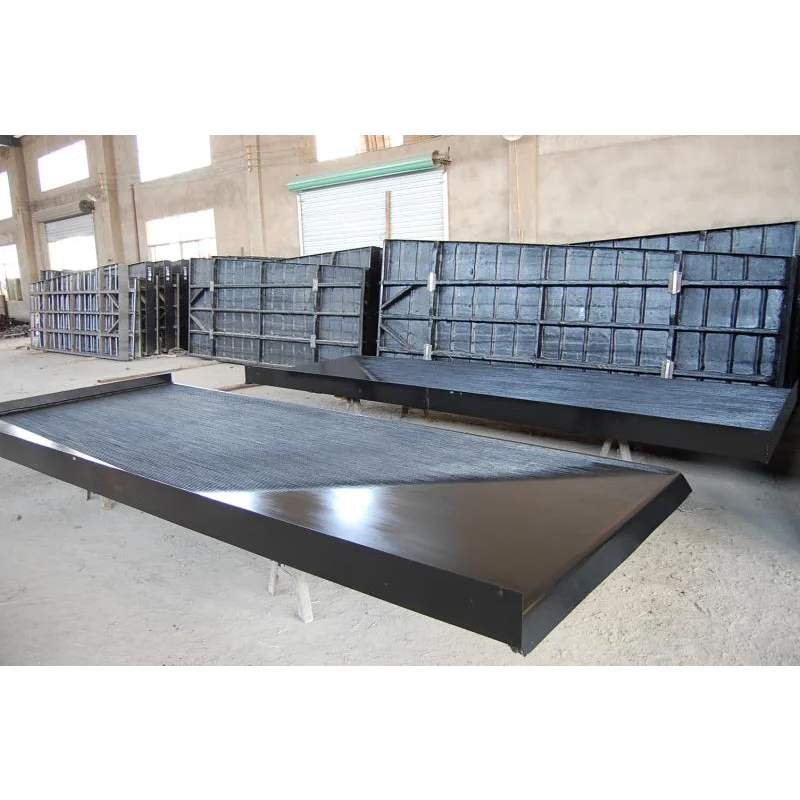

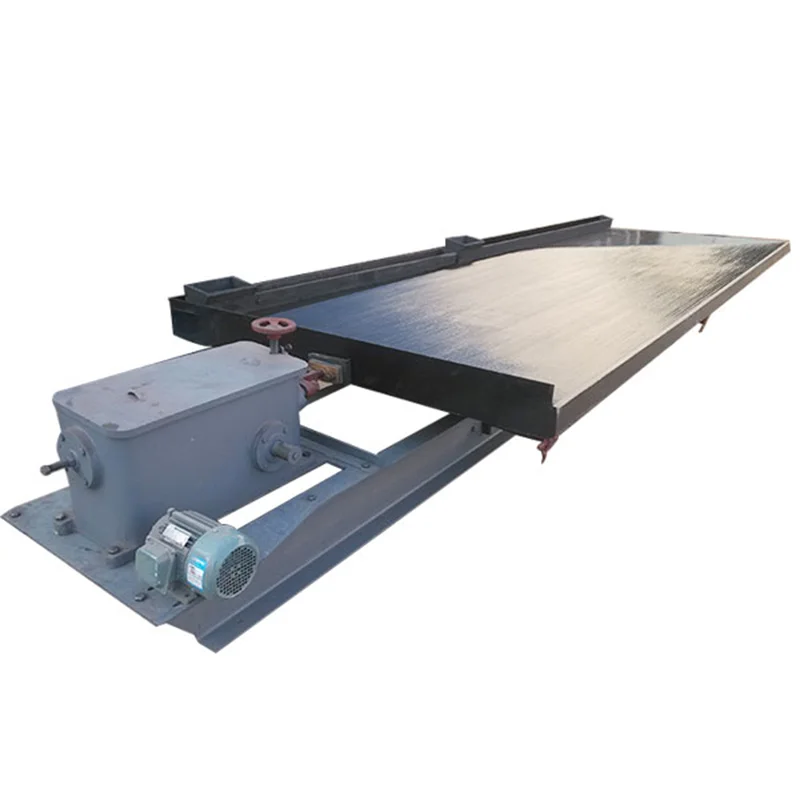

SHAKING TABLE
The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

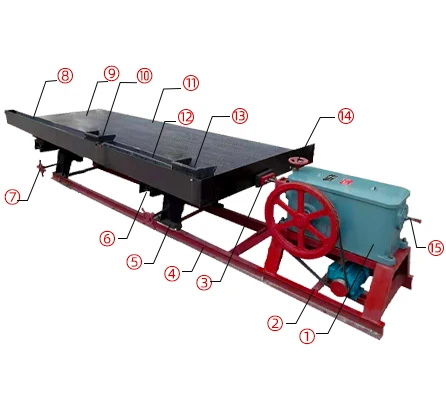

PRODUCT DETAILS


1.Shaking Table Head
2.Motor Support
3.Knife-Type Support
4.Stand
5.Table Support
6.Table Surfcae
7.Horizontal Adjustment Wheel
8.Water Feeding Chute
9.Concentrates Disharging Area
10.Horizontal Adjustment Wheel
11.Tailings Discharging Area
12.Knife-Type Support
13.Ore Feeding Mouth
14.Stroke Adjusting Device
15.Swing Adjusting Device






Gold shaking table main component includes head, electric motor, slope regulator, ore tank, water tank, compound strip, and lubrication system. Shaking table mineral separation is an inclined table, the combined action of the symmetrical reciprocating motion of a mechanical slab and the flow of water on a thin inclined plane, causes loose layering and zoning of ore particles on the table surface, thereby causing the mineral separation process to be carried out according to different densities. Shaking table can make material have different motion base on different particle density and particle size, and from the feeder tank material flow out like a diagonal along the edge of the bed, the discharge line is very long, accurate real estate product of a variety of different quality, such as the concentrate, inferior concentrate, medium concentrate and tailings in time etc.



SCOPE OF APPLICATION





TECHNICAL PARAMETERS


Model

6-S
6-S
6-S
6-S
table model
LY(S)4500
LY3000
LY2100
LY1100
table size
4500x1850x1560
3000x1680x1380
2100x1050x850
1100x500x430
Selected area (m2)
7.67
4.08
2
0.51
Feed size (mm)
Coarse sand
2-0.5
2-0.5
2-0.5
2-0.5
SF-4
Fine sand
0.5-0.074
0.5-0.074
0.5-0.074
0.5-0.074
SF-8
slime
0.074-0.037
0.074-0.037
0.074-0.037
0.074-0.037
Feed concentration (%)
16
10-30
10-30
10-30
10-30
Handling capacity (tons/hour)
Coarse sand
1-2.5
0.6-1.5
0.4-0.8
0.1-0.2
Fine sand
0.8-1.2
0.3-0.8
0.2-0.5
0.05-0.1
slime
0.3-0.9
0.2-0.6
0.1-0.4
0.03-0.05
Water consumption (tons/hour)
2-5
1.5-3
1-2.5
0.2-0.5
Stroke (mm)
10-30
10-30
10-30
9~17
Stroke (times/min)
240-360
210-360
210-360
130-210
Lateral slope（°）
0°~10°
0°~10°
0°~10°
0°~8°
motor
model
Y70L-4
Y100L-4
Y90L-4
Y80L-4
power
1.1
1.1
1.1
0.55
Overall dimensions (mm) L x W x H (L*W*H)
5630x1850x860
4130x1680x860
3040x1050x760
1530x500x660
Equipment weight (kg)
1100
1000
750
350

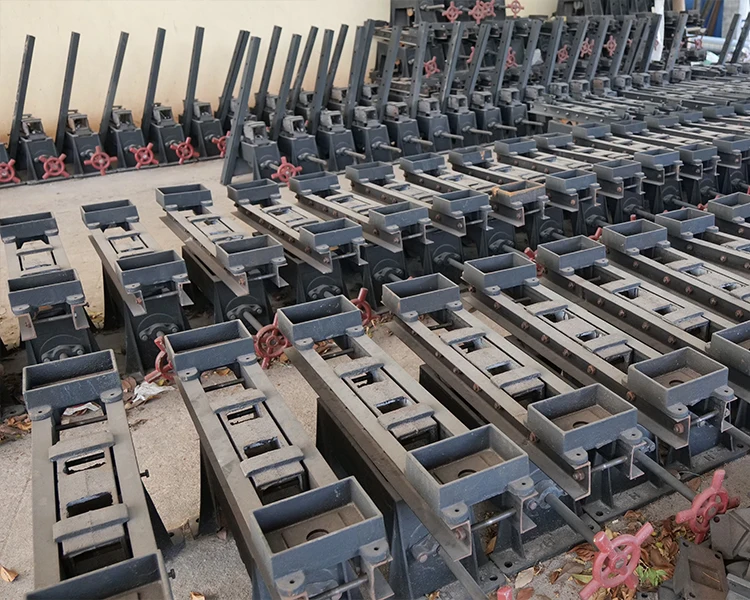

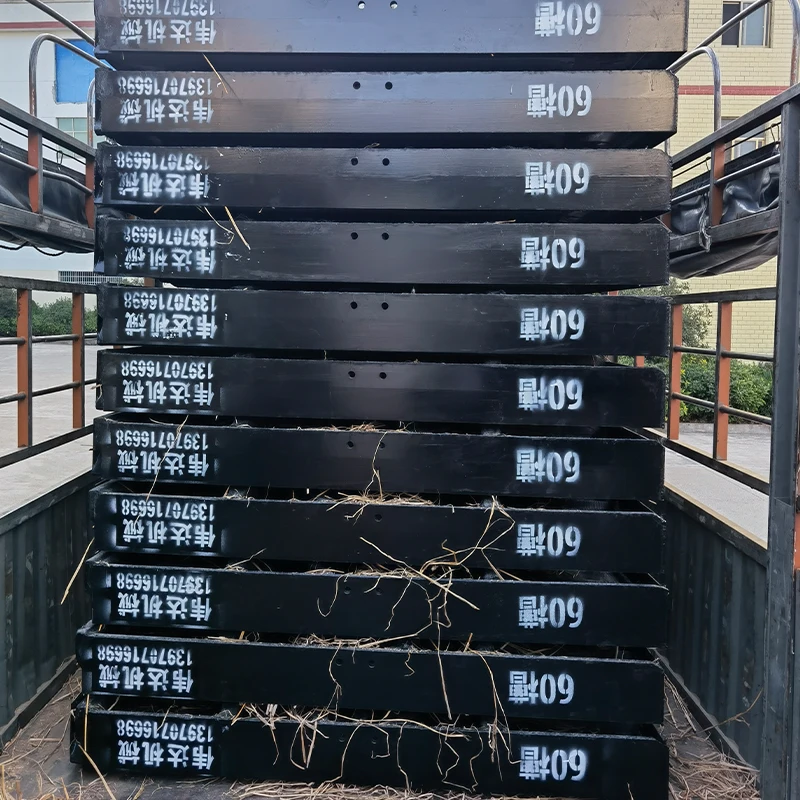

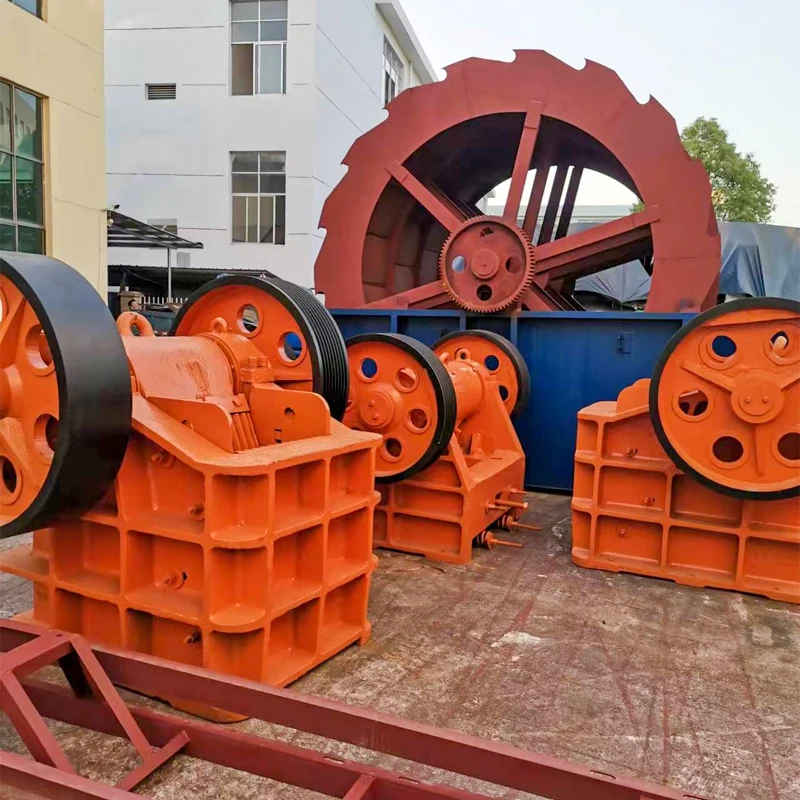

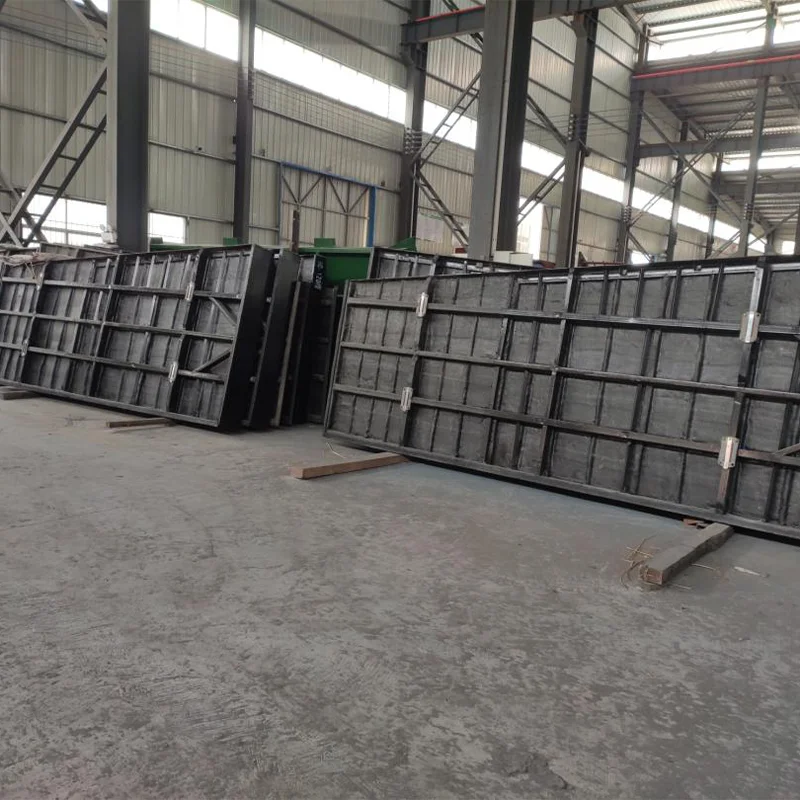

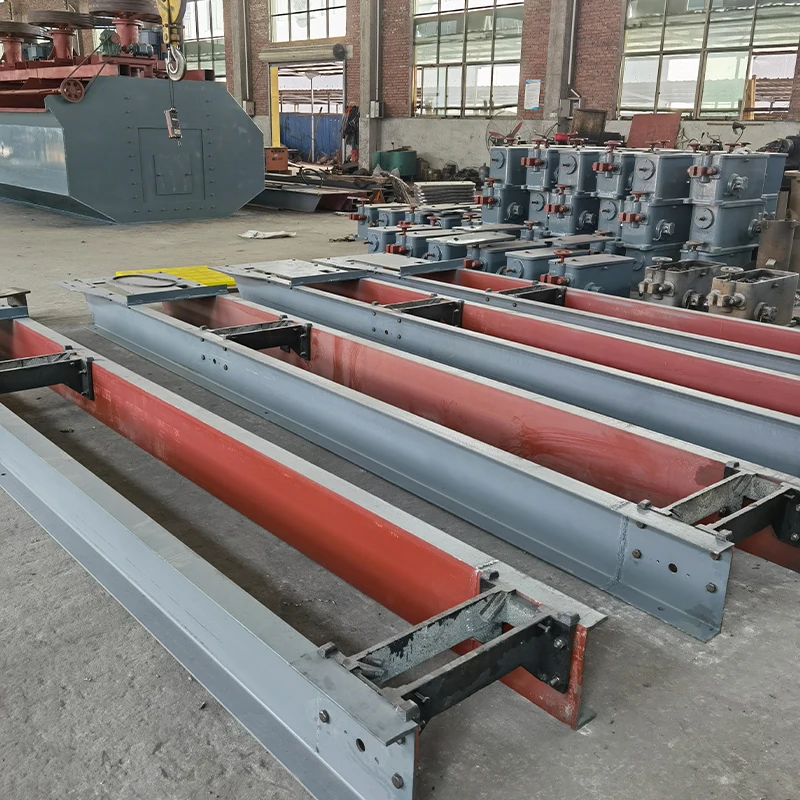

AVAILABLE FROM STOCK

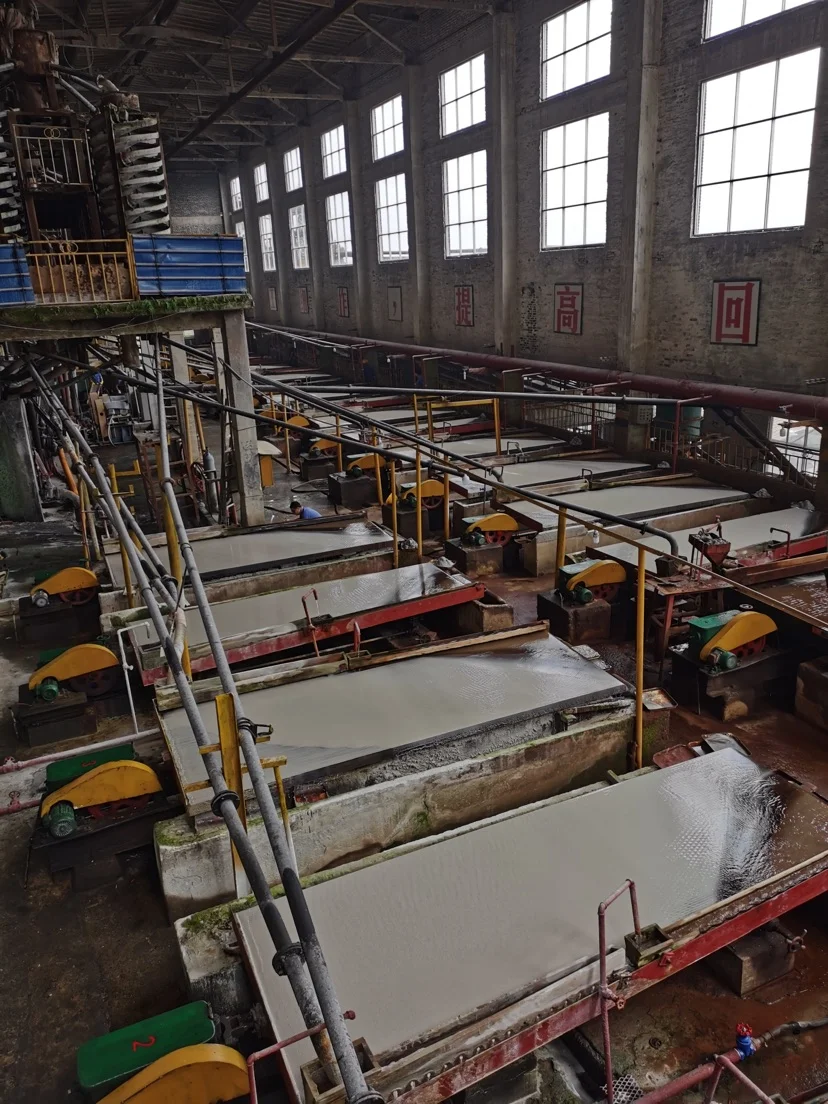

Application scenarios
The "6-S shaking table" is a type of physical ore beneficiation equipment primarily used for the separation of rare metals and precious metal ores, including gold, silver, lead-zinc, tantalum-niobium, and tin.




Contact Us




COMPANNY INFORMATION

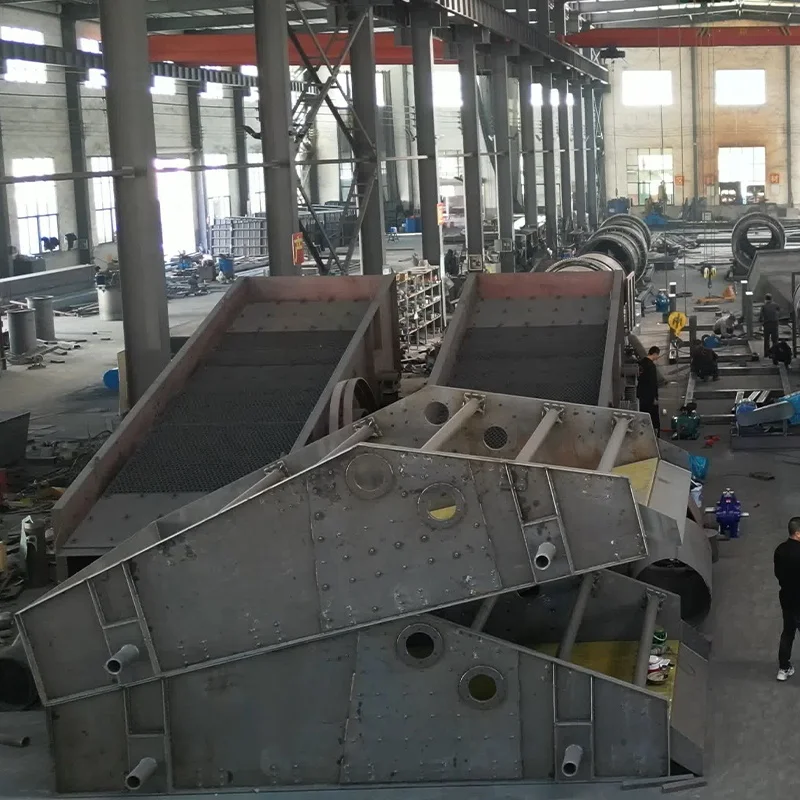

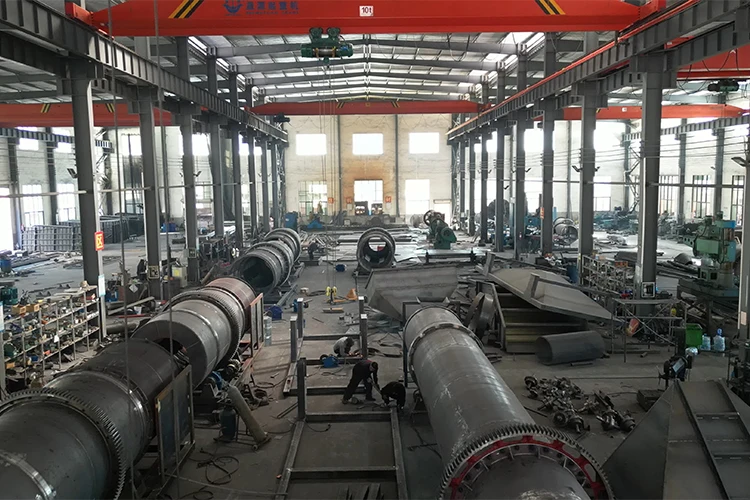

Jiangxi Weida Mining Machinery Co., Ltd. is a large professional company producing non-ferrous metal and non-metallic separation and treatment equipment. The company covers an area of 25,000 square meters, with fixed assets of 60 million yuan, modern processing workshop 18,000 square meters, more than 40 large processing equipment, mainly producing processing and mineral processing equipment, including ore feeding, crushing, screening, grinding, classification, mixing, flotation, cyanidation and other varieties.

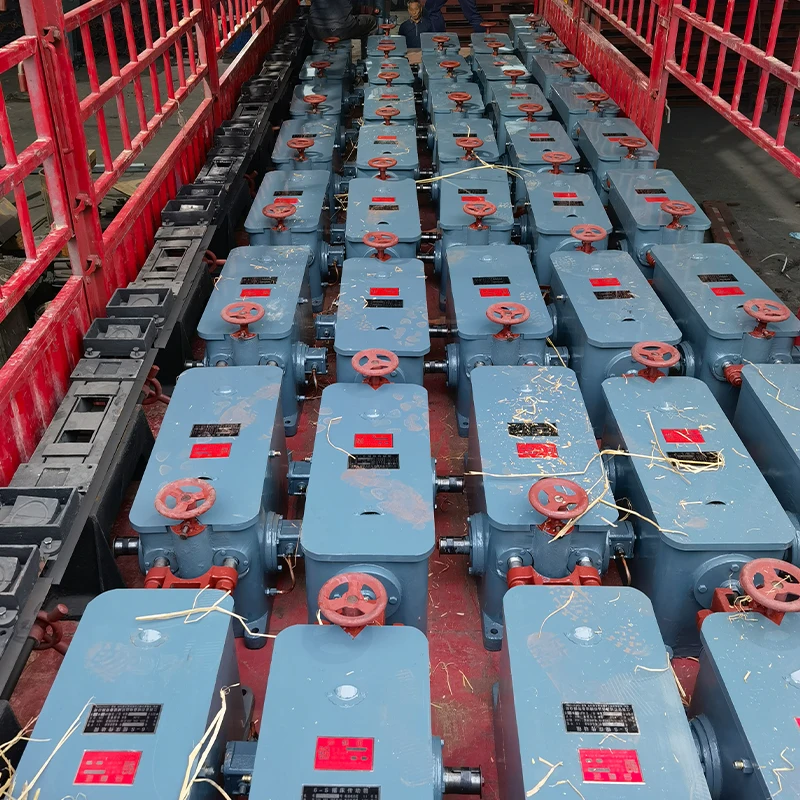

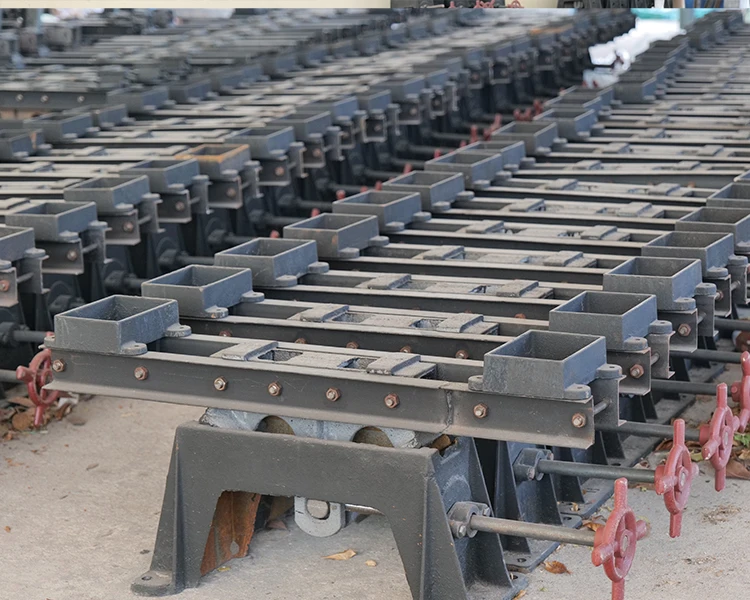

AVAILABLE FROM STOCK

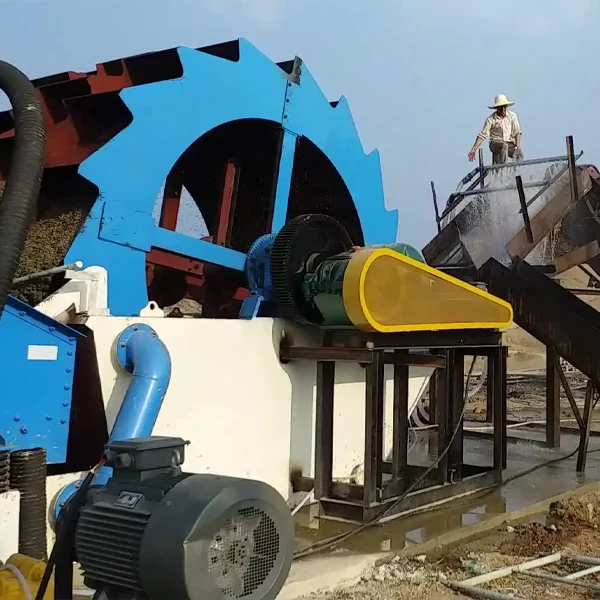

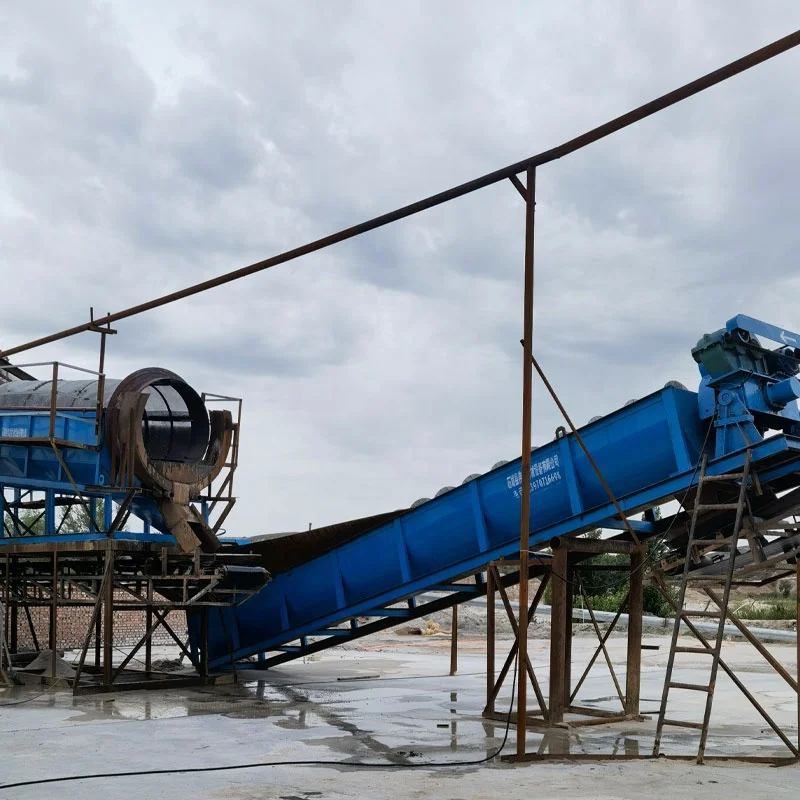

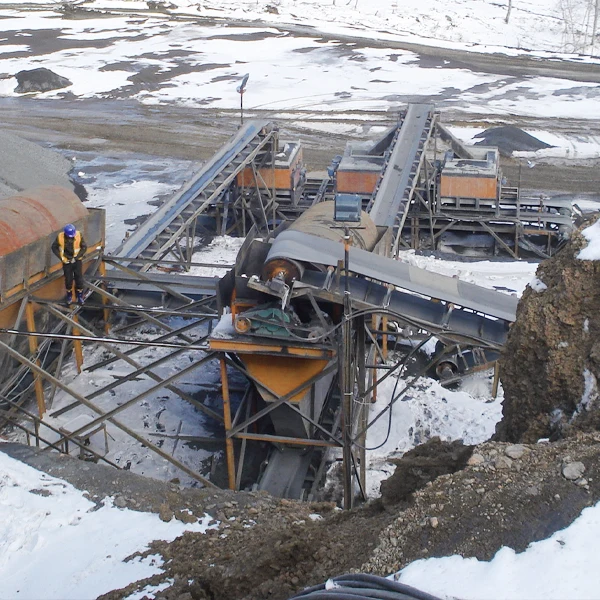

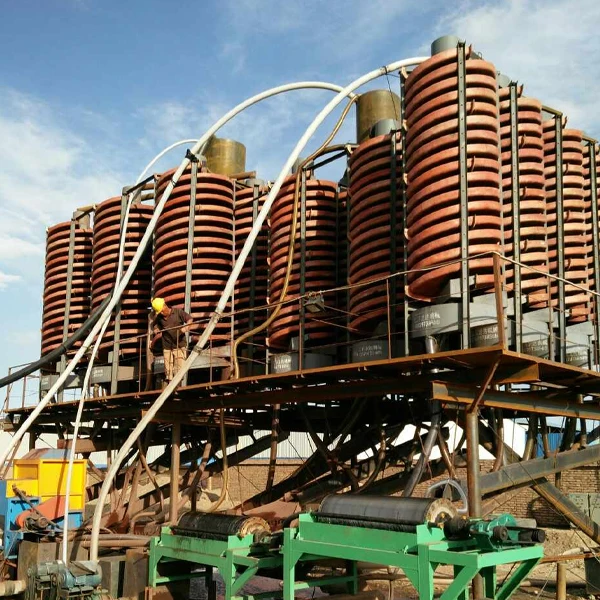

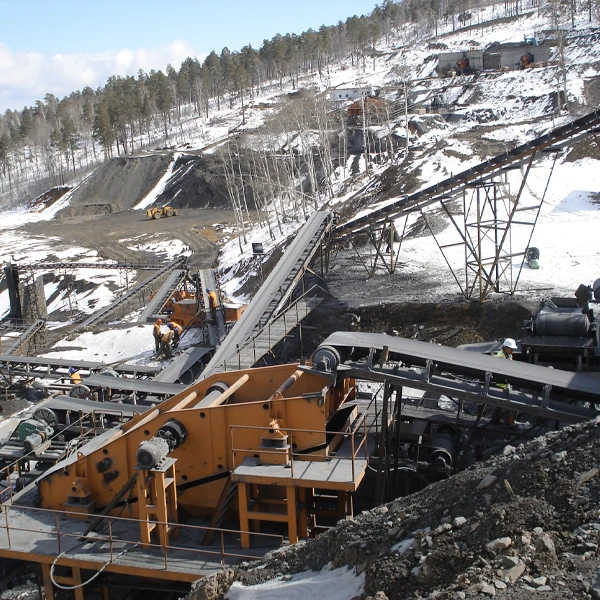

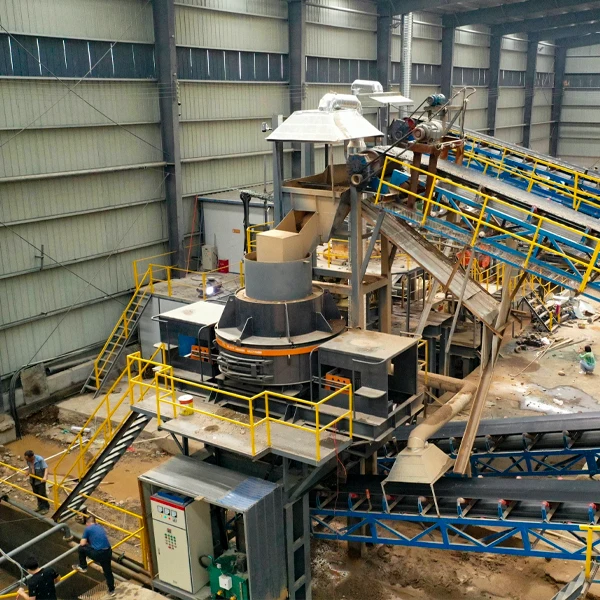

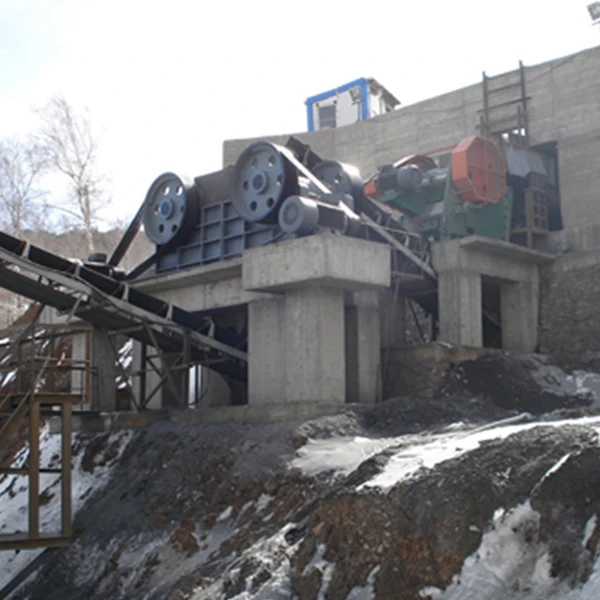

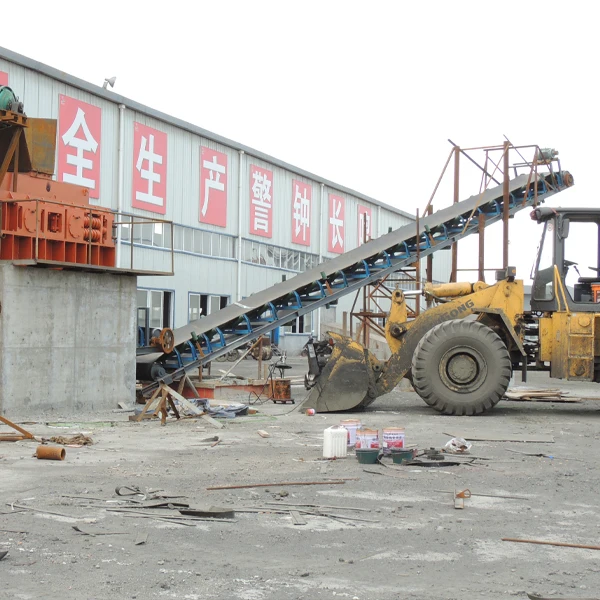

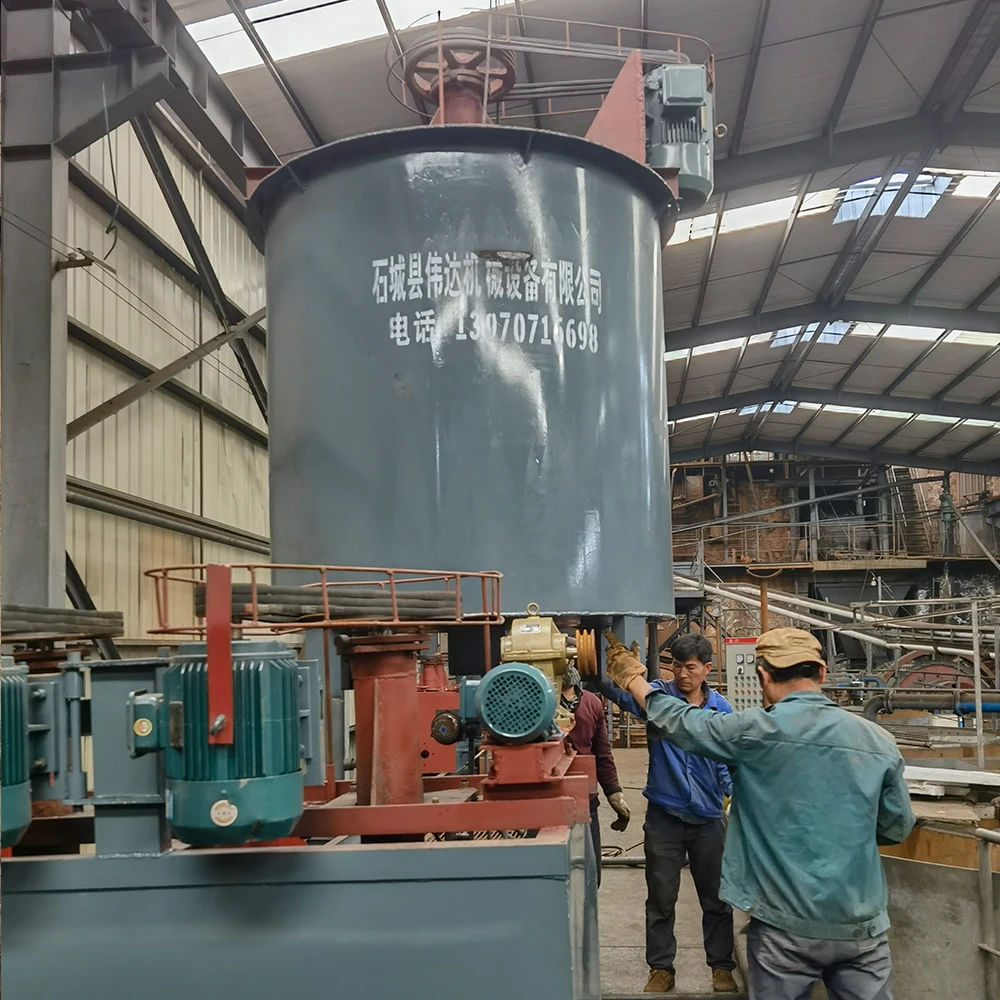

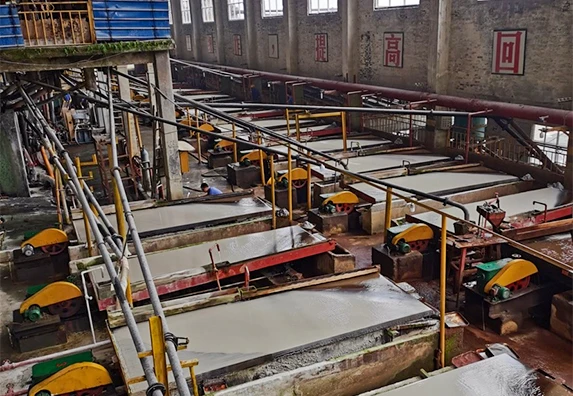

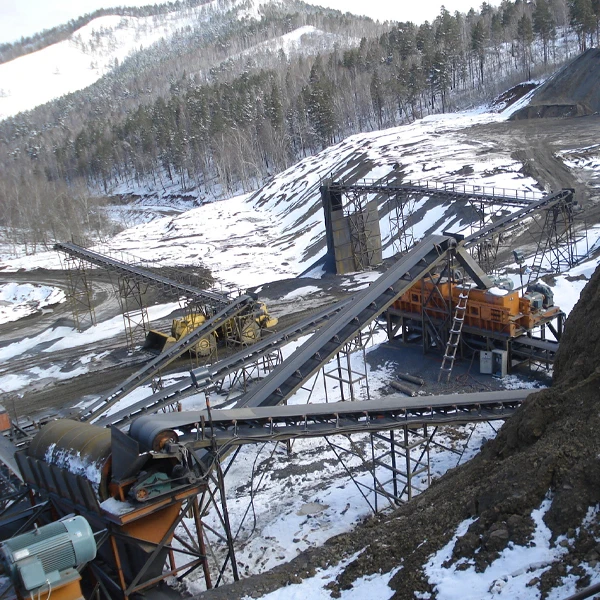

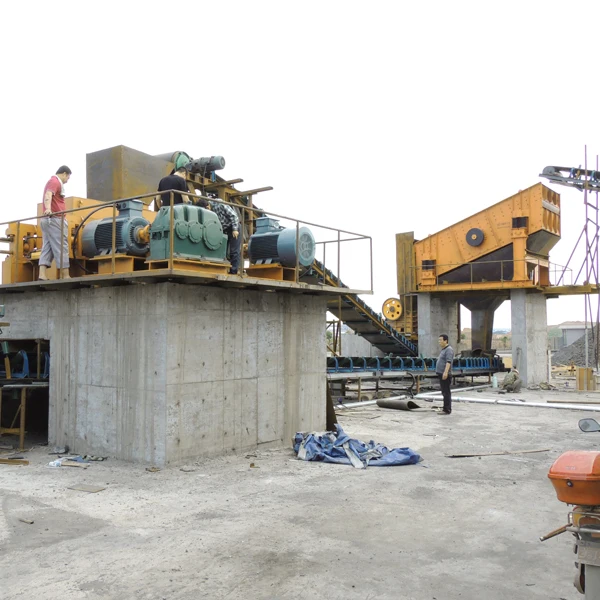

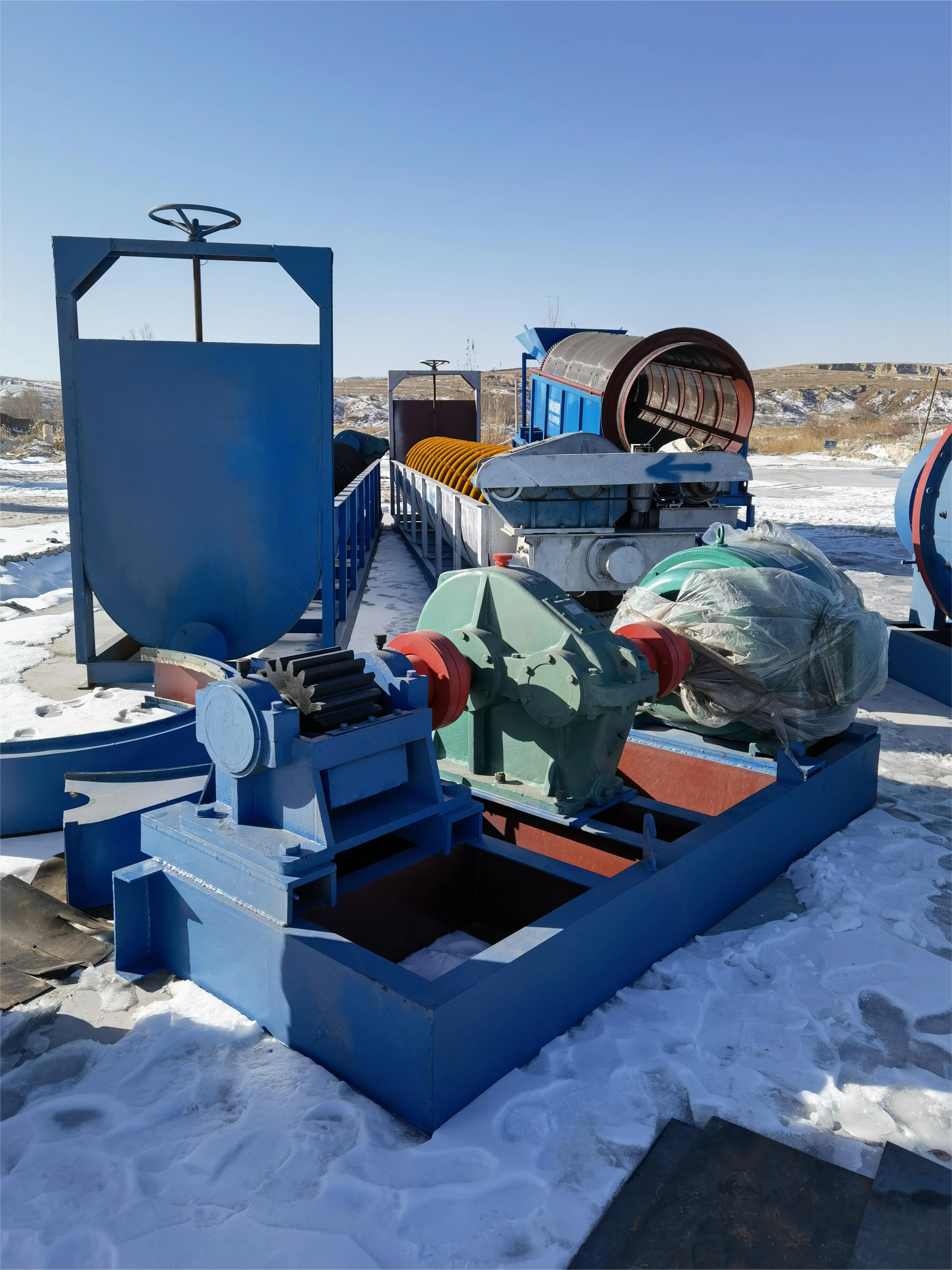

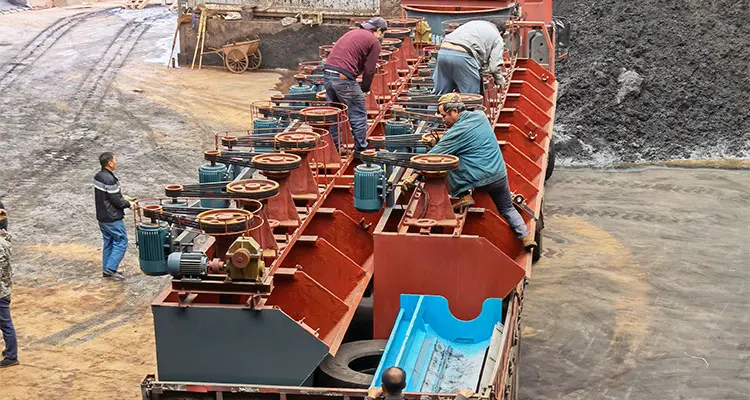

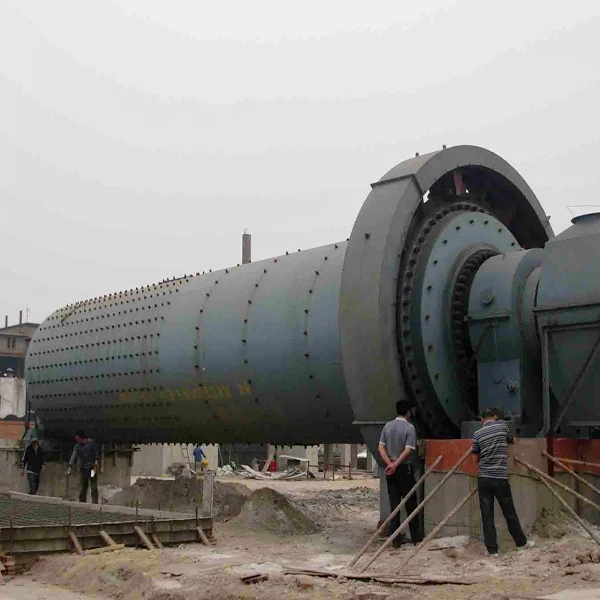

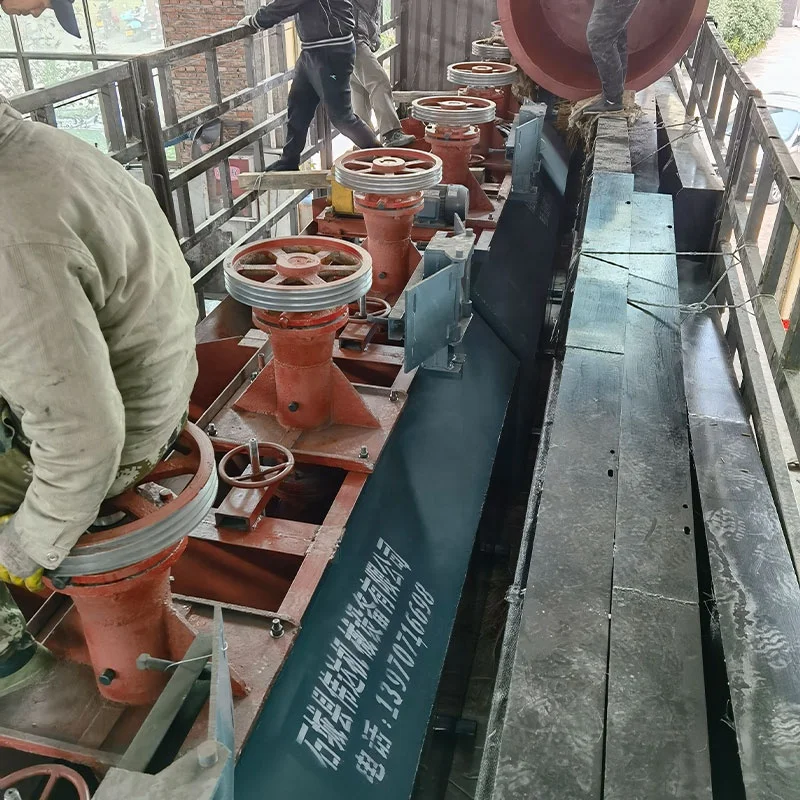

CASE PRESENTATION

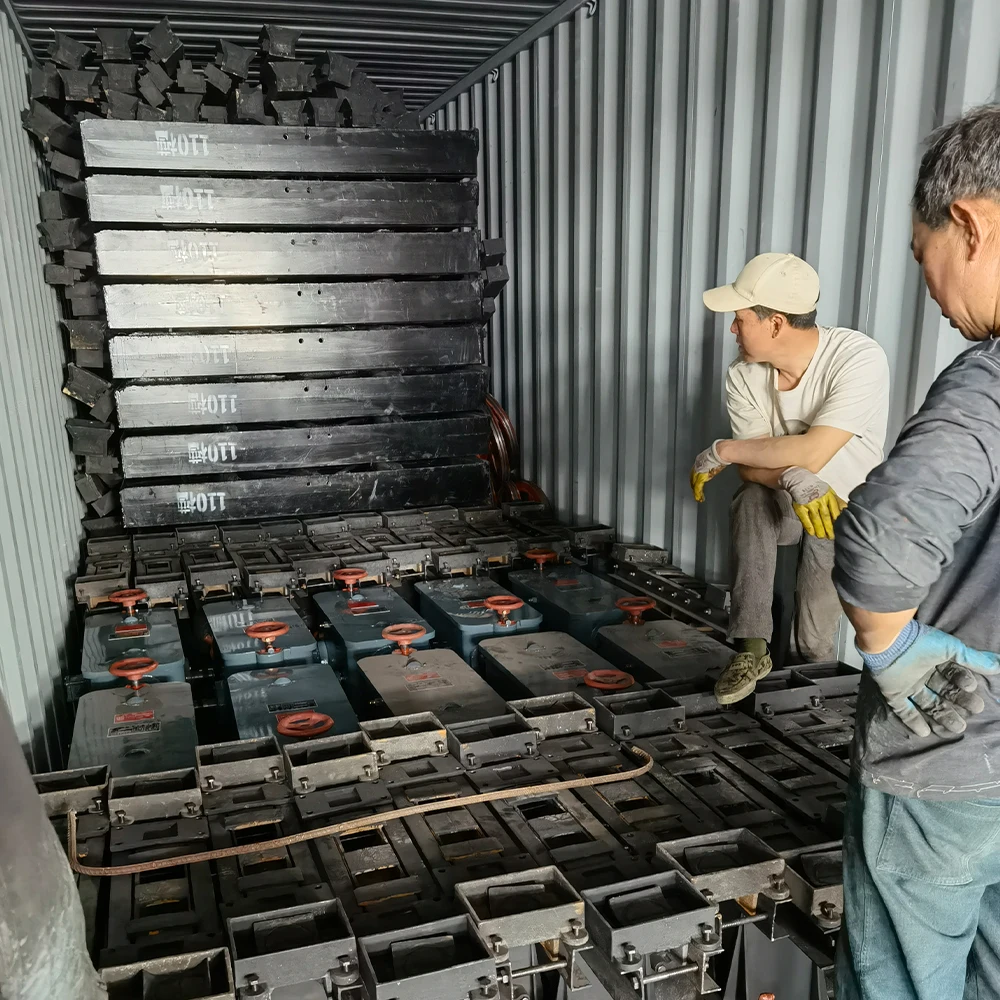

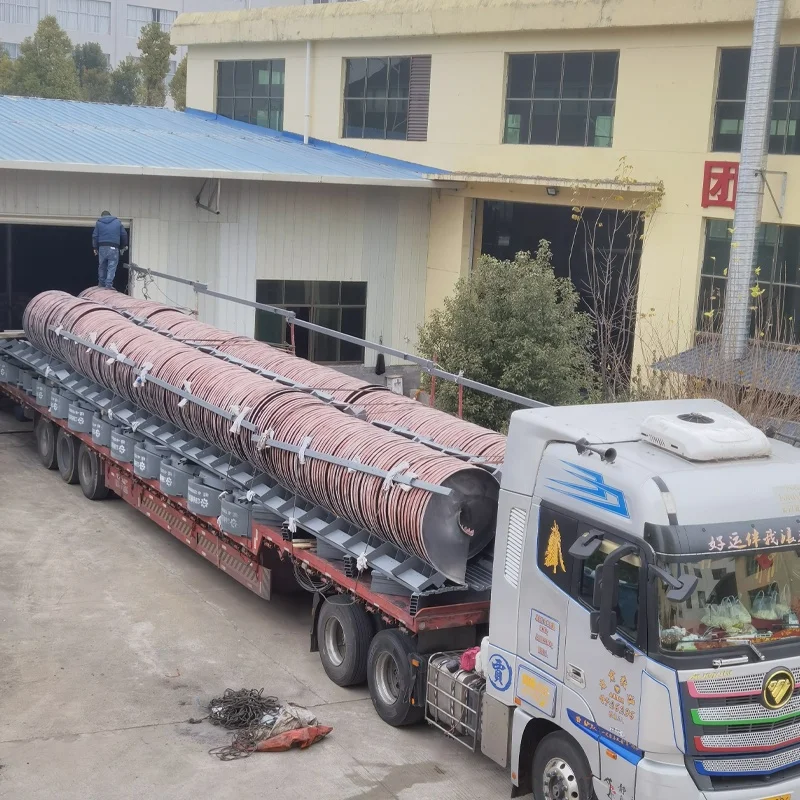

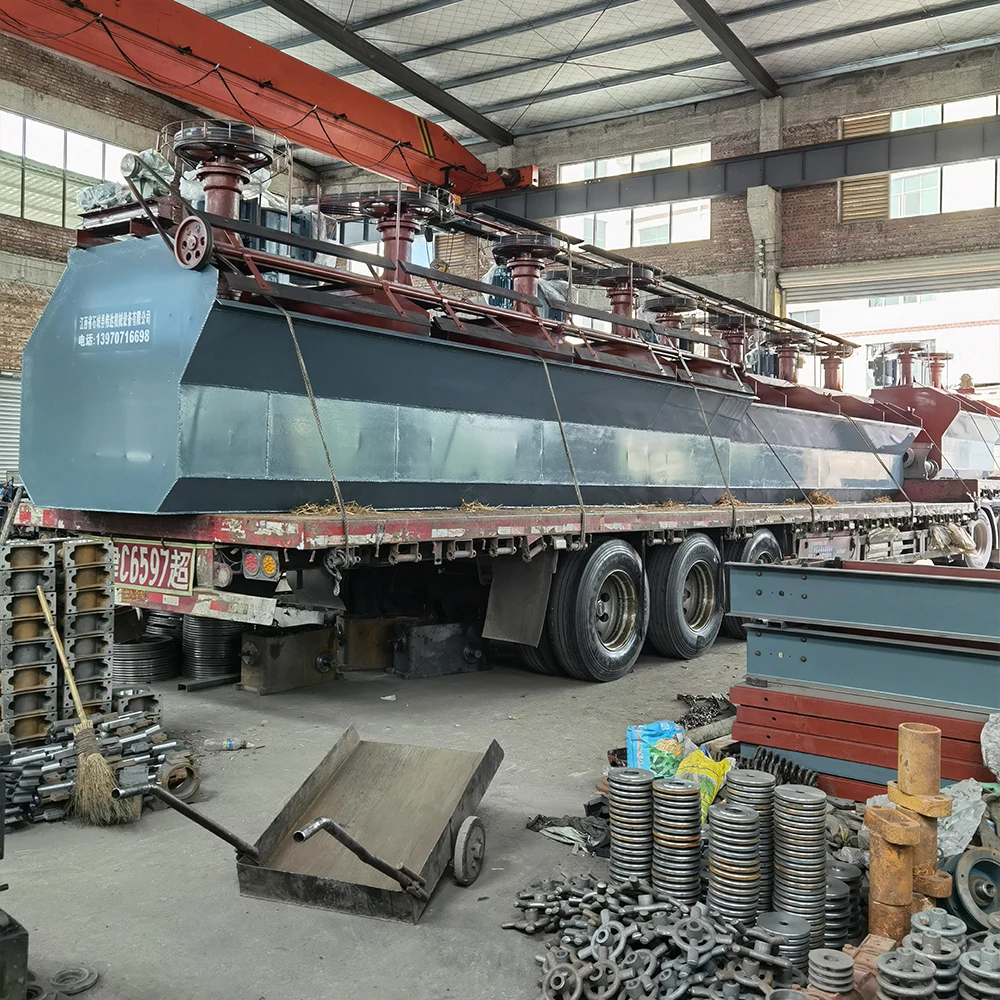

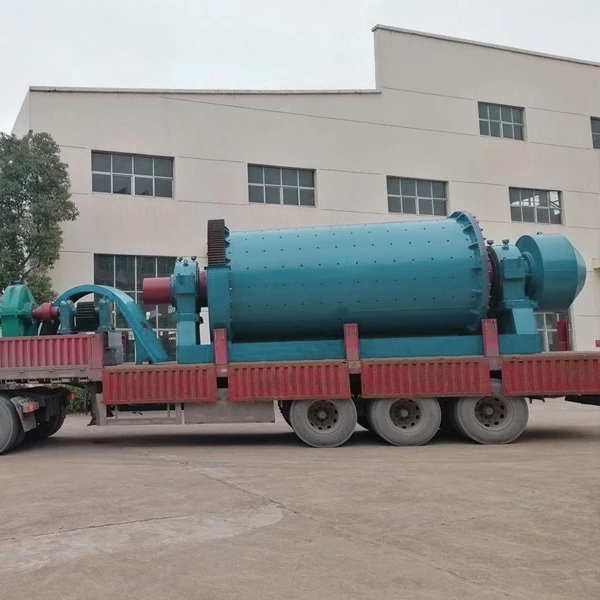

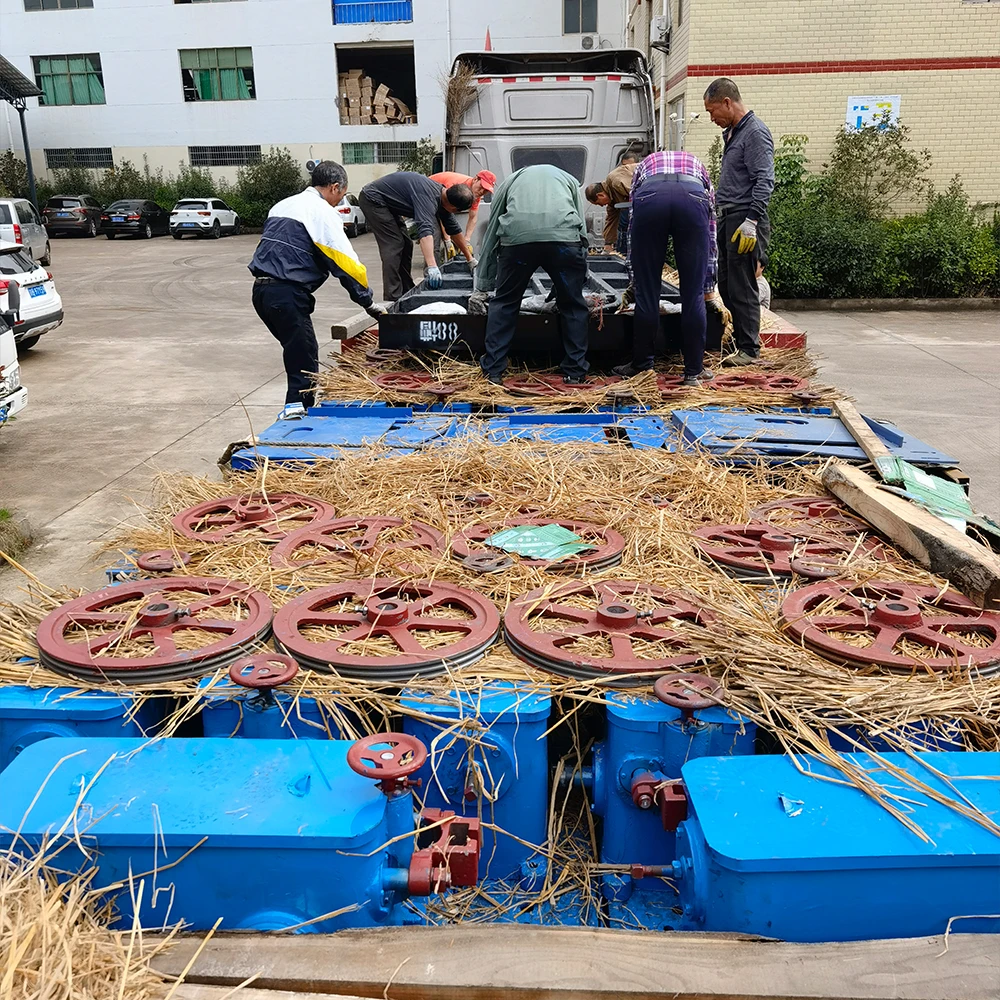

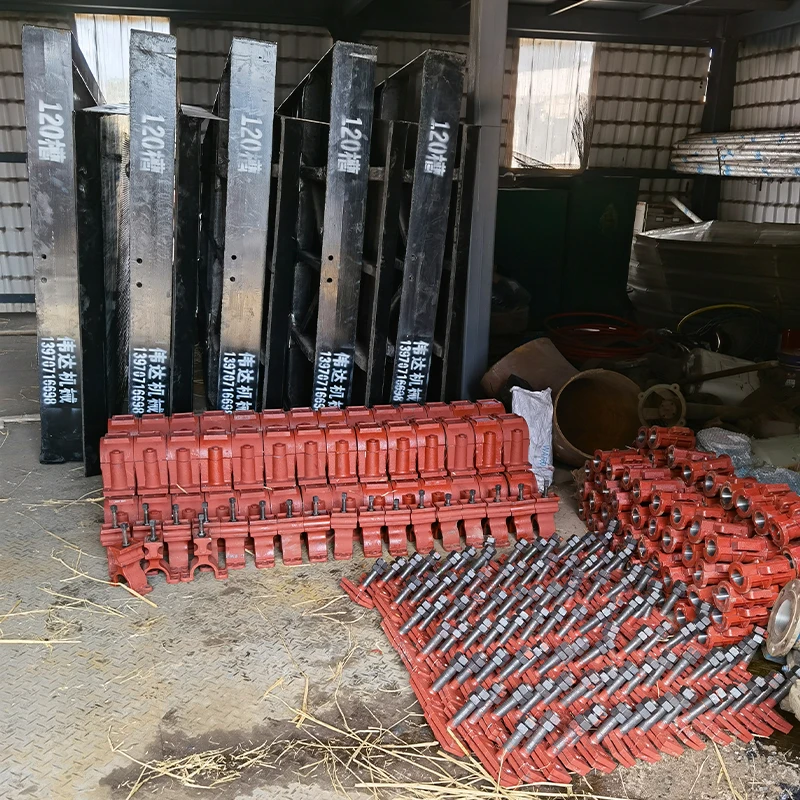

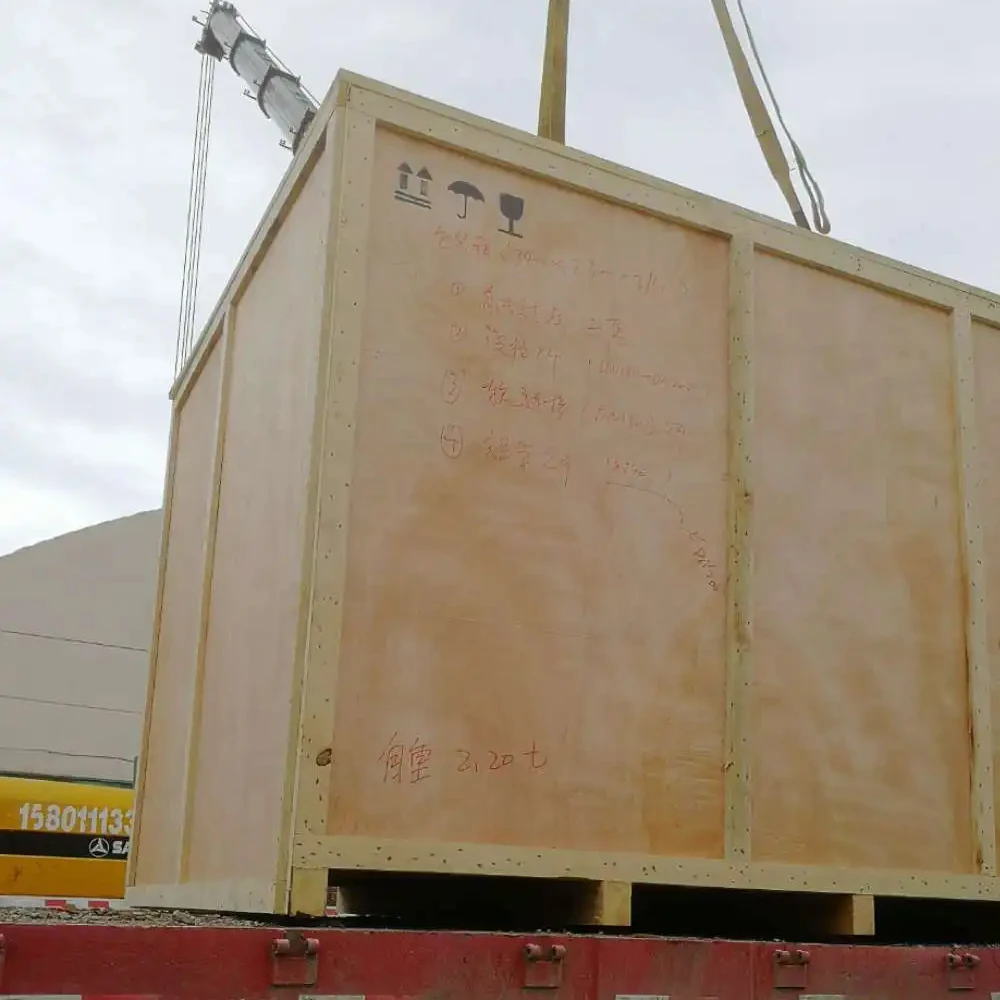

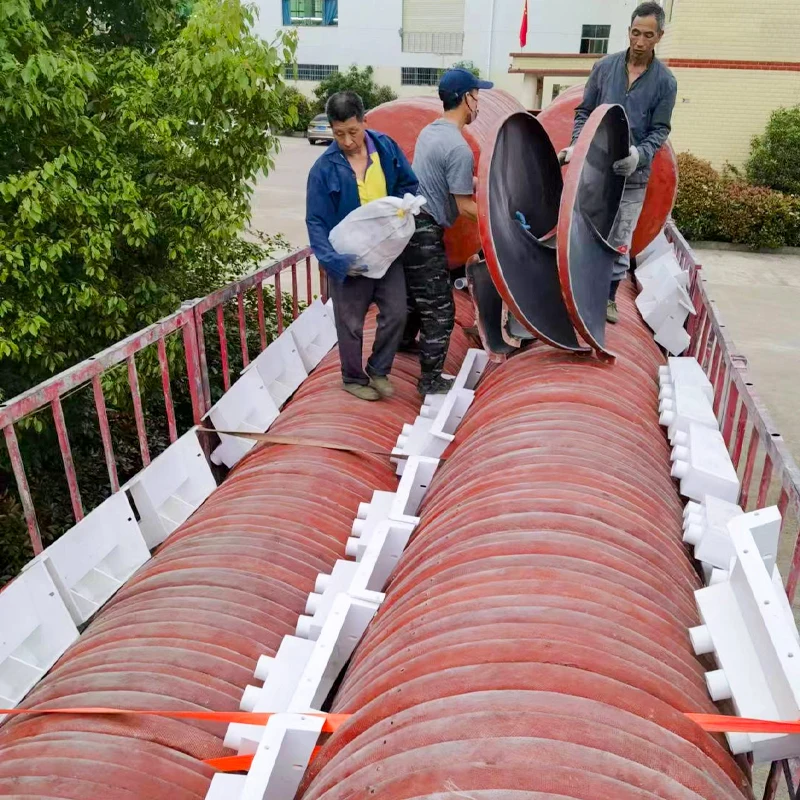

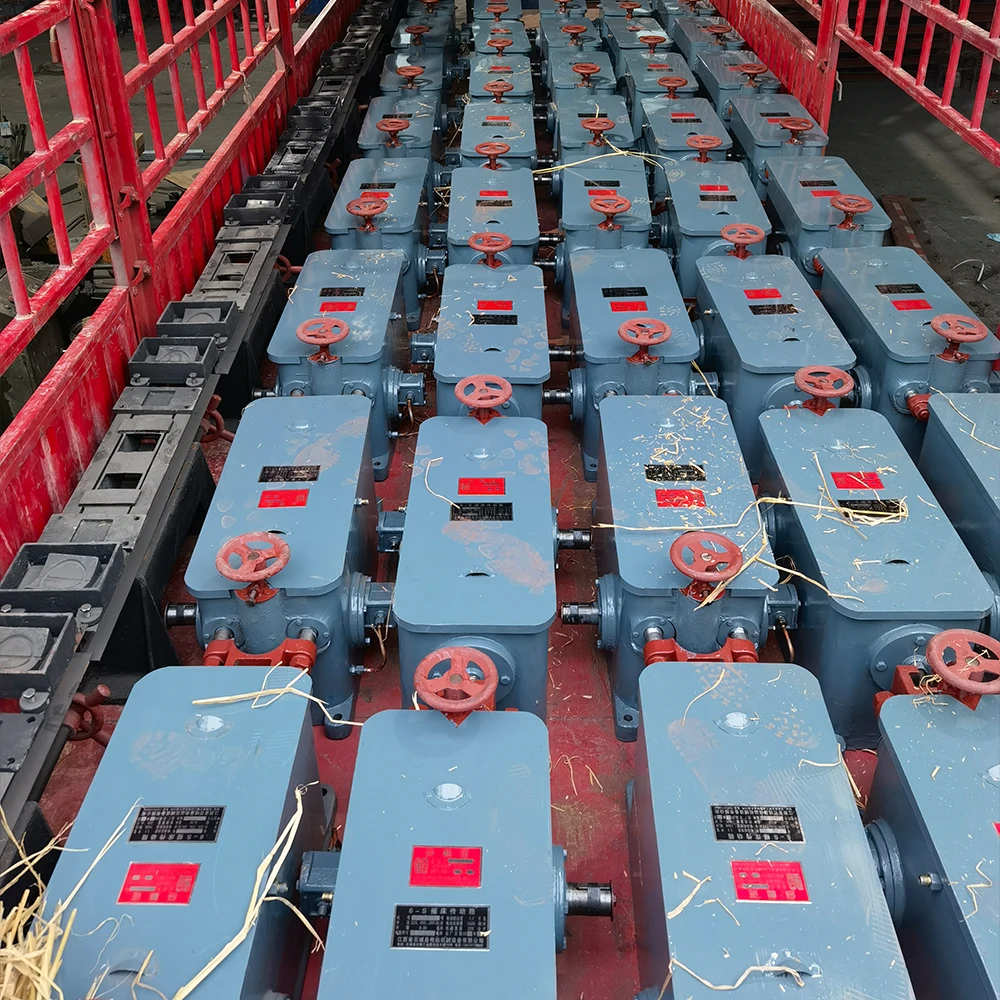

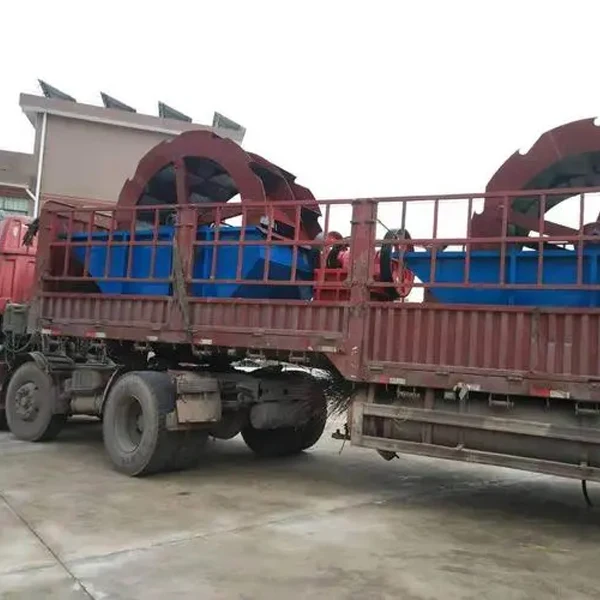

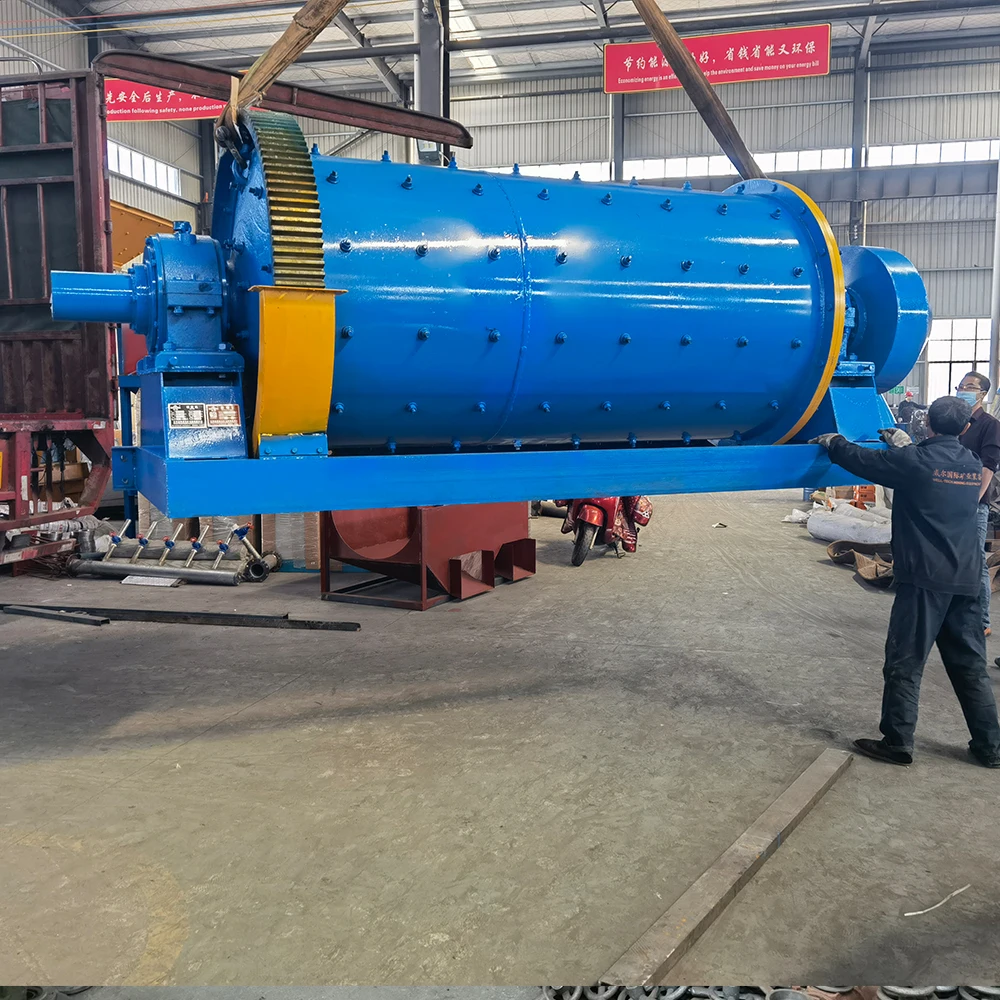

DELIVERY SITE














Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.

Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.

Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.

Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
