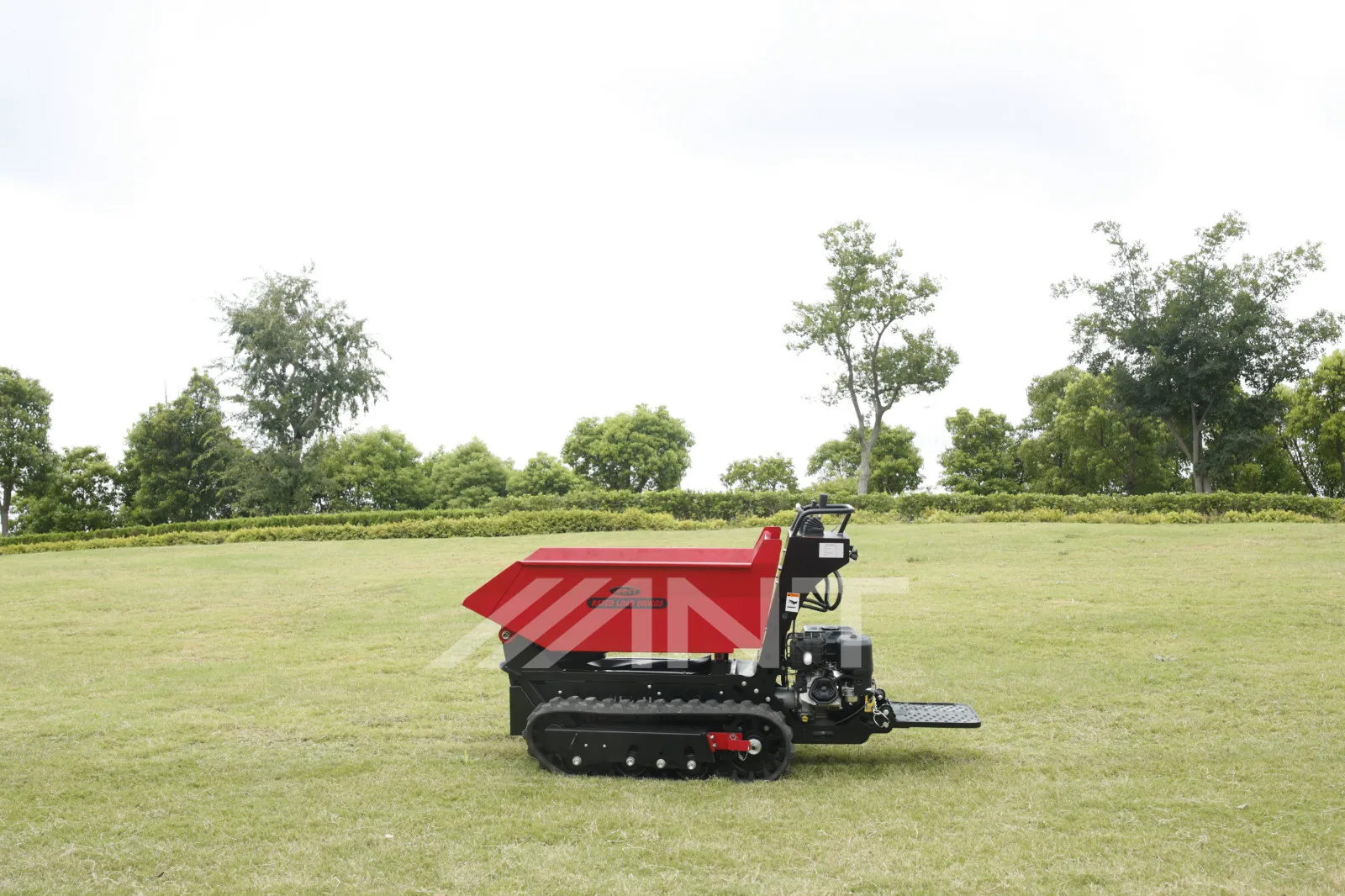

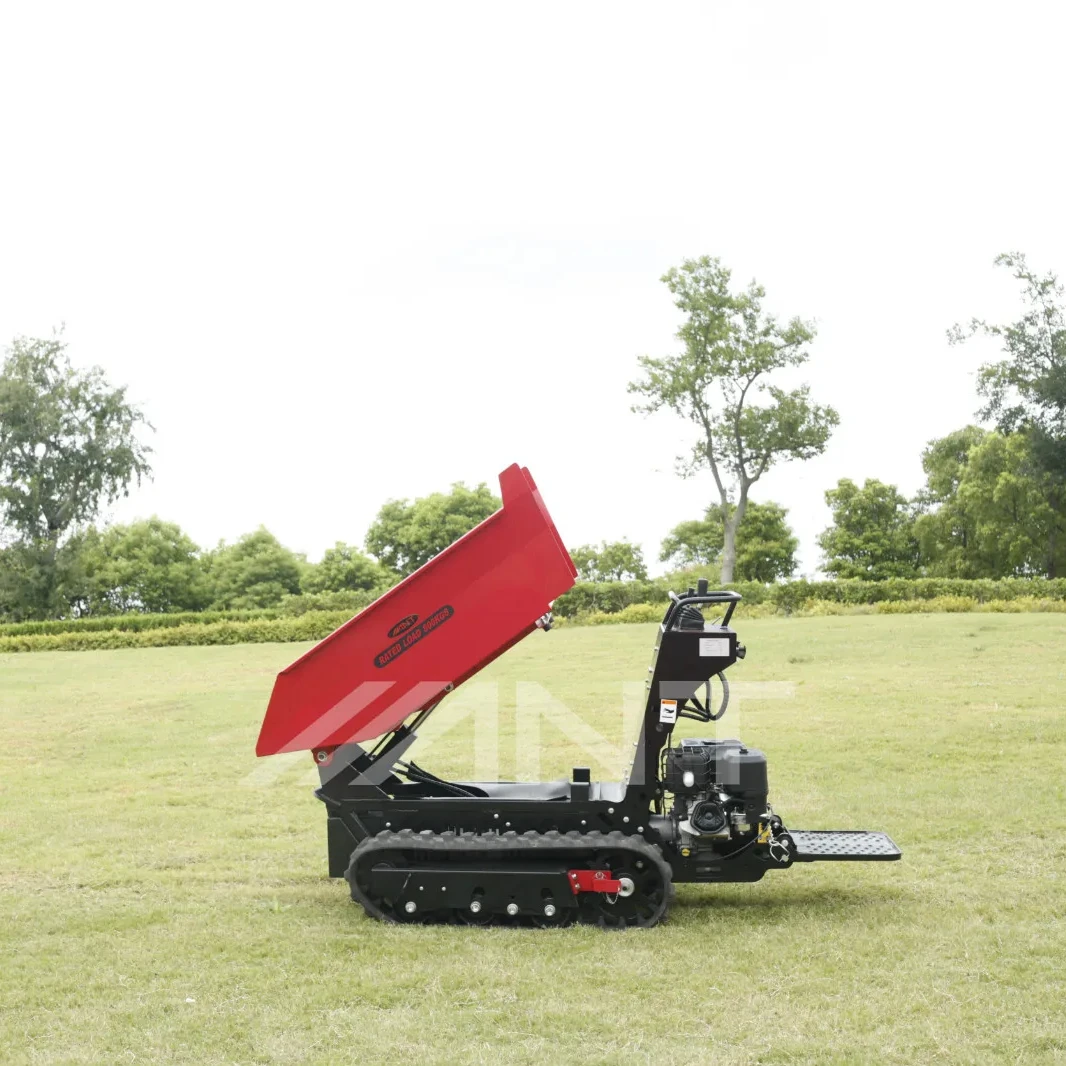

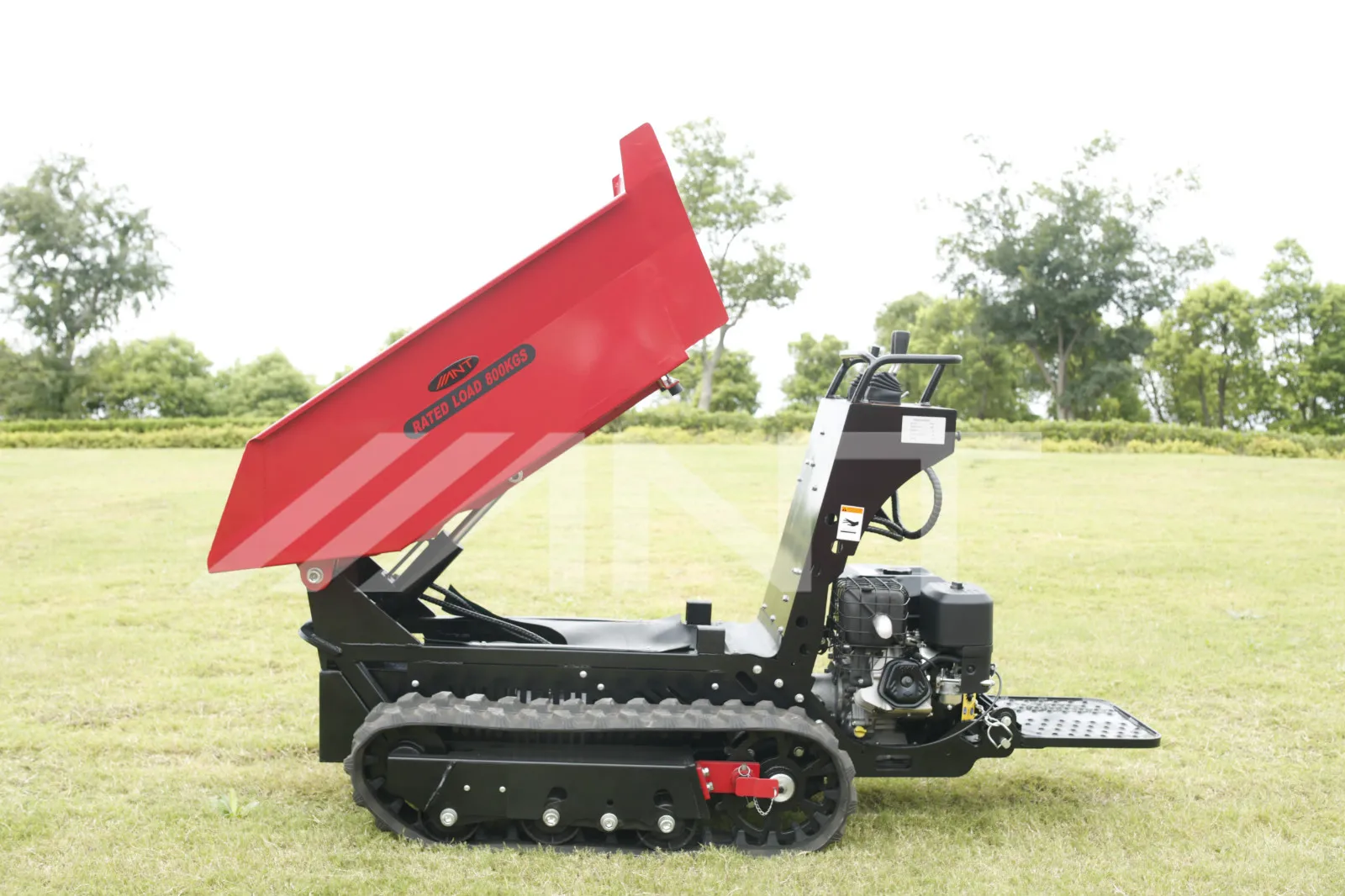

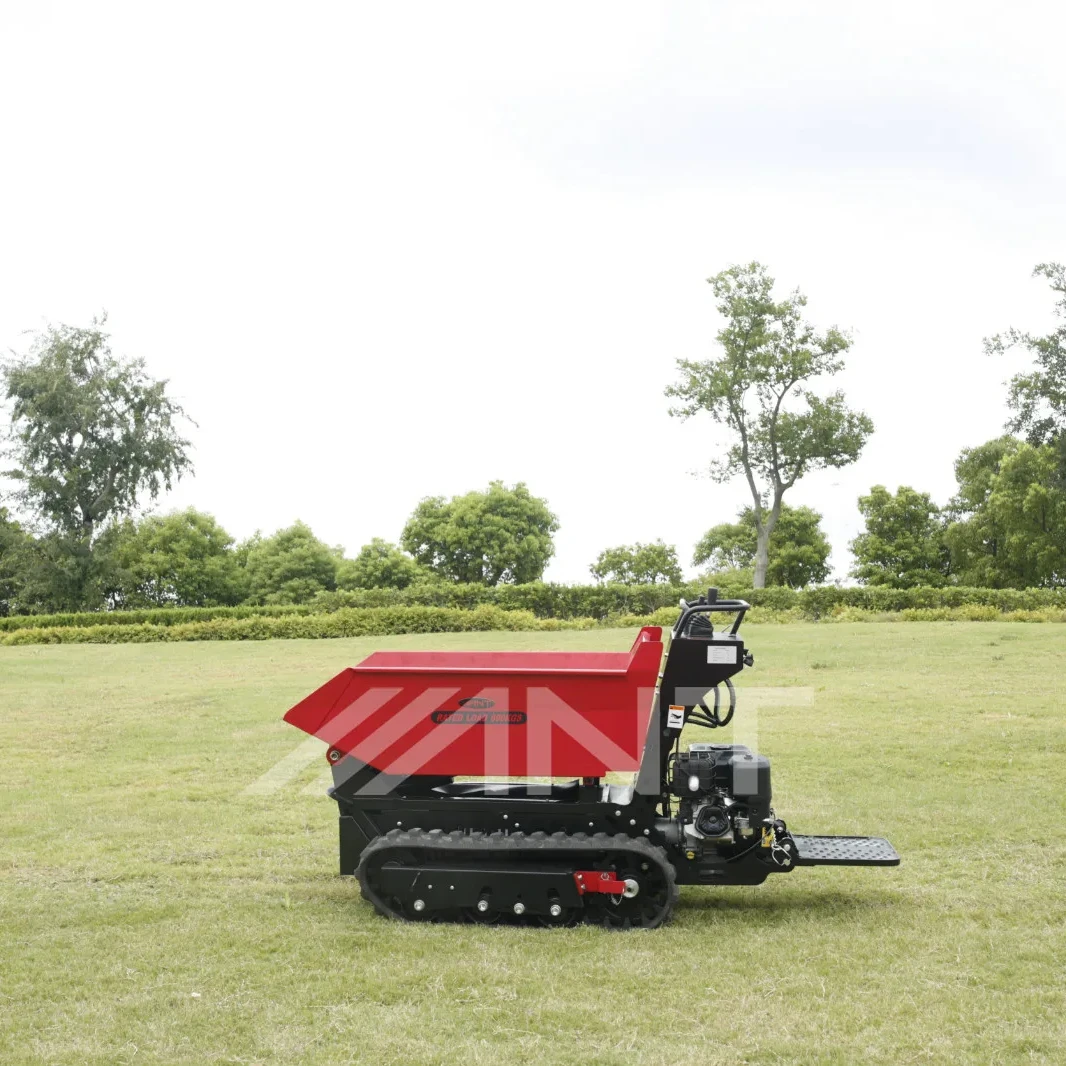

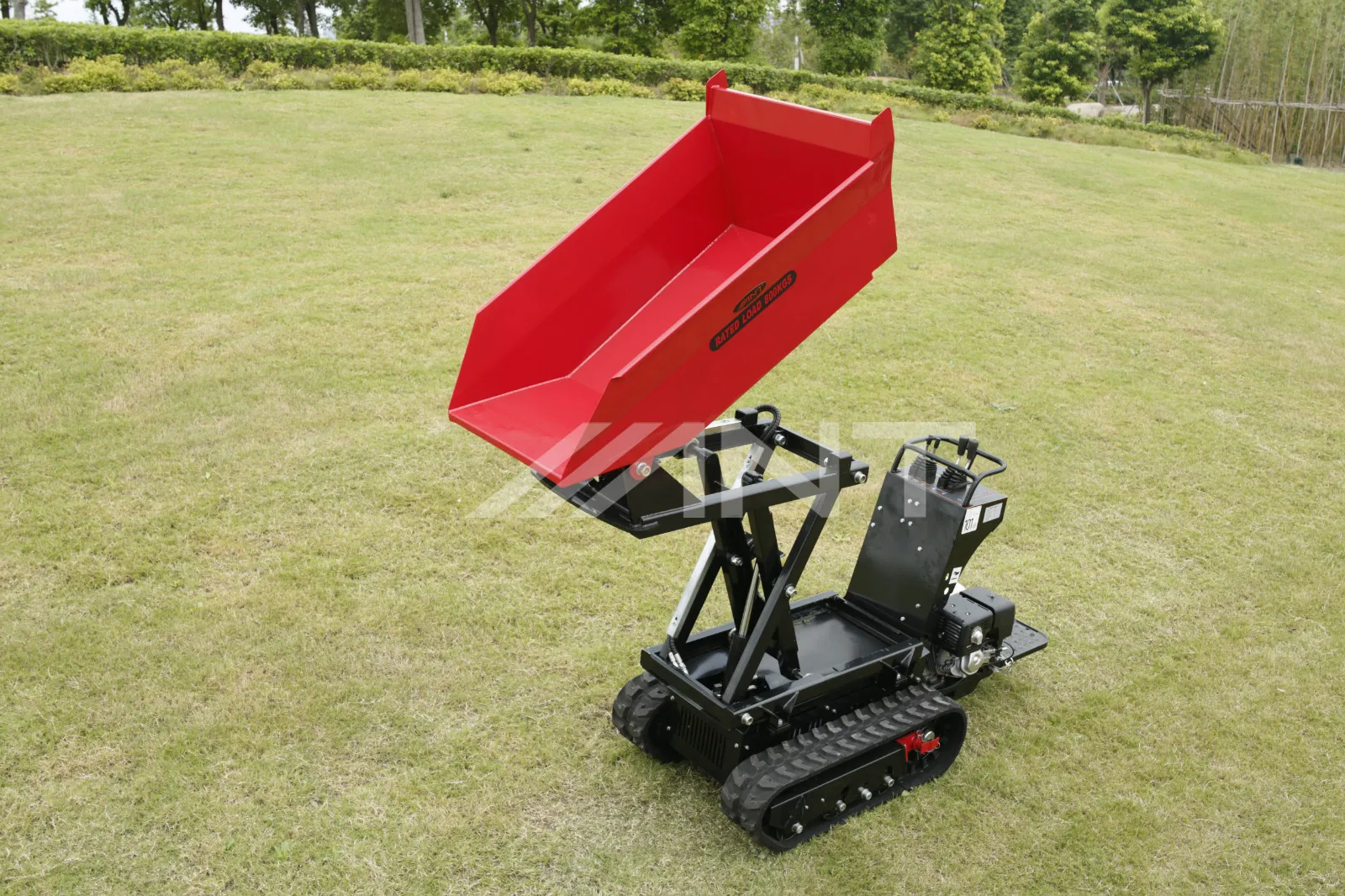

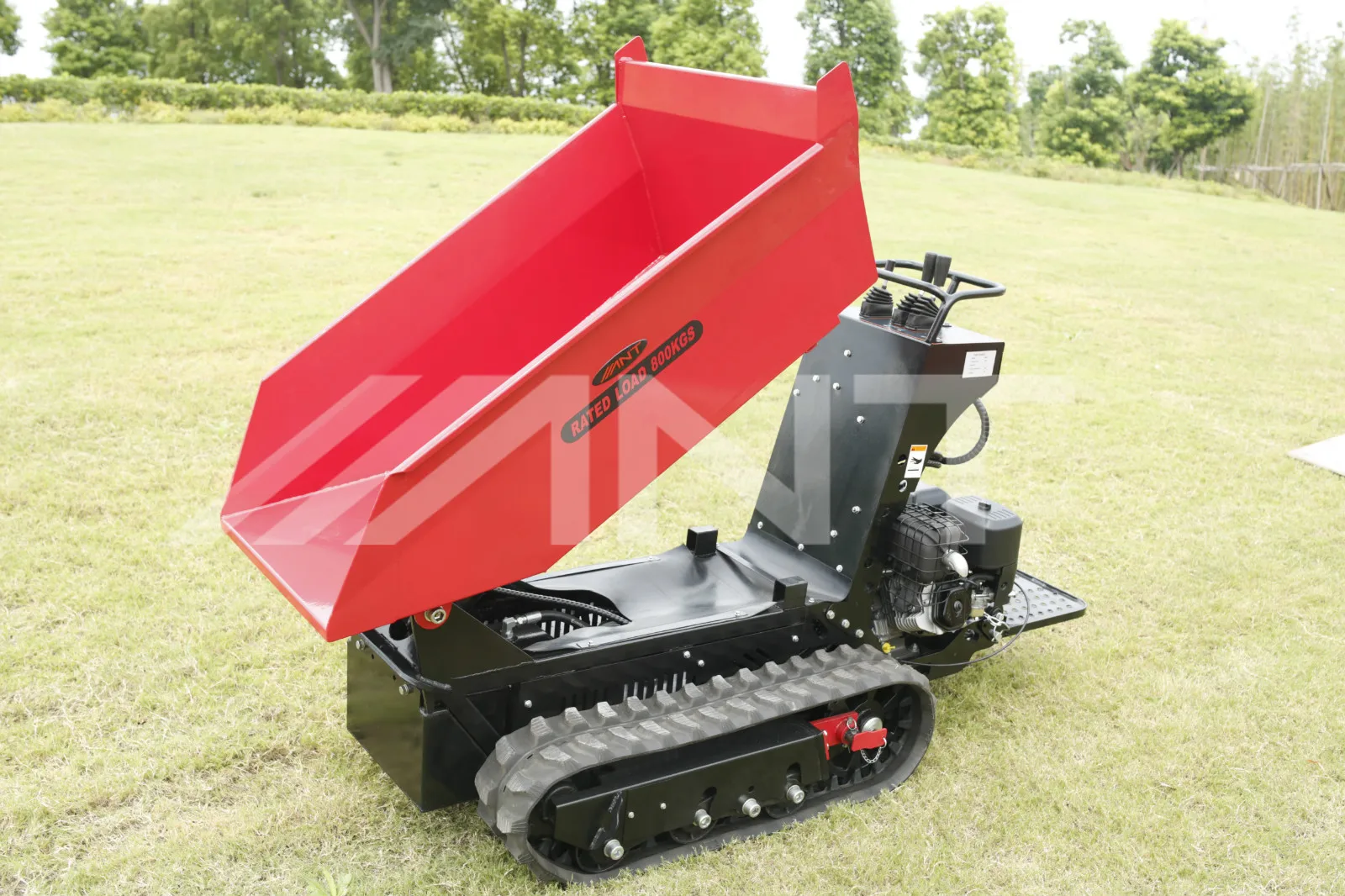

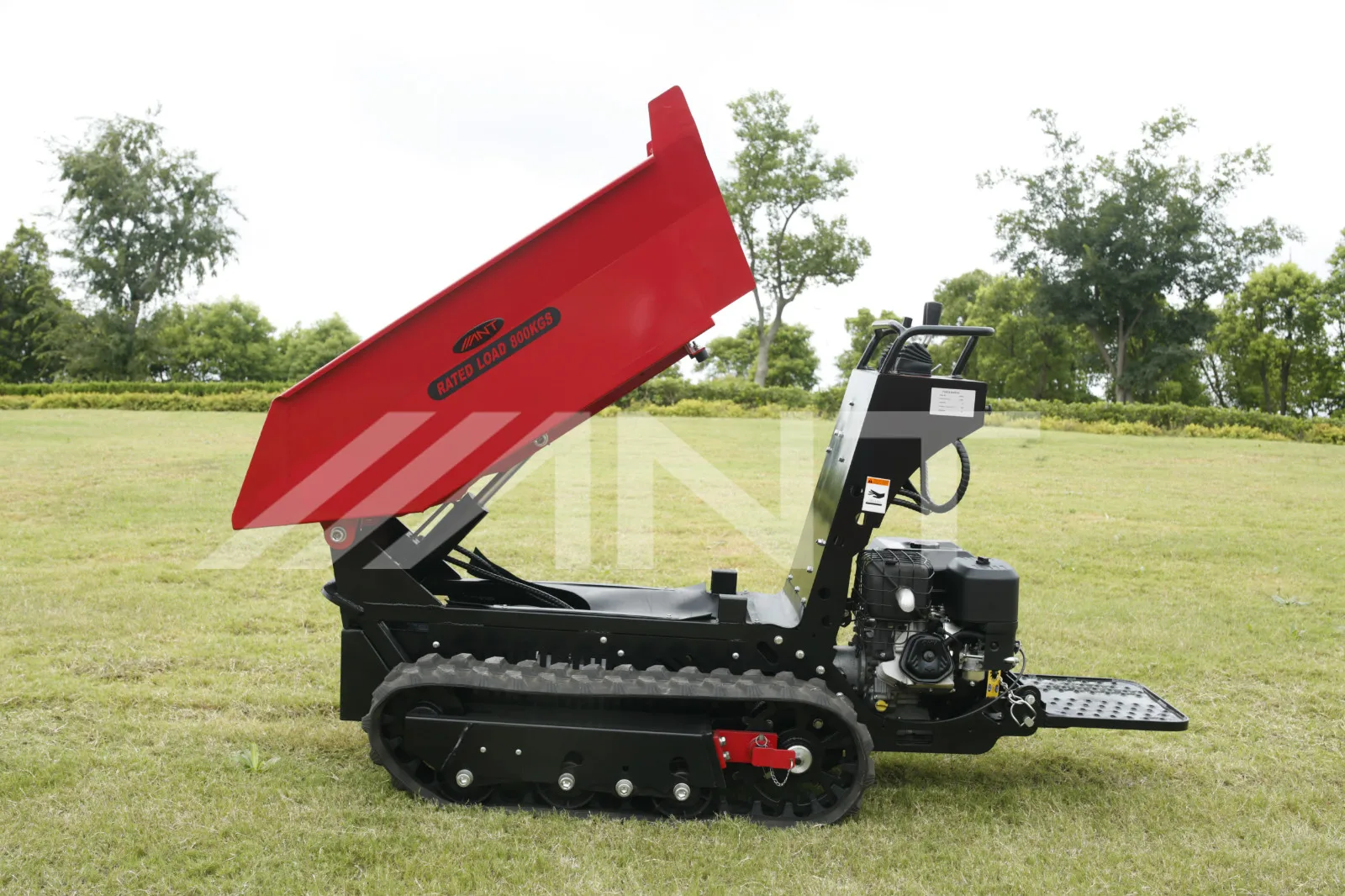

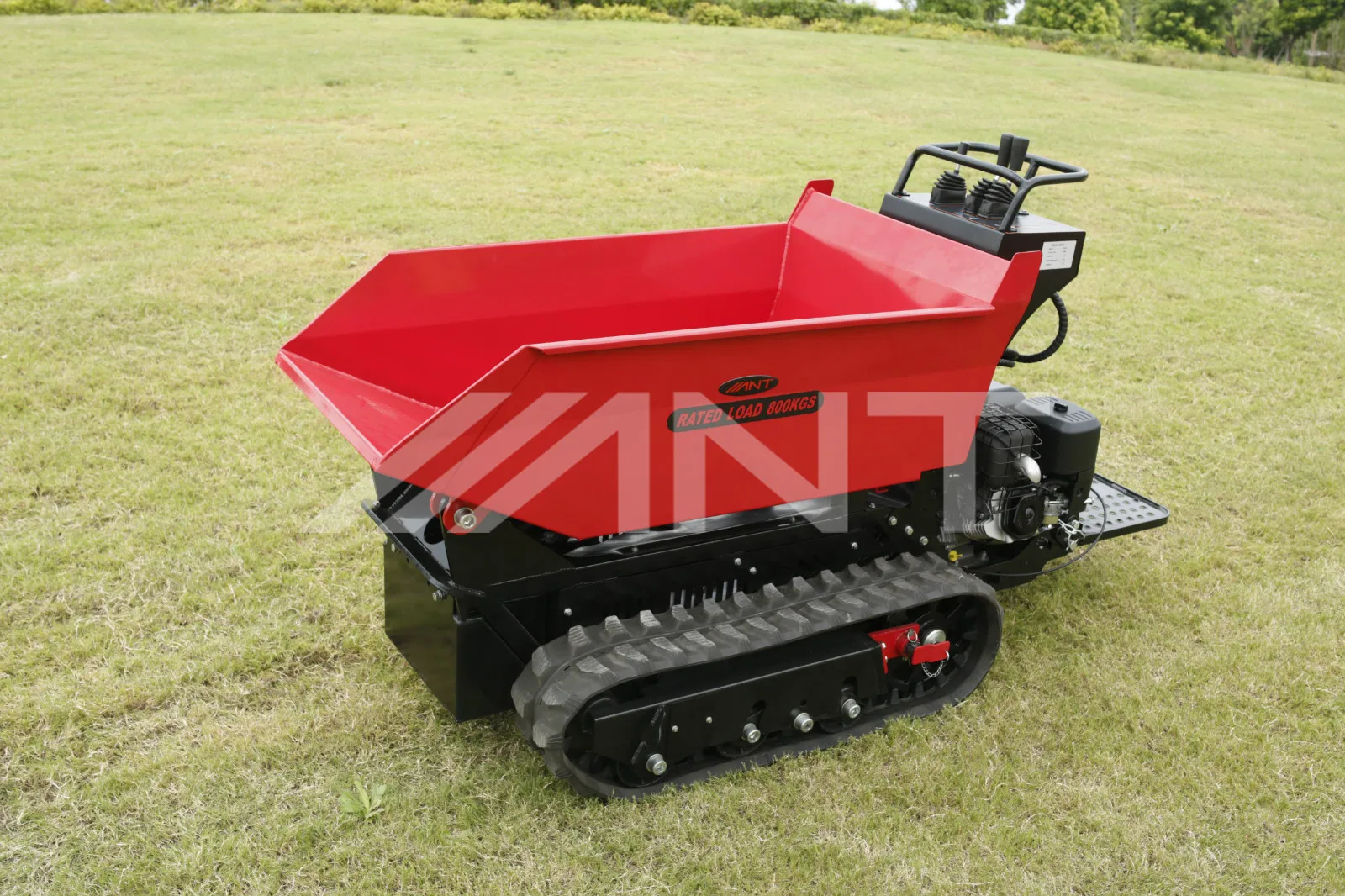

ANT Mini Crawler Dumper Agriculture Mini Dumper Truck Front End Loader BY800S
- Category: >>>
- Supplier: Nantong Ant Machinery Co. Ltd.
Share on (1601002690445):
Product Overview
Description
Product Description
Advantage:
1.Easy and comfortable operation due to the intuitive controls.
2.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
3.Easy climbing and stable crossing the obstacles.
4.Spot turning, mini slipping.
| Specification | |||
| BY800S | mini dumper | ||
| Engine | B&S 13.5HP or HONDA GX390 13.5HP or CHINA Diesel Engine | ||
| Weight | 625KG | ||
| Transmission system | Hydraulic system | ||
| Type: Hydrostatic | Hydraulic Pump: Piston Pump/ Gear pump | ||
| Hydraulic Motors: | 2x orbital | ||
| Brake Parking: | Mechanical | ||
| Cooler system oil: Cooler system oil: air | air | ||
| Skip Tipping System: Skip Tipping System: Hydraulic | Hydraulic | ||
| Loading Capacity | 800kg | ||
| Standard Track Width | 180mm(7.1in) | ||
| Track roller | 3 | ||
| Rockling rollers and track tensioning | Yes | ||
| Limited grade ability | 25° | ||
| Max Travel Speed | 6 km/h | ||
| Dimension | 190*90*135(retort stand) | ||
| Unloading | Self-unloading | ||
| HI-TIP | No | ||
| SELF SHOVEL | No | ||
| Loading Capacity | 20GP | 6 | |
| 40GP | 13 | ||
| Warranty | 3 years after leave factory | ||
| Payment Term | T/T | ||
| HS CODE | 8428909090 | ||
Packaging & Shipping
Company Information
FAQ
*Q:What's your MOQ ?
A:Depending on model.
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:1 year or 3 years, depending on configuration.
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case.
*Q:What's your payment method?
A: 30% T/T advance as a deposit,the balance paid off before transported to the loading port.
*Q:What's your delivery time?
A:Delivery timely about 30-40 days after receiving the deposit.
