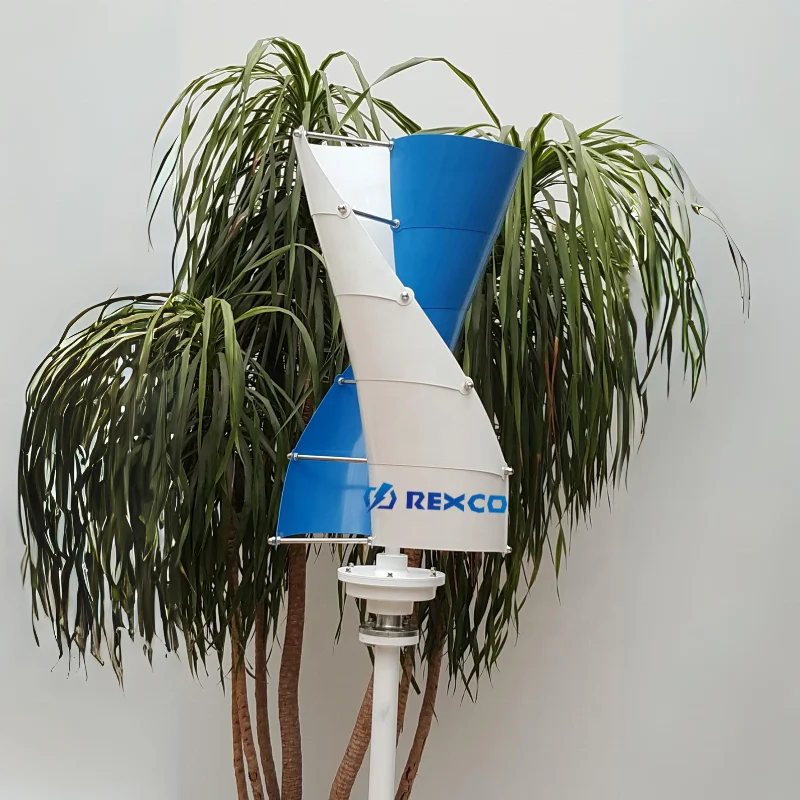

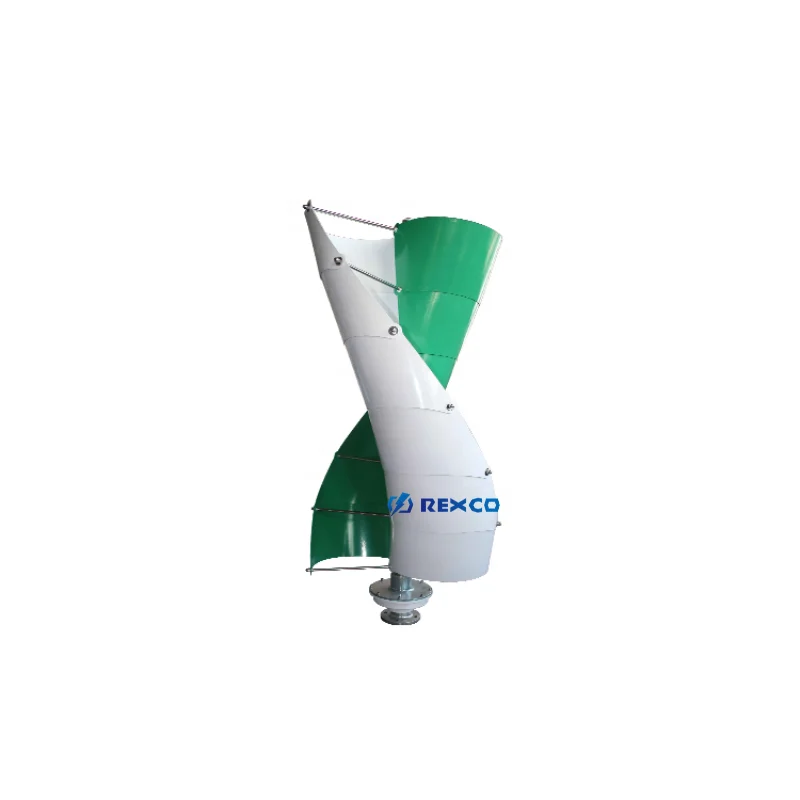

Low Operating Noise Vawt 600w 800w 1kw 2kw power generator High Efficiency Vertical Wind Turbine generators for home

Model

RC-600SV-A

Rated Output

600W

Peak Output

610W

Rated Voltage

24V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3.5m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

10

Rotor Diameter

0.65m

Blade Material

Casting aluminum alloy

Generator Type

3-phase Maglev with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Net Weight

22.5kg

Tower Connector

Flange

Flange Size *

DN40

Tower Type *

Guy Cable Tower

Tower Size *

3mX2, 76*3mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

Applications

on/off-grid solar & wind hybrid system etc.

Measurement

127*31*31cm

Gross Weight

27.5kg
