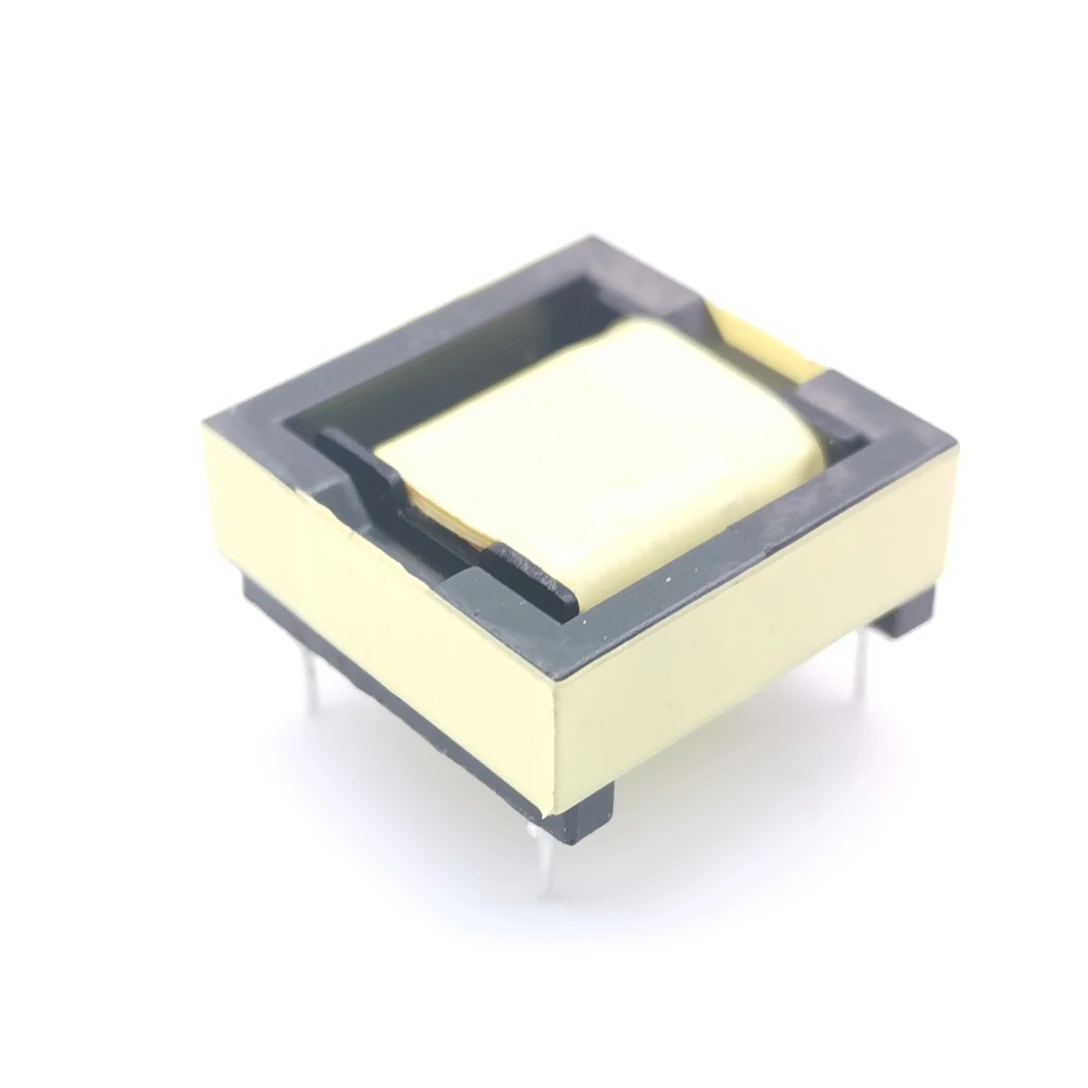

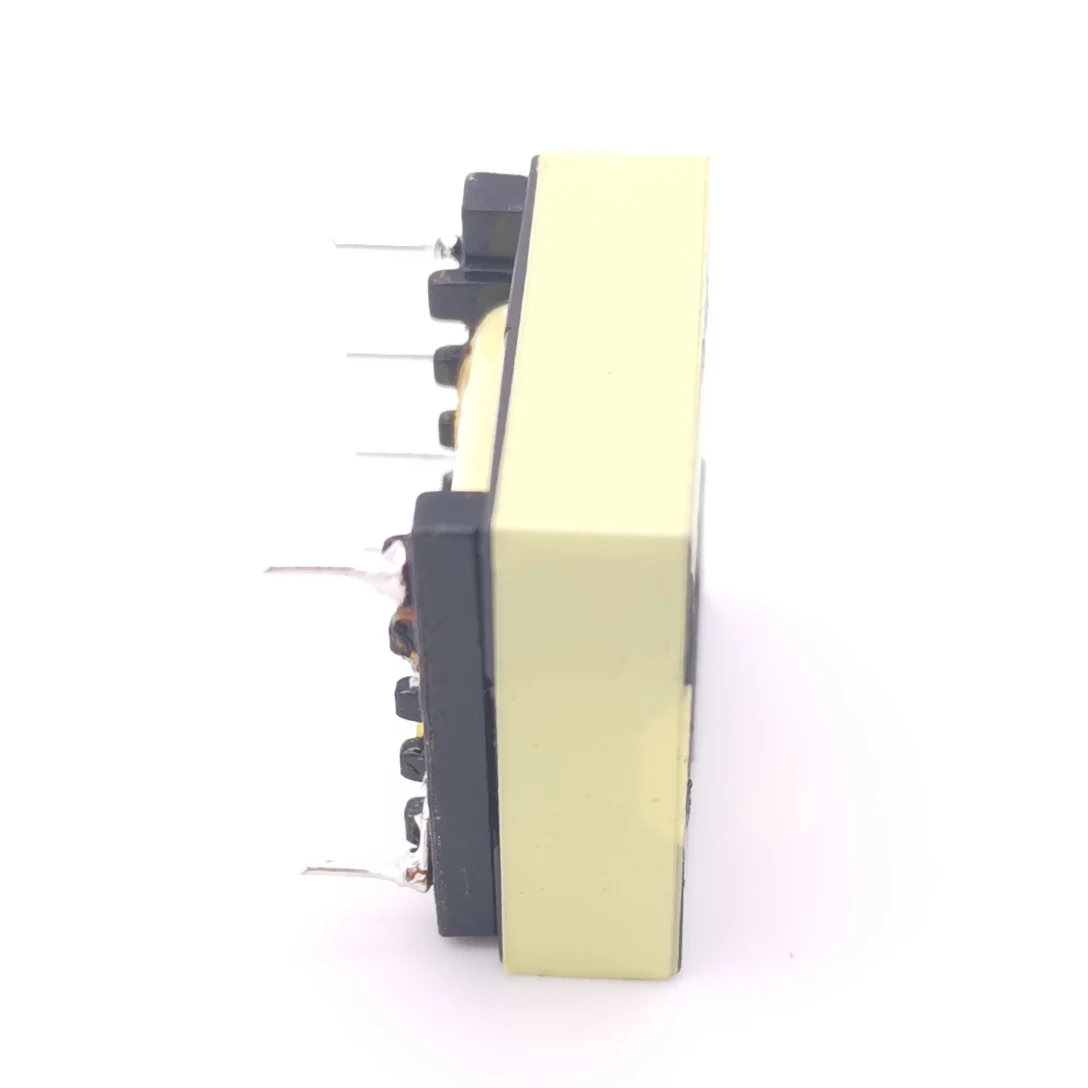

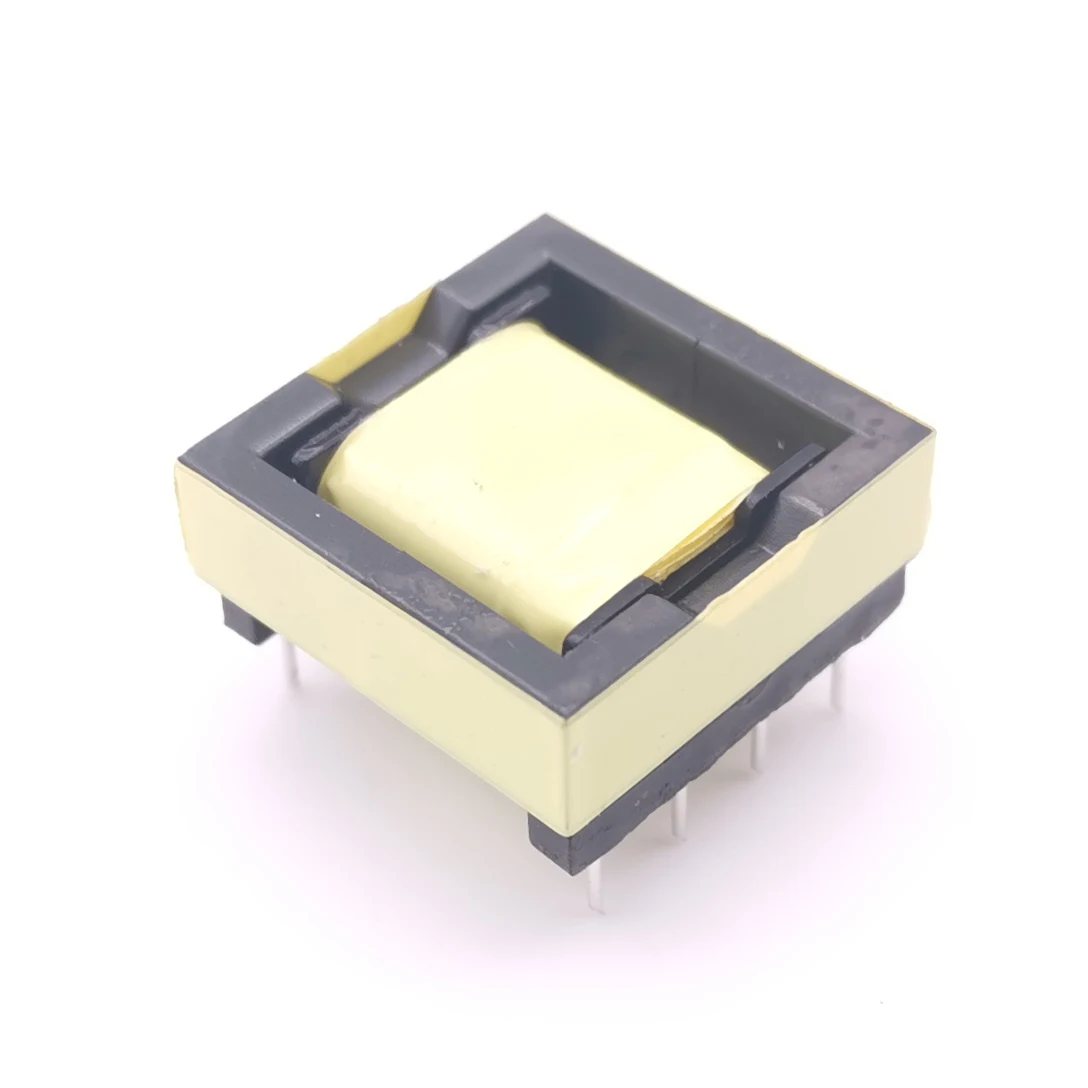

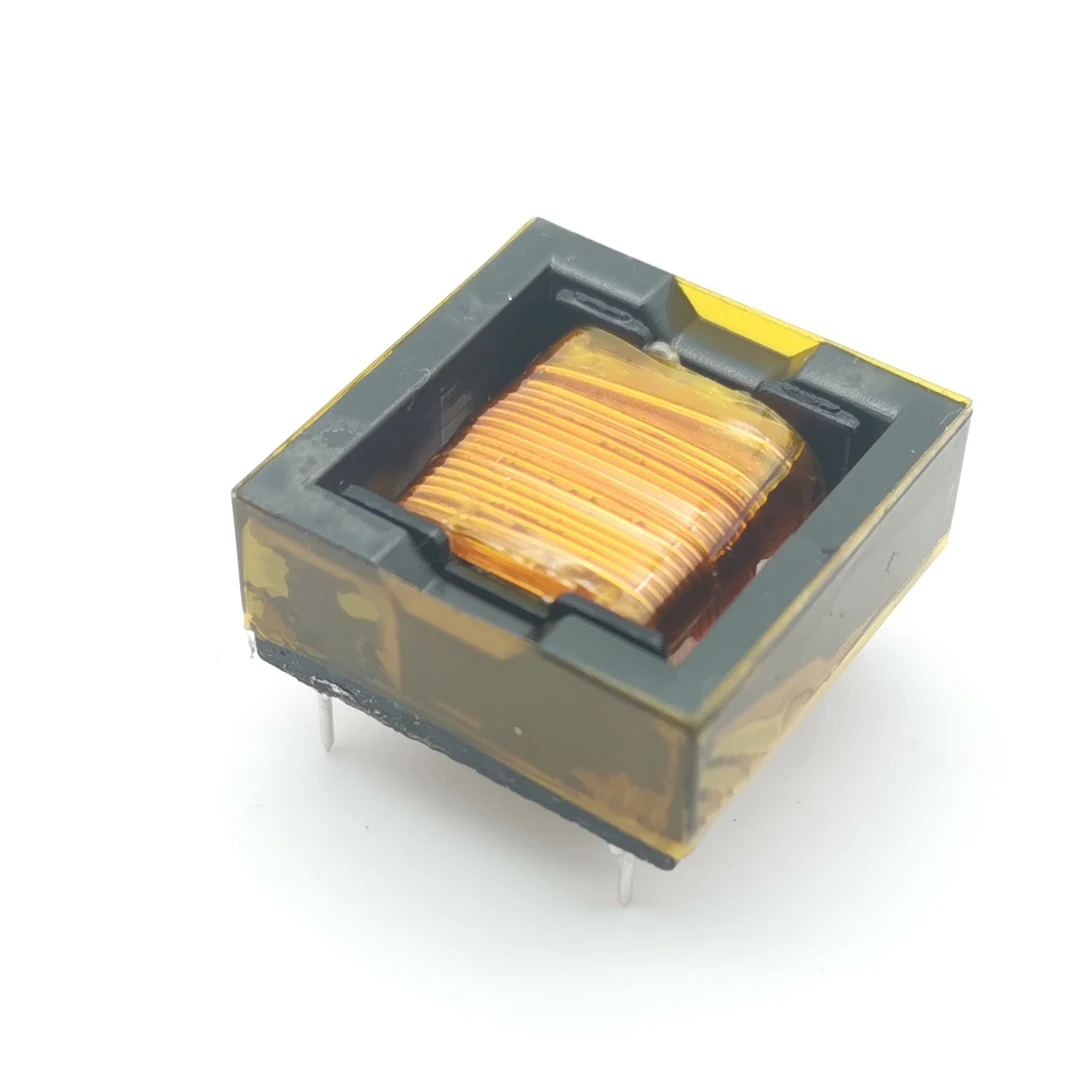

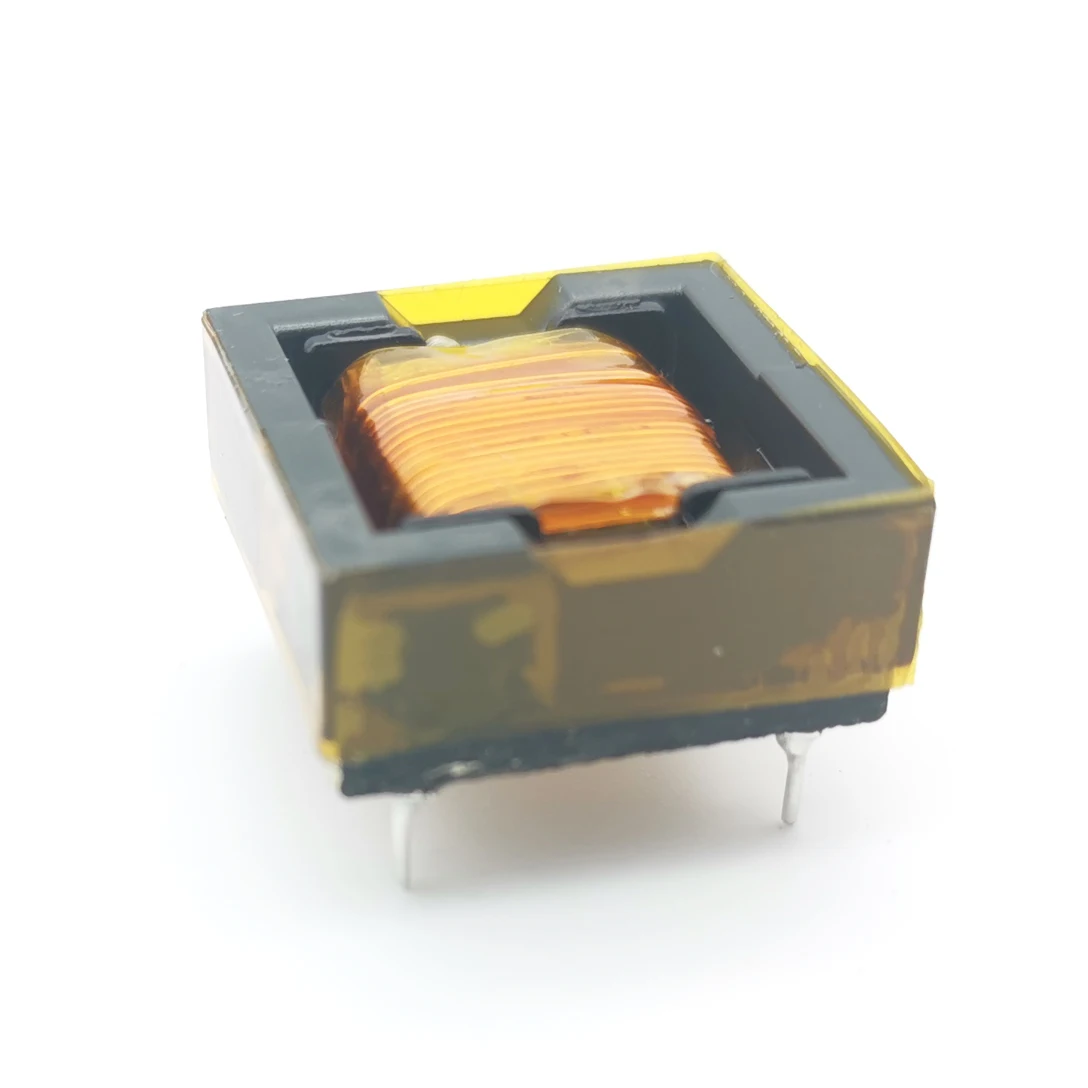

Hot sell High-Frequency Transformer - EFD20 Type
This type of product can be used in Household appliances, LED drivers, TV sets, Printers, etc.
| Part No.: | TYH-EFD20-05 | Materials: | Product Picture: | ||||||||||||||||||||||||||||||||
| Features: | Ferrite core: EFD20/ PC40 | ![]() | |||||||||||||||||||||||||||||||||
| Customizable, Competitive price, Free sample | Phenolic bobbin: T375J /150℃ 94V-0 | ||||||||||||||||||||||||||||||||||
| With a good magnetic shield from itself and slight interference. | Copper wire: 2UEW Φ0.38mm /130℃ | ||||||||||||||||||||||||||||||||||
| Triple insulated wire: TIW-F Φ0.65mm/155℃ | |||||||||||||||||||||||||||||||||||
| High-temperature resistant | Insullac: T4260 | ||||||||||||||||||||||||||||||||||
| High isolation strength | Polyester tape: 0.025T 13, 11, 2 /130℃ | ||||||||||||||||||||||||||||||||||
| High efficiency of over 95% | Solder: Sn-0.7Cu / Lead-free | ||||||||||||||||||||||||||||||||||
| Working frequency range: 10KHz-500KHz | |||||||||||||||||||||||||||||||||||
| Operating temperature: -40°C to +125°C | |||||||||||||||||||||||||||||||||||

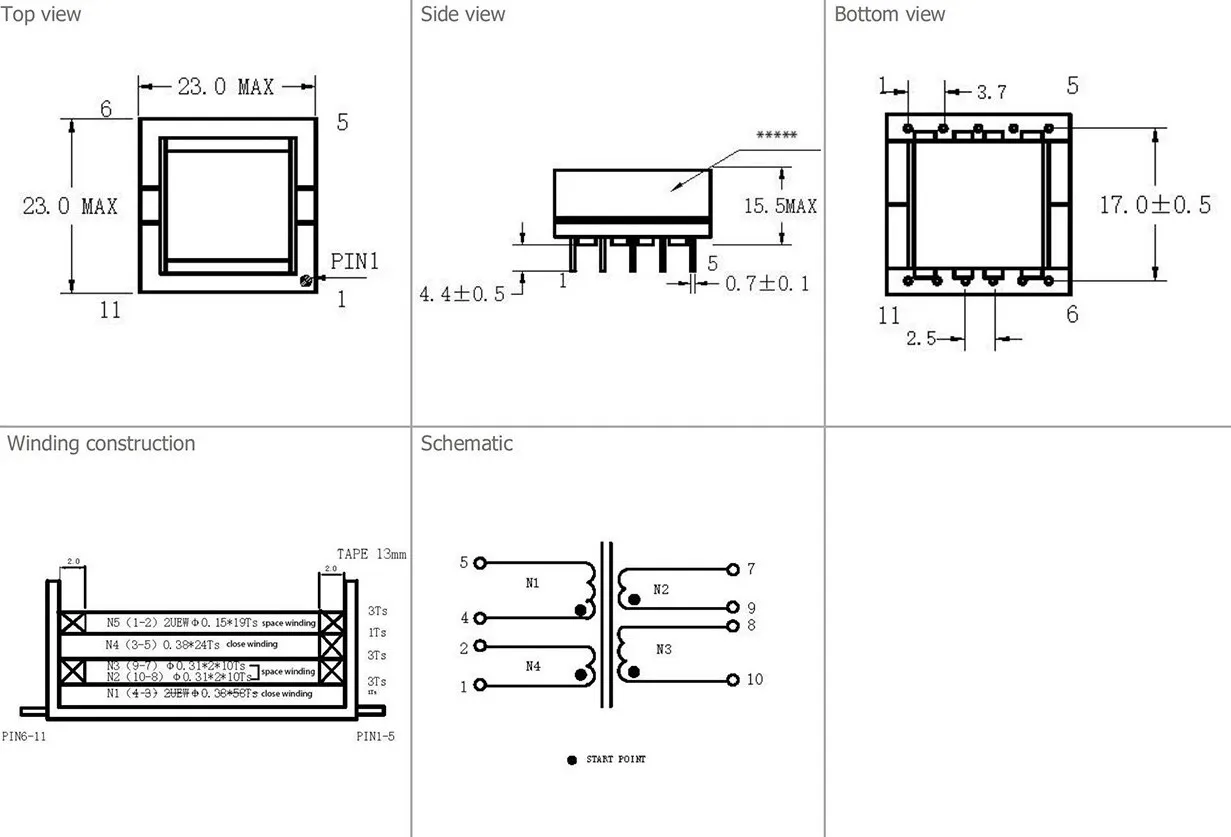

Dimensions:(Unit:mm)
![]() |
Electrical Characteristics:
| No. | Items | Test Terminals | Specification | Test Conditions (At 25℃) | Test meters | ||||||||||||||||||||||||||||
| 1 | Inductance | 4-5 | L=520uH±8% | at 1KHz/0.3V | HP-4284A | ||||||||||||||||||||||||||||
| 2 | Hi-Pot | NP-NS | No Abnormal | 3700Vac 50HZ 2mA/60sec. | DZ2672B | ||||||||||||||||||||||||||||
| 2500Vac 50HZ 1mA/60sec. | |||||||||||||||||||||||||||||||||
Similar types:
EFD15, EFD20/21, EFD25/26, EFD30
