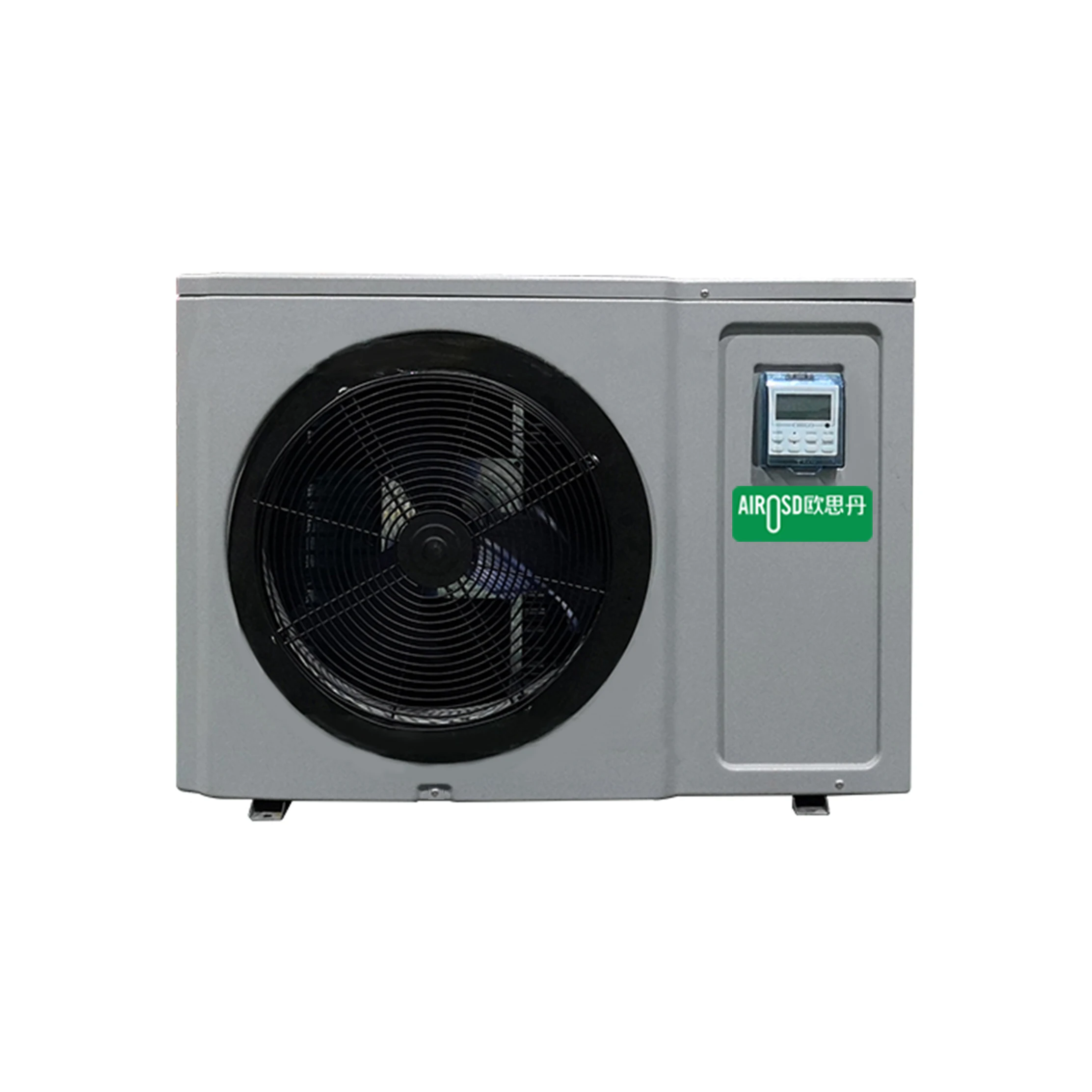

DC Inverter Swimming Pool Heat Pump With Constant Temperature
- Category: >>>
- Supplier: Foshan Airosd Thermal Technology Co. Ltd.
Share on (1601002764434):
Product Overview
Description
AirOSD Swimming Pool Heat pump are specially designed and engineered for pool or spa water temperature control. The V-shape design condensers airflow direction and intelligent control system can let the units high efficiency and stable working performance.
The COP could be 5.4 which saves at least 80% energy compared with traditional electric swimming pool heating equipments.

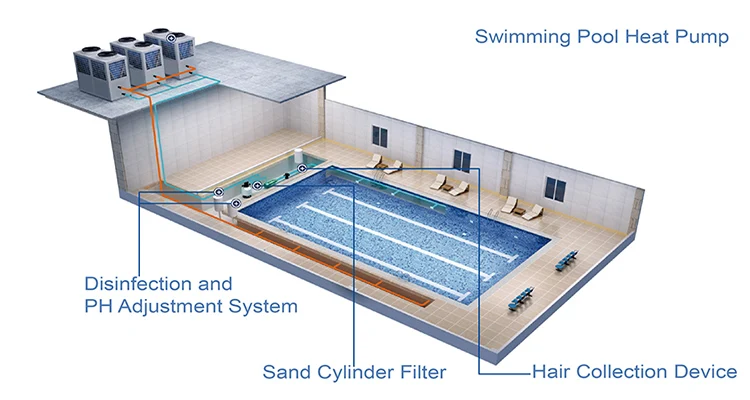

Suitable for large pools in hotel, public parks, schools, sport center, gyms, etc.
enter, gyms, etc.

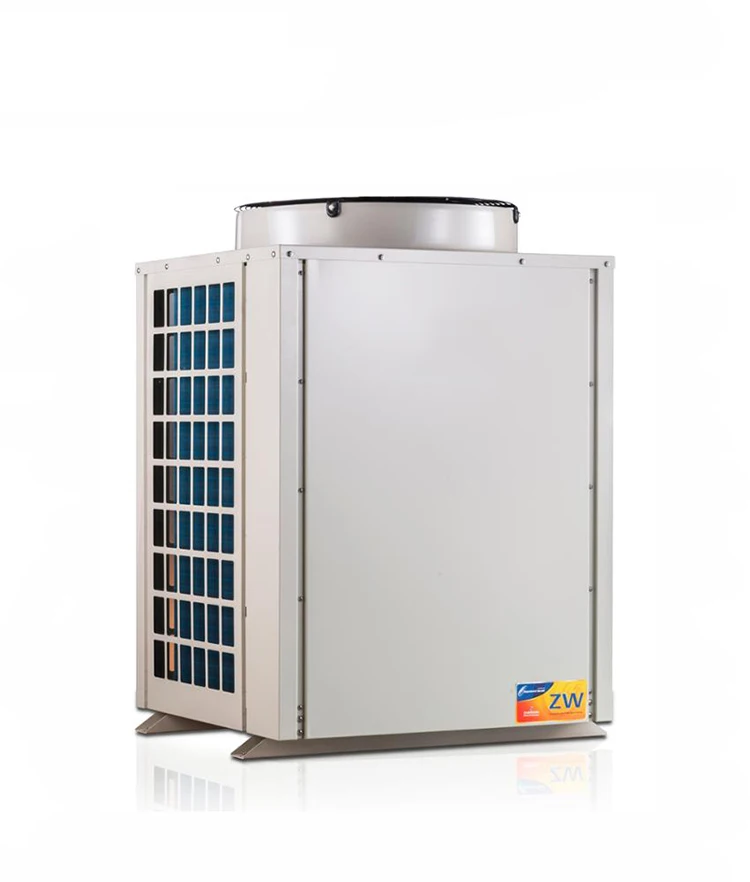

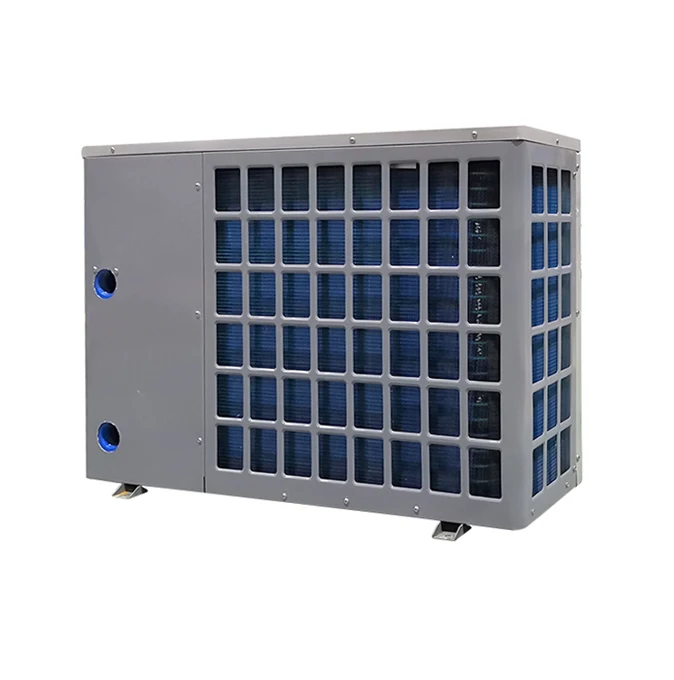

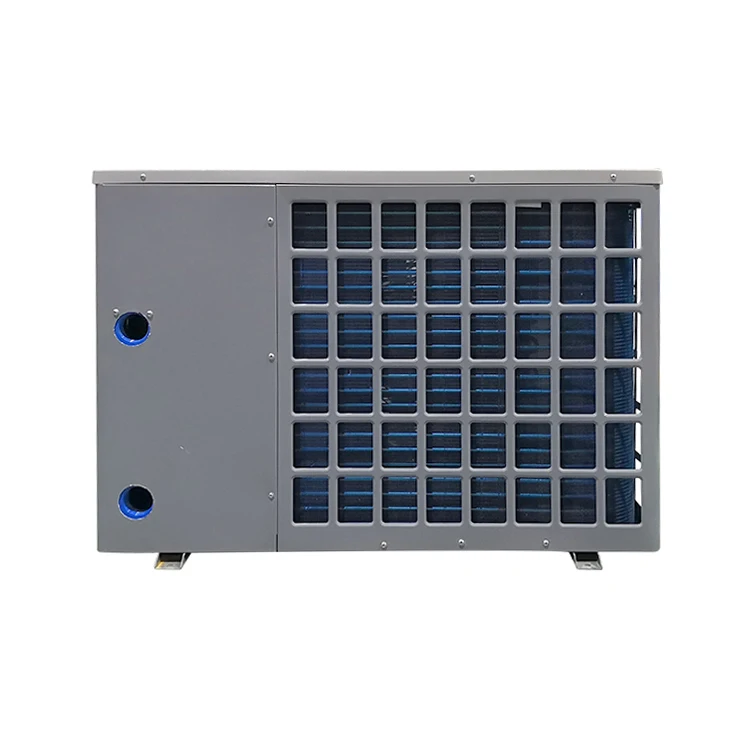

DC Inverter Swimming Pool Heat Pump With Constant Temperature
Main Features
1) PVC Titanium heat exchanger with full resistance against corrosion, more durable.
2) Compact structure, easy demountable for access.
3) High efficiency compressor, saving energy.
4) Flow switch for water flow protection.
5) Intelligent controller and adjustment by quick mind microprocessor.
6) Intelligent LCD display wired controller.
7) Air exchanger (fins-coil )with hydrophilic coating.
8) Automatic defrosting function included.
Optional: R410a, R22, R407c refrigerant is available.
Model | KFXY-018UCI | ||
Heating mode | Circulating | ||
Ambient temp.range | -15~+43℃ | ||
Rated heating capacity | 19KW | ||
COP | 5.2W/W | ||
Rated input power | 3.65KW | ||
Max. Running Current | 13A | ||
Power supply | 380V 3N~50Hz | ||
IP Code | IPX4 | ||
Safety function | High and low pressure protection, Overload protection, Temperature protection, Power phase sequence protection, etc. | ||
Refrigerant type | R407C | ||
Compressor QTY | 1 PCS | ||
Compressor type | Scroll | ||
Max. outlet water temperature | 40℃ | ||
Water side heat exchanger type | Titanium tube heat exchanger | ||
Air side heat exchanger type | Finned heat exchanger | ||
Circulating waterpipe nozzle | G1.5''Internal thread inch | ||
Outlet nozzle | G1.5''Internal thread inch | ||
Rated water flow | 8.17 m³/h | ||
Air out type | Top discharge | ||
Fan motor QTY | 1 PCS | ||
Noise | 56 dB(A) | ||
machine dimension (W × D×H) | 750×690×1070 (mm) | ||
Packing dimension (W × D×H) | 800×740×1200 (mm) | ||
Net weight | 130kg | ||
Gross weight | 160kg | ||
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are a manufacturer of R&D and production heat pumps which is located in Foshan city, Guangdong province of china. We can provide different kinds of heat pumps as you need, such as EVI inverter heat pump, DC inverter heat pump and swimming pool heat pump ect.. We also can provide OEM/ODM services.
Q: How long is the product lifespan?
A: In general, with proper maintenance, its lifespan can last up to more than 15 years.
Q: If the temperature drops below zero, will the air source heat pump still work?
A: Yes, AIROSD Air Source heat pumps with EVI technology can operate high efficiently when the temperature downs to -30°C.
Q: What is the benefits of air source heat pumps?
A: One Bill : Air source heat pump runs on electricity, so there's no need to pay for gas, oil or solid fuels to heat your house. You eliminate the standing charge for mains gas supply, delivery charge for oil and solid fuel, etc. .
Save space : Air source heat pump system is compact, and requires no storage space for fuel.
Energy Saving : Air source heat pump can make energy saving up to 75% than traditional electrical water heater.
