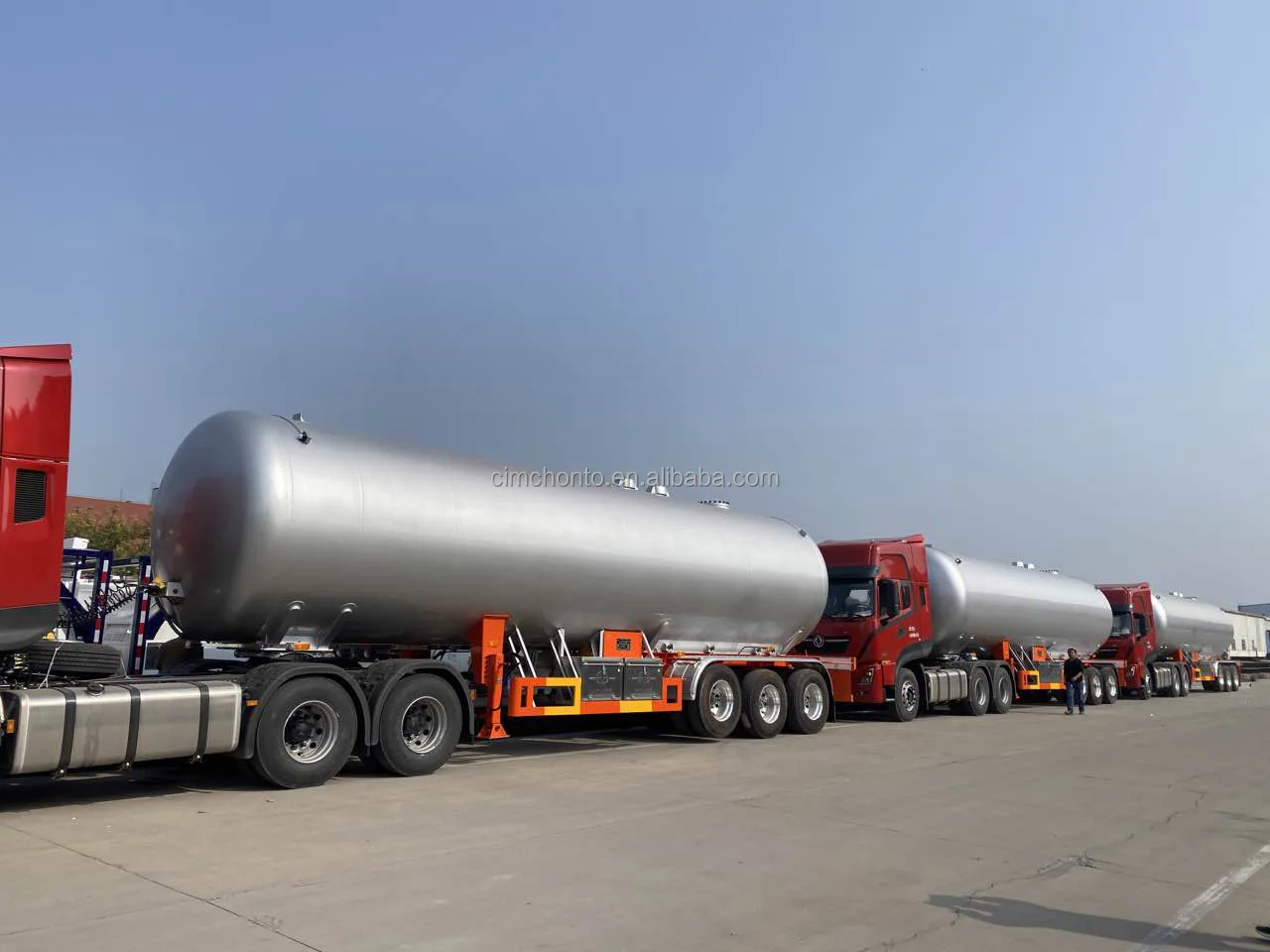

56.1 M3 26 T LPG Tank Semitrailer Triple Axles Transport Truck Road Tanker for Sale to Africa
- Category: >>>
- Supplier: Jingmen Hongtu Special Aircraft Manufacturing Co. Ltd.
Share on (1601002943094):
Product Overview
Description
Products Description

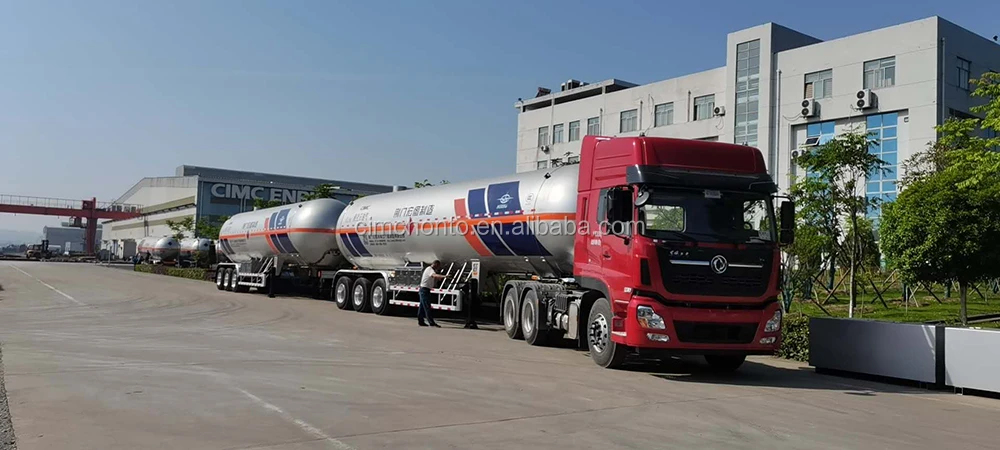

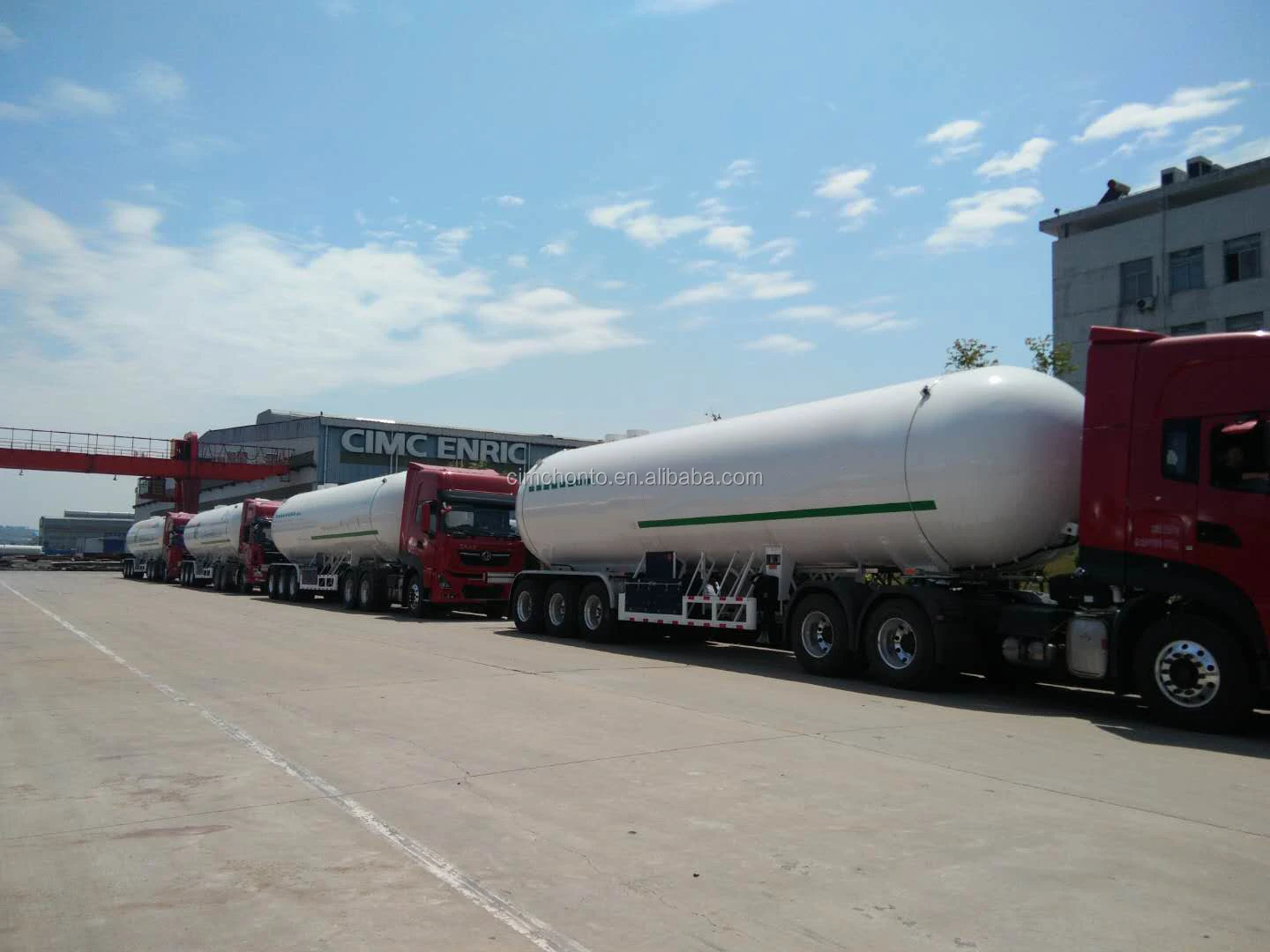

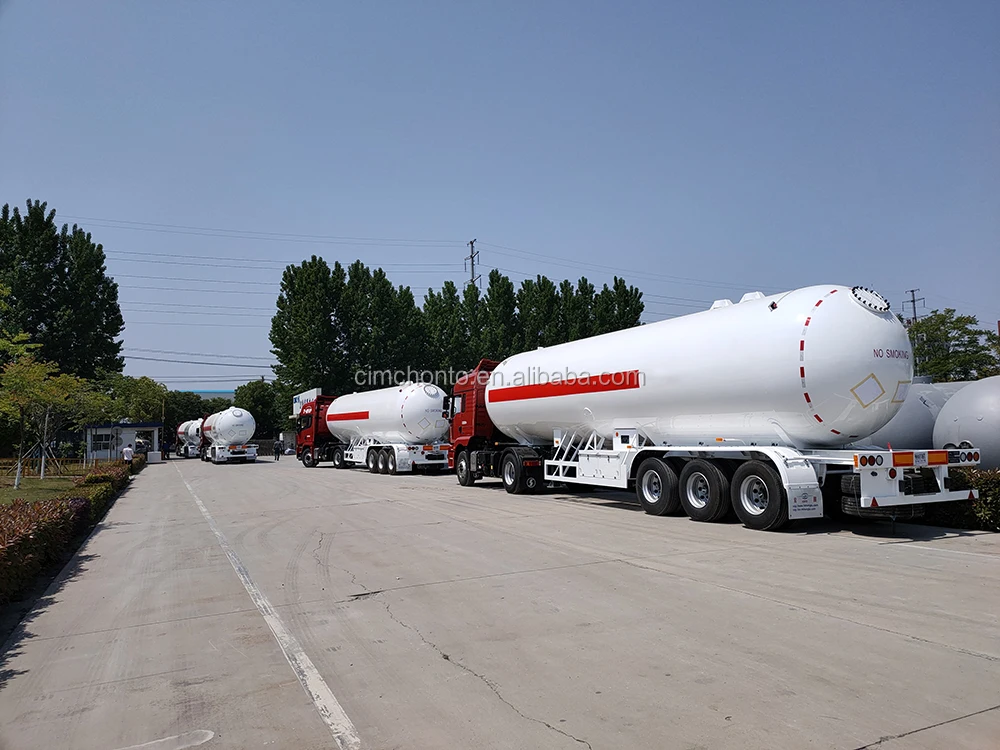

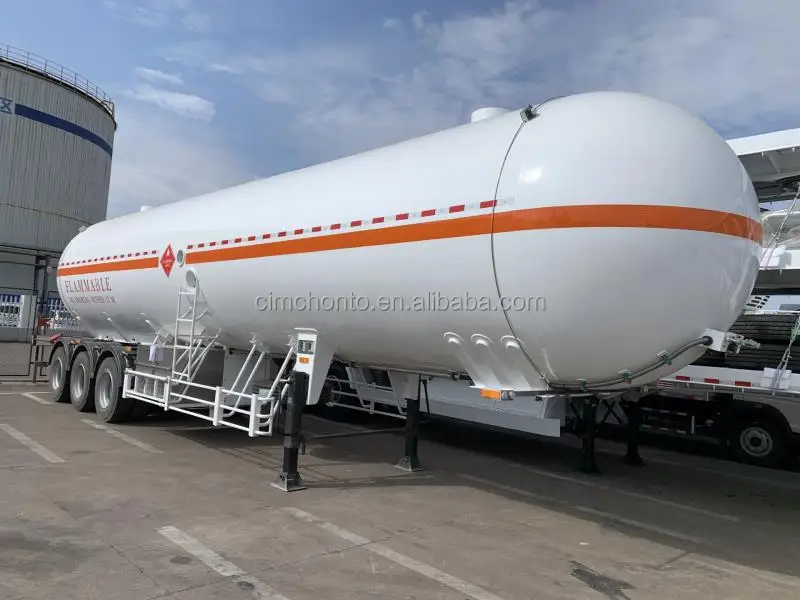

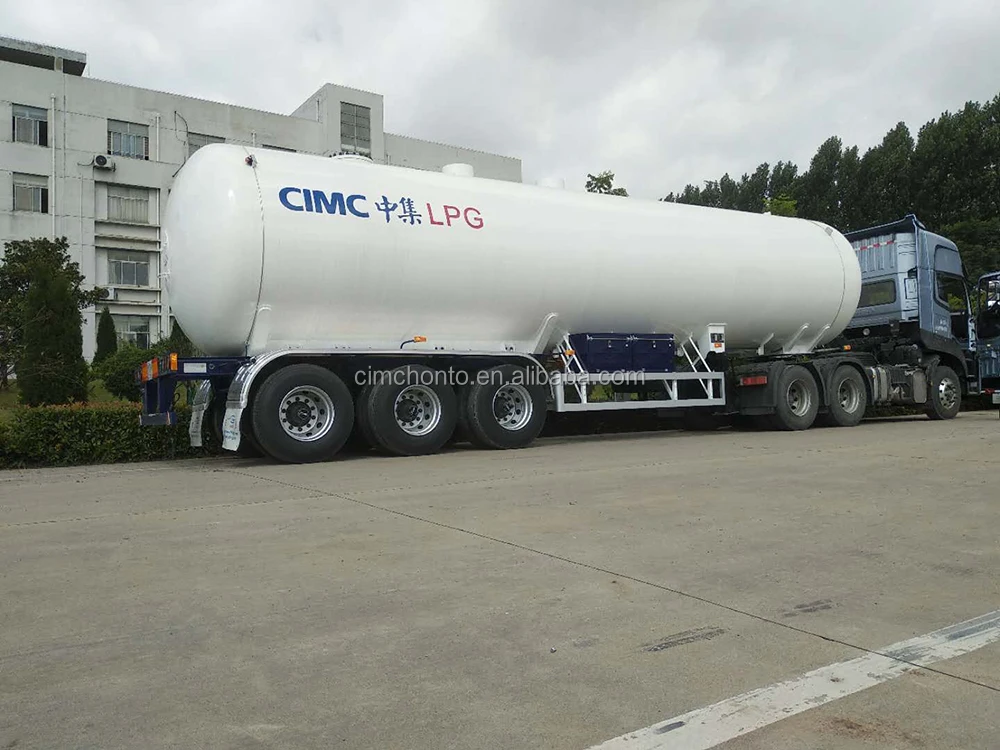

LPG Semi-trailer
HONGTU has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design, etc. HONGTU has cooperated with the international reputed suppliers of valves, instruments and other accessories, such as REGO, FISHER, KITZ, JC, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..
Technical speccification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732
Volume: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, WH590E, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Materials: SA-516, SA-517, SA-612, P460, WH590E, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Vehicle type:
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Chinese standard pressure vessel material plus international brands of valves and safety accessories
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Chinese standard pressure vessel material plus international brands of valves and safety accessories
Optional Intelligent/Advanced Configuration: Tire Pressure Monitoring, Automatic Tire Inflating, Intelligent Reversing Braking, Burglar Alarm, Blind Zone Radar Alarm, Security Monitoring, Intelligent Emergency Shut-off Valve, Remote Temperature / Pressure / Liquid Level and Location Transmitter, Gas Leakage Alarm, etc.
Note:
The information of CIMC HONTO LPG semi-trailers listed as below are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.SPECIFICATIONS
I. ASME Code | ||||||||||||
Capacity | 38.3m³ | 46m³ (with pump) ** | 47.5m³ | 55m³ | 58m³ | 60m³ (with pump) ** | ||||||
*Max. Payload | 18000kg (19.15 t) | 21300kg (23 t) | 23000kg (23.75 t) | 25710kg (27.5 t) | 26130kg (29 t) | 25500kg (30 t) | ||||||
Kerb Weight | 11900kg | 16900kg | 14000kg | 16790kg | 17300kg | 22150kg | ||||||
Gross Vehicle Weight | 29900kg | 38200kg | 37000kg | 42500kg | 43430kg | 47650kg | ||||||
Outline Dimension | L:10470mm W:2550mm H:3920mm | L:13152mm W:2500mm H:3850mm | L:13137mm W:2500mm H:3850mm | L:14297mm W:2500mm H:4000mm | L:13238mm W:2640mm H:4050mm | L:13052mm W:2550mm H:4000mm | ||||||
Design Pressure | 1.724 MPa | 2.26 MPa | 1.724MPa | 1.724MPa | 1.724MPa | 2.5MPa | ||||||
MAWP | 1.724 MPa at 51.7℃ | 2.26 MPa at 70℃ | 1.724MPa | - | 1.724MPa | 2.5MPa | ||||||
Design Temperature | 51.7℃ | 70℃ | -23.3/51.7℃ | 50℃ | -23.3/51.7℃ | -40/+70℃ | ||||||
Corrosion Allowance | 0mm | 2mm | 0mm | 0mm | 0mm | 1mm | ||||||
Material of Shell | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 | ||||||
Material of Head | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 | ||||||
Thickness of Shell | 12.5mm | 15mm | 12mm | 12.5mm | 14mm | 16mm | ||||||
Thickness of Head | 8mm | 10mm | 8mm | 8mm | 8mm | 16mm | ||||||
Test Pressure (Hydraulic Horizontal) | 2.25MPa | 3.4MPa | 2.24MPa | 2.25MPa | 2.25MPa | 3.58MPa | ||||||
Air Test Pressure | 1.724MPa | 2.26MPa | 1.724MPa | 1.724MPa | 1.724MPa | - | ||||||
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | ||||||||||||
II. China GB Standard | ||||||||||
Volume | 36m³ | 46m³ | 52m³ | 58.1m³ | 61.9m³ | |||||
*Max. Payload | 15120kg (18 t) | 19320kg (23 t) | 25506kg (26 t) | 26915kg (29.05 t) | 26000kg (30.05 t) | |||||
Kerb Weight | 11880kg | 14680kg | 13374kg | 15000kg | 14000kg | |||||
Gross Vehicle Weight | 27000kg | 34000kg | 38800kg | 41915kg | 40000kg | |||||
Outline Dimension | L:9400mm W:2500mm H:3900mm | L:10360mm W:2500mm H:3990mm | L:12000mm W:2500mm H:3990mm | L:13150mm W:2500mm H:4100mm | L:13590mm W:2550mm H:4000mm | |||||
Design Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72/-0.1MPa | 1.61/-0.04MPa | |||||
Design Temperature | -20/50℃ | -20/50℃ | -20/50℃ | -20/50℃ | -40/50℃ | |||||
Corrosion Allowance | 1mm | 1mm | 1mm | 1mm | 1mm | |||||
Material of Shell | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | WH590E(N) | |||||
Material of Head | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | 16MnDR(N) | |||||
Thickness of Shell | 12mm | 13mm | 11mm | 12mm | 10mm | |||||
Thickness of Head | 11mm | 12mm | 10mm | 8mm | 8mm | |||||
Test Pressure (Hydraulic Horizontal) | 2.1MPa | 2.1MPa | 2.7MPa | 2.24MPa | 2.1MPa | |||||
Air Test Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72MPa | 1.61MPa | |||||
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | ||||||||||
III. European Standard ADR | ||
Design Code | EN12493:2013+A1:2014 | |
Volume | 60m³ | |
Max. Payload | 25200kg | |
Kerb Weight | 14800kg | |
Gross Vehicle Weight | 40000kg | |
Outline Dimension LengthxWidthxHeight | 13115x2550x4000 mm | |
Wheel Base | 7900+1320+1320 | |
Design Pressure | 2.1/-0.04 MPa | |
Maxiumum Working Pressure | 1.62 MPa | |
Design Temperature | -20/+50℃ | |
Material of Shell | P460NL1 | |
Nominal Thickness | 10(Shell)/13(End) mm | |
Hydrostatic Pressure Test | 2.10 MPa | |
Valves & Instruments
Pressure Relief Valve
Emergency Shut-off Valve
Discharging & Loading System
Liquid Level Gauge
Pressure Gauge
Thermometer

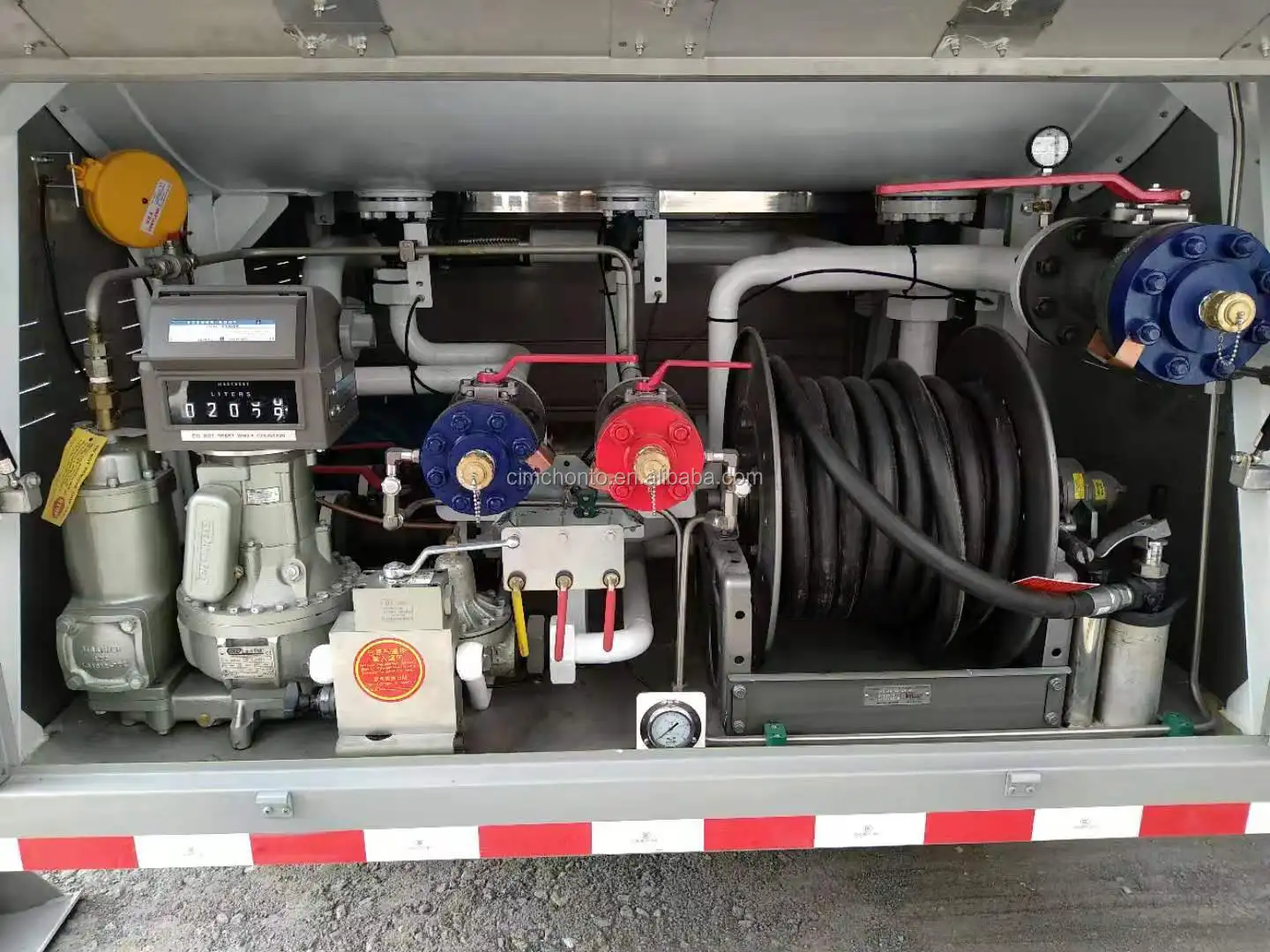

LPG Semi-trailer with Pump, Flowmeter, Hose Reel
HONGTU is qualified to design and manufacture LPG semi-trailer with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.
Technical specification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB 4732
Vessel Capacity: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, WH590E, Q370R, etc.
Configurations
Axles
Famous brands like BPW, FUWA are available.
2 axles, 3 axles, drum series, disc-brake type, 10 tons, 13tons, etc are configured according to technical requirements
Suspension
Air suspension, leaf-spring suspension are available.
CIMC Hongtu will provide design according to the road condition in customer's country to ensure the highest safety and reliability of operating semi-trailer.
Braking Solutions
Famous brands like WABCO, KORMEE, etc. are available.
ABS, EBS will be provided according to customer's demand.
King Pin
Safe connection is all that matters
Landing Gear
Premium model, static load capacity 80t, lift capacity 28t
Title
Famous international brands such as Bridgestone, Michelin, Dunlop, Firelli, Goodyear can be supplied. Also Chinese famous brands such as Double Coin, LINGLONG, Triangle, etc. can be chosen.
Materials and brand of baffle, valve box, tool box, mudguard,Rim can be customized according to customers' demand and requirements.
Certifications
ASME U Certificate
ASME U2 Certificate
Certificate of Authorization to Register NB
KGS Certificate
ADR
GB/T28001-2011/OHSAS18001:2007
OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE
GB/T19001-2016/ISO9001:2015
QUALITY MANAGEMENT SYSTEM CERTIFICATE
GB/T24001-2016/ISO14001:2015
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
SY/T6276-2014, Q/SY1002.1-2003, Q/SHS0001.1-2001
HSE MANAGEMENT SYSTEM CERTIFICATE
Manufacture License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Pipe
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called CIMC HONGTU) is a wholly owned enterprise of CIMC ENRIC Holding Co., Ltd(CIMC ENRIC)., a listed company in Hong Kong. It was founded in 1971, formerly known as Hongtu Aircraft Factory(HONGTU), affiliated to the Aviation Industry Corporation of China(the Third Ministry of Machine Building Industry). With a history of 40 years of pressure vessel manufacturing and an investment of CNY 1.3 Billion in Jingmen City, CIMC HONGTU has become the largest production base of energy and chemical equipment in the central and western regions of China. It is mainly devoted to the manufacturing of high-end equipment for the energy and chemical industry.
With the subject of scientific and technological innovation and the core of intelligent manufacturing and green manufacturing, focusing on manufacturing of high-end energy and chemical transportation and storage equipment. The main products are LPG road tankers, LNG cryogenic liquid road tankers, large scale spherical tanks, cryogenic flat-bottom storage tanks, large scale special chemical vessels, marine "oil to gas" fuel tanks and supporting equipment for energy and chemical systems. The company can provide one-stop integrated solutions for customers such as the storage stations, peak-shaving stations, refilling stations of energy and chemical gas and natural gas.
The production and sales of LPG road tankers of CIMC HONGTU has ranked No.1 for the last 40+ consecutive years in China, and the spherical tank production and sales has ranked No.1 in domestic market. CIMC HONGTU's products have been exported to 50 plus countries and regions in Europe, Middle East, North & South America, Southeast Asia, Northeast Asia, Mid-Asia and Africa.
With the subject of scientific and technological innovation and the core of intelligent manufacturing and green manufacturing, focusing on manufacturing of high-end energy and chemical transportation and storage equipment. The main products are LPG road tankers, LNG cryogenic liquid road tankers, large scale spherical tanks, cryogenic flat-bottom storage tanks, large scale special chemical vessels, marine "oil to gas" fuel tanks and supporting equipment for energy and chemical systems. The company can provide one-stop integrated solutions for customers such as the storage stations, peak-shaving stations, refilling stations of energy and chemical gas and natural gas.
The production and sales of LPG road tankers of CIMC HONGTU has ranked No.1 for the last 40+ consecutive years in China, and the spherical tank production and sales has ranked No.1 in domestic market. CIMC HONGTU's products have been exported to 50 plus countries and regions in Europe, Middle East, North & South America, Southeast Asia, Northeast Asia, Mid-Asia and Africa.
Our Advantages
01 Powerful R&D Capability
The company has around 100 valid patents (including 18 invention patents, 1 appearance patent).
02 Strong Production Capacity
The company has various manufacturing equipment over 2,300 sets.
The total area of the company is 130,000m³, of which, the total area of the workshop is 103,641m³. There are 6 manufacturing workshops, including LPG tanker and vessel manufacturing workshop, spherical shell prefabrication workshop, LNG and cryogenic liquefied gas tanker and vessel manufacturing workshop, household LPG storage tank manufacturing workshop, petrochemical equipment manufacturing workshop and chassis manufacturing workshop.
The company ranks No.1 in working capacity & efficiency of the spherical shell prefabrication line in China, with annual capacity of 70000 tons.
The company owns the first intelligent production line for household LPG storage tanks in China, with annual capacity of 12000 units/shift.
03 Scientific and Rigorous Quality Assurance System
The whole process of product quality control from design to delivery needs to pass 115 quality control points, 192 quality control procedures, with 66 QC documents to support and to be followed.
The annual number of X-ray film is more than 500,000 pcs, and the quality file of each product is archived throughout its life cycle, and each weld can be traced back.
Hongtu owns a special quality control center, which obtains grade 3 certificate for national defense metrology and has inspection capacity of length, hardness, pressure, temperature, metallographic, electromagnetic, chemical and mechanical, covering all the inspection of outsourced material and process tests.
04 Fast and Efficient After-sales Services
The company has 30 plus professionals engaged in after-sales services, and it has its own customer service center, always dedicated to providing the best on-site after-sales service and online after-sales technical support.
With strong technique, manufacturing, testing and other capabilities, Hongtu is committed to providing excellent service in the whole product life cycle.
HONGTU has more than 300 technical staff in Tankers & Vessels R&D Department, Cryogenic Vessel R&D Department, Engineering R&D Department, Production Technology Department, Welding Technology Department, Quality Technology Department and Quality Control Department.
The company has around 100 valid patents (including 18 invention patents, 1 appearance patent).
02 Strong Production Capacity
The company has various manufacturing equipment over 2,300 sets.
The total area of the company is 130,000m³, of which, the total area of the workshop is 103,641m³. There are 6 manufacturing workshops, including LPG tanker and vessel manufacturing workshop, spherical shell prefabrication workshop, LNG and cryogenic liquefied gas tanker and vessel manufacturing workshop, household LPG storage tank manufacturing workshop, petrochemical equipment manufacturing workshop and chassis manufacturing workshop.
The company ranks No.1 in production capacity & efficiency of the LPG vessels in China.
The company ranks No.1 in working capacity & efficiency of the spherical shell prefabrication line in China, with annual capacity of 70000 tons.
The company owns the first intelligent production line for household LPG storage tanks in China, with annual capacity of 12000 units/shift.
03 Scientific and Rigorous Quality Assurance System
The whole process of product quality control from design to delivery needs to pass 115 quality control points, 192 quality control procedures, with 66 QC documents to support and to be followed.
The annual number of X-ray film is more than 500,000 pcs, and the quality file of each product is archived throughout its life cycle, and each weld can be traced back.
Hongtu owns a special quality control center, which obtains grade 3 certificate for national defense metrology and has inspection capacity of length, hardness, pressure, temperature, metallographic, electromagnetic, chemical and mechanical, covering all the inspection of outsourced material and process tests.
04 Fast and Efficient After-sales Services
The company has 30 plus professionals engaged in after-sales services, and it has its own customer service center, always dedicated to providing the best on-site after-sales service and online after-sales technical support.
With strong technique, manufacturing, testing and other capabilities, Hongtu is committed to providing excellent service in the whole product life cycle.
