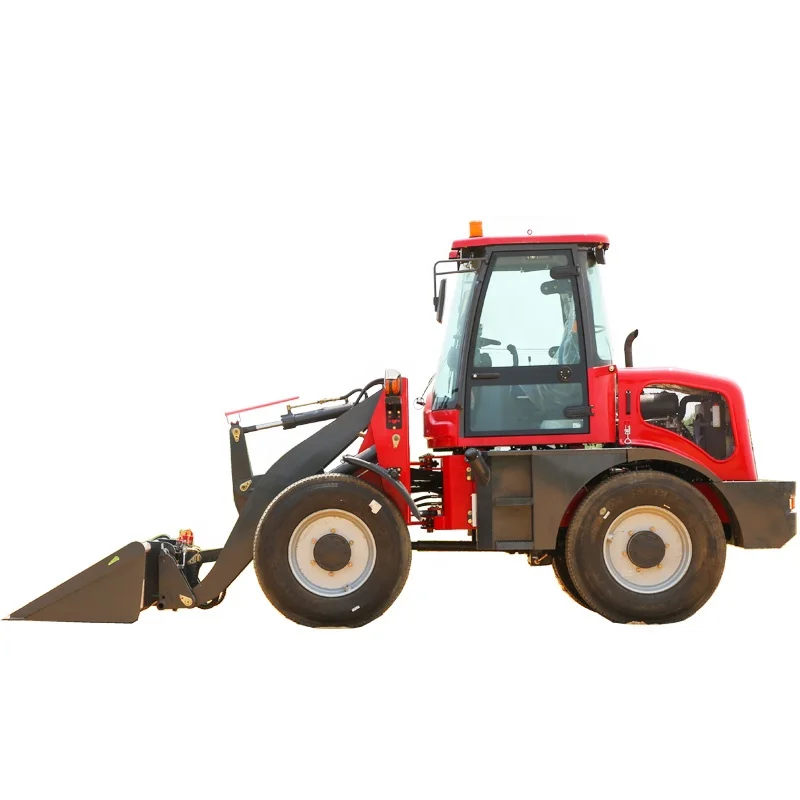

TITAN 1.6ton mini wheel loader with Yunnei euro 5 engine abundant power Powerful enough to install bulldozers
- Category: >>>
- Supplier: Weihai Titan Heavy Machinery Co. Ltd.
Share on (1601003006918):
Product Overview
Description
Product Description
China Heavy Duty Front End Agricultural Machinery Construction Equipment with cab 1.6ton mini wheel loader with low price

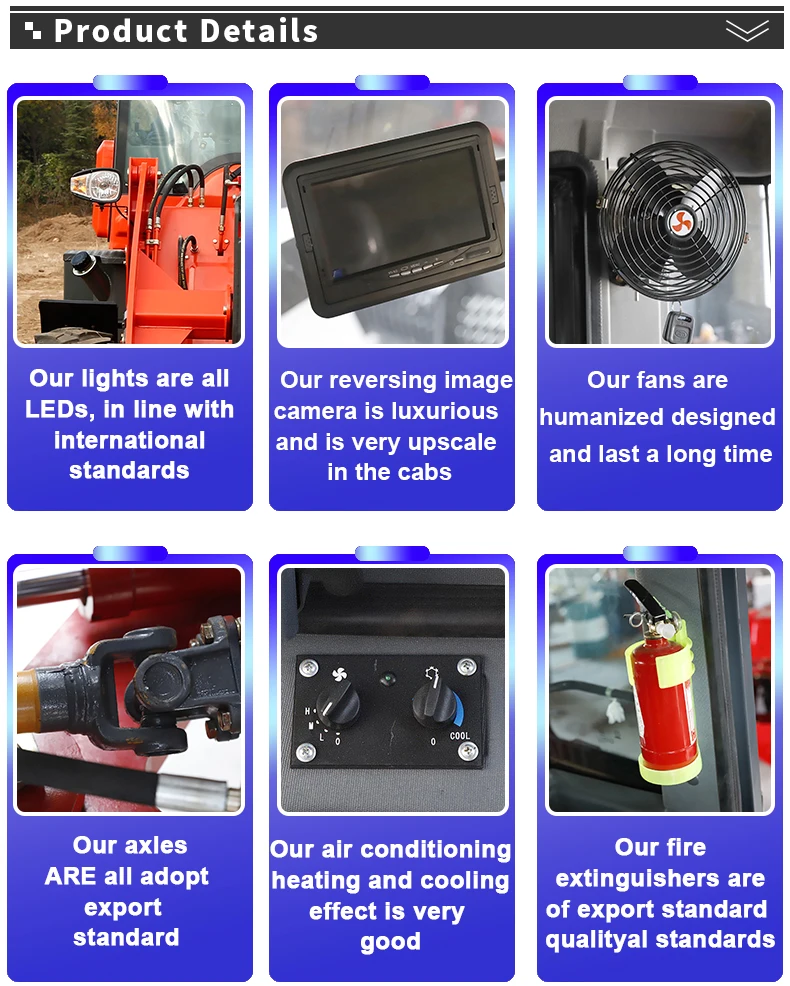

1. All hydraulic system joy stick control , luxurious cab,adjustable seat,back camera, cab heat, LED light, auxiliary pipes
2. Xinchai A498BT1(EURO III), 37kw, four cylinder,water-cooled
3. 1.6 ton , 0.8cbm bucket 21km/h, 5100x1800x2770mm

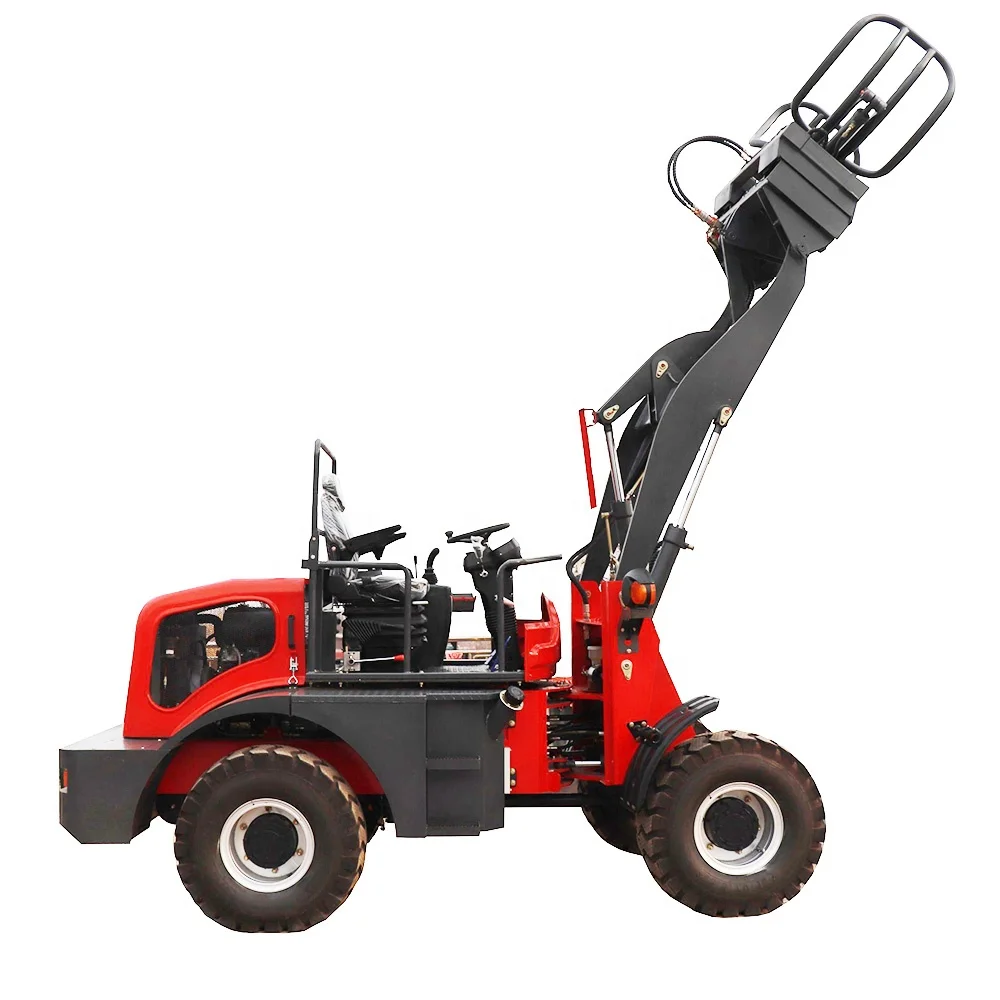

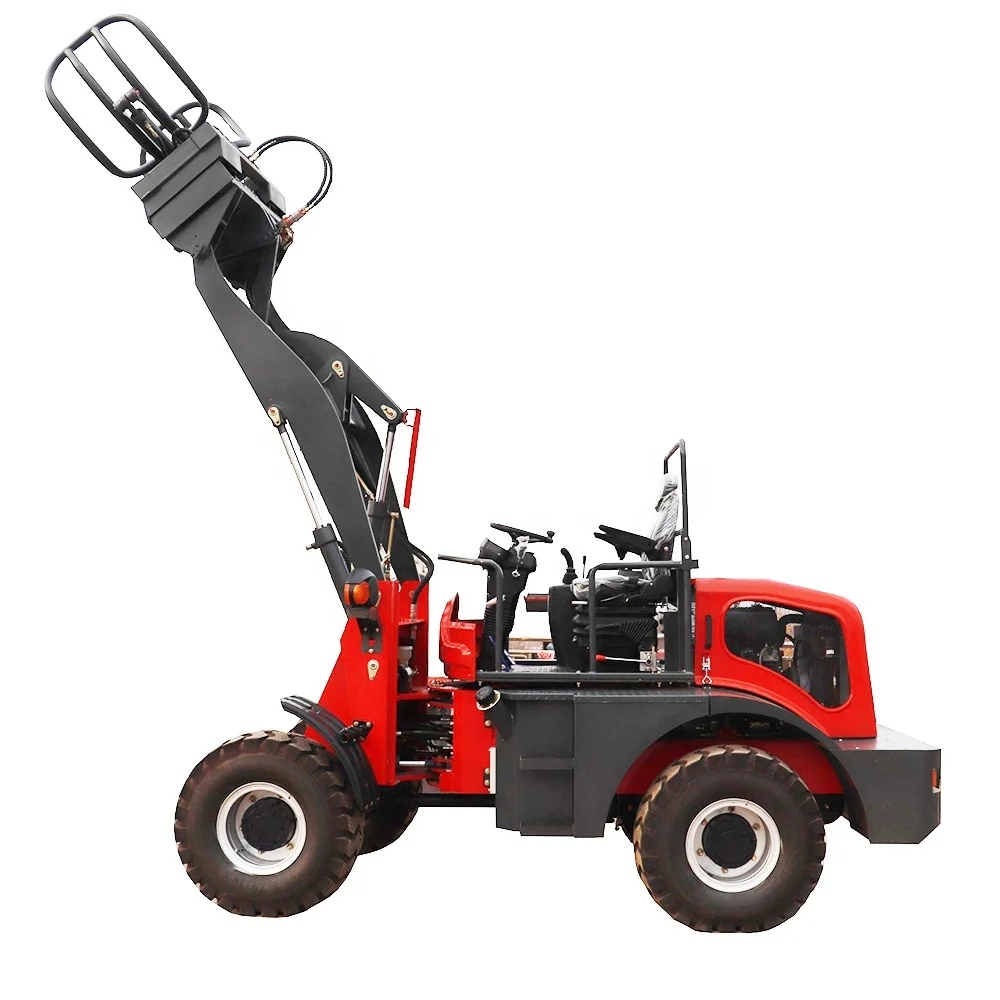

4. It also can install different accessories like pallet fork, snow bucket,snow blade,grass cutter,4in 1 bucket for different work condition.
All the machine with CE, ISO certificate
Quality
We have experienced engineers with an average work experience of around 12 years.Each of our
loader undergoes a very strict test procedure to ensure that they are shipped without any problem.
Seivice
We are avaliable online 24 hours a day.We will provide you with product progress photos and video,If there are any product or technical problems,pls send me a video ,we support technical service for machine whole life
Warranty
Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
Installation
TITAN can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

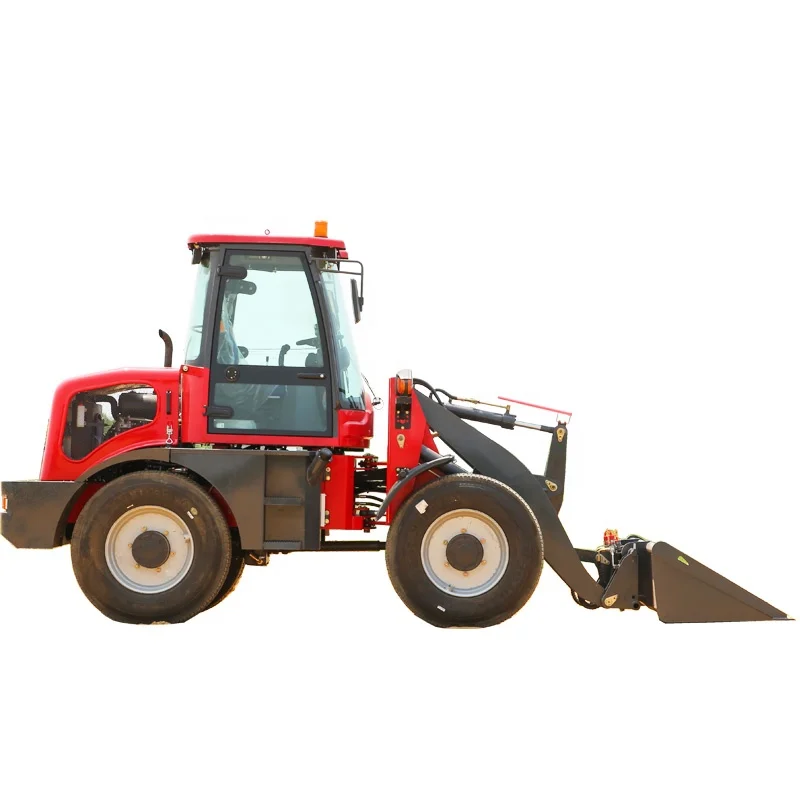

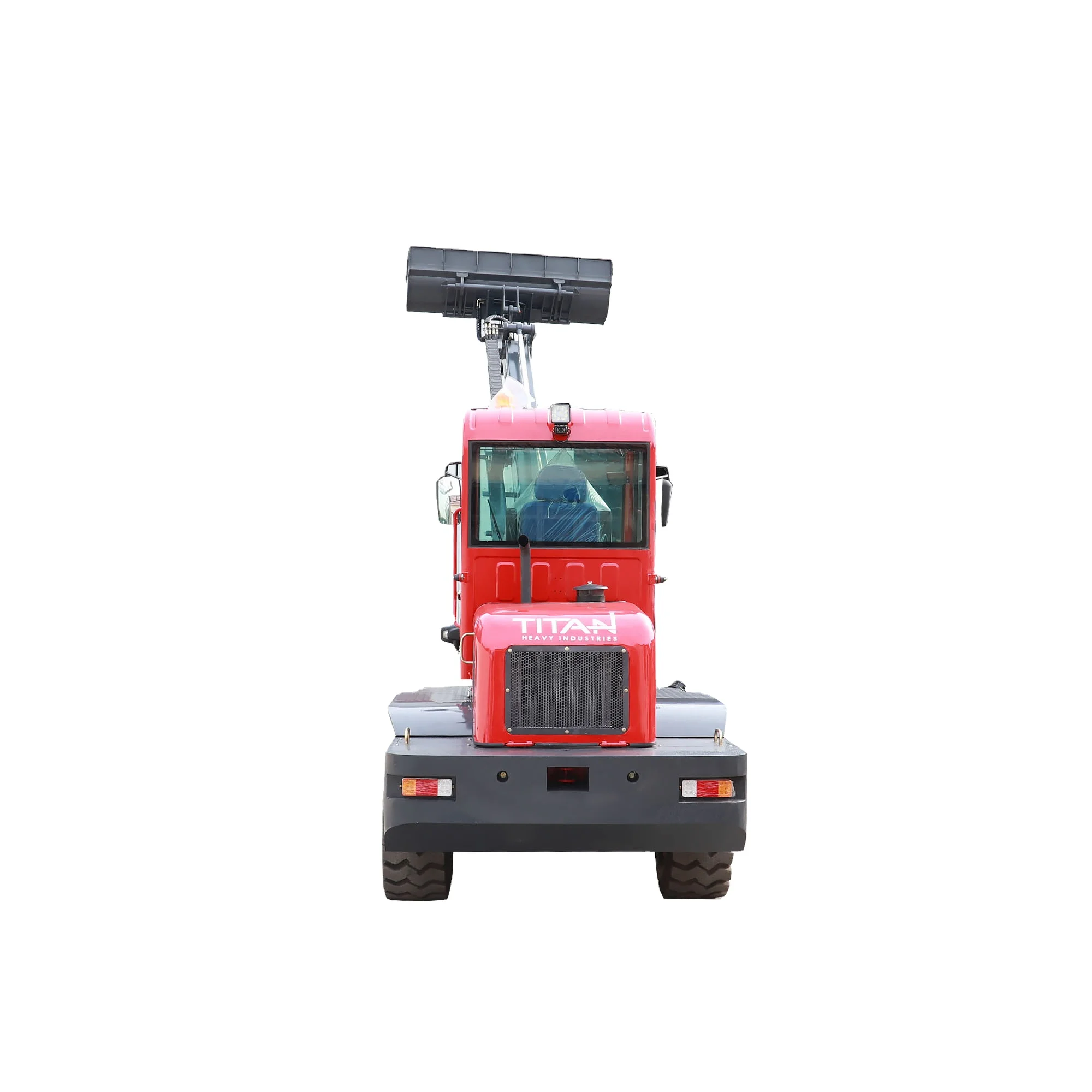

TL16 – 1600kg Rated Capacity Articulated Wheel Loader
1. All hydraulic system joy stick control , luxurious cab,adjustable seat,back camera, cab heat, LED light, auxiliary pipes
2. Xinchai A498BT1(EURO III), 37kw, four cylinder,water-cooled,option xinchai & Yanmar E3 engine
3. 1.6 ton , 0.8cbm bucket 21km/h, 5100x1800x2770mm
4. It also can install different accessories like pallet fork, snow bucket,snow blade,grass cutter,4in 1 bucket for different work
condition.
2. Xinchai A498BT1(EURO III), 37kw, four cylinder,water-cooled,option xinchai & Yanmar E3 engine
3. 1.6 ton , 0.8cbm bucket 21km/h, 5100x1800x2770mm
4. It also can install different accessories like pallet fork, snow bucket,snow blade,grass cutter,4in 1 bucket for different work
condition.
Our large cabin
Our loader adopts a new cabwith a large space and a good viewand our glass is bulletproof and
thickened glass
Our powerful engine
Our engine is powerful engine respect to the standard of Euro III. The engine is equipped with a
preheating device, which is easy to start in winter
Adjustable stering wheel
The steering wheel is adjustable and can be
moved back and forth according to the user's
height habits
moved back and forth according to the user's
height habits
Air filters
Our air filters have been specially modified
throghout the outside of the rear hood to prevent the engine frombeing affected when the working environmentis not good.
throghout the outside of the rear hood to prevent the engine frombeing affected when the working environmentis not good.
Accumulator
Our loader is equipped with an accumulator,which works very well. When we operate the big arm lift and landing it is very gentle. Without the installation,the whole car will shake very much
Quick hitch position indicator
We have installed the quick hitch position indicator,whenwe operate the quick hitch switch attachments in the cabin,the indicator is red,
indicating that the attachment has been installed,
indicating that the attachment has been installed,
Accurate confirmation in the cabin,saving time ,more convenient and fast.
Pin shaft of composite steel
The interior of the pin shaft is made of composite steel ,not nylon,which is durable and long lasting.
Thick cushioning
Our cab floor is tightlyfitted to the frame and has thick cushioning to reduce shock to the loader.
soundproof cotton
We have soundproof cotton at tbe bottom of ,the cab and inside the hood for the effective
insulation to prevent excessive temperature,
It also deadens noise,reduces noise.
insulation to prevent excessive temperature,
It also deadens noise,reduces noise.
Multi-layer spray paint
Our loader has been subjected to electrophoretic treatment ,polished and sanding before painting.
we have painted three times to ensure the loader will not rust for many years
Product Features
Item | Specifications |
1.0 Engine details: | |
Model | Xinchai A498BT1(EURO III) |
Engine type | In-line arrangement, water-cooled, four-cycle diesel Engine |
Rated Power | 36.8KW |
Rated Speed | 2400 r/min (rpm) |
Fuel Consumption ratio in standard working condition | 230g/kw.h |
2.0 Transmission System | |
Type | Fixed-spindle Power shift |
Shift gear control oil pressure | 1.2~1.5MPa |
Rated input speed | 2500 (rpm) |
3.0 Bucket | |
Bucket Capacity | 0.8m3 |
Bucket width | 1800mm |
Bucket type | Heavy-duty bolt on teeth |
Max. Breakout Force | 36.8KN |
Rated Load | 1600kg |
Operating Weight | 4175kg |
4.0 Overall Dimensions | |
Overall Length (Bucket on ground position) | 5100mm |
Overall Height | 2770mm |
Ground to Cab Top | 2770mm |
Dumping Height | 2700mm |
Min. Base to the Ground | 290mm |
Overall Width | 1800mm |
5.0 Operating Specifications | |
Steering System | Articulated Frame with hydraulic power steering |
Min Turning Radius | 4500mm |
Driving System | Hydraulic converter |
6.0 Brake System | |
Service Brake | Four Wheel drive hydraulic disc brake. |
Parking Brake | Hand operated |
7.0 Tyre | |
Model | 20.5/70-16 |
8.0 Wheelbase | 2100mm |
The standard equipment:
----Xinchai A498BT1(EURO III)
----4 Cylinder Engine.
----Automatic with Torque Converter.
----4 Wheel Drive.
----Standard Bucket.
----Luxury Cabin.
----Adjustable Steering Wheel.
----220V Engine Pre-heater.
----Cabin Heater.
----Air Pre-heater.
----Lock For Lifting And Steering Cylinder.
----Hydraulic Check System.
----Quick Hitch.
----Mechanical Joystick.
----Easy-damaged Spare Parts.
----Optional equipments.
----Extra Hydraulic Line.
----LED Lights.
----Varta Anti-free Battery.
Packing & Delivery
We use container transportation,according to your requirements,for you to choose the appropriate collccation If container is too tighber,we will use pefilm for packing or pack it accordfng to customers special requset.
Our Company
Weihai Titan Heavy Machinery Co. Ltd
Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.
In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We sincerely thank all the friend’s support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.
Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.
Certifications
Our Service
Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.
