Product Overview
Description
Product Description
Product Name | 2.8 inch Resistive Touch Screen |
Application | Industrial Application |
Condition | 100%new |
Color depth | 16 bits |
Operating voltage | 3.3V or 5V |
Resolution | 320X240 (RGB) |
Package | BOX |
Product performance description

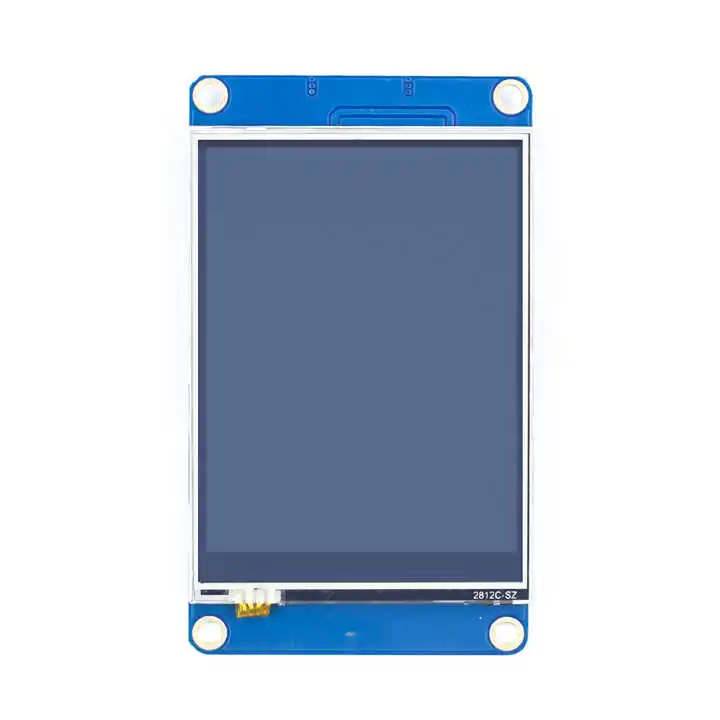

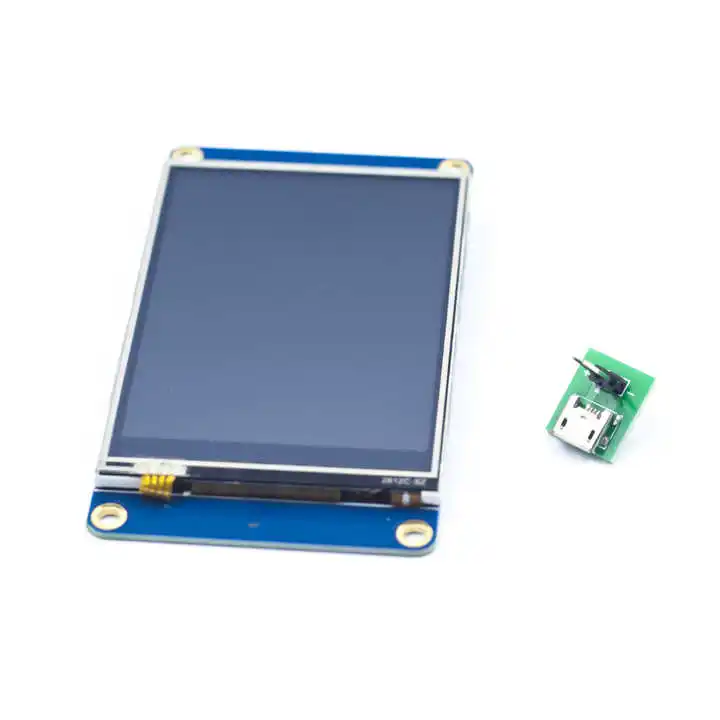

2.8 Inch TFT Colorful HD LCD Display Module With Sensor Touch
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features:
– 320×240 resolution.
– 16-bit color (65000 colors) display support.
– High brightness backlight with good backlight brightness and low power consumption.
– High quality touch, high sensitivity and high linearity.
– Made of custom yellow copper-plated pins. 'Beautiful and durable.
Specifications:
LCD size: 2.8
Display area: 57.6*47.2mm
Driver IC:ILI9341(2.8inch)
Resolution: 320*240 (RGB)
Color depth: 16 bits
Operating voltage: 3.3V or 5V
Backlight voltage: 3.3V
Pin: 34
Interface mode: 16 bits (default >/8 bits configurable
Module size:51* 82.55 mm / 56.34*98.25mm

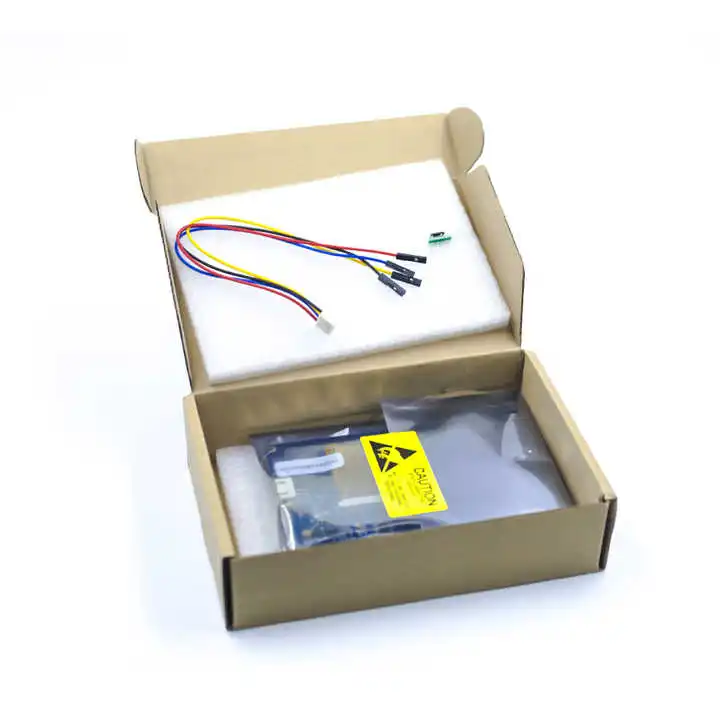

Package Included:
1 x 2.8 Inch TFT Colorful HD LCD Display Module
1. Industry market conditions and original factory prices fluctuate frequently, please confirm with the business for specific
prices 2. The original package is packaged, the specific price involves unpacking and repacking according to the required
quantity, please confirm with the business for the specific price
