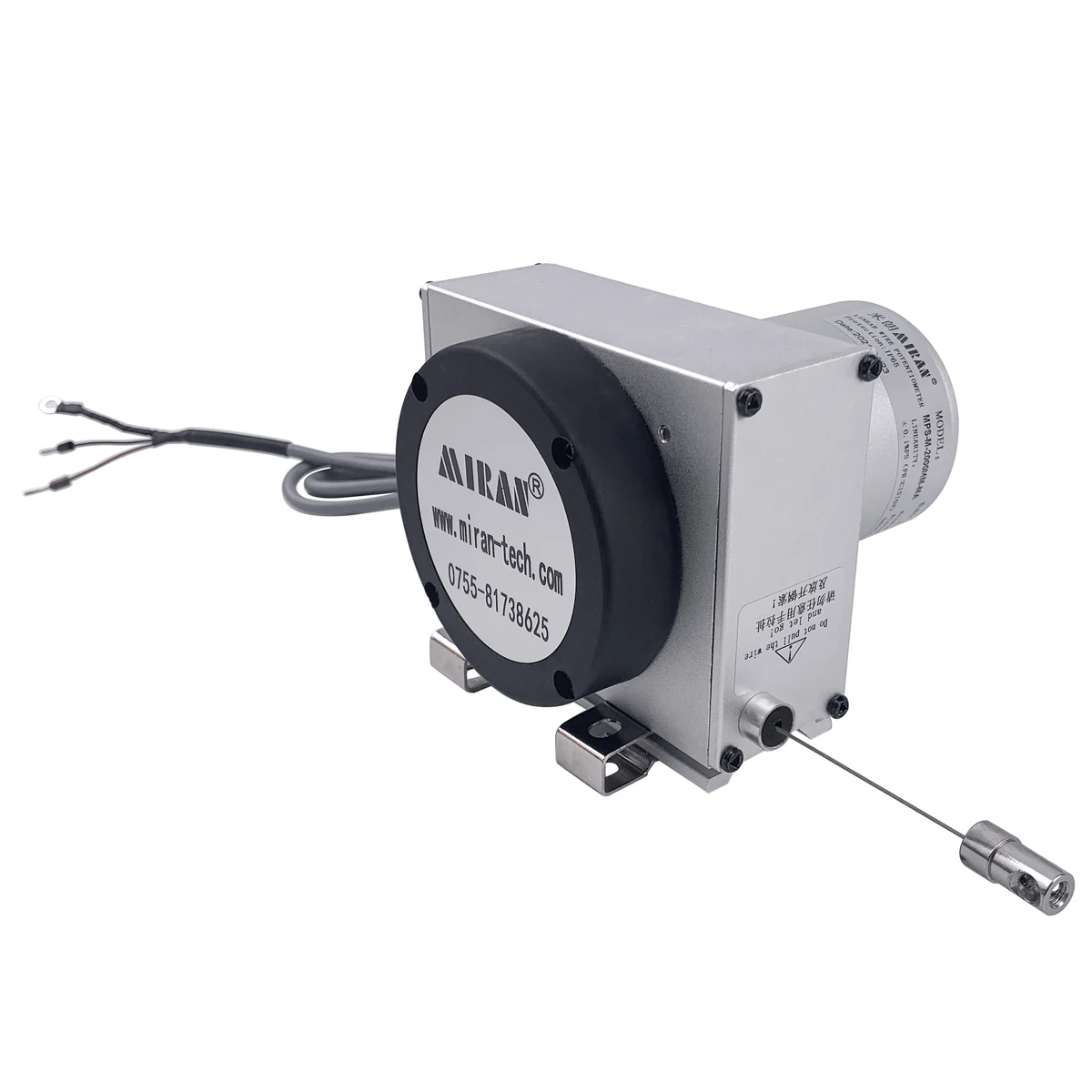

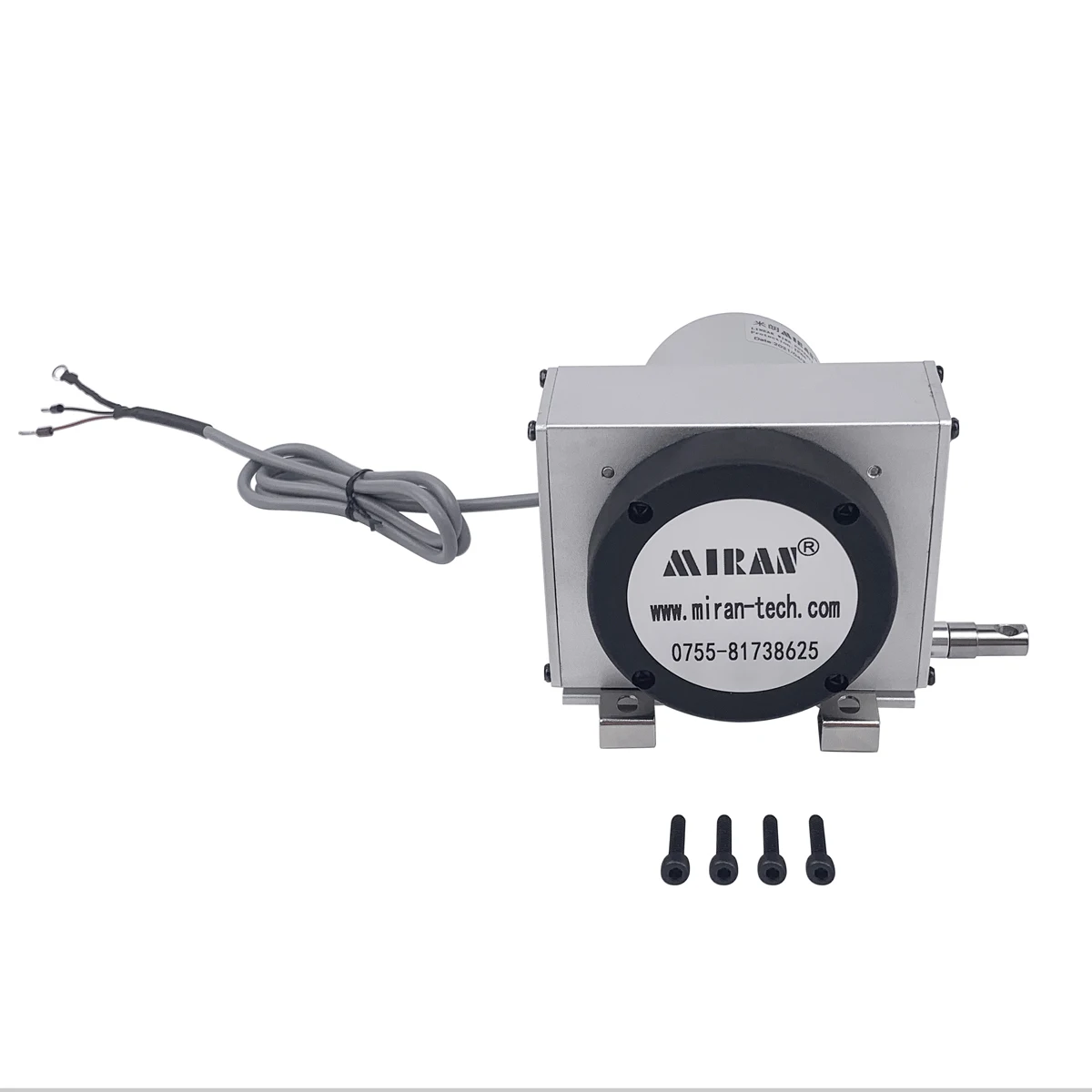

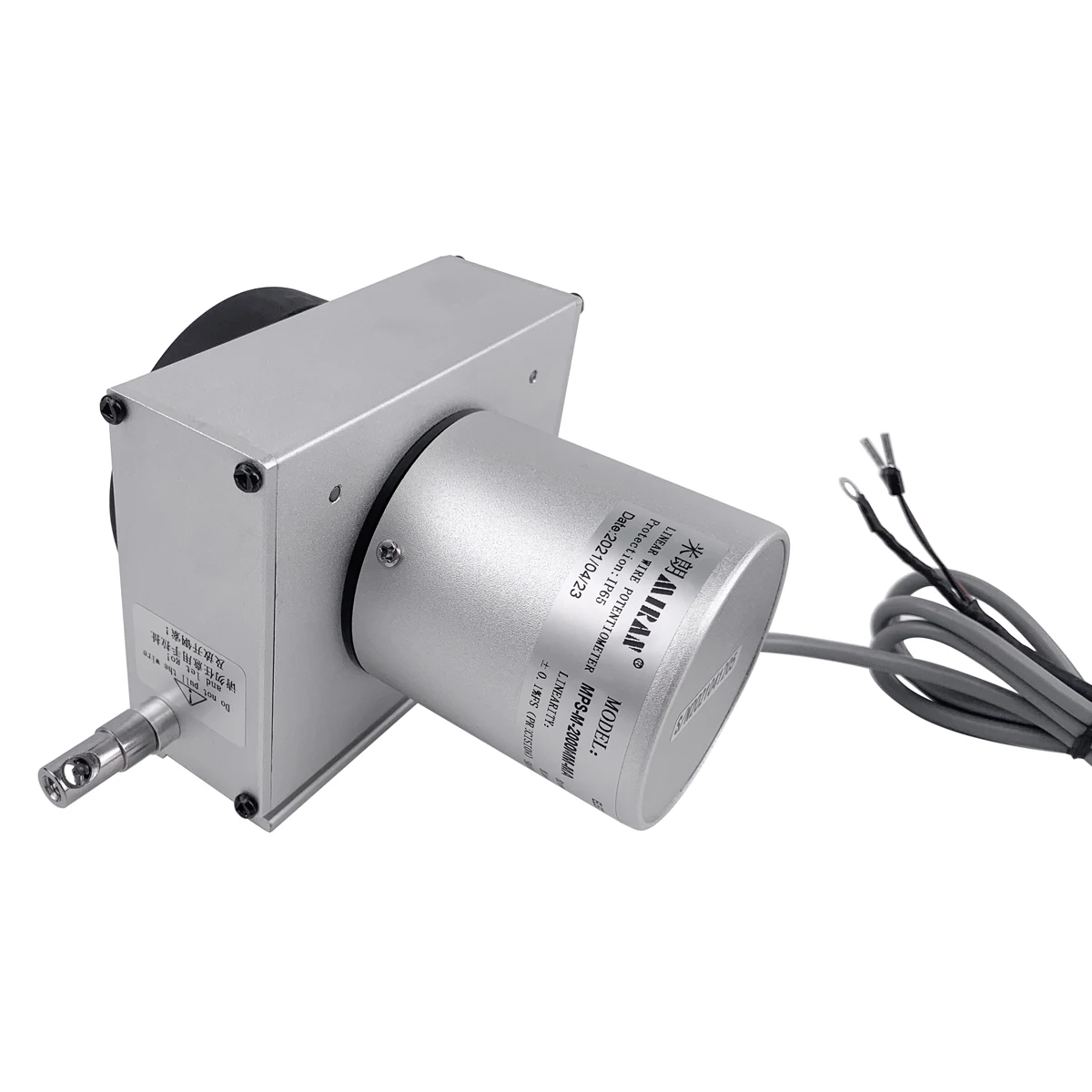

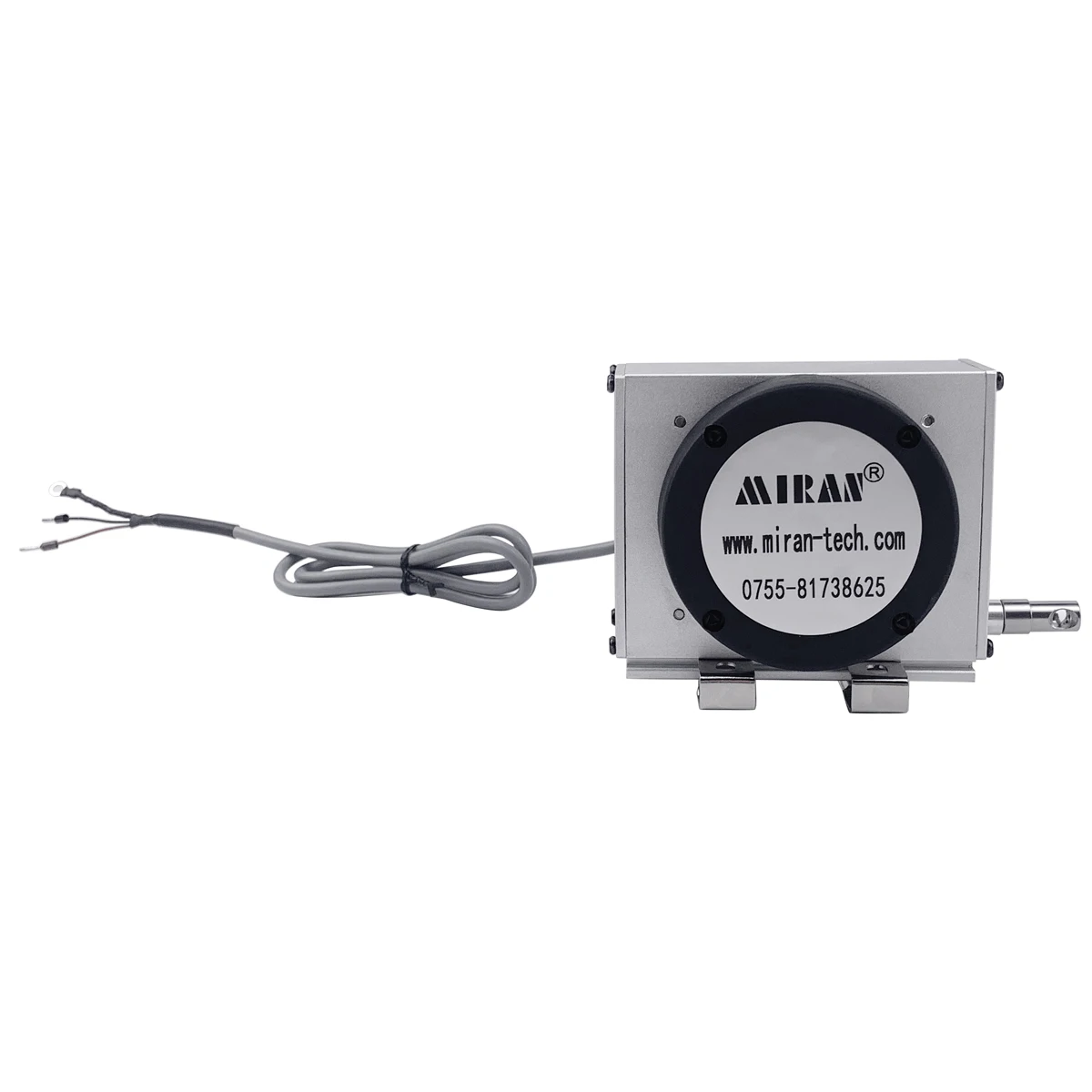

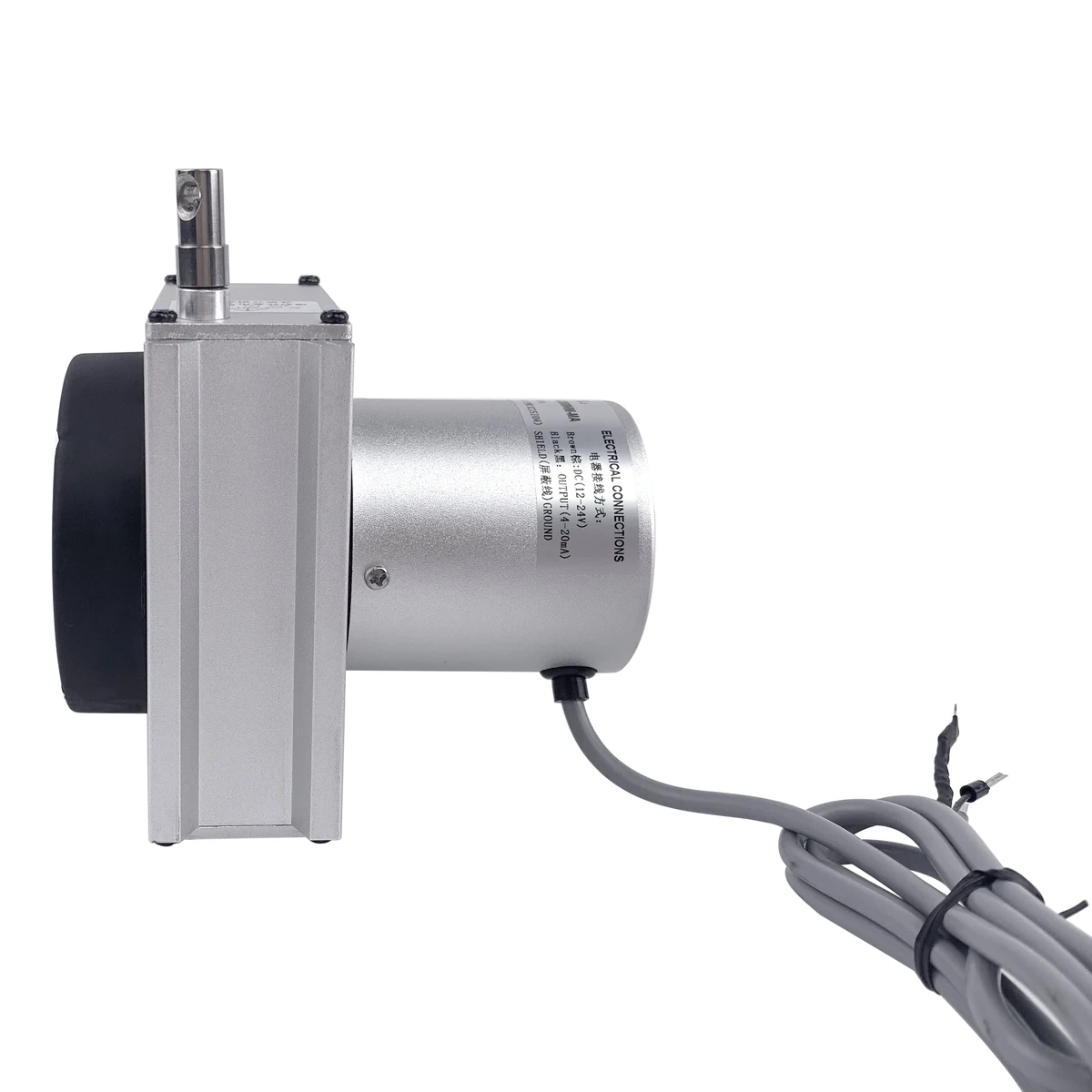

MIRAN Wire Rope Potentiometer Draw Wire Displacement Sensor Linear Position Sensor MPS M 1500mm R
- Category: >>>
- Supplier: Shenzhen Miran Technology Co. Limited
Share on (1601003042947):
Product Overview
Description
Product Description

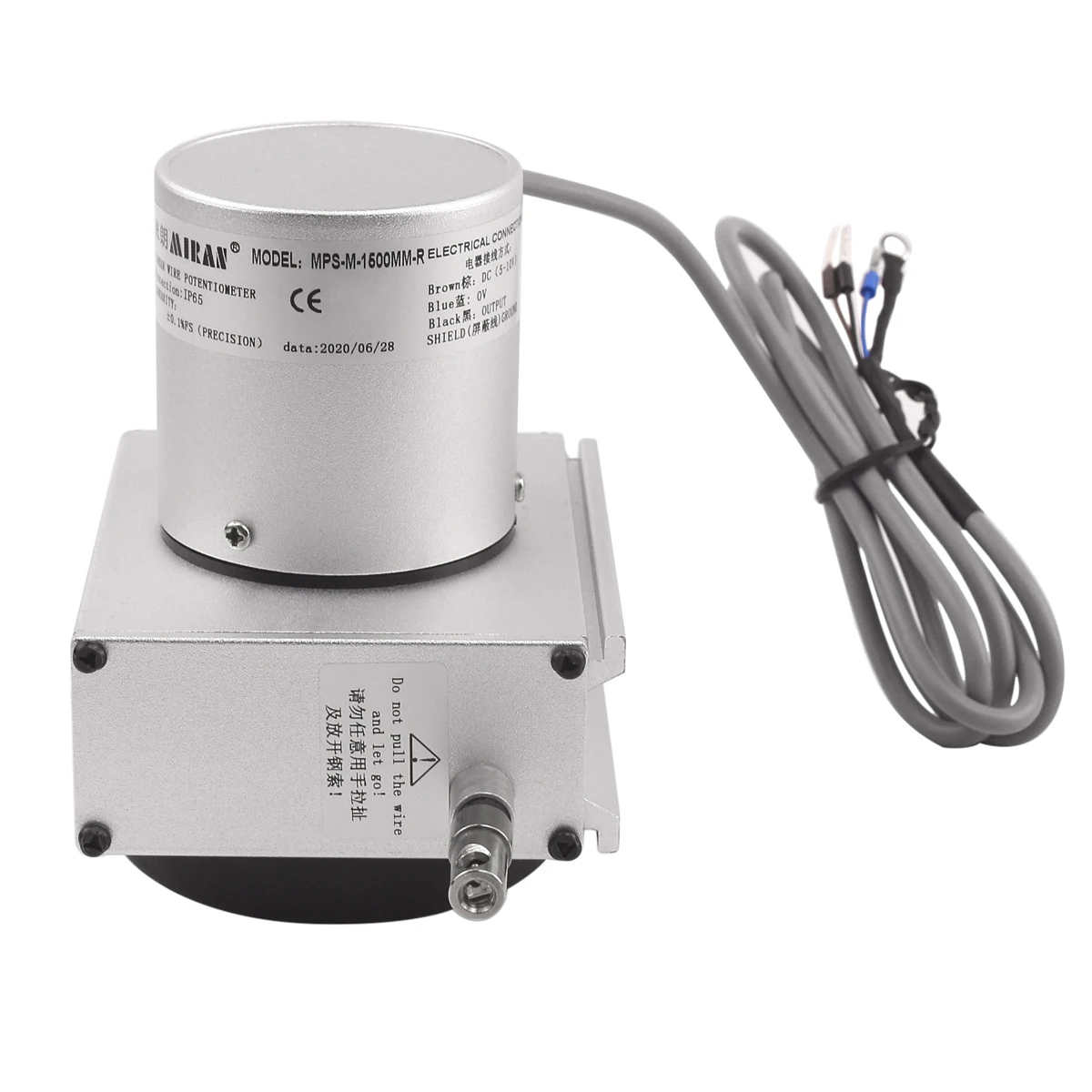

Miran MPS-M-1500mm-R Linear Wire Potentiometer
Technical Parameter

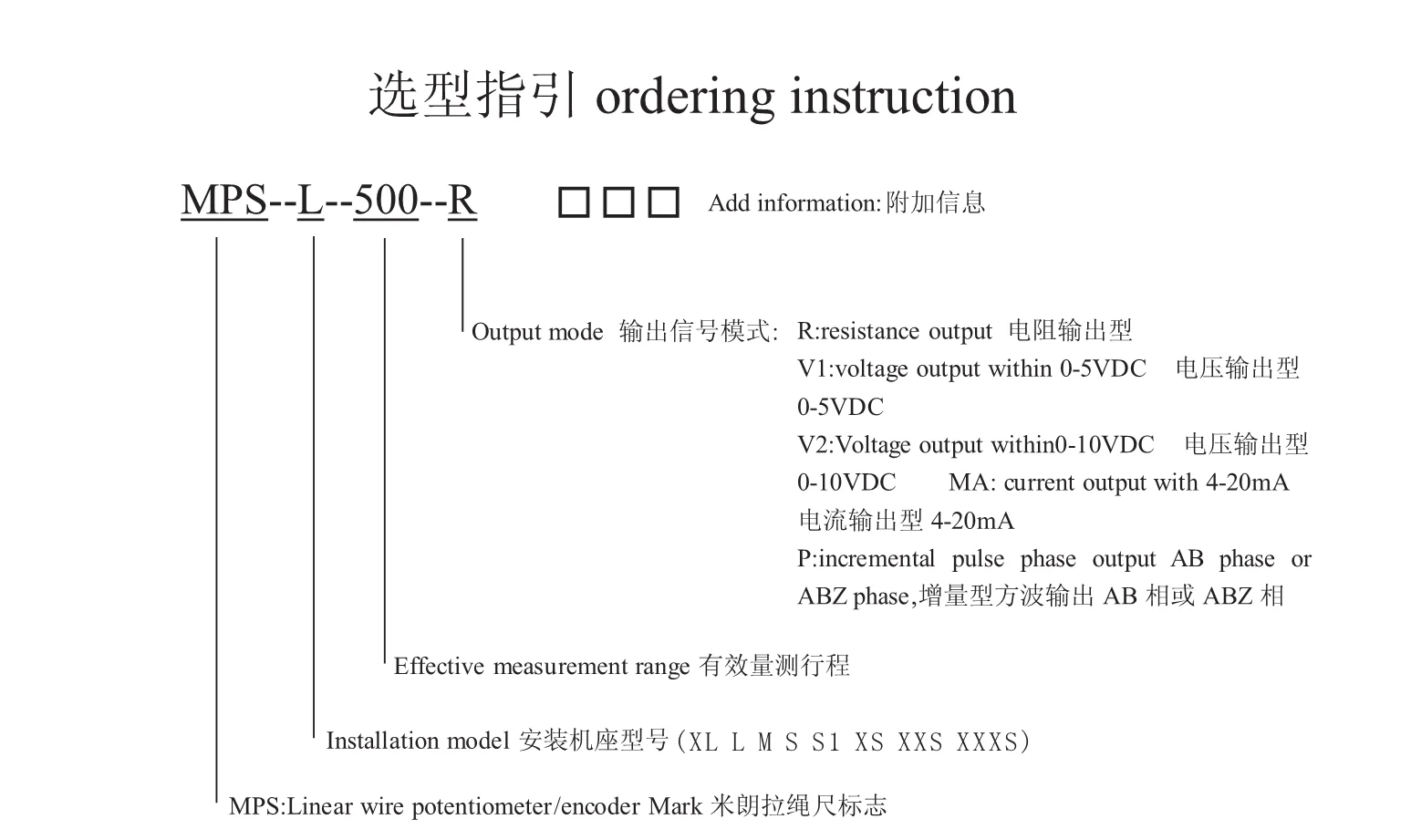

Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control. XXXS:100-200mm XXS:100-800mm XS:100-1000mm S:100-1250mm M:1100-4000mm L:4500-8000mm XL:9000-100000mm There are 6 kinds of output as below,please choose the one you need. R: 0-5KΩ Resistance V1：0-5V V2：0-10V A1：4-20mA with 3 wires A2：4-20mA with 2 wires P：incremental pulse phase output AB phase or ABZ phase. | ||
Electric Specifications of Resistance Wire Encoder: | ||
Stroke Length(mm) | (1500mm~4000mm) | |
Output Signal | Resistance (Potentiometer) | |
Linearity | ± 0.25%FS(normal standard); ± 0.10%FS(precision) | |
Repeatability | ± 0.02%FS | |
Resolution | Essentially Infinite | |
Wire Measurement | Diameter 1.0mm; SUS304; fluorin-coated Diameter 0.7mm; SUS304; fluorin-coated | |
Sensor Type | Wire-Winding potentiometer | |
Starting Force | (0-1250mm) 600g; (length≥1500) 1000g max | |
Max Measuring Speed (back and forth) | 1000mm/sec | |
Weight | ≤1000g | |
Mechanic Specifications of Resistance Wire Encoder: | ||
Input Resistance | 5ΚΩ ± 10%FS(normal); ±5%FS(precision) | |
Rated Power (Watts) | 1W at 70℃(500mm); 2W at 70℃(1000mm) | |
Recommended Input Voltage | 12-24VDC | |
Enviroment Specifications of Resistance Wire Encoder: | ||
Working Temperature | 0℃～+50℃ | |
Storage Temperature | -20℃～+80℃ | |
Vibration | 10Hz to 2000Hz | |
Ingress Protection | IP65 | |
displacement, liquid level measurements and positioncontrol. | ||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced components in electric parts and operation parts.
3) High linear precision output, repeatability precision.
4) Running in a reliable motion speed.
5) Apply to all machines with a closed-loop control and feed axes.

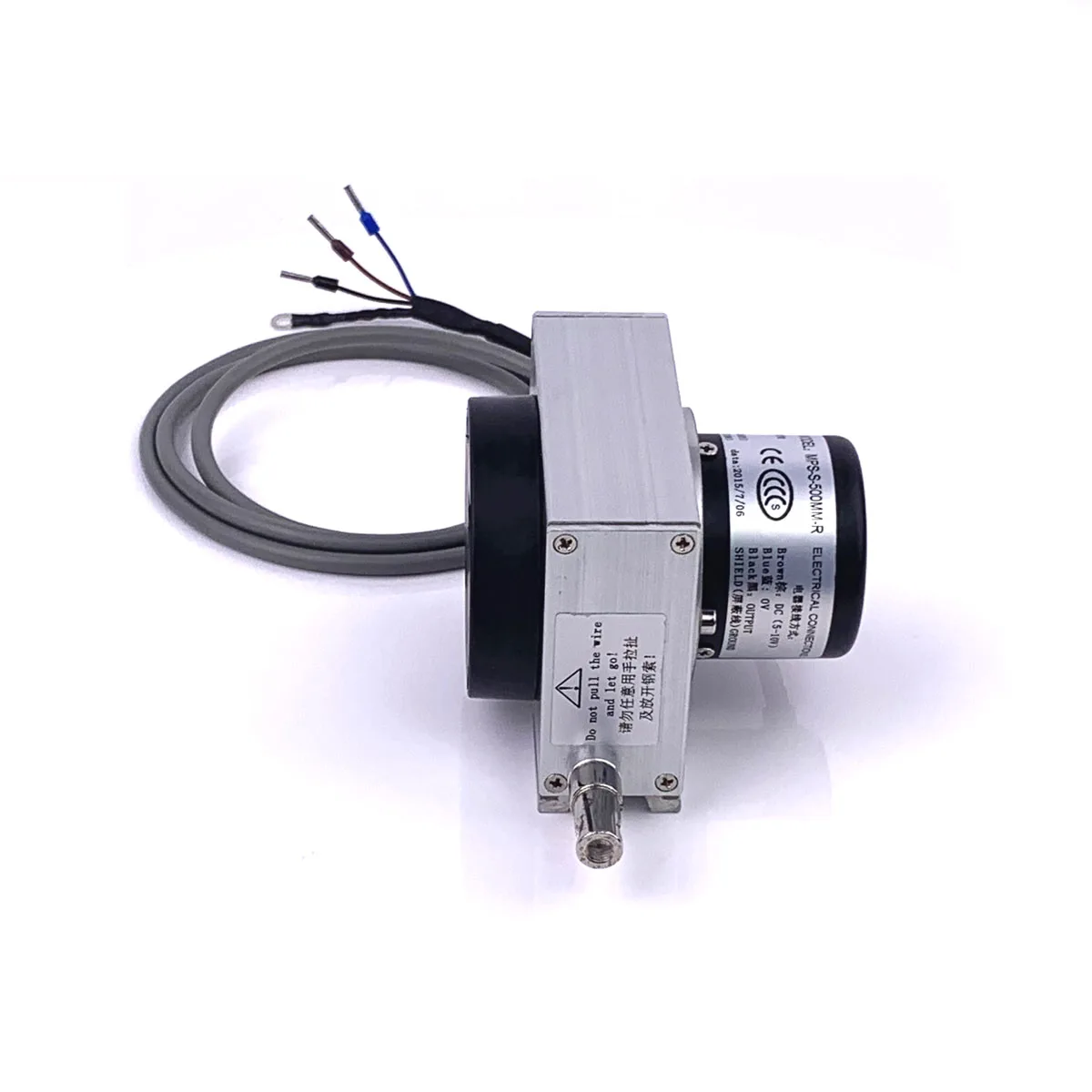

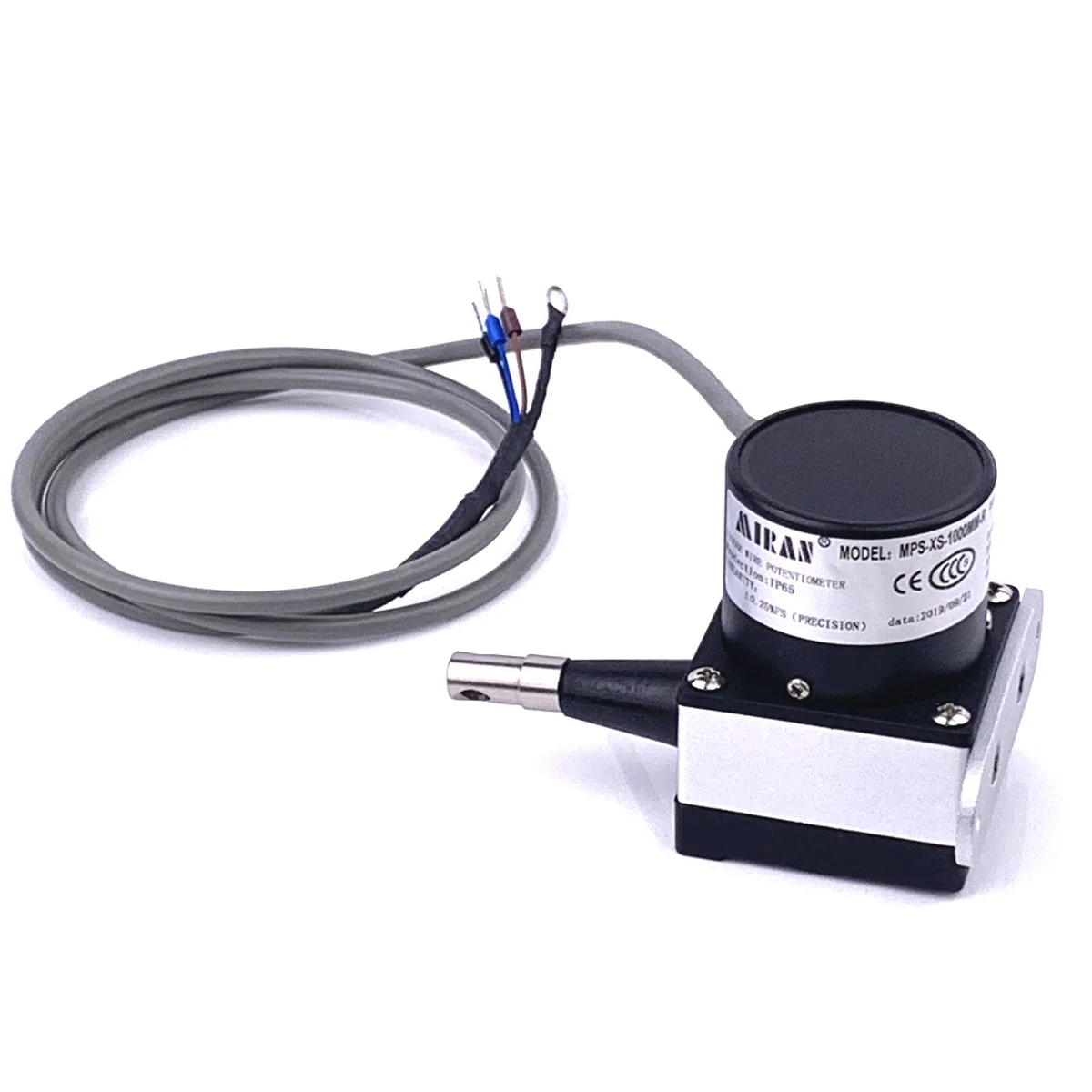

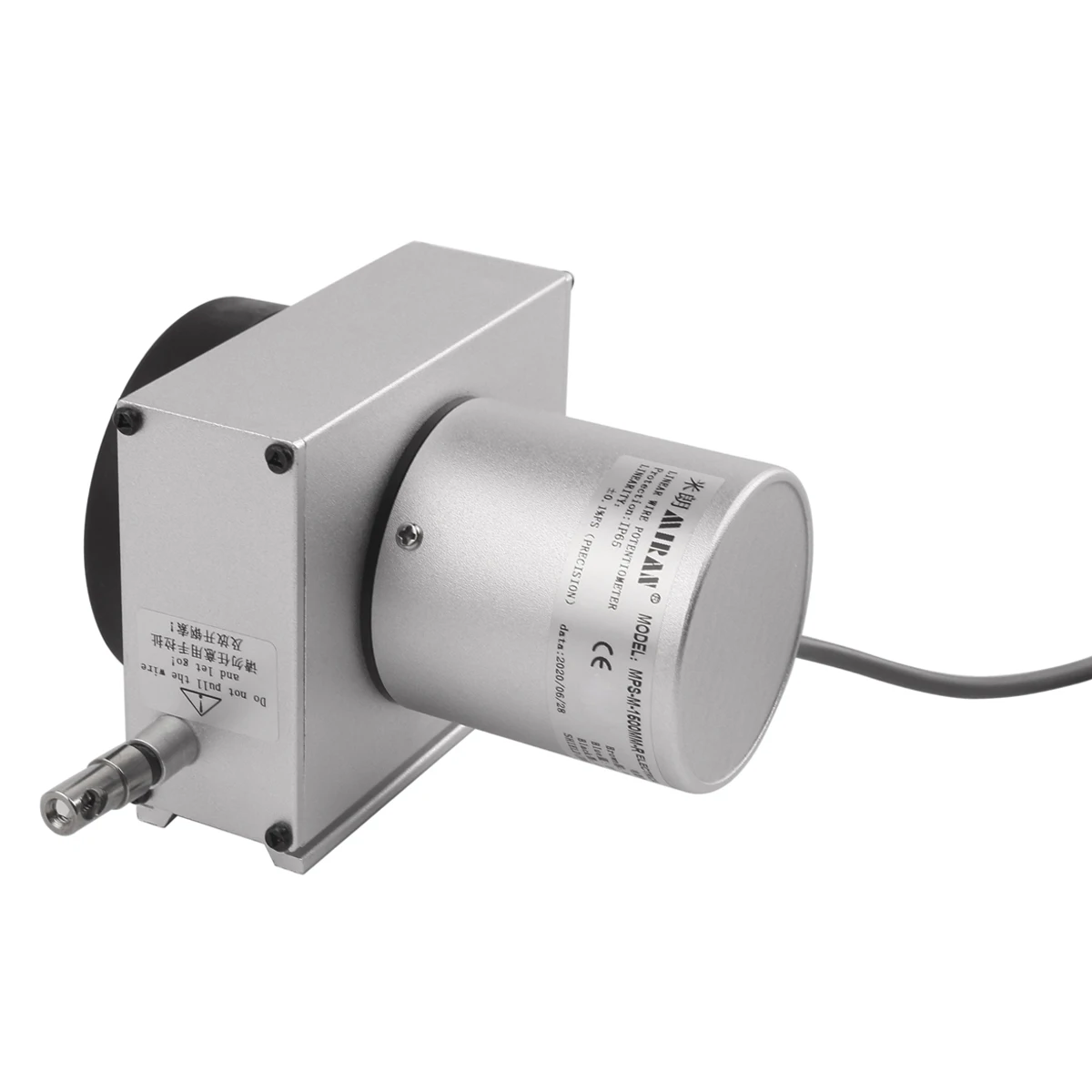

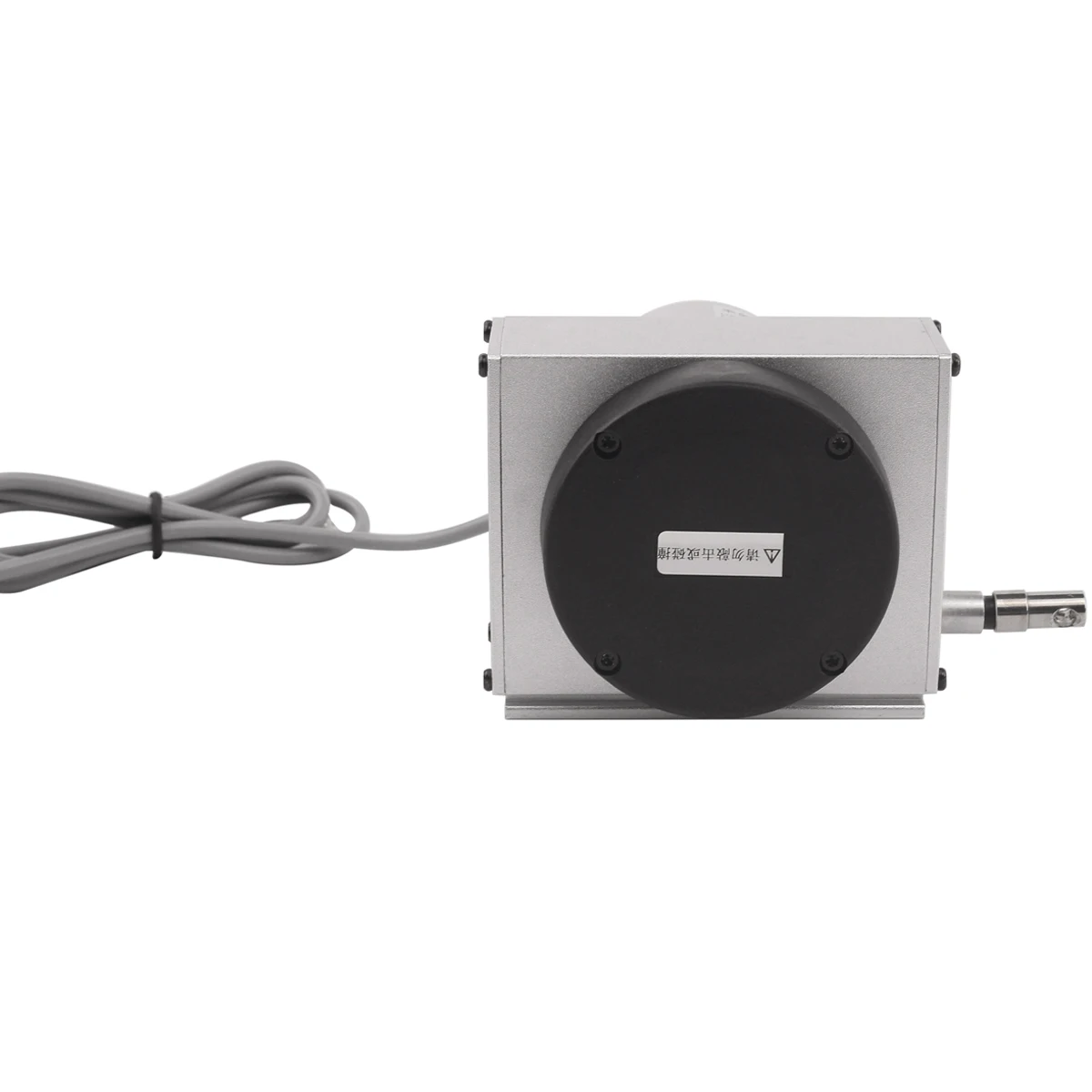

Detailed Images
Our Service
Pre-sale servie:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit
After-Sales Service.
* Training to instal and use.
* Quick response to technical problems;
Packing
Related Products
Certifications
Our Company
Dear Friends:
Shenzhen Miran Technology Co., Ltd. is the largest supplier of Linear Position Sensors in China .The company was founded in 2003, which is also the first sensor manufacturer in China. Miran specialized in Linear Positon Sensors.
Miran now develops and manufactures a wide range of Linear Position Sensor (brand:MIRAN,LinecSKI,WANSUNG), Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angular Sensor,Lubricating Pumps(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other motion control products to support many different industrial applications.
Miran Products are widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construction machinery,seaport machinery,industrial robots,etc.
As a leading manufacturer in China, Miran has the faith to keep our customers in the lead.Miran is approved by ISO9001:2008, CE, CCC, Rohs certifications. Also we are very proud of the following
1. Being among the leading manufacturer we contribute in R&D of related industry, We spend millions every year for developing new tech and new products.
2.We Promise high quality with strict QC. We performed vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test for each product before shipping.
3. Lean Production is intruduced to factory.
4. Excellent performance in on time delivery.
5. Excellent sales & after-sales service.
Miran now provide the service to customize product logo .
If you have any suggestion or question Please let us know.
