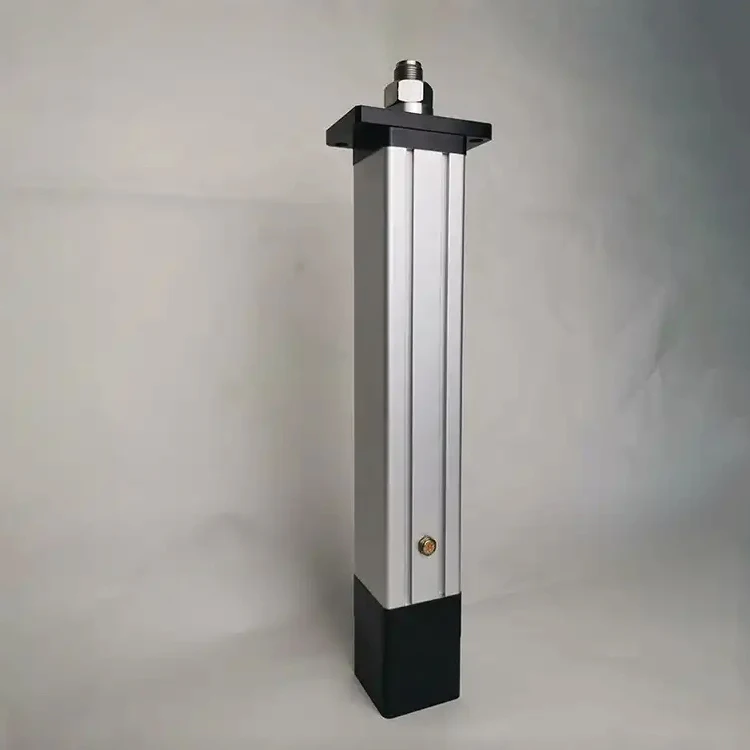

500mm/s custom ball screw electric telescopic line rotary to linear actuator servo cylinder price electric linear actuator
- Category: >>>
- Supplier: Dongguan Guanghong Automation Equipment Co. Ltd.
Share on (1601003071562):
Product Overview
Description
PRODUCT DESCRIPTION
Product Name | New Custom Telescopic Liner Actuator Servo Electric Hydraulic Cylinder with Good Price | ||||||
Product Series | QDA60 | ||||||
Screw lead / pitch (mm) | 5--10 | ||||||
Max. Power of Motor (W) | 400W----750W | ||||||
Max. Rated Thrust | 500KG/1102.31lb | ||||||
Max. Speed | 250---500MM/S | ||||||
Max. stroke | 800MM | ||||||
Rated Driving Torque (N.m) | 1.27---2.39NM | ||||||
Max. Ball Screw Diameter (mm) | 16 | ||||||
Rated Dynamic Load of Ball Screw (kgf) | 1270---1350 | ||||||
Axial Backlash (mm) | 0.02-0.04 | ||||||
Lead Error Every 300mm (mm) | 0.023 | ||||||
Repeatability Accuracy (mm) | 0.02 | ||||||
Repeatability Accuracy (mm) | 60/80 | ||||||
Flange Size of Optional Stepper Motor Series (mm) | 57/60/86 | ||||||
Flange Size of Optional Gear Box Series (mm) | 60/80/90 | ||||||

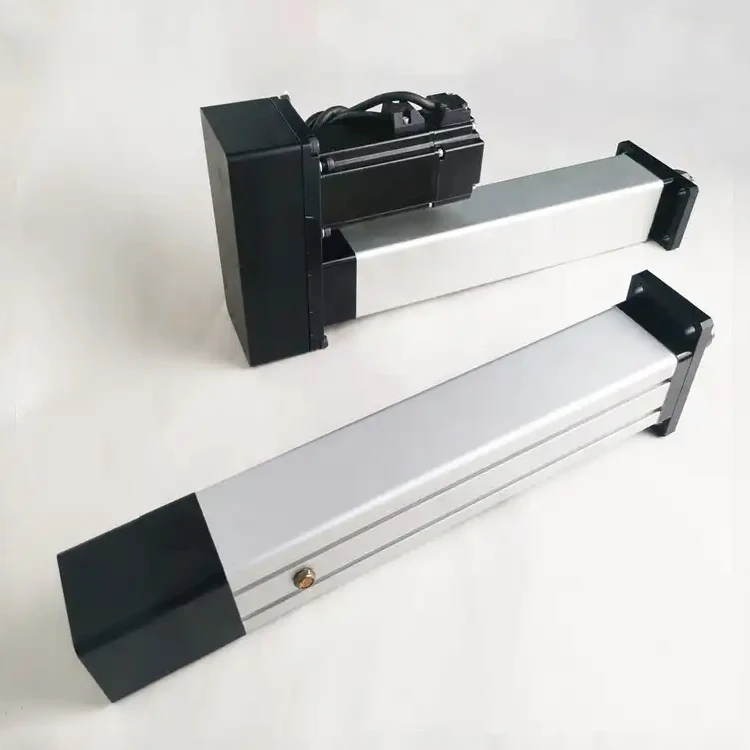

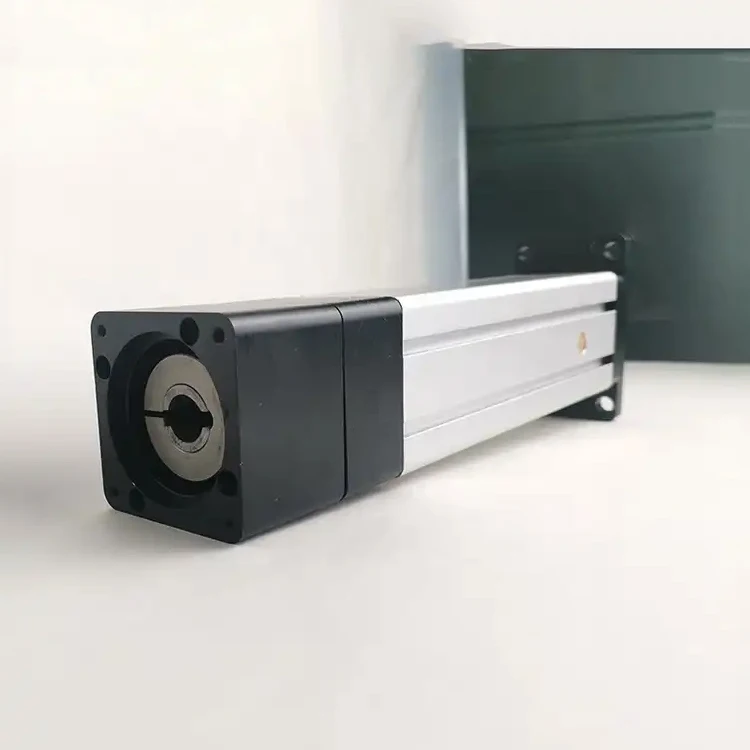

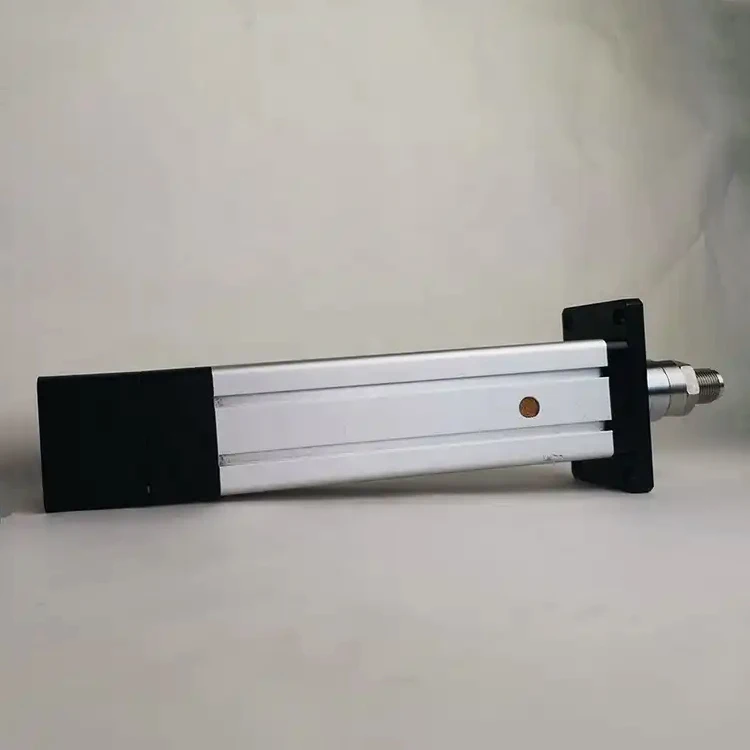

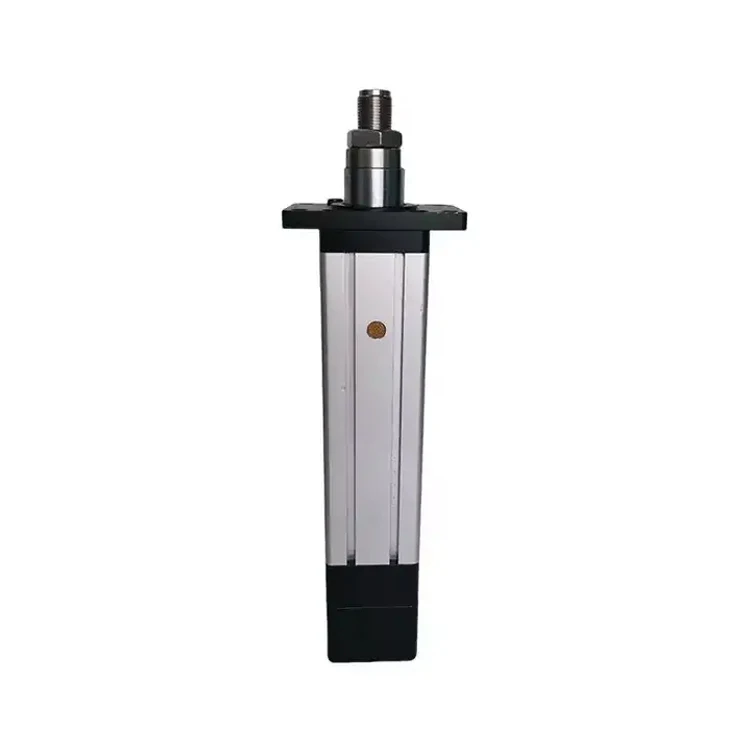

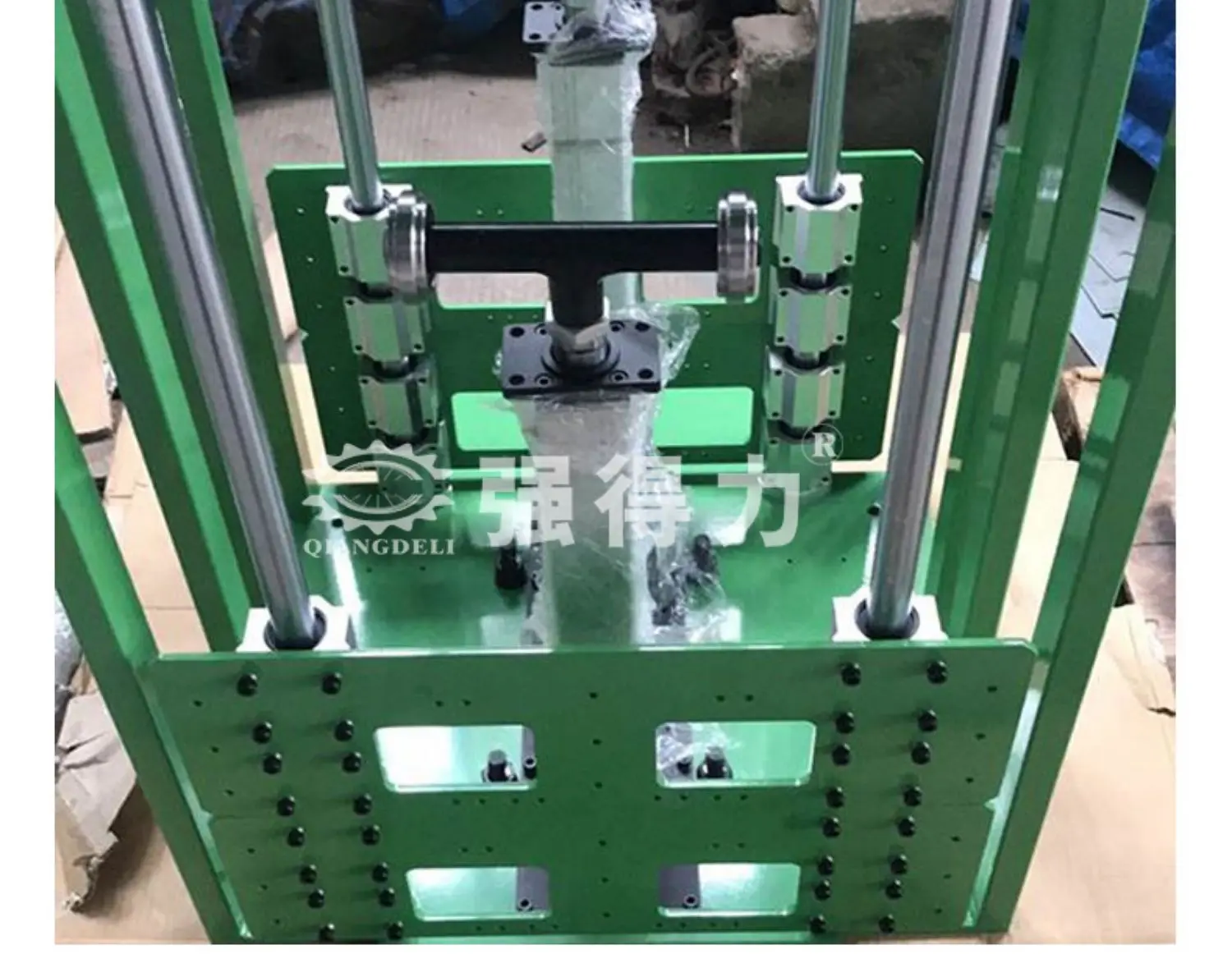

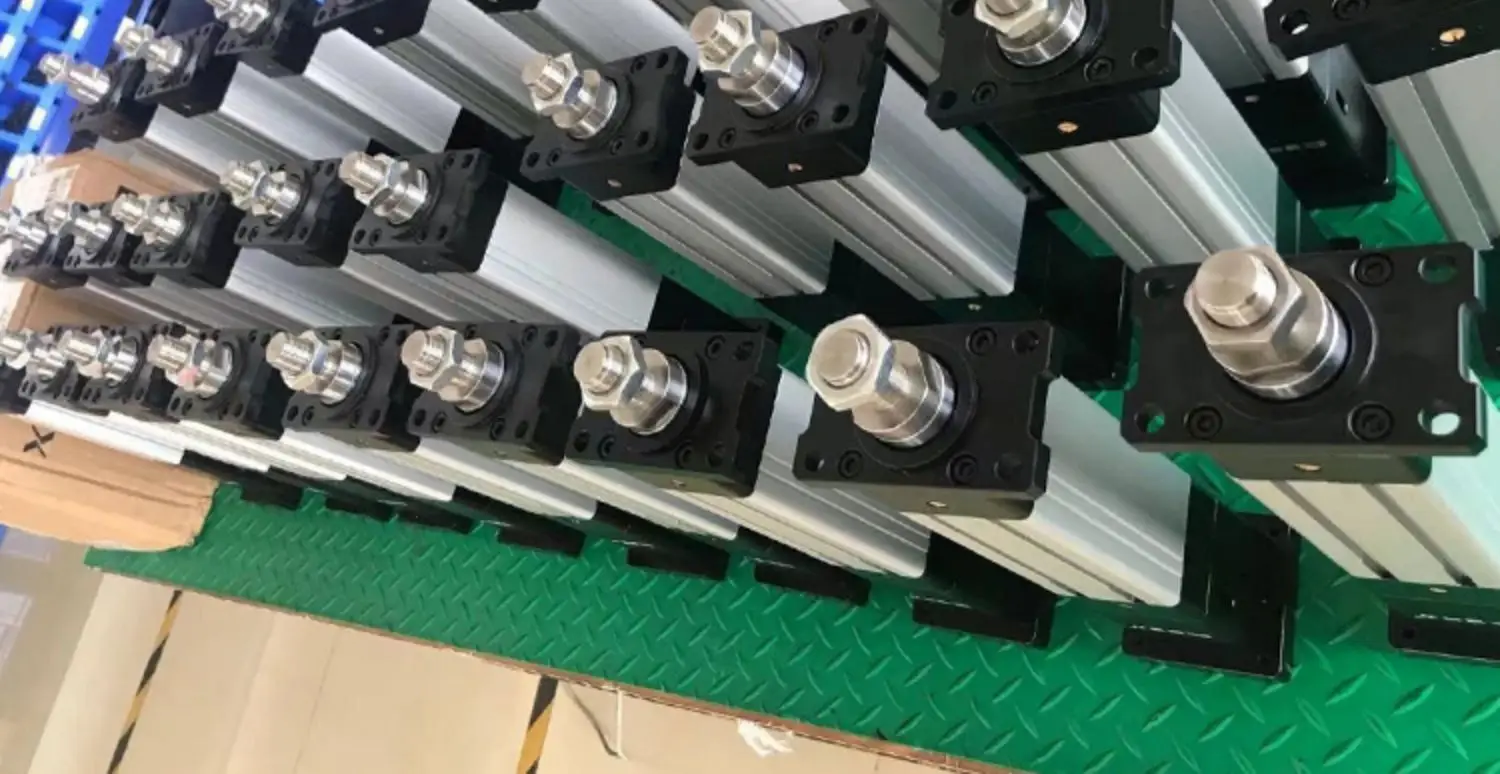

PRODUCT PICTURES
COMPANY INTRODUCTION
Dongguan Guanghong Automation Equipment Co., Ltd. is a collection of R & D, design, manufacturing, sales and service as one of the professional servo electric cylinder, servo press equipment, etc. development and production of modern enterprises.
The company has a professional design team, processing team, assembly team, sales and after-sales service team.The company mainly develops and produces servo cylinder, servo pressing machine, electric push rod, electric sliding platform,
multi-degree-of-freedom platform and other servo pressing equipment.
multi-degree-of-freedom platform and other servo pressing equipment.
