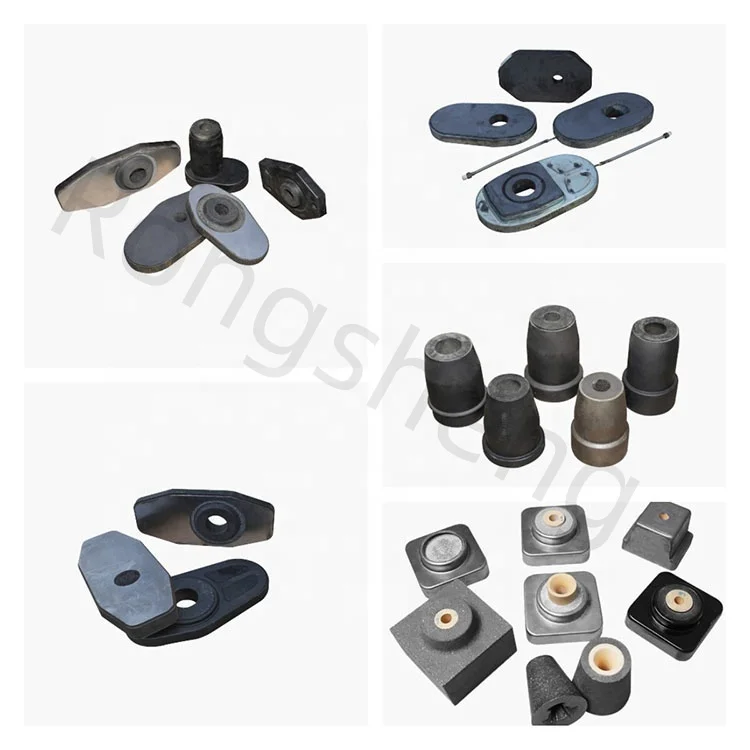

  • LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry
LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry

LS 50 Steel Ladle Refractory Sliding Gate Plate For Iron And Steel Industry

Share on (1601003093438):


Price:

Quantity:


Product Overview

Description

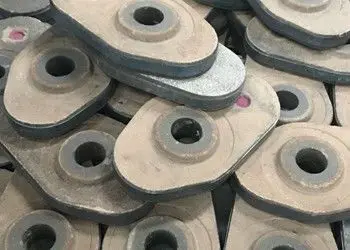

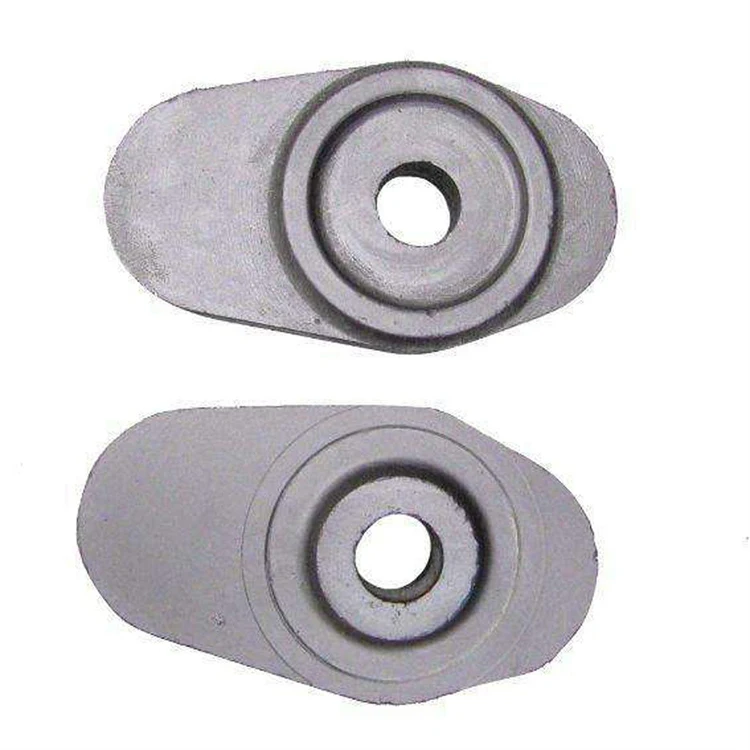

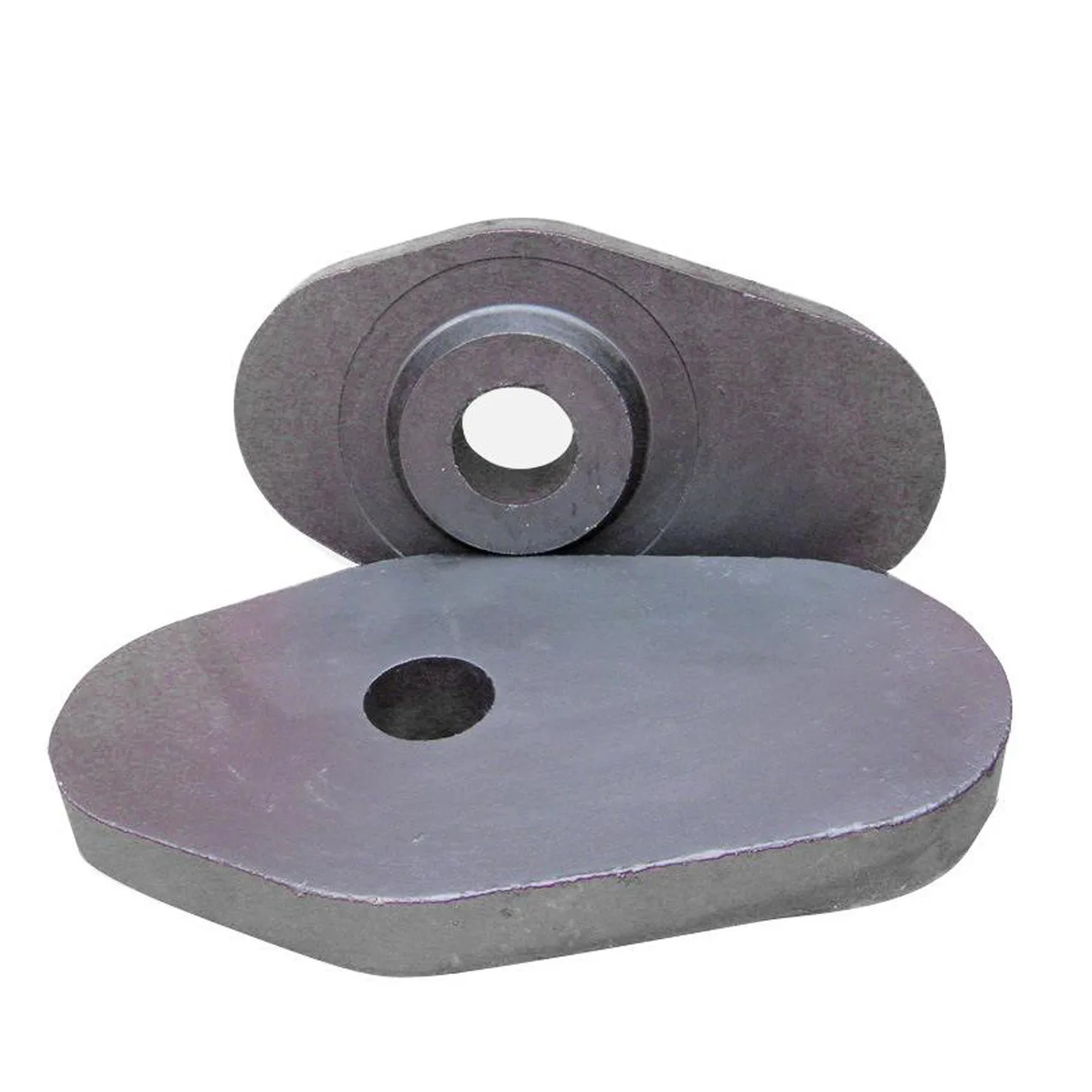

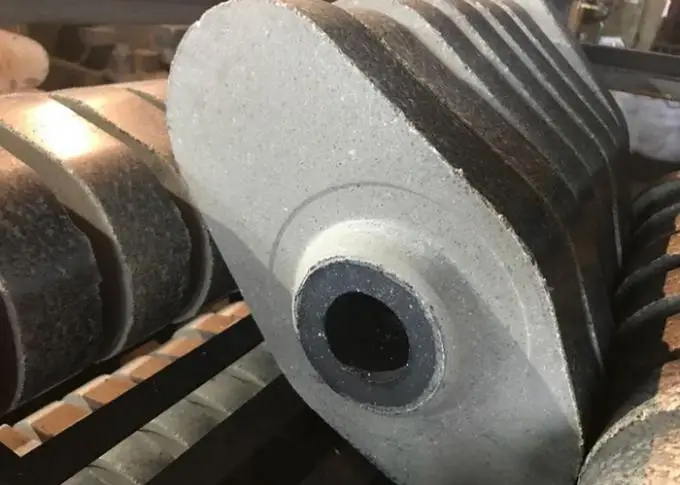

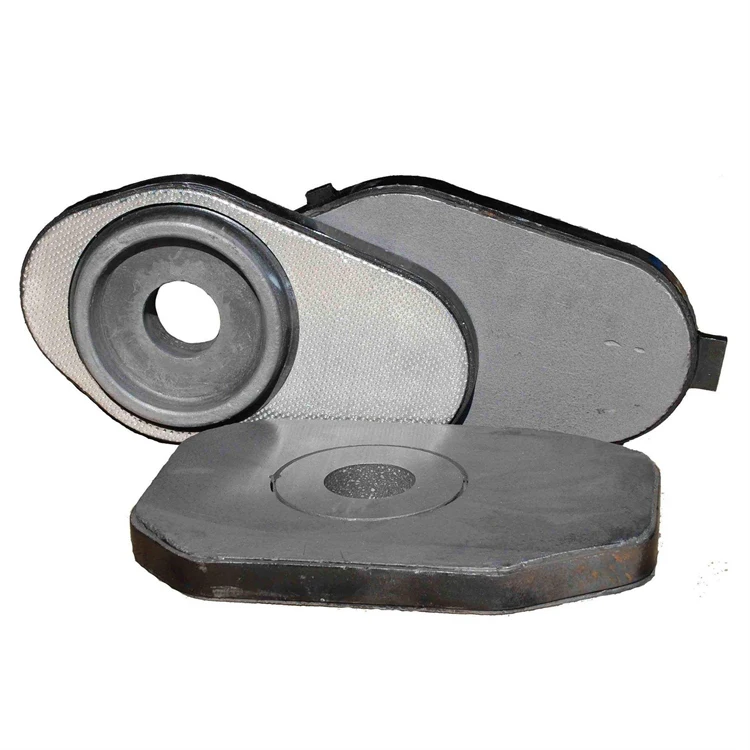

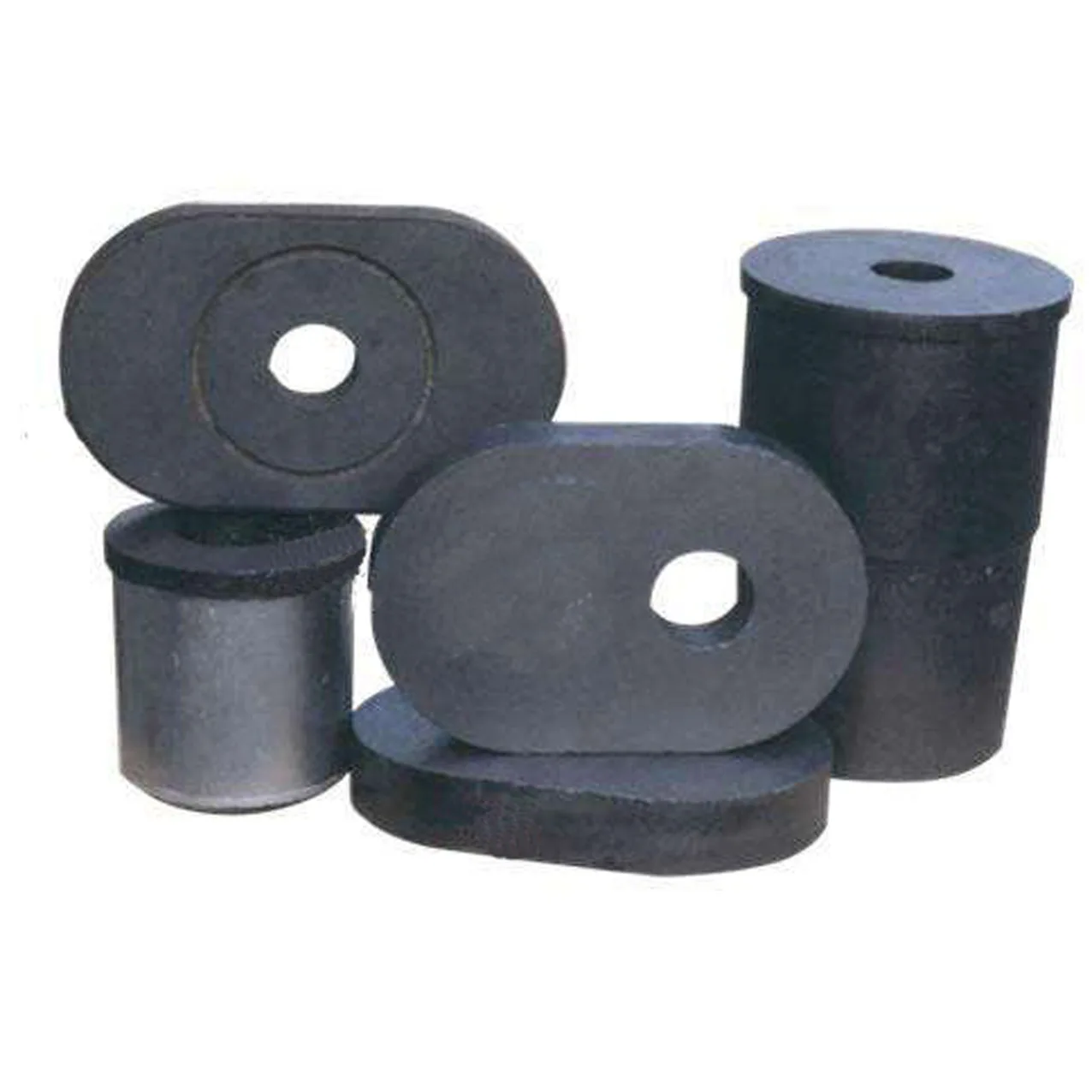

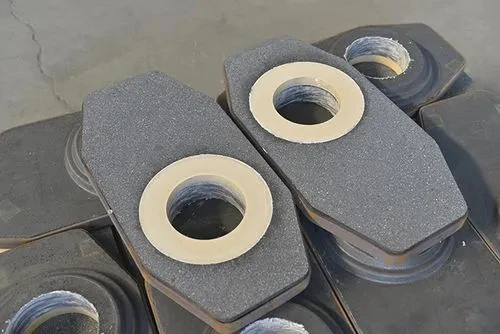

Slide Gate Plate
Slide gate plates are also called sliding gate bricks, they are functional refractory for continuous casting. Alumina carbon slide gate plates are most often used slide gate bricks. The raw materials of slide gate plate are alumina, carbon, additives, binders and so on. Slide gate plates work in strong thermal shock, severe molten steel liquid corrosion and washing out environment, so they should have good hot mechanical strength, excellent corrosion resistance, washing resistance and thermal shock resistance.




Physical and chemical indicators
Item
Index
HBLT80
HBLT75
HBLT70
Al2O3 %
≥80
≥75
≥70
C %
≥2
≥3
≥3
Cold Crushing Strength MPa
Non impregnation
≥80
≥70
≥60
Impregnation
≥100
≥90
≥80
Apparent porosity %
Non impregnation
≤13
≤13
≤13
Impregnation
≤10
≤10
≤10
Bulk density g/cm3
Non impregnation
≥2.9
≥2.85
≥2.75
Impregnation
≥2.95
≥2.9
≥2.85


Sliding Plate Physiochemical Index
High Alumina Sliding Plate
Unburned Alumina Carbon Sliding Plate
Burned Alumina Carbon Sliding Plate
Al2O3-ZrO2-C Sliding Plate
Al2O3
80
60-70
80
70-80
ZrO2
-
-
-
5-9
C
-
5-6
6-12
6-12
Apparent Porosity %
16-18
8-12
5-10
5-9
Bulk Density g/cm3
2.7-2.8
2.8-2.9
2.8-3.0
3.0-3.2
Compression Strength/Mpa
60-100
40-90
80-120
90-160
Hot Rupture Strength/Mpa
2-3
5-8
12-16
14-20




Alumina Zirconia Carbon Sliding Plate
Alumina zirconia carbon sliding plates are developed on the basis of Al2O3-C slide plate. The primary raw materials of alumina zirconia carbon sliding plates are fused zirconia corundum, zirconia mullite, corundum, natural flake graphite and so on as primary raw materials, metal Al, Si or SiC as additives, organic resign is used as binders. Alumina zirconia carbon sliding plates have better thermal shock resistance, corrosion resistance and lower thermal expansion coefficient than alumina carbon sliding plate, so they are often used in large capcity steel ladles and tundish. Al2O3-Zr2O3-C sliding plates have much longer life than burned alumina carbon sliding plates.


Alumina Carbon Sliding Plate Physiochemical Index
LTHB-1
LTHB-2
LTHB-3
Al2O3 % ≥
75
80
80
C % ≥
6
6
6
Apparent Porosity % ≤
10
10
10
Bulk Density g/cm3 ≥
3.00
3.05
3.05
Cold Crushing Strength Mpa ≥
100
120
100

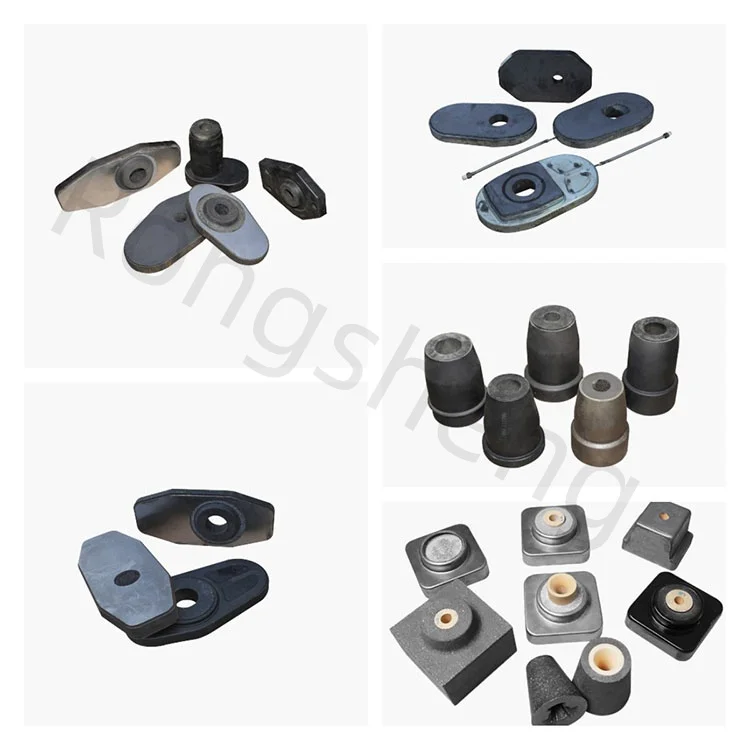

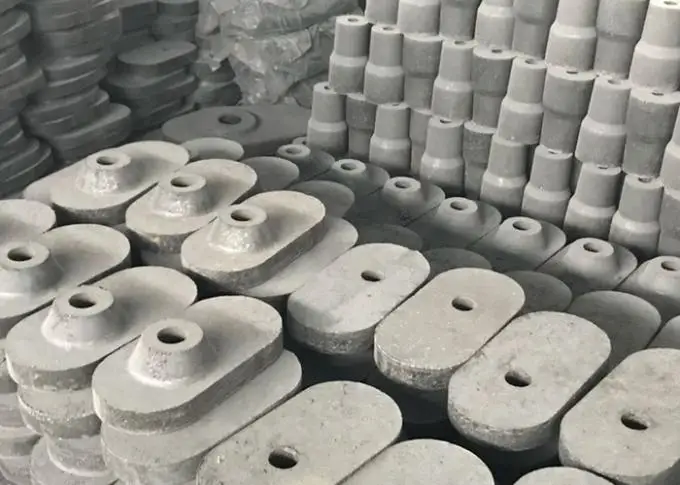

Customer Photos








Exhibition

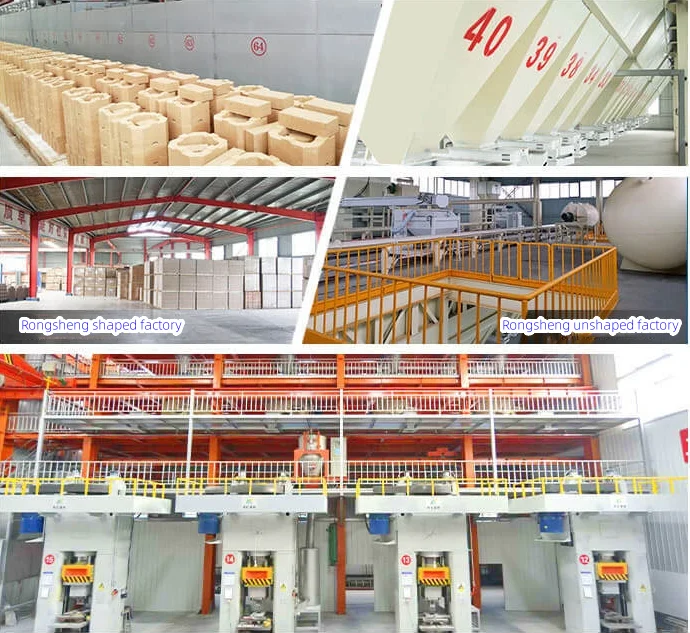

Henan Rongsheng Xinwei New Materials Research Institute Co., Ltd.


1.Has More Than 20 Years Of Experience In Refractory Production And Export In China.

2.Covering a Full Range Of Shaped And Unshaped Refractory Products. Such As High Alumina Seriesbricks. Mullite Bricks, Corundum Series Bricks, Silica Series Bricks, Andalusite Bricks, Magnesiaseries Brick Carborundum Brick, Insulating Series Brick,
Insulating And Dense Castables.

3.A State-Of-The-Art Logistic System And Warehouse Facilities and Strong And Friendly Marketing Team.






Product packaging






FAQ


Q1.You Are a Manufacture Or a Trading Company?
A: We Are Truly a Manufacture,Our Factory Is In Xinmi,Zhengzhou City,Henan Province.We Not Only Can Provide The High Quality Products With The Best Price,But Also Can Offer The Best Pre-Sale Service And After-Service.

Q2.What Kind Of Product Can You Offer?
A: Our Company Can Offer a Series Products For Kiln Construction.For Example:Refractory Brick,Refractory Castable,Refractory Materials,Ceramic Fiber Products,and so on.

Q3.Can Your Company Provide Samples Or Can We Have a Visit To Your Factory?
A: Of Course,Samples Are Available,And You Are Welcome To Visit Our Factory At Anytime,We Will Arrange Professional Reception Personnel To Patiently Explain To You.

Q4.Why Choose You Over Other Suppliers?
A: We Are Truly a Manufacture.We Have a Large Scale, Strong Strength, And Rich Experience, Professional Technology, And Perfect Customer Service, And Have Obtained Various Certifications Such As CE/ISO9001/ISO45001.

Q5. Do You Accept OEM?
A: Yes, We Support OEM.

Q6. How Long Is Delivery Time?
A: The Delivery Time Usually Depends On The Order Quantity, Usually Around 7-12 Days.

7. How Are Your Products' Quality?
A: The Products Will Be Strictly Inspected Before Shipment, So The Quality Could Be Guaranteed.
