Online Oil in Water Analyzer Self Cleaning Oil in Water Meter Industrial RS485 Oil in Water Sensor
- Category: >>>
- Supplier: Shanghai Lanchang Automation Technology Co. Ltd.
Share on (1601003108467):
Product Overview
Description
Online Oil in Water Analyzer Self Cleaning Oil in Water Meter Industrial RS485 Oil in Water Sensor
Product Description

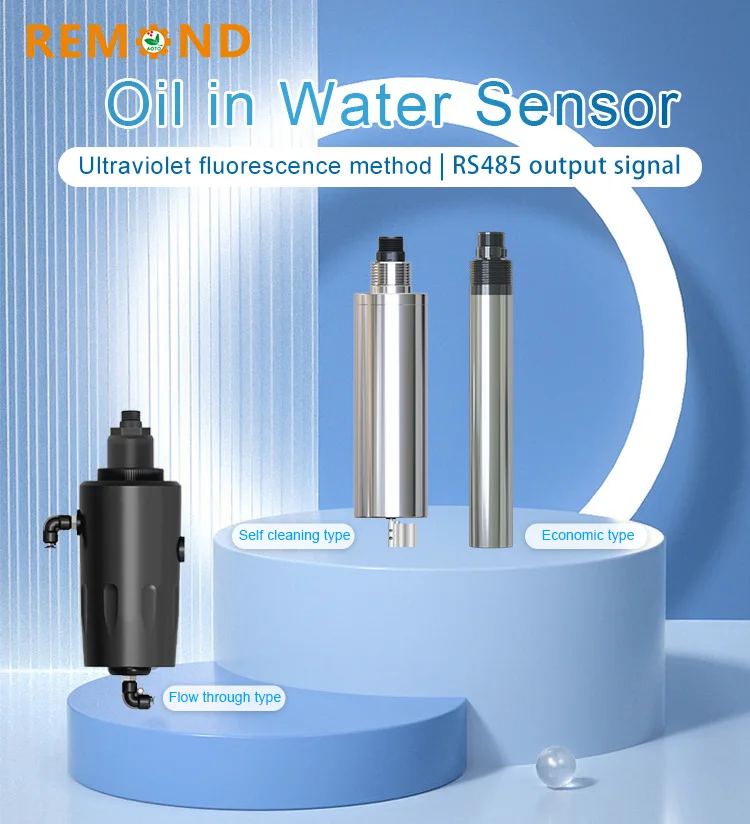

Oil in water sensor principle
The online oil in water sensor adopts the principle of ultraviolet fluorescence method. The fluorescence method is more efficient and faster, with better repeatability, and can be monitored online in real time. Self-cleaning brush can be used to effectively eliminate the influence of oil on the measurement. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations and other water quality monitoring scenarios.

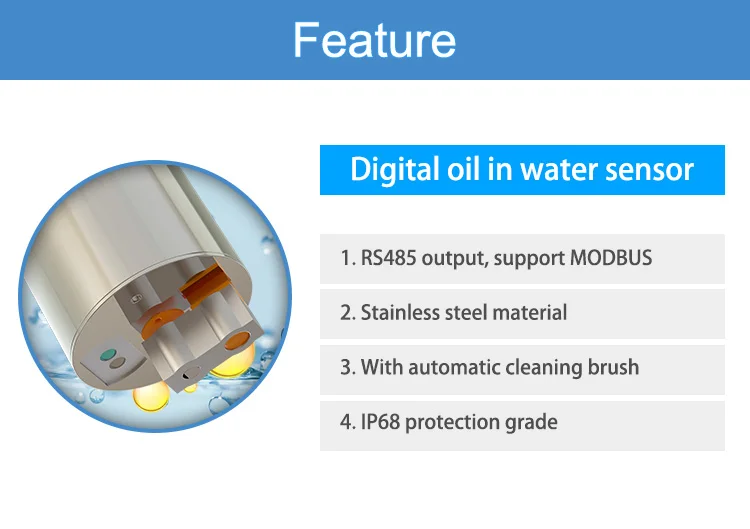

Oil in water sensor feature
1.Digital sensor, RS485 output, support MODBUS

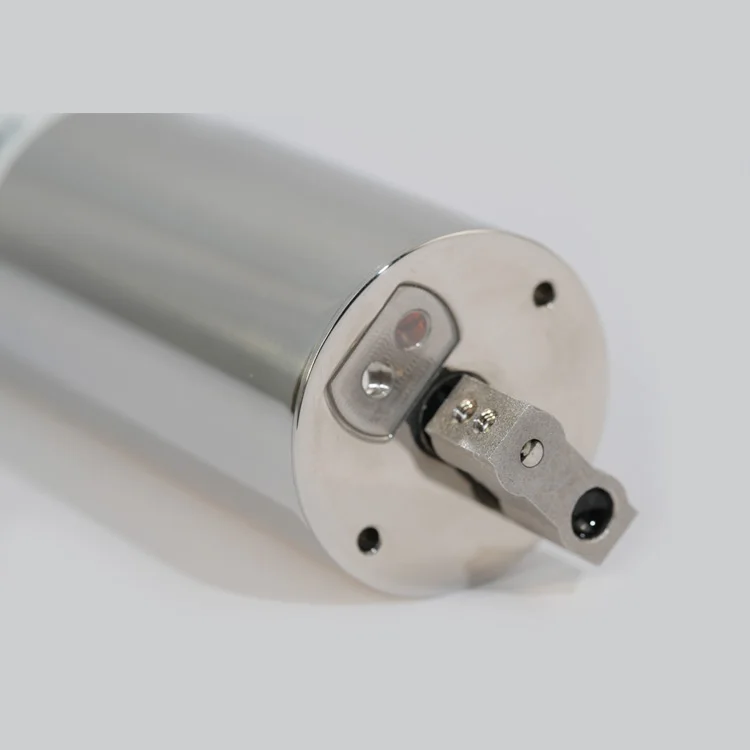

2.With automatic cleaning brush to eliminate the impact of oil on the measurement
3.Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques
4.Unaffected by suspended solids in water

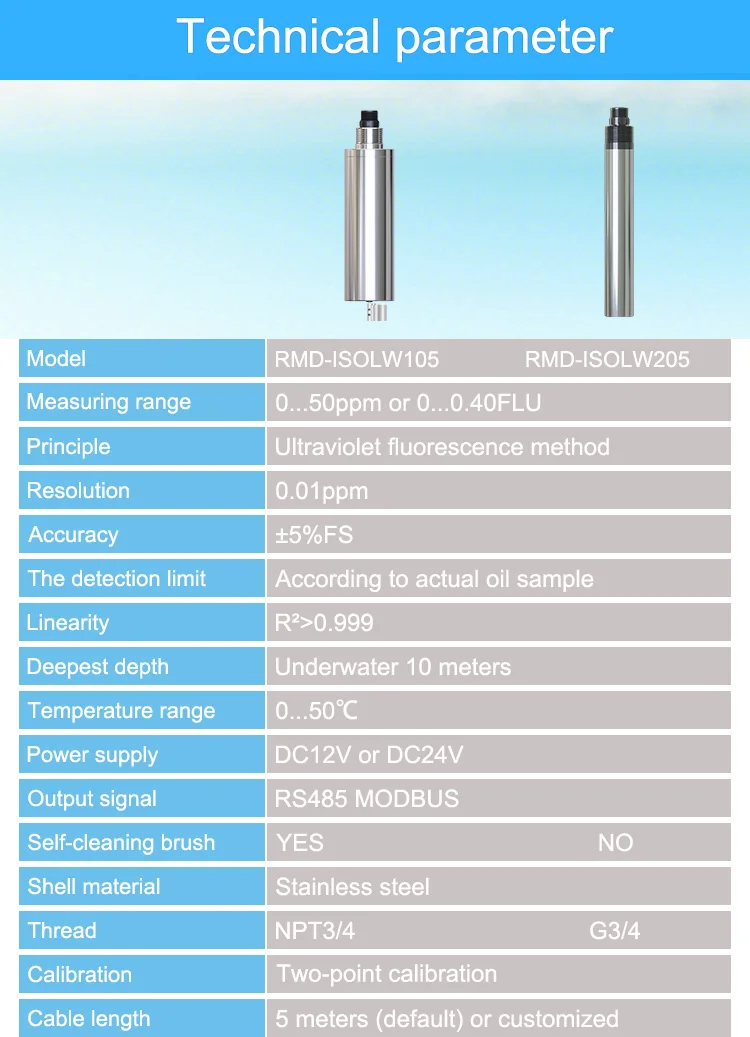

Oil in water sensor technical data
| Principle | Ultraviolet fluorescence method |
| Measuring range | 0...50ppm or 0.40FLU |
| Resolution | 0.01ppm |
| Accuracy | ±5%F.S. |
| The detection limit | According to the actual oil sample |
| Linearity | R²>0.999 |
| Deepest depth | underwater 10 meters |
| Temperature range | 0 ~ 50°C |
| Power Supply | DC12V, current <50mA (when there is no cleaning brush) |
| Output signal | RS485,MODBUS protocol |
| Installation | Submersible type |
| Shell material | stainless steel |
| Cable length | 5M (default) |
| Self-cleaning brush | Yes |
| Protection grade | IP68 |

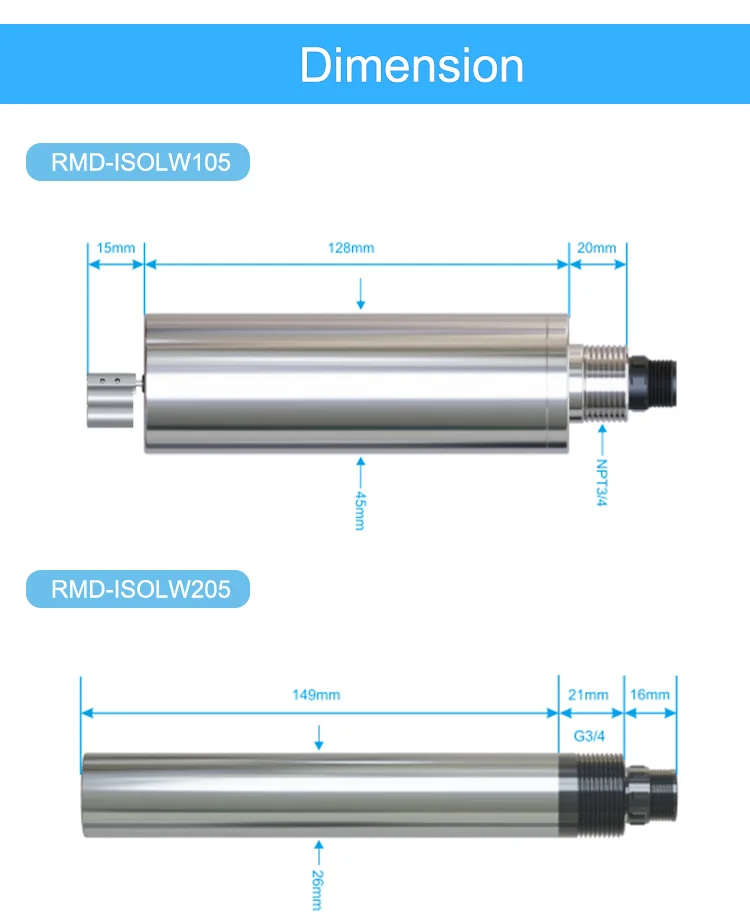

Detailed Images
Related Products
Company Information
Certifications
FAQ
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , Credit card
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: sensor: 1 year warranty
