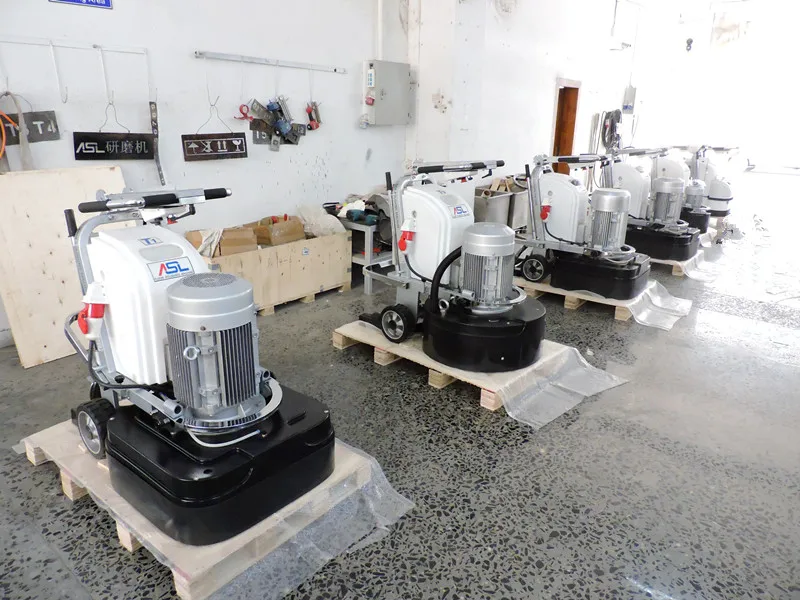

ASL750 T9 hand operated concrete floor grinder with vacuum cleaner from shanghai manufacture

Share on (1601003136700):


Price:$5,000.00 - $7,000.00

Quantity:


Product Overview

Description






Company Information










Product Description


This powerful 30Inch floor grinding machine and polishing machine has an aluminum alloy gearbox and planetary gear driver that can reach a remarkably flat grind to produce smooth, polished surfaces.





There is a folding handle and split body design for a more convenient way to carry and transport the machine. The magnetic plates make tool changing a simple task with  our enhanced metal tooling or resin holders.





The automatic leveling system has excellent flexibility to evenly touch the floor and perfectly balance the machine.

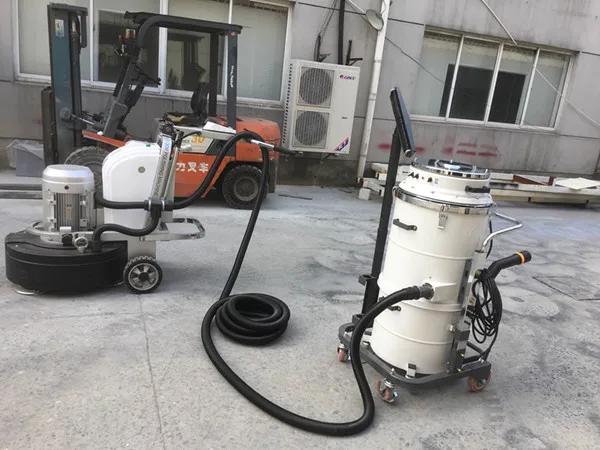

With the integrated vacuum port, the machine can grind and polish wet or dry.































































ModelT9-AT9-B
Voltage 380V(3phase)220V-240V(1&3phase)
Current 24A40A
Motor15HP(11KW)15HP(11KW)
Inverter15HP(11KW)15HP(11KW)
Frequency50/60HZ50/60HZ
Disc speed300-1200rpm300-1200rpm
Grinding width750mm750mm
Disc diameter250mm*3250mm*3
Water tank 30L30L
Weight320KG320KG




The T9 is an impressive grinding and polishing machine that is a portable size yet big enough for large jobs.


-The Grinder can be operated through the control panel on adjustable handle

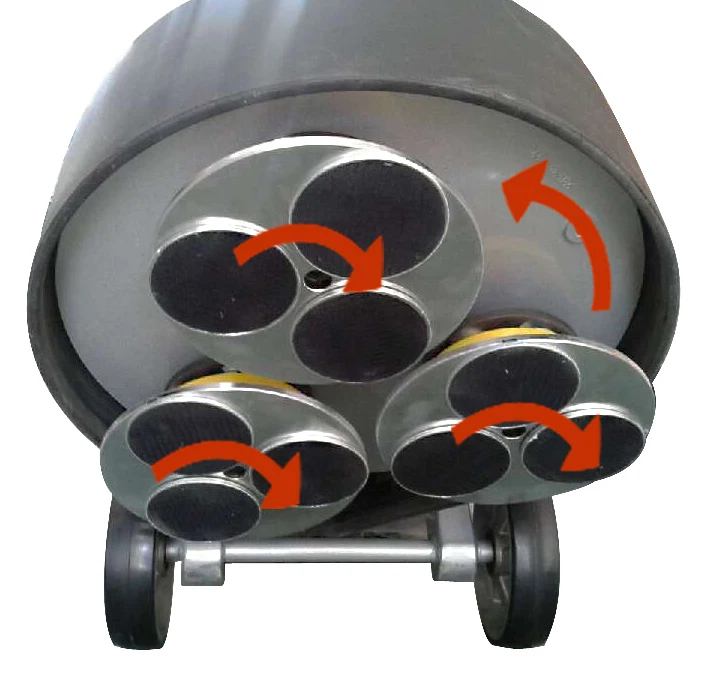

-Planetary gear driver


-Gearbox and motor are made out of  aluminum for steadiness and durability

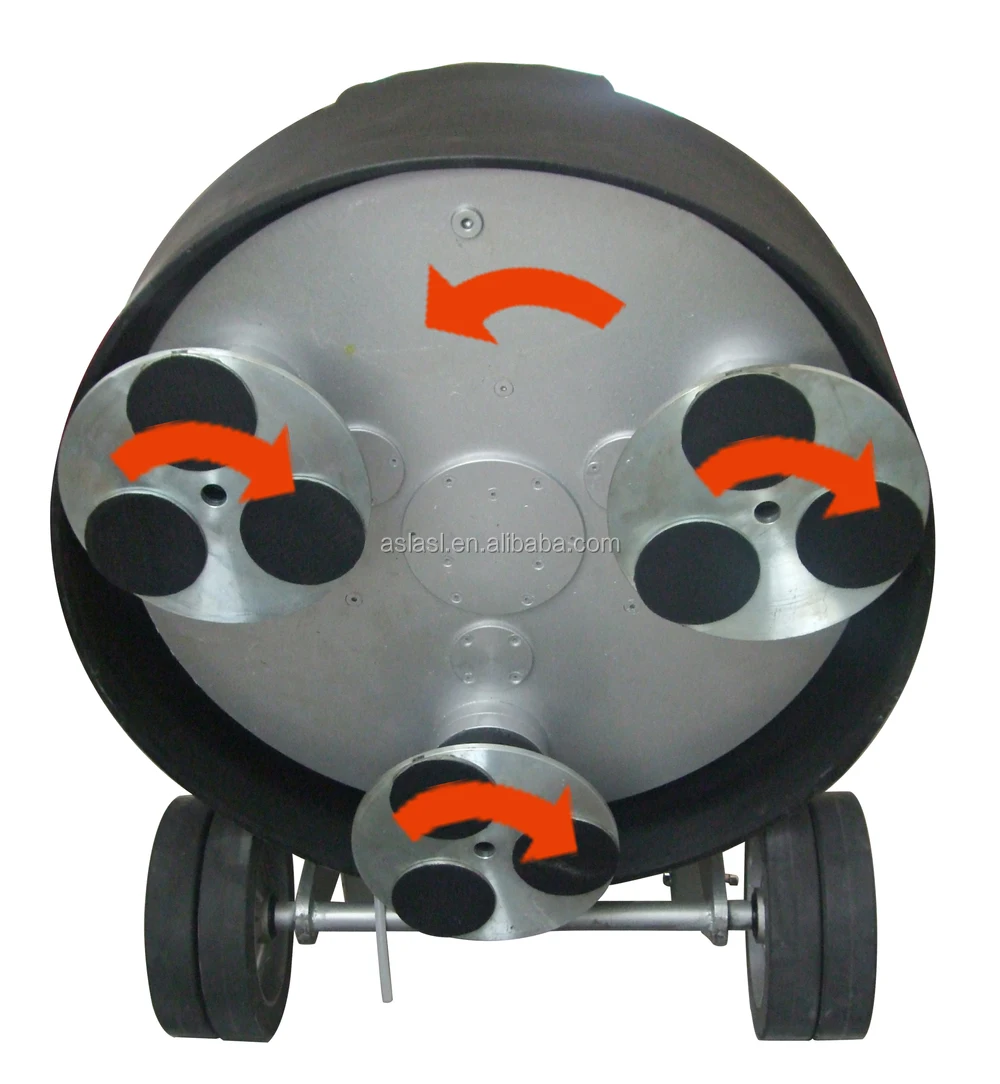

-There is the option of having 3 or 4 magnetic plates that each hold 3 diamonds (9 or 12 total)

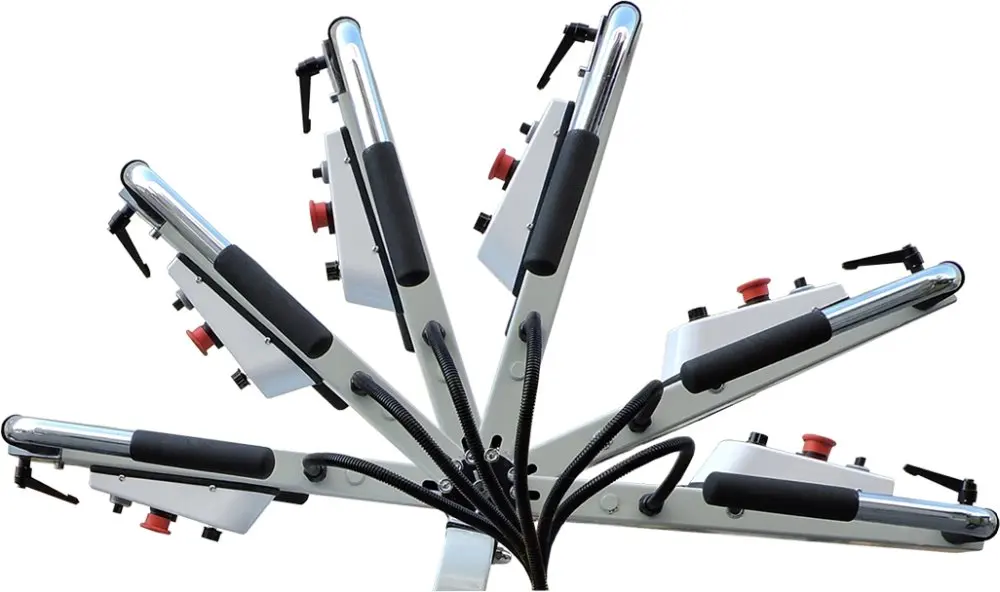

-The handle can be rotated 360 degrees to adjust to fit each operator comfortably


-Can handle jobs wet and dry

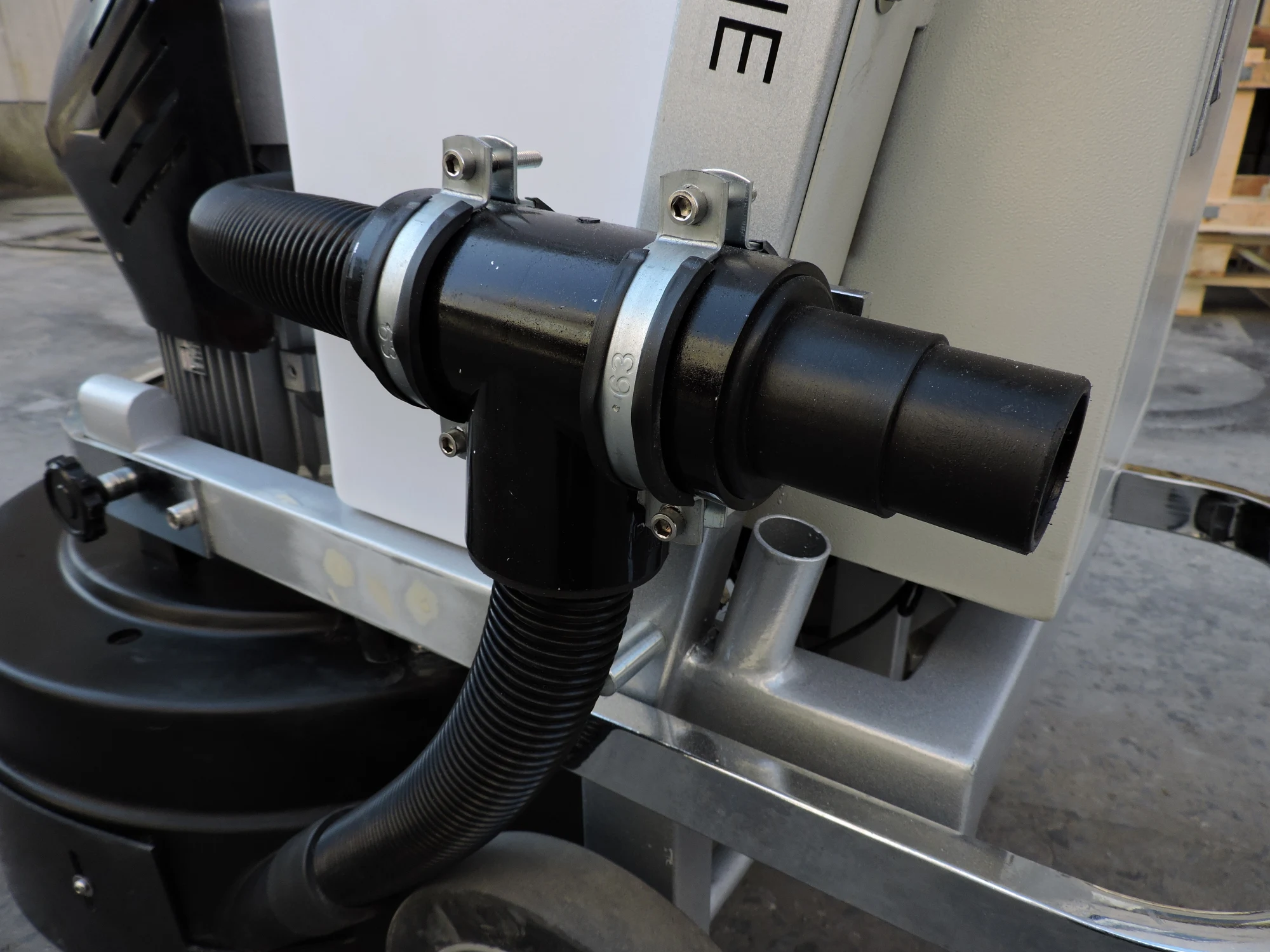

-The vacuum port is located on the bottom left of the grinder


-Can run forward or reverse

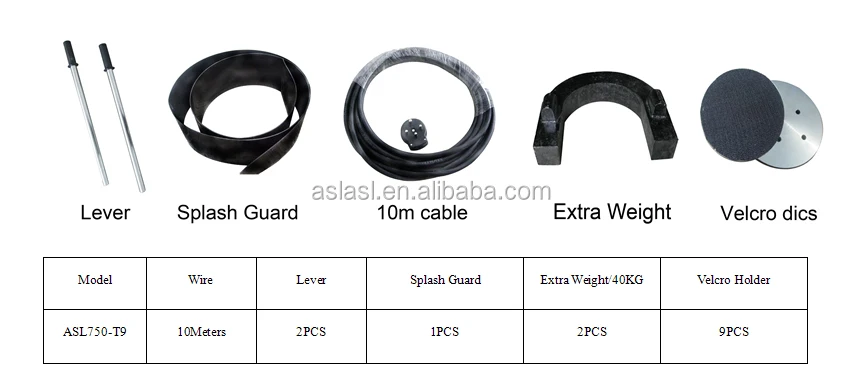

Accessories

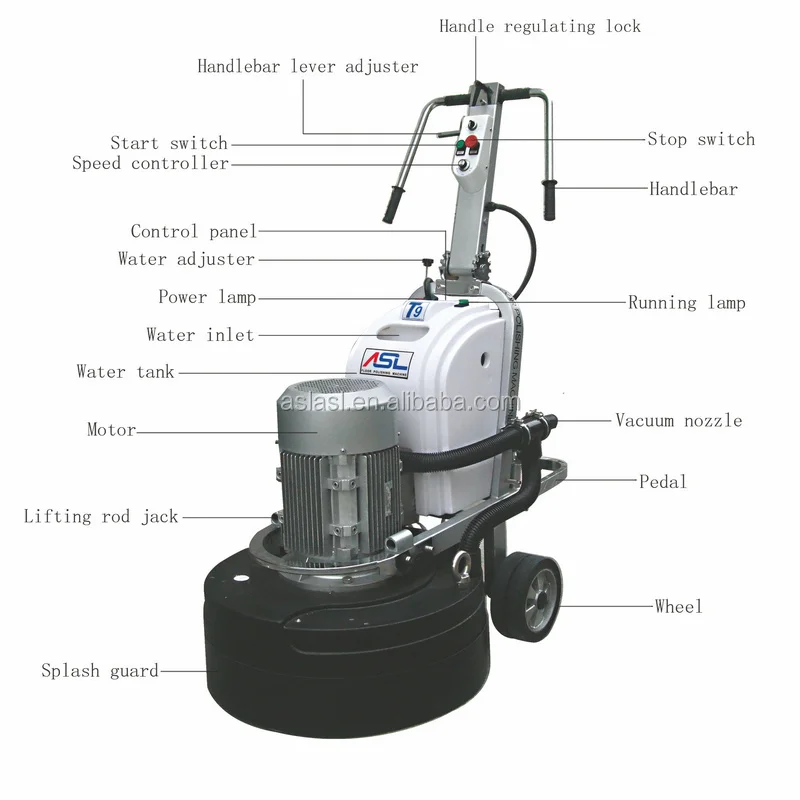

Detailed Images
