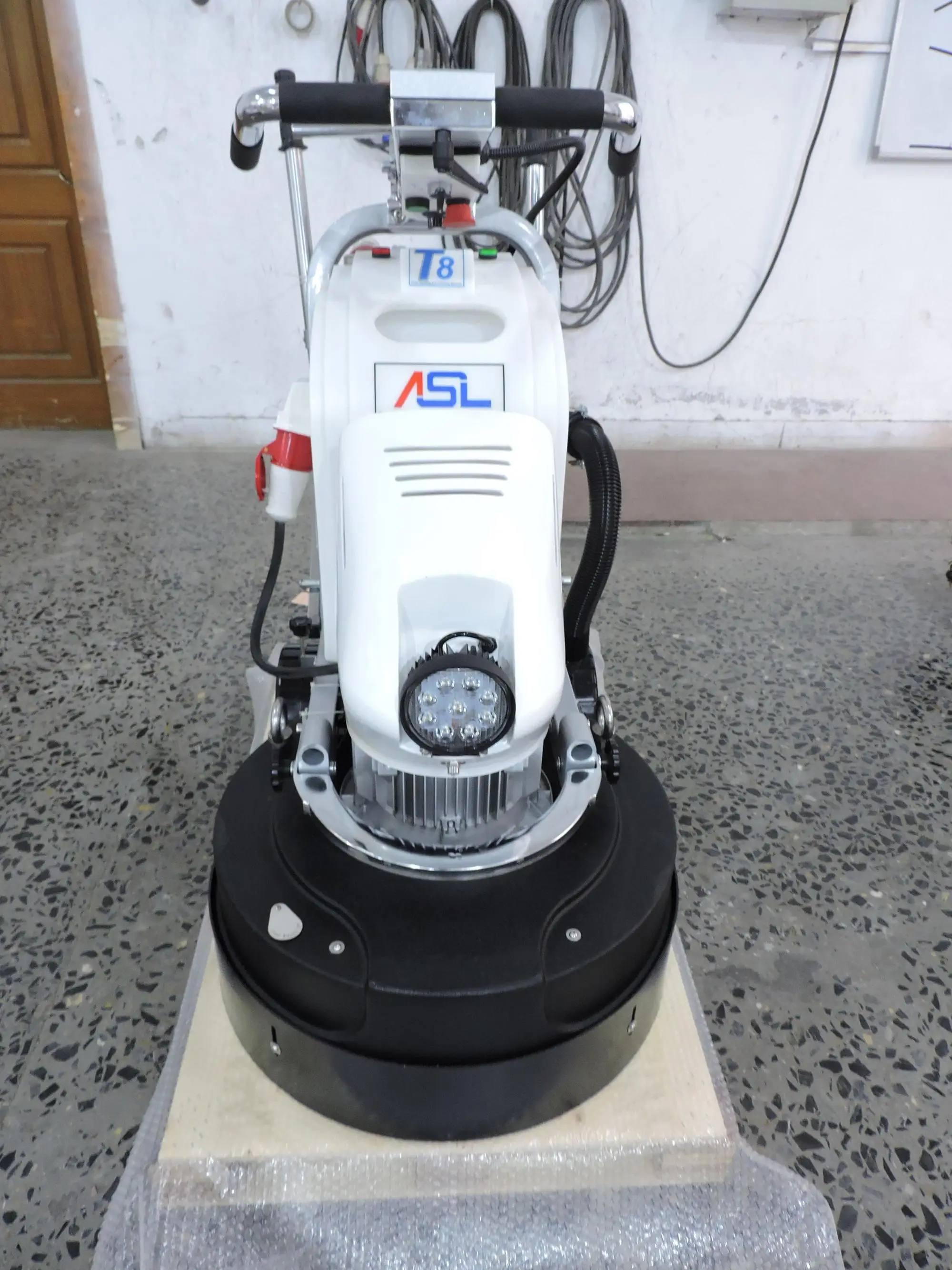

ASL 650 grinding width floor grinding machine concrete floor polishing machine

Product Overview

Description



650 mm grinding width Concrete floor grinding machine





Advantage:

1. High efficiency Concrete Floor Grinding Machine to save labor cost at extreme

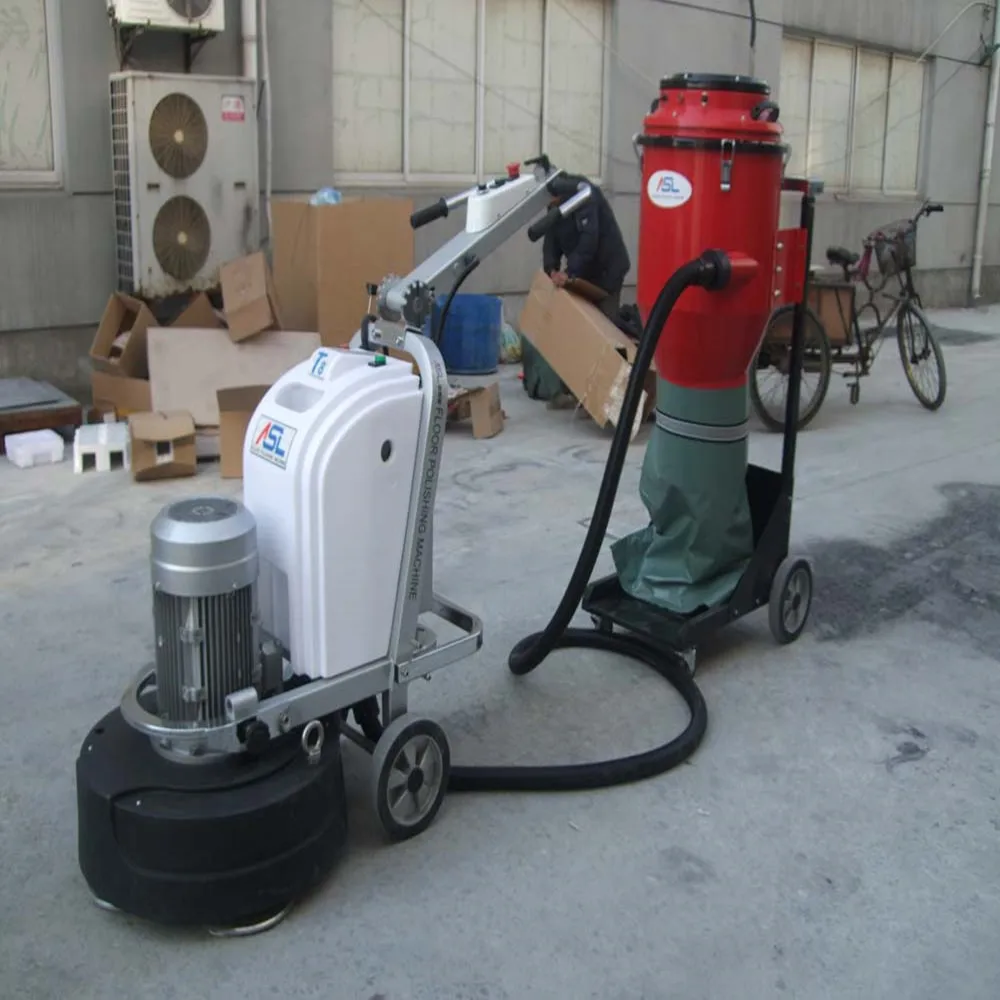

2. Vacuum Configuration to create a dust-free work environment



3. Heavier Body so that polishing and grinding concrete & protruding place much easier



4. Magnetic Plates for easy tool changing as well as Multifunctional Disc for more Functions

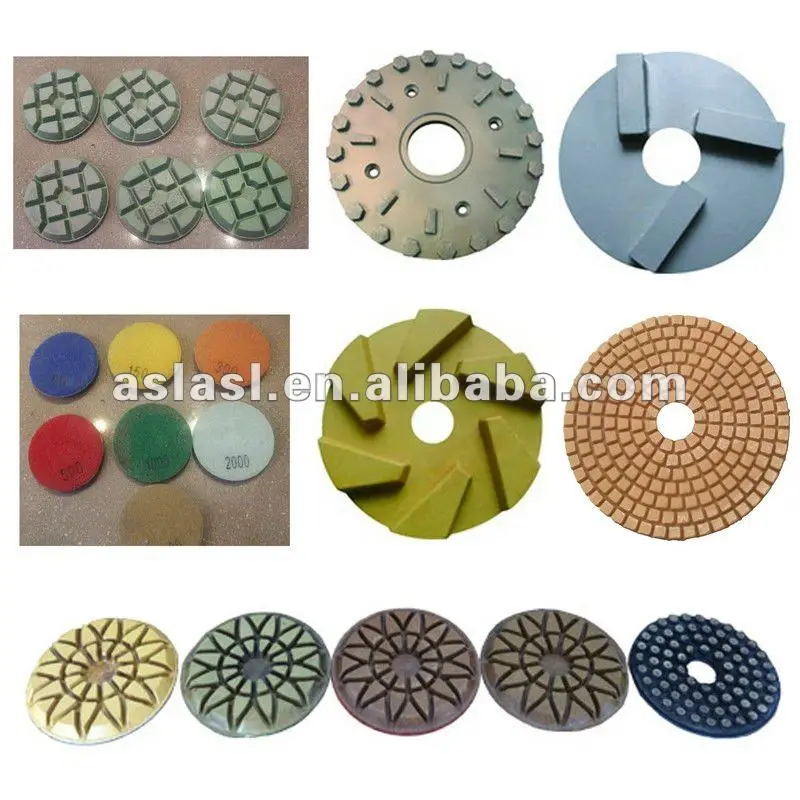

5. With Various grits of diamond metal, resin pad and magnatic heads  for polishing different  surface



6. Customized type could add the remote system.





Parameter and Specification

Model	ASL-T8
Operation	Gear Wheel (Large torque, full power and long service life)
Current	20A
Power Source	220-240V, Single phase
Power	10HP(7.5kw)
Inverter	15HP(11kw)
Frequency	50/60HZ
Disc Speed	300-1200rmp
Work Area	650mm
Grinder Wheel	250mm*3(3*9.8")
Grinding head	9*4" (9*101.6mm) or 9*3"(9*76.2mm)
Water-Tank	30L/8gal
Noise	65DB
Weight	230kgs/506lbs
Dimension	950x650x970mm (LxWxH)
Motor type	Dry/Wet
Accecerios	Iron Weight(30kg), Lever(2pcs),Waterproof Sheild(1pcs),10Meter Cable(1pcs),Velcro dics(9pcs)
Manufacture	Shanghai Qiheng Machinery Co., Ltd





Application Range:

1. Polishing and Grinding Concrete, Cement, Marble Granite, Terrazzo and Artificial-stone.



2. Removing Painting, Coating, Expoxy and Glue.



3. Old Floor Removal, Restoration, Renovation, etc.

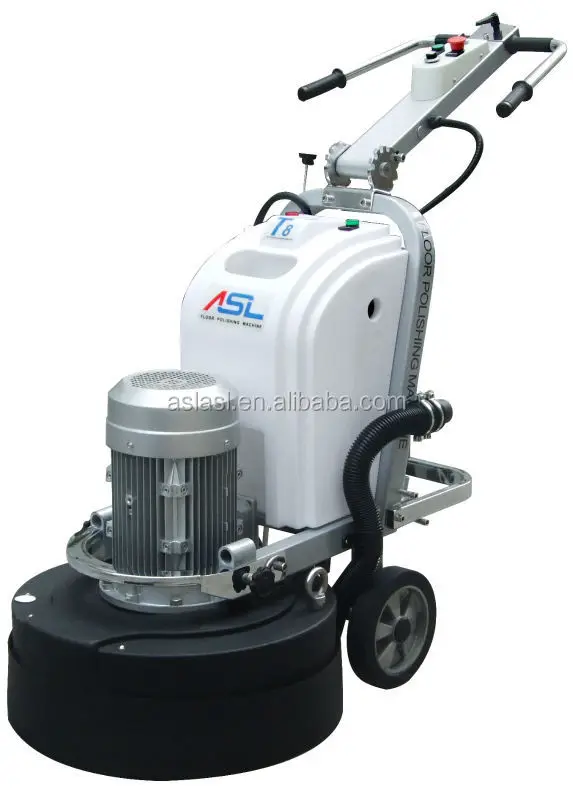

Overview of Floor Grinder







Block Diagram

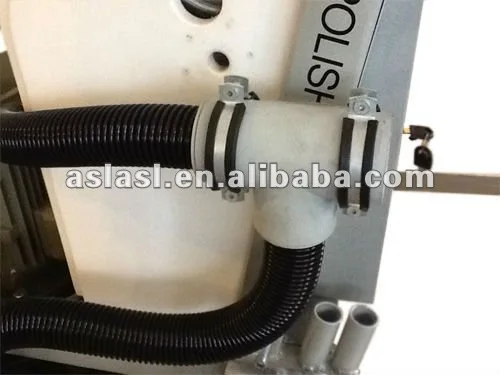

Sunction Hole makes the dust-free working Enviorment

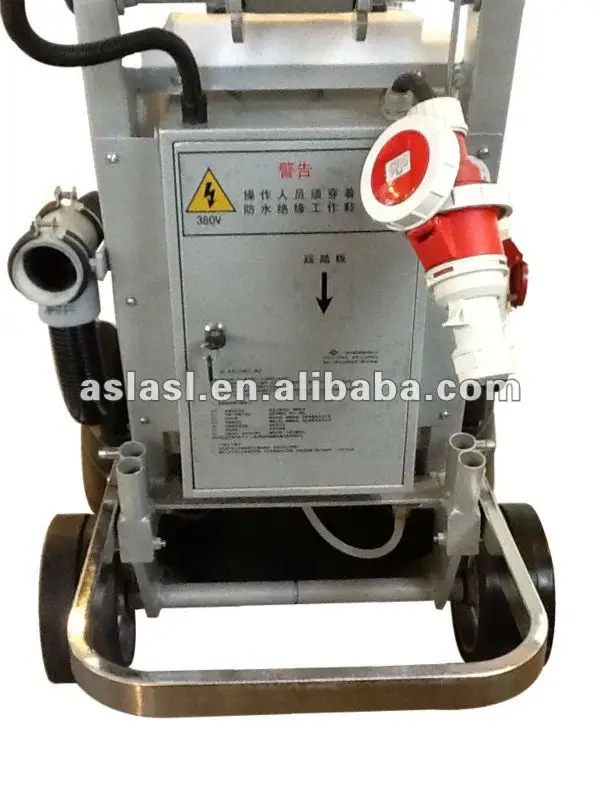

Inverter with Industrial Switch







High-Speed Polishing Operation with Planet Disc	Replaceable Grinding Head
