powerful subwoofer DJ bass speaker amplifier audio processor 4in 8 out speaker management system
- Category: >>>
- Supplier: Enping Nuoxun Electroacoustic Technology Equipment Factory
Share on (1601003173133):
Product Overview
Description
Product Description
Digital Audio Processor
Support OEM & ODM Service, Low MOQ
Product features:
● support 2-way analog / 1-way AES / EBU input and 4-way analog / 2-way AES / EBU output
● 32-bit DSP chip processing, sampling rate 96KHz, 24bit # AD / DA conversion;
● the input processing part includes: signal generator, noise gate, supporting 16 section equalization (including all-pass filter), high-low filter, gain control, mute, phase, 2000ms adjustable delay, linkage adjustment and other processing functions;
● the output processing part includes: 16 segment equalization (including all pass filter), FIR filter, high and low cut filter, gain control, mute, phase, 2000ms adjustable delay, linkage adjustment and other processing functions;
● all inputs and outputs can be freely allocated in matrix, and the name of each input and output channel can be changed;
● all input and output channels have independent phase curve adjustment function;
● all input and output channels are equipped with high-pass and low-pass filters. The types of frequency dividers can be selected: Butterworth, Bessel, linkwich Rayleigh, and the slope is optional from - 6dB / OCT to - 48dB / Oct;
● the voltage limit of all input channels has adjustable threshold, ratio, start-up time, recovery time and compensation gain;
● all output channels have adjustable amplitude limiting threshold and recovery time;
● the adjustable delay of all input and output channels has a delay time of up to 2000ms;
● parameter settings between any channel can be copied freely, and linkage adjustment can be carried out for any channel;

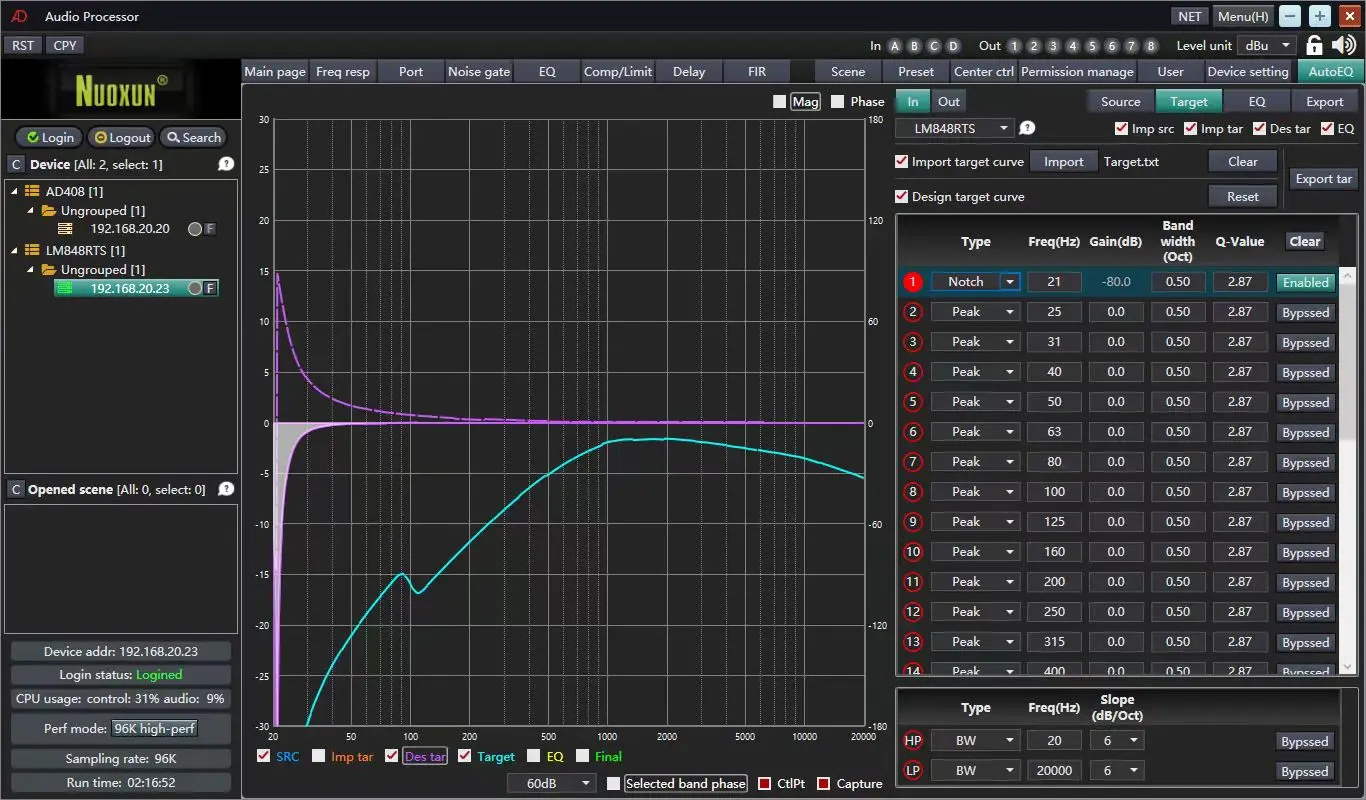

● PEQ curve adjustment diagram of all current input or output channels can be seen at any input or output channel;
● built in test signal generator, optional input mode, pink noise, white noise, sweep frequency, 20Hz-20KHz sine wave, adjustable signal amplitude;

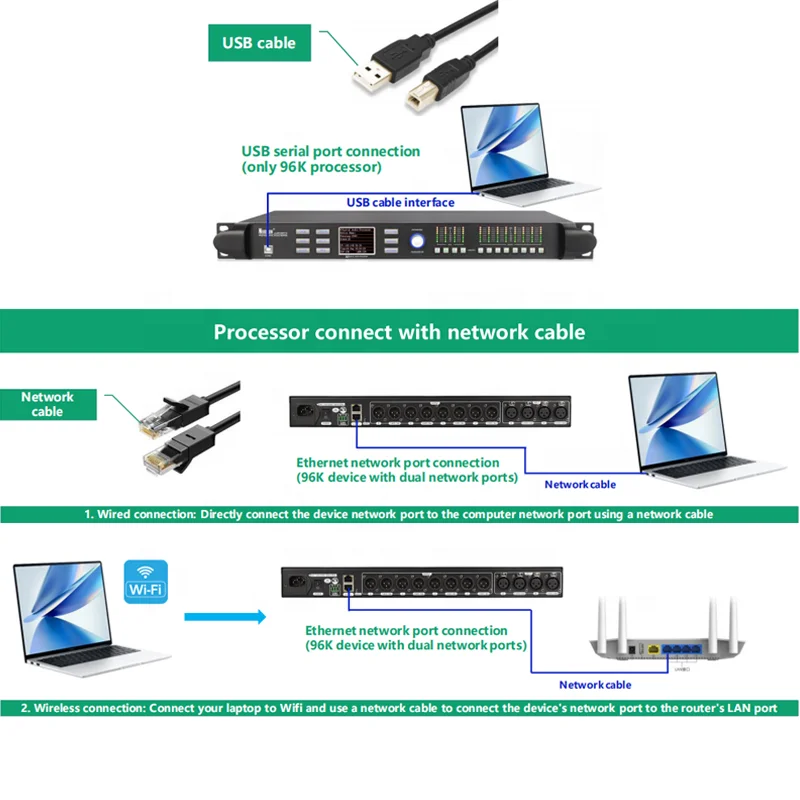

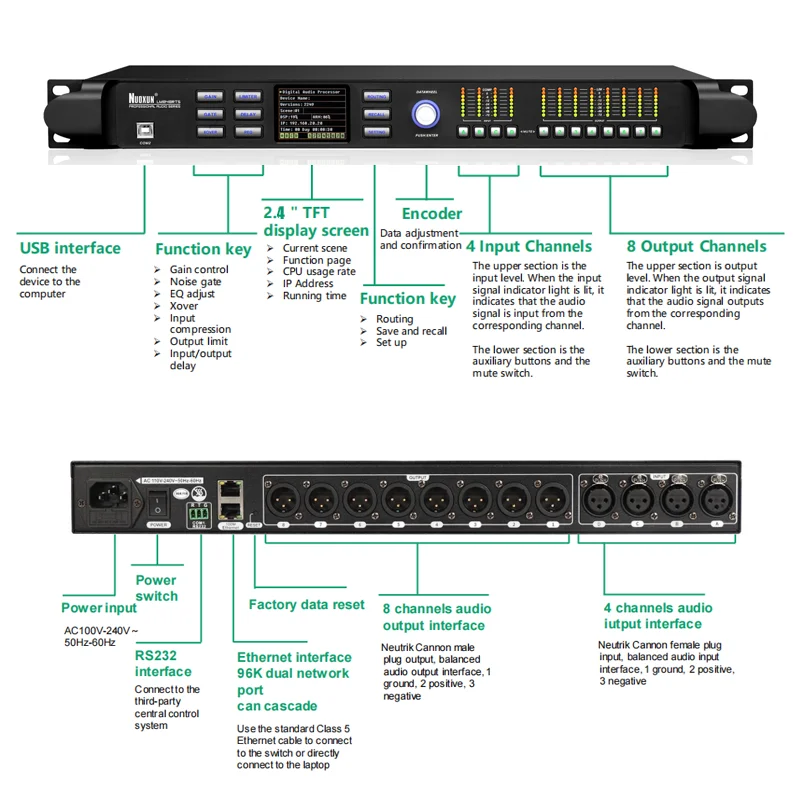

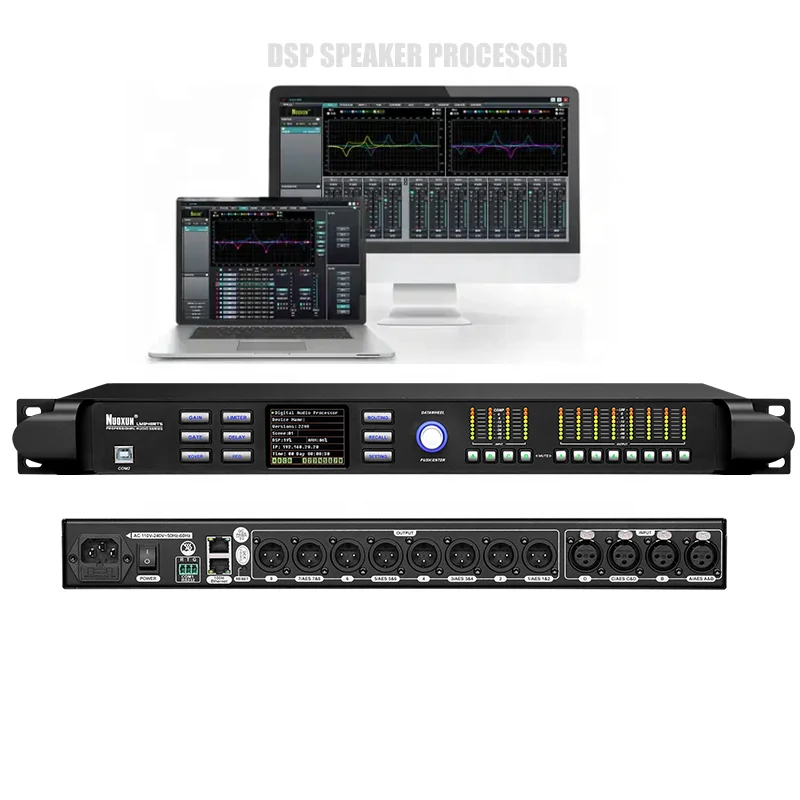

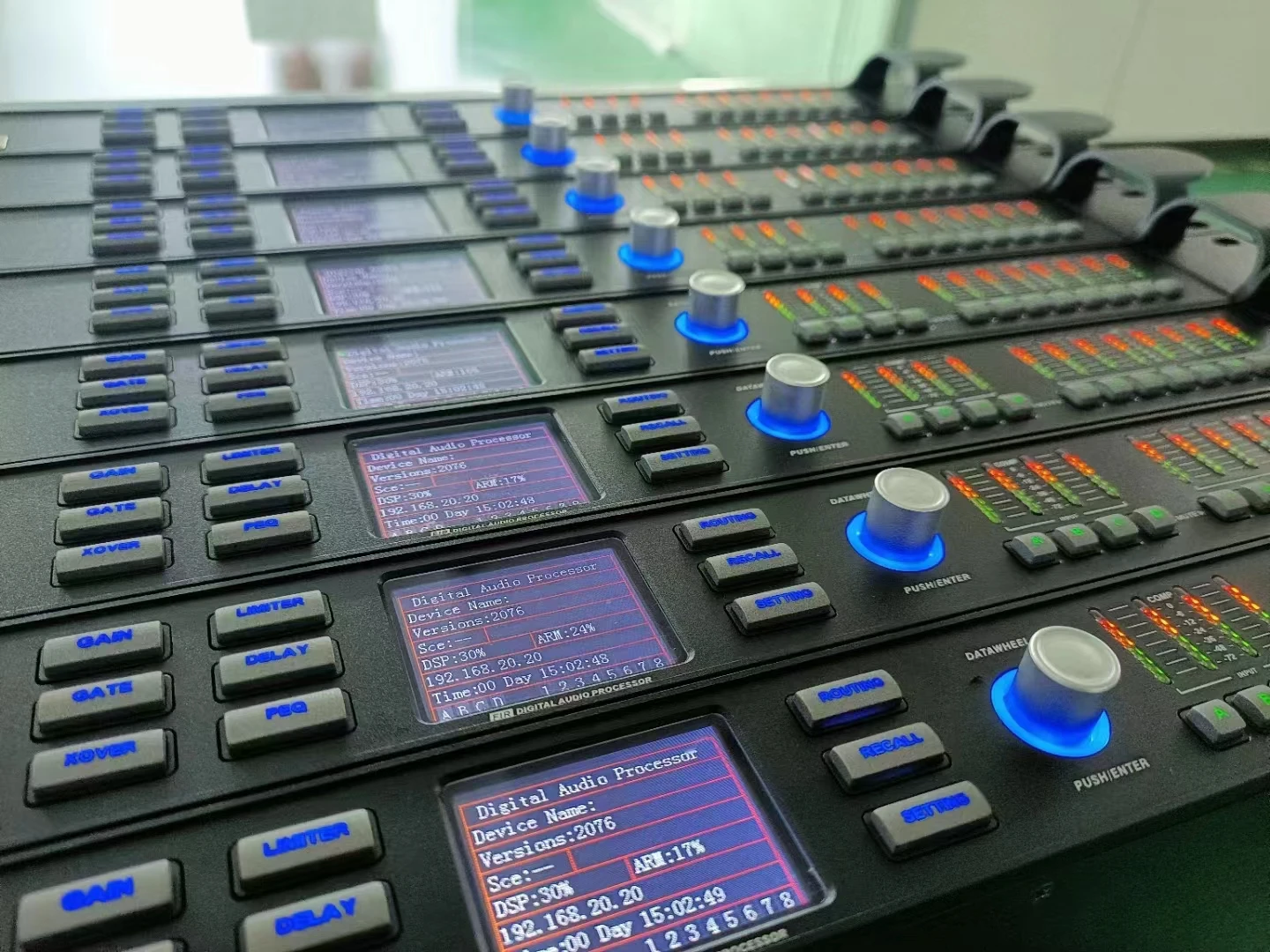

● the front panel is equipped with input and output level indicators and USB control port, and the rear panel is equipped with RS232 control port. One button connection makes the user's operation easier and faster;
● 128 preset scenarios are supported. The state of the whole machine and each preset can be stored and called separately. It also has the function of password protection to make the equipment more secure;
● application occasions: professional performance, conference room, court, auditorium, multi-function hall and other scenes;
● support 2-way analog / 1-way AES / EBU input and 4-way analog / 2-way AES / EBU output
● 32-bit DSP chip processing, sampling rate 96KHz, 24bit # AD / DA conversion;
● the input processing part includes: signal generator, noise gate, supporting 16 section equalization (including all-pass filter), high-low filter, gain control, mute, phase, 2000ms adjustable delay, linkage adjustment and other processing functions;
● the output processing part includes: 16 segment equalization (including all pass filter), FIR filter, high and low cut filter, gain control, mute, phase, 2000ms adjustable delay, linkage adjustment and other processing functions;
● all inputs and outputs can be freely allocated in matrix, and the name of each input and output channel can be changed;
● all input and output channels have independent phase curve adjustment function;
● all input and output channels are equipped with high-pass and low-pass filters. The types of frequency dividers can be selected: Butterworth, Bessel, linkwich Rayleigh, and the slope is optional from - 6dB / OCT to - 48dB / Oct;
● the voltage limit of all input channels has adjustable threshold, ratio, start-up time, recovery time and compensation gain;
● all output channels have adjustable amplitude limiting threshold and recovery time;
● the adjustable delay of all input and output channels has a delay time of up to 2000ms;
● parameter settings between any channel can be copied freely, and linkage adjustment can be carried out for any channel;
● PEQ curve adjustment diagram of all current input or output channels can be seen at any input or output channel;
● built in test signal generator, optional input mode, pink noise, white noise, sweep frequency, 20Hz-20KHz sine wave, adjustable signal amplitude;
● the front panel is equipped with input and output level indicators and USB control port, and the rear panel is equipped with RS232 control port. One button connection makes the user's operation easier and faster;
● 128 preset scenarios are supported. The state of the whole machine and each preset can be stored and called separately. It also has the function of password protection to make the equipment more secure;
● application occasions: professional performance, conference room, court, auditorium, multi-function hall and other scenes;
Speaker Management System | ||||||||
Model : LM848RTS | ||||||||
Channel:4 input 8 output | ||||||||
Main function: 96 K sampling rate/ FIR flitter/AES input/AES output | ||||||||

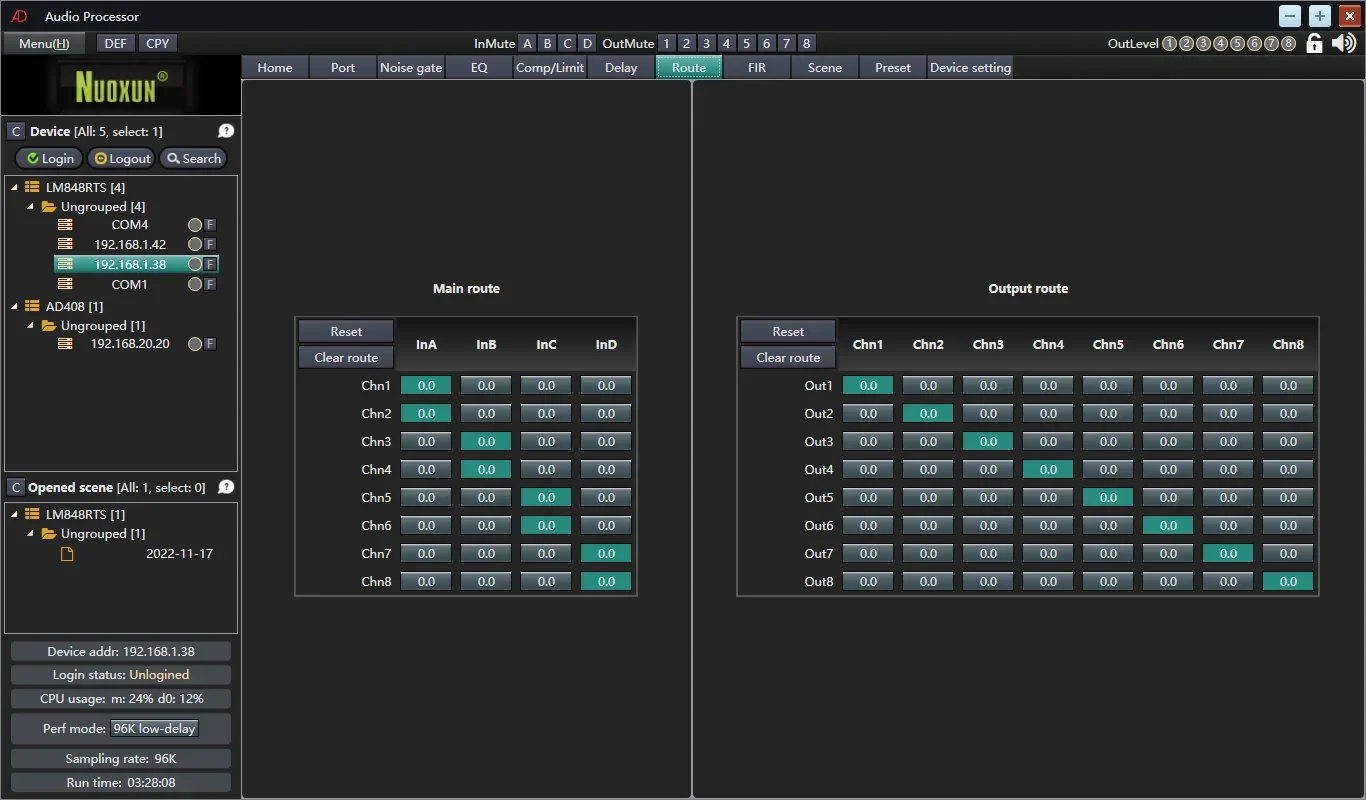

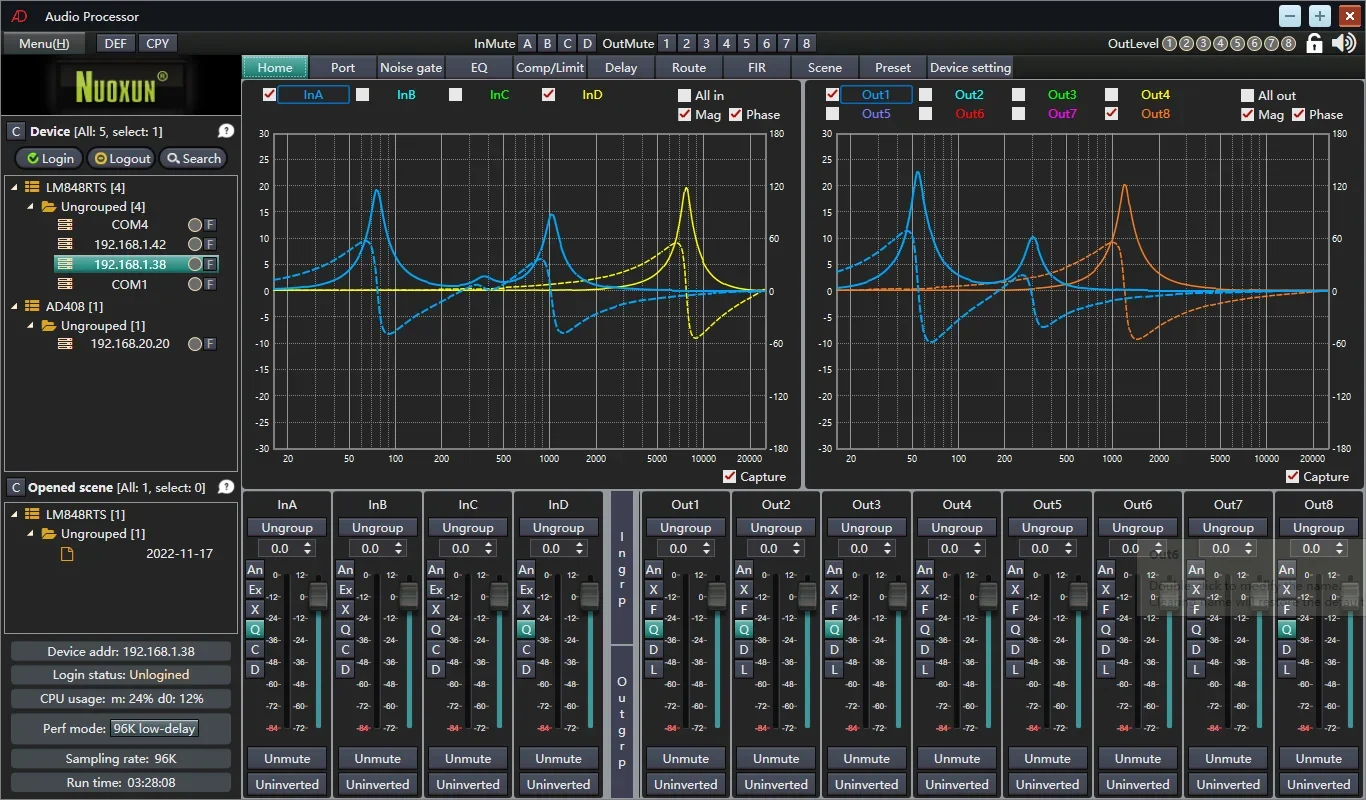

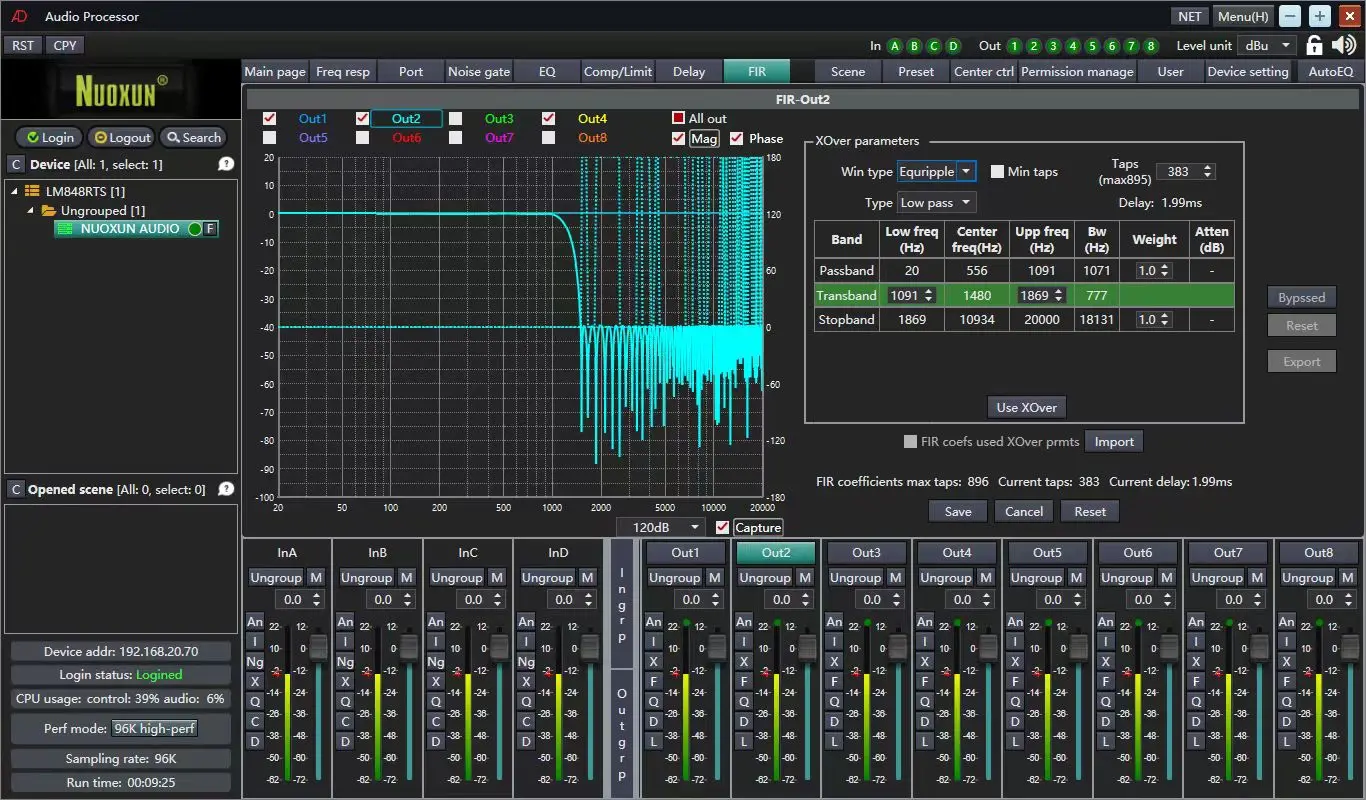

Home Page - Signal generator - Noise Gate - PEQ - Input Compressor and Output Limiter - Input and Output Delay - Router - FIR Filiter (ONLY for LMXXXRT/RTS Series) - Scene- Preset - Device Setting
Our Advantages

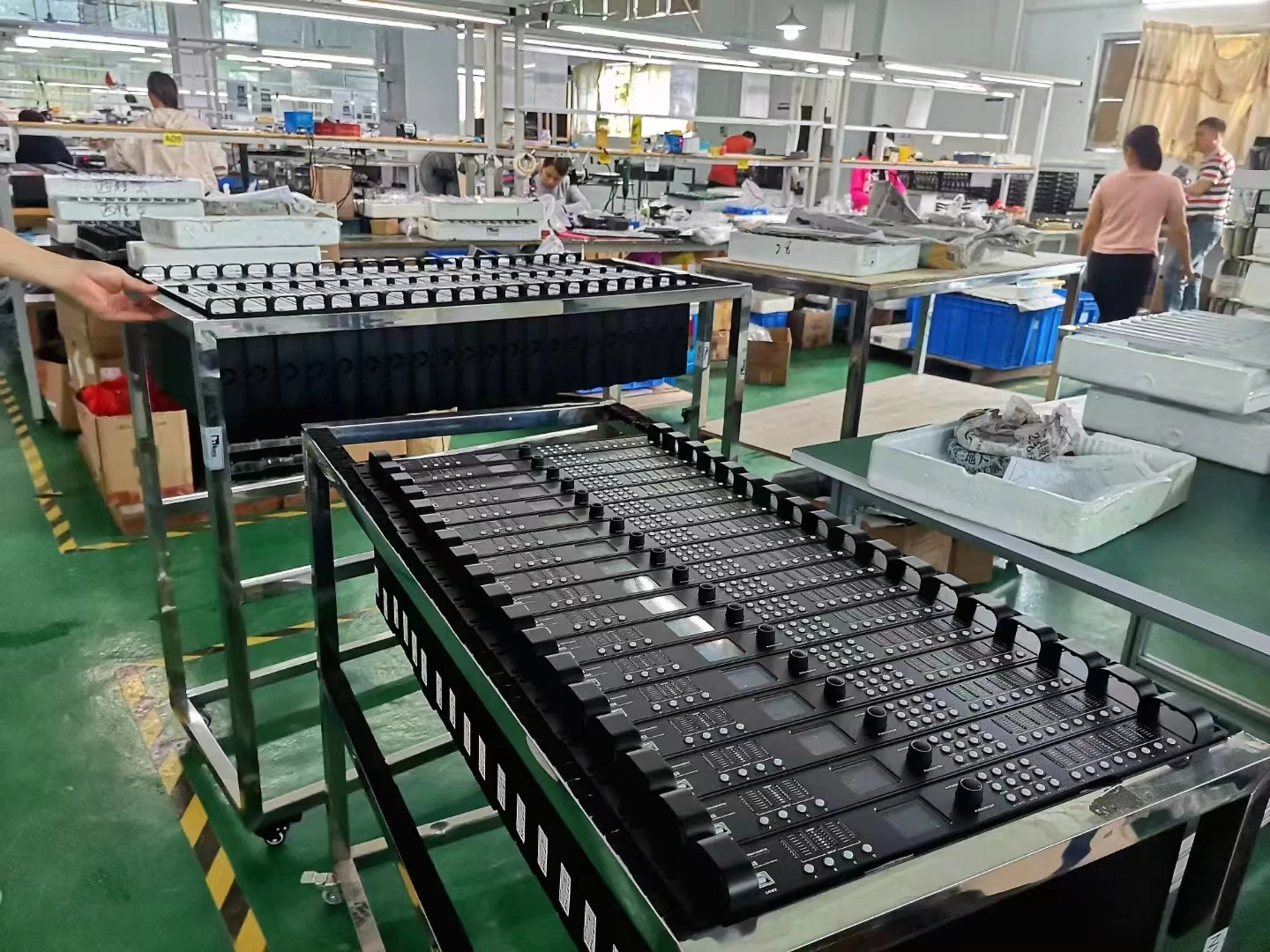

Picking & Shipping
Company Profile
Nuoxun Electroacoustic Technology Equipment Factory is a manufacturer specializing in professional audio equipment research and development, technical support, production, sales and service. Nuoxun is mainly engaged in professional wired and wireless microphone system, digital audio processing system, sound amplification system and other integrated application solutions. We have our R&D team, QC department, effective production lines and authoritative certifications, such as CE, ISO Certifited, FCC, ect. We dedicated to provide our clients with customized sales solutions.
Nuoxun has always been adhering to the “ Wisdom is the creativity” of the core concept, advanced technology, quality service as the cornerstone of development, hand in hand with our customers to develop a larger market.
Professional Service Team & Professional Technical Team
Certifications
Product Quality Assurance With Product License
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(70.10%),Southeast Asia(6.50%),North America(4.60%),Eastern Europe(3.20%),Mid East(2.80%),South America(2.60%),South Asia(2.50%),Central America(2.20%),Western Europe(2.00%),Eastern Asia(1.90%),Northern Europe(1.60%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wireless Microphone,Conference Microphone,Conference System,Audio Processor,Mixing console
4. why should you buy from us not from other suppliers?
Nuoxun has a group of professional R & D team, strong production. "Quality first, Customer first, and Service first" is our motto.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to Domestic Market(70.10%),Southeast Asia(6.50%),North America(4.60%),Eastern Europe(3.20%),Mid East(2.80%),South America(2.60%),South Asia(2.50%),Central America(2.20%),Western Europe(2.00%),Eastern Asia(1.90%),Northern Europe(1.60%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wireless Microphone,Conference Microphone,Conference System,Audio Processor,Mixing console
4. why should you buy from us not from other suppliers?
Nuoxun has a group of professional R & D team, strong production. "Quality first, Customer first, and Service first" is our motto.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
