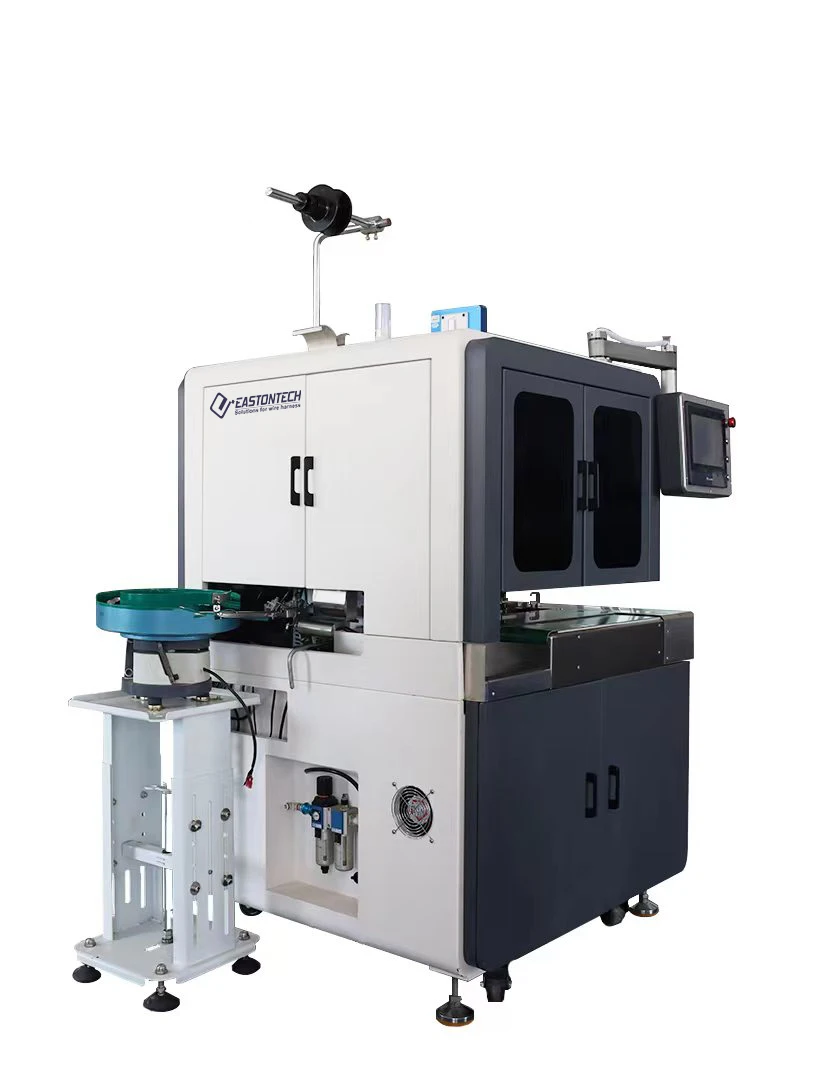

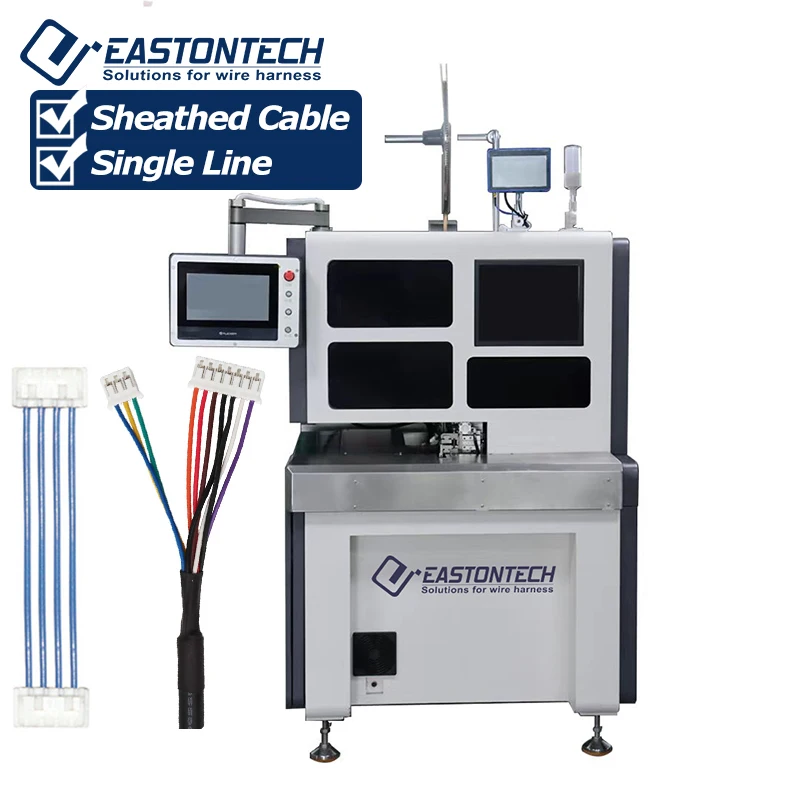

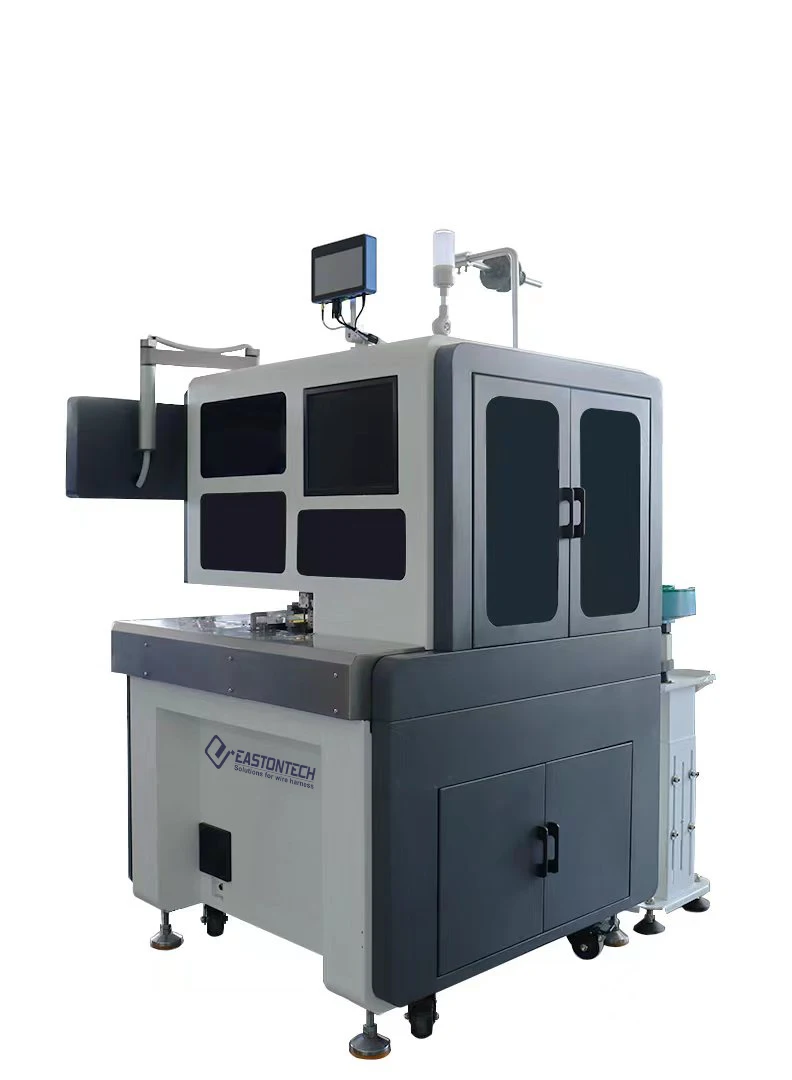

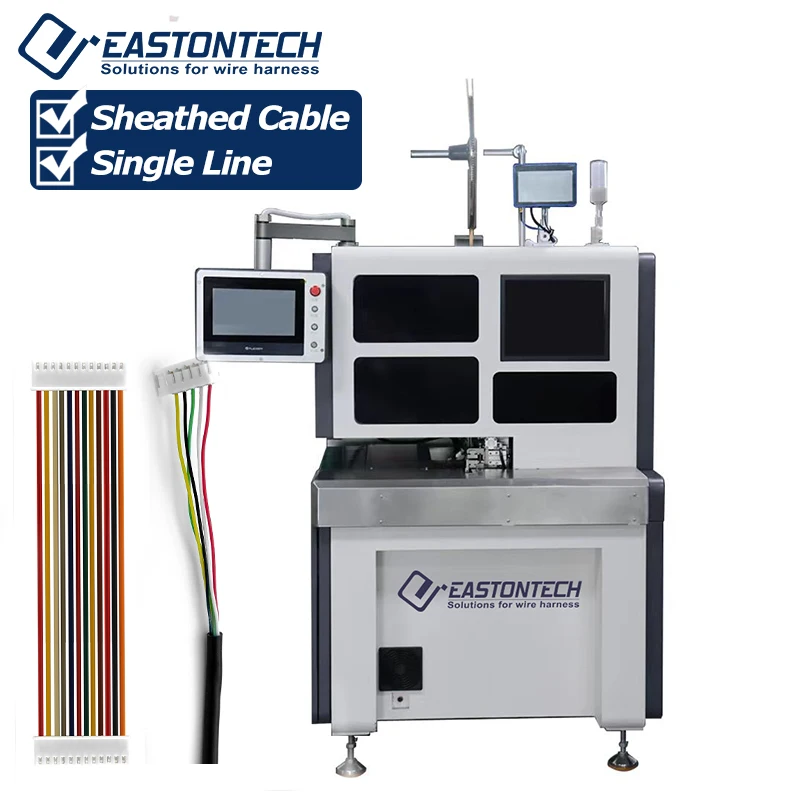

EW-8185 Multi Core Cable Crimping Insert Housing Machine
This is a semi-automatic multi-core sheath wire stripping crimping terminal and housing insertion equipment. The operator needs to manually snap the core wires into the jig according to the specified color sequence.Then the machine can automatically complete the actions of core wire cutting, stripping, crimping terminals, and housing insertion, and the housing is automatically fed through the vibrating plate. It can be equipped with a CCD to detect poor riveting and rubber shell insertion.


Product Paramenters


Model
EW-8185
Power Supply
200V~240V 50/60Hz
Air Source
0.4~0.6mpa
Body size
1265*1200*1750 mm
Total weight
300KG
Applicable wire Diameter
Core wire minimum：0.6mm
Applicable wire Diameter
Core wire maximum：2.5mm
AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV
Stripping range
The shortest sheath stripping length for 2-5 cores is 34mm, and the shortest sheath stripping length for 6-12 cores is 40mm.
Stripping length
0.5mm-10.0mm
Tangent error
0.05mm-0.1mm
Crimping
open continuous terminal-horizontal
Crimping capacity
1.5T
Travel
40mm
Power
2000W


Details Images

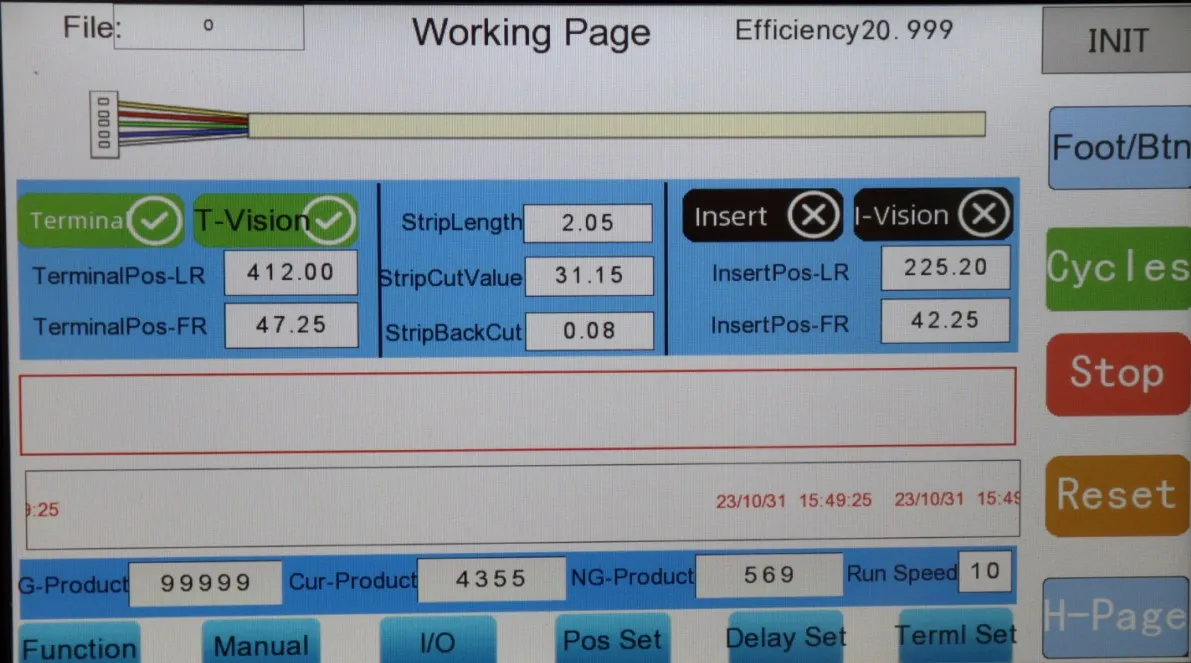

Touch Screen
Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database.

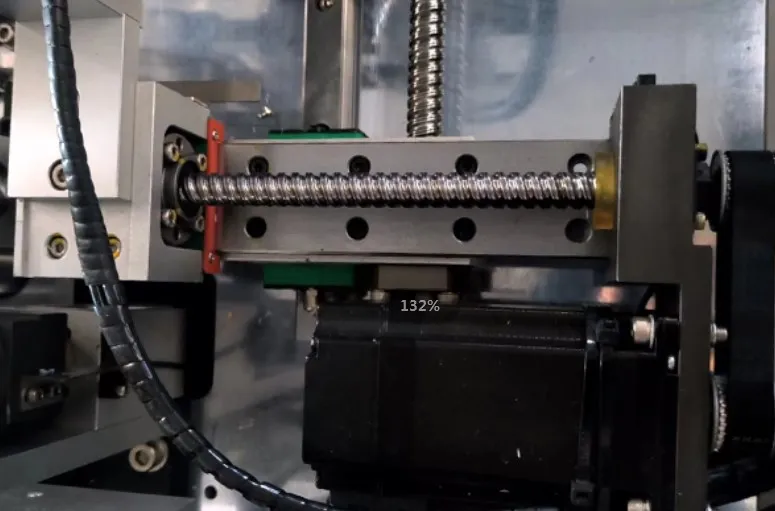

Mechanism Displacement

Mechanism displacement adopts closed-loop stepper and servo motor-driven screw transmission to improve accuracy and ensure high-quality product requirements.

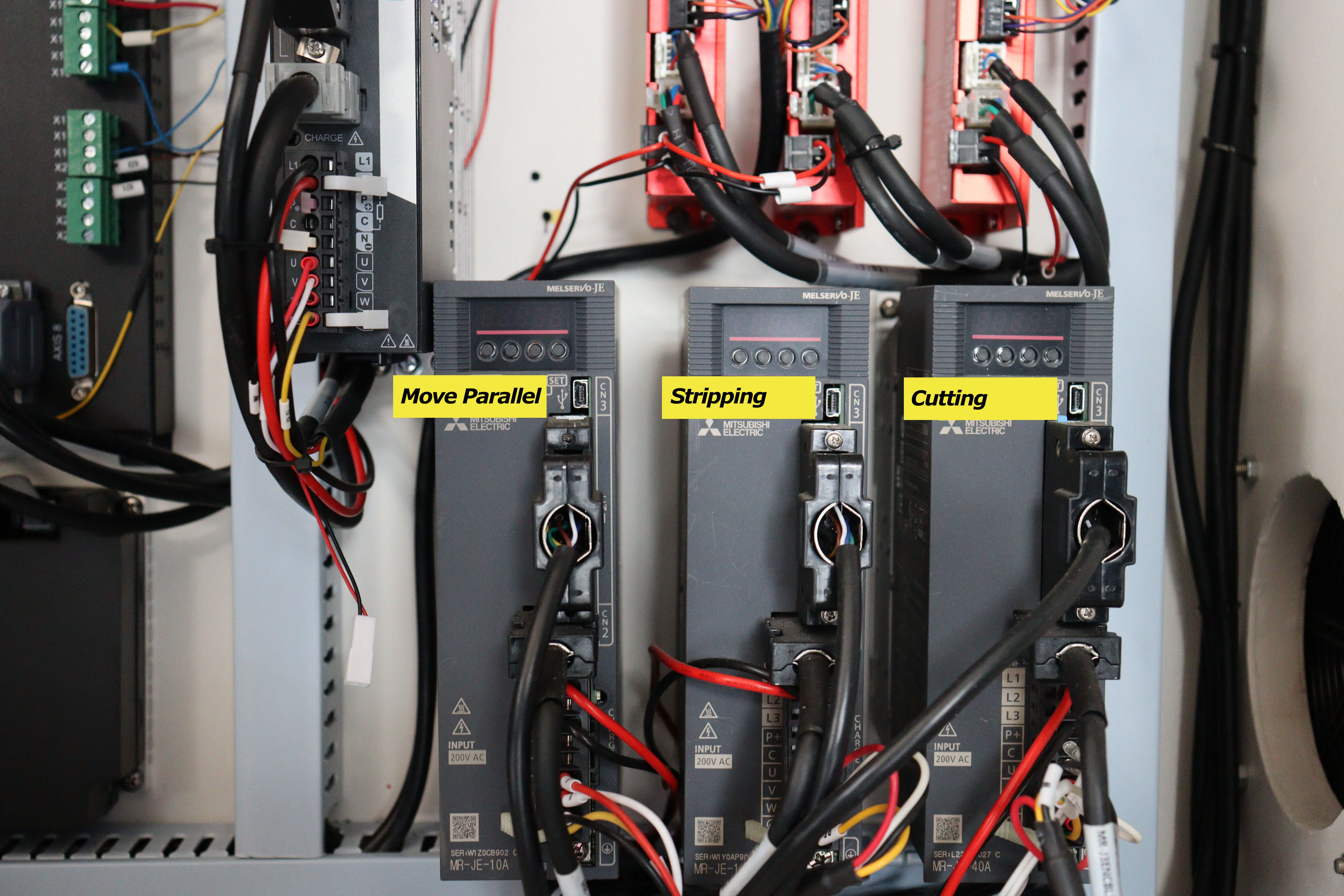

Servo Motor Drive
A servo motor drive system is a device used to control the movement of a servo motor. It consists of a driver and a controller. It is often used in applications that require precise motion control and can provide high-precision and high-stability control.
