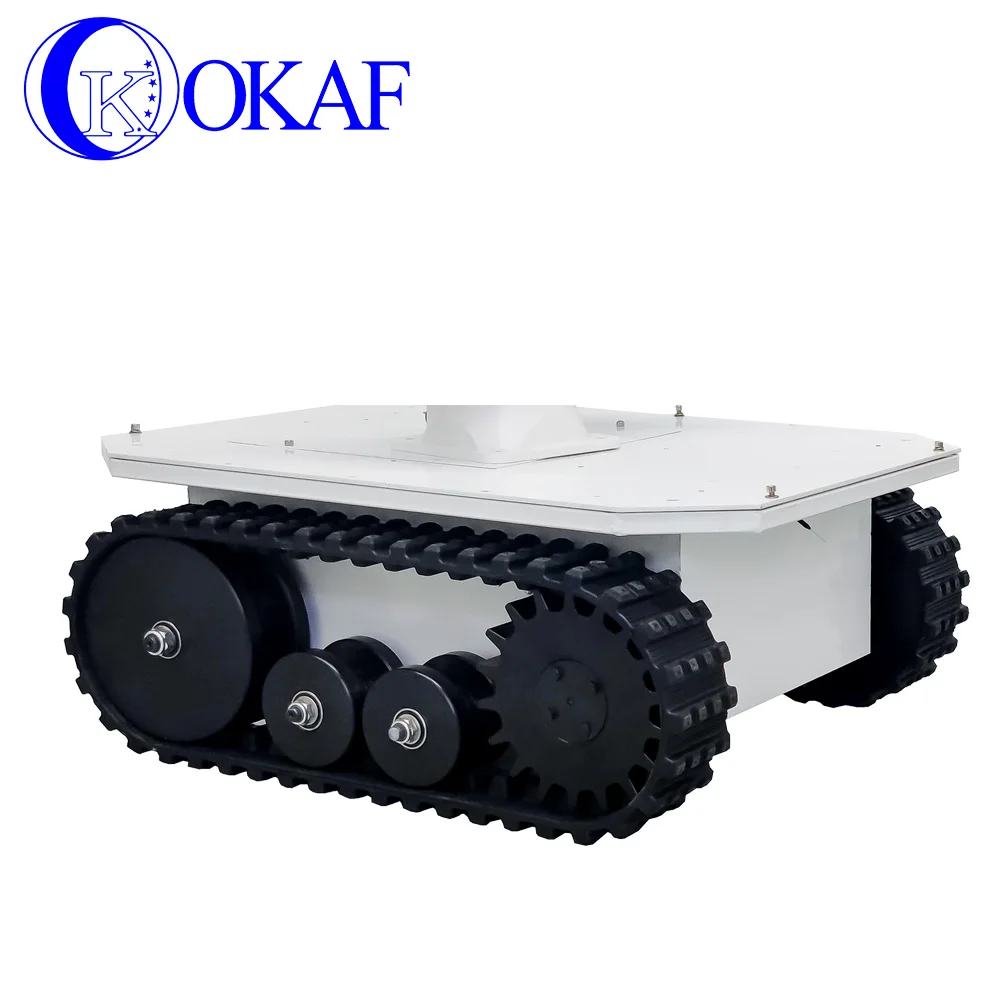

Multifunctional RC rubber track robot crawler platform undercarriage smart robot tank chassis for firefighting
- Category: >>>
- Supplier: Shenzhen Okaf Technology Co. Ltd.
Share on (1601003221233):
Product Overview
Description
PRODUCT OVERVIEW

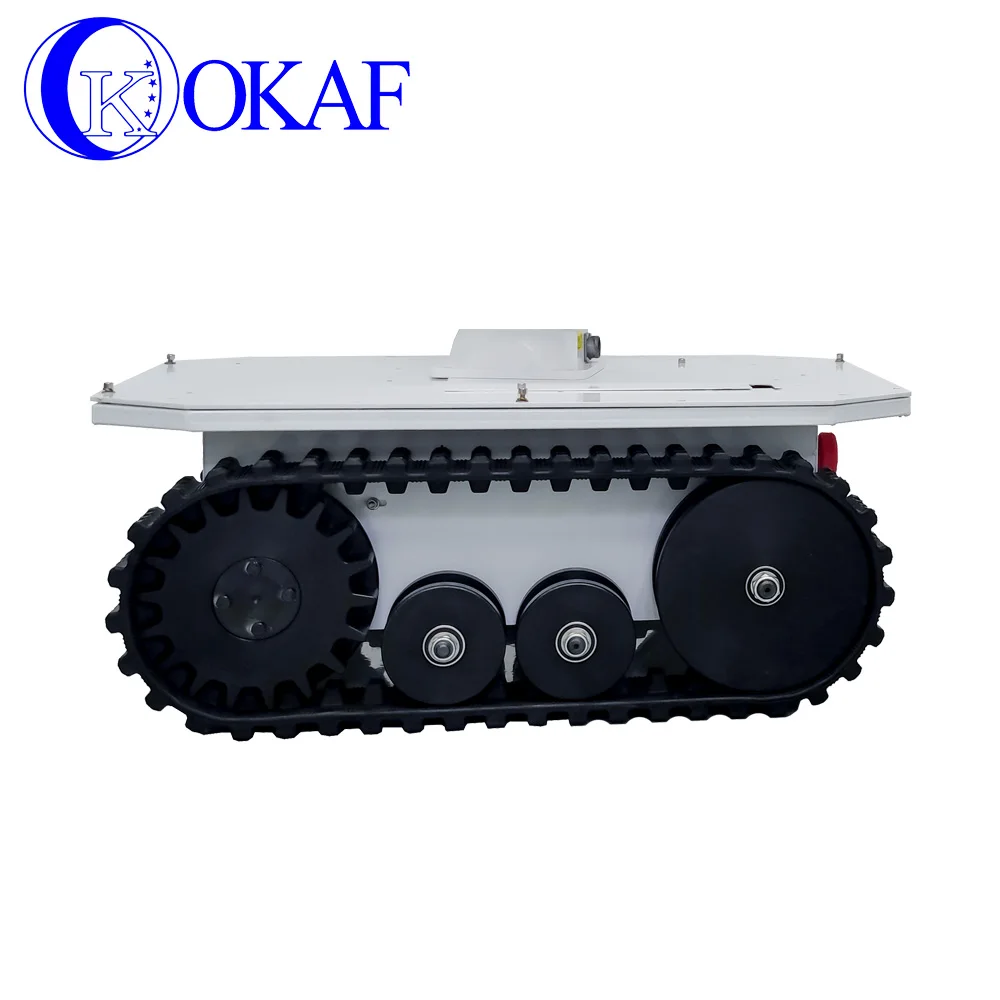

Electric Tracked Robot Platform Undercarriage stair climbing robot tank chassis crawler robot chassis
Best among the above chassis of the excellent level and striving to pursue higher passage and cross-country capacity. It can go any place where it is needed while loading equipment can weight up to 100KG. Equipped with Christie and Mathilda four-wheel balance suspension, the product can adapt itself to heavy load and vibration reduction. 6 vibration absorbers installed on the whole body with unique design of reducing vibration allows for terrain impact. The product can be widely used for robot movement solutions in complex environment.

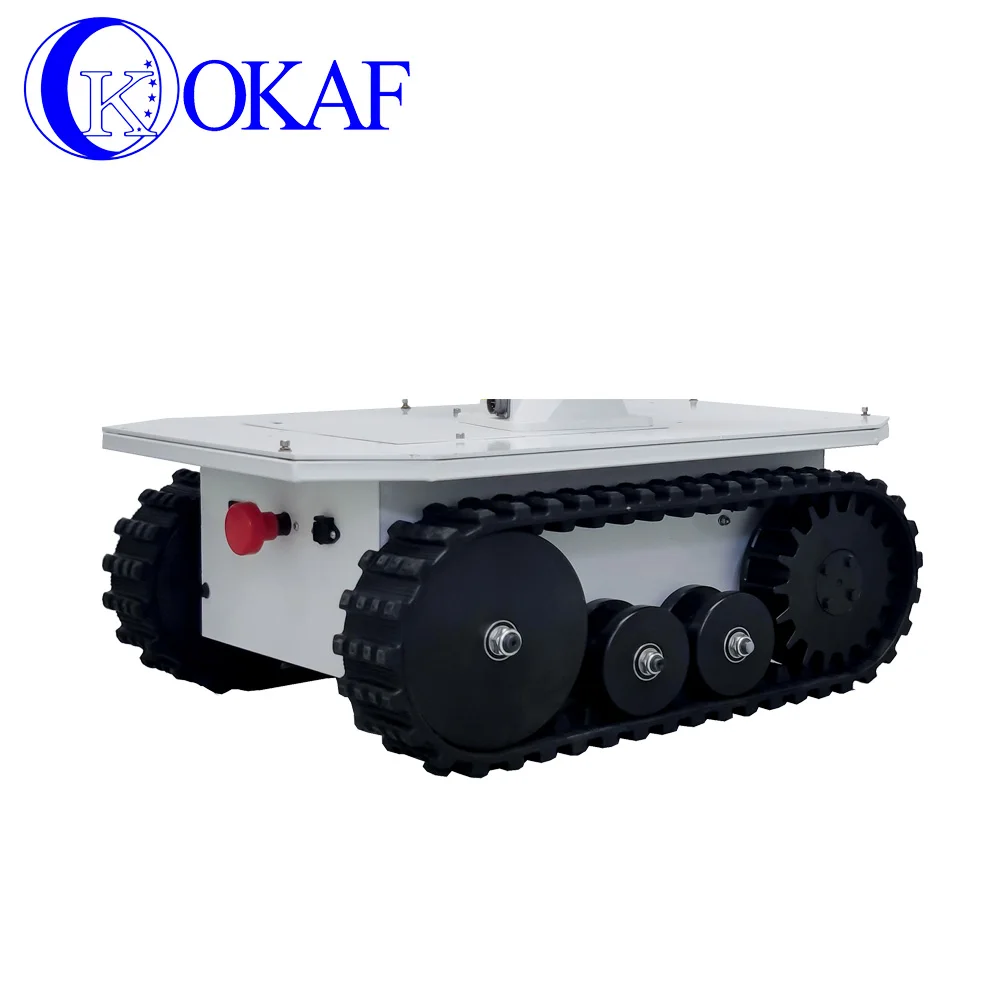

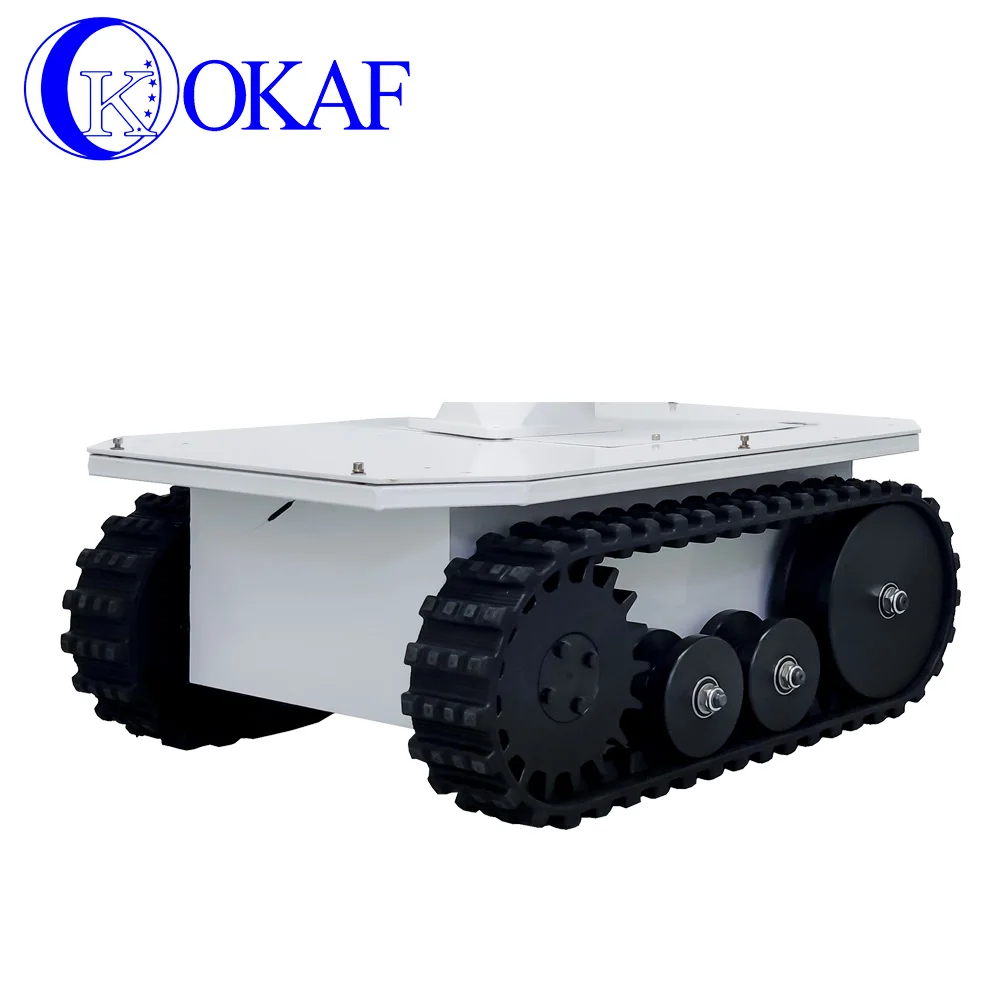

DETAILS PICTURES
SPECIFICATIONS
The parameter of the bottom disk | driving method of motor | Full-time 4D | ||
Turnaround mode | Turn in all directions, turn around in place | |||
Wheel specification | Crawler type | |||
Total weight | 140 kg(Battery included) | |||
Battery | Ternary battery 48V 30Ah | |||
Performance period | Not less than 8H (ambient temperature 25℃) | |||
Move performance | Maximum horizontal running speed: not less than 1m/s Positioning accuracy: no more than 10mm Braking performance: The braking distance at 1m/s speed is not more than 0.5m Maximum wading height: 10cm | |||
Mode of motion | Remote /CAN/ serial control | |||
Control distance | 200-300 meters | |||
Angle of climb | The maximum climbing capacity is not less than 30° | |||
Obstacle clearance height | The maximum obstacle crossing ability is not less than 50mm | |||
radius of turning circle | The minimum turning radius must not be greater than its own length | |||
work environment | Working environment relative humidity: 10% ~ 90% (no condensate) Operating temperature: −20 ° C to +55 ° C | |||
storage environment | Storage environment relative humidity: 5% ~ 95% (no condensate) Storage environment temperature: −20 ° C to +60 ° C | |||
level of protection | IP65 | |||
alarm | RGB three-color light alarm, intelligent voice alarm | |||
Lifting height | Maximum lifting height of 2 meters | |||
APPLICATIONS
RECOMMEND PRODUCTS
PRODUCT PACKAGING

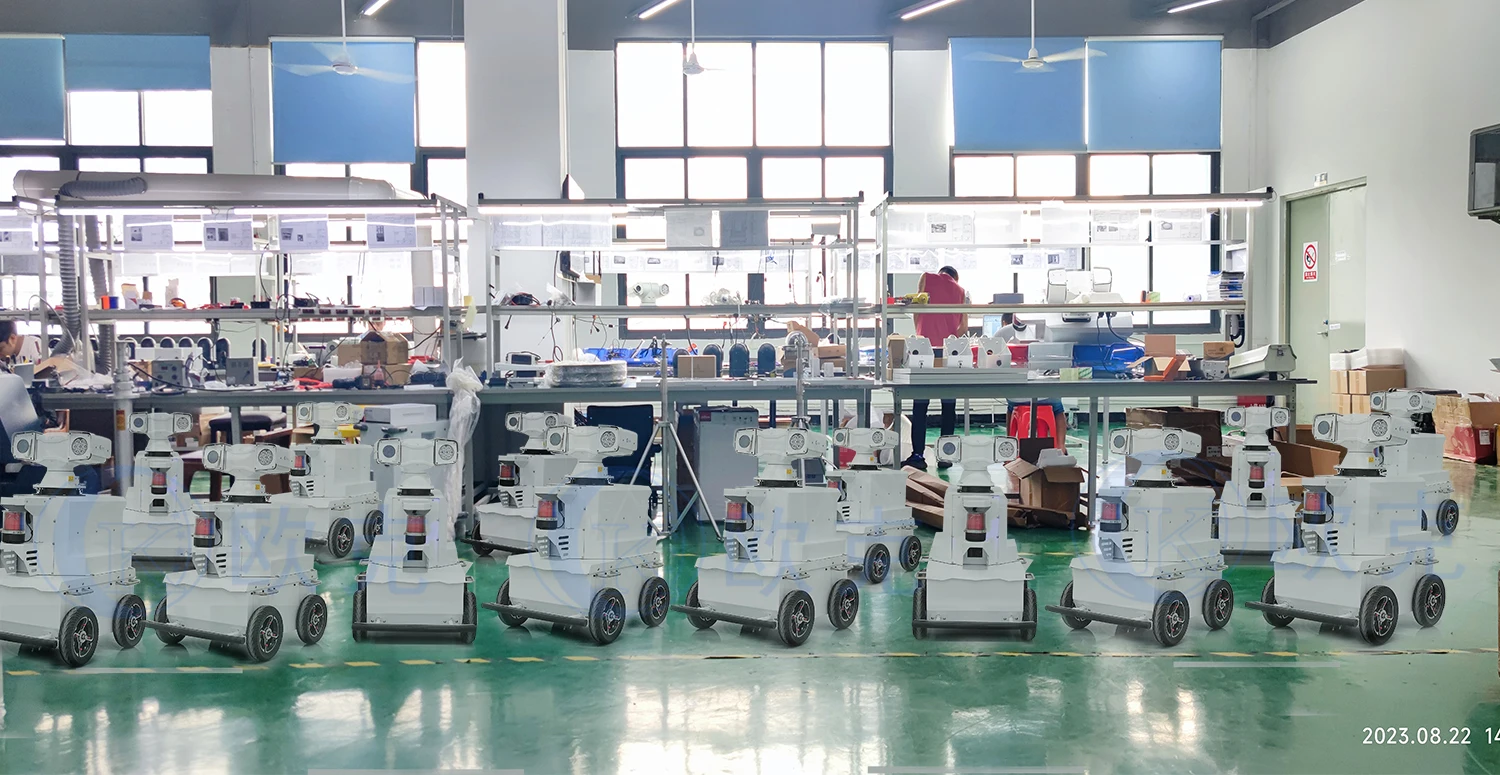

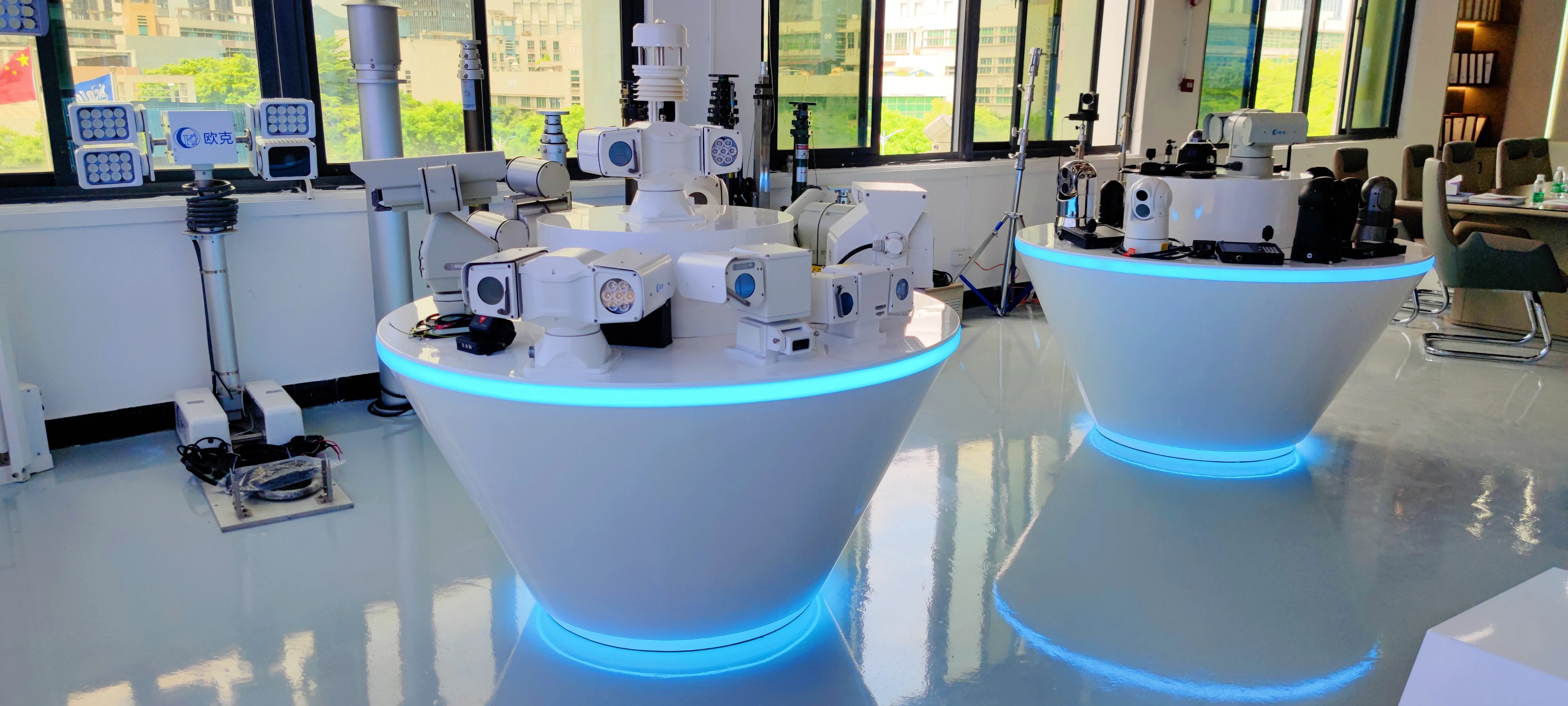

COMPANY PROFILE
FAQ
Q1. What is your terms of payment?
We accept T/T bank transfer, Western Union, Paypal, and Alibaba Trade Assurance.
Q2. What is your minimum order quantity?
Our minimum order quantity is 1 pc each model.
Q3. What is your sample policy?
Sample orders are welcome but customers need to pay sample cost and freight.
Q4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
Q5. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers' benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q6. Do you accept OEM/ODM?
Yes, if you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and competitive prices.
