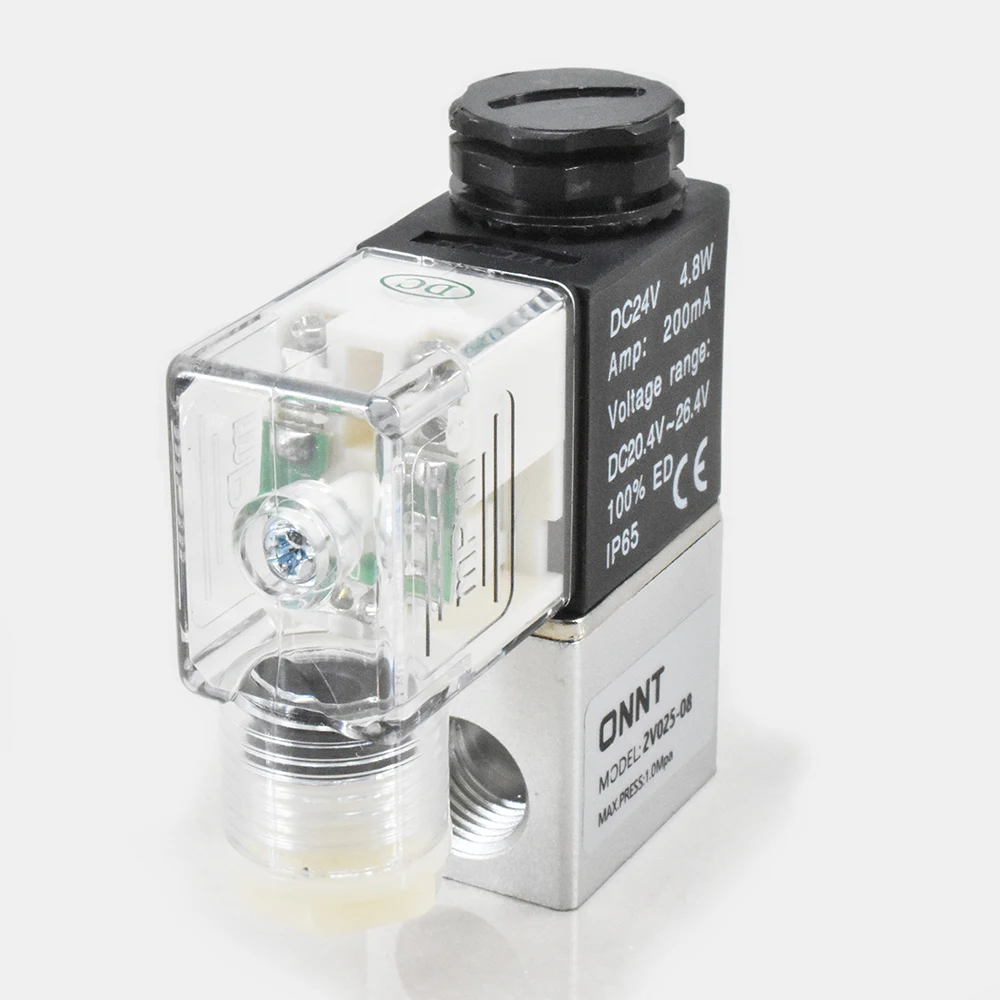

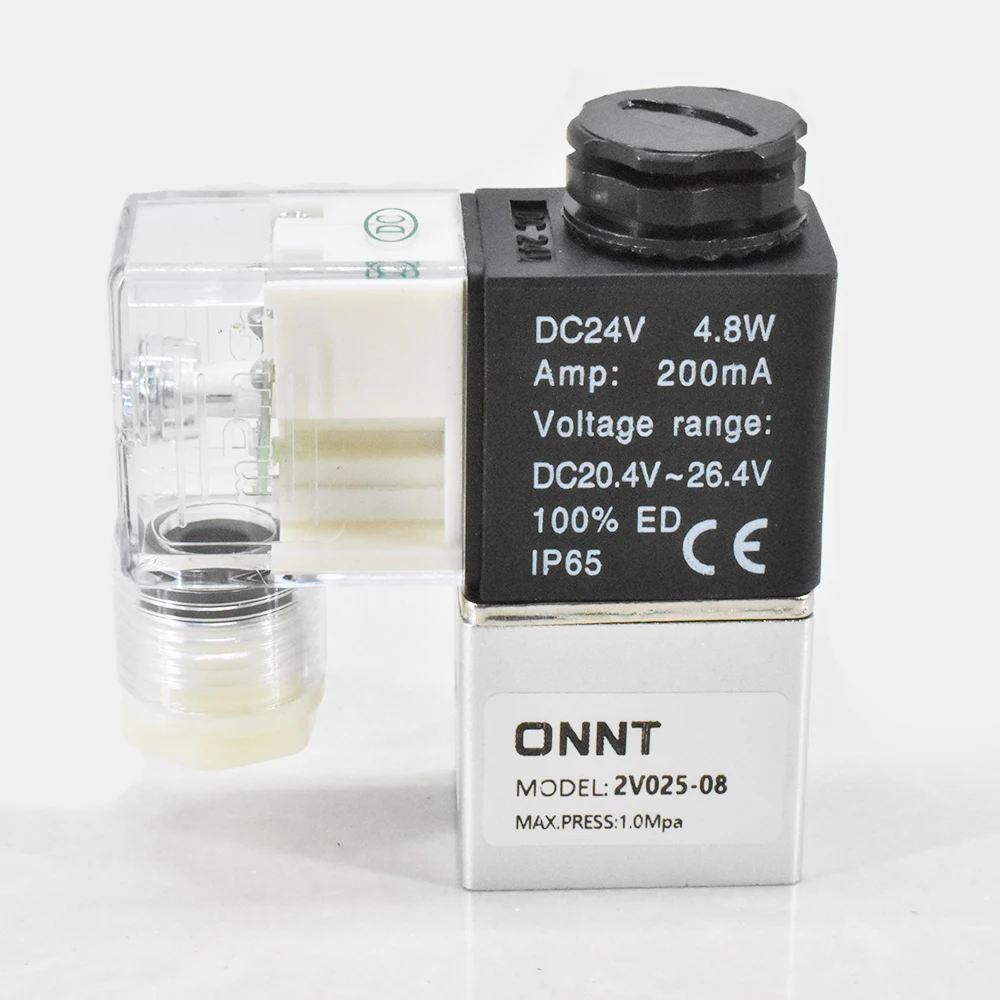

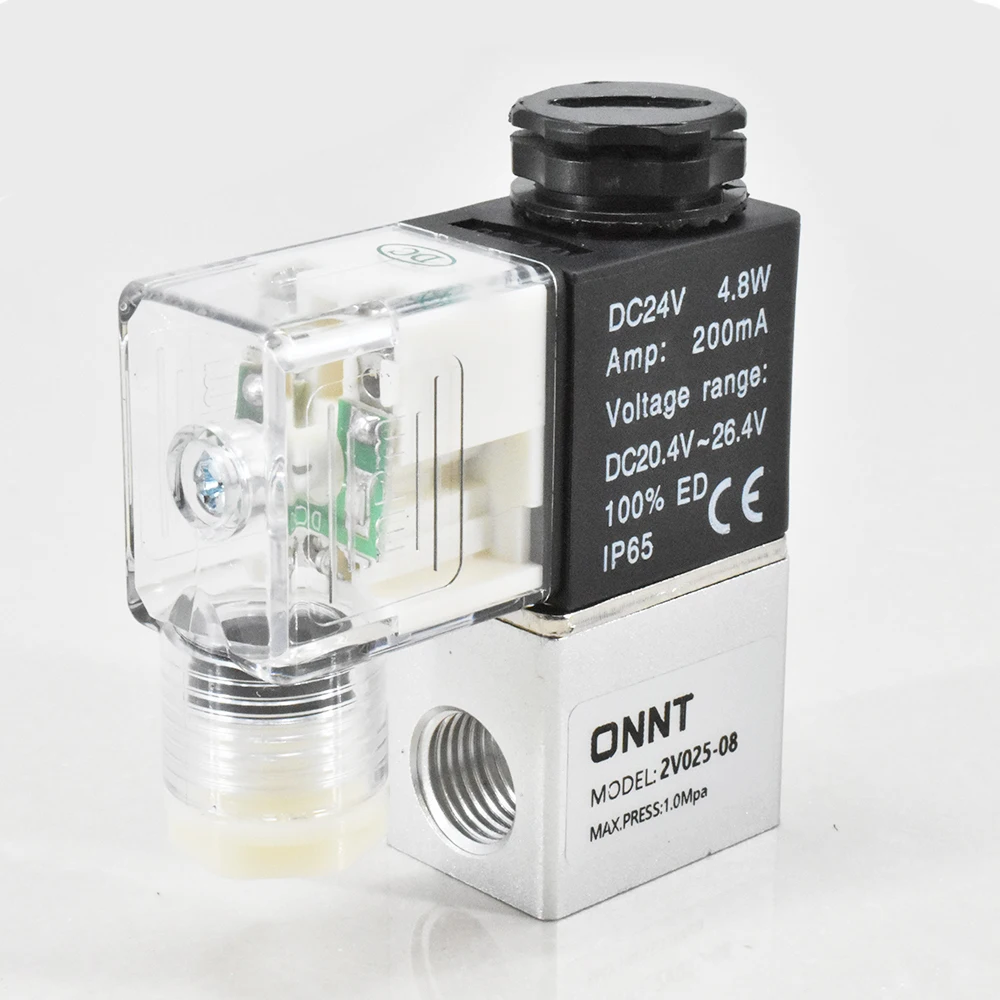

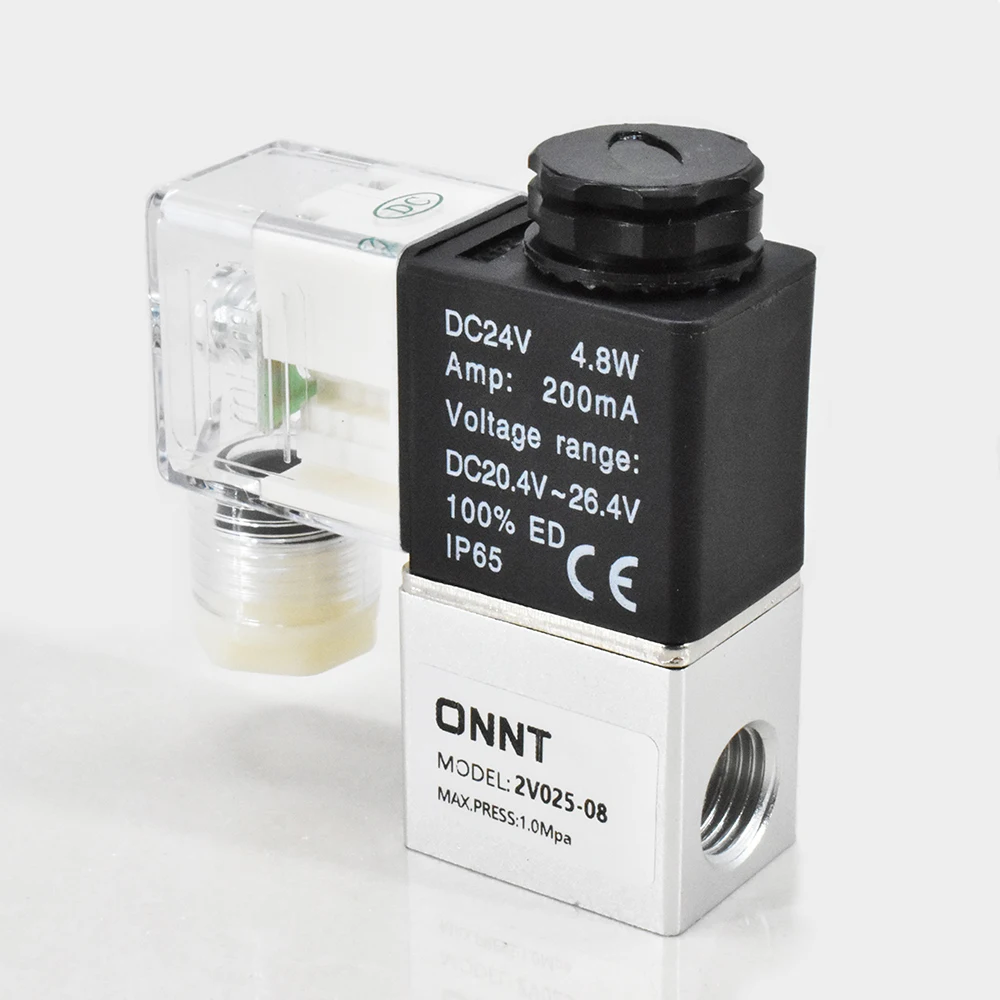

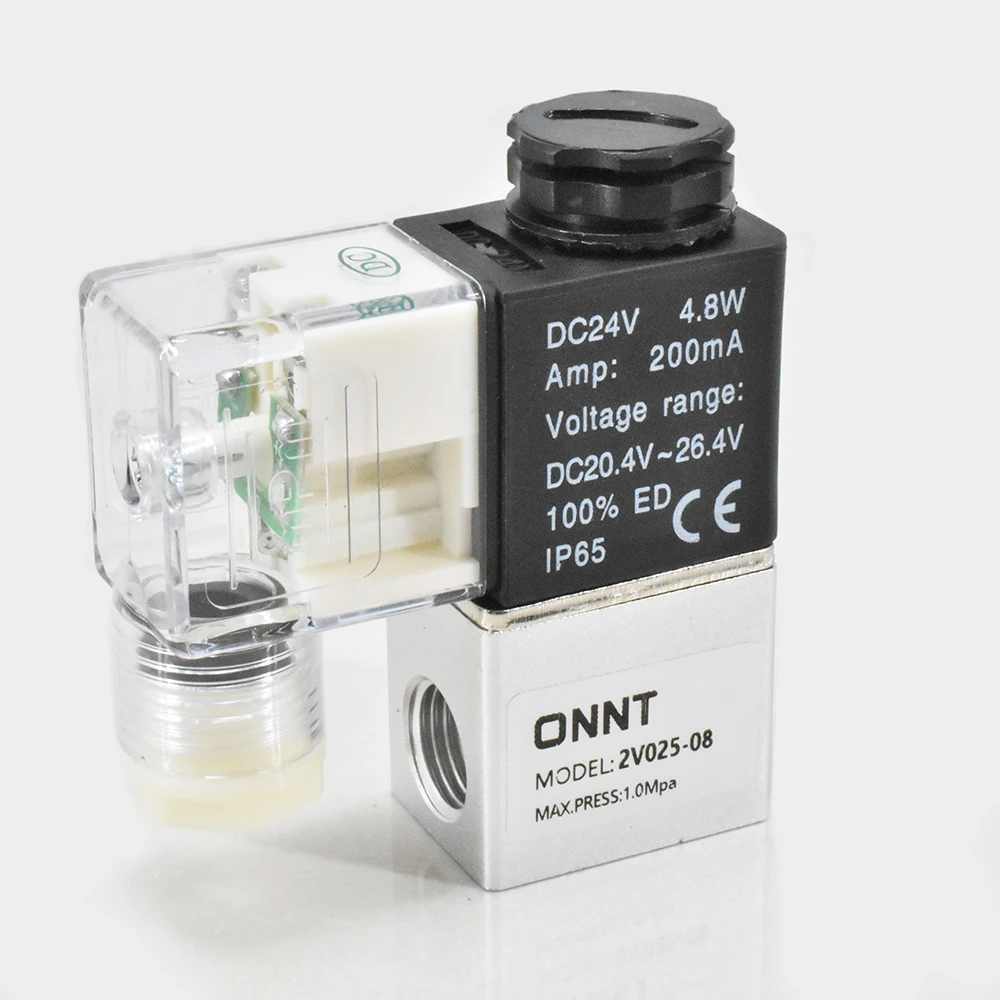

1/4 Inch Airtac 2 Position AC220V DC24V AC110V DC12V 2V025 08 valvula de solenoide Pneumatic Air Solenoid Valve
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1601003243781):
Product Overview
Description
1/4 Inch Airtac 2 Position AC220V DC24V AC110V DC12V 2V025 08 valvula de solenoide Pneumatic Air Solenoid Valve

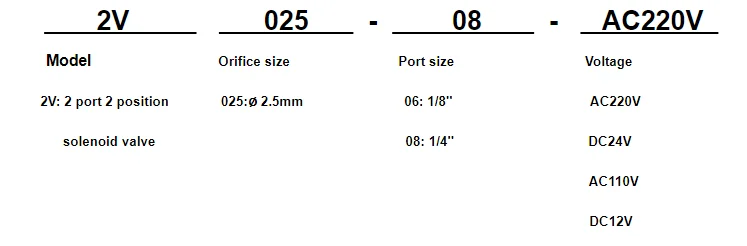

Ordering Code:
Inner structure and material of major parts
NO | Item |
1 | Connector |
2 | Connector gasket |
3 | Nut |
4 | Coil |
5 | Armature assembly |
6 | Body cober |
7 | / |
8 | Body |
Specifications
Model | 2V025-06 | 2V025-08 | |
Fluid | Air. Water. Oil | ||
Acting | Direct acting | ||
Initial state | 2.5 | 2.5 | |
Orifice size | 0.23 | 0.25 | |
Port size | 1/8'' | 1/4'' | |
Viscosity limit | Under 20CST | ||
Pressure range | 0·1.0MPa(0~145psi) | ||
Proof pressure | 1.5MPa(215psi) | ||
Material of body | Aluminum Alloy | ||
Seal material | NBR | ||
Max. frequency | 0.05 sec and below | ||
Coil Specification
Valve type | Power type | Frequency(Hz) | Voltage range | Electrical entry | Power Consumption (VA/W) | Insulation | Temp.rise (℃) |
2V025 | AC | 50 | ±15% | Terminal Grommet | 7.0VA | Class B | 35 |
60 | |||||||
DC | - | ±10% | 7.0W | 45 |

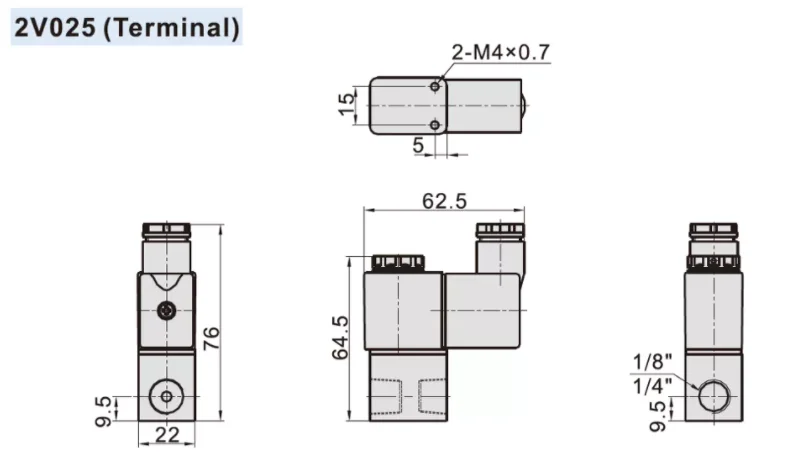

Dimensions
