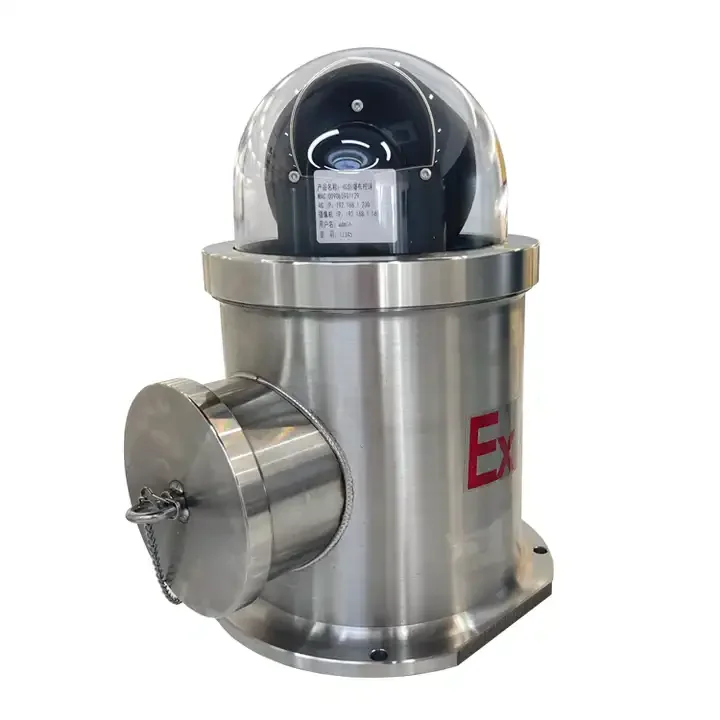

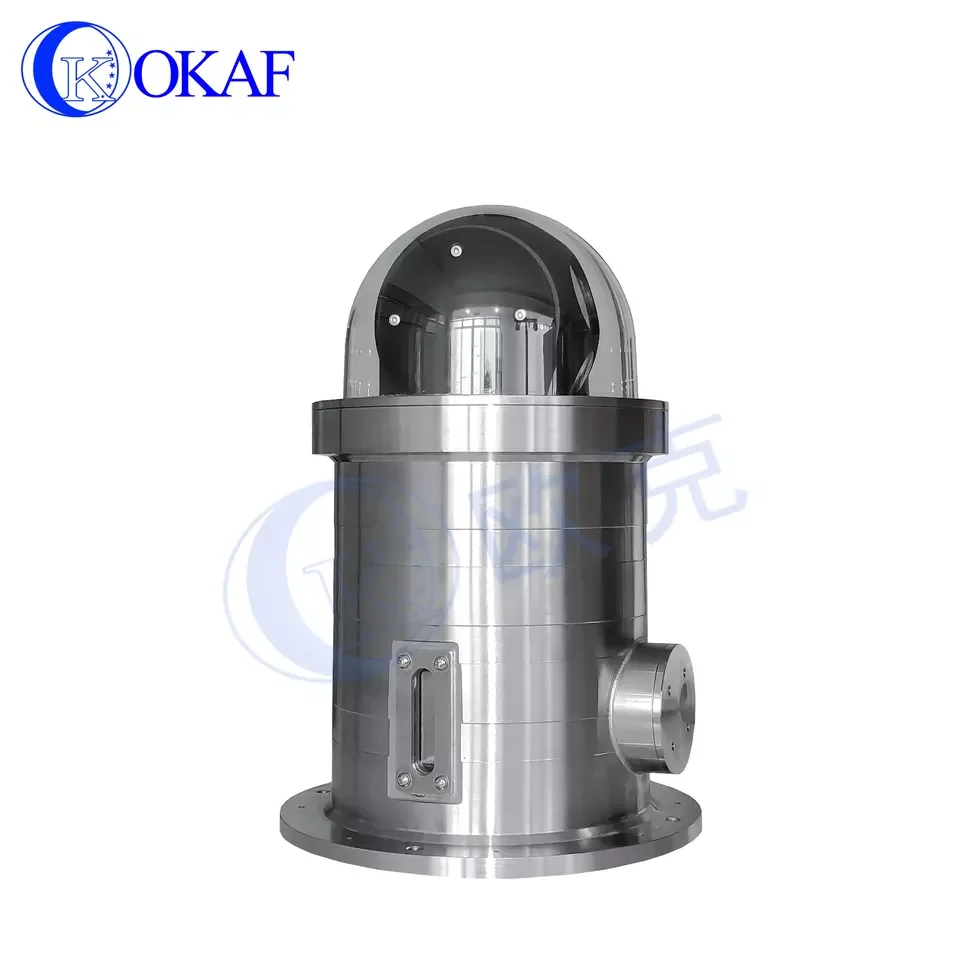

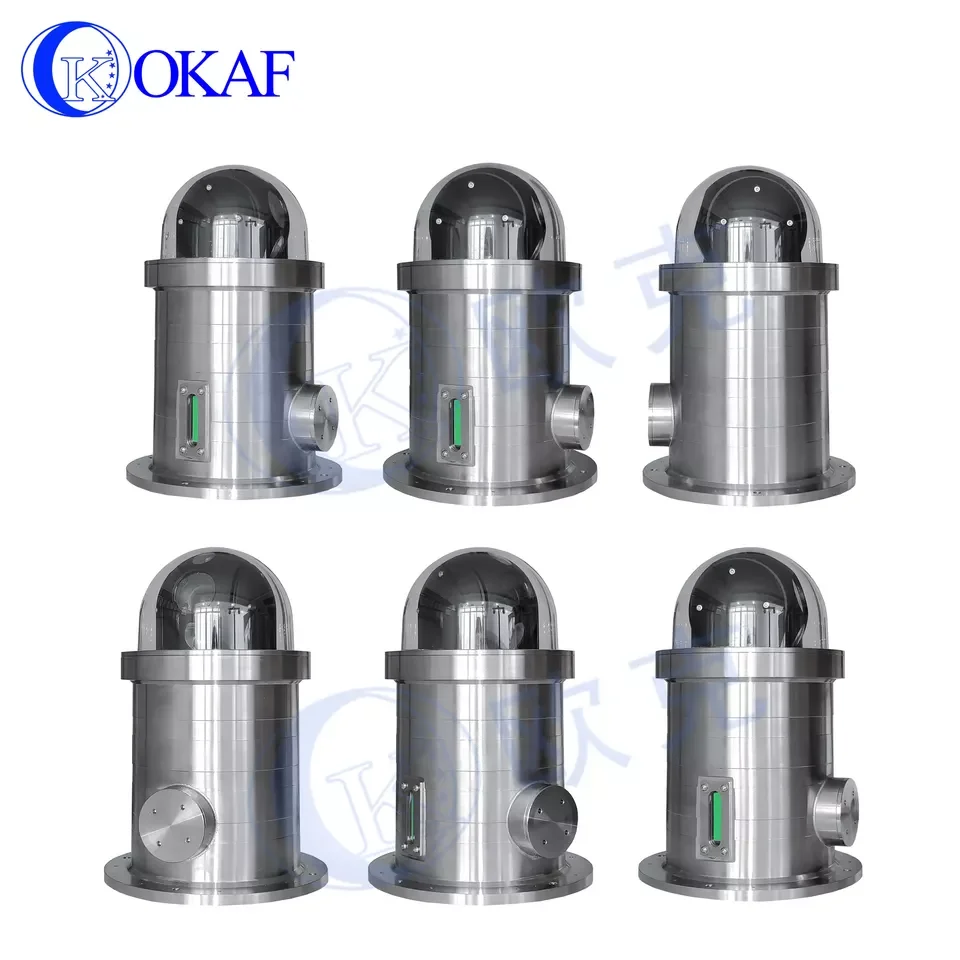

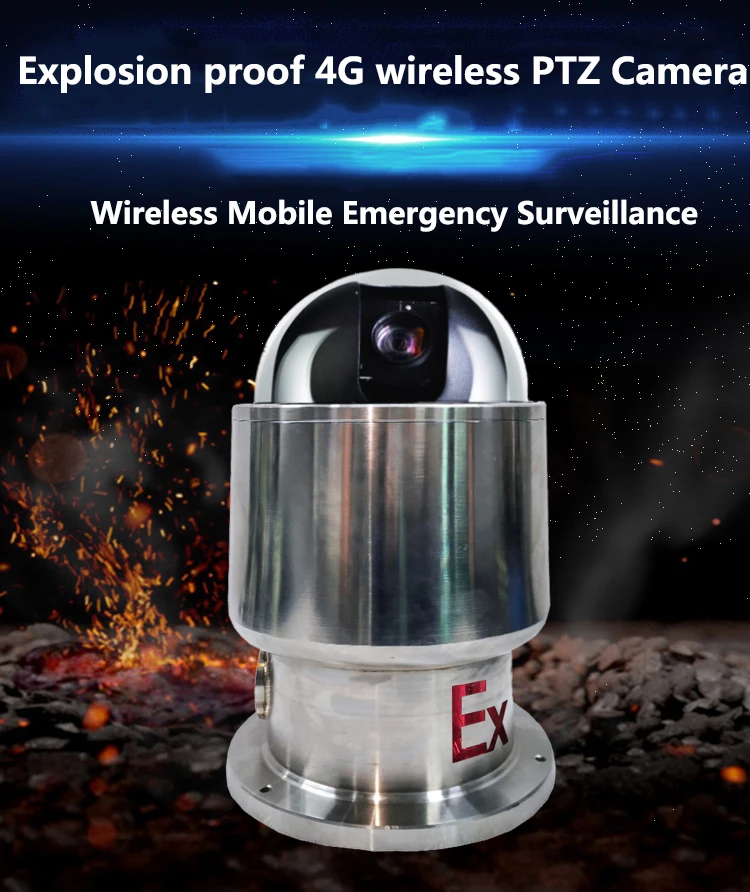

IP68 Explosion proof Built in battery PTZ camera Outdoor 4G network camera for Oil Field industry
- Category: >>>
- Supplier: Shenzhen Okaf Technology Co. LTD
Share on (1601003256027):
Product Overview
Description
Product Description
♦ Its manufacturing meets the requirements of GB3836-2010 standard, and adopts scientific flameproof structure to meet IIC explosion-proof requirements.
♦Perfectly compatible with Hikvision monitoring software, supporting remote access of EZVIZ Cloud Ehome 28181.
♦With 1 outlet or explosion-proof plug, TPU material composite cable output.
♦Magnesium alloy shell, lighter weight, protection level reaches IP66.

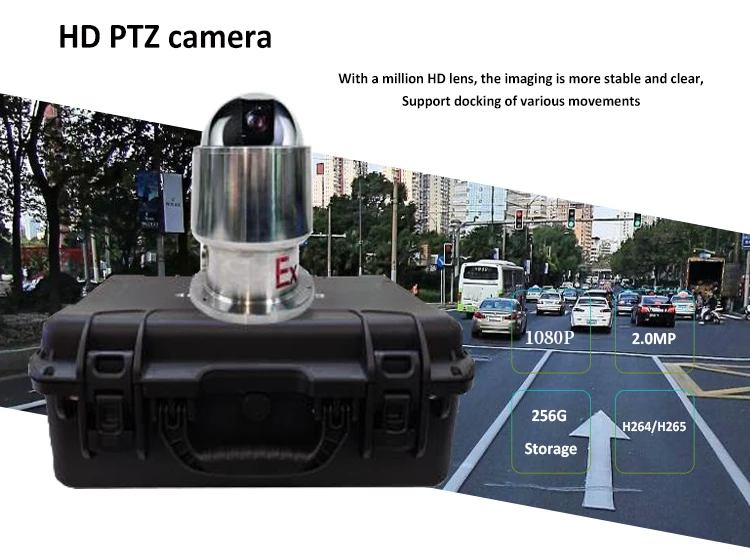

♦High definition image 1080P, 2.0 megapixel.
♦Support 4G full Netcom cards, WIFI, and GPS, built-in antenna.
♦ High-performance H.264 and H.265 video encoding.
♦Use dual TF card, maximum support 128G, larger storage capacity, more stable network.
♦Battery powered, reliable work for more than 12 hours.
♦Magnet suction cup can be installed quickly and can be removed at any time.

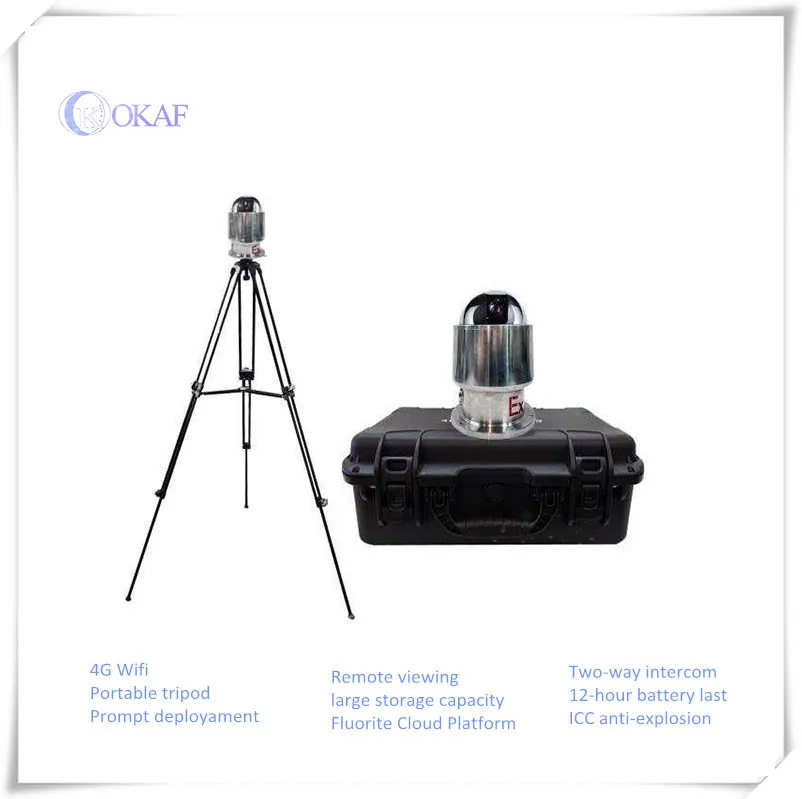

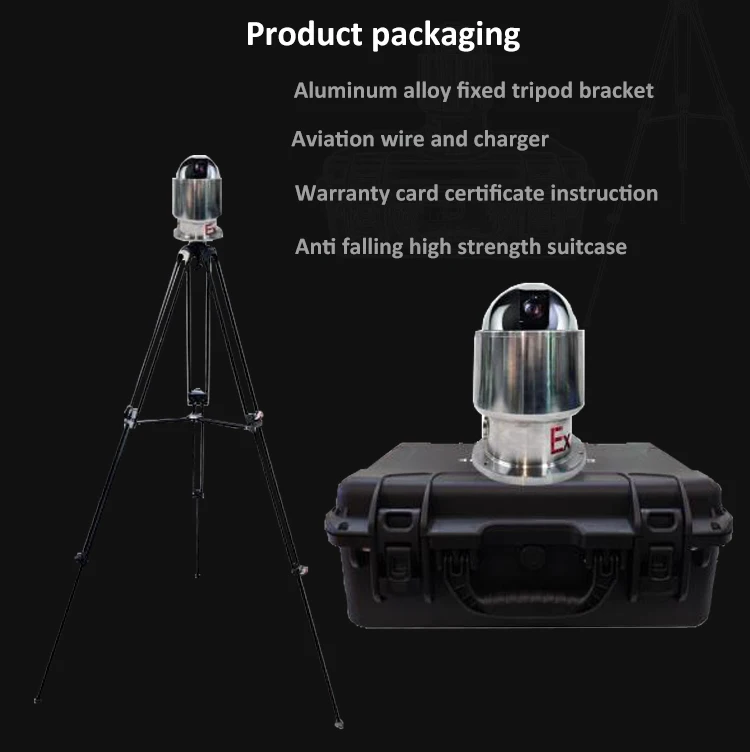

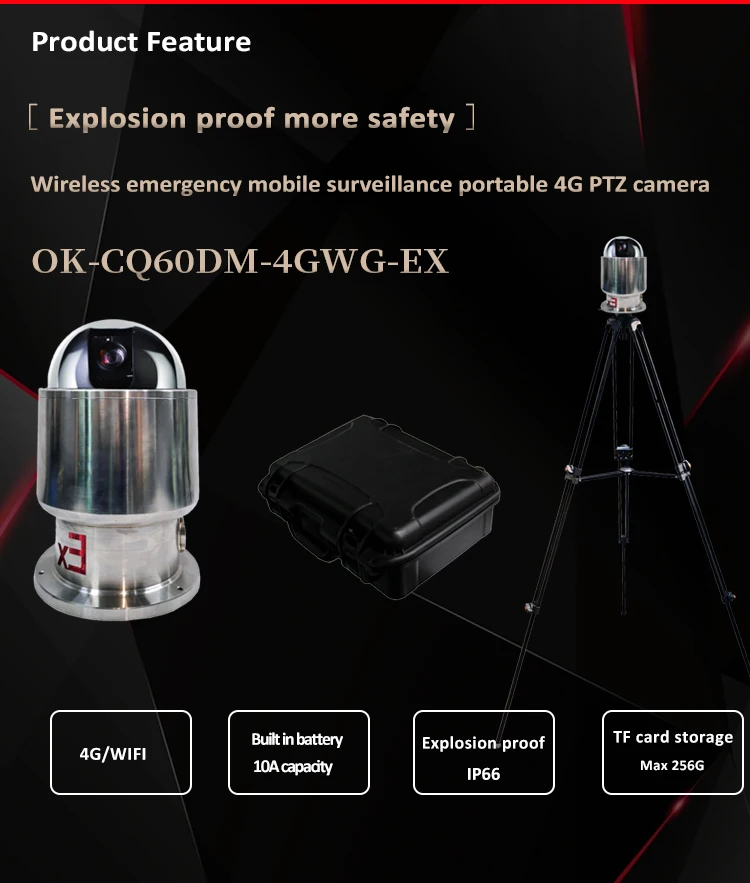

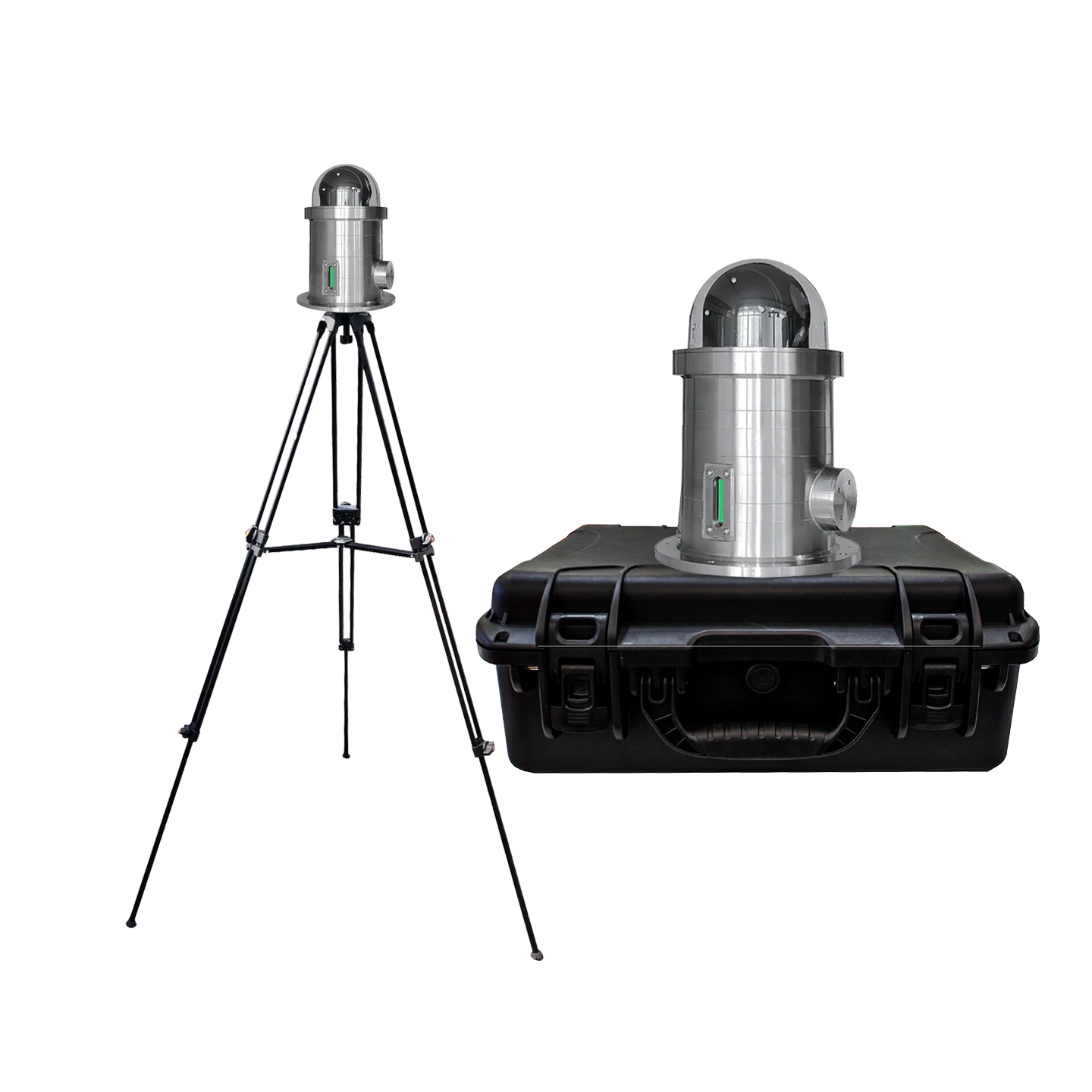

♦Support tripod fast deployment at anywhere anytime.
♦Support intercom.
♦Perfectly compatible with Hikvision monitoring software, supporting remote access of EZVIZ Cloud Ehome 28181.
♦With 1 outlet or explosion-proof plug, TPU material composite cable output.
♦Magnesium alloy shell, lighter weight, protection level reaches IP66.
♦High definition image 1080P, 2.0 megapixel.
♦Support 4G full Netcom cards, WIFI, and GPS, built-in antenna.
♦ High-performance H.264 and H.265 video encoding.
♦Use dual TF card, maximum support 128G, larger storage capacity, more stable network.
♦Battery powered, reliable work for more than 12 hours.
♦Magnet suction cup can be installed quickly and can be removed at any time.
♦Support tripod fast deployment at anywhere anytime.
♦Support intercom.
Technical data
Camera model | OK-CQ60DM-IP-2-4GWG-EX | |
Explosion-proof mark | Ex d IIC T6 Gb/Ex tD A21 IP67 T80℃ | |
Protection level | IP67 | |
Image sensor | 1/2.8type EXmor CMOS | |
Pixel | 2.0Megapixels | |
Illuminance | 0.1 lux (F1.6, automatic gain control on, 1/30 sec) 0.008lx(ICR-ON;1/30sec) | |
Lens | f=5.1~135mm, 30x Optical zoom | |
Parameter adjustment | White balance, automatic gain control AGC, backlight compensation BLC | |
Signal to noise ratio | ≥50db | |
Electronic shutter | 1/1 s- 1/10,000 s | |
Network Interface | 10BaseT / 100BaseTX, RJ45 | |
Cellular and wireless networks | 802.11a/b/g/n WCDMA, TD-SCDMA 4G LTE | |
Network protocol | IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP | |
Video compression | H.264 | |
Image Resolution | 25/30P | |
1080P | ||
Multi-stream | HD + D1 | |
Rate control mode | VBR/CBR | |
Data transmission and storage | ||
Data storage | Automatic / manual recording, support TF card | |
R infrared light | 850nm IR light | |
Night vision distance | 60m | |

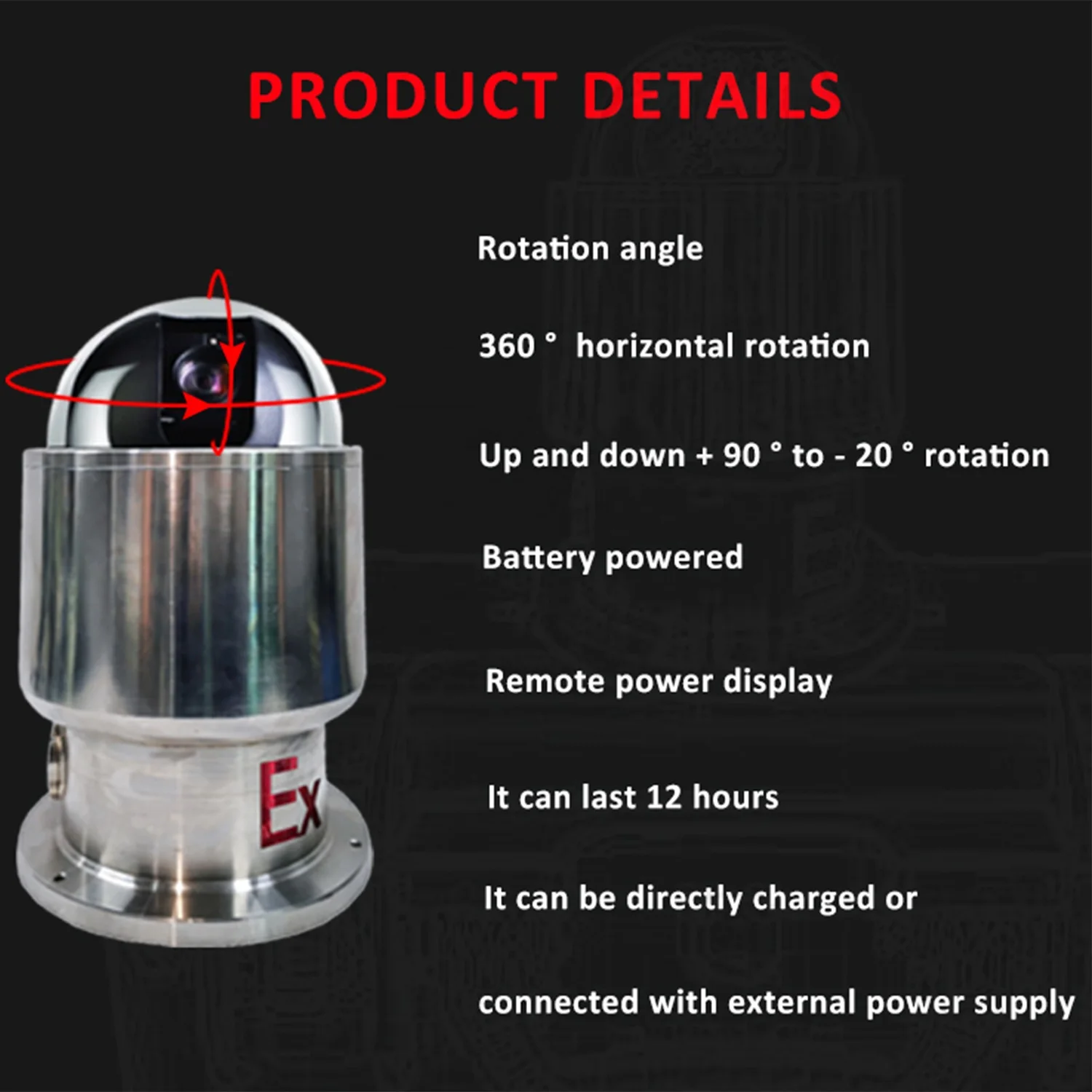

Horizontal range | 360° | |
Horizontal speed | 0-120°/S | |
Vertical range | -15°~+90° | |
Vertical speed | 0-60°/S | |
Preset position | 128 preset position | |
cruise | 8 cruises tracking | |
Pattern scanning | 3 | |
Protection grade | IP67 | |
Working temperature and humidity | -35°C~+55°C ;98% | |
Power supply | DC 12.6V/ built in battery | |
Battery capacity | 11.1V 10000mAH | |
Power | 25W | |
Weight | 8KG | |

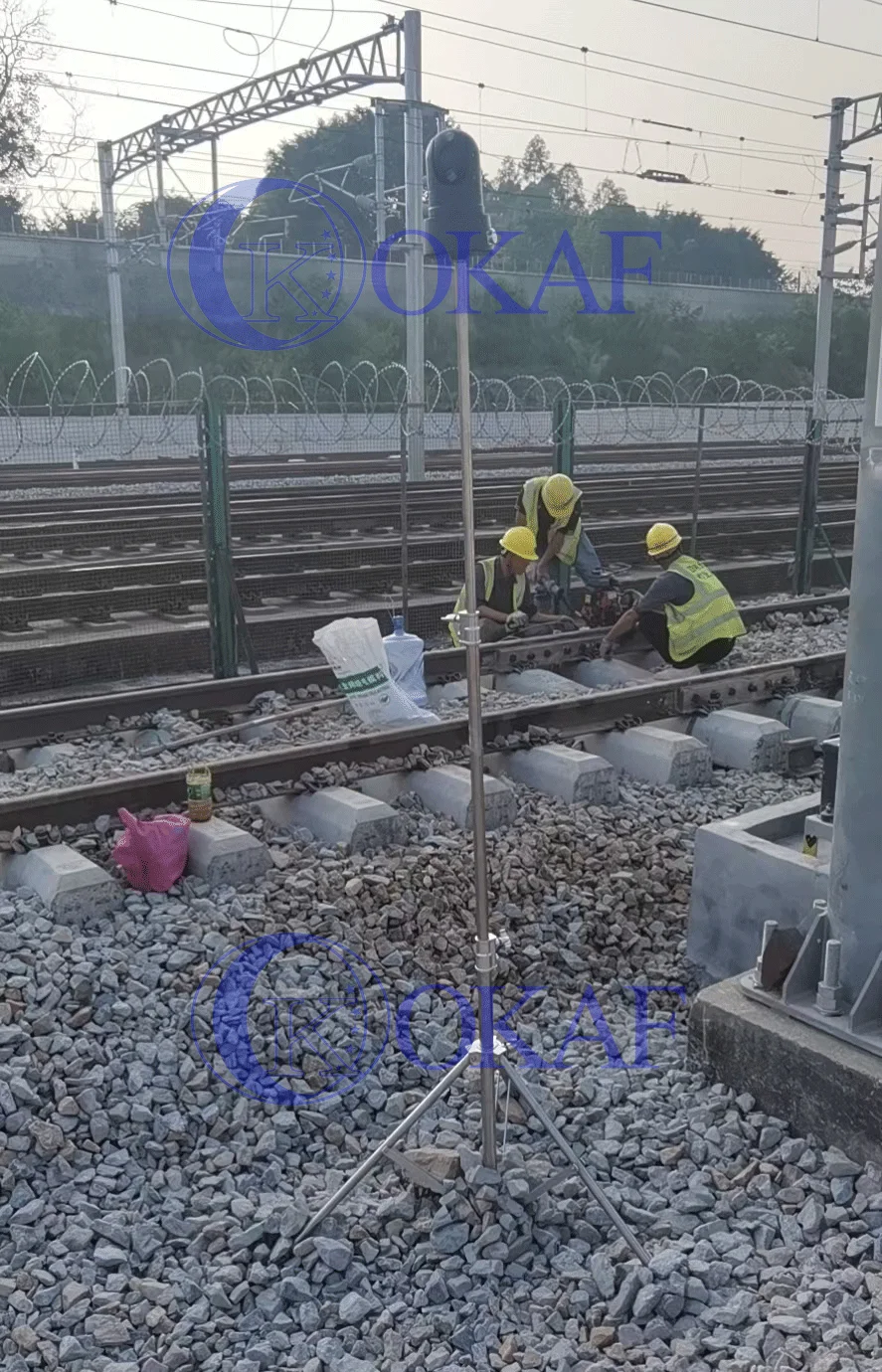

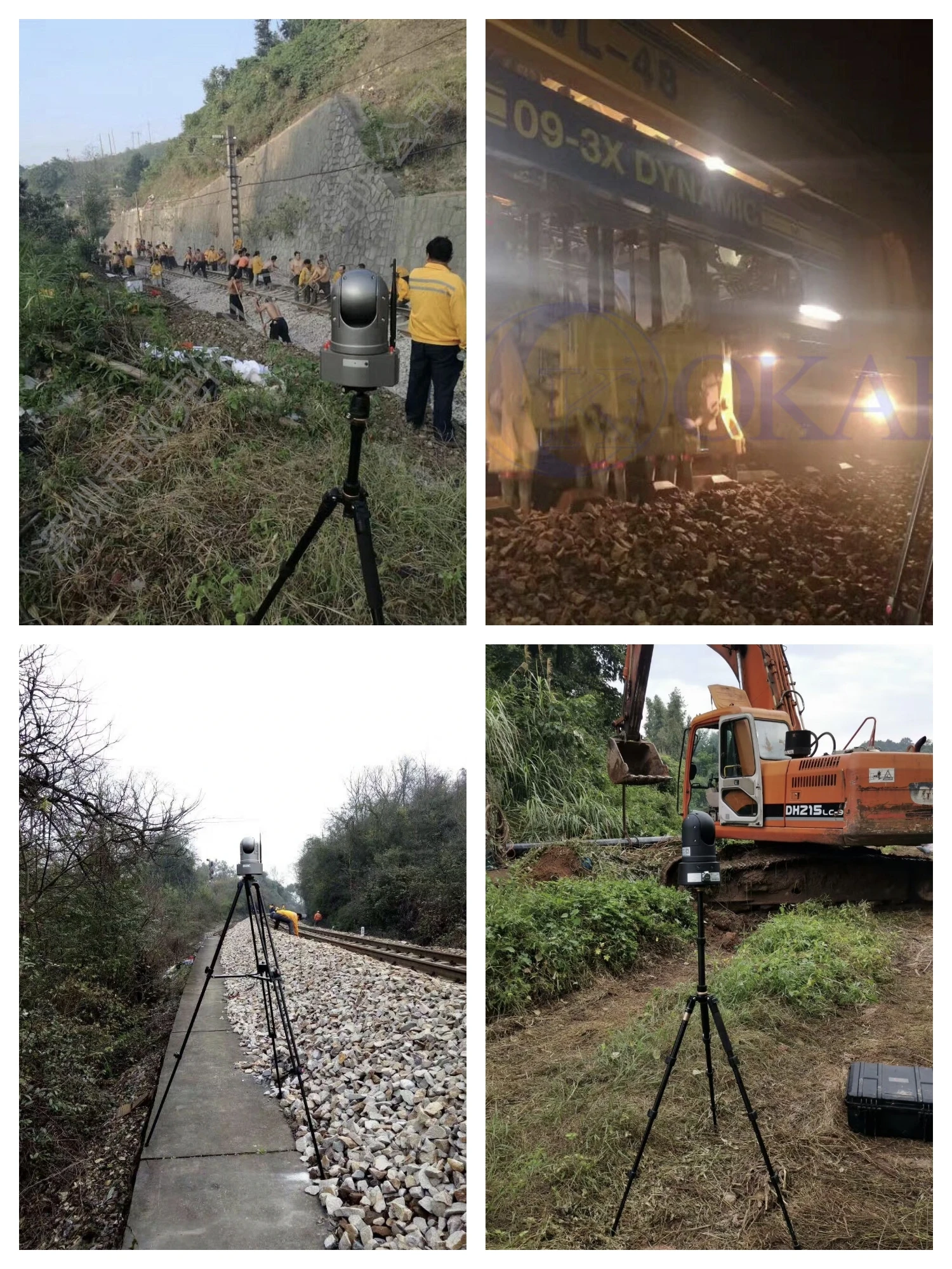

Application Picture
