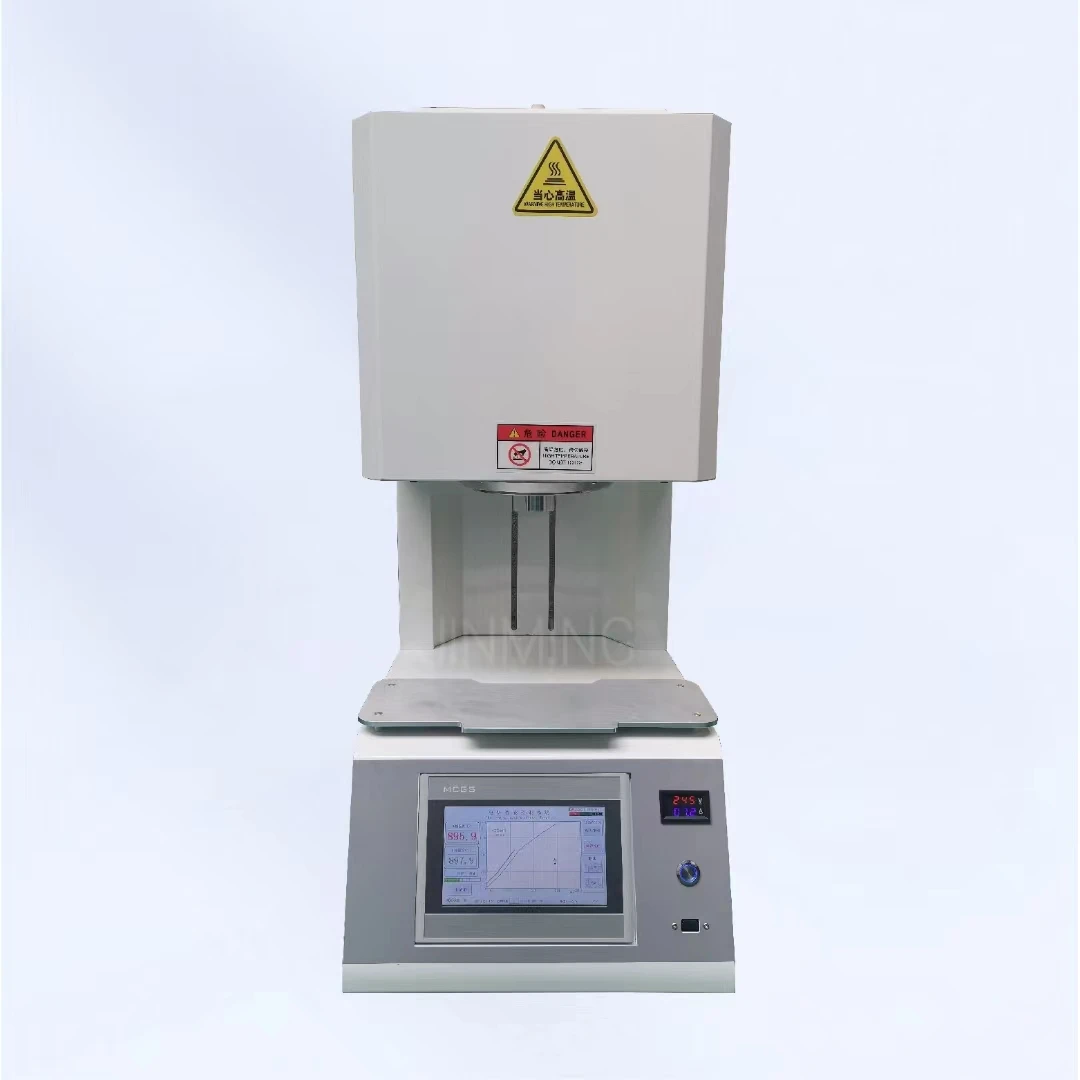

1700C Ce Certified Automatic Programmable sintering Zirconia Dental Ceramic Furnace

Product Overview

Description

1700C Ce Certified Automatic Programmable sintering Zirconia Dental Ceramic Furnace

Technical parameter
Chamber size	Dia110x110mm (diameter x Height) Can put 2-3 layers crucilbles one time , so can sintering more pcs teeth and crown.
Max. temperature	1700°C
Working temperature	1650°C
Temprature control	1) PID automatic control via SCR (Silicon Controlled Rectifier)power control with phase angle fired, current limiting resistor. 2) Touch screen panel which can store 30pcs different programs 3) Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. 4) Over temperature protection and alarm allows for operation without attendant.
Heating rate	0-20 oC /min
Thermocouple	B type
Temperature accuracy	+/- 1 oC
Heating element	4PCS High purity U type Model 1800  MoSi2 Heating element, less iron components, no pollution to zirconia teeth or crown during sintering, Make temprature be uniform .no teeth crack occurs .
Furnace structure	Double layer steel casing with dual cooling fan, temperature of furnace shell below 60oC
Thick Furnace Insulation	Three layers of ceramic fiber insulation materials.                                                                      1) First layer: 1800°C ceramic fiber board                                                                                      2 ) Second layer: 1600°C ceramic fiber board 3 )Third layer : 1260°C ceramic fiber board

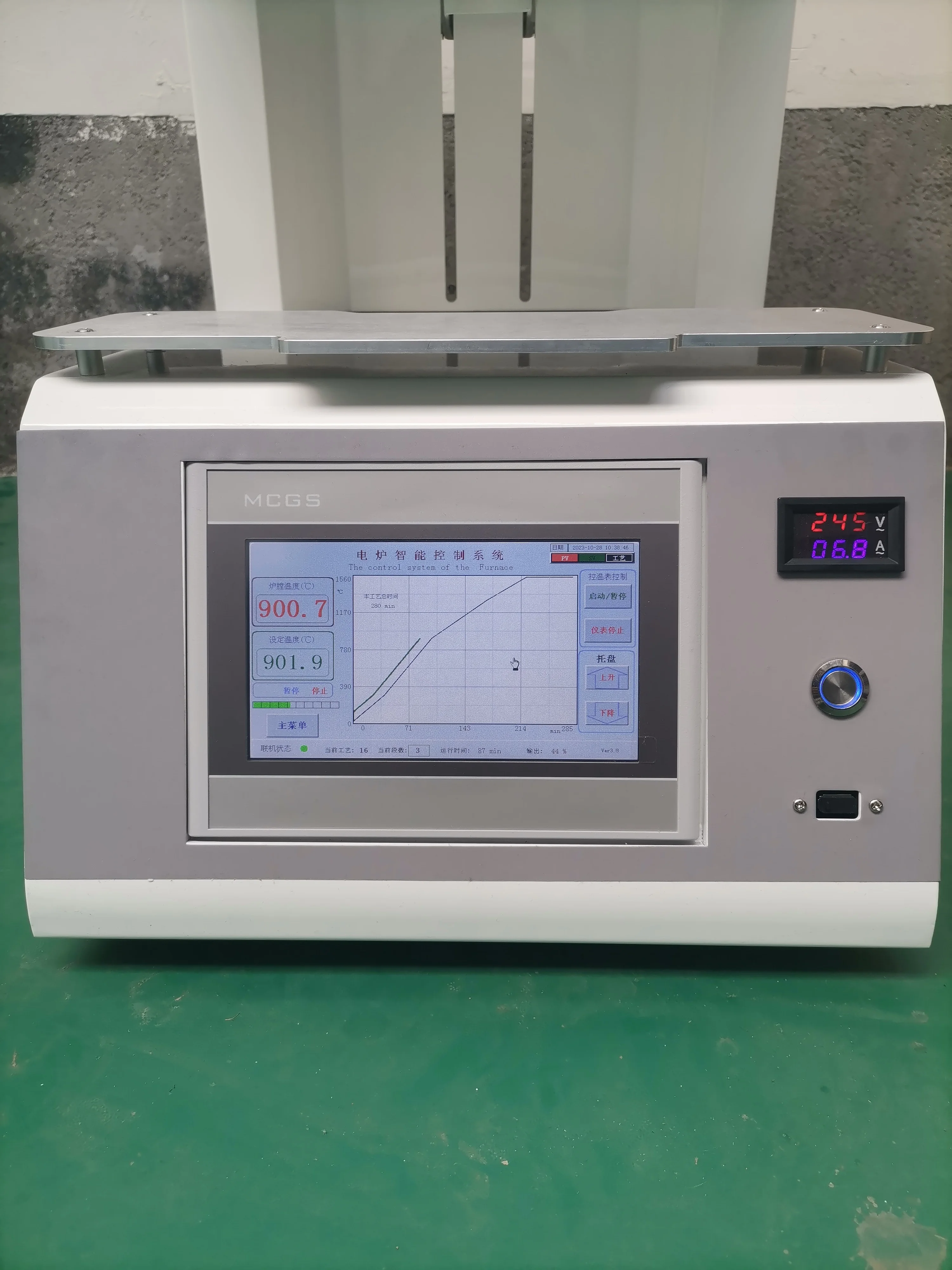

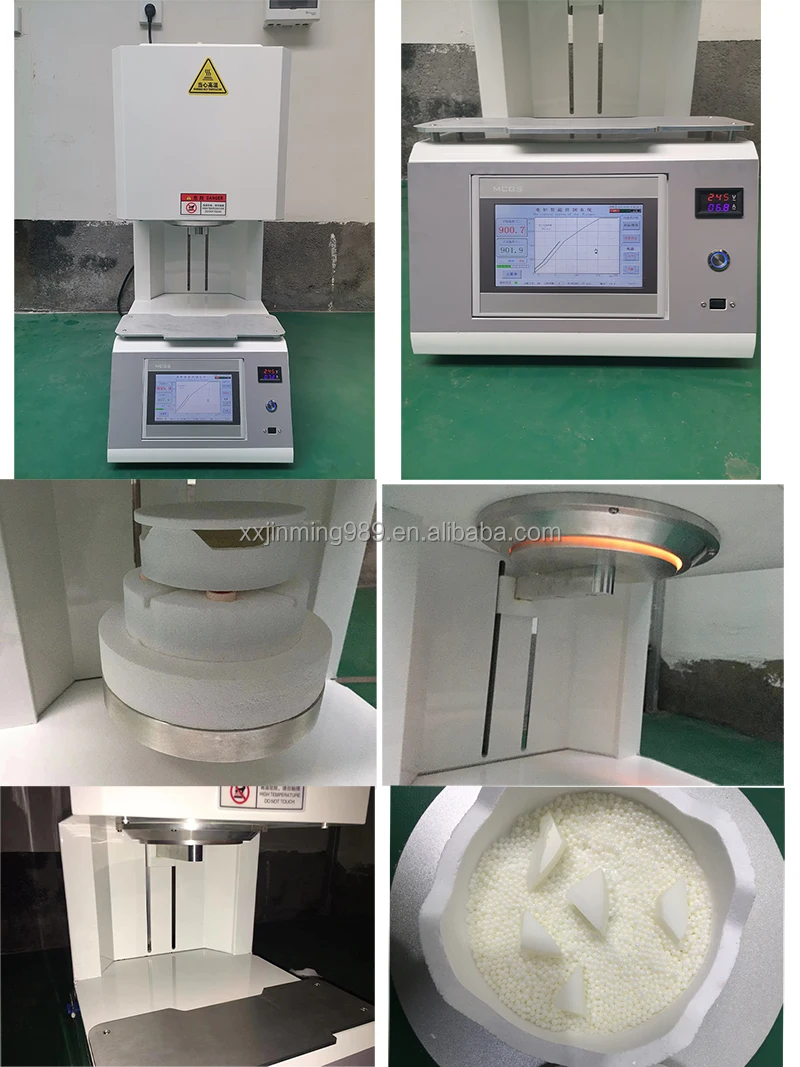

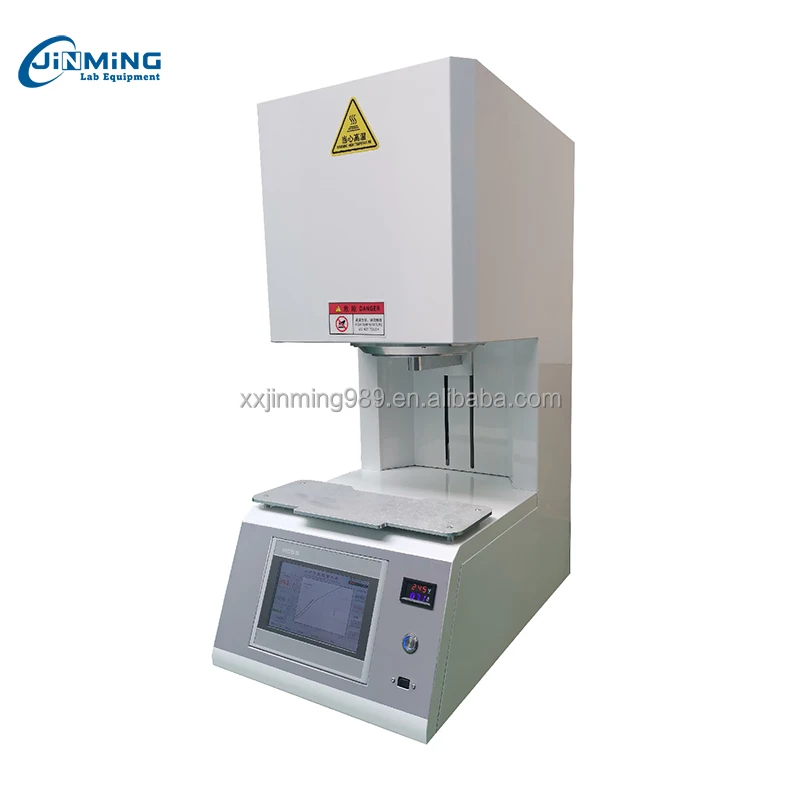

Detailed Pictures :

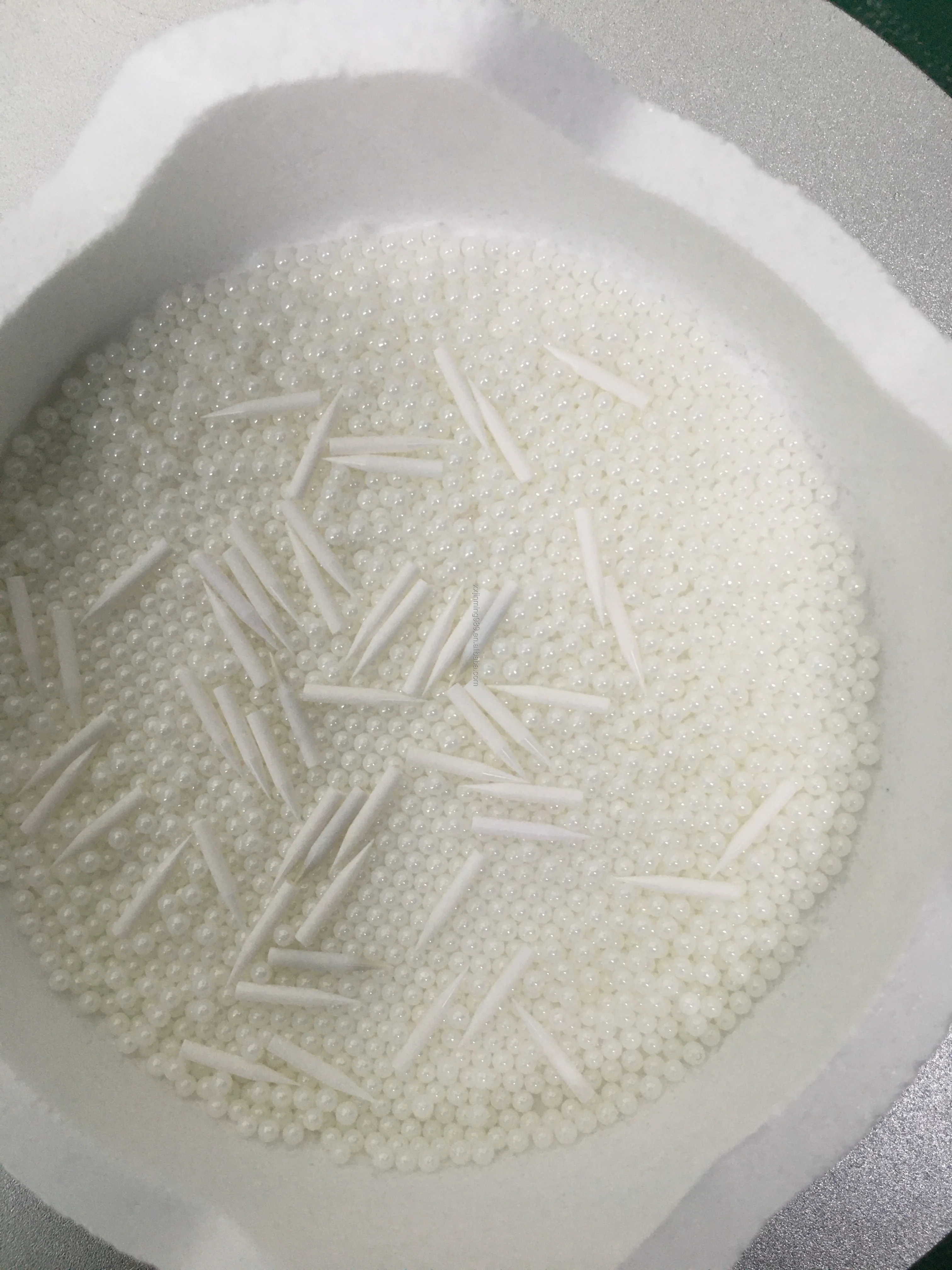

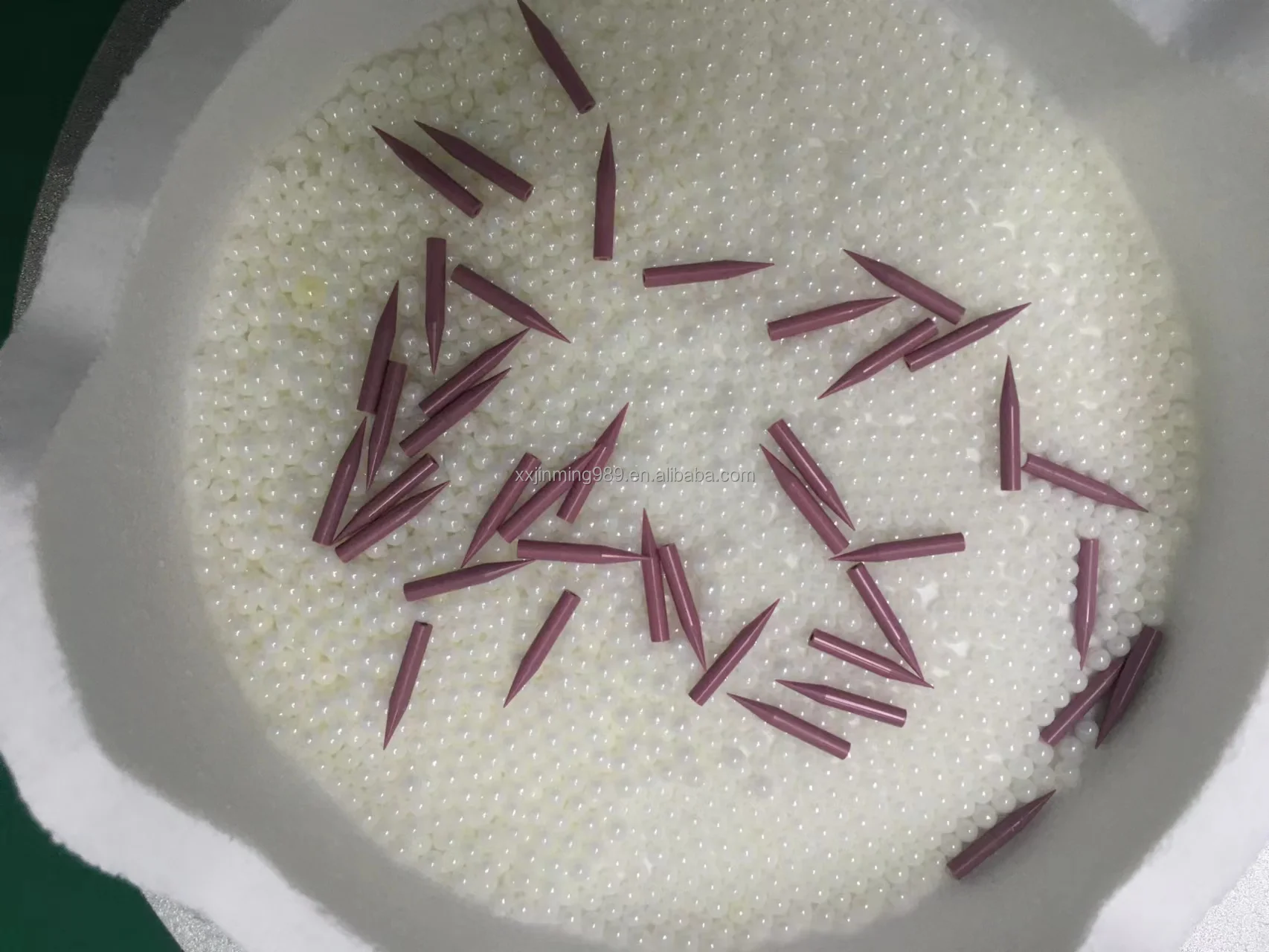

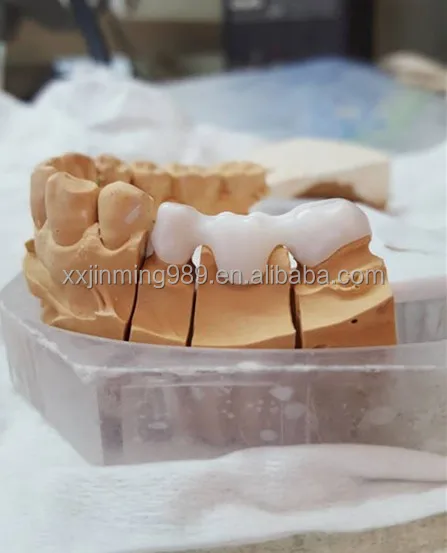

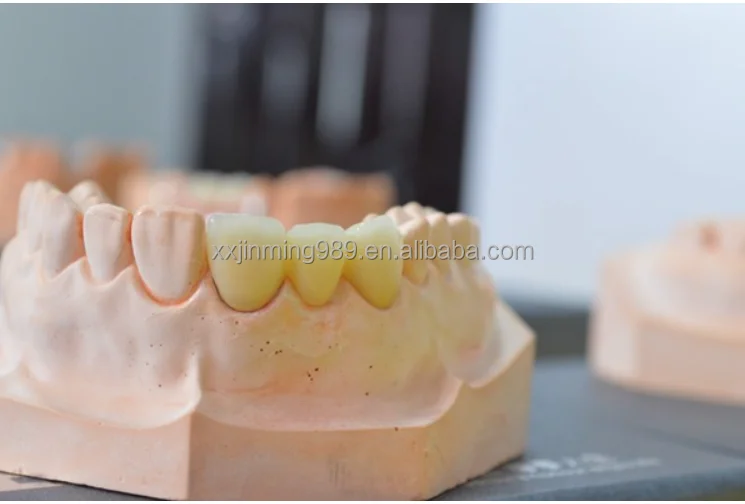

 Sintering result:

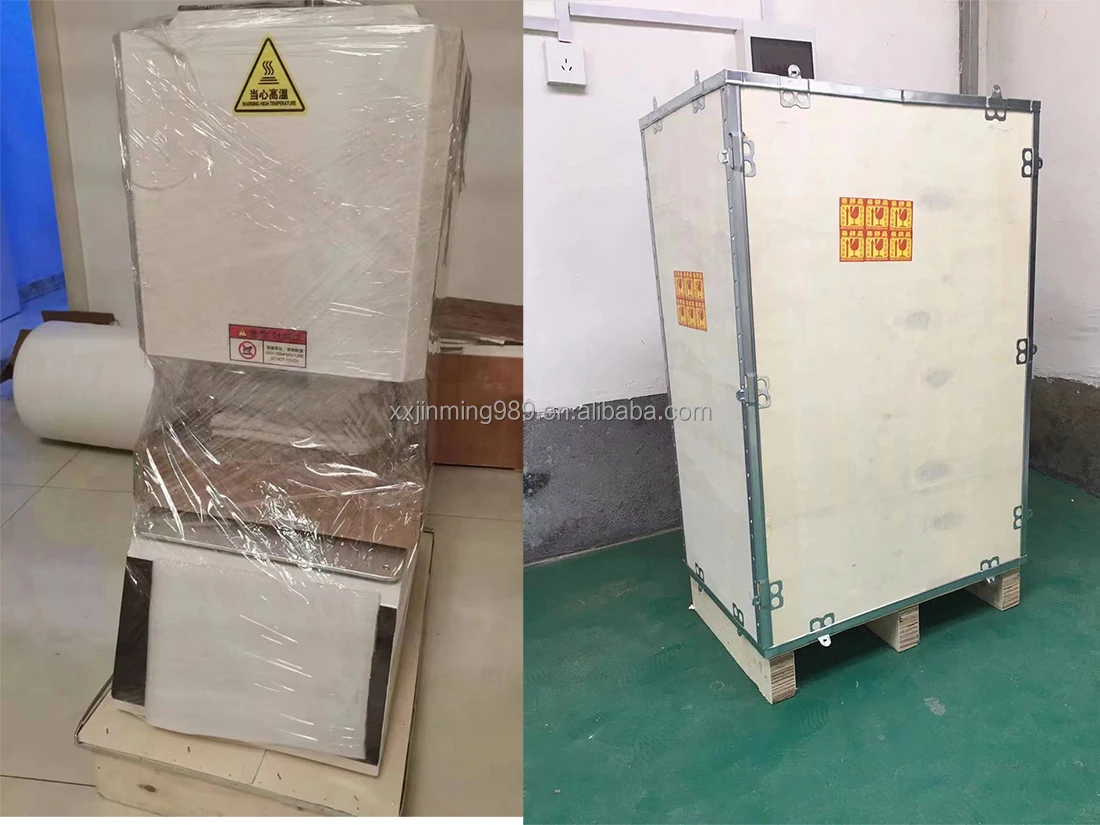

Packing & Delivery :

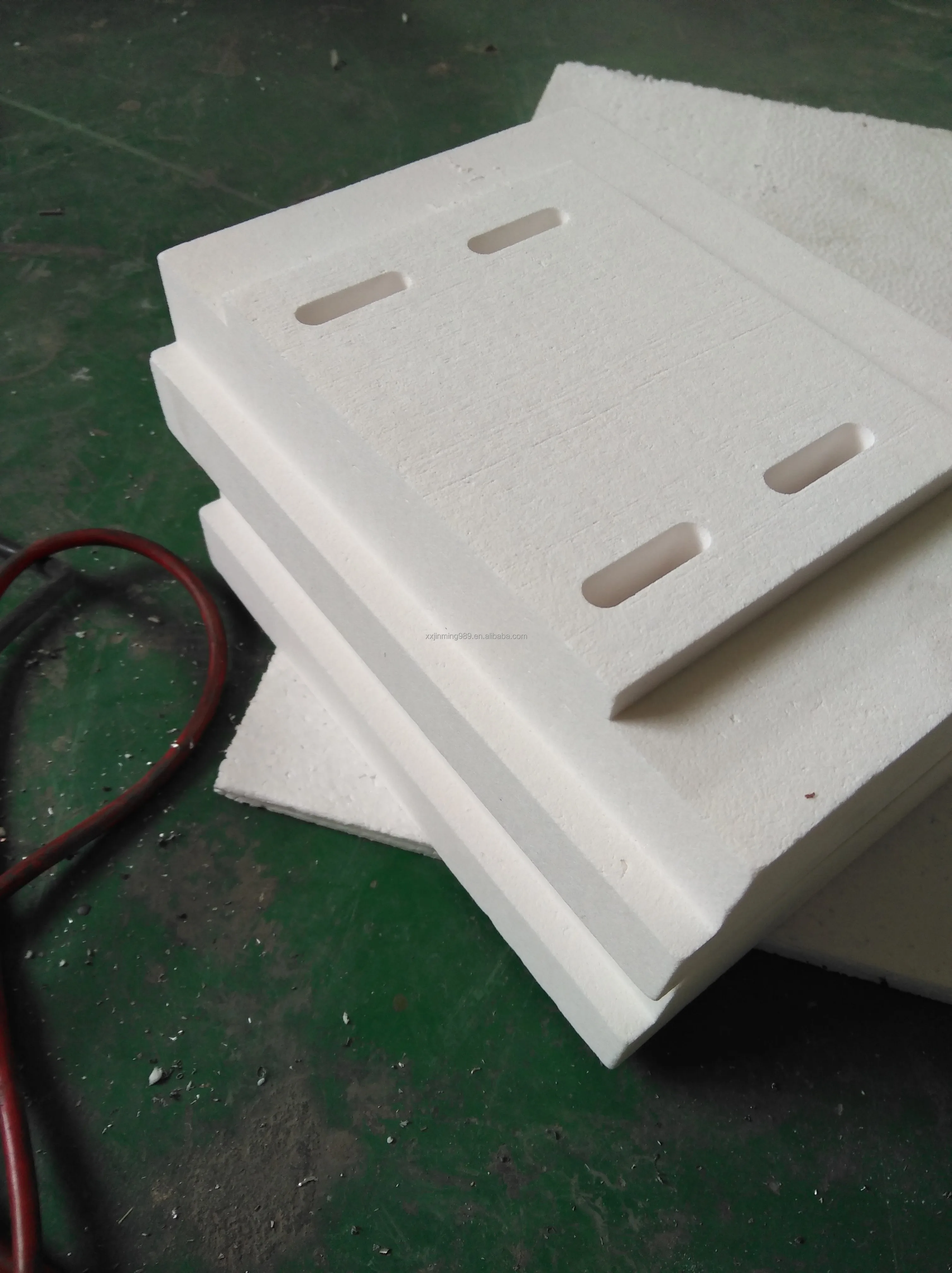

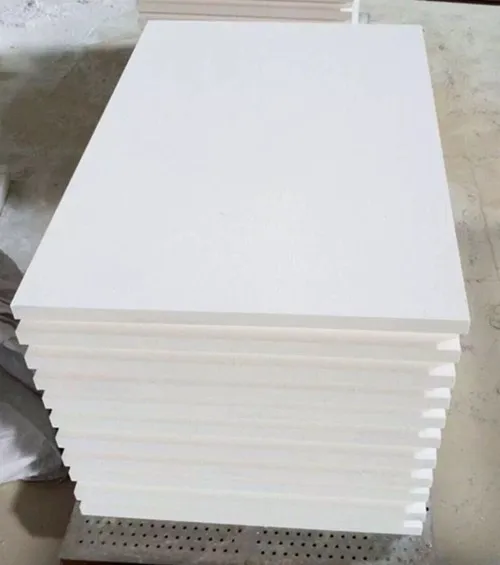

 Our Other Products :



FAQ

1. Are you furnace manufacturer ?

A: Yes, we are professional dental furnace manufacturer with many years of sale and production experience in China.



2. Q:What kind terms of payment can be accepted?

    A:  D/P , T/T, Western Union, Paypal, etc.



3. Q: Could I ask for customized voltage and electricity plug ?

    A: Yes,we can custom-made according to our clients demands from different countries .



4. Q: What about the delivery time?

    A: Normally 15-20 days prouction time after received advance payment or based on order quantity and arrange production schedule.



5. Q: What about the guarantee period?

    A: The furnace guarantee period is one year , and could supply technical support and service  for free all the time .



6. Q: What is your advantages?

    A: Professional and economical technical Proposal , Excellent quality and service ,and fast & reliable delivery .
