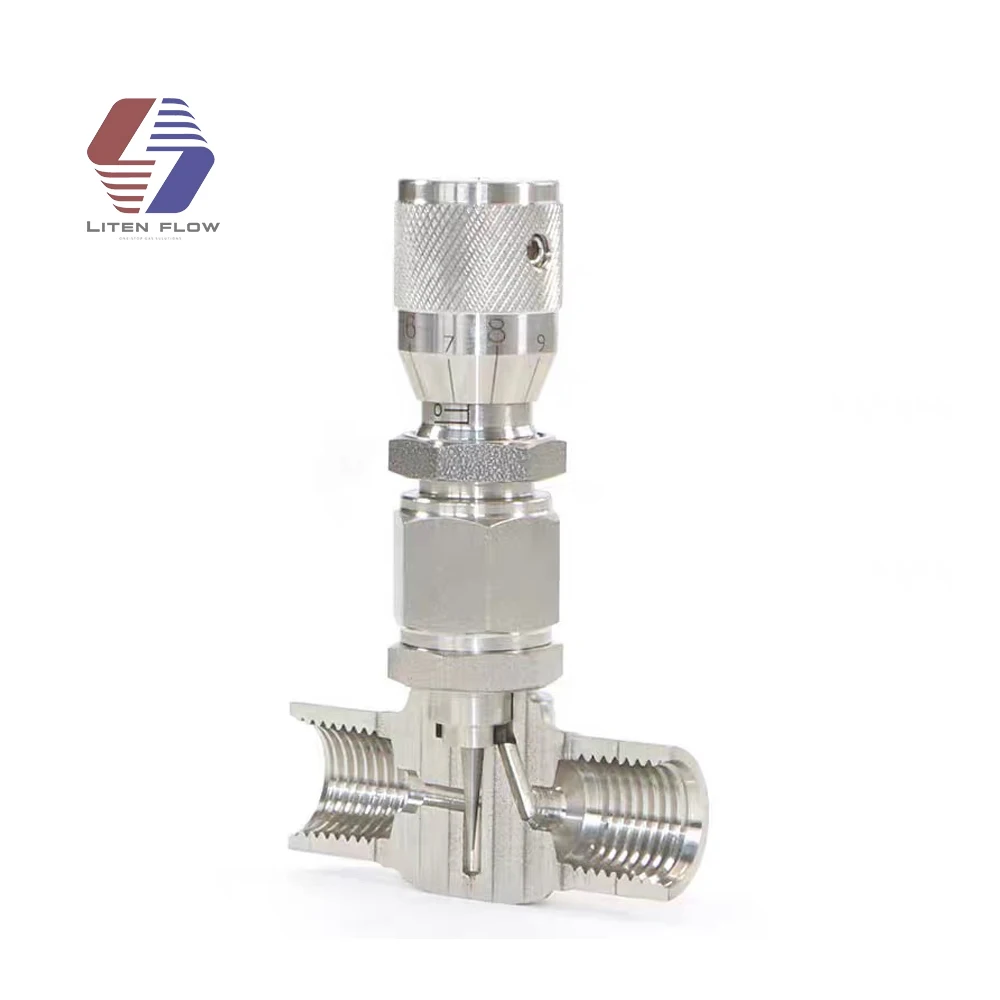

1/4 Tube 316ss High Flow Metering Valve W/Vernier Handle for Swagelok
- Category: >>>
- Supplier: Shenzhen Laiteng Technology Co. Ltd.Shenzhen Ltd.
Share on (1601003468705):
Product Overview
Description
Specification

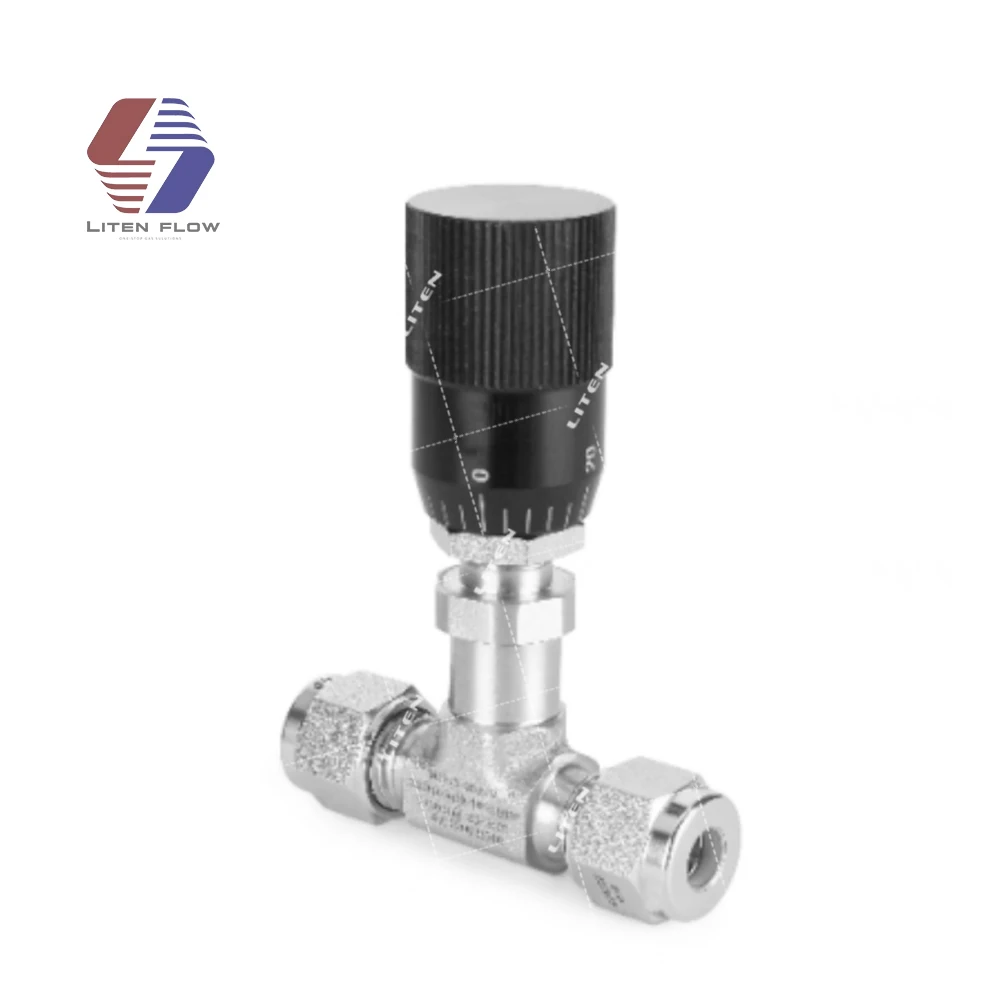

1/4 Tube 316ss High Flow Metering Valve W/Vernier Handle for Swagelok
FEATURES:
Working pressure up to : 2000 psig (138 bar)
Working temperature: -10 F to 400 F (-23 C to 204 C)
Orifice size: 0.032" (0.81 mm)
Max. flow coefficient (Cv): 0.004
Stem taper: 1
Turns to open: 9 to12
Shutoff service: not available
Bottom mounting available
Variety of end connections
Panel mountable
Flow pattern: straight, angle, cross and double
Handle type: knurled, vernier and slotted
Variety of materials available for valve body
Working temperature: -10 F to 400 F (-23 C to 204 C)
Orifice size: 0.032" (0.81 mm)
Max. flow coefficient (Cv): 0.004
Stem taper: 1
Turns to open: 9 to12
Shutoff service: not available
Bottom mounting available
Variety of end connections
Panel mountable
Flow pattern: straight, angle, cross and double
Handle type: knurled, vernier and slotted
Variety of materials available for valve body
Product Description
Component | Material | ||
1 | Body | 316 SS/A182 | |
2 | Stem | 316 SS/A479 | |
3 | Body Seal | Fluorocarbon FKM | |
4 | O-ring | Fluorocarbon FKM | |
5 | Panel Mount Nut | Stainless steel | |
6 | Bonnet | 316 SS/A479 | |
7 | Lock Screw | Stainless steel | |
8 | Handle Screw | Stainless steel | |
9 | Handle | 316 SS/A276 | |
Note: Adjusting the valve at a relatively low position may damage the valve body and stem tip.

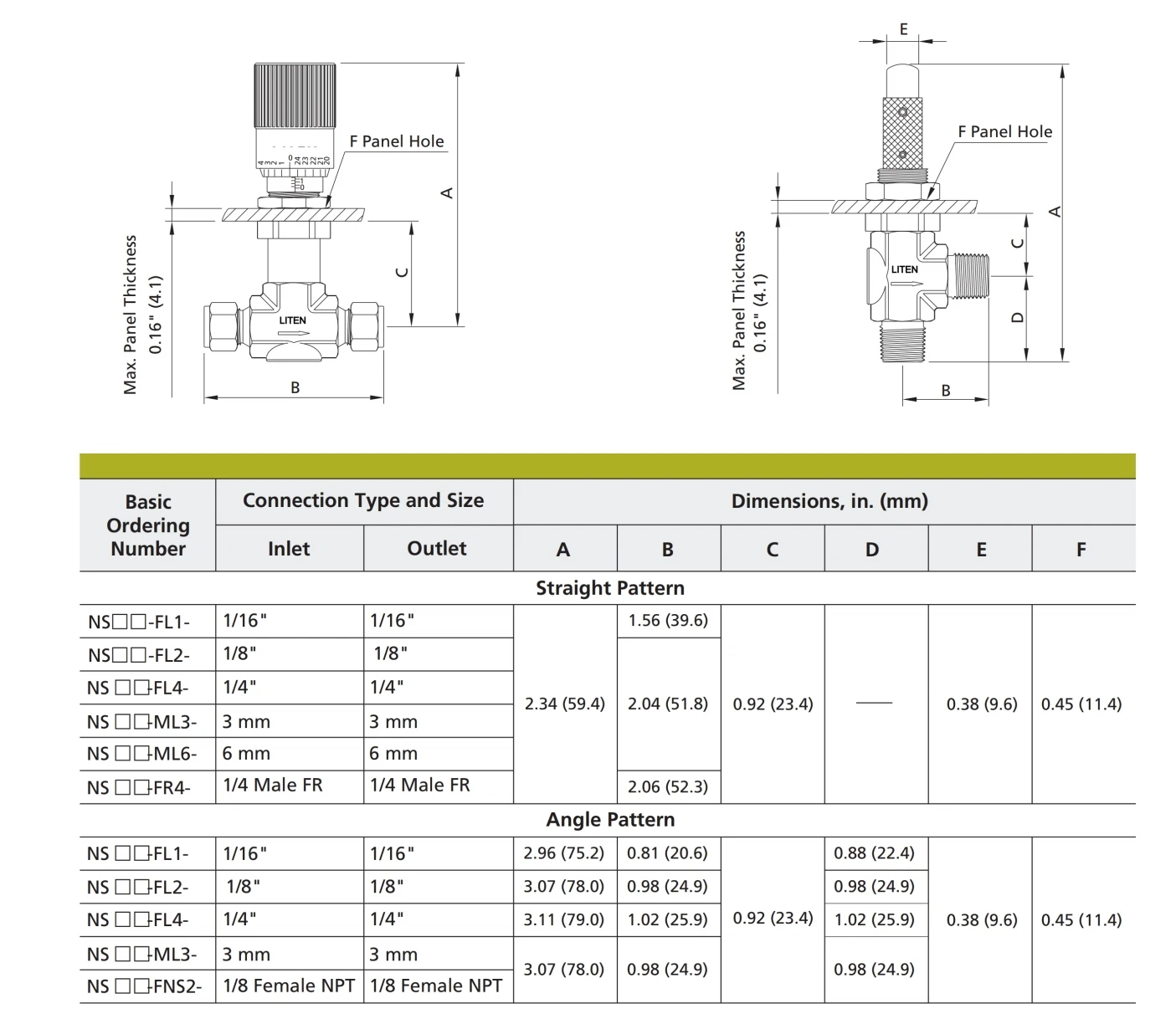

Details Images

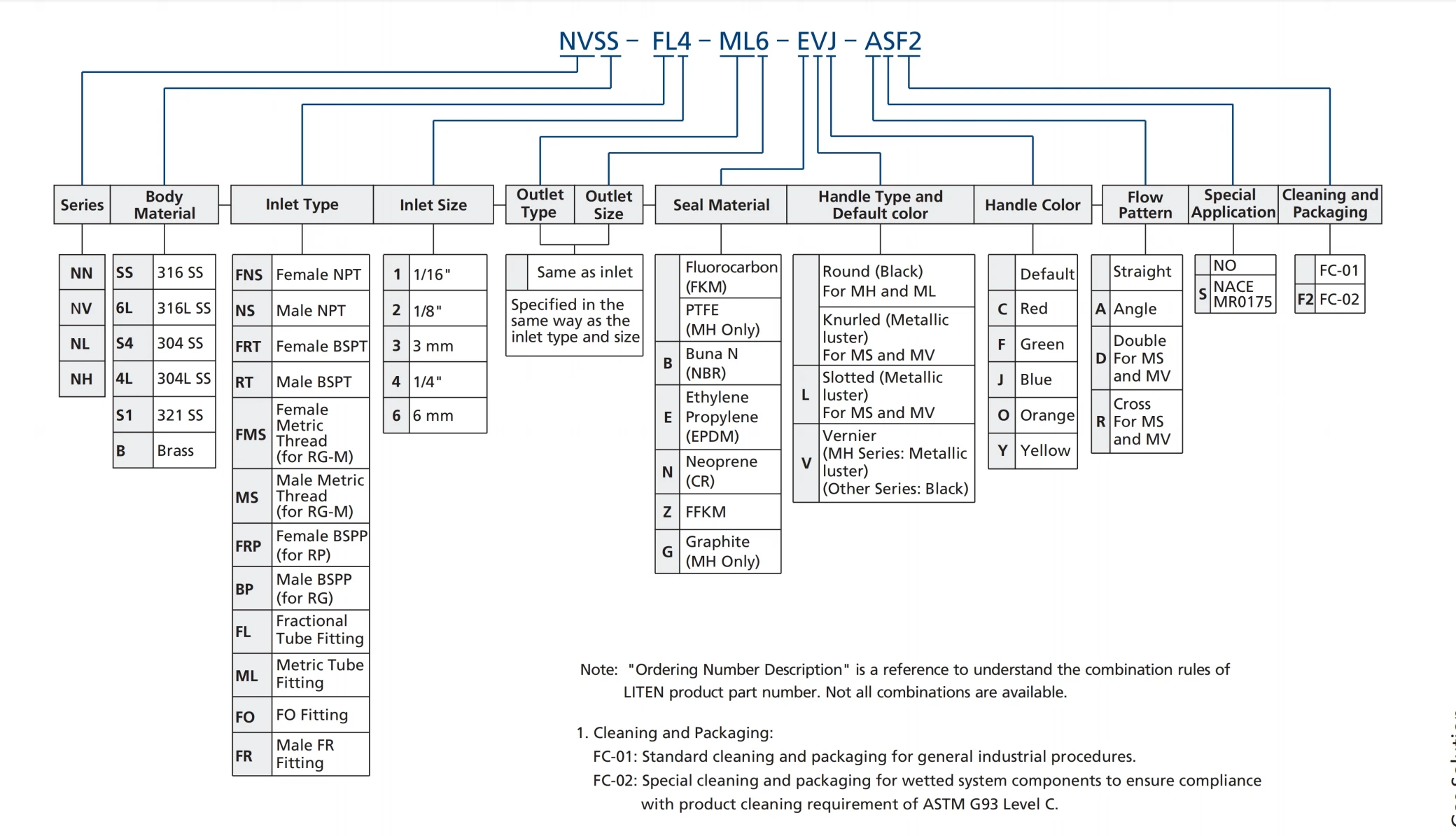

Ordering Information:

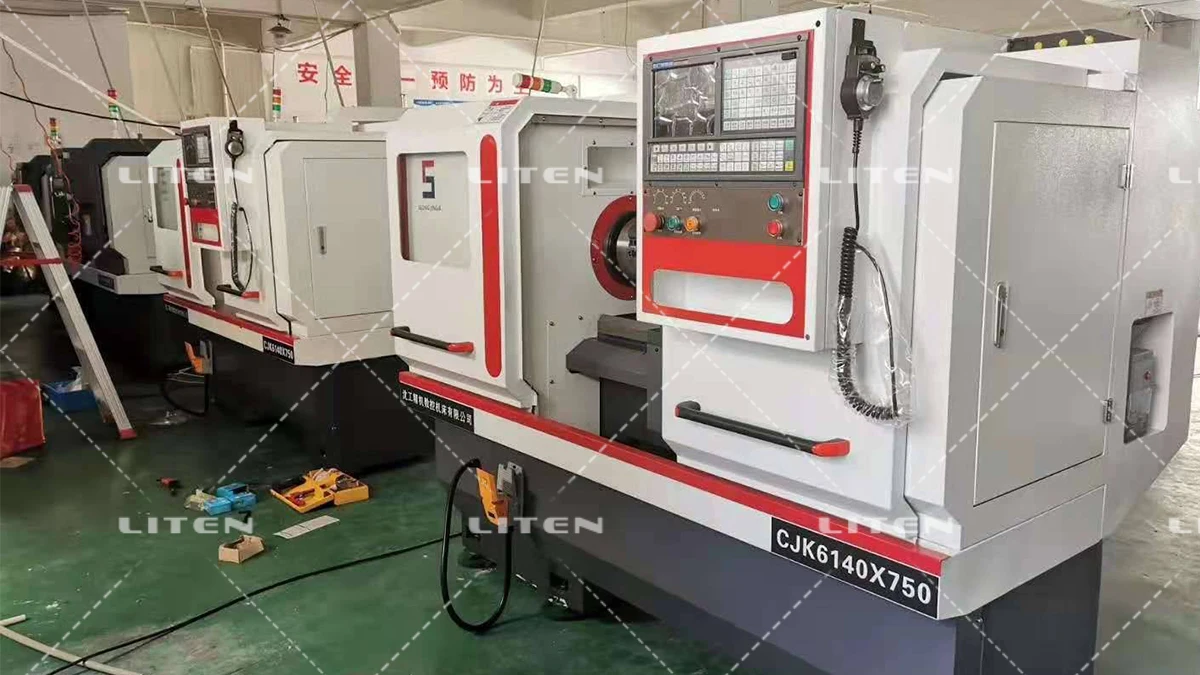

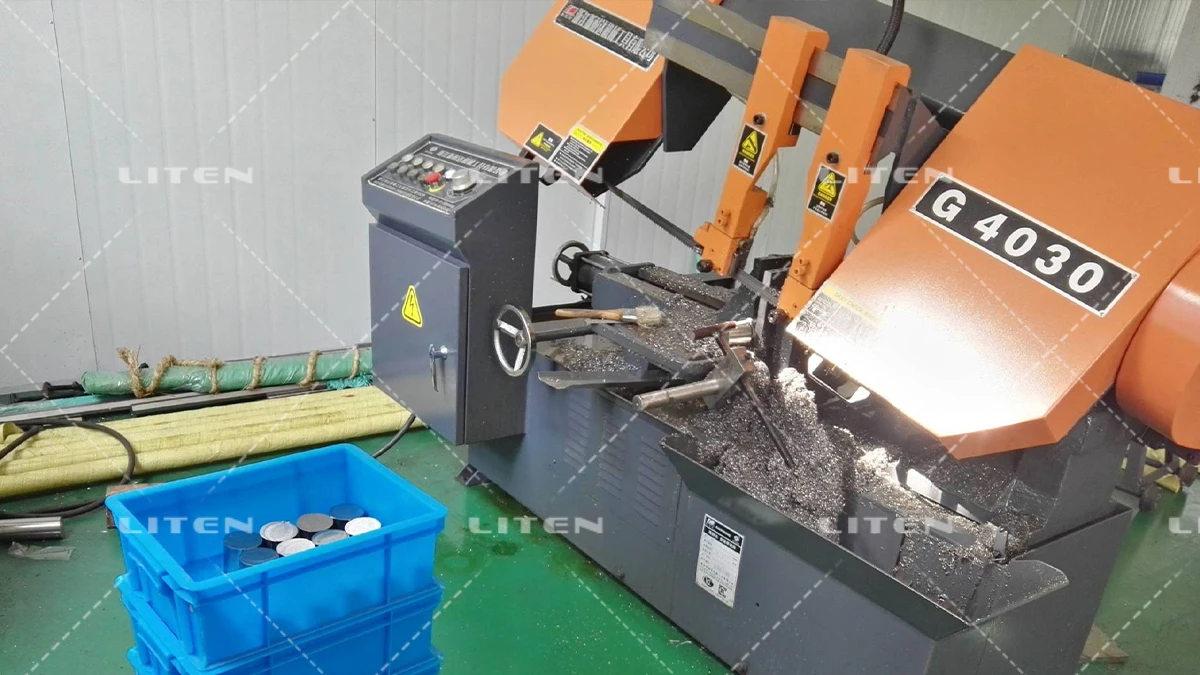

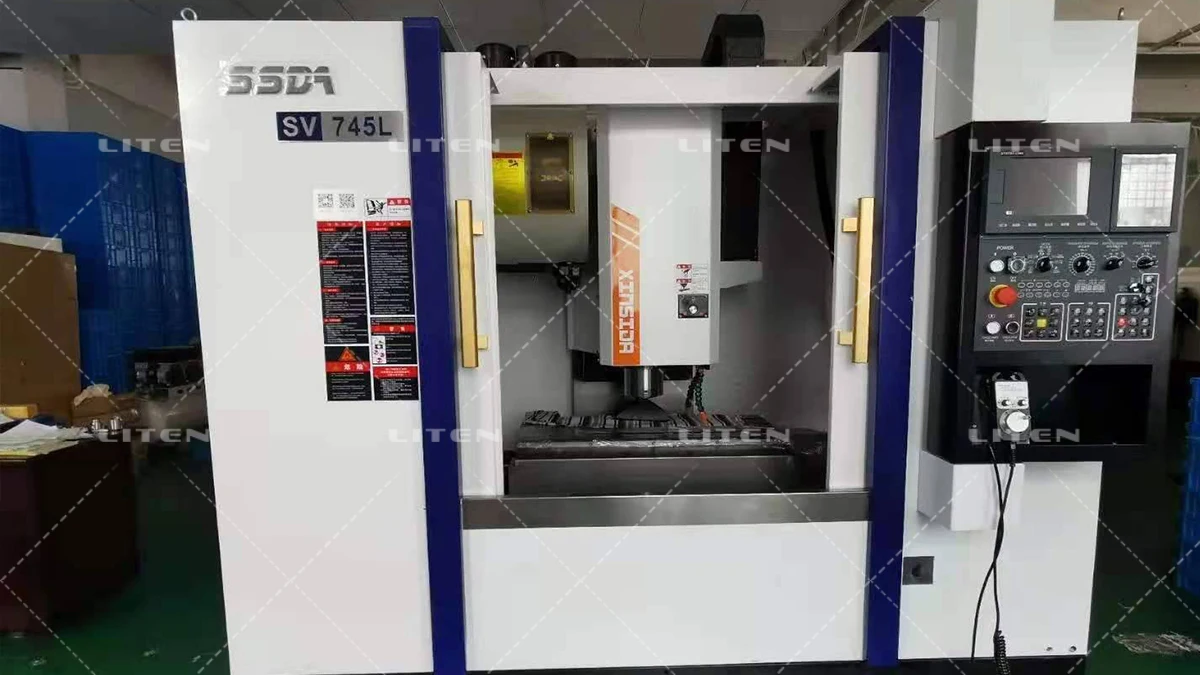

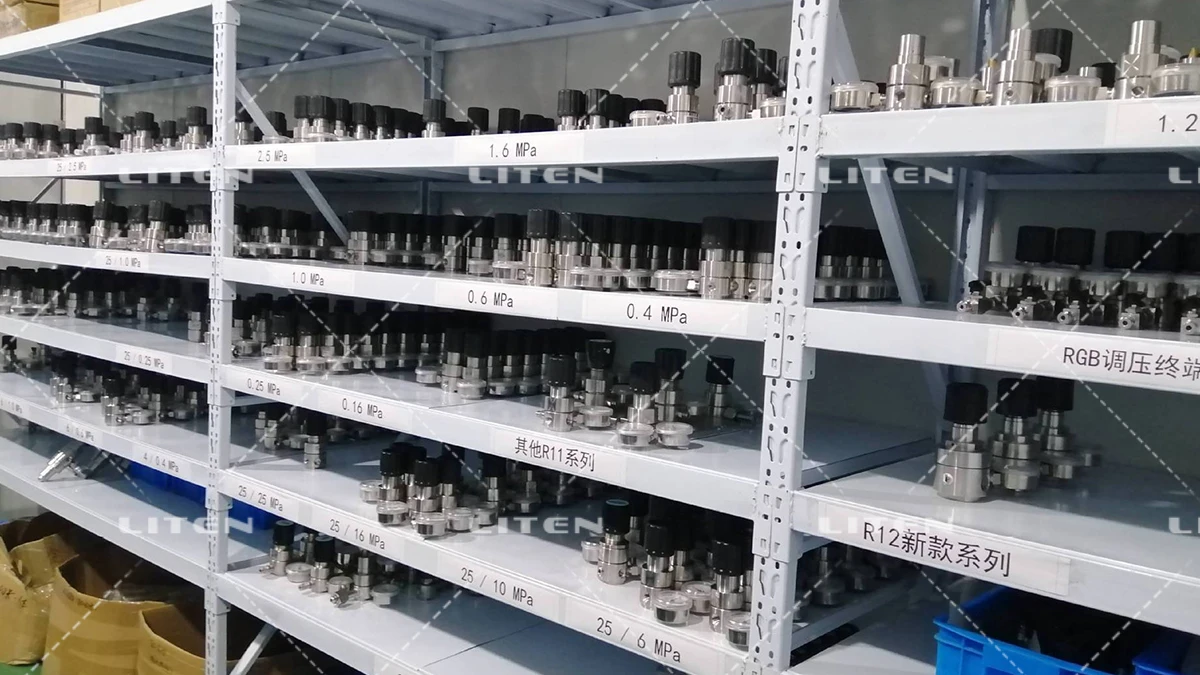

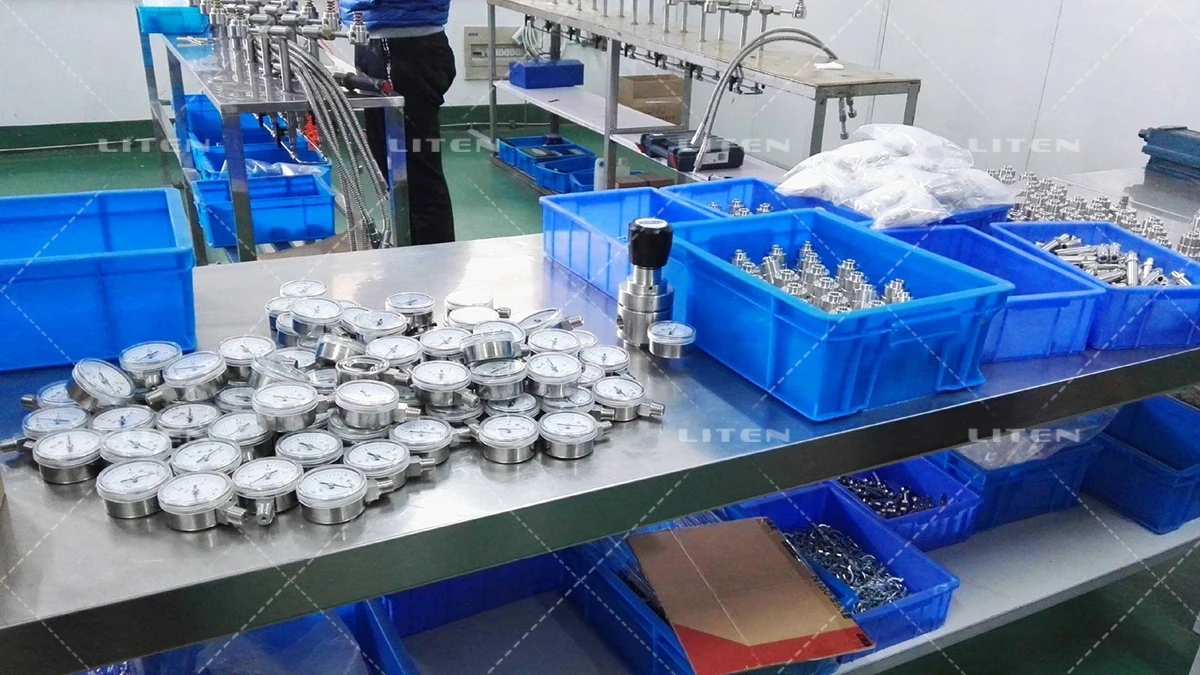

Company Profile
