Factory Wholesale high quality pvc pipe products making machine pvc pipe making machine

One cavity PVC Production Line

Two cavities PVC Production Line

Four cavities PVC Production Line

Auxiliary Machines: Plastic Crusher / Plastic Mixer Machine /

Pulverizer / Water Chiller

Application :

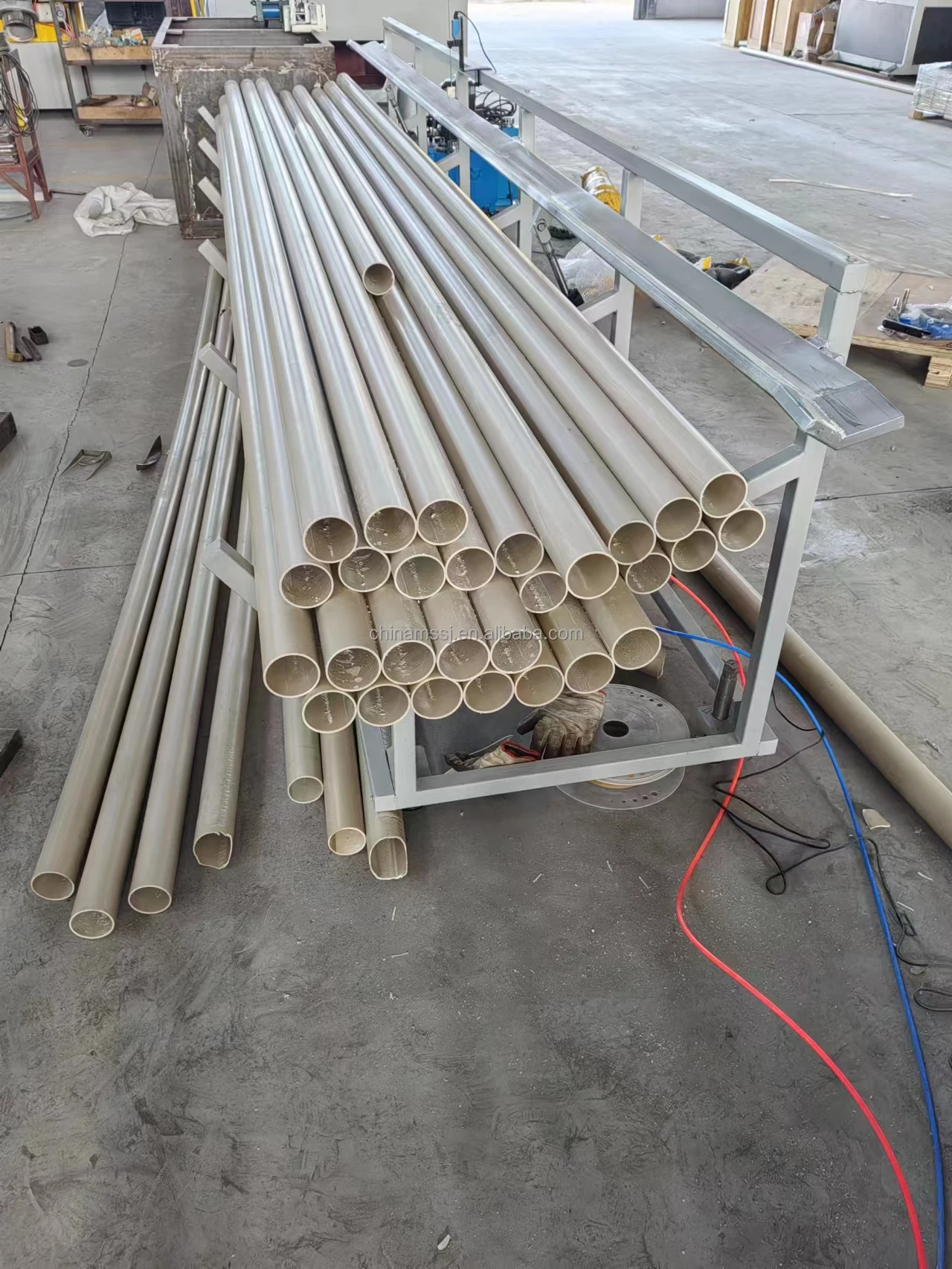

PVC pipe is widely used for drainage and water supply of agriculture and buildings, cable laying pipe, wire threading pipe, house decoration, etc.

Technical Parameters

Model/Item	Pipe range(mm)	Extruder	Max(output)kg/h	Max speed(m/min)	Total power(kw)
PVC-50x2	16-50mm	SJSZ65/132	250kg/h	10m/min	85kw
PVC-63	16-63	SJSZ51/105	150	10	60
PVC-110	50-110	SJSZ55/110	180	10	70
PVC-160	63-160	SJSZ65/132	300	5	90
PVC-250	110-250	SJSZ80/156	400	3.5	120
PVC-315	160-315	SJSZ80/156	400	3	160
PVC-450	250-450	SJSZ92/188	700	1.5	200
PVC-630	315-630	SJSZ92/188	700	0.9	230

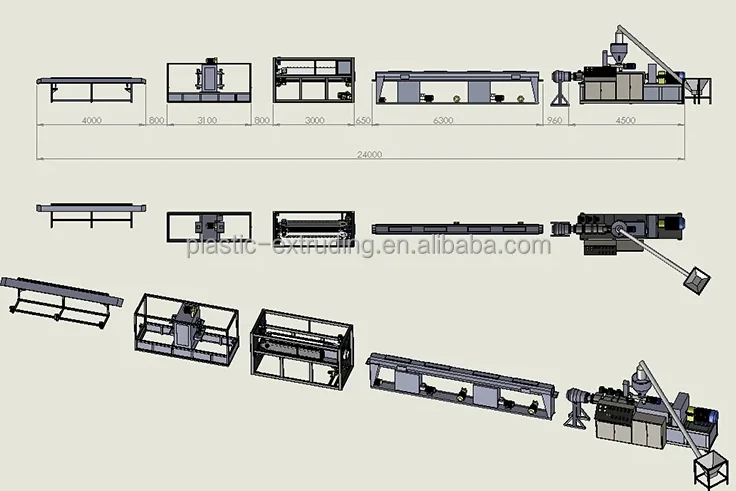

Production process:

preparation of raw materials + additives → mixing → feeding →conical twin-screw extruder → extrusion die → Vacuum calibration tank→ printer → haul-off → cutter → pipe stacking rack → finished product inspection and packaging.





PVC one-cavity production line

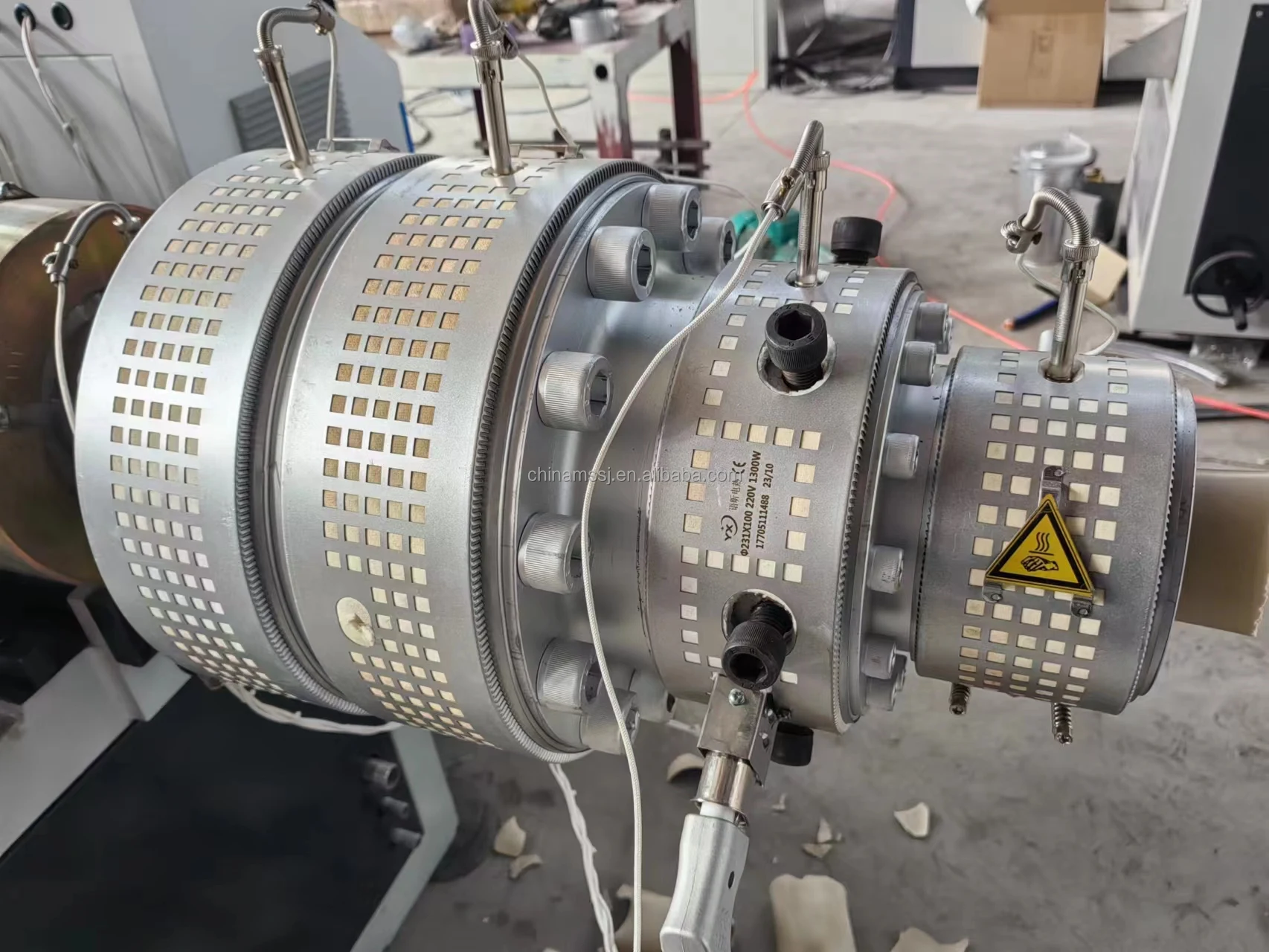

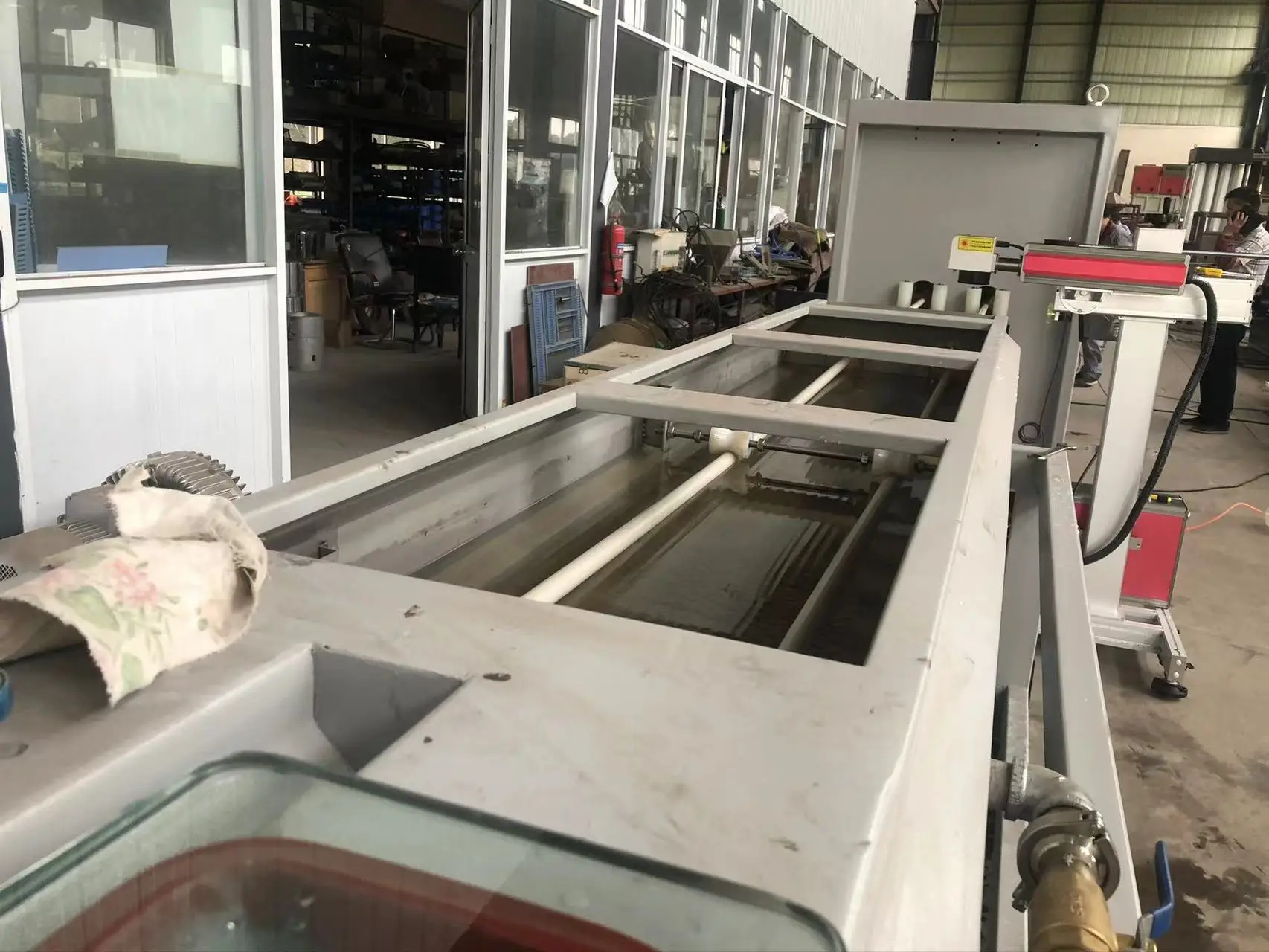

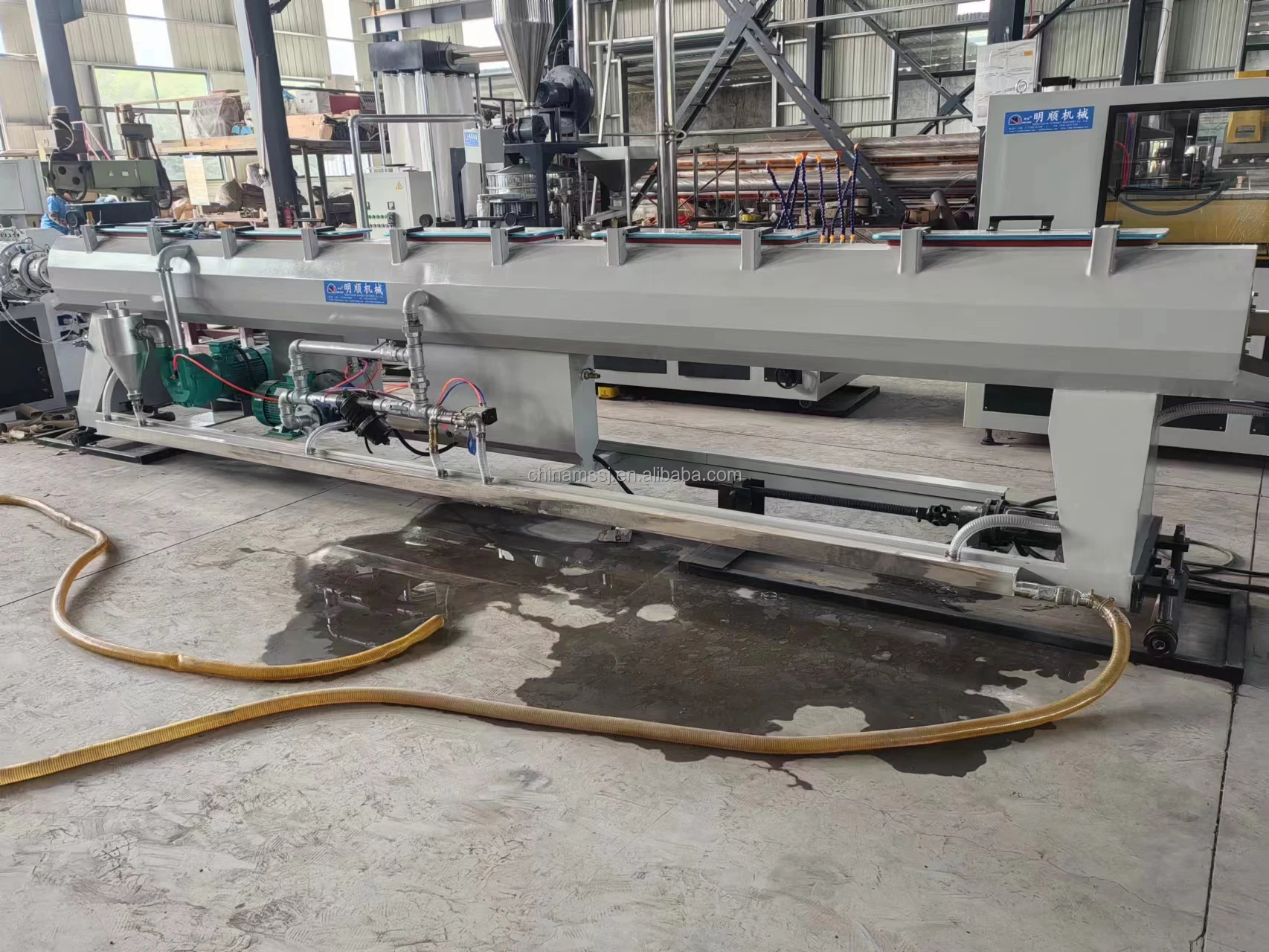

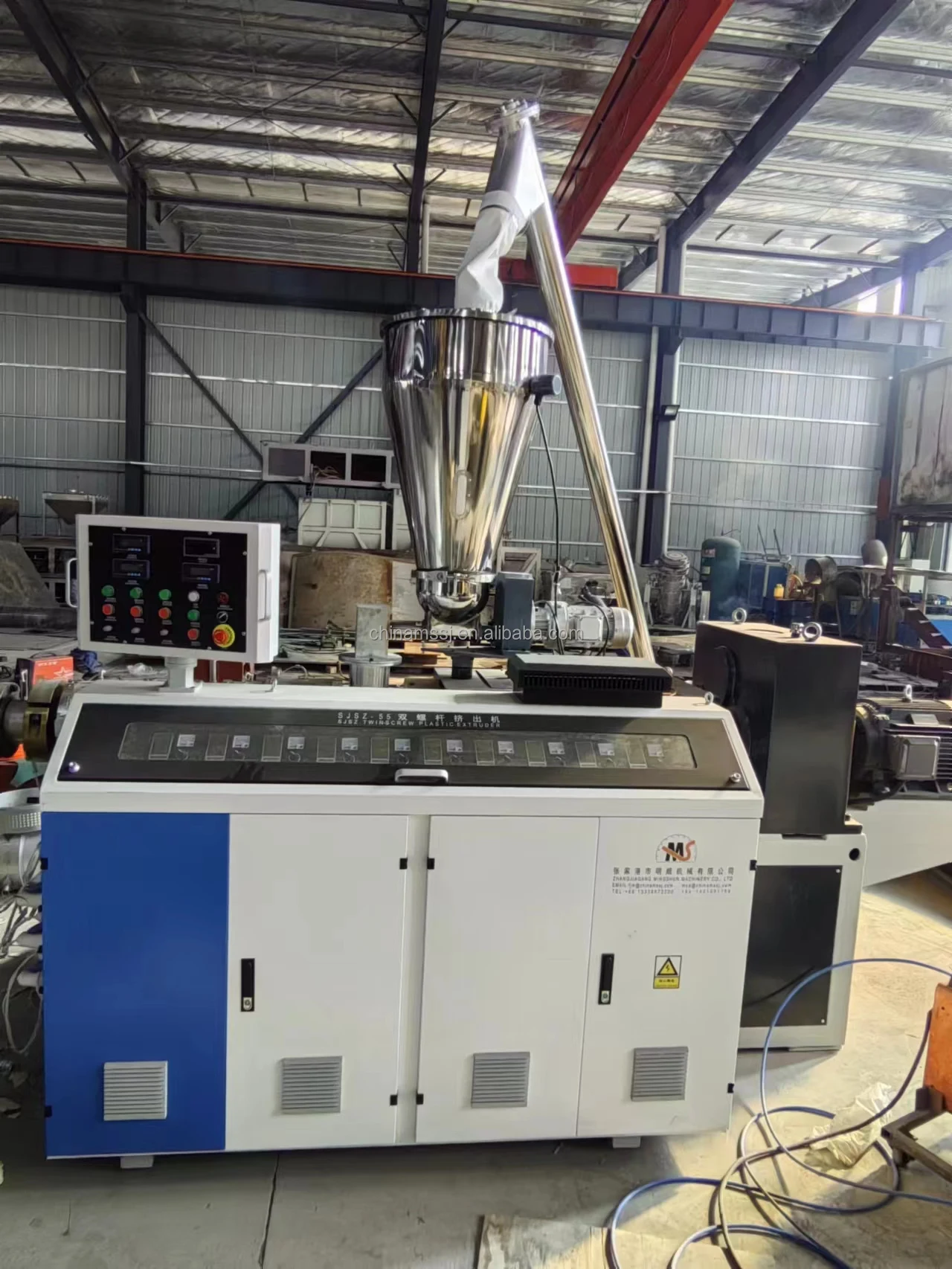

This production line is mainly applicable to production Φ20-Φ630 PVC pipes of various wall thicknesses.It is composed of screw feeder, conical twin screw extruder,extrusion die, vacuum calibration tank,haul-off, motors, cutter and stacker etc.

The extruder and haul off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type.

It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.











PVC two-cavity production line
The production line is developed with the advanced technology of west Europe which is brought by separate-control double tube extruding by our company. This line is mainly applicable to double-cavity which has Φ16-40mm or Φ16-63mm. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit.

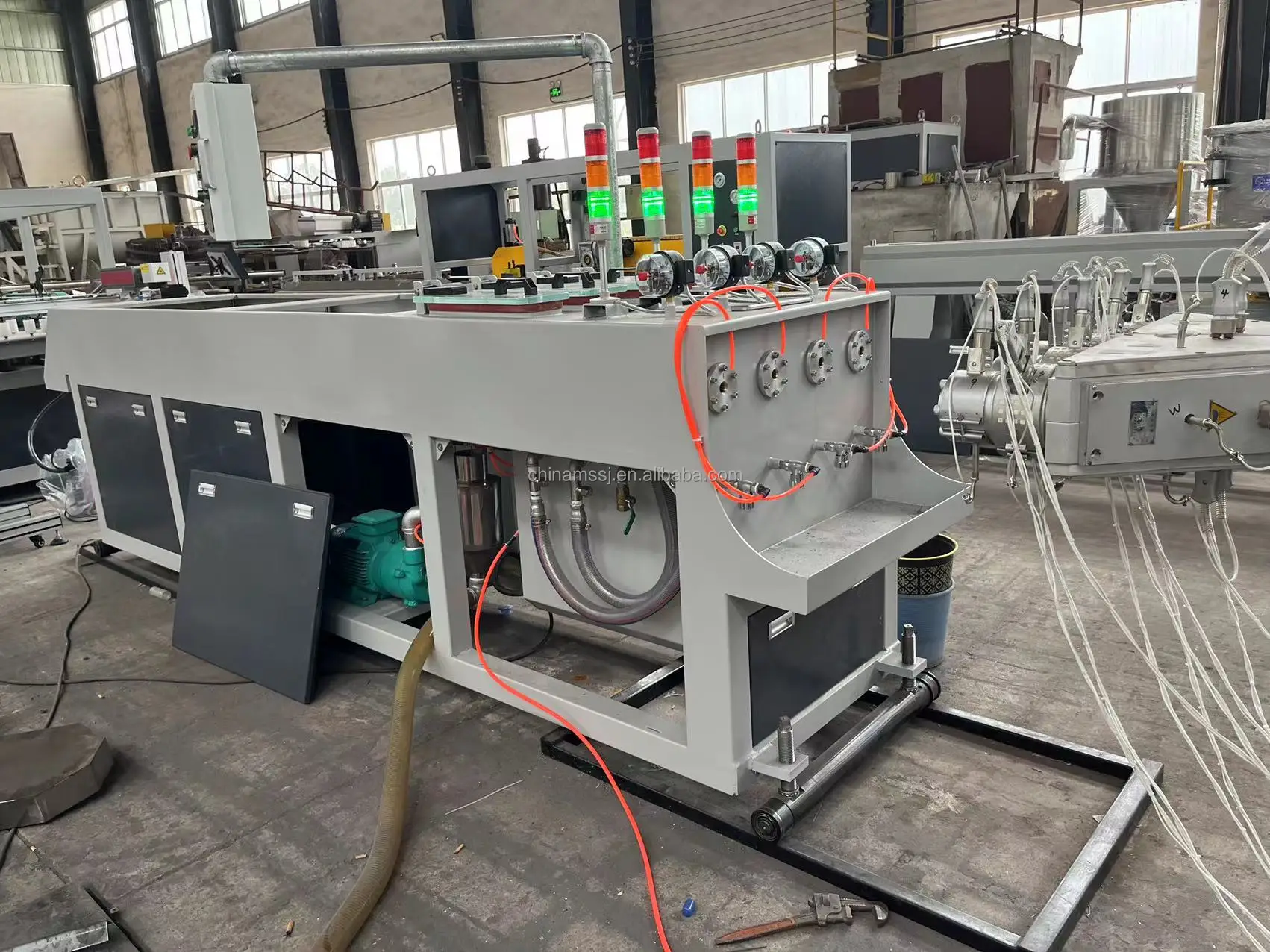

PVC four-cavity production line

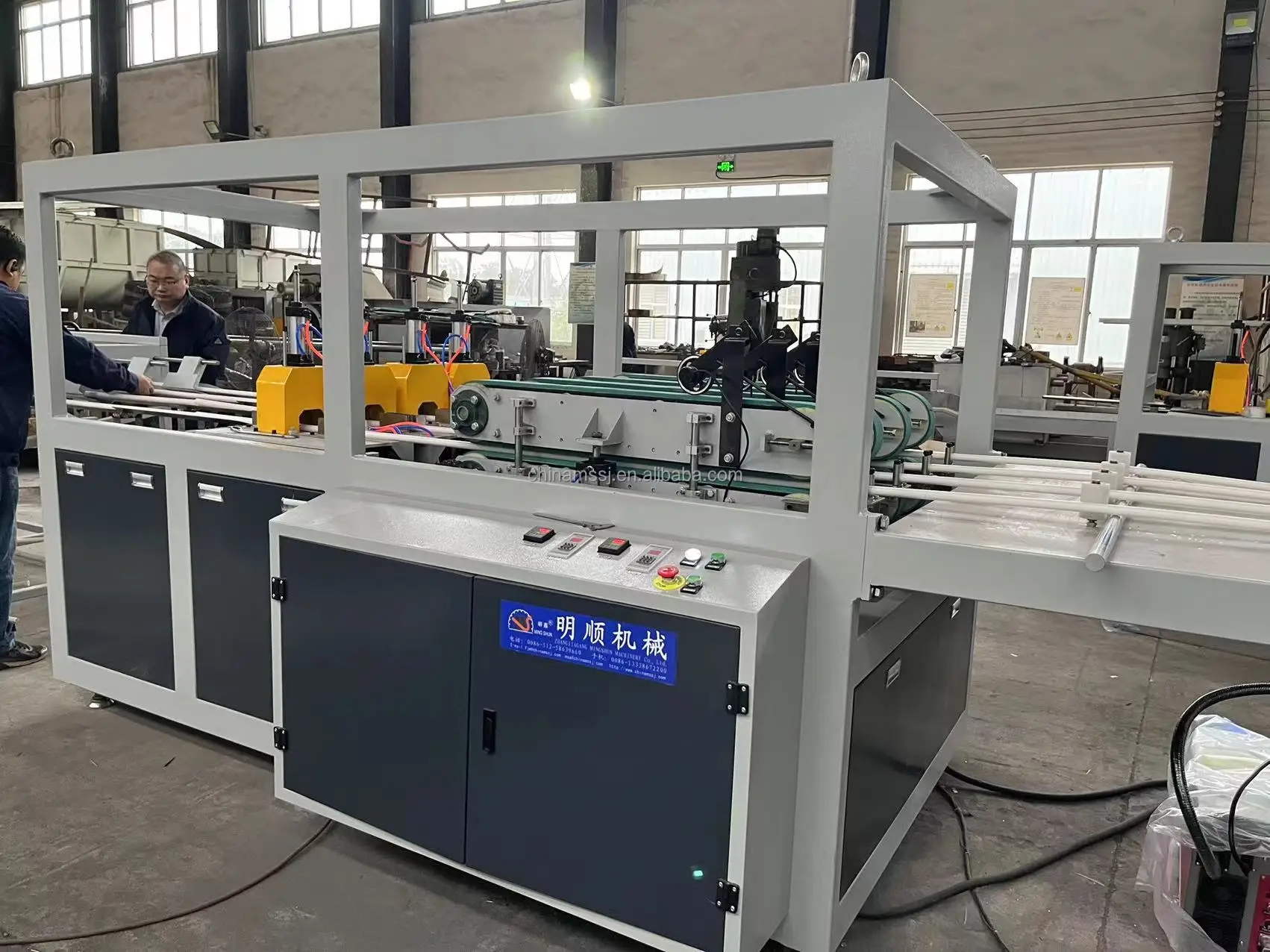

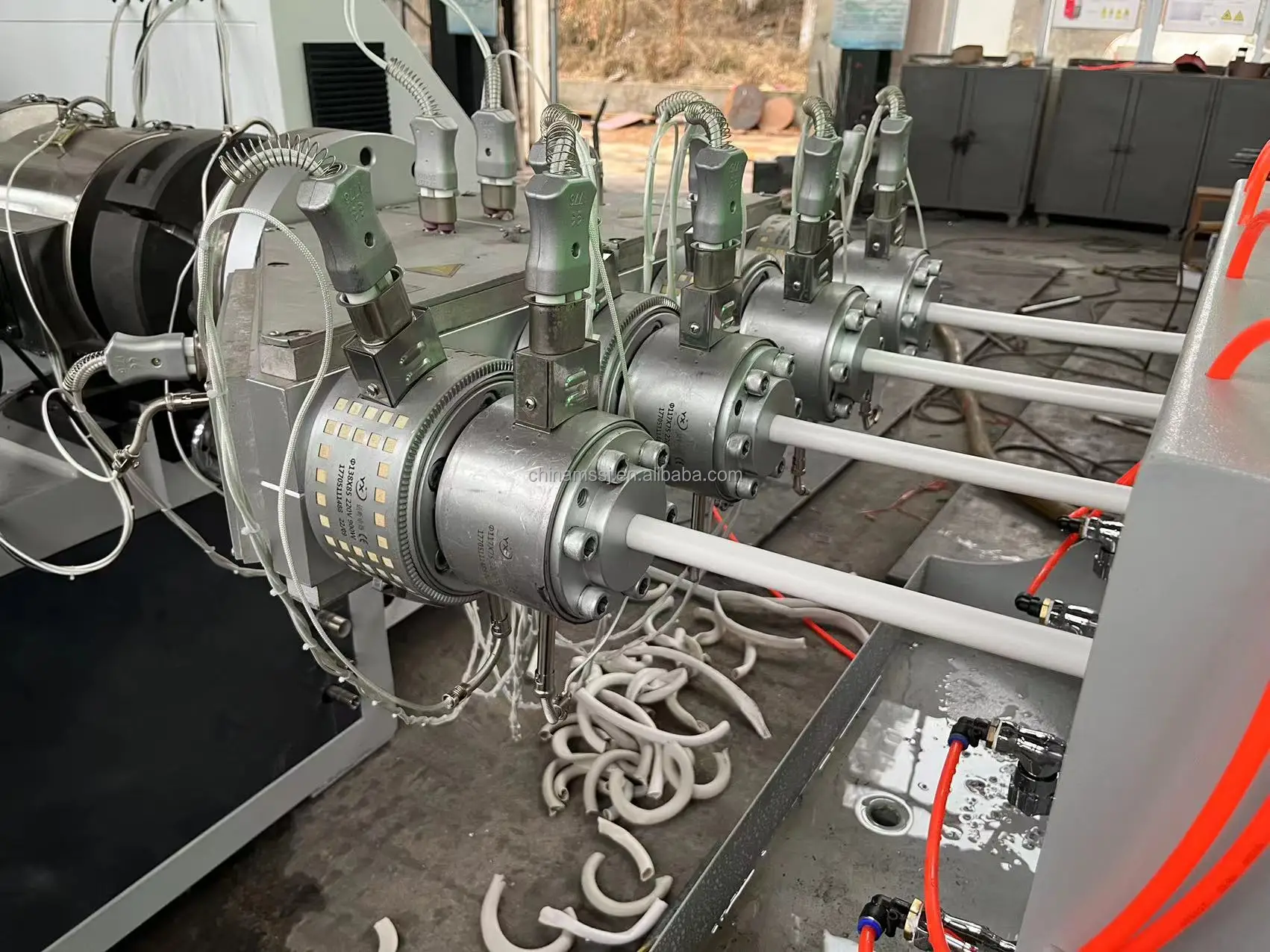

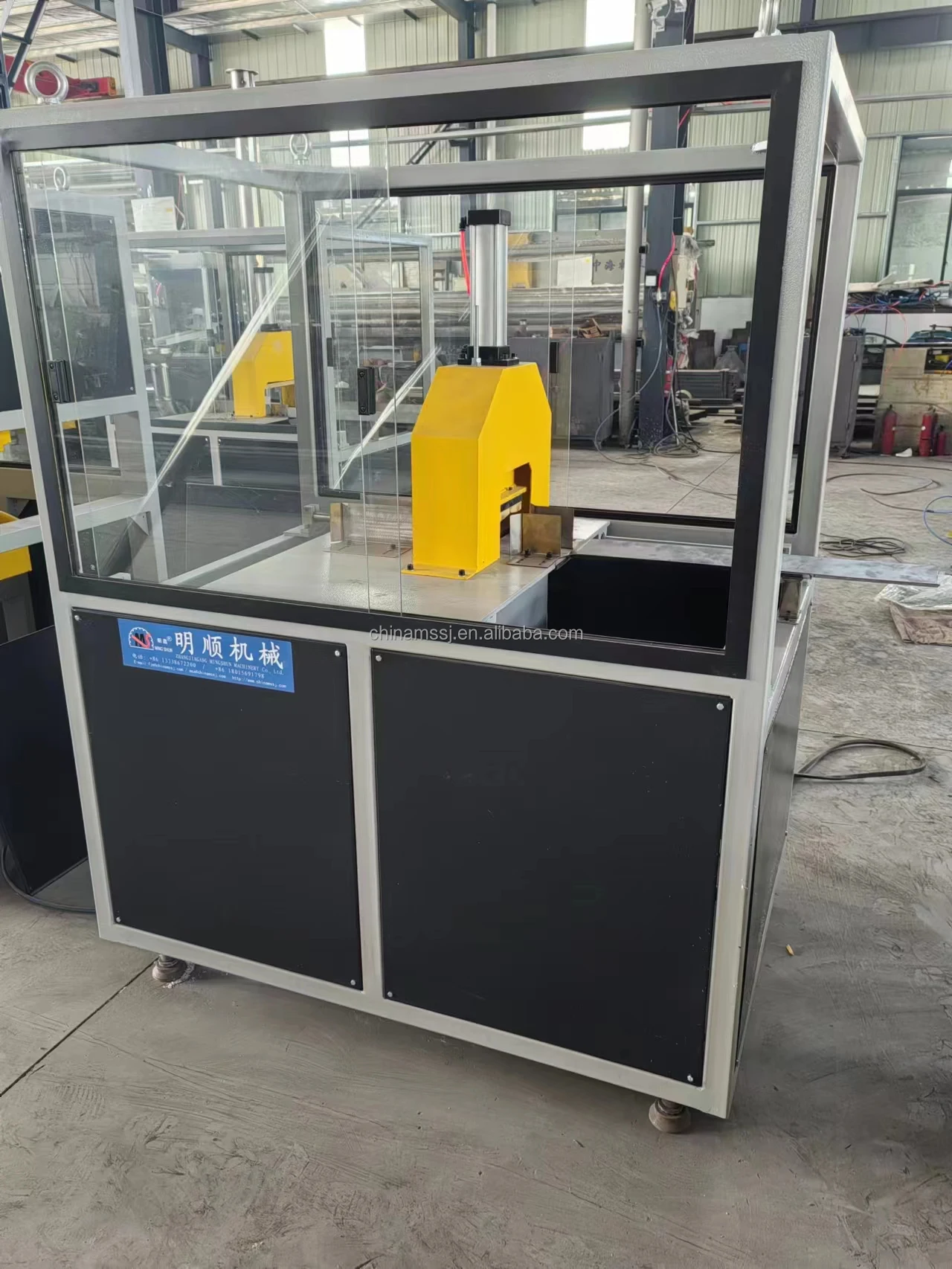

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.













Related products



     Zhangjiagang Mingshun Machinery Co., Ltd. is an industry and trade company with more than 16 years of import and export experience. Our main business includes plastic pelletizing line , plastic extrusion production line and some shredder,mixer,crusher,pulverizer etc. We not only provide customized solutions for production lines, but also provide standardized products.

Q1:What about the payment terms?

A1:Always 30% down payment as deposit,70% balance pay before shipping.

 Q2:What about the payment way?

 A2:TT,L/C at sight or Alibaba trade assurance.

Q3:If you will send engineer coming to our factory to install and test the machines?

 A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q4:If you have CE,SGS,ISO certificate?

 A4:Yes,except these,if you also need other certificates,we also can help to apply.

Q5:If we buy your machines, can you offer us wear-out spare pats?

A5:Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

 Q6:What is the voltage?

 A6: 380V 50hz 3 phase or any other voltage according to client's requirement.

 Q7:If you support Alibaba trade assurance pay?

A7:Yes.100% support.
