Fluxo Axial Fan Body Flanging Forming CNC Spinning Aluminum TDC Fan Flanging Machine

Product Overview

Description

Fluxo Axial Fan Body Flanging Forming CNC Spinning Aluminum TDC Fan Flanging Machine

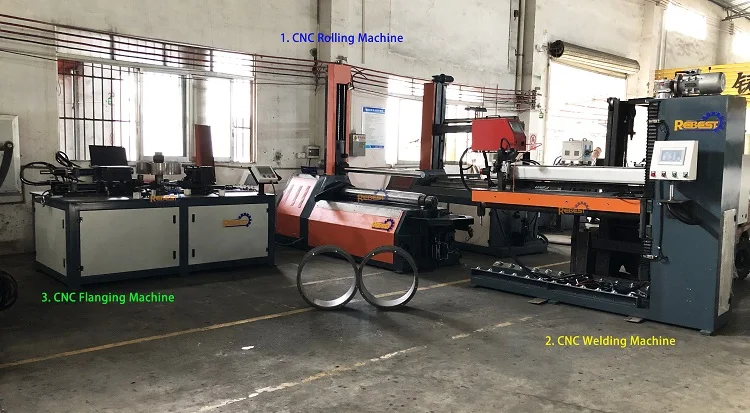

Recommend Whole Production Line

1. CNC Rolling Machine

2. CNC Welding Machine

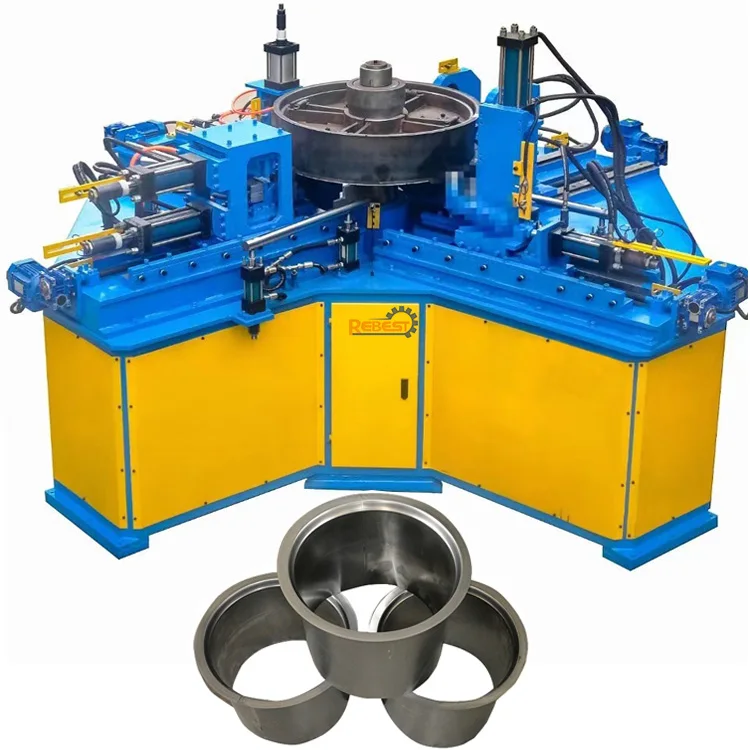

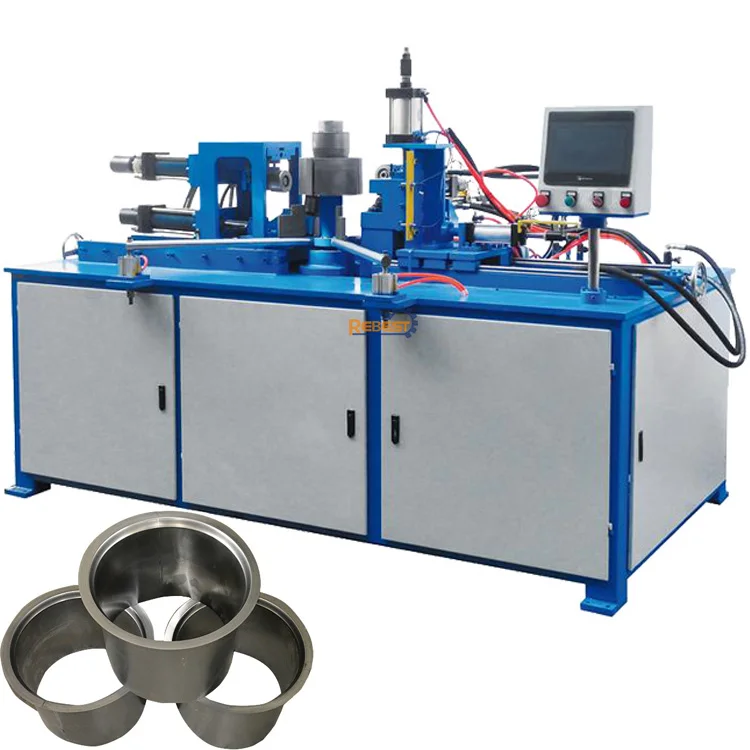

3. CNC Flanging Machine

The CNC Flanging Machine, it's a good machine for producing Flanging, Trimming, Punchin,etc. A wide production working range diameter from DN100mm to DN6000mm.

Advantage in technology:

• Adopting advanced bellow making technology, Siemens controller controlled, fully automated production.
• Hydraulically powered, fast forming speed, low noise.
• The material of forming tools are high strength die steel, long service life
• Many safety precautions to ensure the safety of personnel and equipment in the production process.
• This machine can be customized according to the customer's parameters.



The machine has four main functions as follows...

1. The Expanding Unit
During the flanging operation the cylinder will be held in the correct position by an expanding unit. This consists of a number of segments, with the same diameter as the cylinder, which are pressed against the inside of it. By clamping in this way the cylinder will maintain the cylindrical form. One set of clamping segments are required for each diameter range of the cylinders.



2. The Flanging Unit
The flanging is performed by some rolls. some of them is fixed and the others is hydraulically adjustable. All rolls are driven by a worm gear box and an electric motor. The rolls are vertical and it means that the starting position is vertical for the cylinder. The rolls are interchangeable for different shapes of flanges.



3. The Outboard Support
The supporting table for the cylinder is horizontal and the flanging unit outboard support is hydraulically tilted into vertical position during the flanging procedure.



4. The Hole Punching Unit
The machine is supplied complete with one standard hydraulic punching unit and an indexing plate to make it possible to punch different numbers of holes in the flanges. From there it is moved into position for punching and locked pneumatically. The indexing plate has two circles with different amounts of holes. The indexing is made by manual rotation and the positions are set pneumatically.



Machine Model	FB100-300	FB400-1600
Min. Flanging Diameter	100mm	400mm
Max. Flanging Diameter	300mm	1600mm
Machine Drive	PLC + Touch Screen
Flanging Material	Carbon steel /  Stainless Steel





Application areas

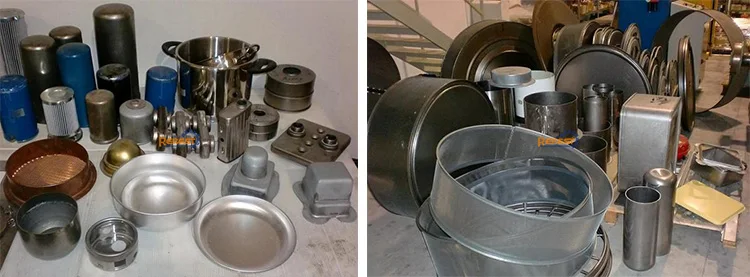

1. Air and smoke ducts (air duct tubes, straight and T fittings, reductions, bends, flanged drums for ventilation funs, grids ventilation).

2. Bathroom / house articles (sinks, handwashings, waste-paper baskets).

3. Silverware (plates and tableware, cutlery, photo frames, cups).

4. Car accessories (silencers, oil filters, shock absorbers, radiator shells, various tanks).

5. Construction and gardening articles (concrete mixers, wheelbarrow bodies, lawn mower sumps, tops for garden tables, barbecues; door-lock casings).

6. Cookware (cooking pots, pot lids, casserole, trays, kettles, teapts, coffee pots).

7. Food and no-pressure containers (milk cans, beer kegs, oil cans, water tanks, ice-cream containers, mixing bowls, waste containers).

8. Heating (boilers, water-heaters, heater exchangers, round and rectangular expansion tanks, thermal solar systems, collectors for radiators).

9. Household appliances (cooker top, doors, variuos covers, ovens, washing machine / drying drums and tanks, bodies of vacuum cleaner, ironing boards).

10. Lighting (parables for lamps, ceiling lights, lamp bodies);

11. Pressure containers (gas tanks, fire extinguisher shells, gas meter shells, caps and bottom ends).

12. Road signs (round, triangolar, rectangular).

13. Variuos (flanges for cable/hose reels, electric motor fan cover, gas-mask filter).
