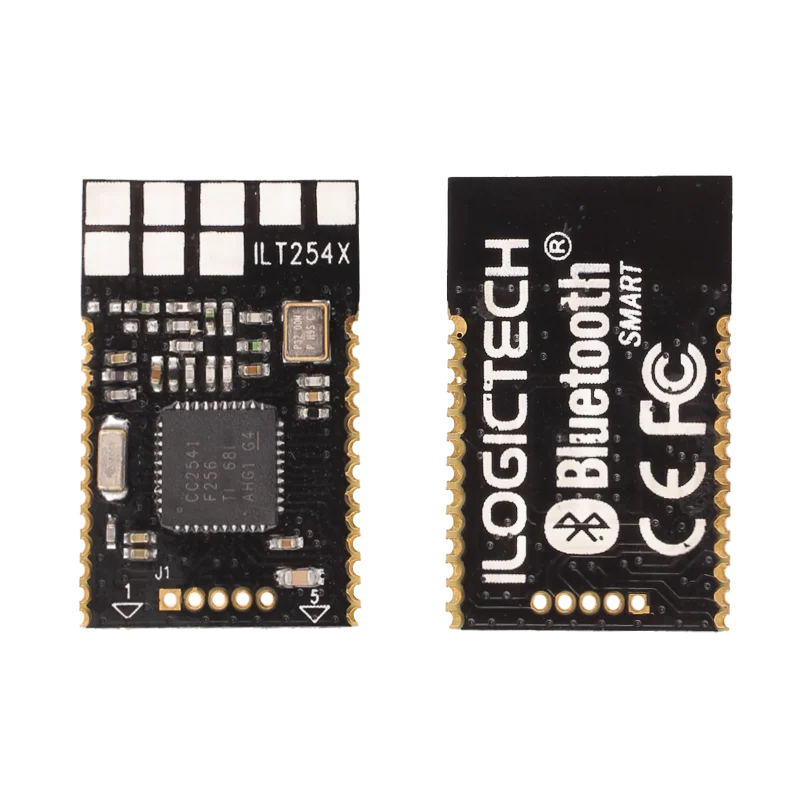

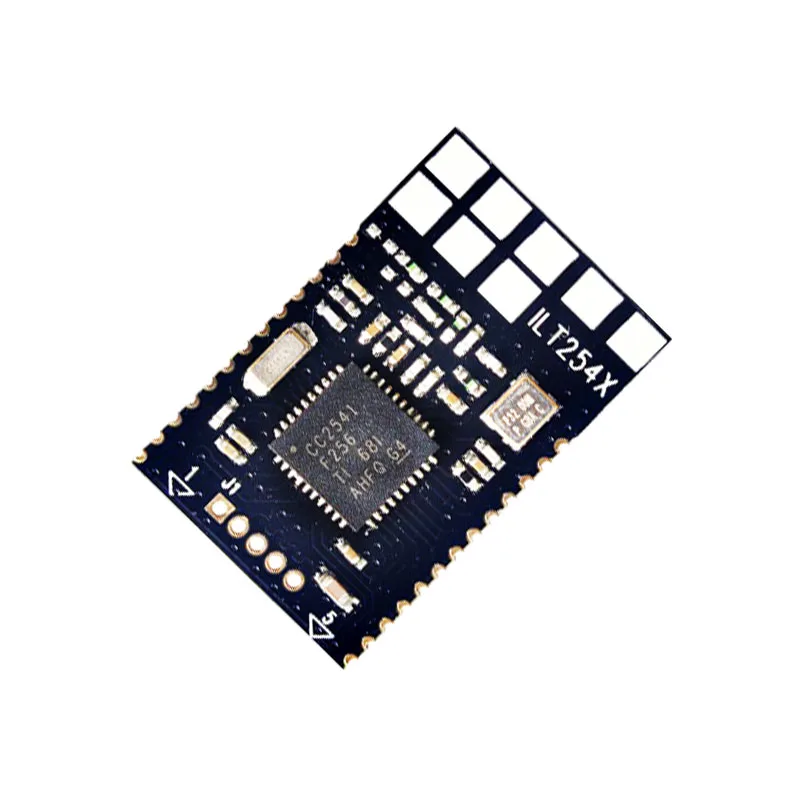

Free sample Factory price TI CC2541 BLE 4.0 Low power smart RF UART transceiver cc2541 Central Switching Wireless module ibeacon

Product Overview

Description



           CC2541 BLE 4.0,Low power BLE smart  RF transceiver,cc2541 module



Overview

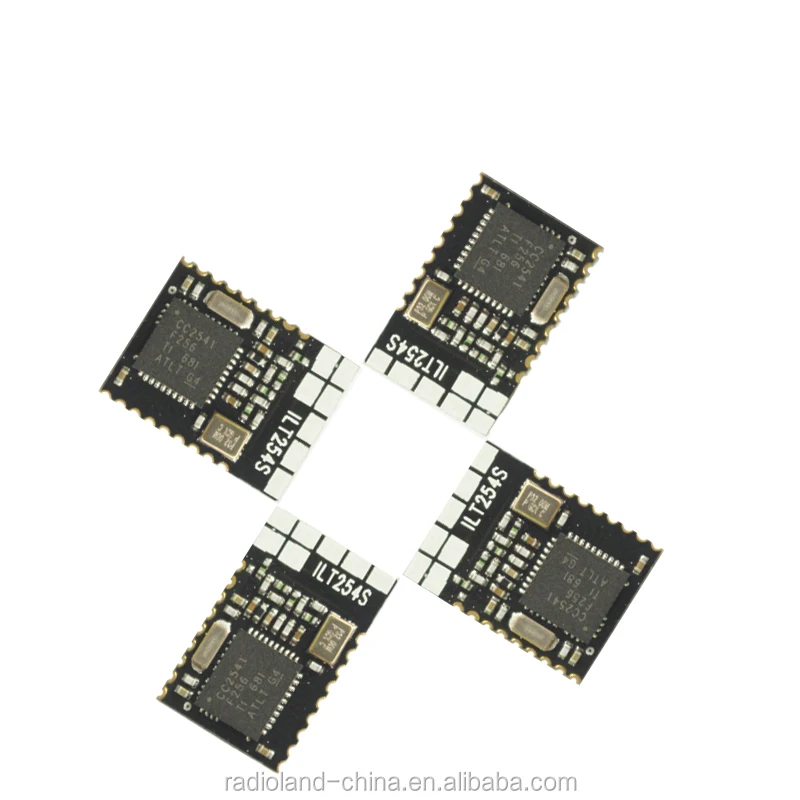

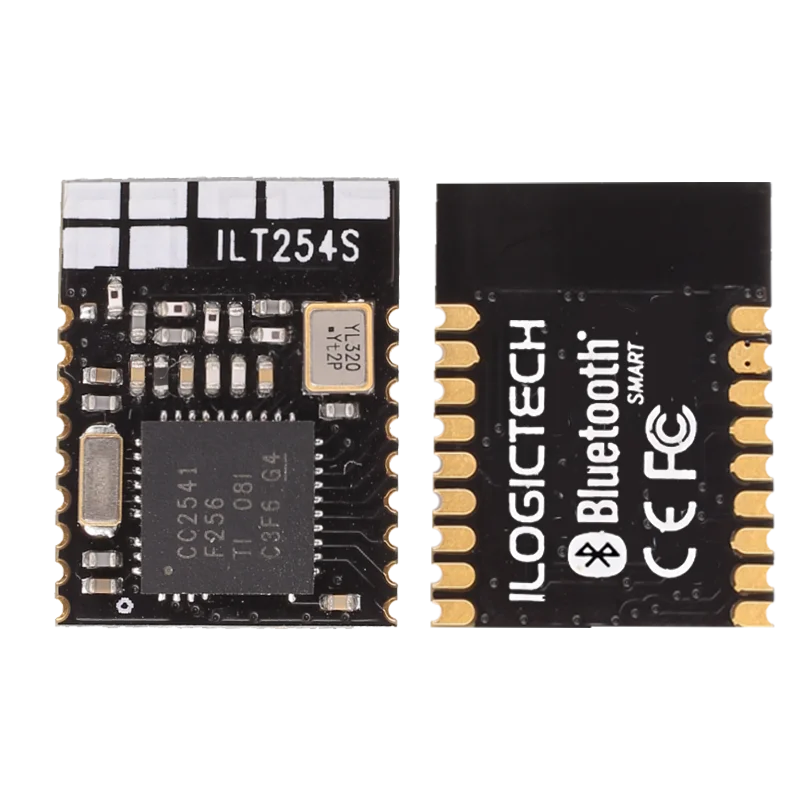

        RL-CC2541-A1 module is a cost-effective, low-power, true system-on-chip (SoC) for BLE low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2541 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory,8-KB RAM, and many other powerful supporting features and peripherals. The CC2541 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.





Electrical Characteristics

ITEM	TEST REQUIREMENT	REMARKS
Voltage supply	2.0-3.6V	DC
Center frequency	2400-2483.5MHz	Programmable
Frequency error	±50KHz
Modulation	O-QPSK
Max Output power	0dBm	Programmable
Receiving sensitivity	-94dBm	Datarate @1Mbps
Receiving current	17.9mA
Transmitting current	18.2mA	TX Power 0dBm
Sleep consumption At power mode2	1uA	Sleep Timer ON
Sleep consumption At power mode3	0.5uA	External interrupts
Transmit distance	>30M	BER<0.1%
Antenna	50ohm

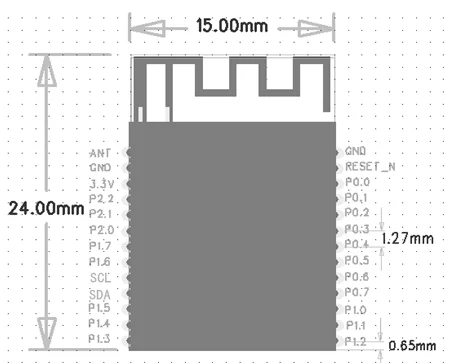

module size	15mm*24mm*1.54mm



RECOMMENDED OPERATING CONDITIONS



	MIN     MAX	UNIT
Operating ambient temperature range, TA	-30       85	°C
Operating supply voltage	2       3.6	V



Feature

1.BLE low energy technology Compatible.

2.Excellent Link Budget

3.Enabling Long-Range Applications

4.Accurate Digital RSSI

5.Compliance With FCC & CE standard

6.High-Performance and Low-Power 8051 MCU core

7.Battery Monitor and Temperature Sensor

8.Sample Applications and Profiles

9.I2C Interface

10.AES Security Coprocessor



Applications

1.2.4-GHz BLE low energy Systems

2.Mobile Phone Accessories

3.Sports and Leisure Equipment

4.Consumer Electronics

5.Human Interface Devices (Keyboard, Mouse Remote Control)

6.Health Care and Medical



Our services



- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.
