SP 320 15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function

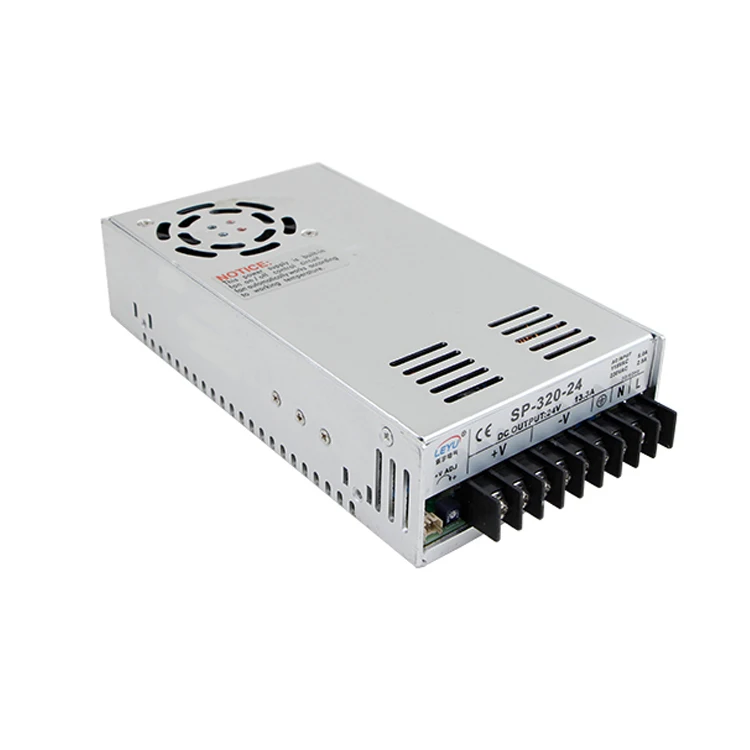

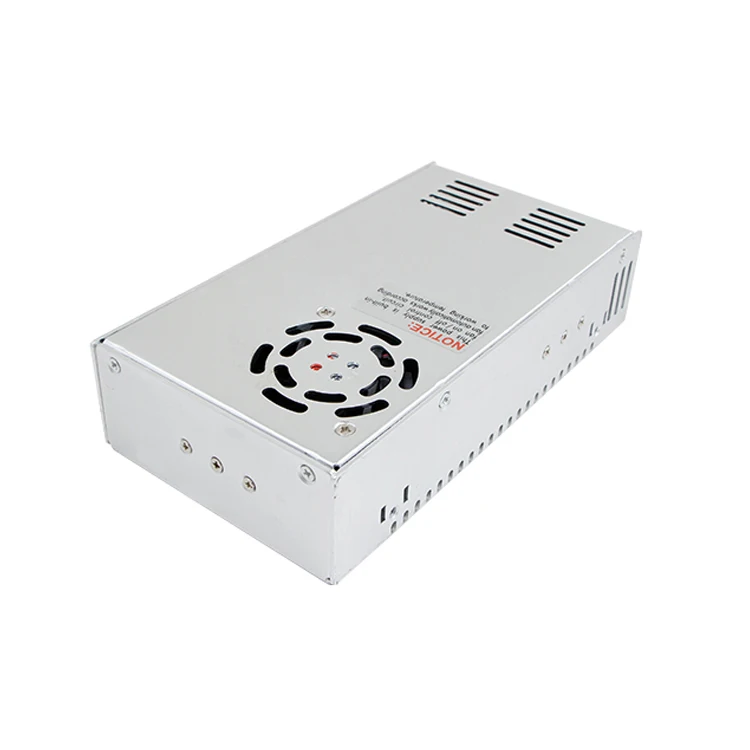

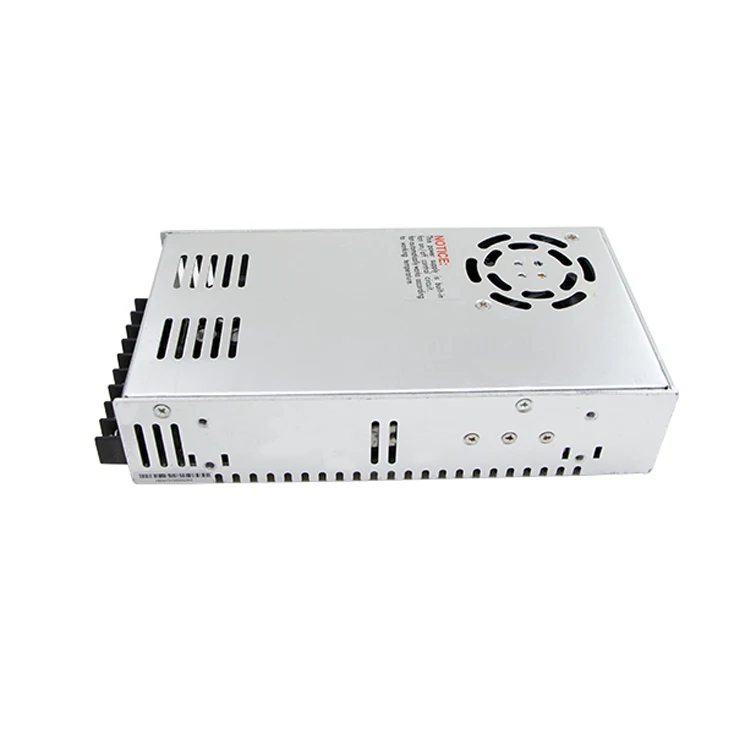

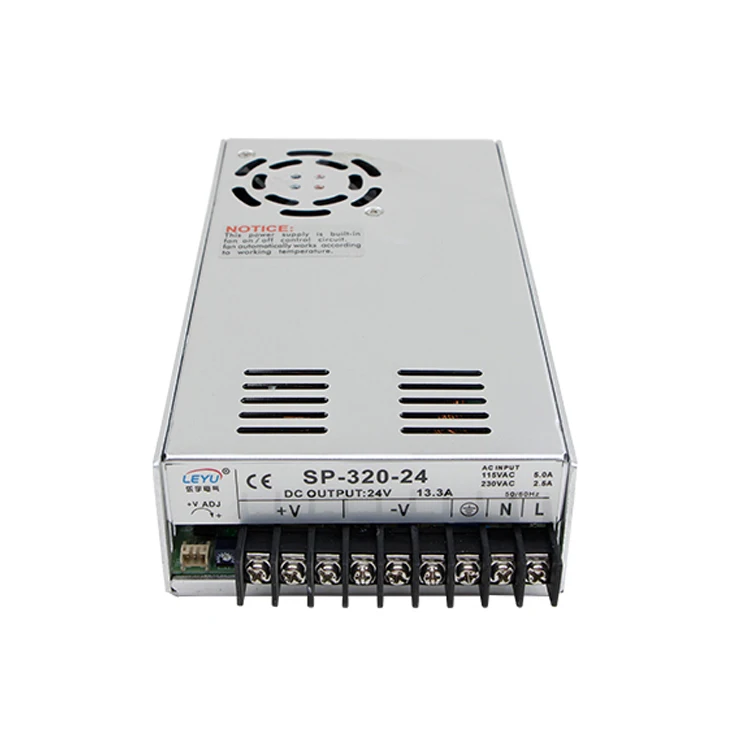

SP-320-15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function
SP-320-15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function
SP-320-15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function
SP-320-15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function
SP-320-15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function

SP 320 15 Single Output 320W 110V 220V AC to 12V 24V 48V DC Switching Power Supply with PFC function

Share on (1601003685643):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
OUTPUT
Model
SP-320-5
SP-320-7.5
SP-320-12
SP-320-13.5
SP-320-15
SP-320-24
SP-320-27
SP-320-48
DC Voltage
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Rated Current
55A
40A
25A
22A
20A
13A
11.7A
6.7A
Current Range
0-55A
0-40A
0-25A
0-22A
0-20A
0-13A
0-11.7A
0-6.7A
Rated Power
275W
300W
300W
297W
300W
312W
315.9W
321.6W
Ripple & Noise
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
200mVp-p
240mVp-p
DC Adjustment Range
±10%
±20%
-16%,+10%
±11%
-10%,+20%
-16%,+10%
-4%,+18%
-15%,+17%
Voltage Tolerance
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1.0%
Line Regulation
±0.5%
±0.5%
±0.3%
±0.3%
±0.3%
±0.2%
±0.2%
±0.2%
Load Regulation
±1%
±1%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Setup, Rise, Hold Up Time
800ms,50ms,16ms/230VAC 2500ms,50ms,16ms/115VAC at full load
Voltage Range
88～264VAC 120～370VDC frequency: 47～63 Hz
AC Current
5A/115 VAC 2.5A/230VAC
Power Factor
PF>0.95/230VAC,PF>0.98/115VAC at full load
Efficiency
79%
83%
86%
86%
86%
87%
88%
89%
Inrush Current
20A/115VAC 40A/230VAC
Working Temp. Humidity
-20℃～+65℃; 20%～90 % RH non-condensing
Storage Temp. Humidity
-40℃～+85℃; 10%～95 % RH
Temp. Coefficient
±0.03%/℃(0～50℃)
Vibration
10～500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Dimension
215*115*50mm （L*W*H）
Weight
1.1Kg/pc; 12pcs/14kg/0.95CUFT


Details Images






Recommend Products


SCP-50
SCP-75
SC-120


SD-120
SD-200
SD-350


Company Profile










Packing & Delivery




FAQ


1. who are we?
We are based in Zhejiang, China, start from 2014,sell to Domestic Market(30.00%),South America(25.00%),Southeast Asia(15.00%),Western Europe(10.00%),South Asia(10.00%),North America(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switching power supply,Power inverter,Solar controller,Scrolling system,Cable ties

4. why should you buy from us not from other suppliers?
Our company now has over 60 staffs ,5 senior engineers ,10 export sales ,also our company have established the strong partner-ship with over 50 factories .
Quality management is the life of our company

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Hindi
