Vico Car Repair Pulling Rack /Auto Frame Bench Electric control, Full Straightening Auto Body lift #VF5400 with CE
- Category: >>>
- Supplier: Yantai Vico Machinery Co. Ltd.
Share on (1601003689991):
Product Overview
Description

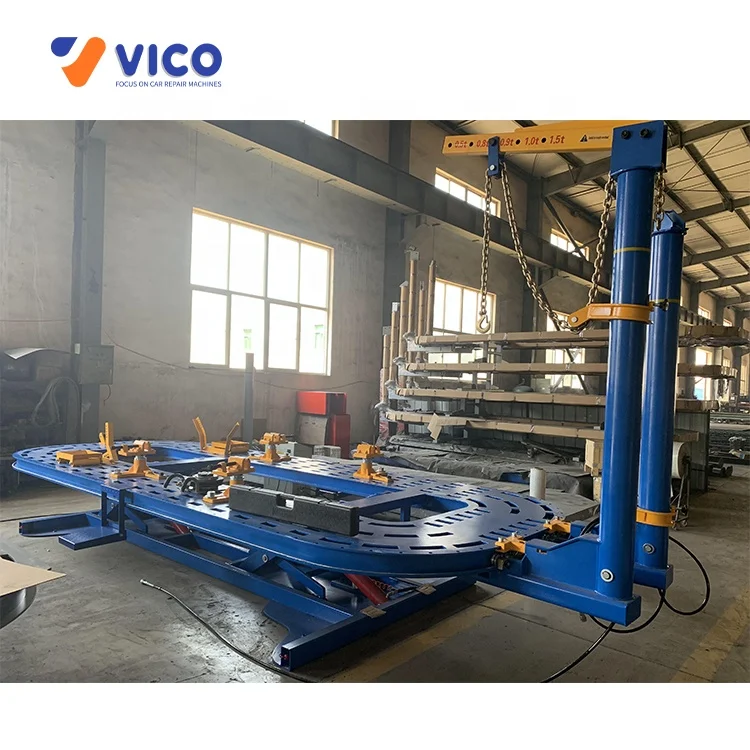

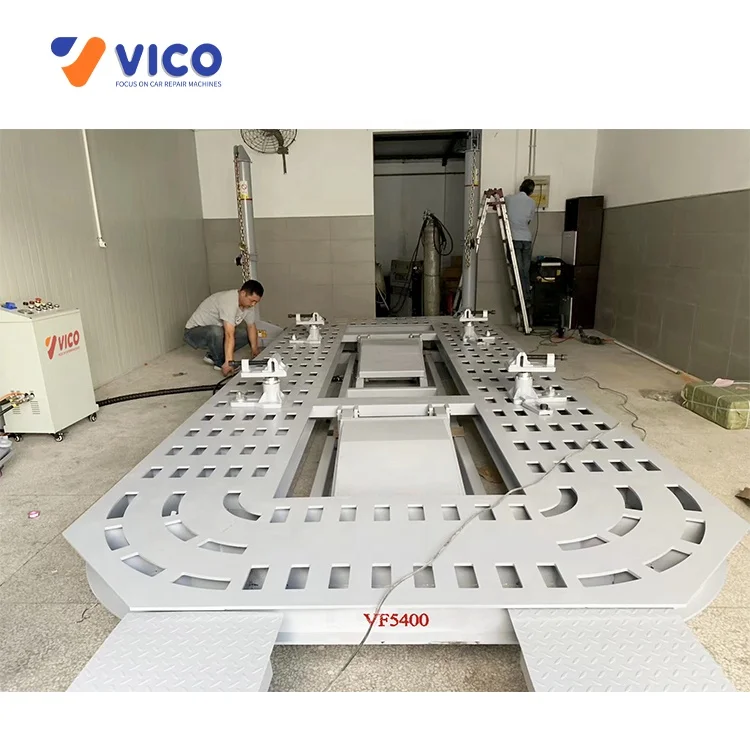

Vico Car Repair Pulling Rack /Frame Machine Electric control, Full lift #VF5400
Auto body frame machine Car frame machine
Auto body workshop chassis repair equipment
Auto body workshop chassis repair equipment

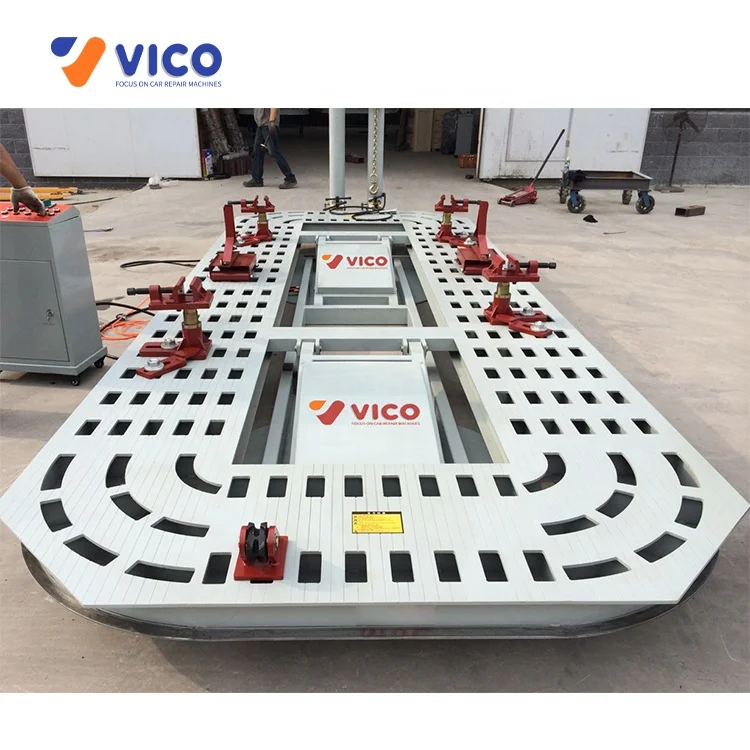

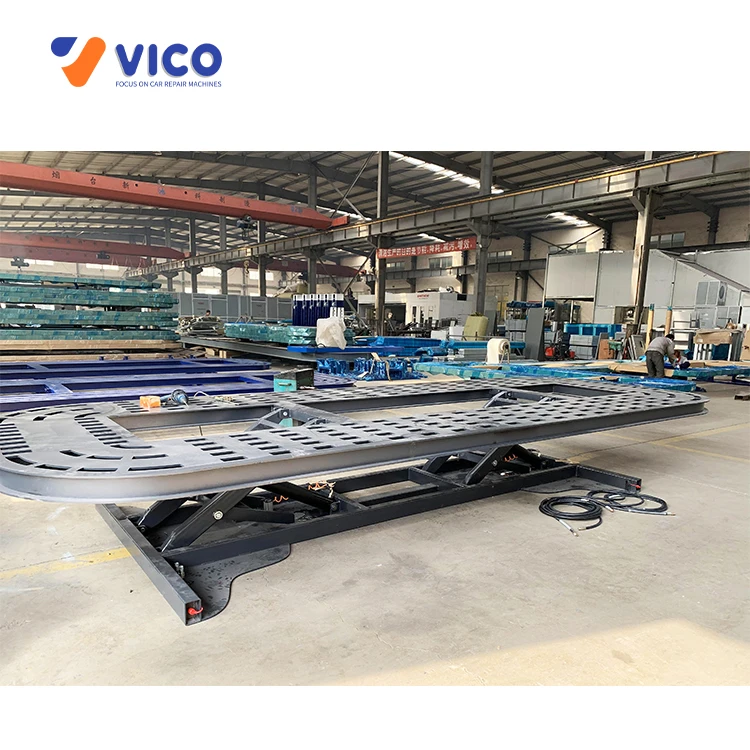

(1) Platform up and down with 10 mm thickness high quality steel plate, holes are cut by laser machine. High strength reinforcement plate and flexible leg make the platform loading and unloading easily.
(2) There are more holes on the platform, easier to fix the clamps, no working blind area, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.

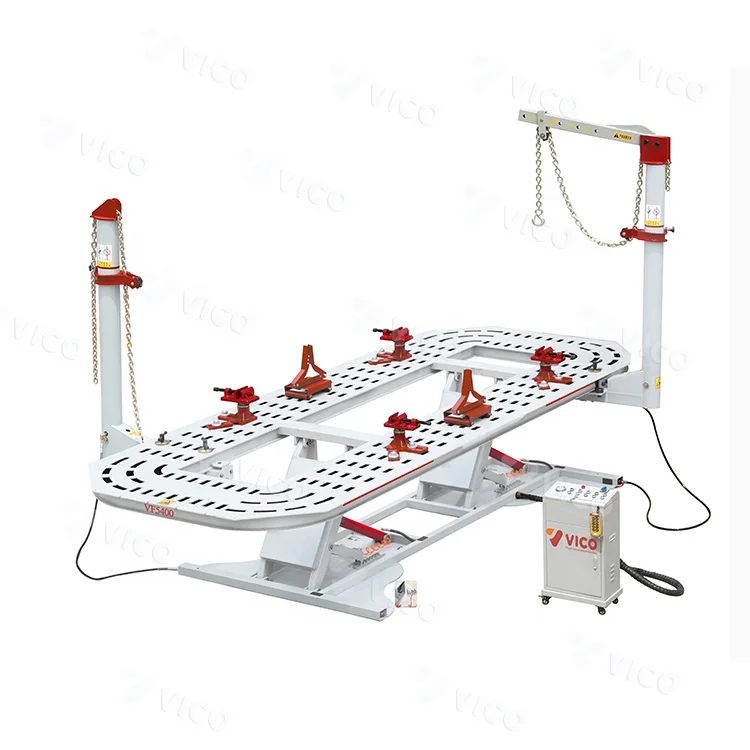

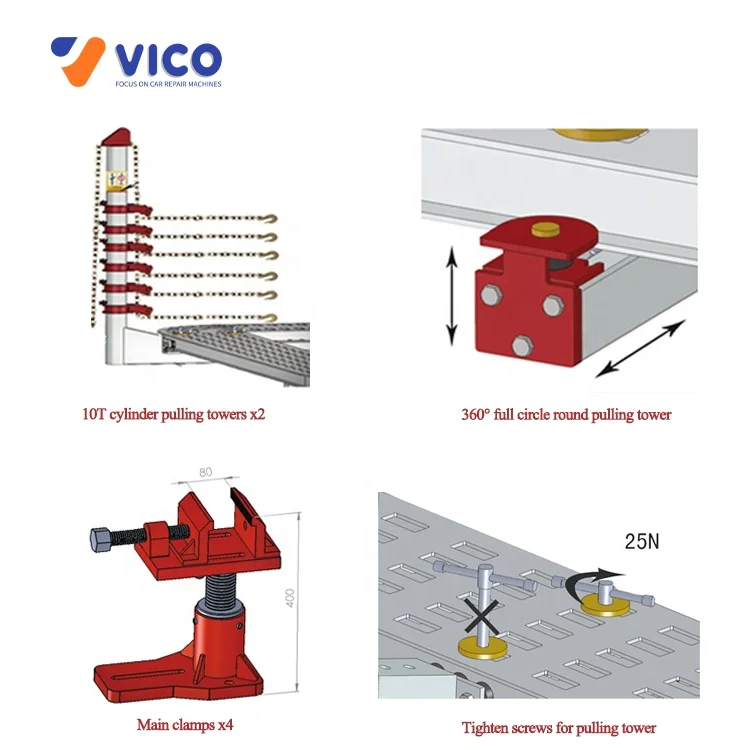

(3) Two hydraulic towers can be rotated 360 degrees alongside the platform. Unique wheel rotation, makes the tower work steady and flexibility, for a full range of protection.

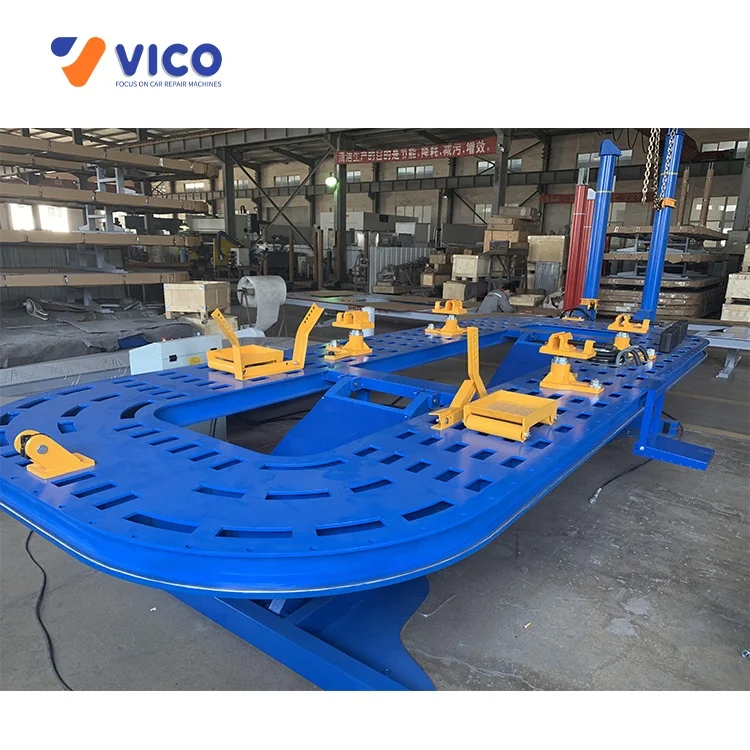

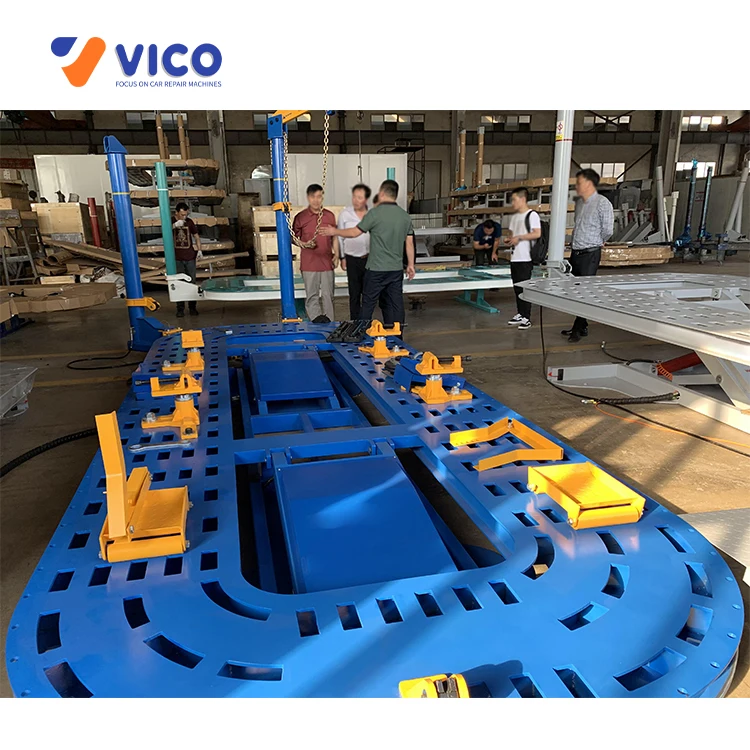

(4) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the
extension height and angle can be adjustable.
(5) Various tools almost considered any deformation correction and repair.
(6) Hydraulic system with good design has powerful driving force, long-life and low failure rate.
(2) There are more holes on the platform, easier to fix the clamps, no working blind area, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(3) Two hydraulic towers can be rotated 360 degrees alongside the platform. Unique wheel rotation, makes the tower work steady and flexibility, for a full range of protection.
(4) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the
extension height and angle can be adjustable.
(5) Various tools almost considered any deformation correction and repair.
(6) Hydraulic system with good design has powerful driving force, long-life and low failure rate.
Product name | Vehicle frame machine Collision repair system Car repair bench VF5400 |
Platform Length | 5600mm |
Platform width | 2200mm |
Platform height | 320mm-1200mm |
Post Max. tension | 98KN |
Pneumatic pressure range | 0.8Mpa |
Post working range | 360° full around |
Cylinder capacity | 10T |
Maximum lift capacity | 3500kgs |
Packing size | 5600*2130*350mm+750*750*1000 2150*1360*750mm/6cbm |
Weight | 2850kgs |

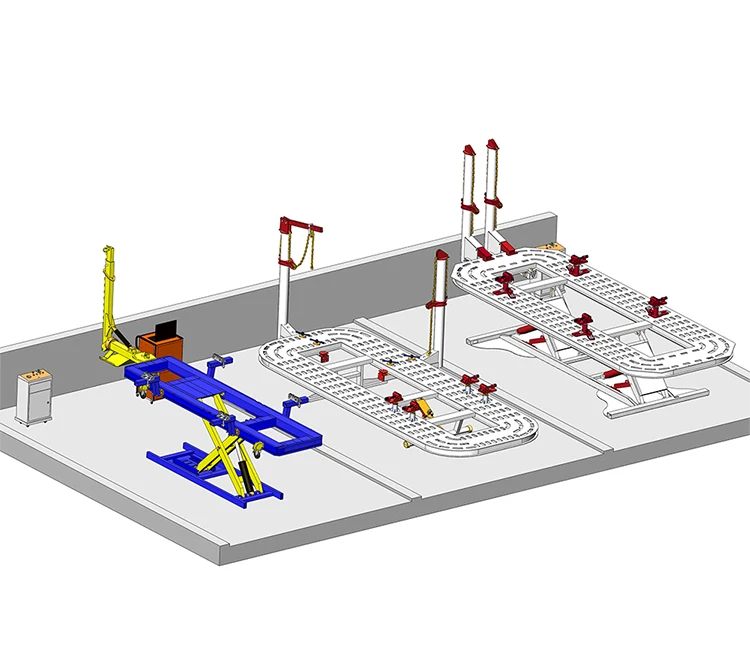

Movable/ Quick puller #VF2100
Mid full lift /Electric control #VF5300
Car lift and Quick puller #VF6000
Full lift/ Electric control #VF5500
Car lift / Movable bench#VF7100
Heavy truck/ 12m platform #VF9000
Dear customer,
For auto body frame straightening system,we can design for you with your own requires.
If you are building a new body shop or 4S store,you need equipment such as car hoists/lifts,wheel alignment machines,prep station,spray painting booths,or baking ovens,please contact with me,our professional engineering team will offer you a best plan with your body shop space and location.
Look forwarder to hearing from you:)

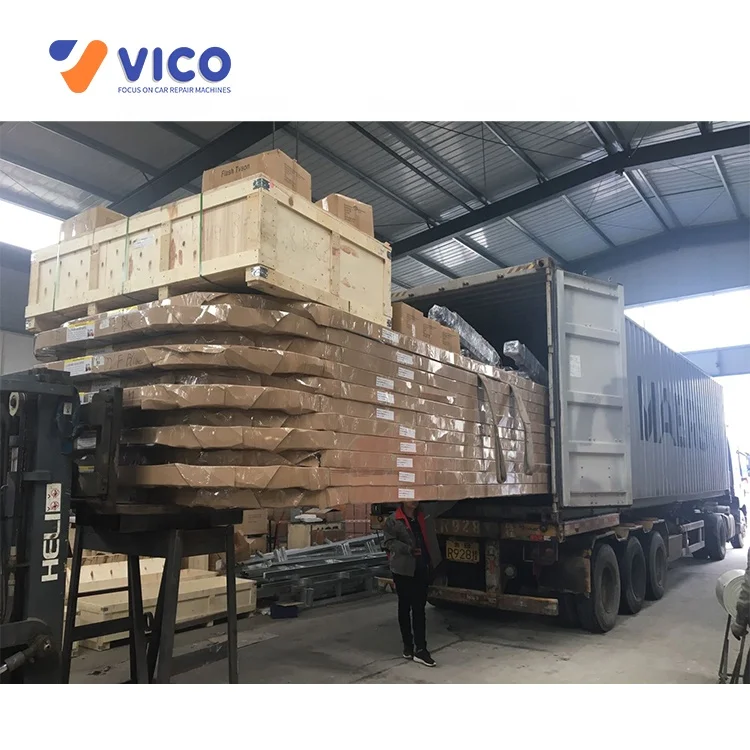

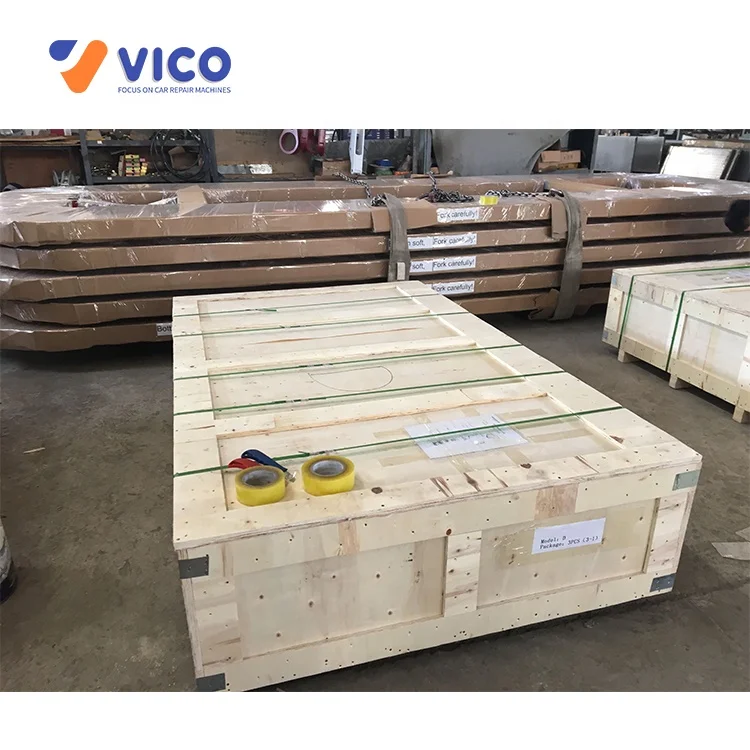

Package of car frame machine:
1.Accessories are packed in seaworthy wooden box;
2.Car frame benches are covered with carton and plastic material.
