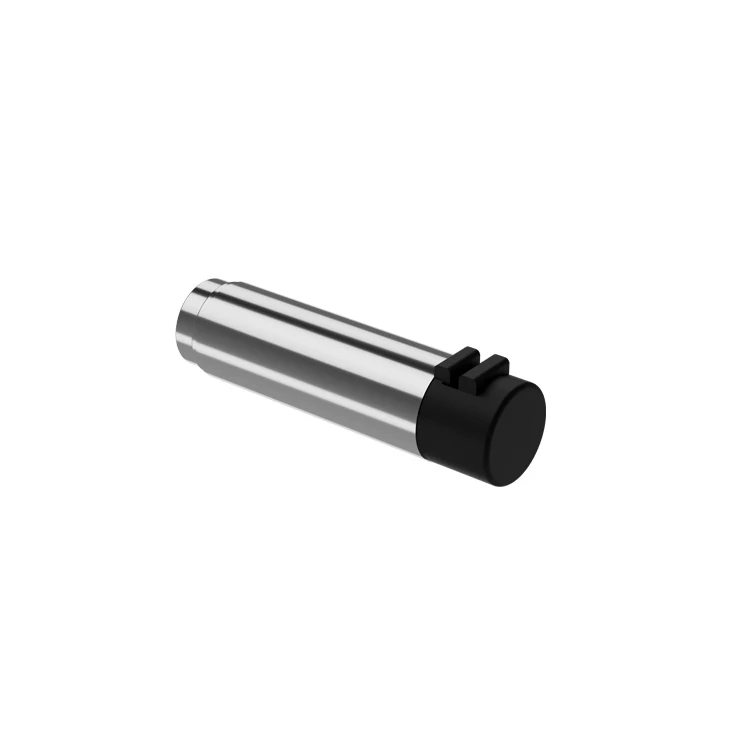

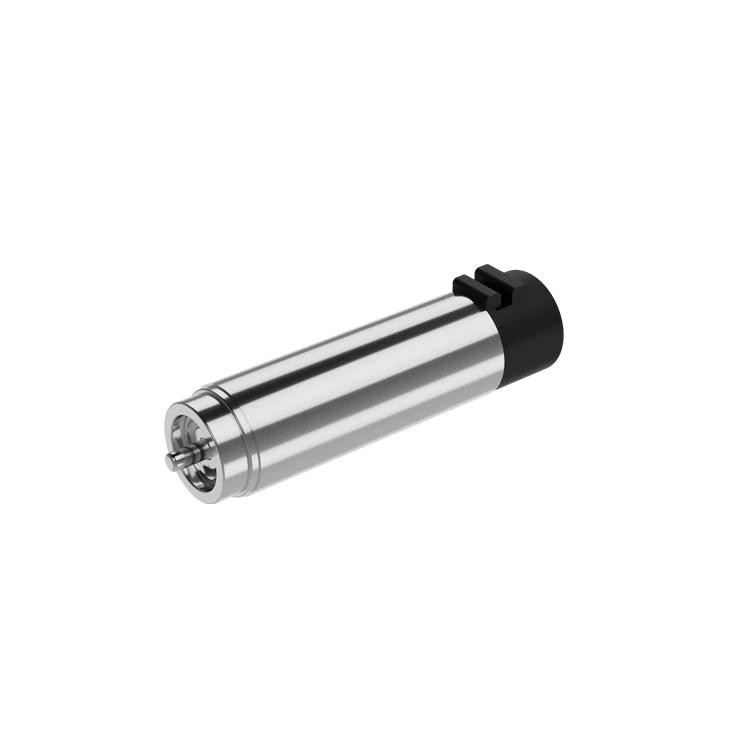

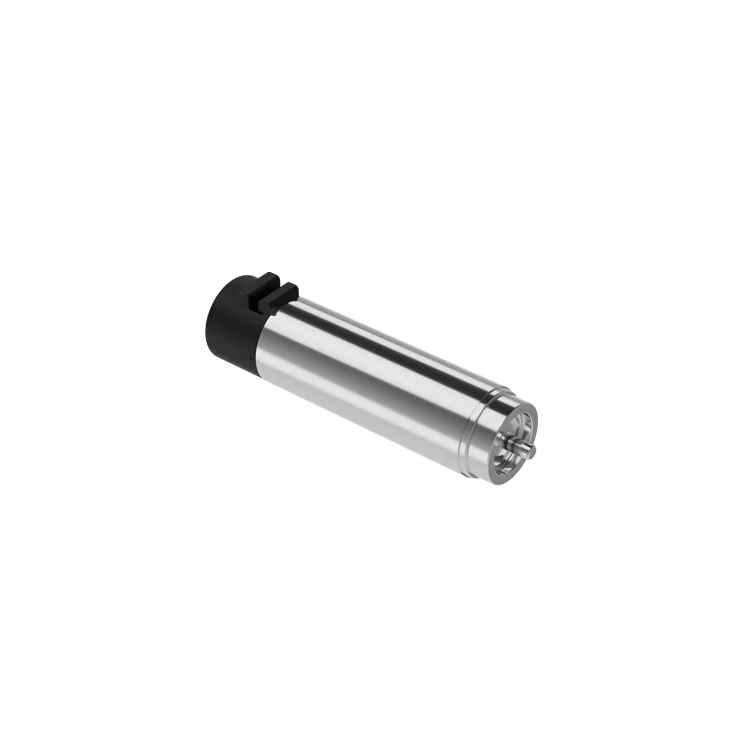

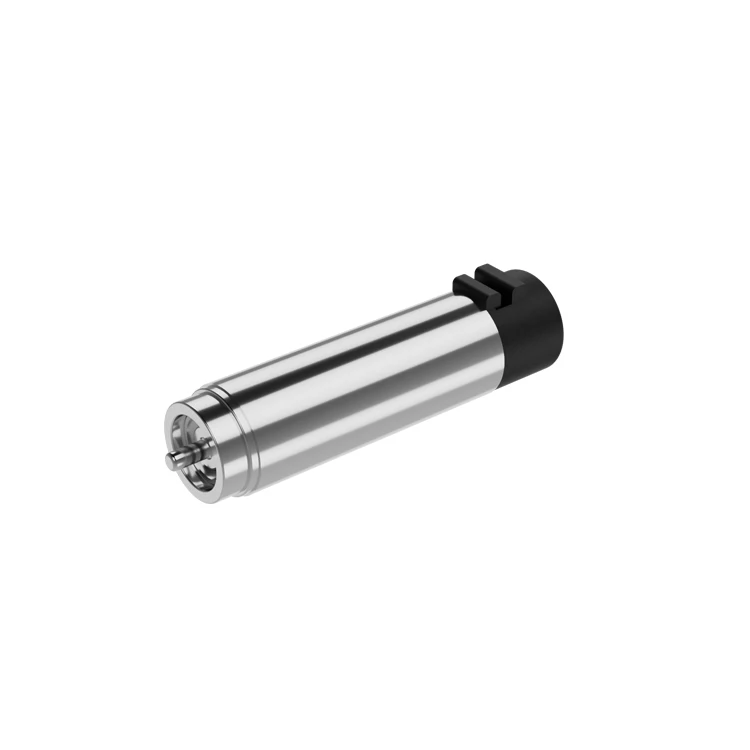

zhaowei replace Maxon motor high performance MC0623 01 46800rpm 9V 6mm Coreless brushless dc Motor for High speed surgical drill

Product Overview

Description

motor	MC1226-01	MC1028-01	MC0824-01	MC0623-01
The rated voltage/V	12	12	12	12
Air load speed/RPM	27500	33000	38500	63400
Air load current/A	0.08	0.08	0.07	0.04
Rating speed/RPM	20000	26500	25500	46800
Rating torque/mNm	1.9	1.5	0.85	0.425
Rated current/A	0.7	0.7	0.5	0.308
Blocking torque/mNm	8.5	9	3.5	1.7
Cover current/A	2	2.75	1.65	0.85
Maximum efficiency/%	67	67	66	65
End resistance/ω	5.05	4.53	7.7	14.4
Torque constant/mnm/a	7	18	18	10
Motent constant/RPM/V	2280	2650	3200	5250

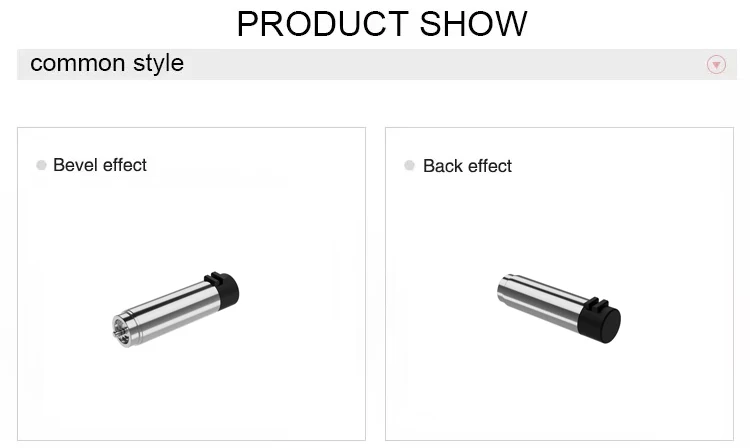

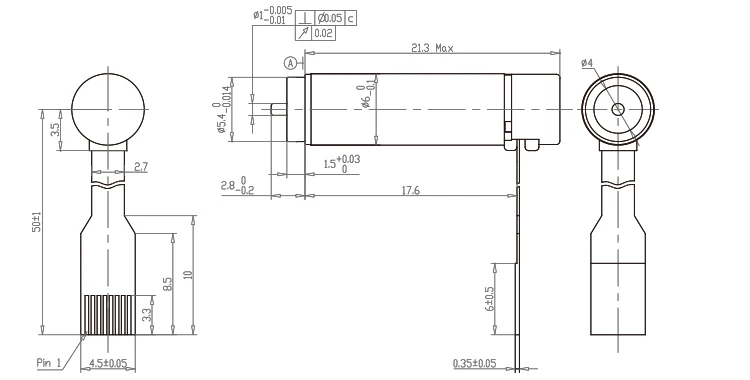

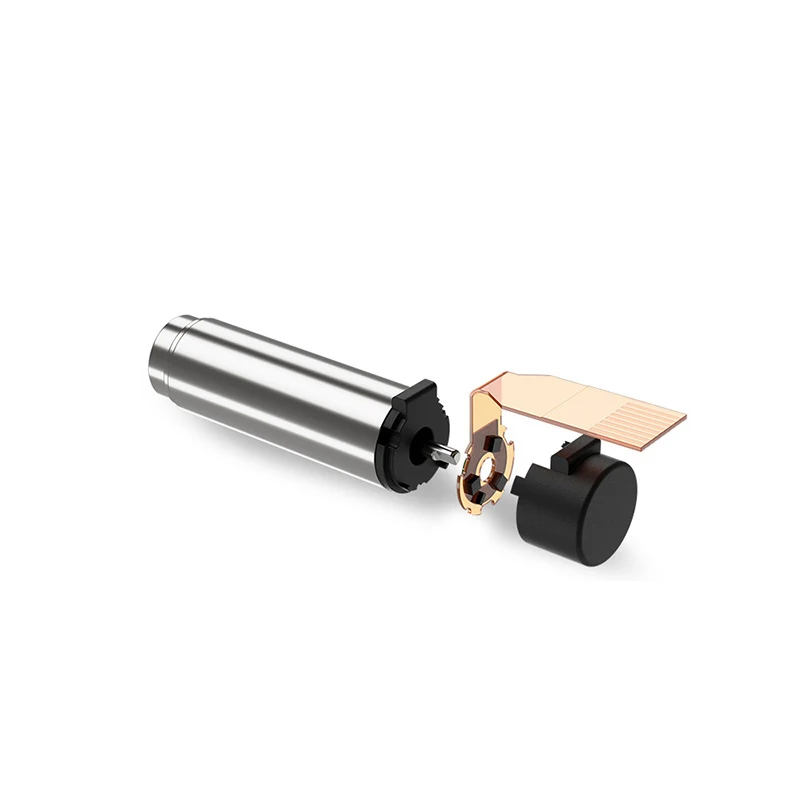

Mc0623-01 6mm brushless hollow cup motor

#ZHAOWEI drives system to serve the innovation market
In 2023, we introduced new high-performance motors for medical, automotive, precision instruments, aerospace, industrial equipment and other demanding fields.
Product and process innovation and a consistently high level of expertise are the driving forces behind ZHAOWEI's success in demanding applications.

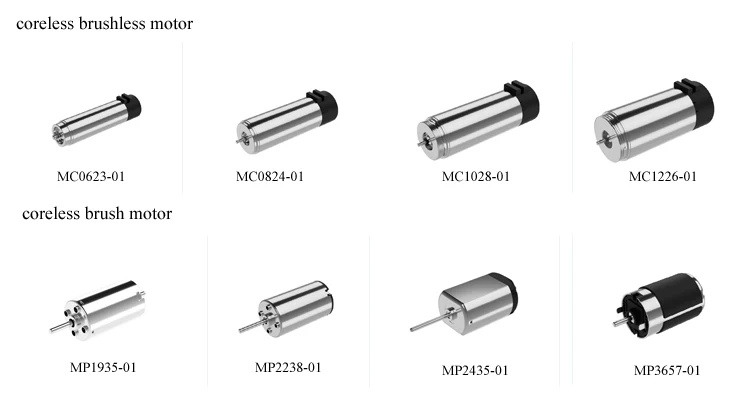

We can provide coreless brushless motor 6mm ,8mm,10mm,12mm and coreless brush motor

19mm,22mm,24mm
