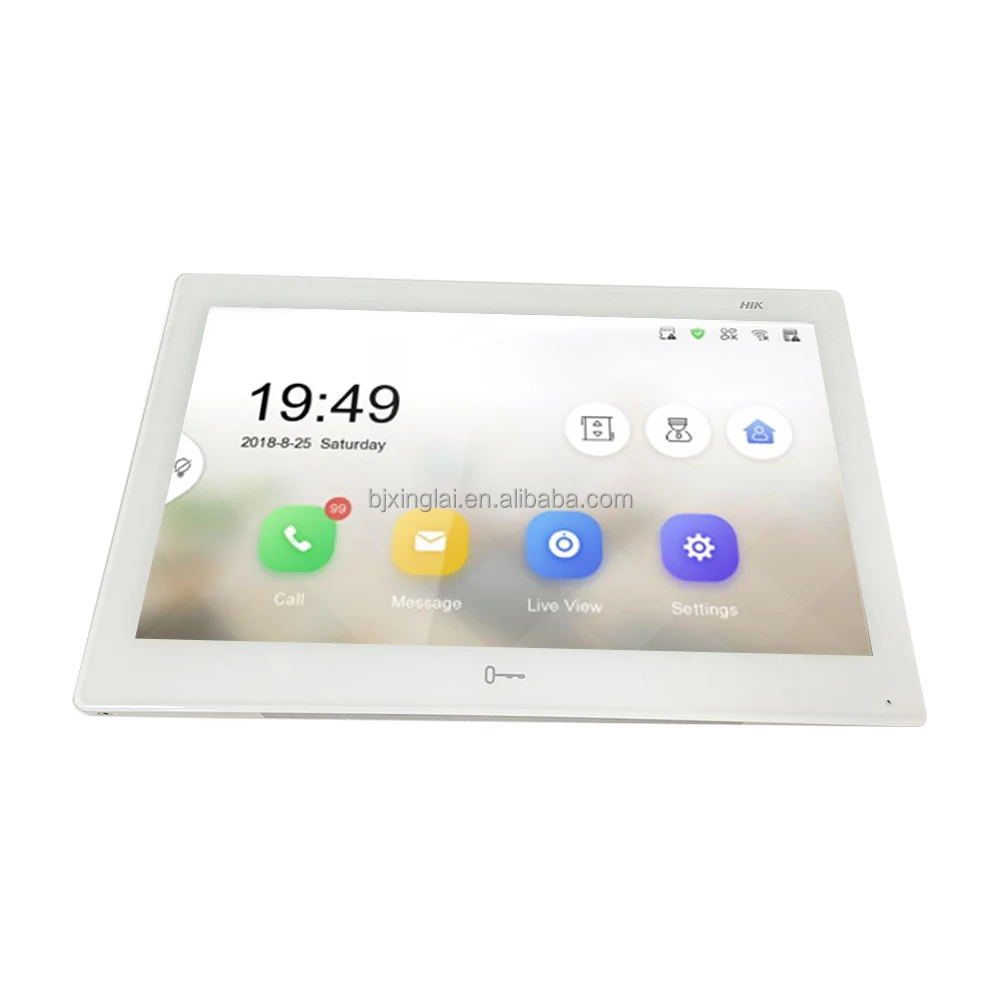

7 inch Touch Screen Apartment Buildding WIFI Video Intercom System DS KH8350 WTE1 IP Indoor Station

• System Parameters
• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapacitive touch screen, physical button
• TypeColorful IPS LCD
• Resolution1024 × 600

• Video Parameters
• LensNot supported.
• Resolution/
• FOV/
• WDRNot supported.
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Event Capacity200
• Notice Capacity16
• Linked Indoor Extensions Capacity5
• Linked Doorphone Capacity8

• Network Parameters
• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi StandardWi-Fi 802.11 b/g/n
• Bluetooth Version/
• 3G/4G StandardNot supported.
• Zigbee/

• Device Interfaces
• Alarm Input8-ch alarm inputs
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485Support
• USB0
• TF CardMax to 128 G, SD 2.0 or lower version
• Alarm Output2
• Power Interface1

• General
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC/1 A

• Power Consumption≤ 7 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Button1
• InstallationSurface mounting
• Indicator0
• Weight

  With package: 899 g

  Without package: 355 g

• Protective Level/
• Dimensions180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
• Battery/
• Application EnvironmentIndoor
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek

\tBejing Sinlay technology limited is a young ,creative and energetic company located in beijing.with a strong focus on service and providing innovative,high quality and competitively priced products including Hikvision/dahua CCTV Camera,IP Video solutions and so on.

Our products are sold far to Europe, America, Southeast Asia and other countries and regions. High quality, good price, on time delivery and sincere service are our value and promises to our customers. As an enterprise integrating manufacture and sales, we have confidence to launch more competitive products to cope with severe competition. Sinlay is your sincere partner!
