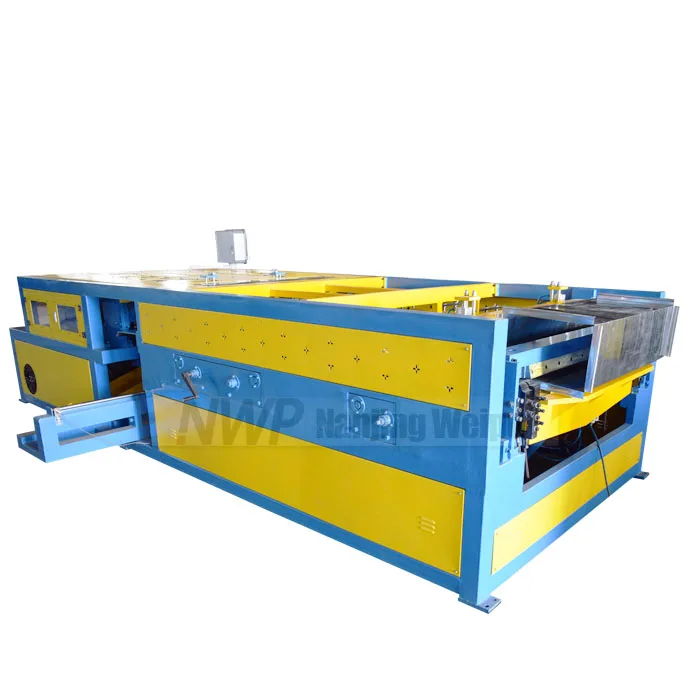

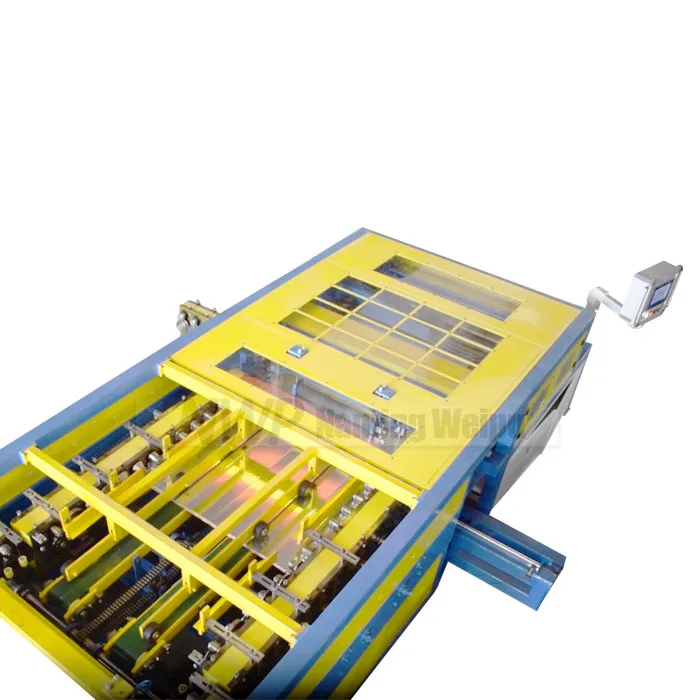

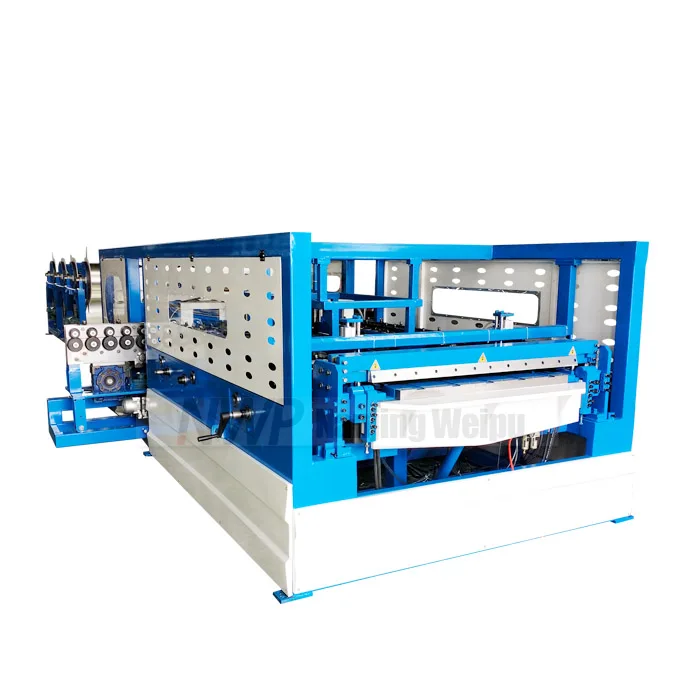

China Low Price HVAC Duct Production Line 1500mm Sheet Rectangular Air Duct Forming Machine
- Category: >>>
- Supplier: Nanjing Weipu Machinery Equipment Co. Ltd.
Share on (1601003743425):
Product Overview
Description
Products Description
Super auto duct production line 5, famous for its short line and save space for the production of rectangular ducts. It is an economical and highly practical rectangular ducts production line. Suitable for small and medium-sized production sites. It can complete a coil to shear, lock forming directly, servo feeding, flange forming and folding into a "口" or “L” shape. Can make the min section size 200*200mm of the”口” shape. The rectangular duct only need one operator to operate. After inputting the production procedure, the system will automatically feed and manufacture, and the worker will be responsible for carrying the formed duct. The advantage of the super auto duct line 5 is unique. The short shape saves space, and the entire production speed can arrive 18m/min. The normal working time can produce 1500-2500 m² of square ducts.
Basic Configuration
1. Four / two electric coil cradles, 4 material trays (5-7t each roll);
2. One rack;3. One host (line 2 host);
4. One mechanical arm clutching, locating and transferring platform;
5. One movable type lock forming machine;
6. One duplex TDF flange forming machine;
7. One duplex angle steel flange forming machine;
8. One hydraulic folding machine;
9. One set of computer controlling system.
Model | Thickness (mm) | Speed (m/min) | Coil capacity (T) | Dimension (mm) L*W*H | Power (kw) | Weight (T) |
AML-6-1300 | 0.5-1.2 | 1-18 | 7 | 10200*3600*2000 | 23 | 8 |
AML-6-1500 | 0.5-1.2 | 1-18 | 7 | 10200*3800*2000 | 23 | 8.5 |
Product Display

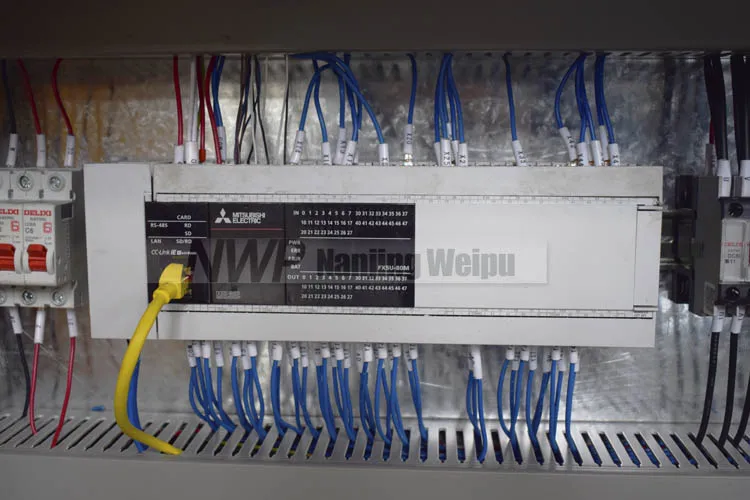

Production System
For the PLC control system, we support the German Siemens brand. Mitsubishi Japan is also one of the commonly used brands.

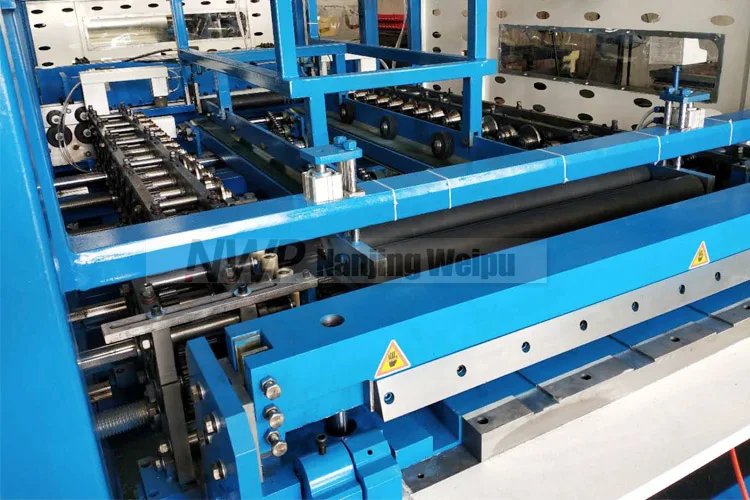

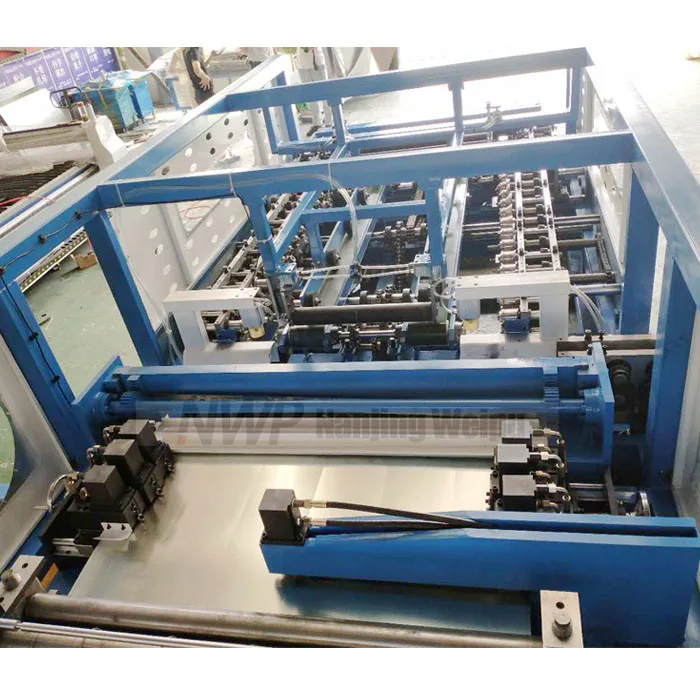

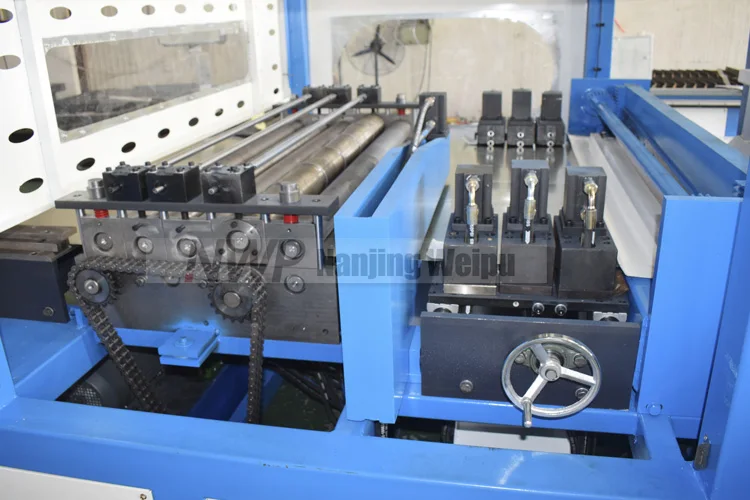

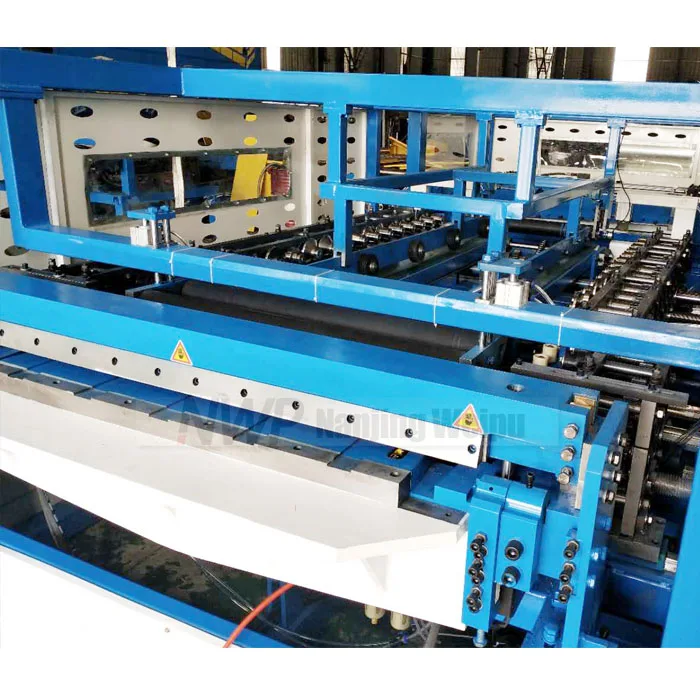

Auto Cutting
The main part is auto duct line 2 functions with leavling & beading & middle hole punching & side hold punching & angle mouth punching & square mouth punching and auto cutting.

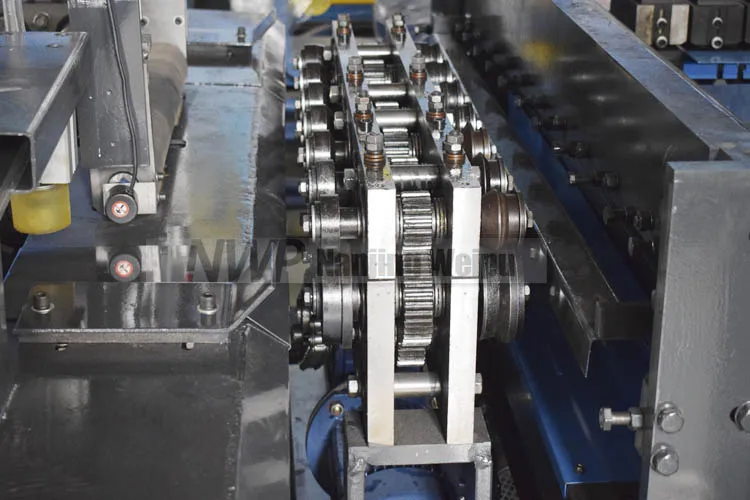

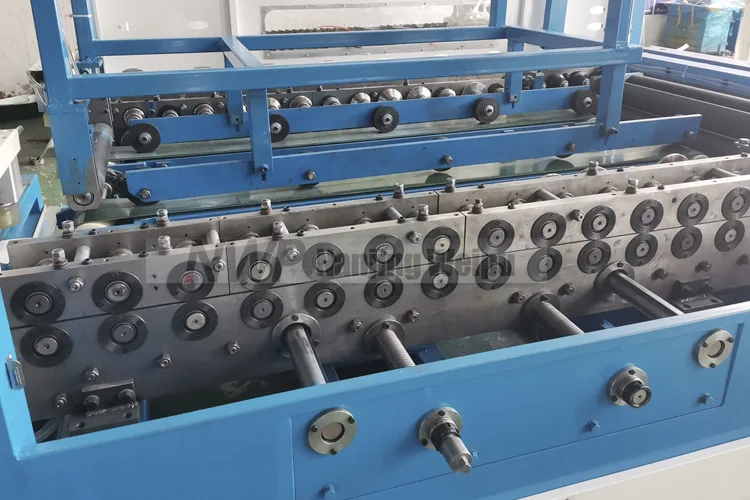

Movable Pittsburgh Lockformer
Adopt bearing steel (GCr15 steel) material make the rollforming rollers.
It can make pittsburgh lockformer and "L" lockformer.
Double Flange Former
Adopt bearing steel (GCr15 steel) material make the double flange former.
The part can make TDF flange and angle steel flange for HVAC.
Auto Folding
Hydraulic auto folding for "L" or "口" shape for HVAC.
High quality bending molds and don't easy to break.
Company Profile
Nanjing Weipu Machinery Equipment Co., Ltd. is a professional R&D and sales machines company. The company is located in Lishui District, Nanjing City, Jiangsu Province, China, about 10 kilometers away from Lukou Airport. The transportation is convenient, and it is convenient for domestic and foreign customers to visit our company.
Our company have auto duct line, spiral duct forming machine, CNC plasma cutting machine, lock forming machine and other duct machines for HVAC duct production. There are also hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Our company have auto duct line, spiral duct forming machine, CNC plasma cutting machine, lock forming machine and other duct machines for HVAC duct production. There are also hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Workshop
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a experience after-sales team to do the service, include oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a experience after-sales team to do the service, include oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
