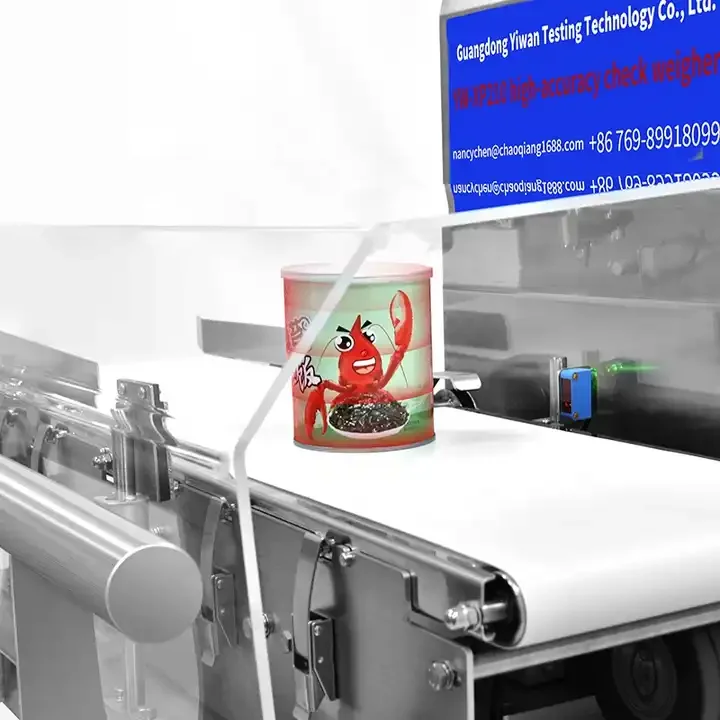

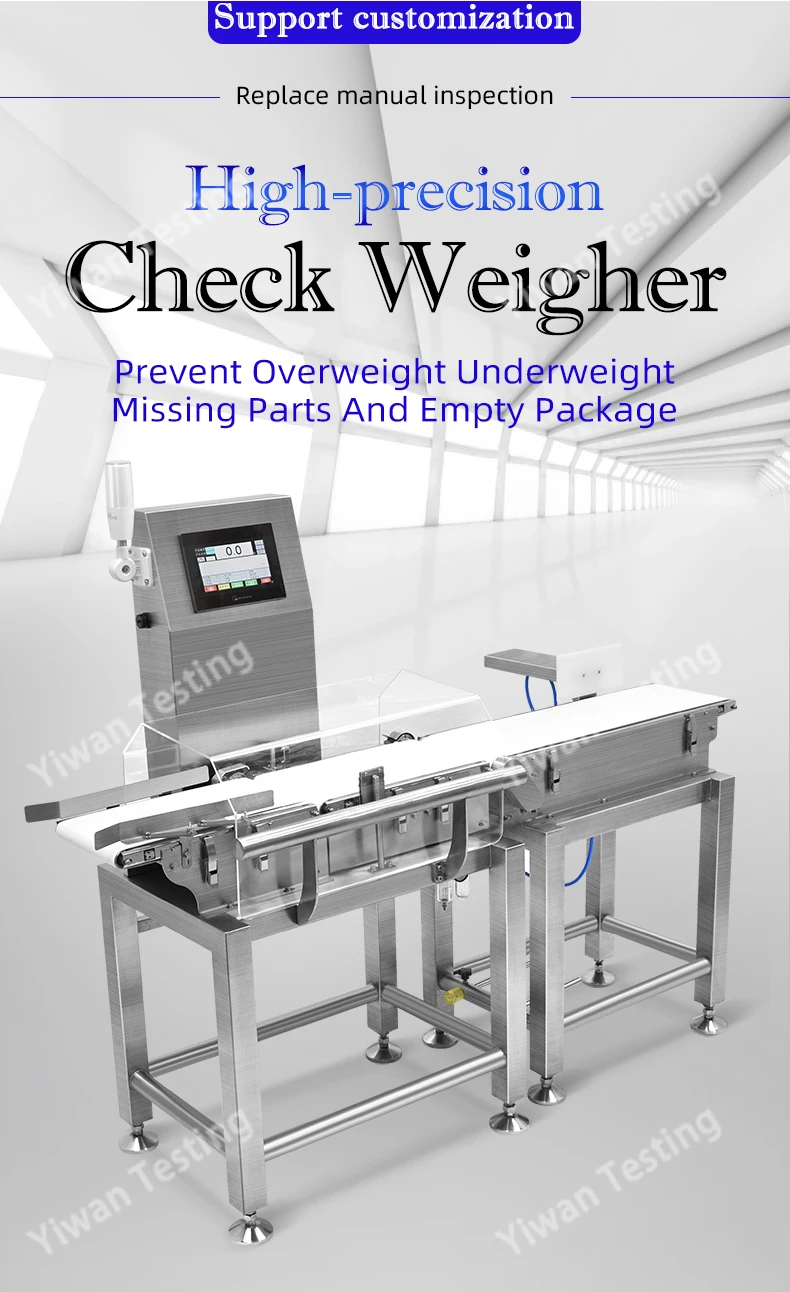

Factory Direct Sales High Accuracy Touch Screen Conveyor Belt Check Weigher With Automatic Rejector System
- Category: >>>
- Supplier: Guangdong Yiwan Testing Technology Co. Ltd
Share on (1601003804844):
Product Overview
Description
Products Description
Product characteristics
1. apply advanced digital signal processing and realize high speed and stable weighing.

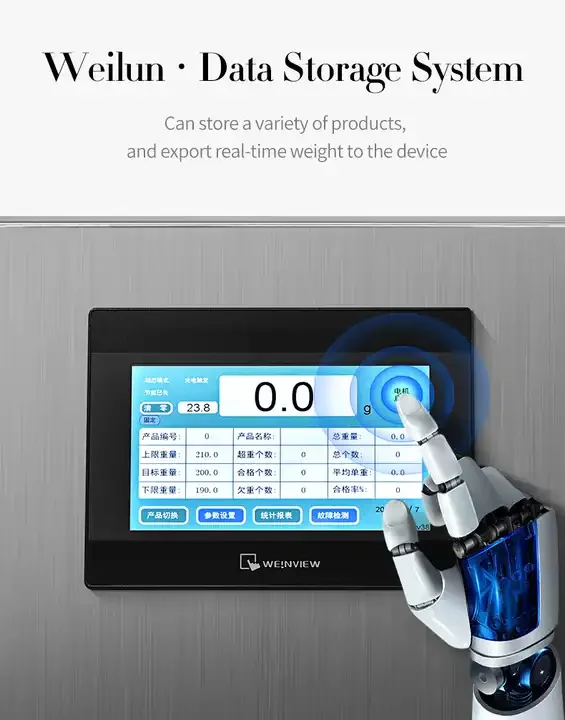

2. with liquid crystal and tangibly screen, more stability and easier to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
4.Belt disassembling without tools, which is easier to clean

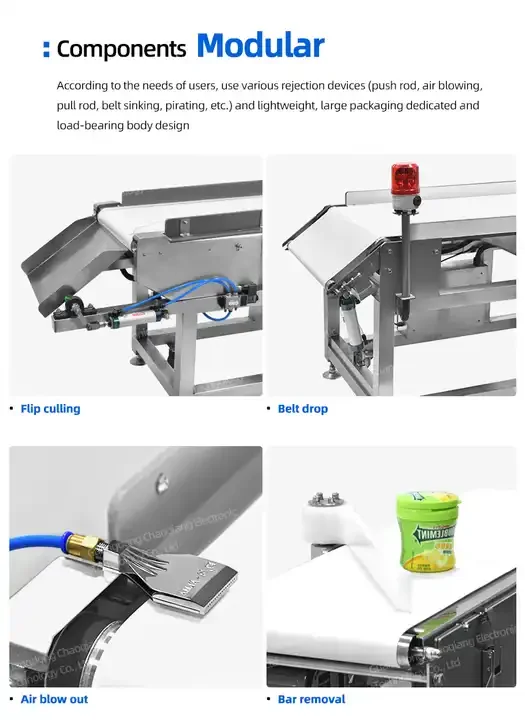

5.Automatic stop by sound and light .air blast. or penumatic push rod emergency stop button for safety working condition(according to customers choosing)
6.Solid SUS304 stainless steel structure enable for good performance
7.Password protection setting: You can change the system, flexibility and other setting only after typing in the password
correctly and only authorized person allowed to change the setting , or you can't change the settings.
2. with liquid crystal and tangibly screen, more stability and easier to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
4.Belt disassembling without tools, which is easier to clean
5.Automatic stop by sound and light .air blast. or penumatic push rod emergency stop button for safety working condition(according to customers choosing)
6.Solid SUS304 stainless steel structure enable for good performance
7.Password protection setting: You can change the system, flexibility and other setting only after typing in the password
correctly and only authorized person allowed to change the setting , or you can't change the settings.

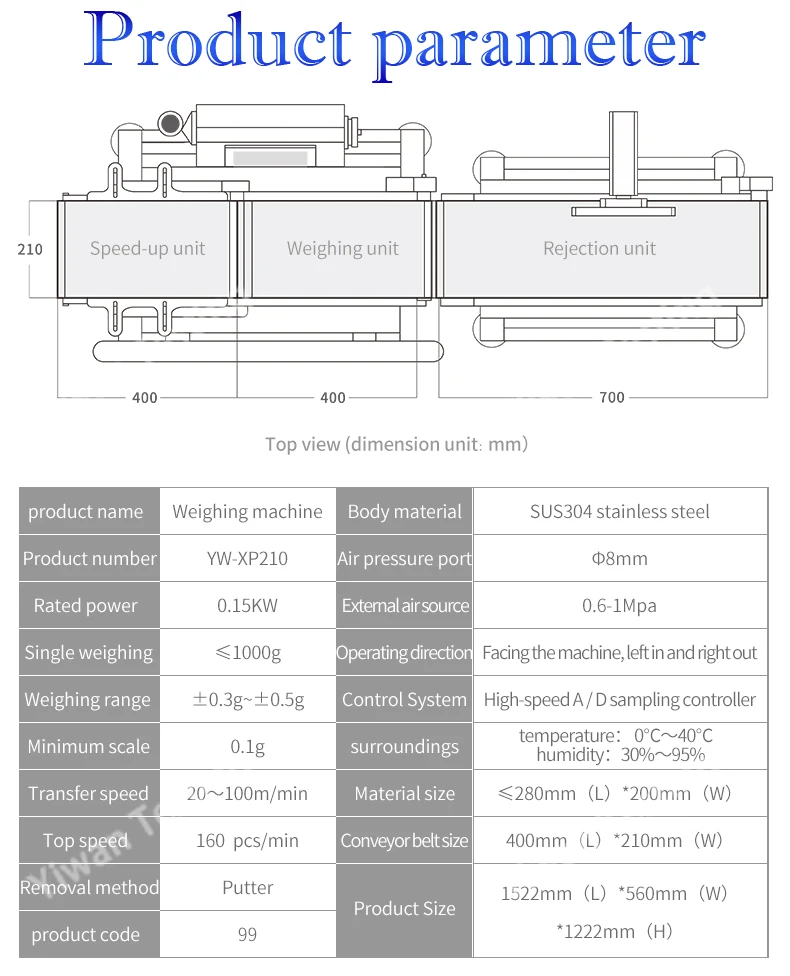

Technical parameters
Model | YW-XP1010 | YW-XP210 | YW-XP300 | YW-XP400 | YW-XP500 | YW-XP600 |
Weighing range | 200g | 1000g | 3000g | 15kgs | 40kgs | 50kgs |
Weighing accuracy | ±0.05g-±0.1g | ±0.3g-±1g | ±0.5g-±2g | ±2g-±10g | ±5g-±15g | ±8g-±20g |
Display resolution | 0.01g | 0.1g | 0.1g | 1g | 1g | 5g |
Conveyor speed | 20-60m/min | 30-100m/min | 30-90m/min | 30-70m/min | 20-35m/min | 15-25m/min |
Sorting speed | 180pieces/min | 160pieces/min | 80pieces/min | 70pieces/min | 30pieces/min | 30pieces/min |
Belt height | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm |
Infeed part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | - | - |
Weighing part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | 900(L)*500(W)mm | 1200(L)*600(W)mm |
Rejection part | 400(L)*120(W)mm | 700(L)*210(W)mm | 900(L)*300(W)mm | 900(L)*400(W)mm | 900(L)*500(W)mm | 935(L)*600(W)mm |

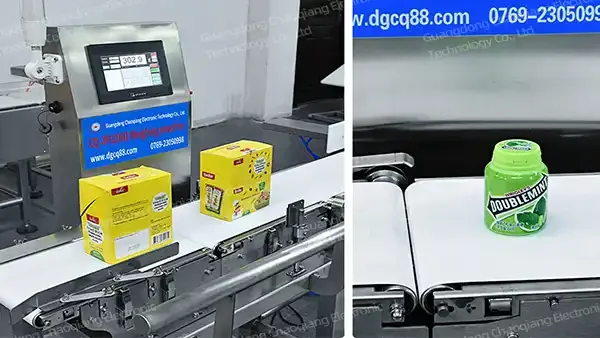

Product details

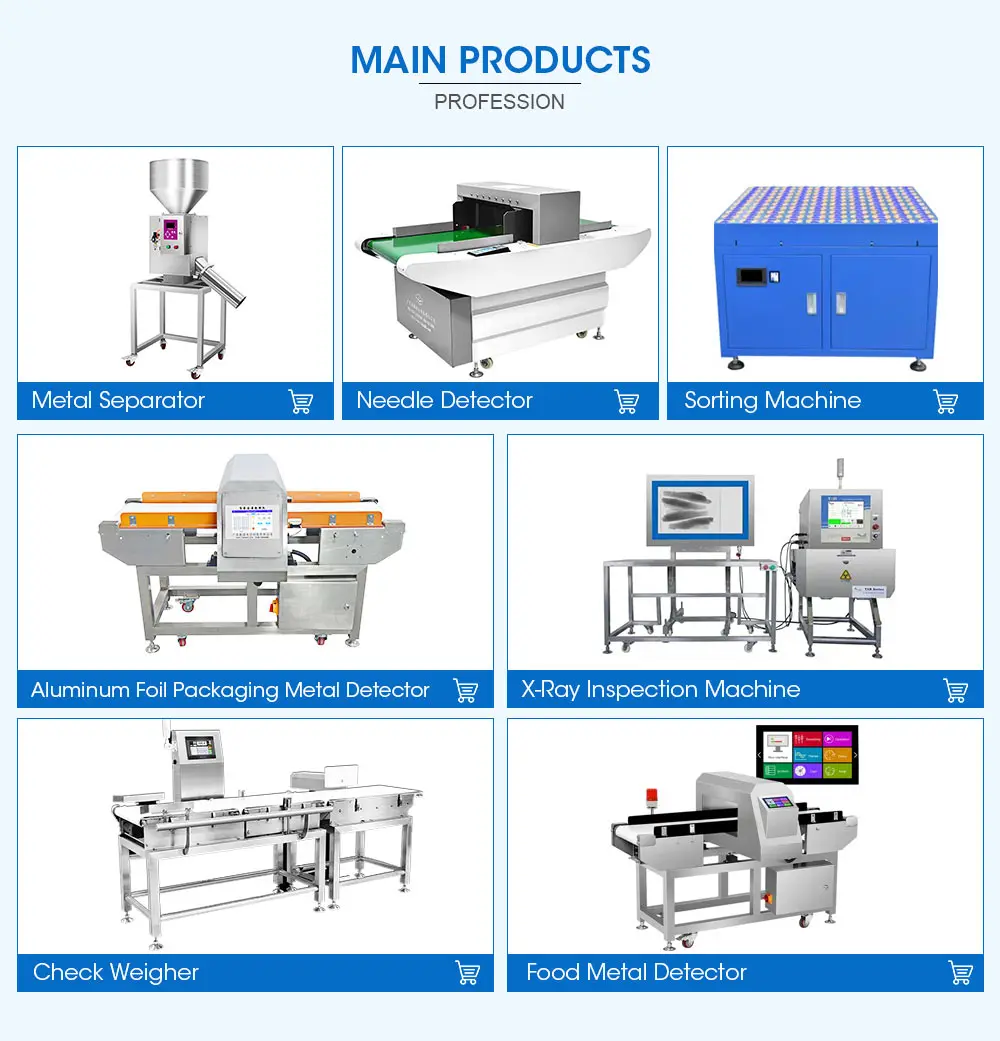

Main Products
