Automatic Gate Opener Electric Lock
US $110.00-$156.00

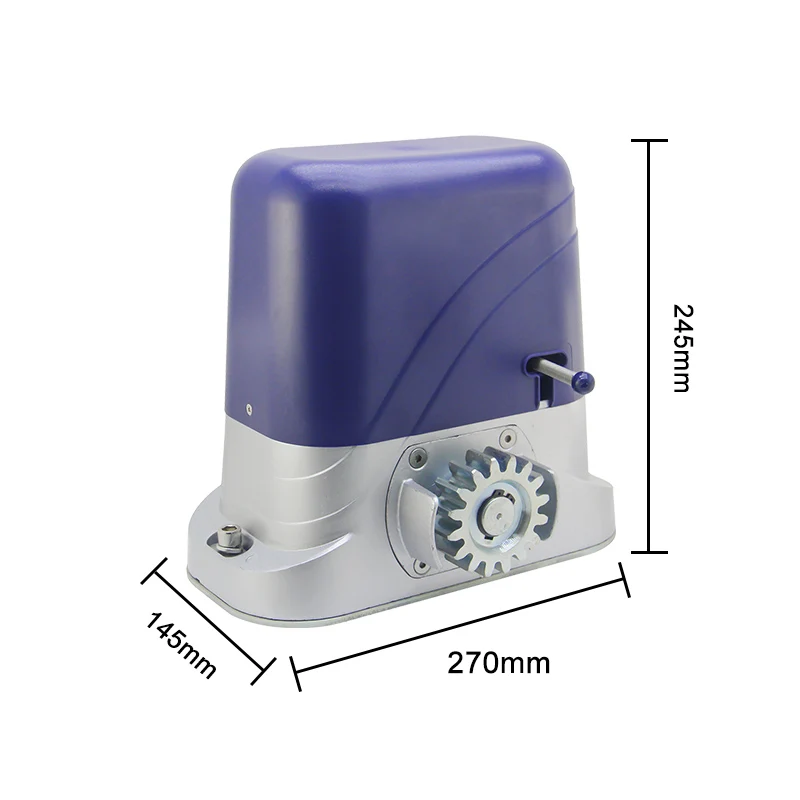

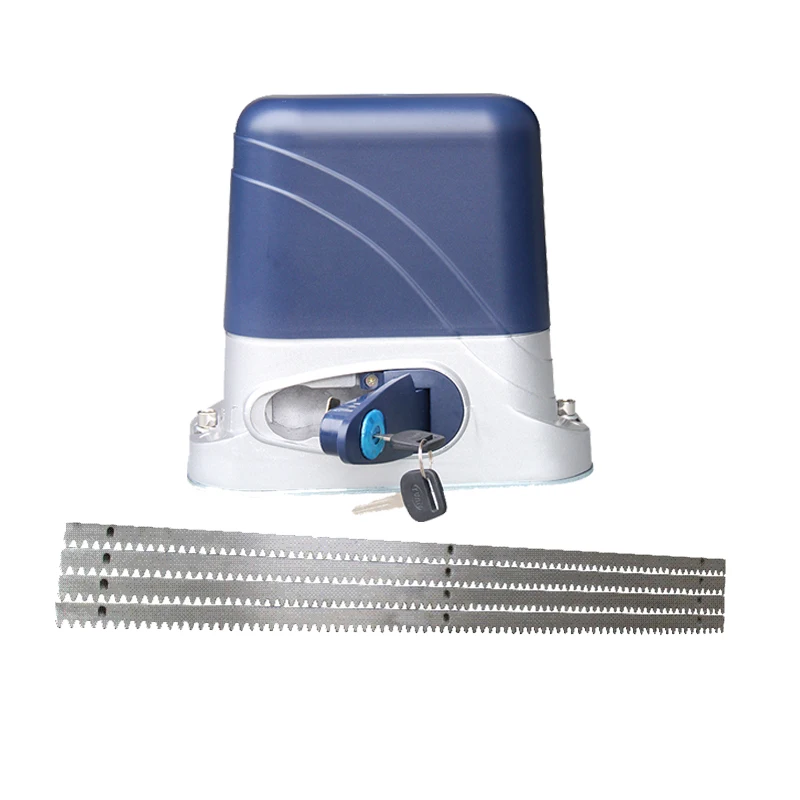

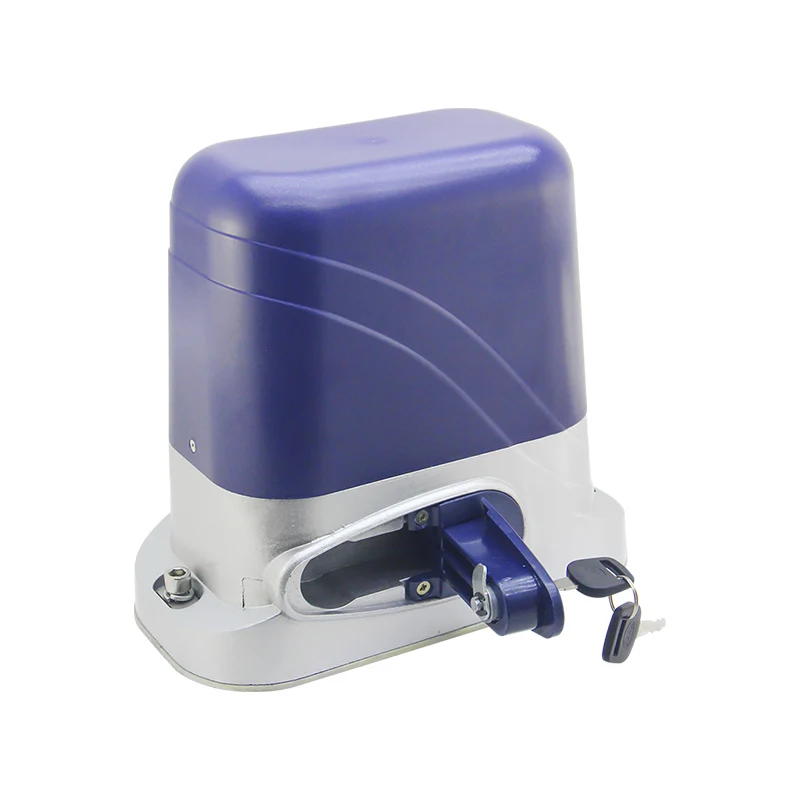

Residential 800kg gate motor sliding Wifi remote control gate opener automatic sliding door system Kit automatic sliding gate
- Category: >>>
- Supplier: Hunan Tianan Door Technology Co. Ltd.Hunan Ltd.
Share on (1601003806858):
Product Overview
Description
Products Description
model | SGO-A2201 | |||
brand | Caelus Automation | |||
Rated Voatage | 220V±10%/10V±10% | |||
Rated Motor Power | 350W | |||
Output Torque(Nm) | 22N.m | |||
Max.Gate | 800kg | |||
Max.Pul Force | 1200N | |||
Duty Cycle | 50% | |||
Limit Switch | Magnetic /Spring | |||
Environment Temperature | -20C-+55C | |||
Eiectic tolor | 220vAC/110VAC | |||
accessories | 1 * Motor (built-in control board) 2 * Remote controller Accessories | |||
Limit Switch Type | Spring!Magnetic limit switch for optional | Push then open | ||
* Weatherproof * Manual Release * All Metal Gears * Metal Gear Drive * All in one internal Motor and Weather Proof control panel | * Weatherproof * Manual Release * All Metal Gears * Metal Gear Drive * All in one internal Motor and Weather Proof control panel | |||

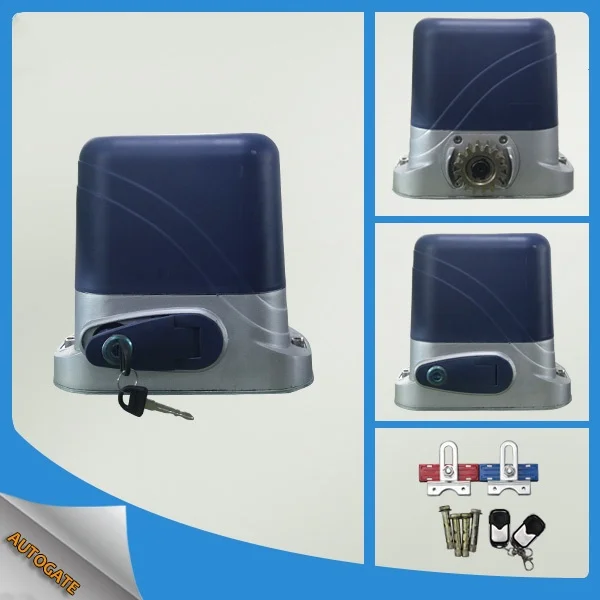

Complete kit
- 1 x Motor with built in Control Panel
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
- 2 x Remote Controls
- 2 x Manual Override Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual

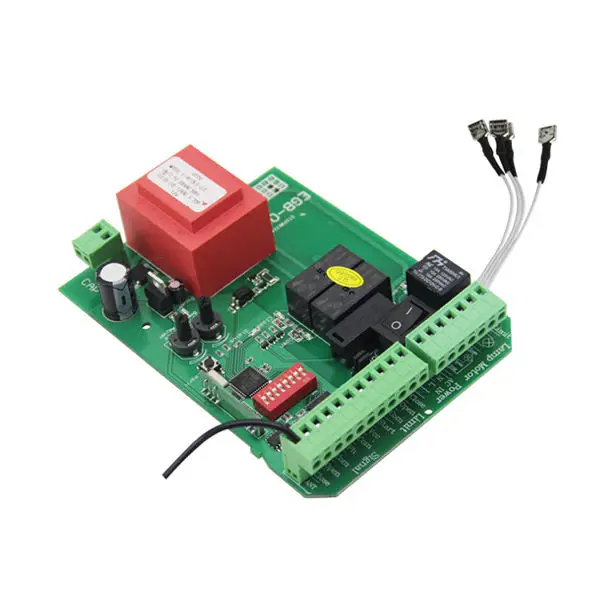

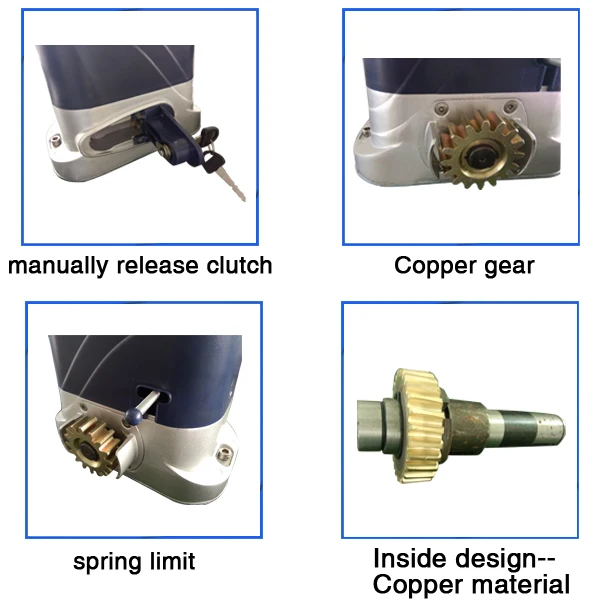

Bulit in control panel Limit switch (magnet/spring for optional) Manual release Gate gears
Built in control panel making installation compact, neat simple
Limit switch (spring limit & magnet limit optional) allowing the motor to switch off once the cycle is finished
Built in manual release in case of emergency or power off
The motor is contructed of all metal gears making it durable and long lasting
Limit switch (spring limit & magnet limit optional) allowing the motor to switch off once the cycle is finished
Built in manual release in case of emergency or power off
The motor is contructed of all metal gears making it durable and long lasting
Function
Single button control circularly /three buttons control can be choosed
Alarm lamp interface
Automatic closing time adjustable
Pedestrian mode
Condominium mode
Limit switch NC/NO optional
Photocell NC/NO optional
Switch power on/off button at board
Open and close motor senstivity setting seperately
Terminal for open only , close only for external control device.
Adjustable resistance sensitivity
Gate will auto stop and re-open when an obstacle is encountered
Alarm lamp interface
Automatic closing time adjustable
Pedestrian mode
Condominium mode
Limit switch NC/NO optional
Photocell NC/NO optional
Switch power on/off button at board
Open and close motor senstivity setting seperately
Terminal for open only , close only for external control device.
Adjustable resistance sensitivity
Gate will auto stop and re-open when an obstacle is encountered
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A: We have more than 20 years’ experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project.
A: We have more than 20 years’ experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project.
