Product Overview
Description
DC rechargeable wall air condition with solar panel
Solar Air Condition Set
OFF GRID AIR CONDITIONER DESCRIBTION:
Off-Grid Solar Air Conditioner is engineered from the ground up for use withsolar. All electrical components are DC powered including DC Compressor.high-efficiency DC Fan Motors, DC Valves & Solenoids, etc. Off-Grid Solar AirConditioner uses Solar Direct Drive Technology(SDDA) and solar controller, ltcombines the feature of AC/DC Hybrid Solar Air Conditioner and adds thefunction of battery backup though the solar controller. So the AC Unit can use AC.DC, and Battery power according to the customer requirement and the energysituation. The whole system just contains an AC Unit, a solar controller, a few PVpanels and batteries. Compare with the regular AC Unit + Off-Grid Solar System.the solar energy utilization rate will enhance 20%-40%. The AC unit working timewill enhance 30-50%, in the same quantity of the battery and solar panel.
Off-Grid Solar Air Conditioner is engineered from the ground up for use withsolar. All electrical components are DC powered including DC Compressor.high-efficiency DC Fan Motors, DC Valves & Solenoids, etc. Off-Grid Solar AirConditioner uses Solar Direct Drive Technology(SDDA) and solar controller, ltcombines the feature of AC/DC Hybrid Solar Air Conditioner and adds thefunction of battery backup though the solar controller. So the AC Unit can use AC.DC, and Battery power according to the customer requirement and the energysituation. The whole system just contains an AC Unit, a solar controller, a few PVpanels and batteries. Compare with the regular AC Unit + Off-Grid Solar System.the solar energy utilization rate will enhance 20%-40%. The AC unit working timewill enhance 30-50%, in the same quantity of the battery and solar panel.
MODEL 一 WITH GRID POWER
01 GRID POWER
During the night, the A/C unit take thepower from the grid power andrunning with same principle of regularair conditioner, theSEER is over 22,it can saving 20-30%energy compare with the regular A/Cunit.
02 GRID AND SOLAR
When Sunshine is weak, like themorning or cloudy day. The A/C unitwill take the solar as the prioritychoice, the insufficientpower will take from the grid to makesure 24H working
03 100% SOLAR
When solar energy meet the Min Running requirement of compressor.the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving. In same time, the system will charge the battery automatically
04 GRID OFF
When the grid off or the customerturns off the grid power, the systemwill automatically take the batteryenergy to run the A/Cunit, it will ensure you enjoy coolingsummer in any situation.
MODEL 二 WITH GRID POWER
01 BATTERY POWER
During the night or the solar energy is weak, the A/C unit takes the power from the battery to run the A/C Unit.
02 BATTERY AND SOLAR
When Sunshine is weak. The A/C unit will take the solar as the priority choice, the insufficient power will take from the Battery
03 100% SOLAR
When solar is sufficient, the A/C unit can start and operate by solar energy only. In same time, the system will charge the battery automatically.
Product Show
Outdoor unit
Rust and corrosion resistance.
Compressor
Strong power,stable performance.
Motor
Pure copper coilsincrease efficiency.
Copper tube
Inner grooved designmprove the heat transfer rate.
Double-muting technology
Keep the environment quiet and comfortable.
Strainer
Effectively prevents dust fromentering, easy to remove and wash
SOLAR PART DECRIPTION
01 A/C Unit.
>ACDC Hybrid Indoor Unit
Available Capacity 9k,12k, 18k, 24kBtu ;Digital display
>ACDC Hybrid Outdoor Unit AC Input180~240V 50/60HZ: R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A
02 Solar Panel.
Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dmentons:1680*992*35mm(65.0x39.1x1.38 inches)
Weight:18.6 kg (41.0 lb)
Weight:18.6 kg (41.0 lb)
03 DC Cable & MC4 Connector.
Cross Section: 4mm2, 6mm2 Optional Rated
Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional
Lifetime:＜=25 Years
Lightning Arrester
PC40-85V DC
Fuse-Protection
RT28N-32X 1P
DC Breaker
DC800V 2P 20A

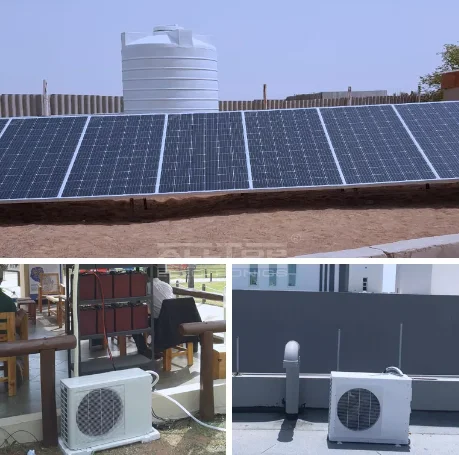

PROJECT CASES
