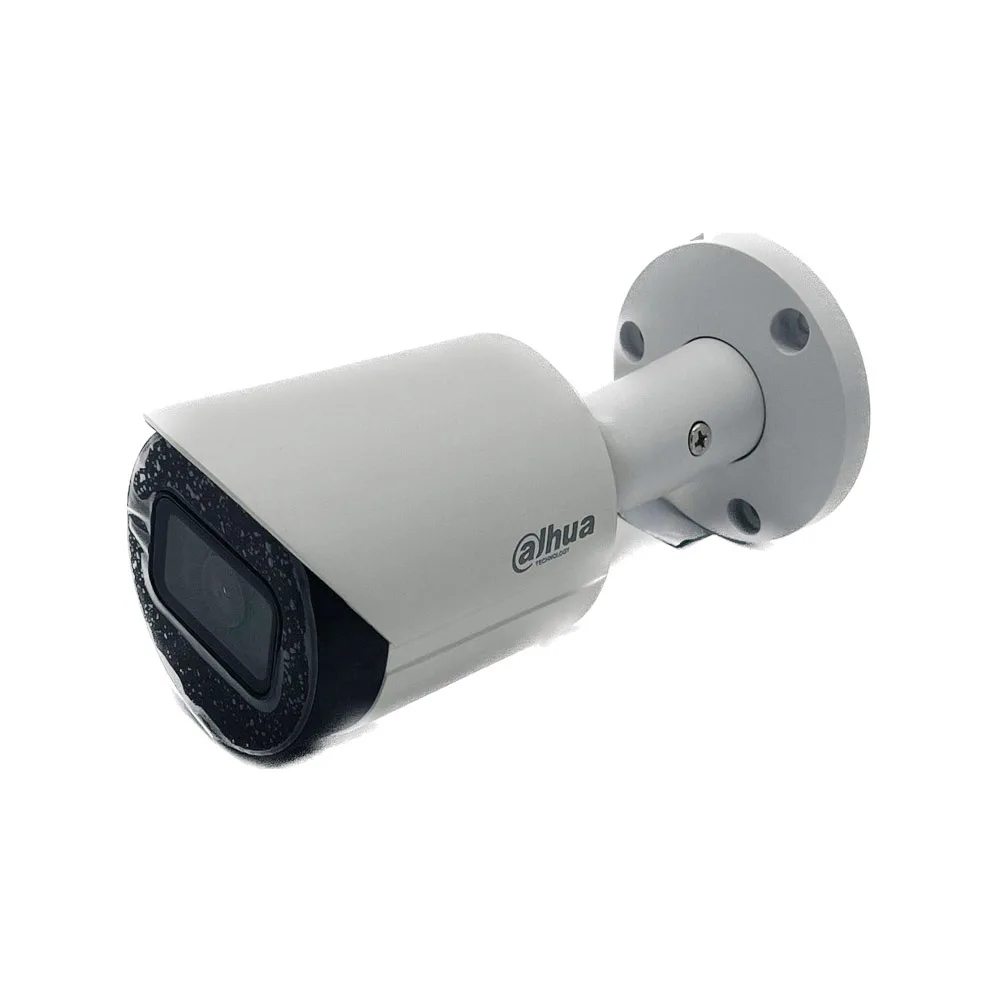

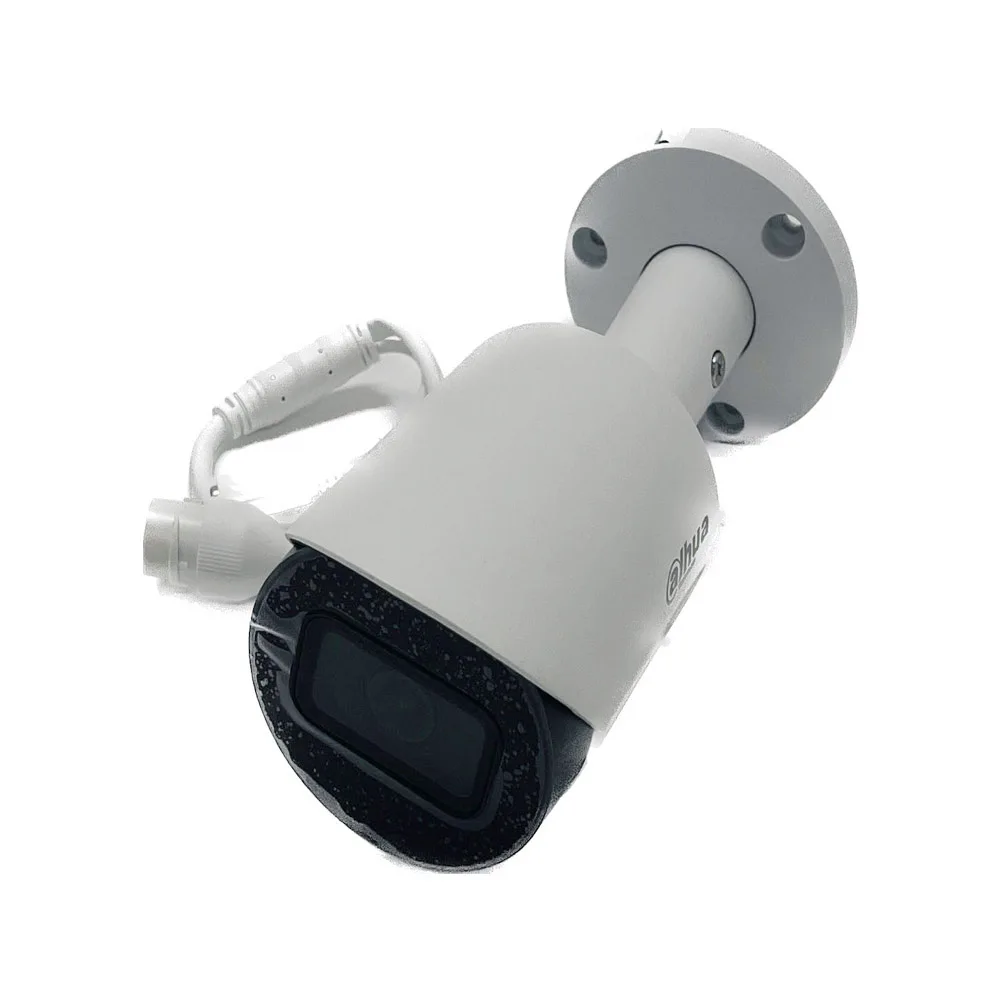

Dahua HAC HFW1809T A LED 4K Built in MIC Full Color HDCVI Bullet Camera 24/7 Color Imaging Outdoor DH Analog Color Camera

Camera

Pixel

8 MP

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux @F1.0 (Color)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

20 m (65.62 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (9.19 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

91.0 m

(298.56 ft)

36.4 m

(119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm

107.6 m

(353.02 ft)

43.0 m

(141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.47 ft)

Video

Video Frame Rate

CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps;
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps;
AHD:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960 H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart Light

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max. 5 W (12 VDC, LED on)
