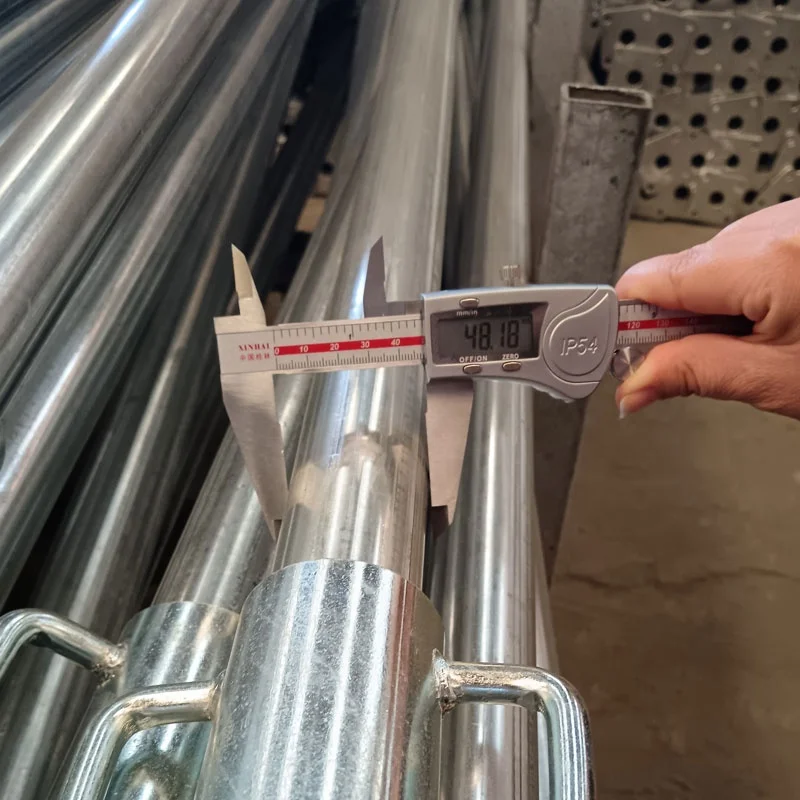

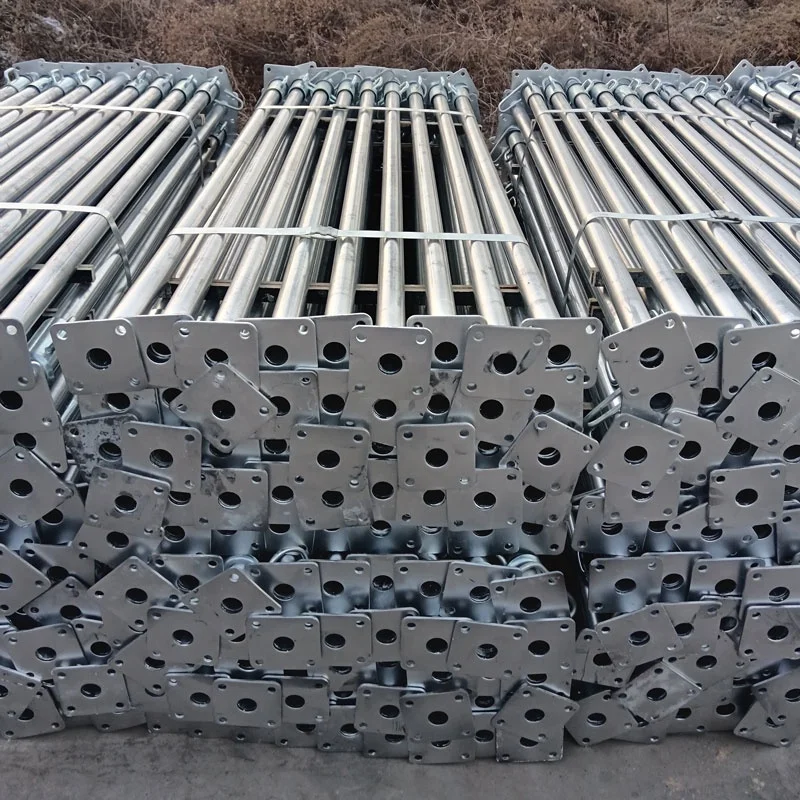

3.5m Height Building Metal Scaffolding Adjustable Shoring Jack Steel Support Prop Price For Concrete House Slab Support
Product Description

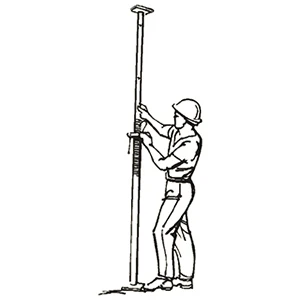

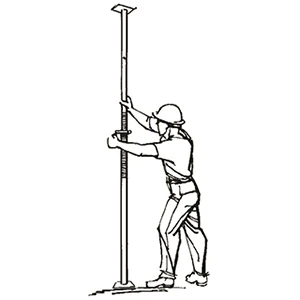

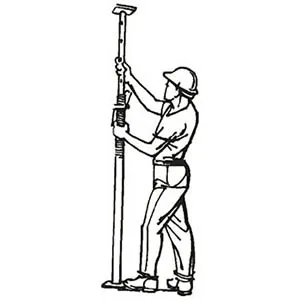

Proper Way to Use A Scaffolding Prop
When you choose to use steel supports, you must first know the height of the building so that you can choose a scaffolding prop with a suitable adjustment range.
Middle East Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1800-3200 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | Powder Coated/ Electric galvanized/Painted | ||||
2000-3500 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | |||||
2200-4000 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | |||||
2800-5000 | 48 | 60 | 1.8/2.0/2.2/2.5/3.0 | |||||
Italian Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1600-2900 | 48 | 56 | 1.6/1.8/2.0/2.2 | Powder Coated/ Electric galvanized/Painted | ||||
1800-3200 | 48 | 56 | 1.6/1.8/2.0/2.2 | |||||
2000-3600 | 48 | 56 | 1.6/1.8/2.0/2.2 | |||||
2200-4000 | 48 | 56 | 1.6/1.8/2.0/2.2 | |||||
Spanish Type Prop | ||||||||
Adjustable Height (mm) | Inner Tube OD (mm) | Outer Tube OD (mm) | Thickness (mm) | Surface Treatment | ||||
1600-2900 | 40 | 48 | 1.6/1.8/2.0/2.2 | Powder Coated/ Electric galvanized/Painted | ||||
1800-3200 | 40 | 48 | 1.6/1.8/2.0/2.2 | |||||
2000-3500 | 40 | 48 | 1.6/1.8/2.0/2.2 | |||||
2200-4000 | 40 | 48 | 1.6/1.8/2.0/2.2 | |||||
Heavy Duty Steel Prop | ||||||
Min | Max | Internal Tube | External Tube | |||
1.8m | 3.2m | 48*2.0/2.5/3.0mm | 60*2.0/2.5/3.0mm | |||
2.0m | 3.6m | 48*2.0/2.5/3.0mm | 60*2.0/2.5/3.0mm | |||
2.2m | 4.0m | 48*2.0/2.5/3.0mm | 60*2.0/2.5/3.0mm | |||
2.4m | 3.9m | 48*2.0/2.5/3.0mm | 60*2.0/2.5/3.0mm | |||
3.5m | 4.0m | 48*2.0/2.5/3.0mm | 60*2.0/2.5/3.0mm | |||
3.0m | 5.0m | 48*3.5/4.0mm | 60*3.5/4.0mm | |||
Light Duty Steel Prop | ||||||
Min | Max | Internal Tube | External Tube | |||
1.6m | 3.0m | 40*2.0mm | 48*2.0mm | |||
48*2.0mm | 56*2.0mm | |||||
60*2.0mm | ||||||
1.8m | 2.5m | 40*2.0mm | 48*2.0mm | |||
48*2.0mm | 60*2.0mm | |||||
2.0m | 3.5m | 40*2.0mm | 48*2.0mm | |||
48*3.5mm | 60*3.5mm | |||||
Manufacture Process
Step 1，
CUTTING — Steel pipes (both external and internal) are then cut to size with a +/-1 mm tolerance. Cutting is done using automatic cutting machines: a bundle of pipes is placed on the loader which selects one pipe at a time. It is then loaded on a positioning device and cut precisely at the desired height. Lastly, the pipe is unloaded into a container for the subsequent step.
CUTTING — Steel pipes (both external and internal) are then cut to size with a +/-1 mm tolerance. Cutting is done using automatic cutting machines: a bundle of pipes is placed on the loader which selects one pipe at a time. It is then loaded on a positioning device and cut precisely at the desired height. Lastly, the pipe is unloaded into a container for the subsequent step.
Step 2,
DRILLING — Then there follows the drilling step, which is carried out depending on the type of pipe. Due to the new technologies, the drilling is quick, precise and burr-free.
DRILLING — Then there follows the drilling step, which is carried out depending on the type of pipe. Due to the new technologies, the drilling is quick, precise and burr-free.
Step 3,

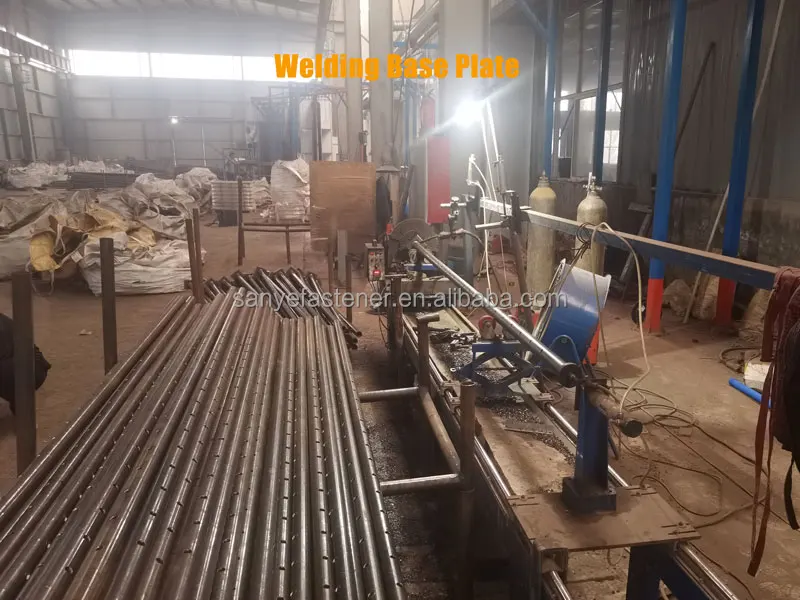

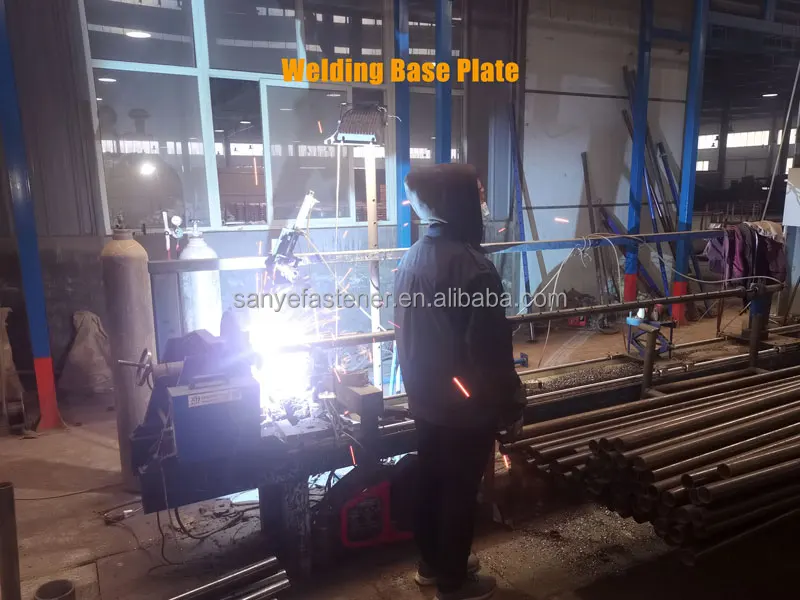

WELDING — External pipes proceed to the welding step, where - suitably positioned - they are assembled with the base plate and the end is threaded . Once drilled, the internal pipes undergo the same welding process but concerning the plate only.
WELDING — External pipes proceed to the welding step, where - suitably positioned - they are assembled with the base plate and the end is threaded . Once drilled, the internal pipes undergo the same welding process but concerning the plate only.
Step 4,
COATING AND GALVANISING — Once welded, the props can be: dip coated, cold-dip galvanised (electrolytically), for a more durable protection with respect to dip coating and for better aesthetic quality, or hot dip galvanised for a basically permanent protection, suitable for all environments and withstanding external atmospheric agents.
COATING AND GALVANISING — Once welded, the props can be: dip coated, cold-dip galvanised (electrolytically), for a more durable protection with respect to dip coating and for better aesthetic quality, or hot dip galvanised for a basically permanent protection, suitable for all environments and withstanding external atmospheric agents.
Step 5,

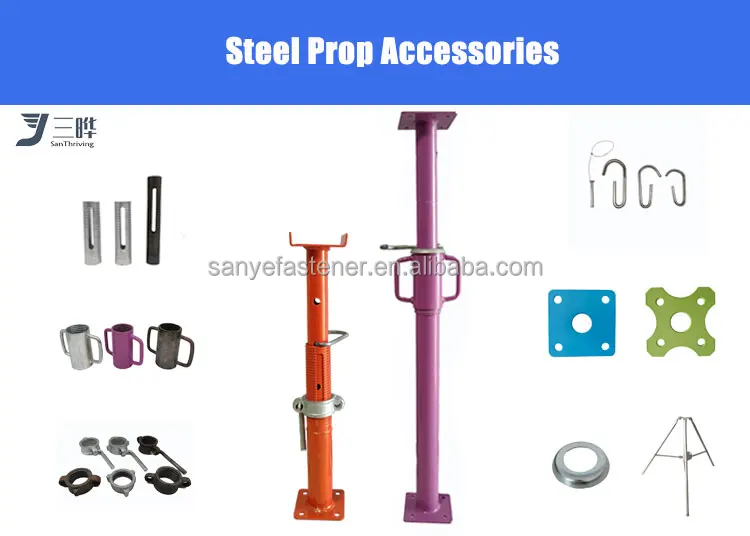

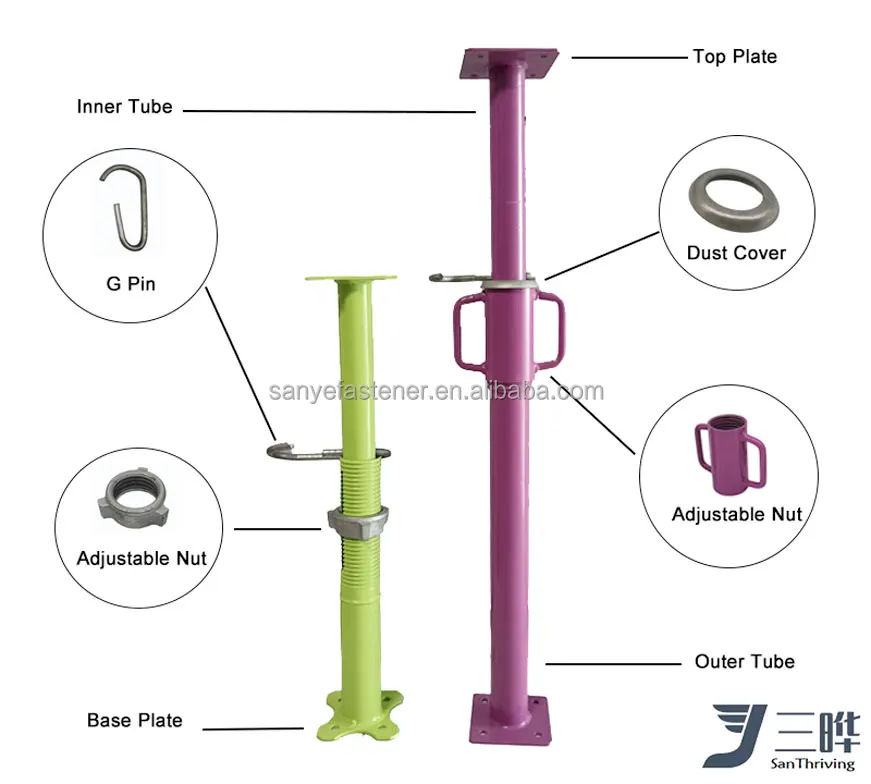

FINISH — Depending on the product, next come the completion steps including: mounting an outer sleeve on the covered threading or a forged steel ring nut.
FINISH — Depending on the product, next come the completion steps including: mounting an outer sleeve on the covered threading or a forged steel ring nut.
Step 6,
CUSTOMISATION — Customised products are available upon request: for example with a ring nut bearing the customer’s colours, or the customisation of the prop using stickers bearing the customer’s logo.
CUSTOMISATION — Customised products are available upon request: for example with a ring nut bearing the customer’s colours, or the customisation of the prop using stickers bearing the customer’s logo.
Step 7,

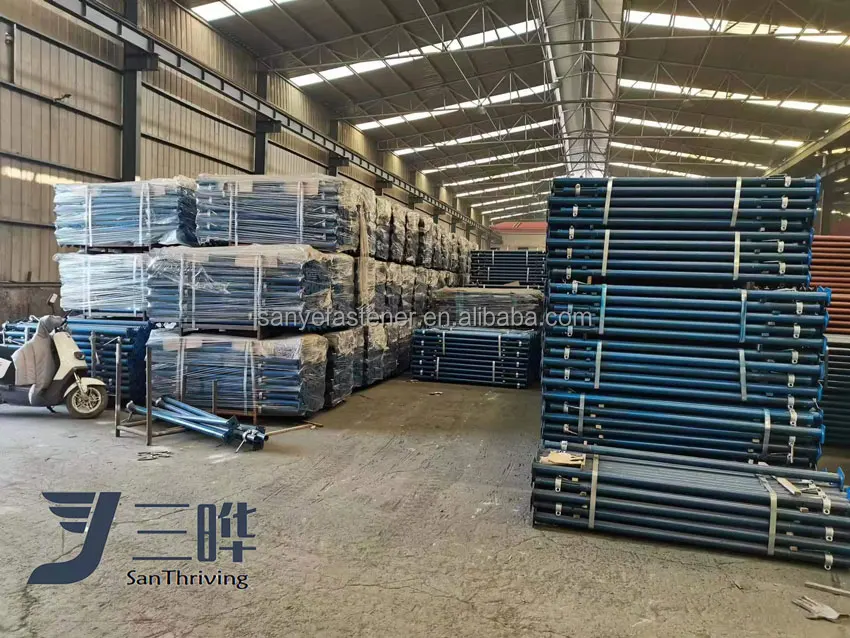

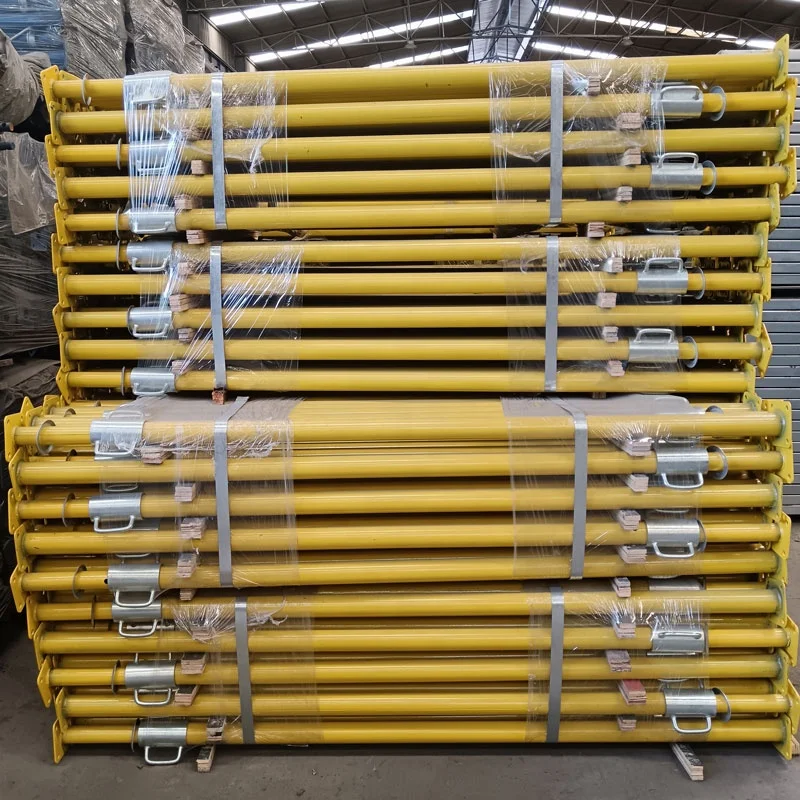

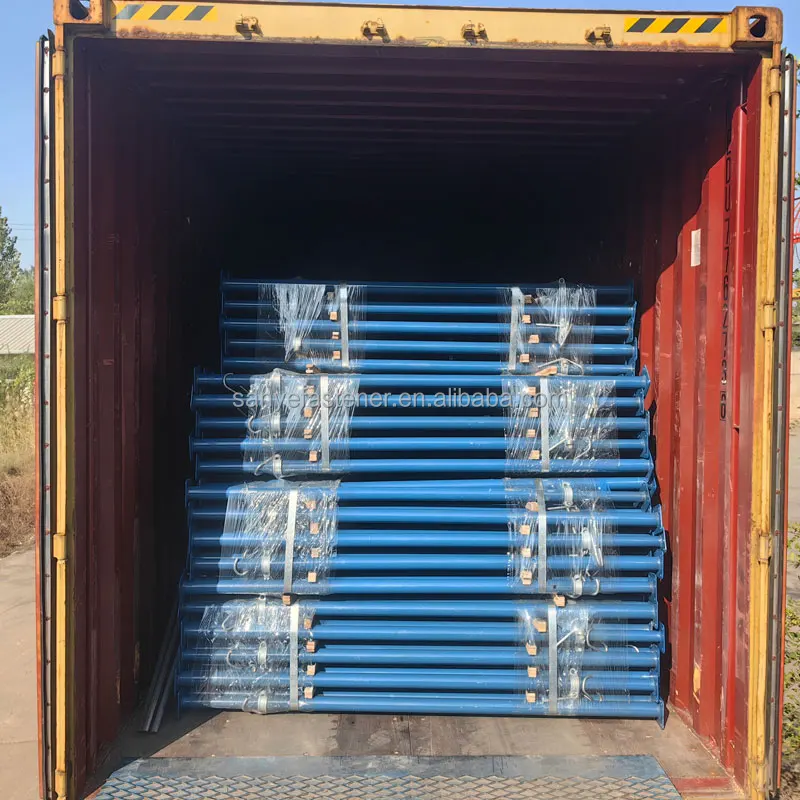

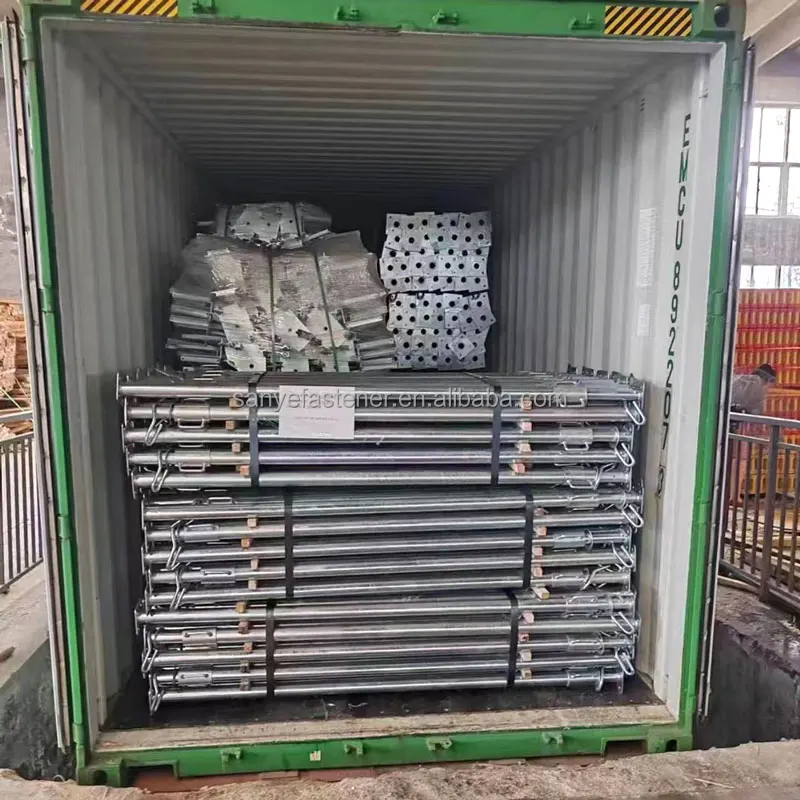

PACKAGING AND SHIPMENT — Once concluded with machining, we proceed to the packaging step. Packages usually come with 40 pieces, strapped. The material is then loaded into a truck or container and shipped.
PACKAGING AND SHIPMENT — Once concluded with machining, we proceed to the packaging step. Packages usually come with 40 pieces, strapped. The material is then loaded into a truck or container and shipped.
Recommend Products
Packing & Delivery
Ton bag, wooden pallet,wooden case,iron pallet;
Customized according to customer requirements.
Customized according to customer requirements.
