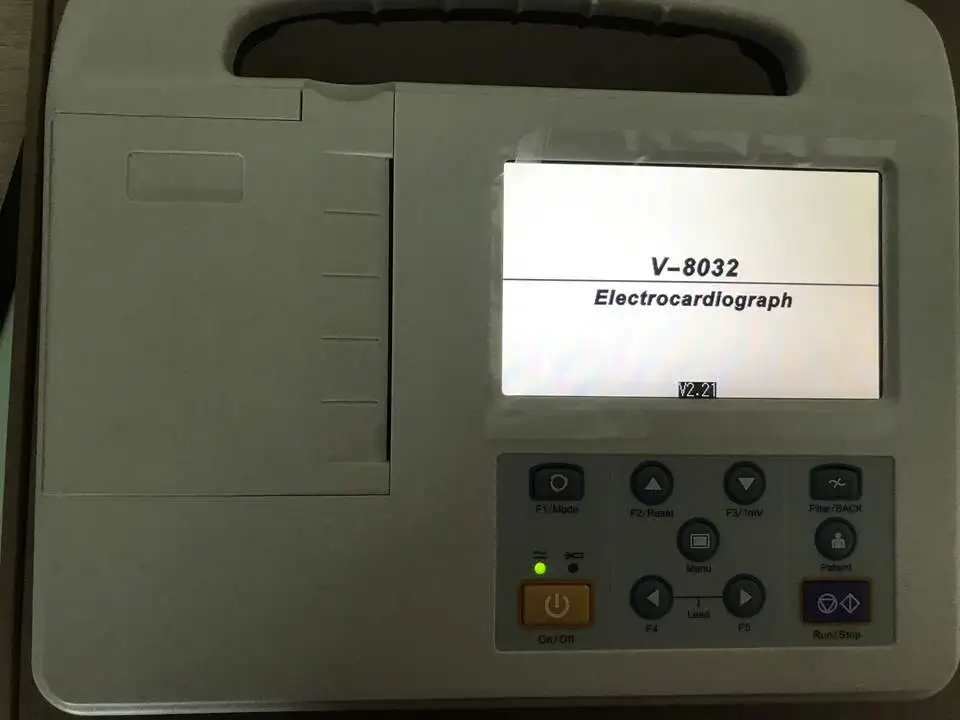

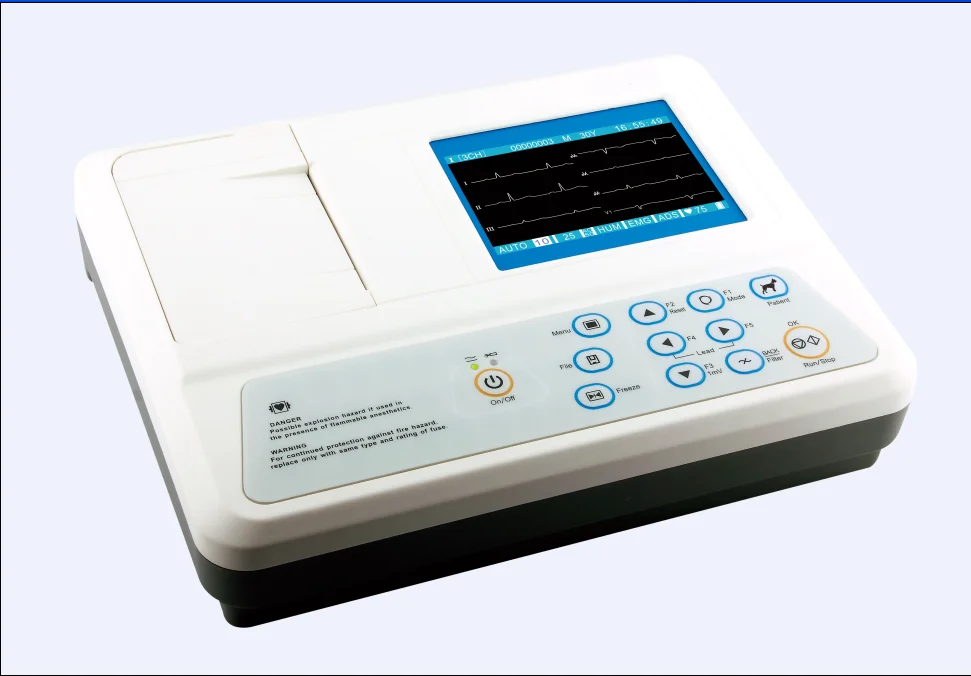

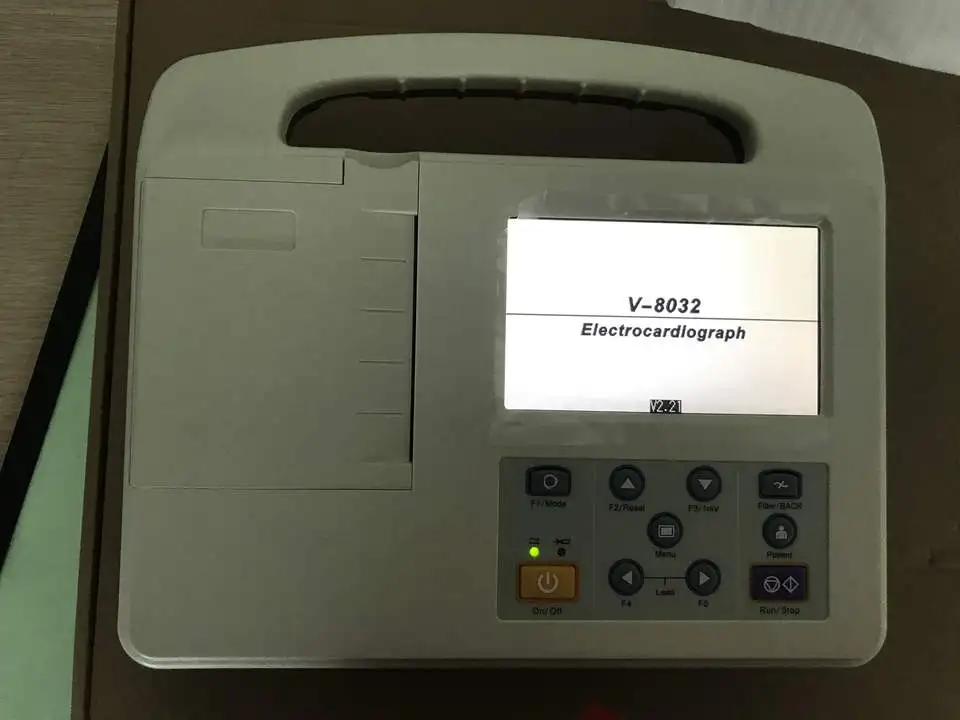

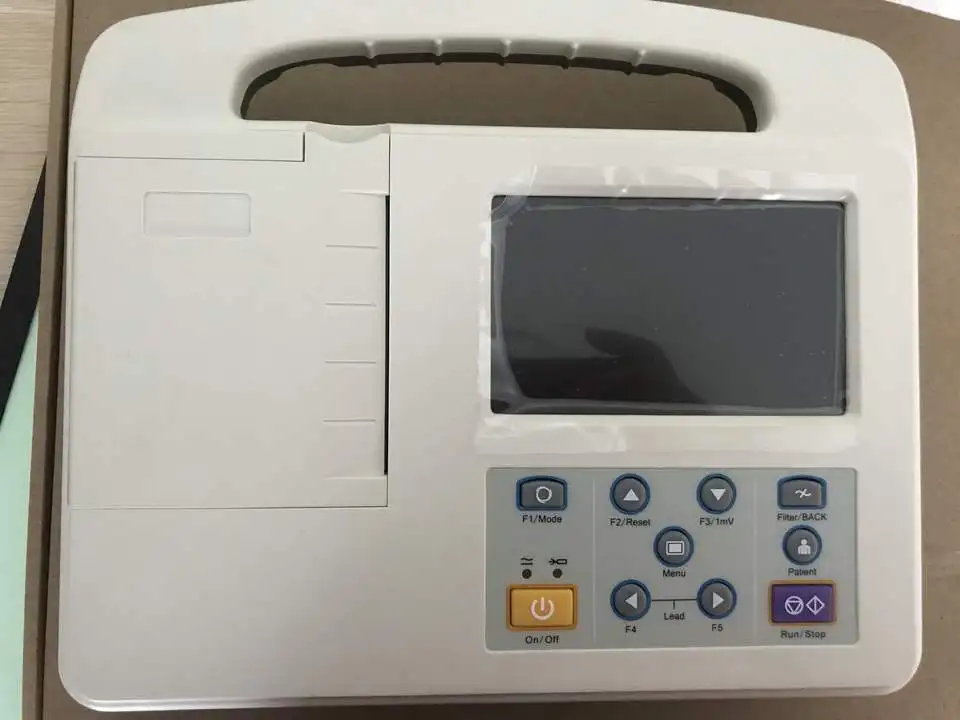

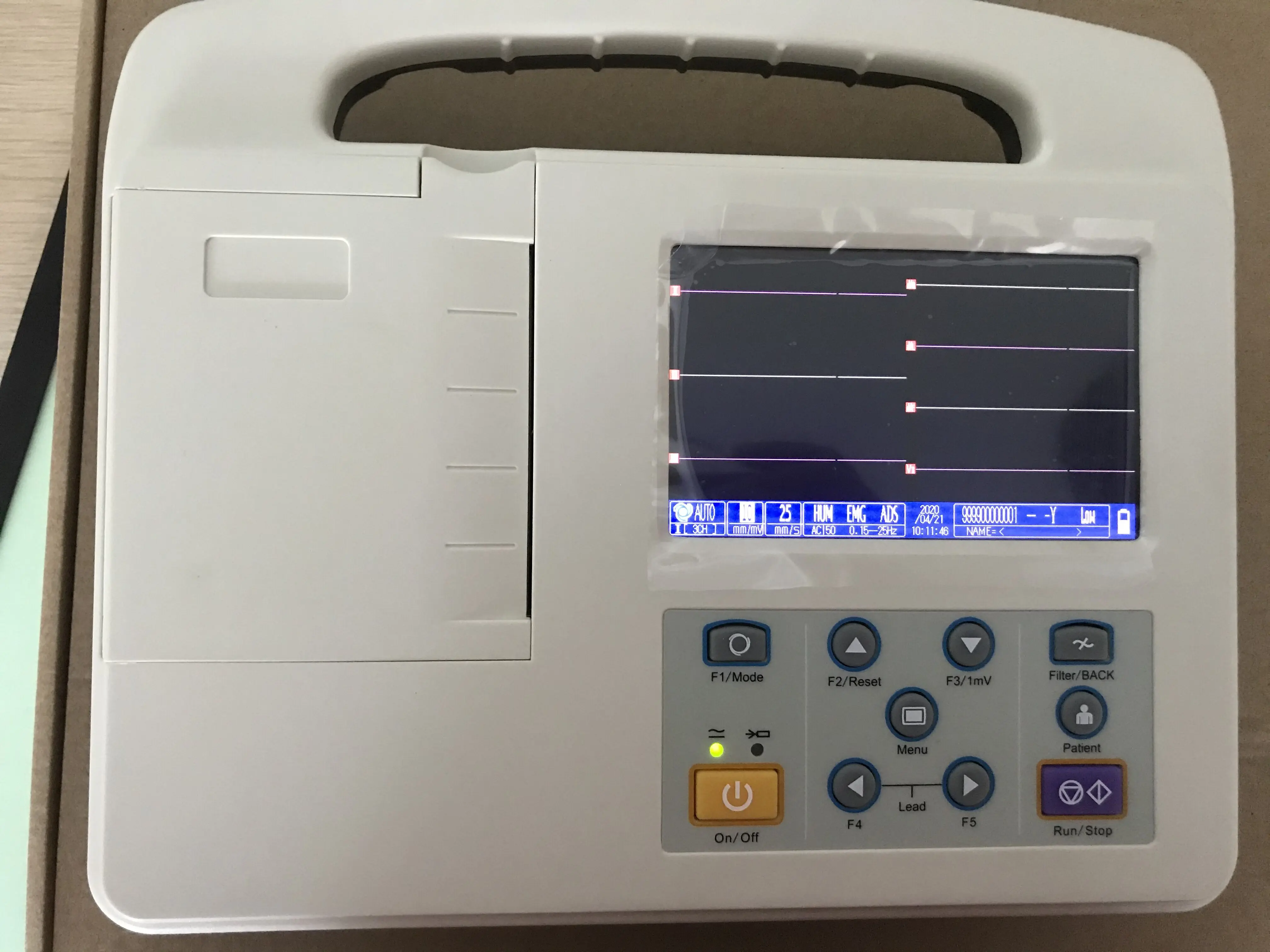

Easy Operating 6 channel High accuracy Smart Electrocardiogram Veterinary ECG for animal
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1601003852088):
Product Overview
Description
Product Description
Easy Operating 6 channel High accuracy Smart Electrocardiogram Veterinary ECG for animal
Specification
Features
1. 7 leads synchronously acquisition and record, excellent auto-interpretation function
2.High accuracy digital filter, auto-baseline adjustment
3.Working modes: Manual / Auto / R-R Rhythm
4.Recording mode: 1ch+, 3ch, 3ch+
5. 800×480 graphic, 5 inch color LCD to display detailed ECG information
6. 250 cases storage and replay (SD card storage is optional)
7. Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.
8. 80mm*20m high resolution thermal printing
9. Rs232 and USB interface ( USB disk storage, laser printer printing , Veterinary PC ECG software are optional )
10. 300mm*230mm*75mm, 2.8kgs
2.High accuracy digital filter, auto-baseline adjustment
3.Working modes: Manual / Auto / R-R Rhythm
4.Recording mode: 1ch+, 3ch, 3ch+
5. 800×480 graphic, 5 inch color LCD to display detailed ECG information
6. 250 cases storage and replay (SD card storage is optional)
7. Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.
8. 80mm*20m high resolution thermal printing
9. Rs232 and USB interface ( USB disk storage, laser printer printing , Veterinary PC ECG software are optional )
10. 300mm*230mm*75mm, 2.8kgs
Specifications
Lead：Standard 7 leads
Time constant：≥3.2s
lead acquisition：12bit/1000Hz (synchronously 7 leads)
Frequency response：0.05～160Hz(-3db)
Work mode“”Man / Auto / R-R Rhythm
Noise level：＜15μVp-p
Filter：AC Filter : 50Hz / 60Hz；EMG Filter : 25Hz / 45Hz；Anti-Drift Filter : 0.15Hz (Adaptive)
Interchannel Interference：≤0.5mm
CMMR：≥120dB (with AC FILTER)
Sensitivity：2.5，5，10，20, 40, Auto (mm/mV)
Input circuit：Floating; Protection circuit against Defibrillator effect
Recording mode：3ch, 3ch+；Default Man. Mode is 3ch format；Default Auto. Mode is 3ch+V format
Input Impedance：≥50MΩ
Paper speed：6.25、12.5、25、50mm/s（±3％）
Input circuit current：≤0.05μA
Paper ：80mm *20m Roll paper
Patient current leakage：＜10μA
Communication：RS232/ USB port
Calibrating voltage：1mV±2％
Power Supply：AC 75-265V(±10%),50/60Hz（±1Hz),40VA；DC Built-in rechargeable battery,12V(1500mAh)
Voltage tolerance：≥±500mV
Dimension/Weight：300mm×230mm×75mm / 2.8Kg
Time constant：≥3.2s
lead acquisition：12bit/1000Hz (synchronously 7 leads)
Frequency response：0.05～160Hz(-3db)
Work mode“”Man / Auto / R-R Rhythm
Noise level：＜15μVp-p
Filter：AC Filter : 50Hz / 60Hz；EMG Filter : 25Hz / 45Hz；Anti-Drift Filter : 0.15Hz (Adaptive)
Interchannel Interference：≤0.5mm
CMMR：≥120dB (with AC FILTER)
Sensitivity：2.5，5，10，20, 40, Auto (mm/mV)
Input circuit：Floating; Protection circuit against Defibrillator effect
Recording mode：3ch, 3ch+；Default Man. Mode is 3ch format；Default Auto. Mode is 3ch+V format
Input Impedance：≥50MΩ
Paper speed：6.25、12.5、25、50mm/s（±3％）
Input circuit current：≤0.05μA
Paper ：80mm *20m Roll paper
Patient current leakage：＜10μA
Communication：RS232/ USB port
Calibrating voltage：1mV±2％
Power Supply：AC 75-265V(±10%),50/60Hz（±1Hz),40VA；DC Built-in rechargeable battery,12V(1500mAh)
Voltage tolerance：≥±500mV
Dimension/Weight：300mm×230mm×75mm / 2.8Kg
Packing
Product | 300mm*230mm*75mm |
Net Weight | 2.8kgs |
Scanned Images
Recommend Products
Packing & Delivery

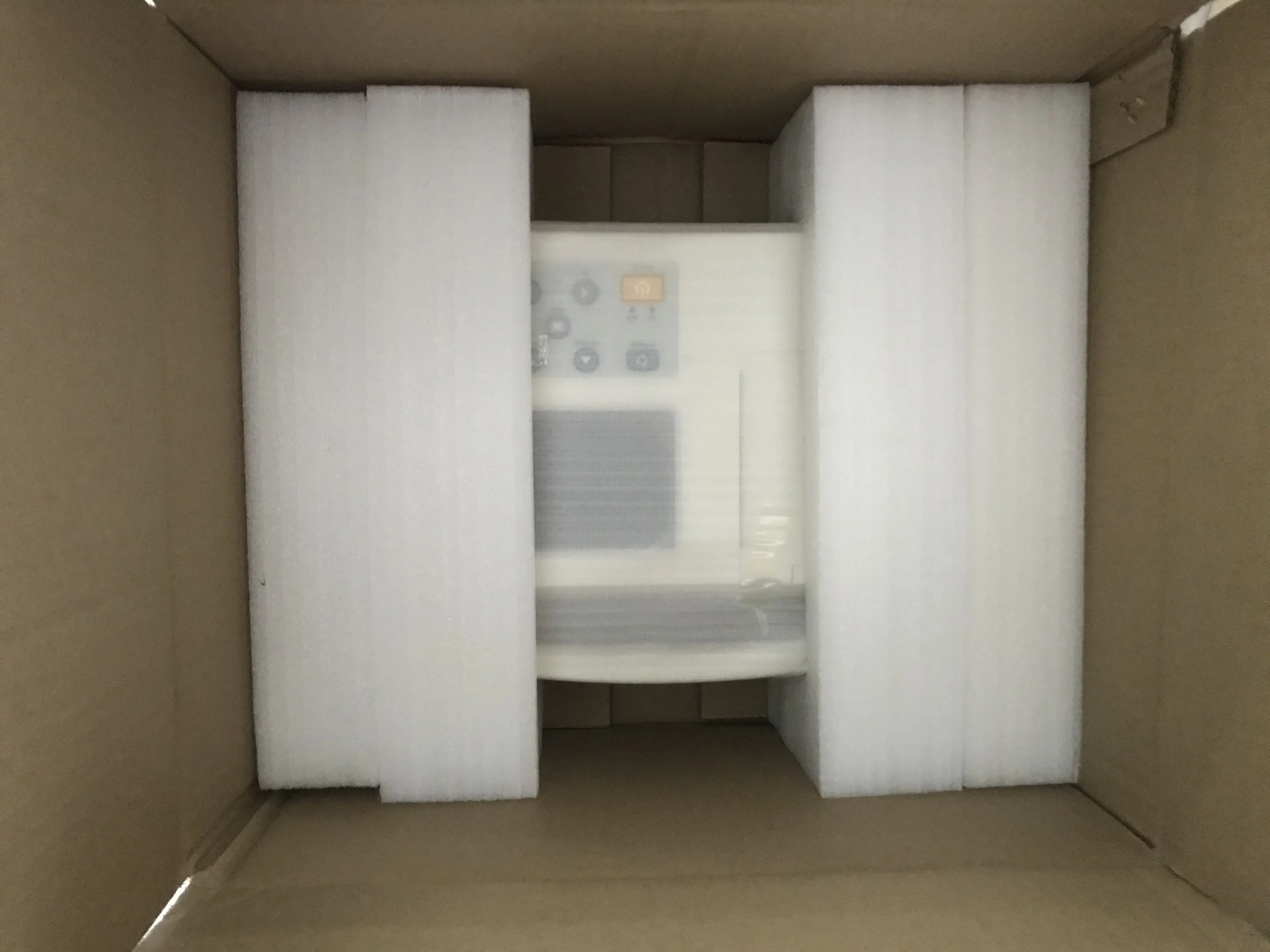

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
