DECCA VC97 digital multimeter New Model Auto Range AC DC Voltage Current With Temperature Measurement Tester multimeters
- Category: >>>
- Supplier: Decca Precision Measuring Instrument (Shenzhen) Co. Ltd.
Share on (1601003873449):
Product Overview
Description
DECCA new VC97 Digital Multimeter NCVAuto Range True RMS 3999 counts New Product Test AC/DC voltage current meter
Products Description
This professional multi-functional multimeter with stable performance and high precision can measure DC/AC voltage, AC/DC current,resistance, capacitance, frequency, duty ratio. Dual-slop integrating A/D converter system
Advantages: Metal shielding plate for good anti-magnetic and anti-jamming ability. Full protection function, design of high -voltage fire-proof circuit.

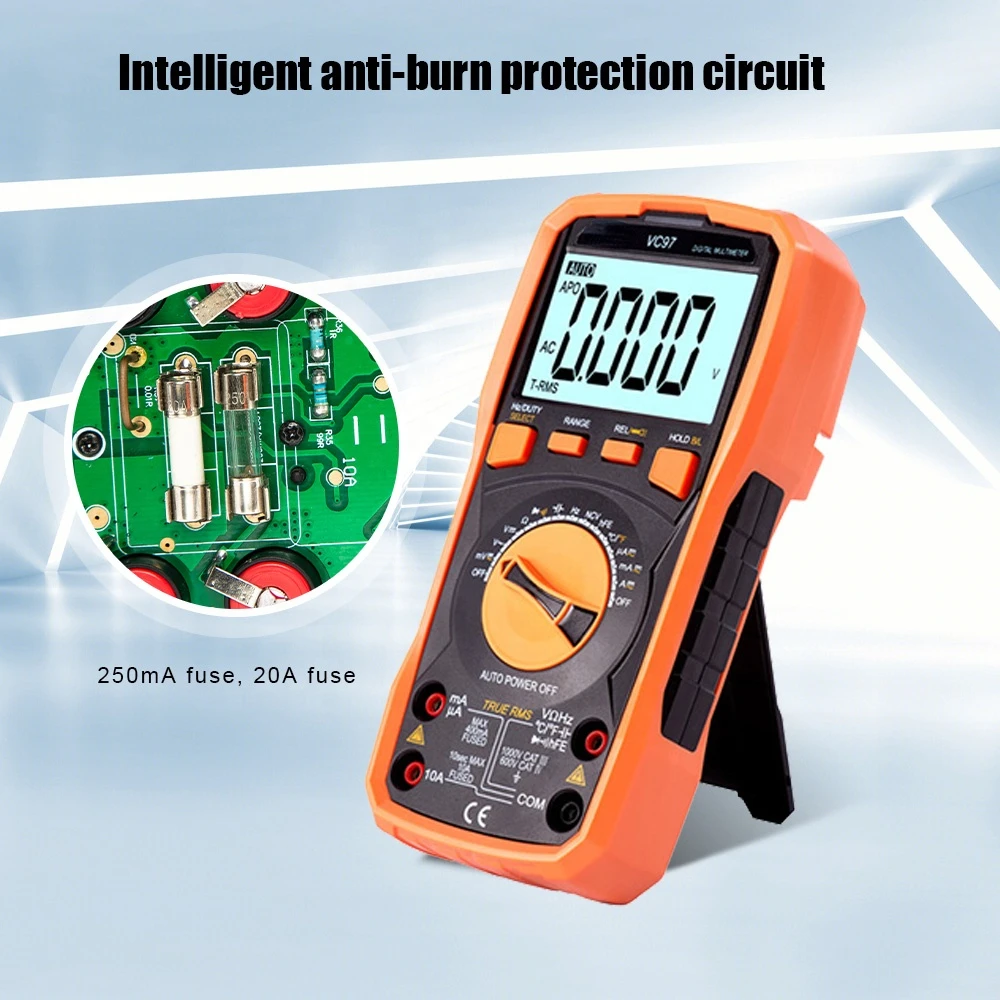

The Digital Multimeter can display 3999 counts and test AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature, continuity and hFE test with 10 auto-ranging. Precision Circuit Board & Overload Protection: Use the ceramics protection circuit for resistance, frequency measurement, shielding interference and continuity test can be 70Ohm.
Advantages: Metal shielding plate for good anti-magnetic and anti-jamming ability. Full protection function, design of high -voltage fire-proof circuit.
The Digital Multimeter can display 3999 counts and test AC/DC voltage/current, diode, resistance, capacitance, frequency, duty cycle, temperature, continuity and hFE test with 10 auto-ranging. Precision Circuit Board & Overload Protection: Use the ceramics protection circuit for resistance, frequency measurement, shielding interference and continuity test can be 70Ohm.

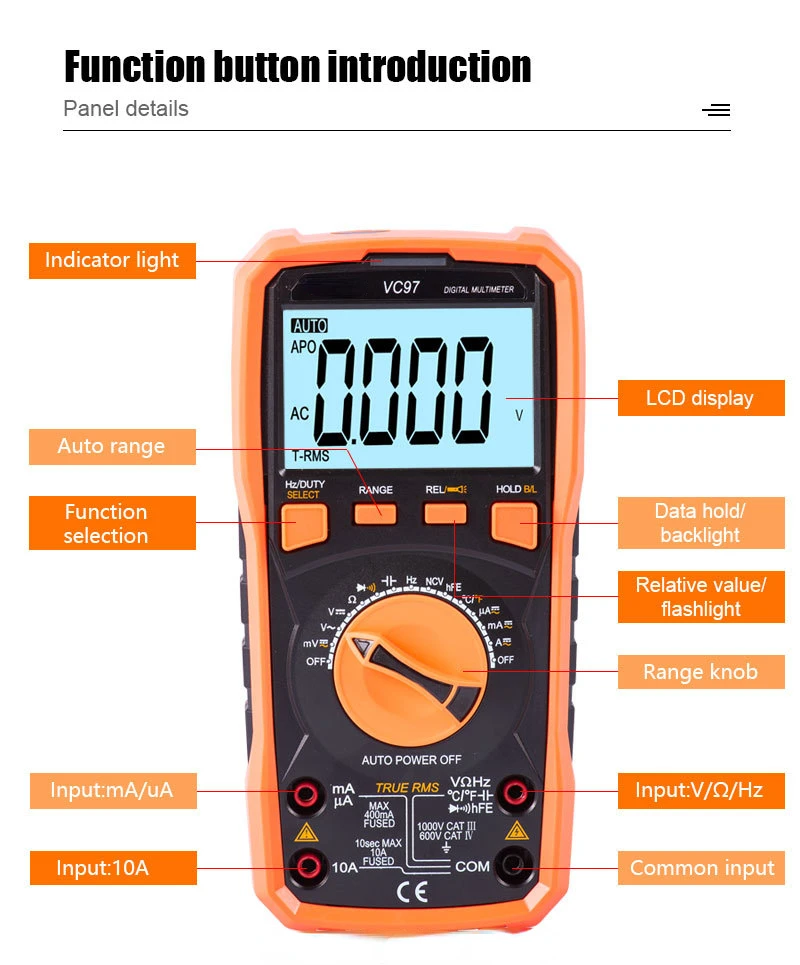

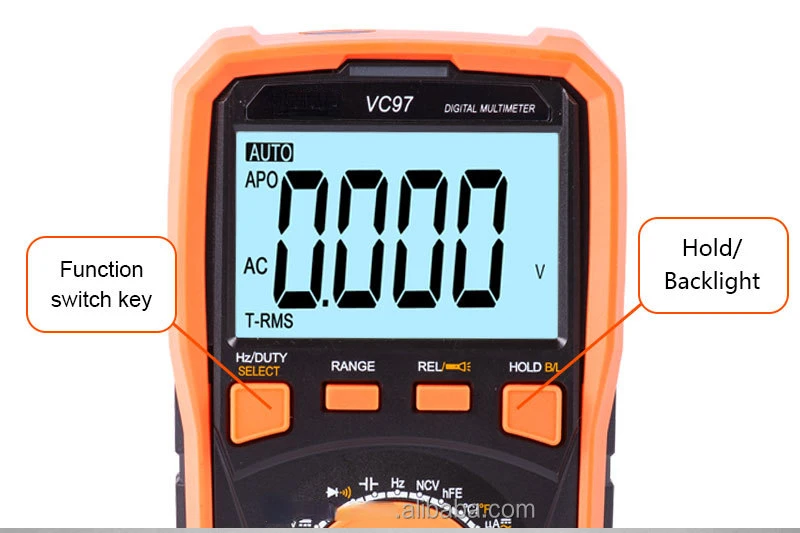

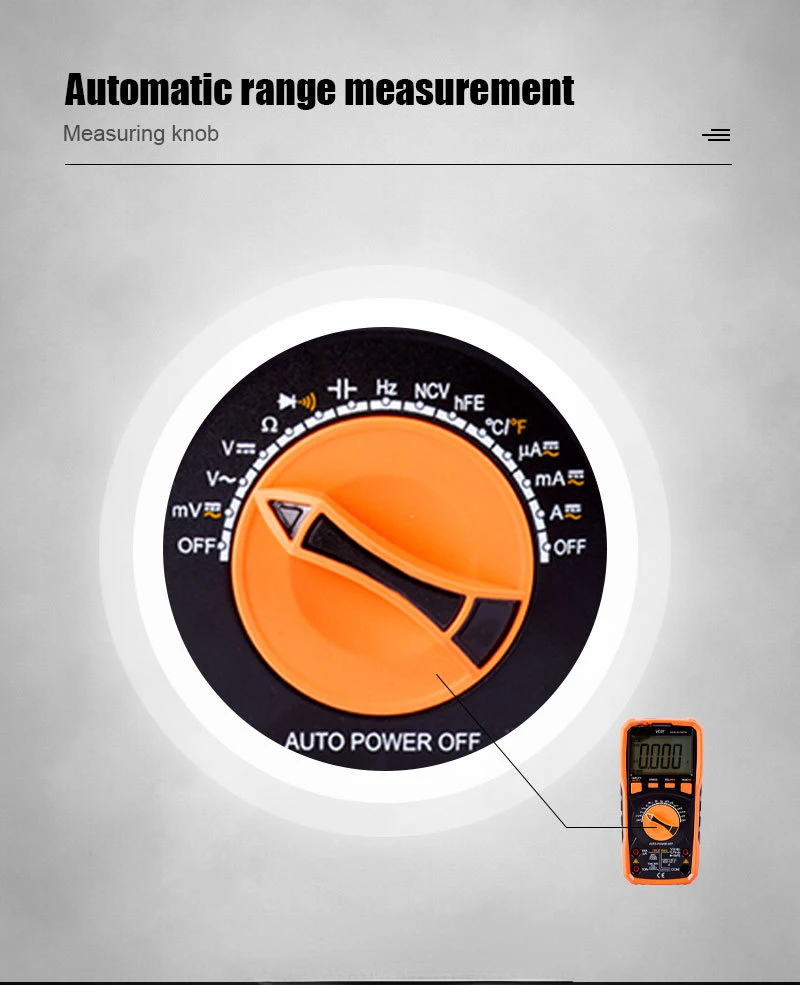

Easy to Use & Clear to Read: Large LCD display with backlight, convenient to use. With a test socket for transfering test of resistance, capacitance, triode and diode. Range Control: Auto Range & Manual Range

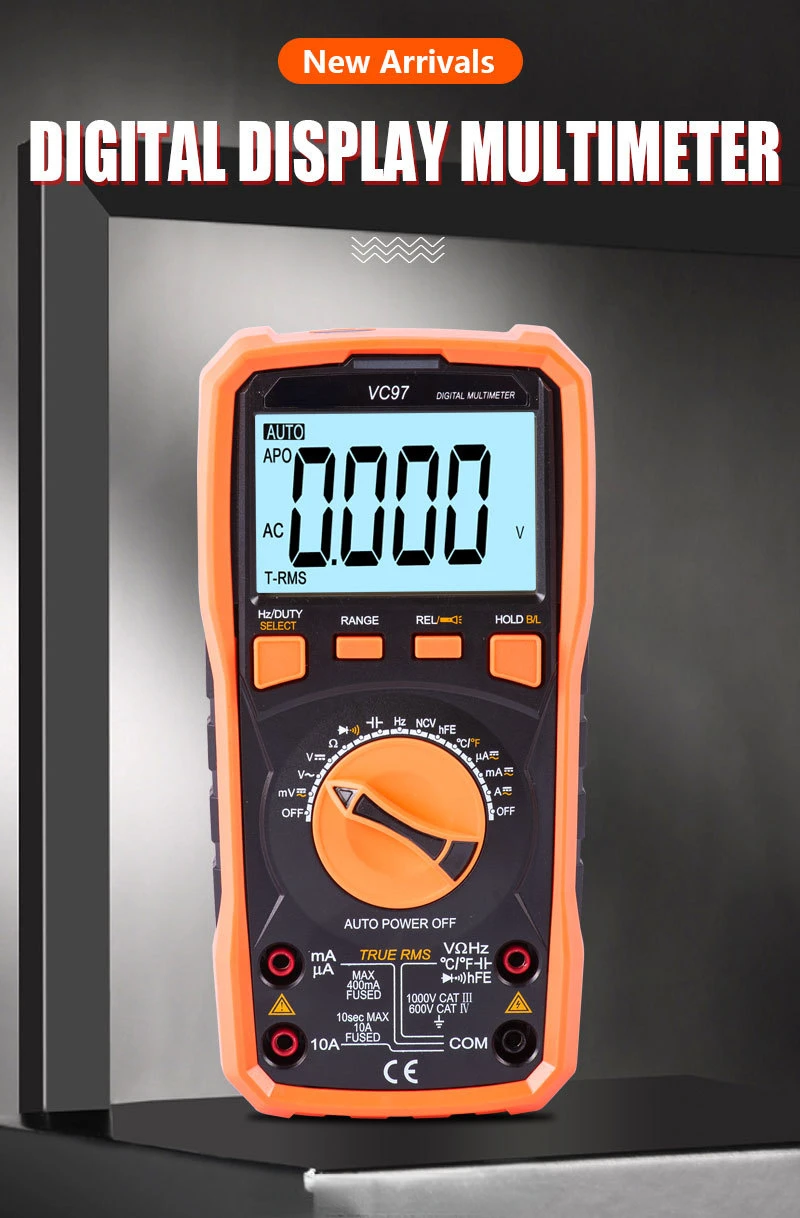

new VC97 3 3/4 Auto Range Digital Multimeter

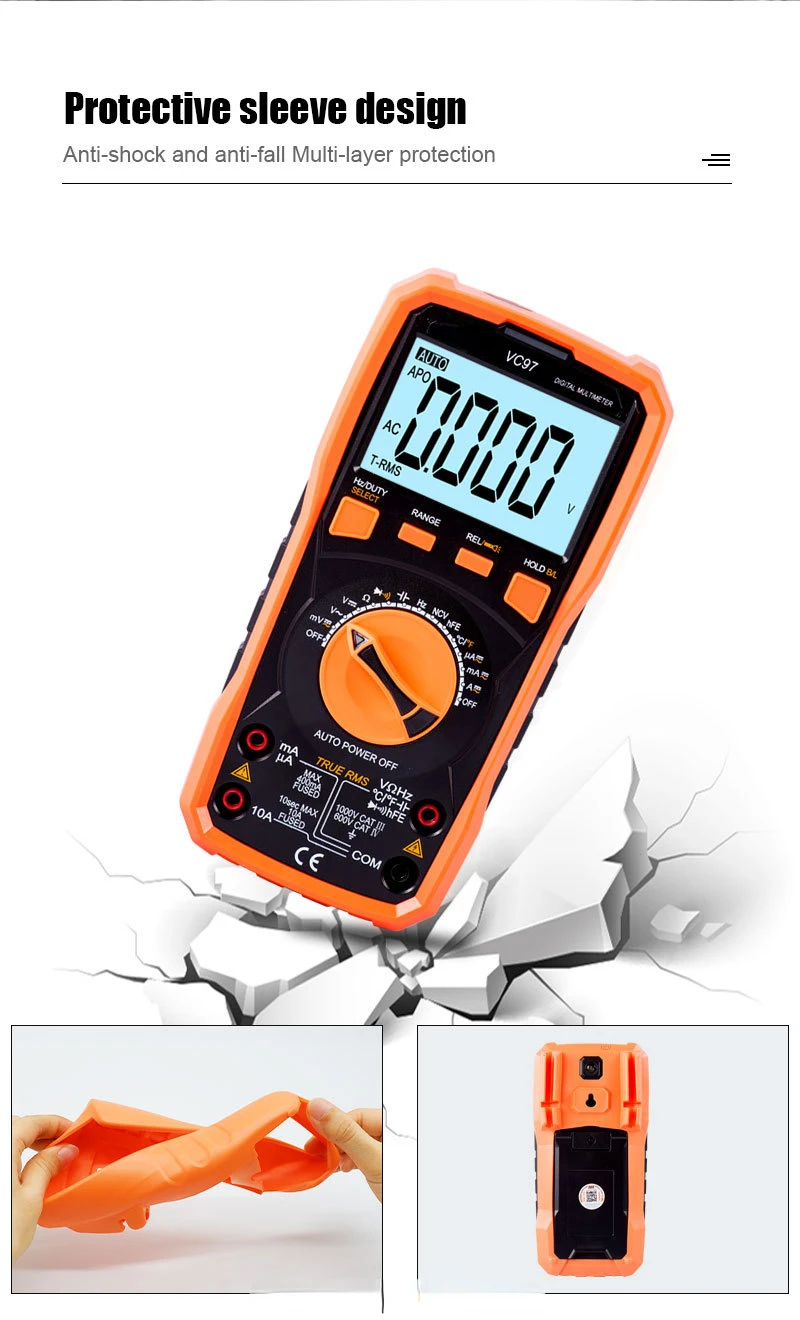

·New type holster, streamline design.

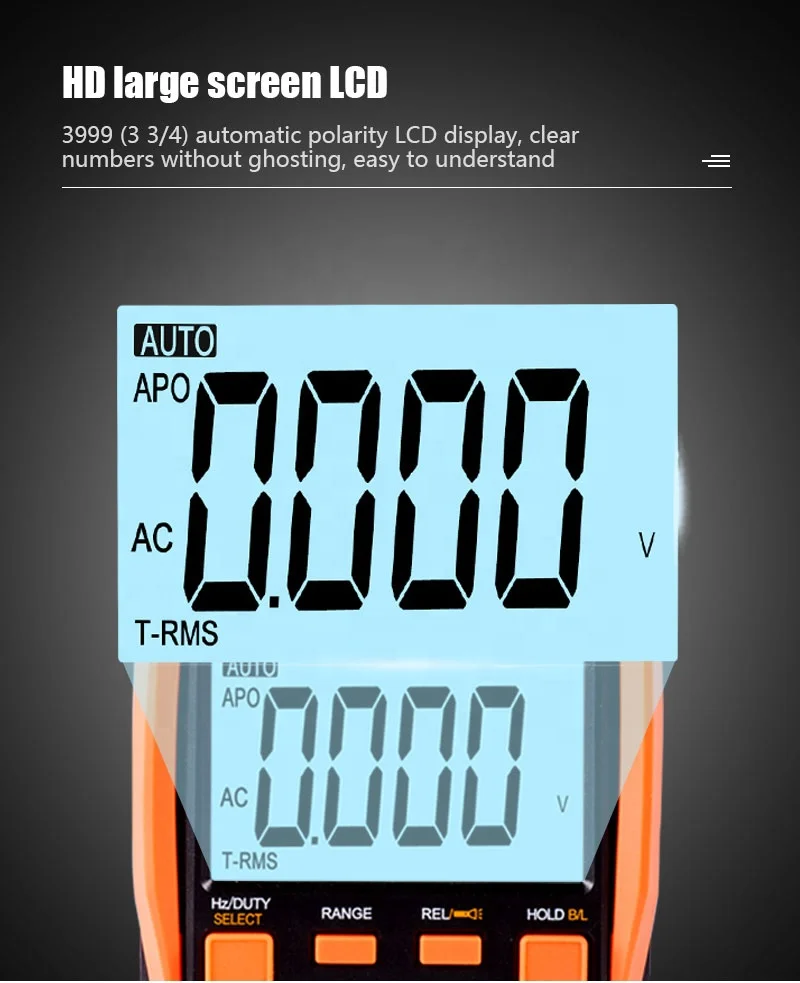

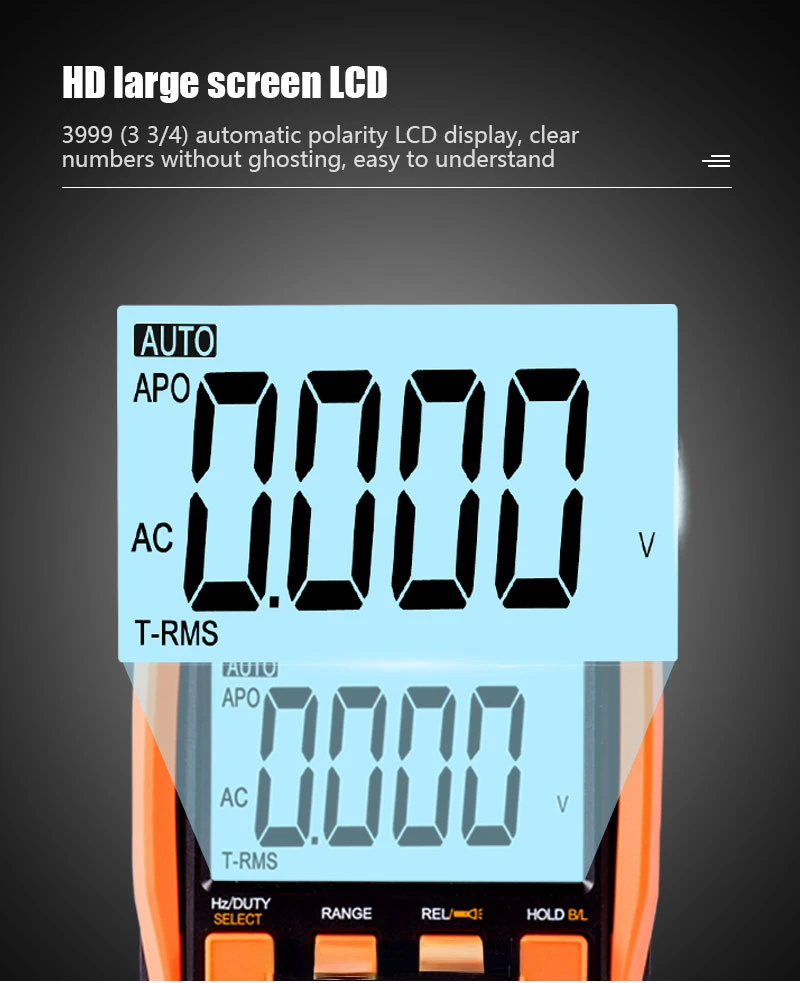

·Large LCD makes the reading clearly. Backlight.
·Metallic screen board with stronger antimagnetic and anti-interferential function.

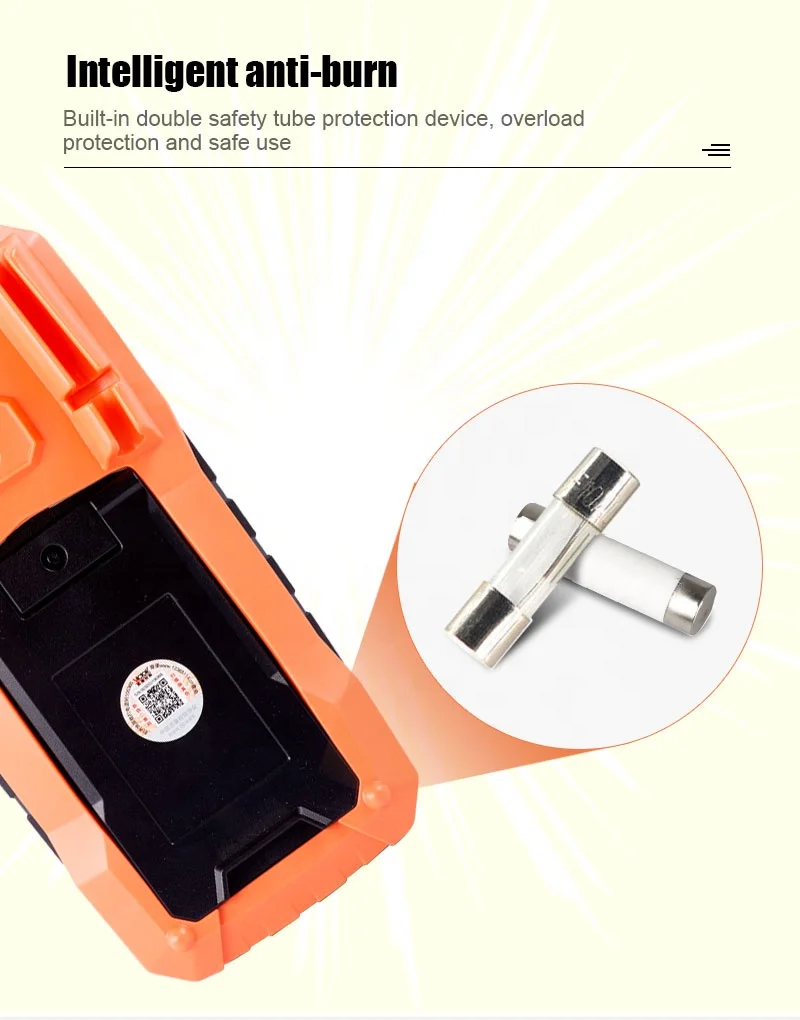

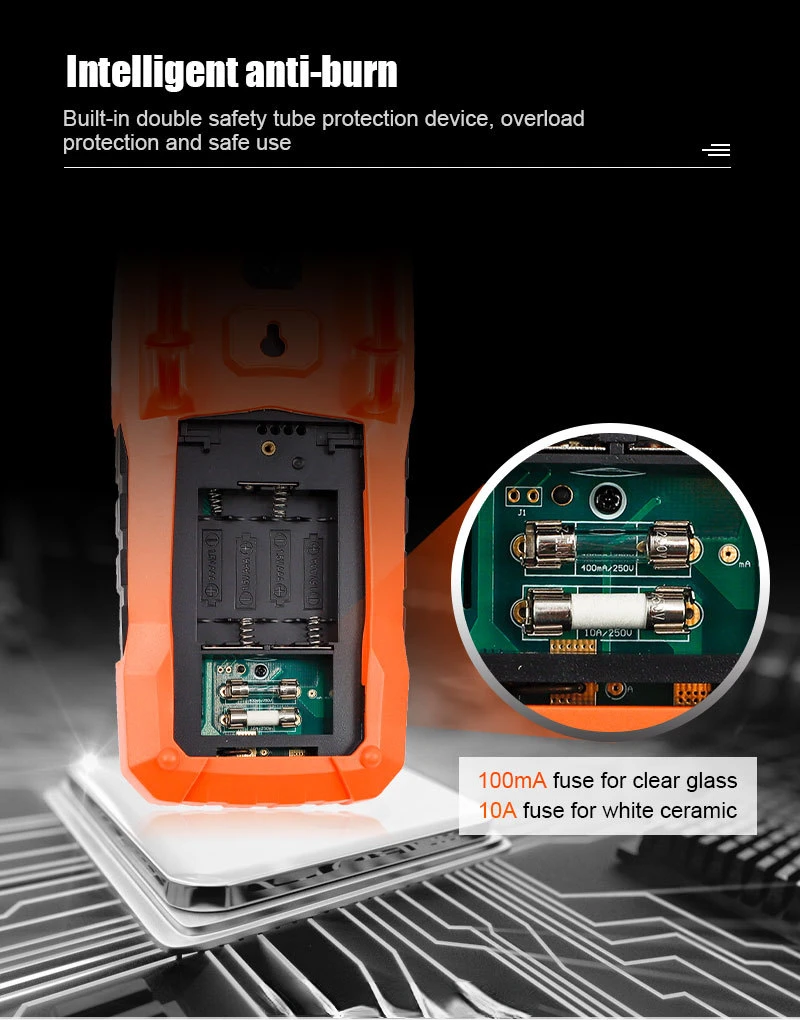

·Full function protection, anti-high voltage circuit design.
.CAT-IV 600V
.True RMS
·New type holster, streamline design.
·Large LCD makes the reading clearly. Backlight.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.
.CAT-IV 600V
.True RMS
NCV

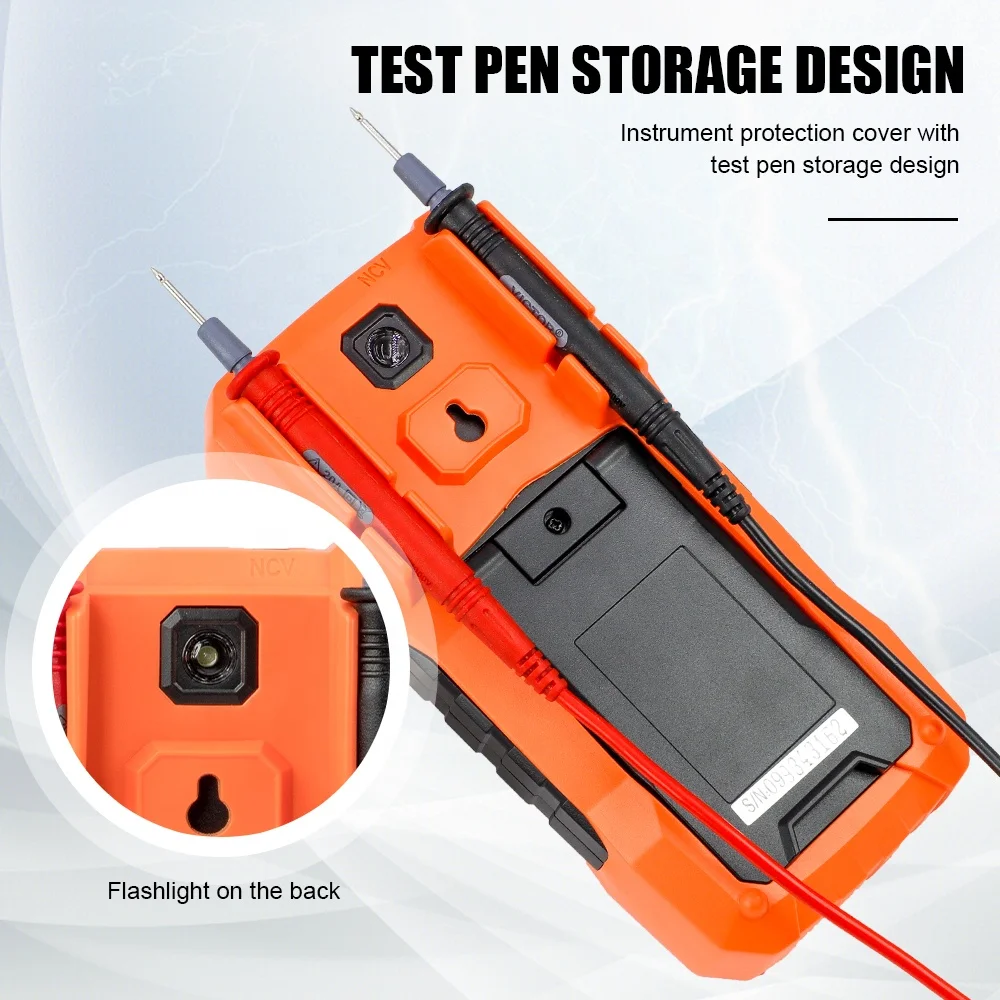

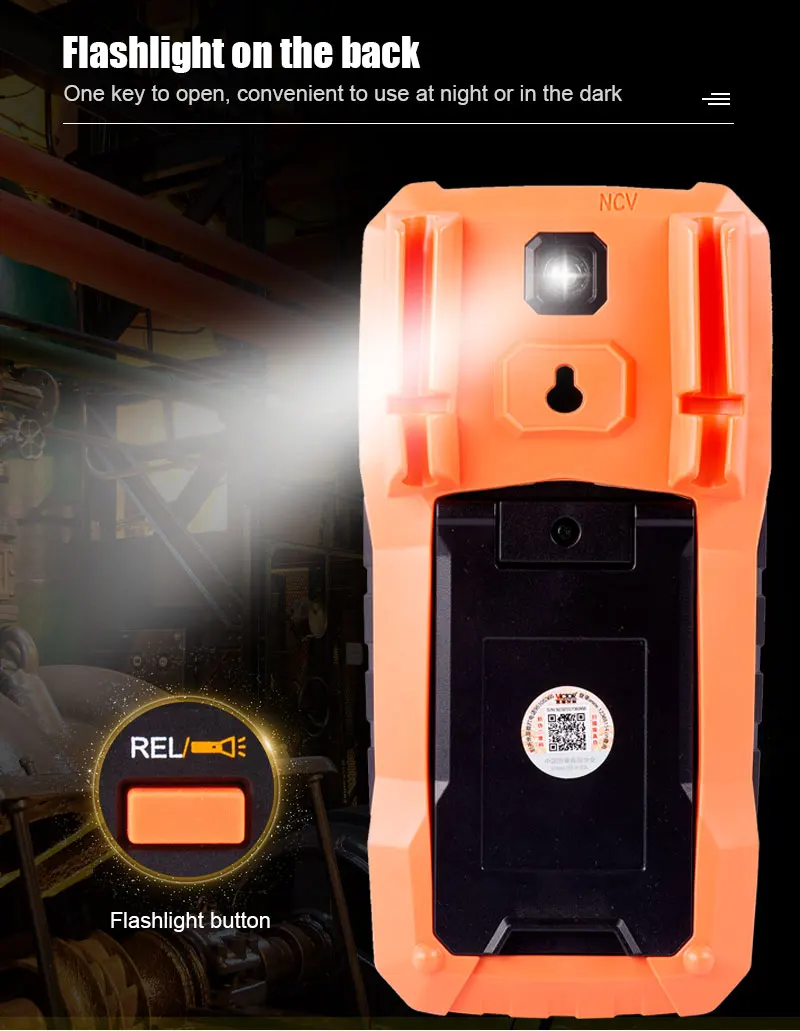

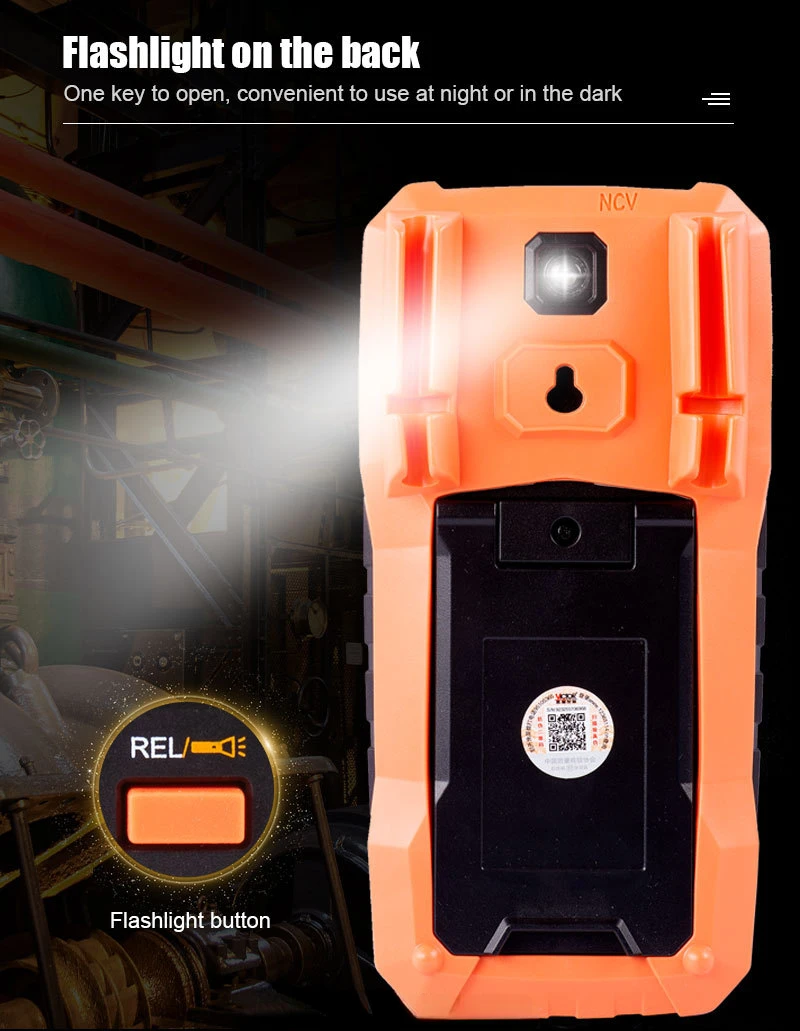

Flashlight

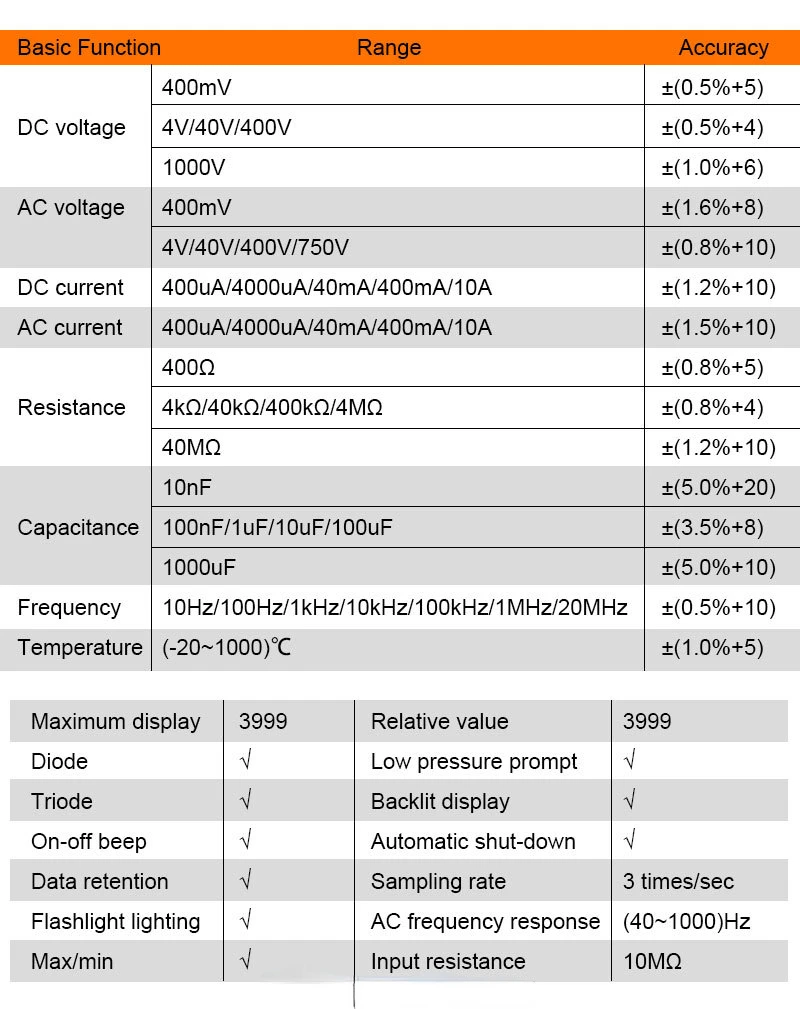

Specification
\t\t\t Basic Function \t\t\t | \t\t\t Range \t\t\t | \t\t\t Accuracy \t\t\t |
\t\t\t DC Voltage \t\t\t | \t\t\t 400mV/4V/40V/400V/1000V \t\t\t | \t\t\t ±(0.5%+4) \t\t\t |
\t\t\t AC Voltage \t\t\t | \t\t\t 400mV/4V/40V/400V/750V \t\t\t | \t\t\t ±(0.8%+10) \t\t\t |
\t\t\t DC Current \t\t\t | \t\t\t 400uA/4000uA/40mA/400mA/10A \t\t\t | \t\t\t ±(1%+10) \t\t\t |
\t\t\t AC Current \t\t\t | \t\t\t 400uA/4000uA/40mA/400mA/10A \t\t\t | \t\t\t ±(1.5%+10) \t\t\t |
\t\t\t Resistance \t\t\t | \t\t\t 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ \t\t\t | \t\t\t ±(0.8%+4) \t\t\t |
\t\t\t Capacitance \t\t\t | \t\t\t 10nF \t\t\t | \t\t\t ±(5%+20) \t\t\t |
\t\t\t \t\t\t | \t\t\t 100nF/1uF/10uF/100uF \t\t\t | \t\t\t ±(3.5%+8) \t\t\t |
\t\t\t \t\t\t | \t\t\t 1mF/10mF/100mF \t\t\t | \t\t\t ±(5.0%+10) \t\t\t |
\t\t\t Frequency \t\t\t | \t\t\t 100/1000/10k/100k/1M/30MHz \t\t\t | \t\t\t ±(0.5%+10) \t\t\t |
\t\t\t Celsius \t\t\t | \t\t\t (-20~1000)℃ (-4-1832)℉ \t\t\t | \t\t\t ±(1.0%+5) \t\t\t |
\t\t\t Special Function \t\t\t | \t\t\t \t\t\t | |
\t\t\t Diode \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Transistor \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Continuity buzzer \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Low battery indication \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Data Hold \t\t\t | \t\t\t √ \t\t\t | |

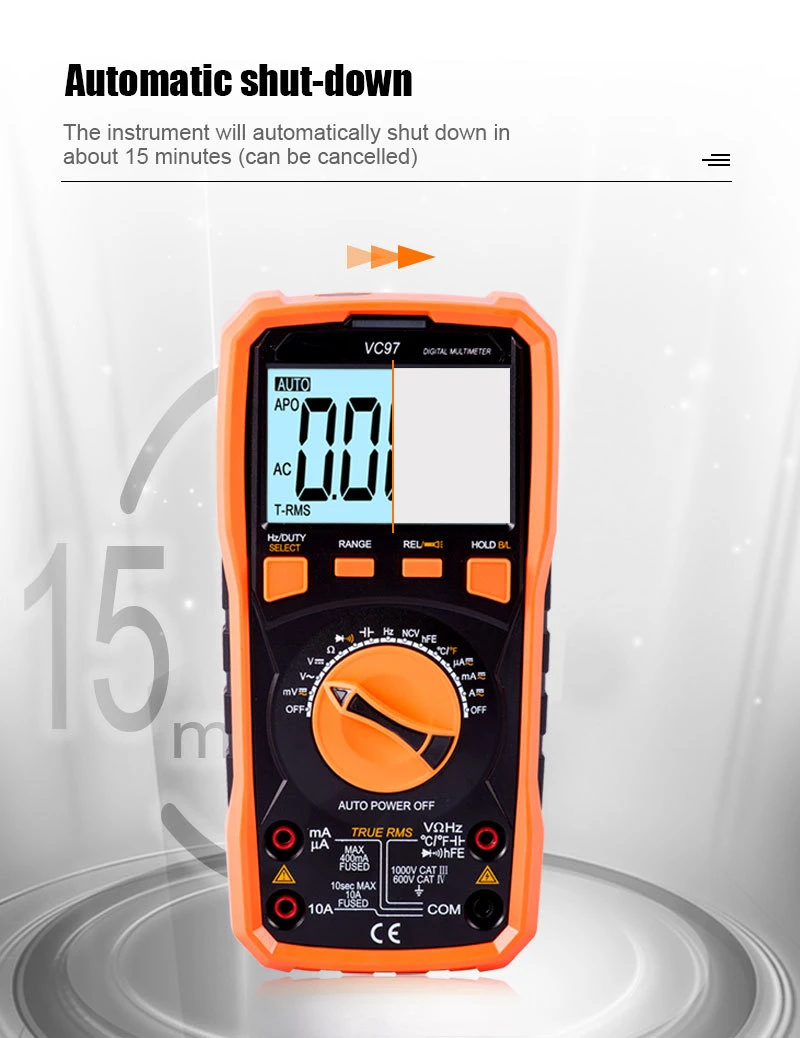

\t\t\t Auto power off \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Analog bar graph \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Shockproof protection \t\t\t | \t\t\t √ \t\t\t | |
\t\t\t Function protection \t\t\t | \t\t\t 1%~99.% \t\t\t | |
\t\t\t Input impedance \t\t\t | \t\t\t 10MΩ \t\t\t | |
\t\t\t Sampling rate \t\t\t | \t\t\t 3 times/s \t\t\t | |
\t\t\t AC Frequency response \t\t\t | \t\t\t 40~1000Hz \t\t\t | |
\t\t\t Operation way \t\t\t | \t\t\t Auto range \t\t\t | |
\t\t\t Max. Display \t\t\t | \t\t\t 3999 \t\t\t | |
\t\t\t LCD size \t\t\t | \t\t\t 65×35mm \t\t\t | |

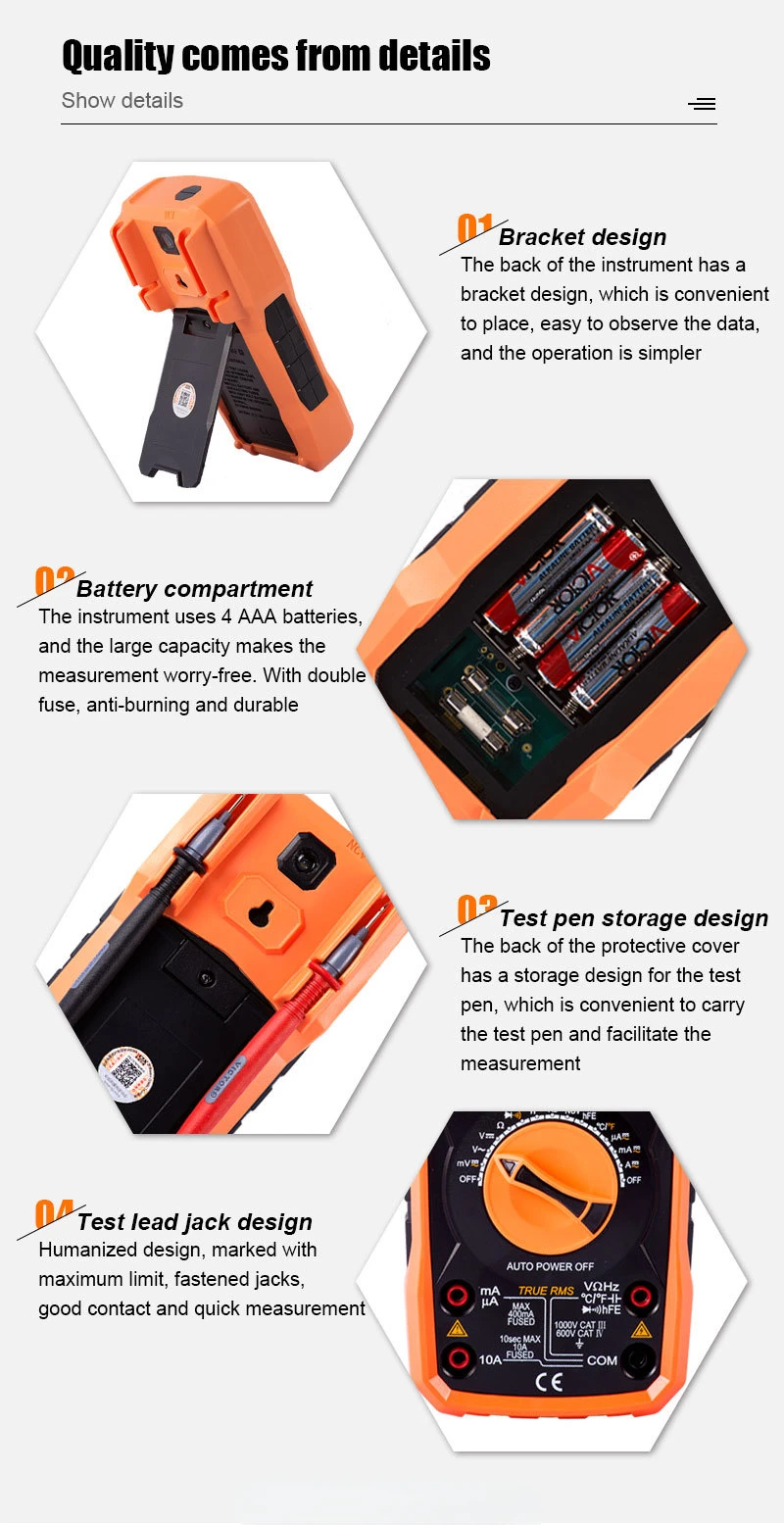

\t\t\t Battery \t\t\t | \t\t\t 1.5V AAA LR03 Battery \t\t\t | |
\t\t\t Product Color \t\t\t | \t\t\t Case: black ; Holster color:orange \t\t\t |
\t\t\t Product Net Weight \t\t\t | \t\t\t Approx:420g \t\t\t |
\t\t\t Product Dimension \t\t\t | \t\t\t 190×93.5×37mm \t\t\t |
\t\t\t Standard Accessories \t\t\t | \t\t\t Test leads,battery,instruction manual,TP01 temperature probe(with temperature function) \t\t\t |
\t\t\t Standard inner packing \t\t\t | \t\t\t Color box \t\t\t |
\t\t\t Standard Quantity Per Carton \t\t\t | \t\t\t 30Pcs \t\t\t |
\t\t\t Carton size \t\t\t | \t\t\t 465×317×506mm \t\t\t |
\t\t\t Standard Gross Weight \t\t\t | \t\t\t Approx:22kg \t\t\t |
