Product Overview
Description
Difference/Same Between Da hua Origianl & OEM | ||||
Options | Da hua | OEM | ||
Manufacturer | Da hua Original | |||
LOGO | Da hua Original | Your Owm LOGO | ||
Function | All of the Function Same | |||
Software | The Same APP & Software | |||
Accessories | All of the Accessories are Same as Hik Original | |||
We sell all Hikvison ,Da hua products! OEM All Hikvsion, Da hua products !
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount.
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount.
Products Description

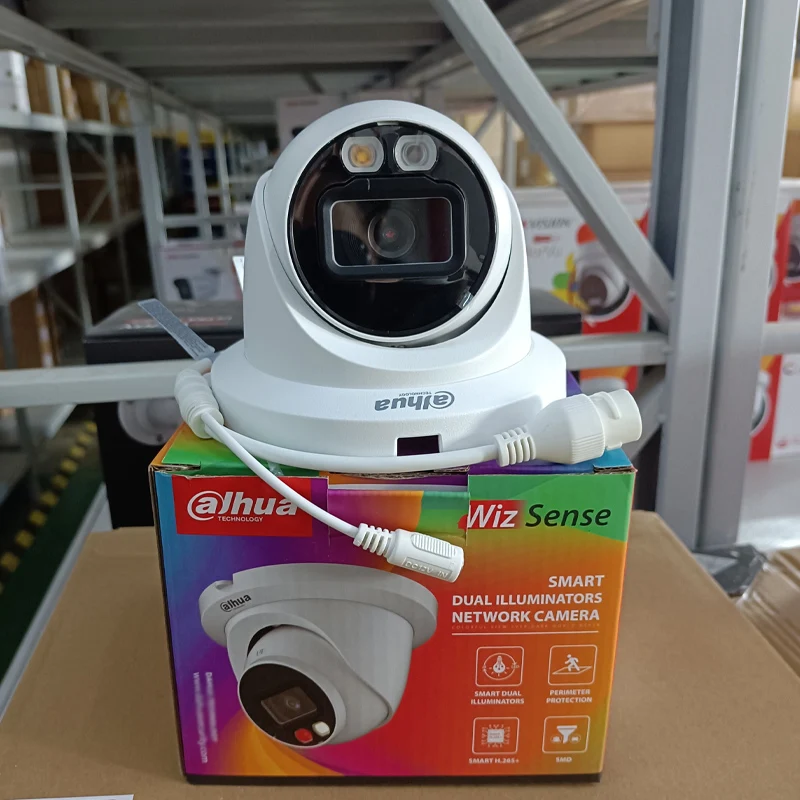

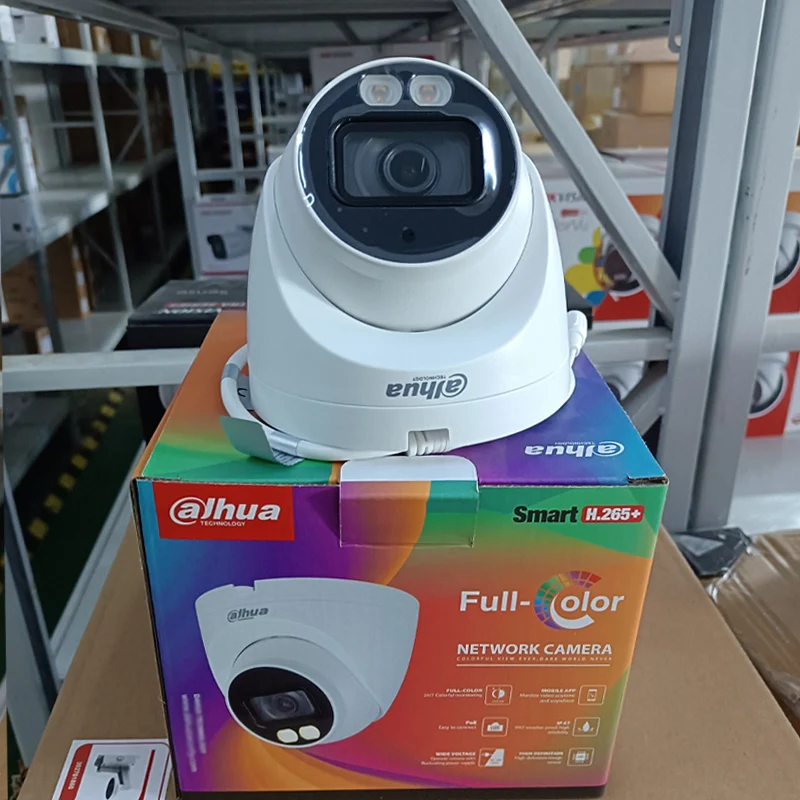

Dahua Smart Motion Detection 4MP Lite Full-color IP67 30M Fixed-focal Eyeball 4K POE Ip Network Camera IPC-HDW2439T-AS-LED
4MP Lite Full-color Fixed-focal Eyeball Network Camera
> 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
> high compression rate, ultra-low bit rate
> Built-in warm lights, max. illumination distance: 30 m
> ROI, SMART H.264+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP
conflict, illegal access, voltage detection
> Supports max. 256 GB Micro SD card and built-in Mic
> 12V DC/PoE power supply
> IP67 protection
> 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
> high compression rate, ultra-low bit rate
> Built-in warm lights, max. illumination distance: 30 m
> ROI, SMART H.264+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP
conflict, illegal access, voltage detection
> Supports max. 256 GB Micro SD card and built-in Mic
> 12V DC/PoE power supply
> IP67 protection
TiOC Bullet
2x4MP IPC-PFW3849S-A180-AS-PV
2x4MP IPC-PDW3849-A180-AS-PV
4MP IPC-HDW3449H-AS-PV
5MP IPC-HDW3549H-AS-PV
8MP IPC-HDW3849H-AS-PV
4MP IPC-HDW3449H-ZAS-PV
5MP IPC-HDW3549H-ZAS-PV
8MPIPC-HDW3849H-ZAS-PV
4MP IPC-HDBW3449R1-ZAS-PV
5MP IPC-HDBW3549R1-ZAS-PV
8MP IPC-HDBW3849R1-ZAS-PV
Turret
2MP IPC-HDW2241T-ZS
4MP IPC-HDW2441T-ZS
5MP IPC-HDW2541T-ZS
8MP IPC-HDW2841T-ZS
4MP IPC-HDW3441EM-S-S2
5MP IPC-HDW3541EM-S-S2
8MP IPC-HDW3541EM-S-S2
2MP IPC-HDW3241T-ZS-S2
4MP IPC-HDW3441T-ZS-S2
5MP IPC-HDW3541T-ZS-S2
8MP IPC-HDW3841T-ZS-S2
Dome
2MP IPC-HDBW2241R-Z(A)S
4MP IPC-HDBW2441R-Z(A)S
5MP IPC-HDBW2541R-Z(A)S
8MP IPC-HDBW2841R-Z(A)S
8MP IPC-HDBW5831E-ZE
8MP IPC-HDBW5831E-Z5E
2MP IPC-HDBW2241E-S
4MP IPC-HDBW2441E-S
5MP IPC-HDBW2541E-S
8MP IPC-HDBW2841E-S
Bullet
2MP IPC-HFW2241T-AS
4MP IPC-HFW2441T-AS
5MP IPC-HFW2541T-AS
8MP IPC-HFW2841T-AS
4MP IPC-HFW2441T-Z(A)S
5MP IPC-HFW2541T-Z(A)S
8MP IPC-HFW2841T-Z(A)S
4MP IPC-HFW3449T1-AS-PV
5MP IPC-HFW3549T1-AS-PV
8MP IPC-HFW3849T1-AS-PV
Bullet
2MP IPC-HFW3249E-AS-LED
4MP IPC-HFW3449E-AS-LED
5MP IPC-HFW3549E-AS-LED
4MP IPC-HFW3441E-(A)S-S2
5MP IPC-HFW3541E-(A)S-S2
8MP IPC-HFW3841E-(A)S-S2
4MP IPC-HFW3449E-AS-NI
8MP IPC-HFW4831T-ASE
8MP IPC-HFW5831E-ZE
8MP IPC-HFW5831E-Z5E
Bullet
2MP IPC-HFW2230S-S-S2
4MP IPC-HFW2441S-S
5MP IPC-HFW2541S-S
8MP IPC-HFW2841S-S
4MP IPC-HFW2449S-S-IL
5MP IPC-HFW2549S-S-IL
8MP IPC-HFW2849S-S-IL
NVR2104HS-P-4KS2 | NVR5416-4KS2 | IPC-HDBW3541RP-ZAS-27135 | IPC-HFW2230SP-S-S2 |
NVR2108HS-8P-4KS2 | NVR5432-16P-4KS2E | IPC-HFW3549EP-AS-LED | IPC-HDW2230TP-AS-S2 |
NVR2104HS-P-I2 | NVR5432-16P-I | IPC-HDW3549TMP-AS-LED | IPC-HDBW2230EP-S-S2 |
NVR2108HS-8P-I2 | NVR5432-16P-I/L | IPC-HDW3549HP-AS-PV | IPC-HDW1431SP-S4 |
NVR2216-16P-I2 | NVR5432-4KS2 | IPC-HFW3441TP-ZAS-27135 | IPC-HDBW1431EP-S4 |
NVR4104-4KS2 | NVR5464-4KS2 | IPC-HFW2831TP-ZAS-S2 | IPC-HFW1431S1P-A-S4 |
NVR4104HS-4KS2 | NVR5816-4KS2 | IPC-HDBW2831RP-ZAS-27135-S2 | IPC-HDW1431T1P-A-S4-QH2 |
NVR4104HS-4KS2/L | NVR5832-4KS2 | IPC-HDW2831TP-ZS-27135-S2 | IPC-HDBW1435EP-W-S2 |
NVR4108-4KS2/L | NVR5832-16P-4KS2E | IPC-HFW2831TP-ZS-27135-S2 | IPC-HFW1435SP-W-S2 |
NVR4108HS-4KS2/L | NVR5864-4KS2 | IPC-HFW2831TP-AS-S2 | IPC-HFW1239S1P-LED-S5-QH2 |
NVR4116HS-4KS2/L | NVR608-32-4KS2 | IPC-HDBW2831EP-S-S2 | IPC-HFW1230SP-S5 |
NVR4116-4KS2/L | NVR608-64-4KS2 | IPC-HDW2831TP-AS-S2 | IPC-HDW1230SP-S5 |
NVR4104-P-4KS2/L | NVR616-64-4KS2 | IPC-HFW2831SP-S-S2 | IPC-HDBW1230EP-S5 |
NVR4108-8P-4KS2/L | NVR616-128-4KS2 | IPC-HDW2831TMP-AS-S2 | SD8A840WA-HNF |
NVR4104HS-P-4KS2/L | IPC-EBW81242P | IPC-HDW2531TMP-AS-S2 | SD6AL445XA-HNR-IR |
NVR4108HS-8P-4KS2/L | IPC-EW5541P-AS | IPC-HDBW2531EP-S-S2 | SD59430U-HNI |
NVR4204-4KS2/L | IPC-EB5541P-AS | IPC-HFW2531SP-S-S2 | SD5A445XA-HNR |
NVR4208-4KS2/L | IPC-HFW5831EP-ZE-2712 | IPC-HDBW2431RP-ZAS-27135-S2 | SD59432XA-HNR |
NVR4216-4KS2/L | IPC-HDBW5831EP-ZE-2712 | IPC-HDBW2431RP-ZS-27135-S2 | SD59225U-HNI |
NVR4232-4KS2/L | IPC-HDBW5831RP-ZE-2712 | IPC-HDW2431TP-ZS-27135-S2 | SD49425XB-HNR |
NVR4204-P-4KS2/L | IPC-HDW5442TMP-AS-LED | IPC-HFW2431TP-ZS-27135-S2 | SD49225XA-HNR |
NVR4208-8P-4KS2/L | IPC-HDW3849HP-AS-PV | IPC-HDW2431TMP-AS-S2 | SD49225-HNR-ZB |
NVR4216-16P-4KS2/L | IPC-HFW3849T1P-AS-PV | IPC-HDW2431TP-AS-S2 | SD42212T-HN-S2 |
NVR5208-4KS2 | IPC-HFW3841EP-AS | IPC-HFW2431SP-S-S2 | NKB1000 |
NVR5216-4KS2 | IPC-HDBW3841EP-AS | IPC-HDBW2431EP-S-S2 | SD22404T-GN-S2 |
NVR5232-4KS2 | IPC-HDBW3541F-AS-M | IPC-HDBW2431FP-AS-S2 | SD22404T-GN-W-S2 |
NVR5208-8P-4KS2E | IPC-HDW3841TMP-AS | IPC-HFW2431TP-AS-S2 | SD29204UE-GN |
NVR5216-16P-4KS2E | IPC-HFW3541EP-AS | IPC-HFW2439MP-AS-LED-B-S2 | SD3A400-GNP-ZIZJ-B-PV-0400 |
NVR5216-16P-I/L | IPC-HDW3541TMP-AS | IPC-HFW2439SP-SA-LED-S2 | SD1A404XB-GNR |
NVR5232-16P-4KS2E | IPC-HFW3541TP-ZAS-27135 | IPC-HDW2439TP-AS-LED-S2 | SD1A404XB-GNR-W |
Company Profile
Specification
Camera | |
Image Sensor | 1/3” 4Megapixel progressive CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Minimum Illumination | 0.004 Lux@F1.0 |
S/N Ratio | >56 dB |
Illumination Distance | 30 m (98.4 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 2 (Warm light) |
Pan/Tilt/Rotation Range | Pan: 0°–360°;Tilt: 0°–78°;Rotation: 0°–360° |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8 mm;3.6 mm |
Max. Aperture | 2.8 mm: F1.0 |
3.6 mm: F1.0 | |
Field of View | 2.8 mm: Horizontal 96° × Vertical 51° × Diagonal 115° |
3.6 mm: Horizontal 81° × Vertical 44° × Diagonal 97° | |
Iris Type | Fixed |
Close Focus Distance | 2.8 mm: 1.3 m (4.3 ft) |
3.6 mm: 1.8 m (5.9 ft) | |
DORI Distance | Lens |
2.8mm | |
3.6mm | |
Smart event | |
IVS | Tripwire; intrusion |
Video | |
Video Compression | H.264; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.264+ |
Video Frame Rate | Main stream: |
2688 × 1520 (1 fps–20 fps) | |
2560 × 1440 (1 fps–25/30 fps) | |
Sub stream: | |
704 × 576 (1 fps–20/25 fps) | |
704 × 480 (1 fps–20/30 fps) | |
Stream Capability | 2 streams |
Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps |
Day/Night | Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes |
Audio Compression | G.711A; G.711Mu; G.726 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception |
Network | |
Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
Interoperability | ON-VIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host | 20 (Total bandwidth: 72 M.) |
Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP |
Browser | IE |
Chrome | |
Firefox | |
Management Software | Smart PSS; DSS; DMSS |
Mobile Phone | IOS; Android |
Certification | |
Certifications | CE-LVD: EN62368-1 |
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |
FCC: 47 CFR FCC Part 15, Subpart B | |
Power | |
Power Supply | 12V DC/PoE (802.3af) |
Power Consumption | <7.4 W |
Environment | |
Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/less than ≤ 95% RH |
Storage Temperature | –40 °C to +60°C (–40 °F to +140 °F) |
Protection Grade | IP67 |
Structure | |
Casing | Inner core: metal; cover: plastic ( pedestal: plastic ) |
Dimensions | 100.9 mm × Φ109.9 mm (4.0" × Φ4.3") |
Net Weight | 0.365 kg (0.8 lb) |
Gross Weight | 0.527 kg (1.2 lb) |
Certifications
Transport & Payment
FAQ
Q. What's the actual products I can get?
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the
ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the
ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
