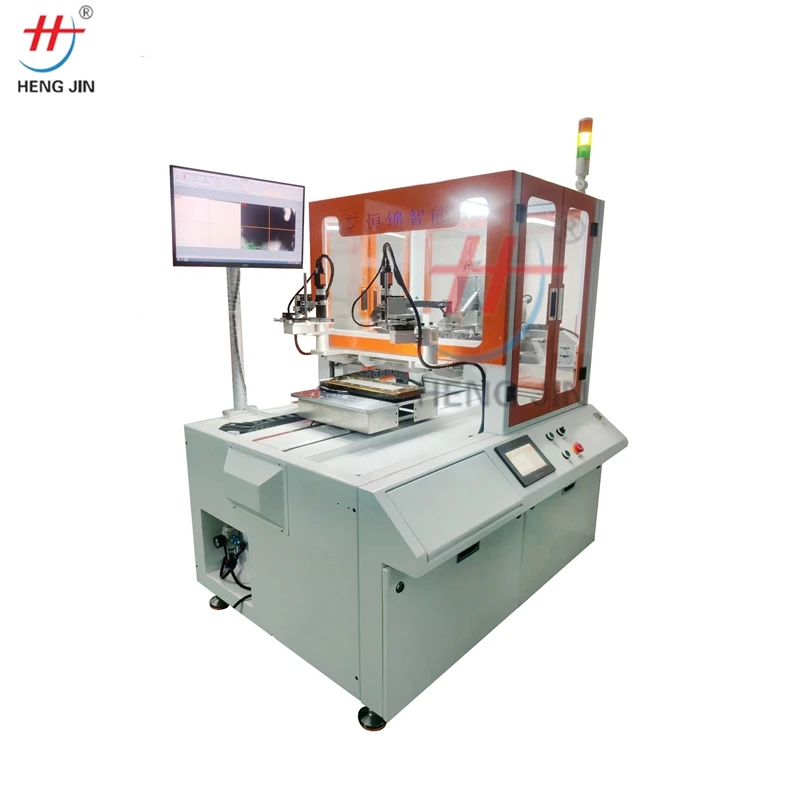

Auto screen pcb printing machine PCB printer

 OEM & Customized support

Parameter



Screen Printing Technique Are Widely Applied in PCB and Assembly Process, Including:

1*Silkscreen printing: Silkscreen is a layer of ink traces used to identify components, test points, parts of the PCB, warning symbols, logos and marks etc.
2*Solder mask printing: Solder mask is a thin lacquer-like layer of polymer that is usually applied to the copper traces of a printed circuit board (PCB) for protection against oxidation and to prevent solder bridges from forming between closely spaced solder pads.
3*Conductive carbon ink: the carbon printed layer forms a protective thick film or thin film with some resistances or sheet resistance.
4*Conductive silver ink: similar to carbon ink but with very low resistances.
5*Epoxy resin printing: mostly used for buried vias filling, blind microvias filling in multilayer boards. In double-sided metal core PCB manufacturing, the cured epoxy resin will insulate the metal and copper layers, and accepts the 2nd drilling to form plated through holes (PTH).
6*Peelable solder mask printing: sometimes used to protect specific areas on the PCB during the reflow soldering, wave soldering, or surface finish process.

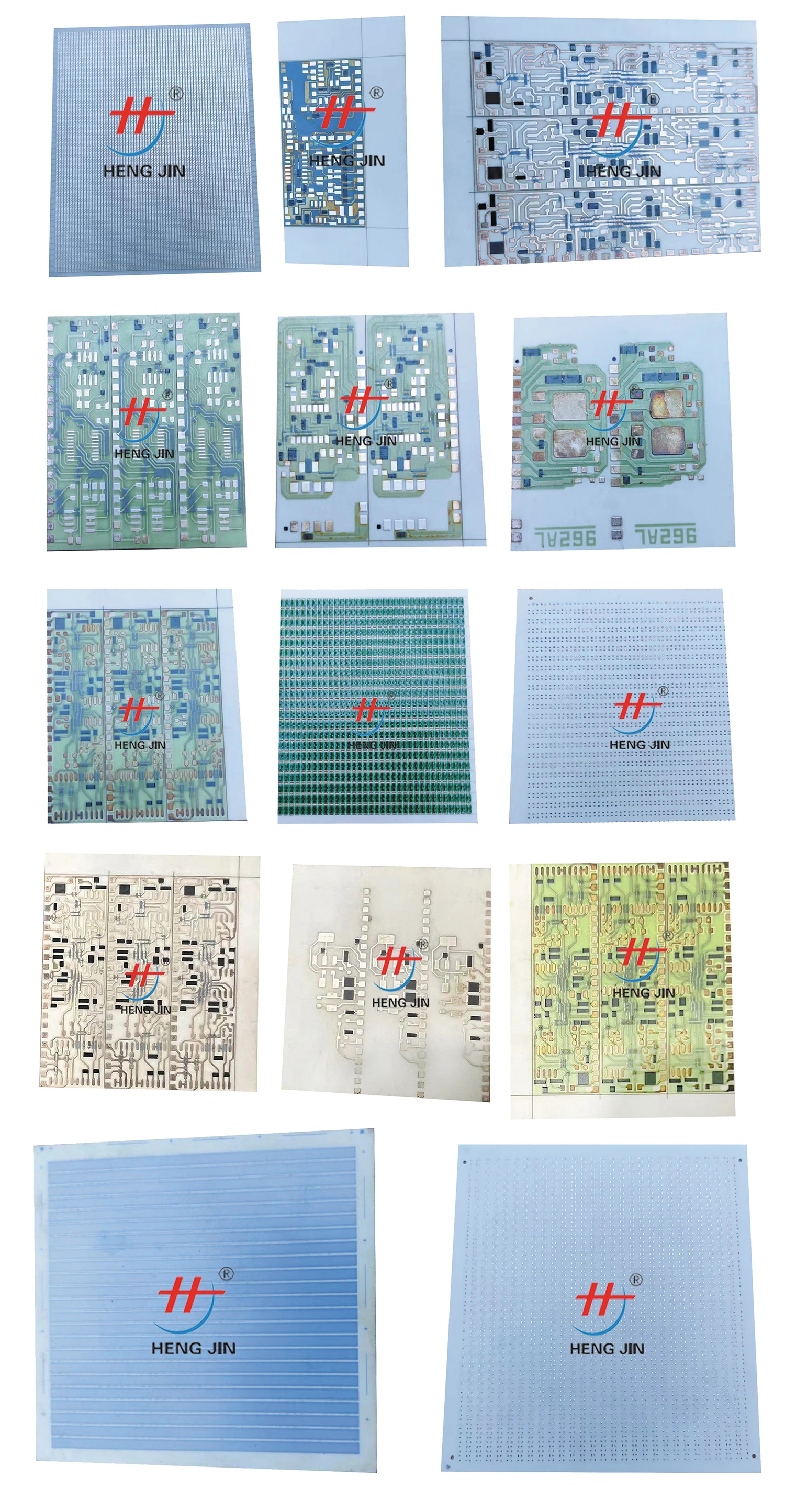

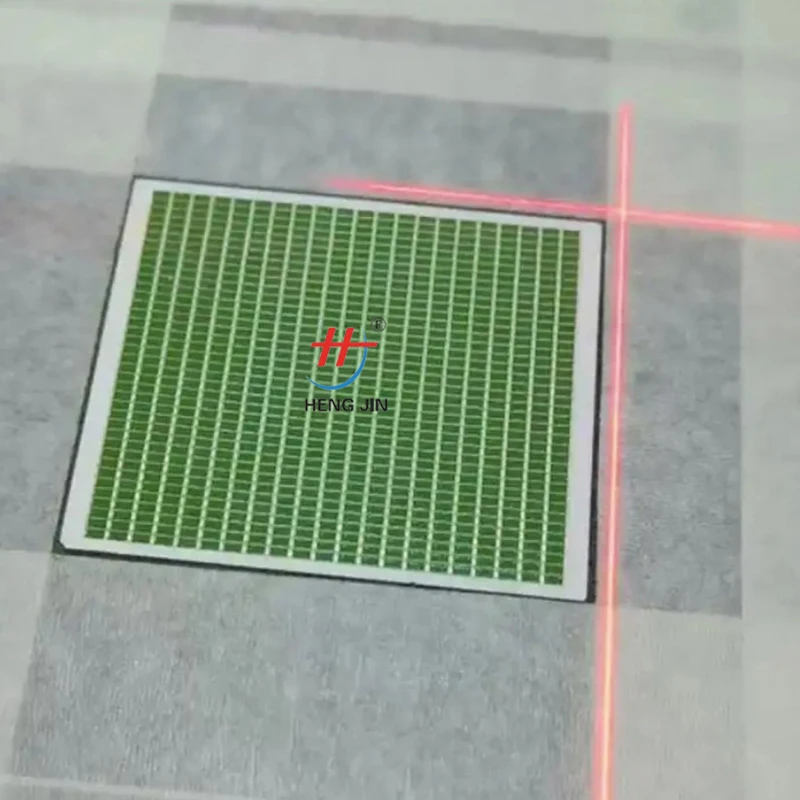

 Printed cirkuit board Samples

This style machine is Regular which is comprehensive using to necessities, toys, electrons, plastics, leather, metals, light industry and food package etc.



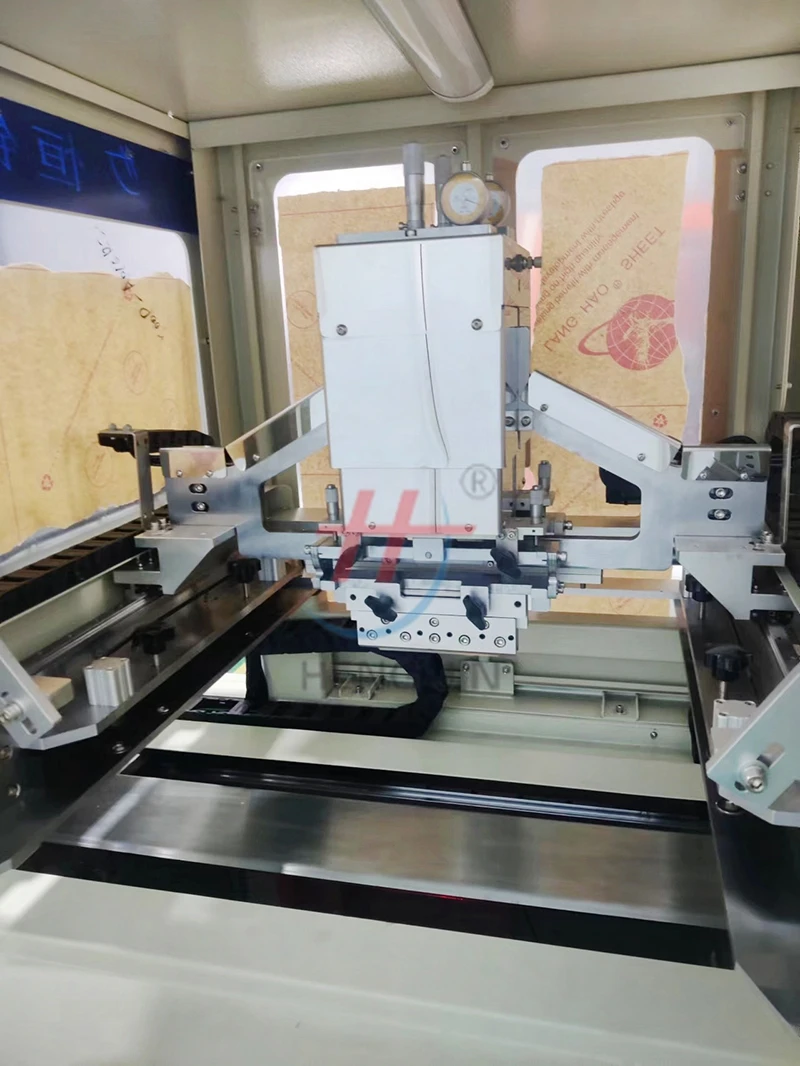

Feature:

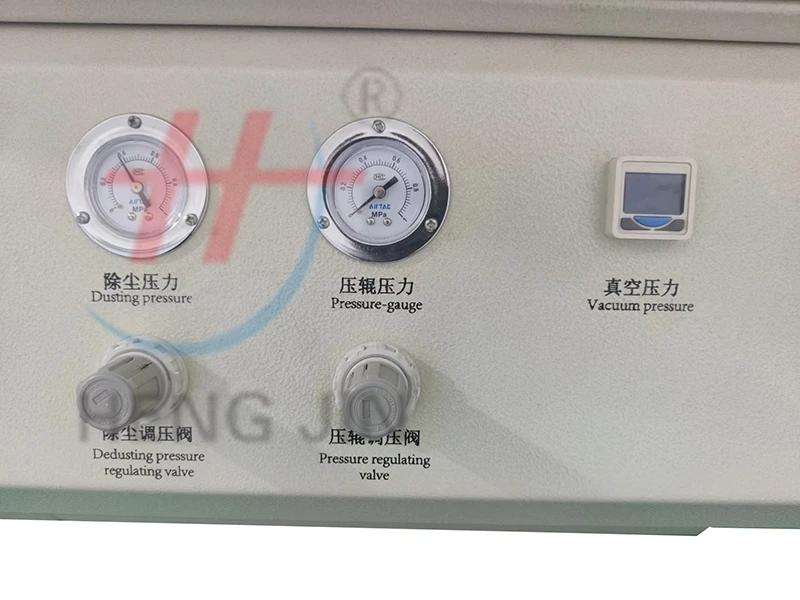

 1 Surface: We adopting dusting and painting, which is able to bear solvent

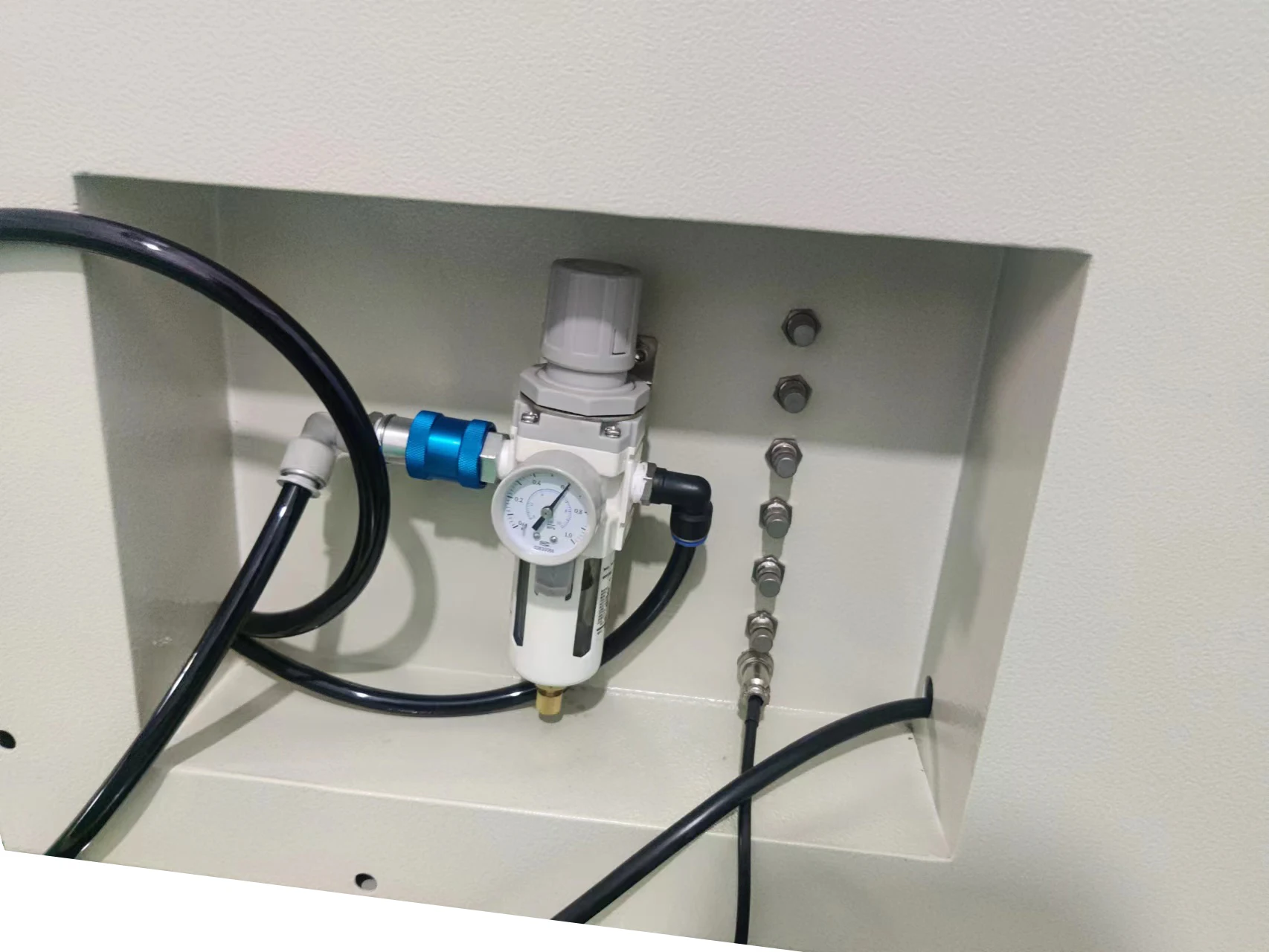

2 Inner: The cylinder is Germany FESTOC

3 Instllation Kit: Which made by CNC in-process.

4 The screw on the machine which hardness is 12.9 grade;

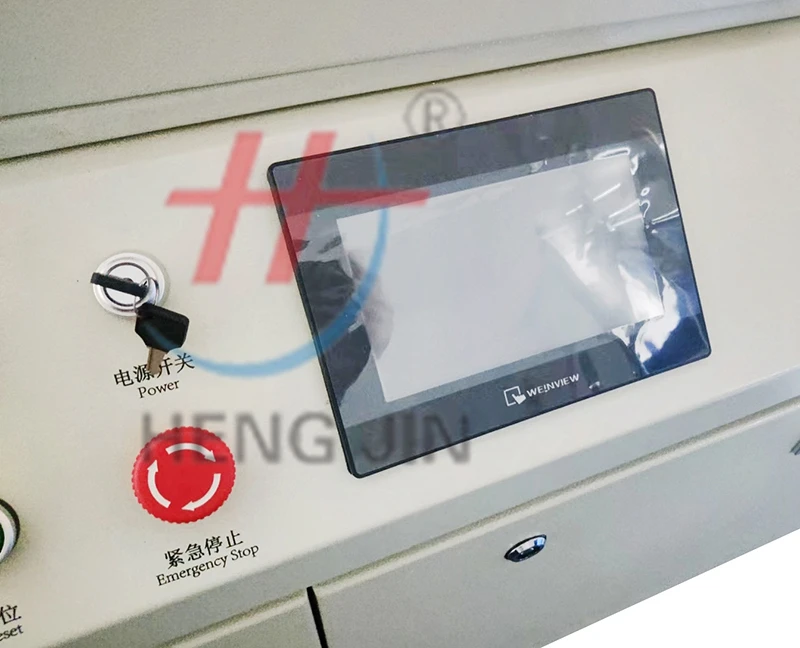

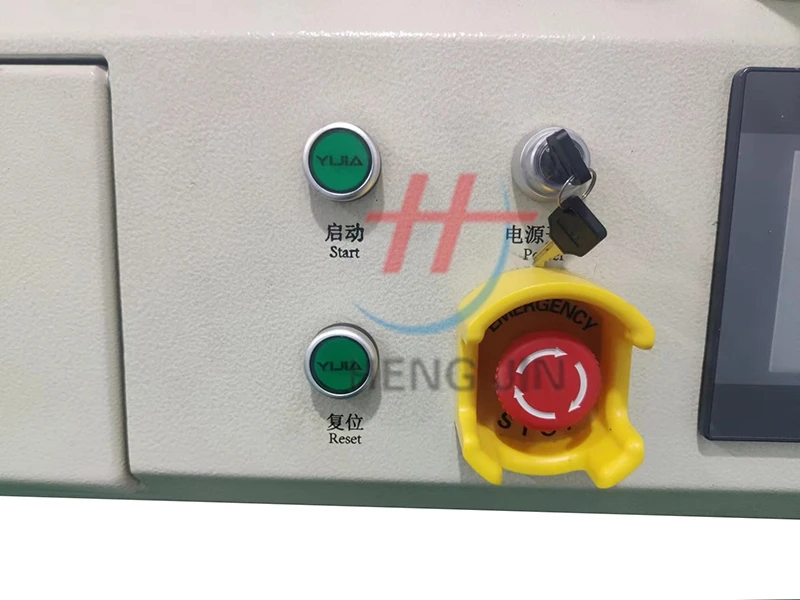

5 The machine is auotmatic which is controlled by mircro computer.  PLC program control printing .

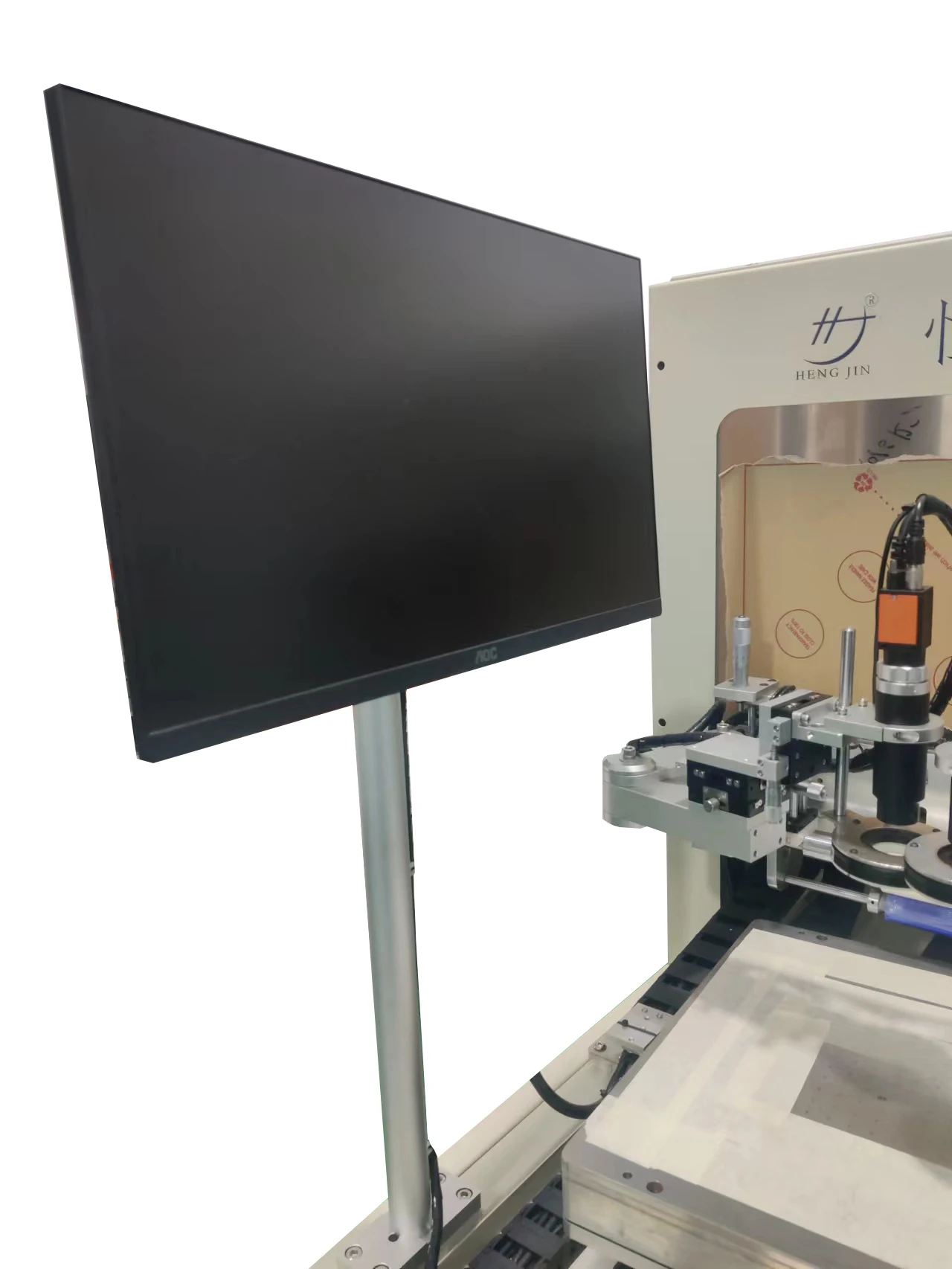

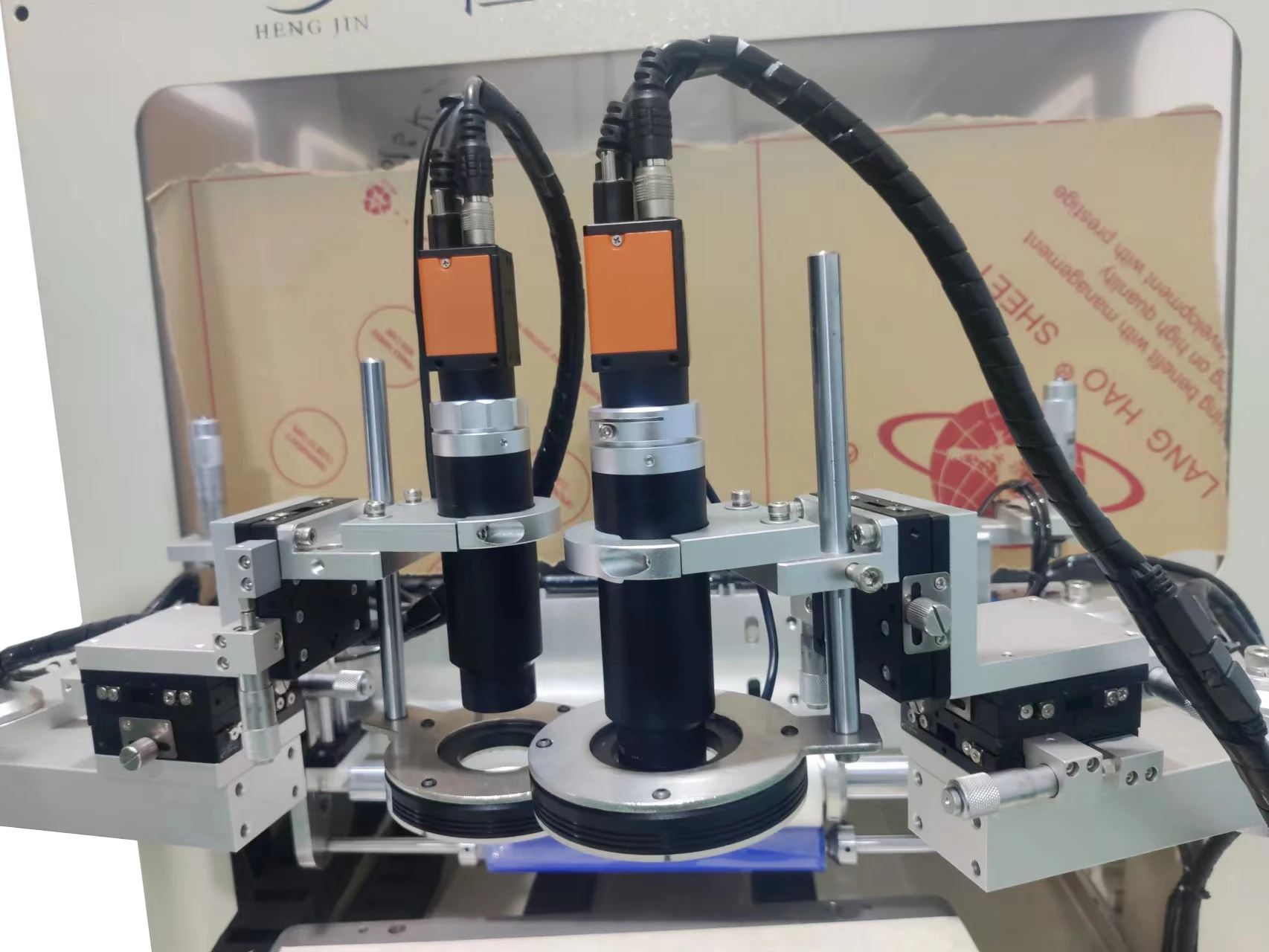

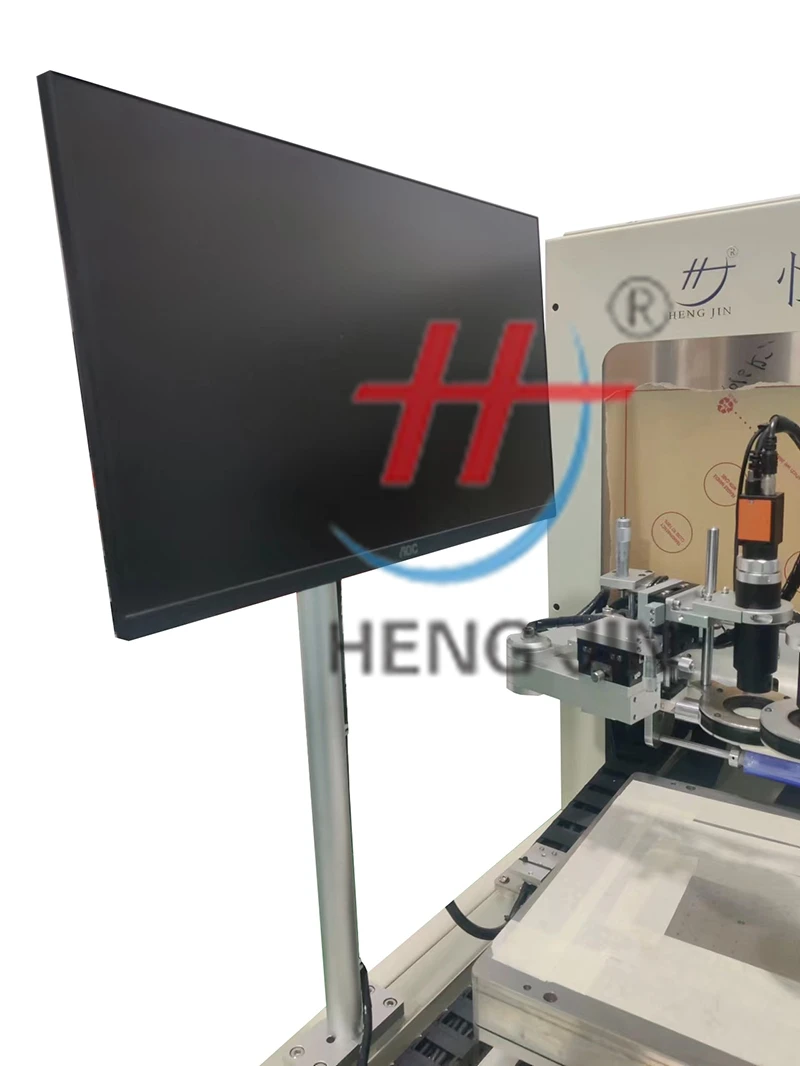

6 Per location is inductive by electric eye, then which is accurate and perfomrmace optimization;

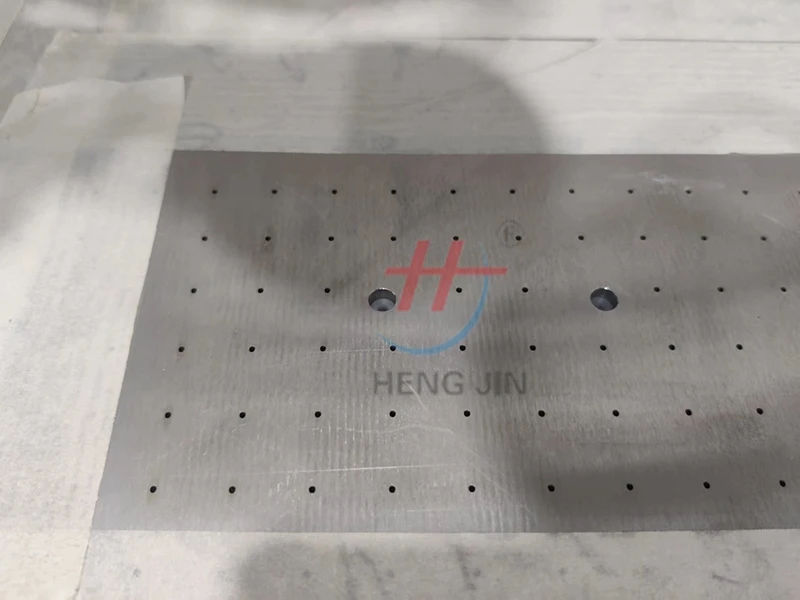

7 The height of Screen frame is adjustable, which is suitable to the thick and large products printing.



8 The machine material is Cast alloy aluminum, Surface process is Spray Powder. The printing head is move on sliday way.



Parameter of this Machine:

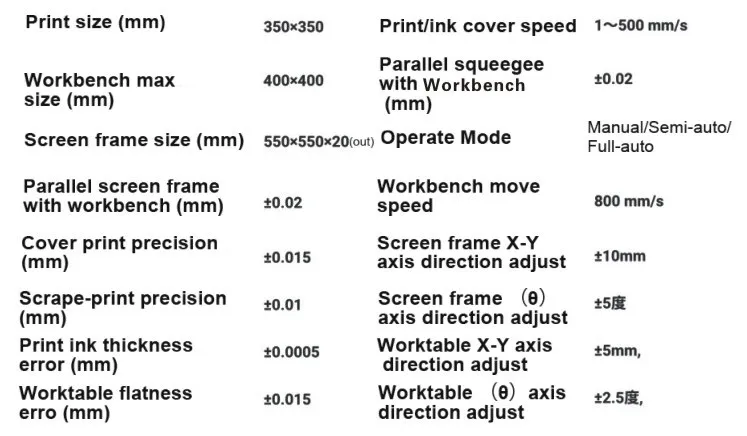

Item Number:	HS-P500	Printing Speed	1-500mm/s
Max printing Size:	150x 150 mm	Max screen Frame size	550x 550 mm
operate	manual/semi-manual/full-manual	Power	220W
Air apply	6 bar	Voltage of source	220V/ 1 phase
print ink thickness erro	0.0005mm	workbench move speed	800m/s



Hengjin has been a industry leading supplier of Pad printer, Screen printer, Hot Stamping Machine and the relative Accessories supplies for 17years under the same ownership. We have become well respected by our customers and others in the industry due to our knowledge of the pad printer process and the personal attention we give to each and every customer. We offer a complete line of machinery and supplies of top quality and performance.



Hengjin as main an exporting Supplier in China. In order to give our customer more guarantee, avoiding more after-service caused. Only we using the spare parts to our machine good quality. The material of our machine is alloy cast aluminum and the surface is Powder spraying. The main parts which cylinder is from Original Germany FESTO.



Hengjin’s Printing machines which above mention have CE approval.  And our customer from American, United Kindom, Germany, South American Etc more then 50 countries.  Sure Hengjin is a satisfying supplier to you.
