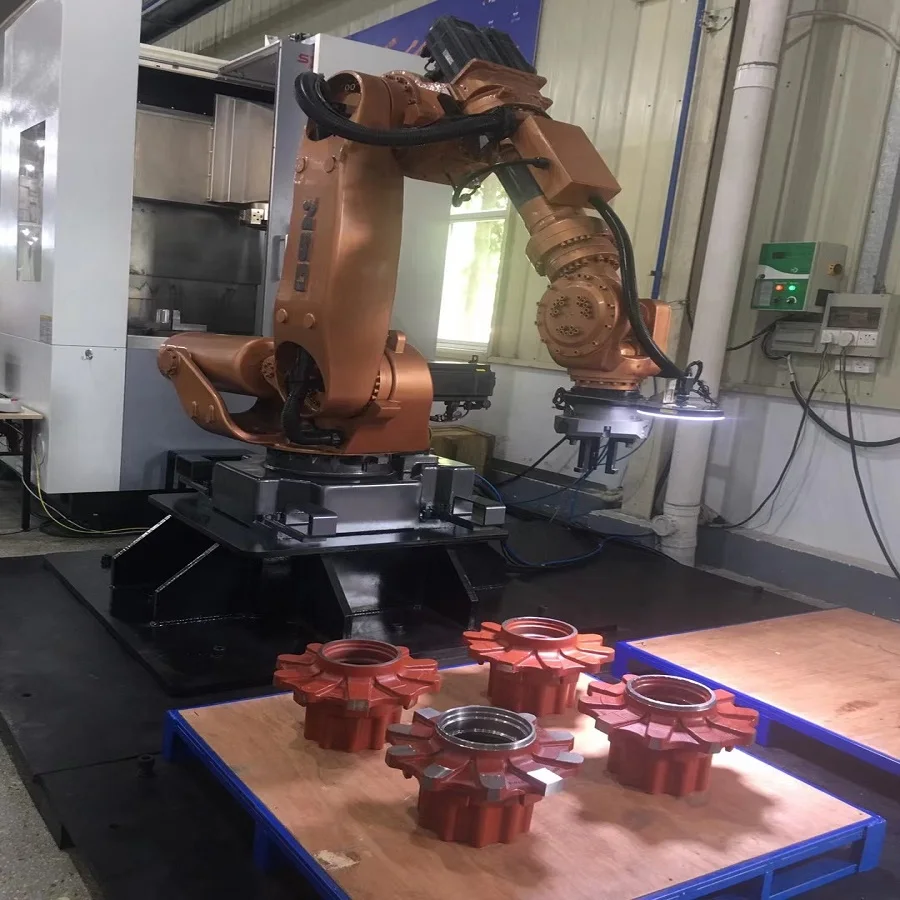

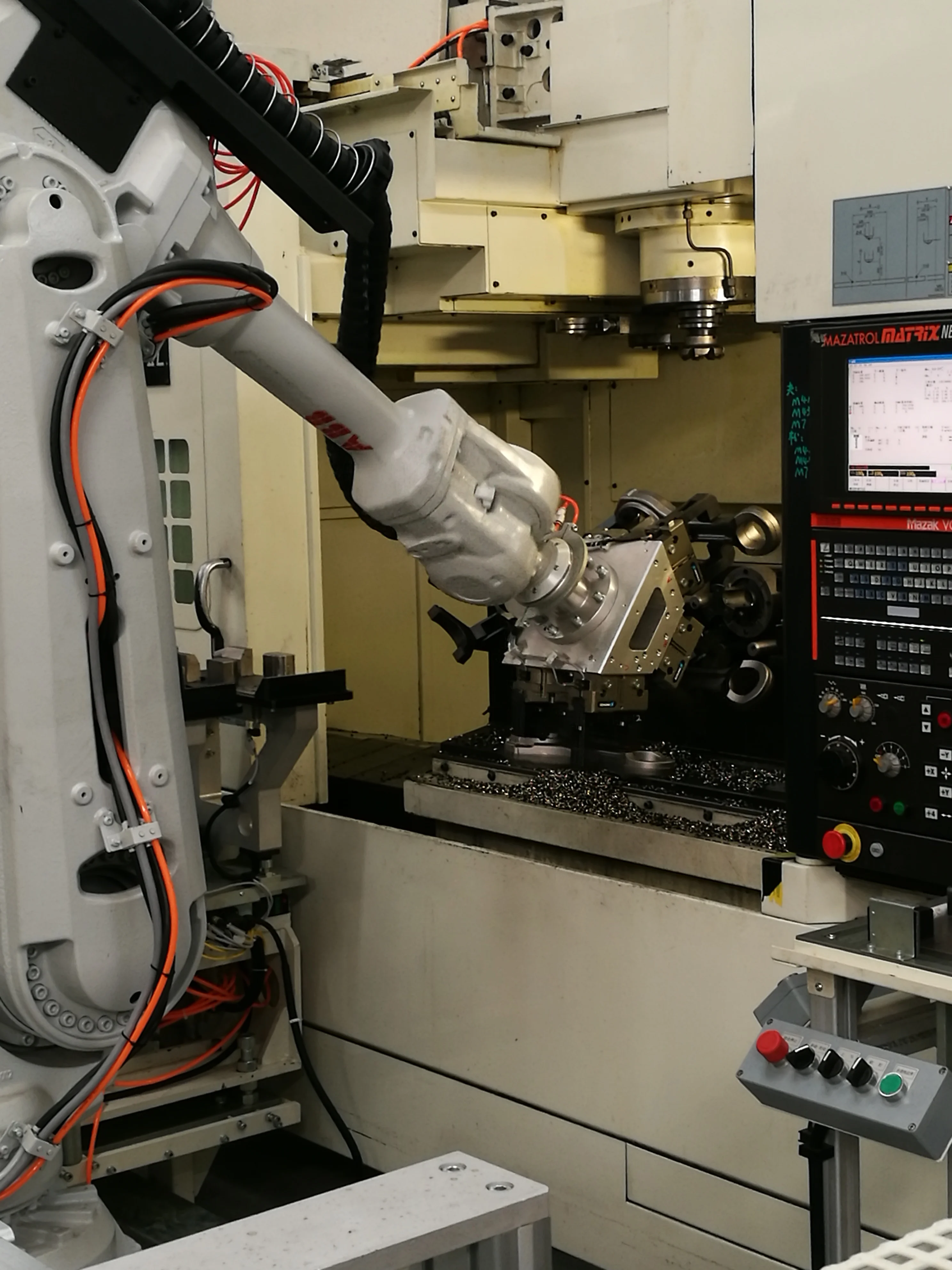

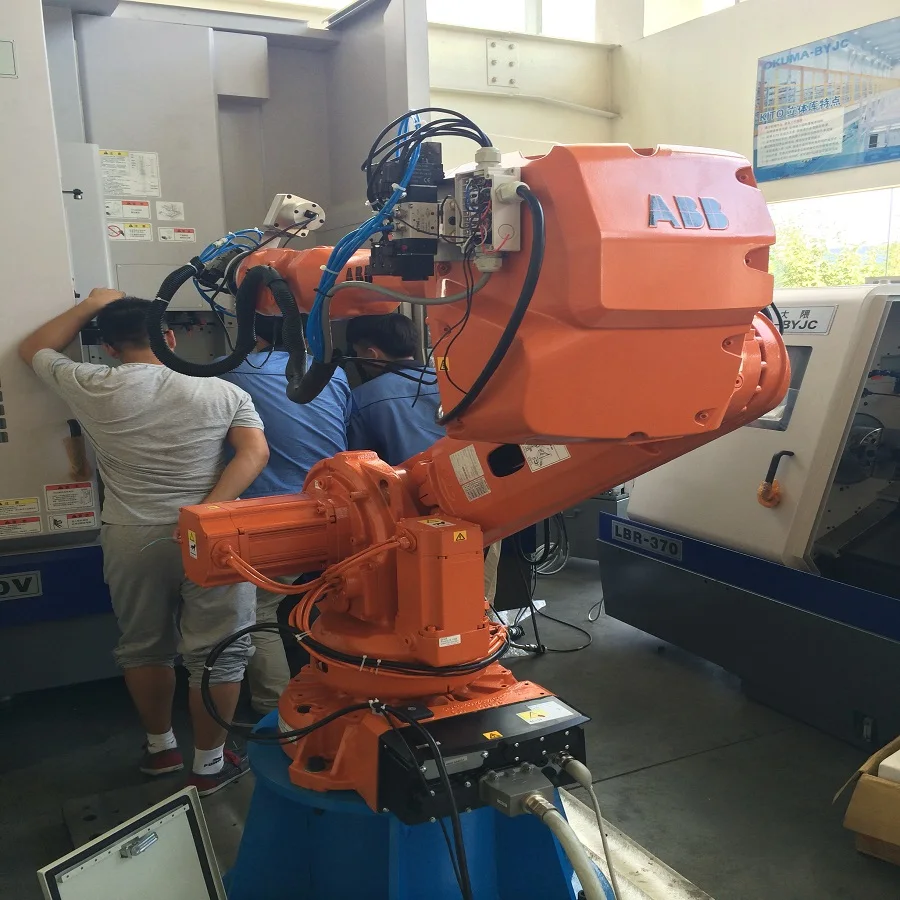

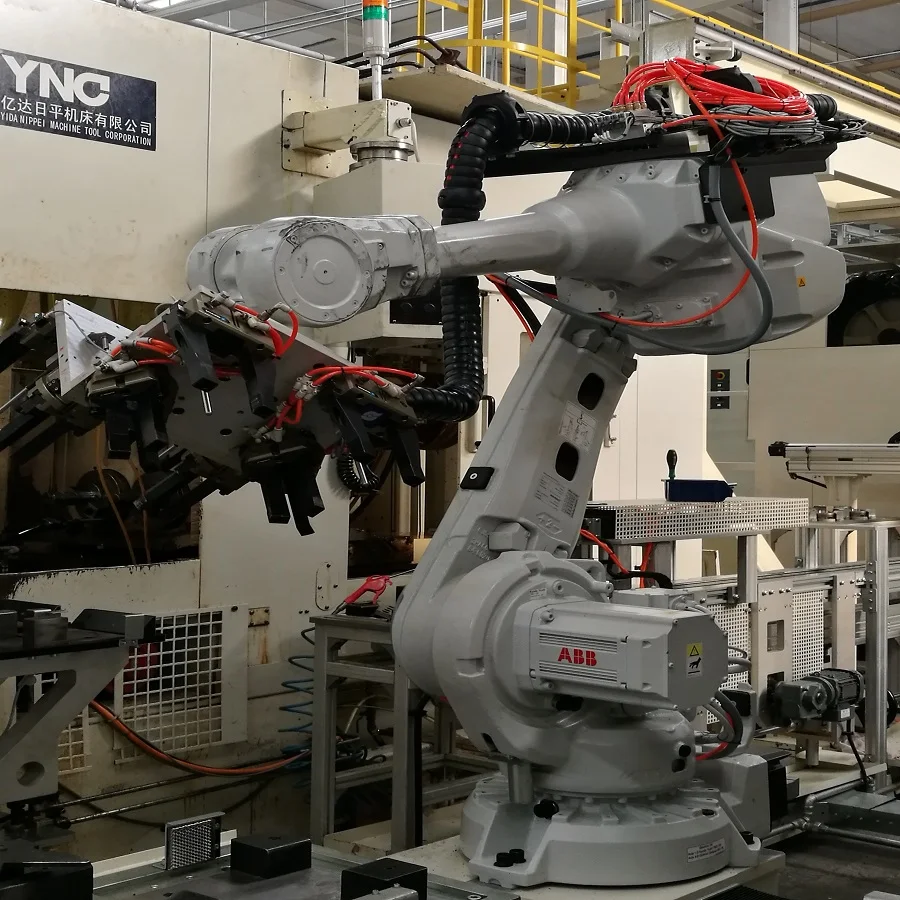

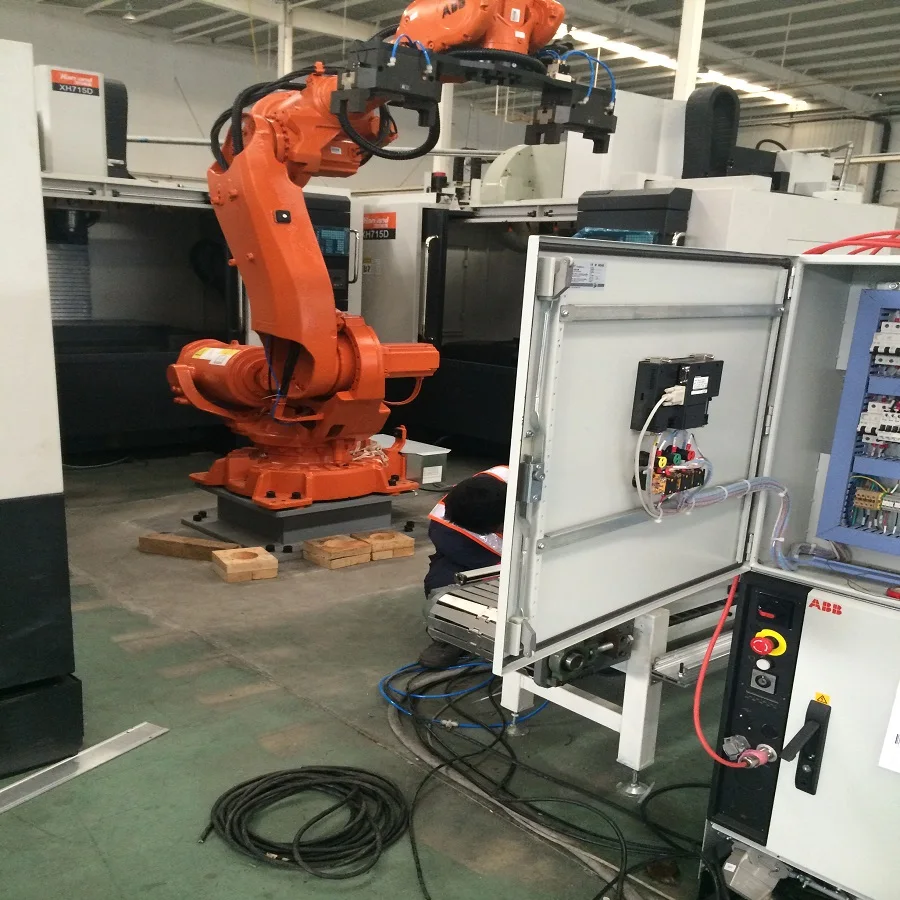

Robotic Gripper For ABB Cobot GoFa CRB 6 Axis Collaborative Robot Arm As Handling Assembly Cobot Robot
- Category: >>>
- Supplier: Shandong Chenxuan Robot Technology Co. Ltd.
Share on (1601003935649):
Product Overview
Description
Product Description
Product Introduction
6-axis vertical multi joint load: 165KG Action range: 3140mm Control cabinet: YRC1000 Purpose: handling, picking/packaging, palletizing, assembly/packaging
ER Series Flexible Cooperative Robot
SR Series Collaborative Robot
CR Series Flexible Cooperative Robot
Automatic Rotary Loading/Unloading Bin / Machine Tool Loading/Unloading Bin
Automatic Feed Pallet Bin / Palletizing Cooperative Bin / Automatic Loading And Unloading
Industrial Robot Bin / Automatic Circulation Chain Bin
Single axis horizontal servo positioner
Single axis main tail box type servo positioner
Spindle box type single axis servo positioner
Vertical flipping three-axis servo positioner
Horizontal rotary three-axis servo positioner
Transfer robot
Welding robot
Stamping machine
Cooperative Robot
Conveyor line
Positioner
Silo
Ground track
Specification
product details
Shelf placement can effectively utilize space
By combining with other robots to enhance the layout of colorful circuits
Reduced the number of cables between the robot and the control cabinet, improved maintenance while providing simple equipment
By combining with other robots to enhance the layout of colorful circuits
Reduced the number of cables between the robot and the control cabinet, improved maintenance while providing simple equipment
Standard specifications | MOTOMAN-GP165R | ||
model | YR-1-06VR165-A00 | ||
structure | Vertical multi joint type (6 degrees of freedom) | ||
Portable quality * 1 | Hand head | 165kg | |
On the U-arm | 30kg | ||
Maximum reachable | 3140 ㎜ | ||
Repetitive positioning accuracy * 2 | 0.05mm | ||
Action range | S-axis (rotation) | -180°-+180 | |
L-axis (lower arm) | -130°- +80 | ||
U-axis (upper arm) | 79.4*- +78 | ||
R-axis (wrist rotation) | 360°- +360° | ||
B-axis (wrist swing) | -130°- +130° | ||
T-axis (wrist rotation) | 360°- +360 | ||
Maximum speed | S-axis (rotation) | 1.83rad/s，105*/s | |
L-axis (lower arm) | 1.83rad/s,105°/s | ||
U-axis (upper arm) | 1.83rad/s，105*/s | ||
R-axis (wrist rotation) | 3.05rad/s，175*/s | ||
B-axis (wrist swing) | 2.62rad/s，150/s | ||
T-axis (wrist rotation) | 4.19rad/s,240°/s | ||
Allowable torque | R-axis (wrist rotation) | 921N.m | |
B-axis (wrist swing) | 921N.m | ||
T-axis (wrist rotation) | 490N.m | ||
Allowable moment of inertia (GD2/4) | R-axis (wrist rotation) | 85kgm2 | |
B-axis (wrist swing) | 85kg.m2 | ||
T-axis (wrist rotation) | 45kg.m2 | ||
Body quality | 1760kg | ||
Protection level | Body: IP54, wrist shaft: IP67 | ||
Installation environment | temperature | 0° – +45° | |
humidity | 20% -80% RH (without condensation) | ||
shock | Below 4.9m/s2 (0.5G) | ||
other | No flammable or corrosive gases are allowed, and liquids should be kept away from electrical noise sources | ||
Power capacity * 3 | 5.0kVA | ||
Installation method * 4 | Floor mounted | ||
purpose | Handling, picking/packaging, palletizing, assembly/repackaging | ||
Remarks | *1: JIS B 8432 serves as the reference. *2: It records the range of motion of the self axis rather than the ground reference. *3: Depending on the purpose and action mode. (Note) This table is recorded in the SI unit system. | ||

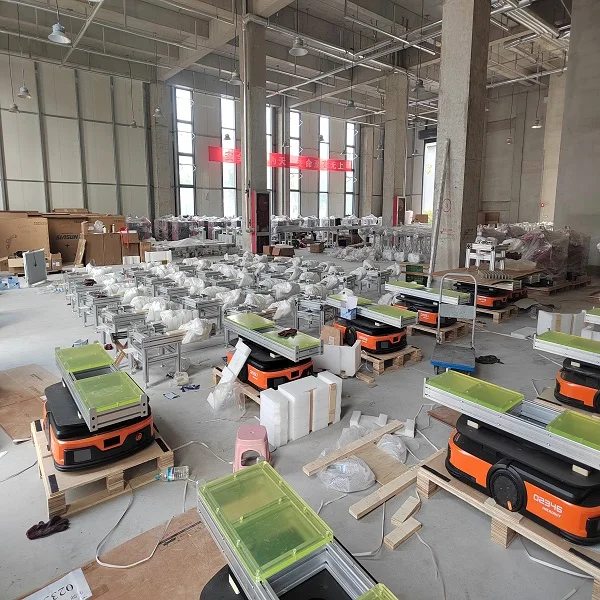

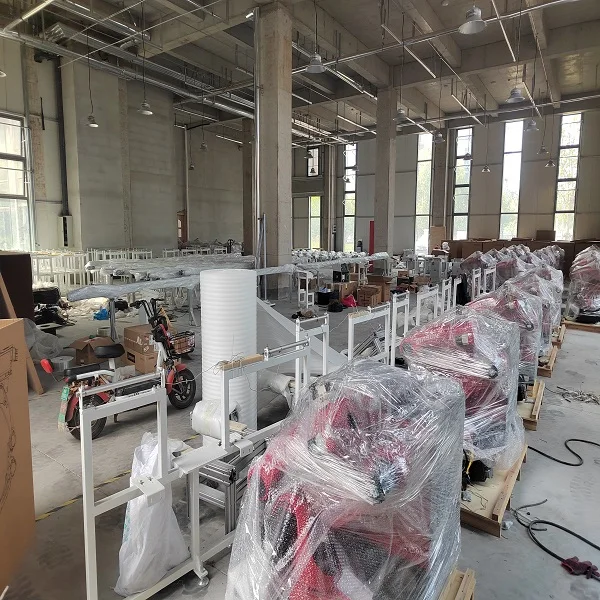

Packing & Delivery
