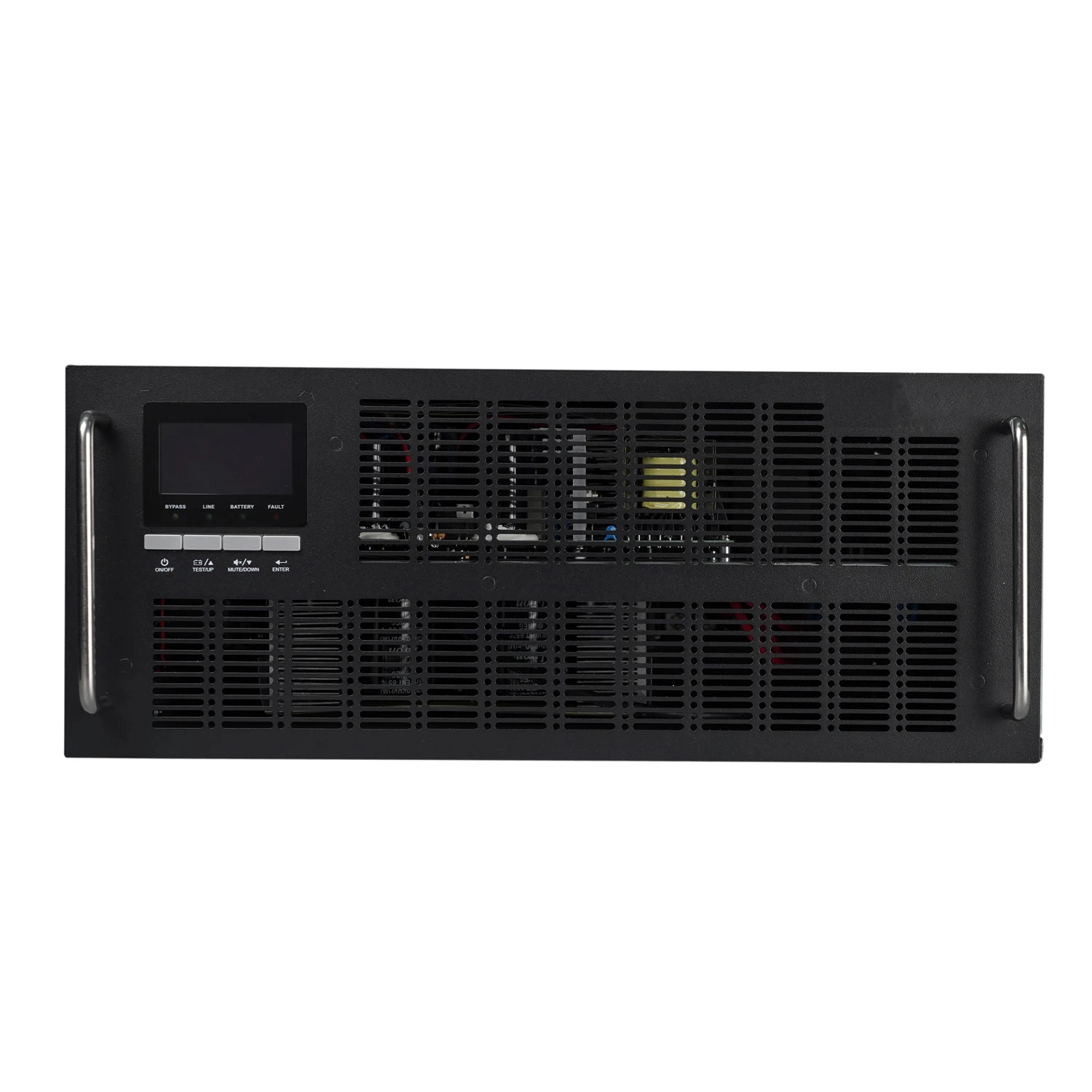

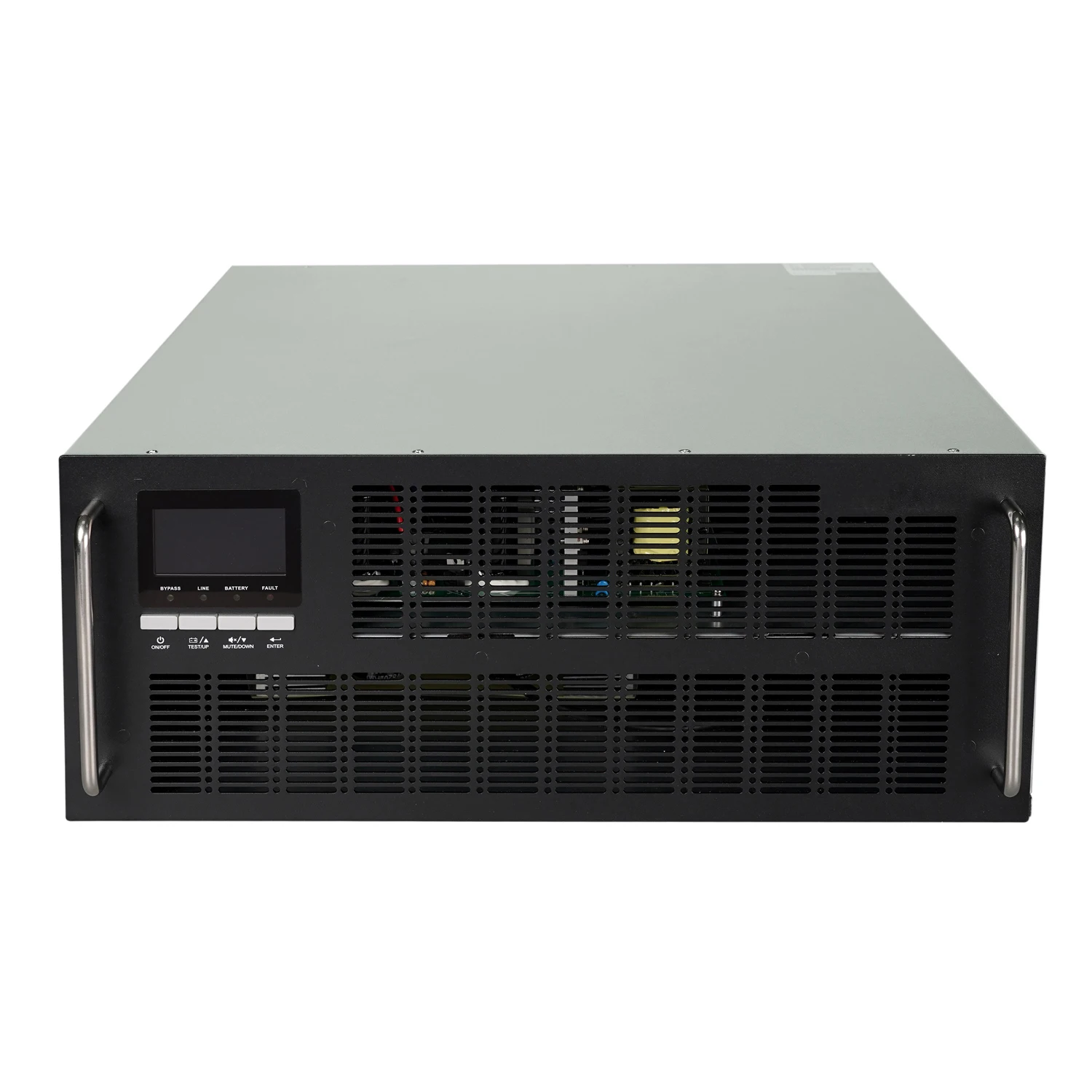

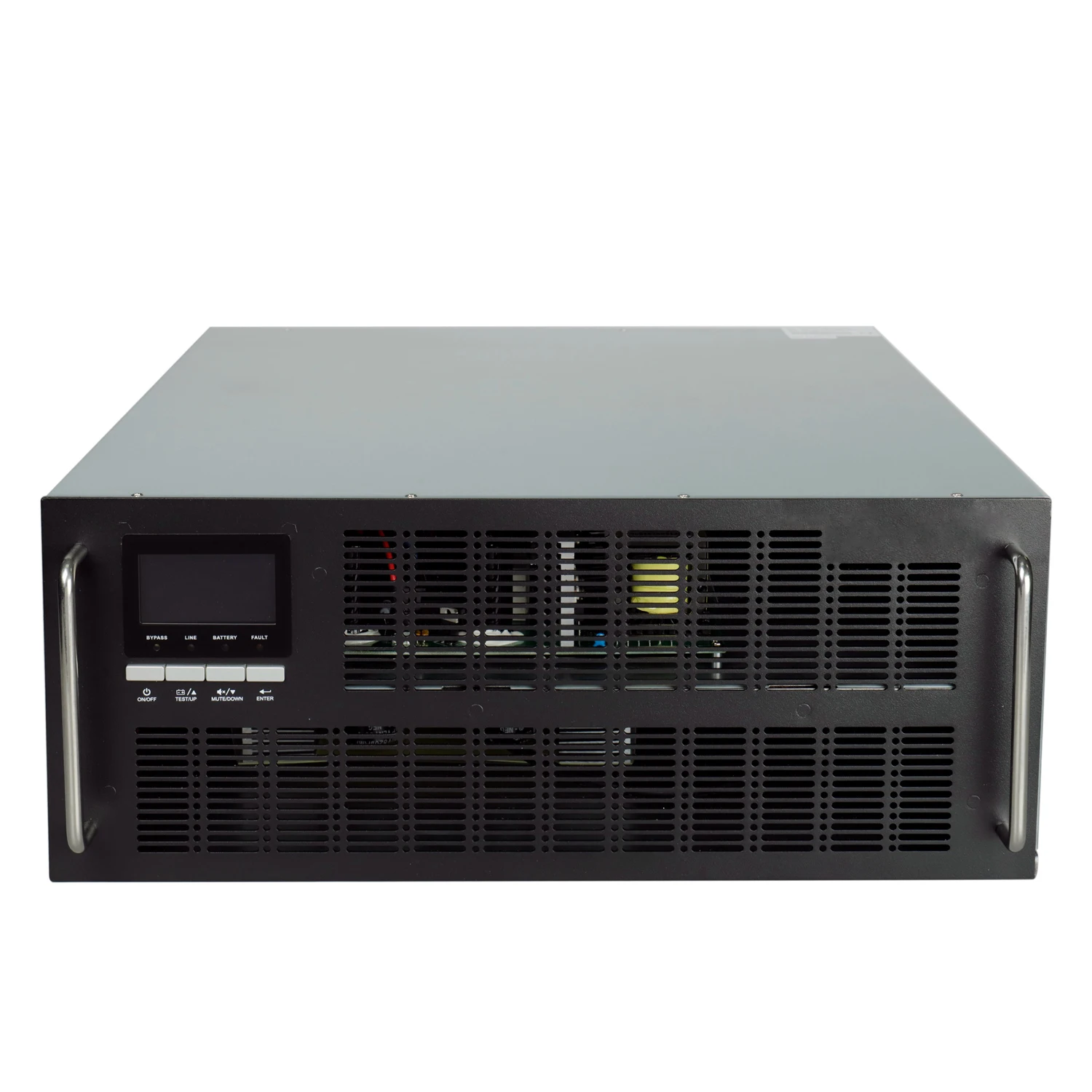

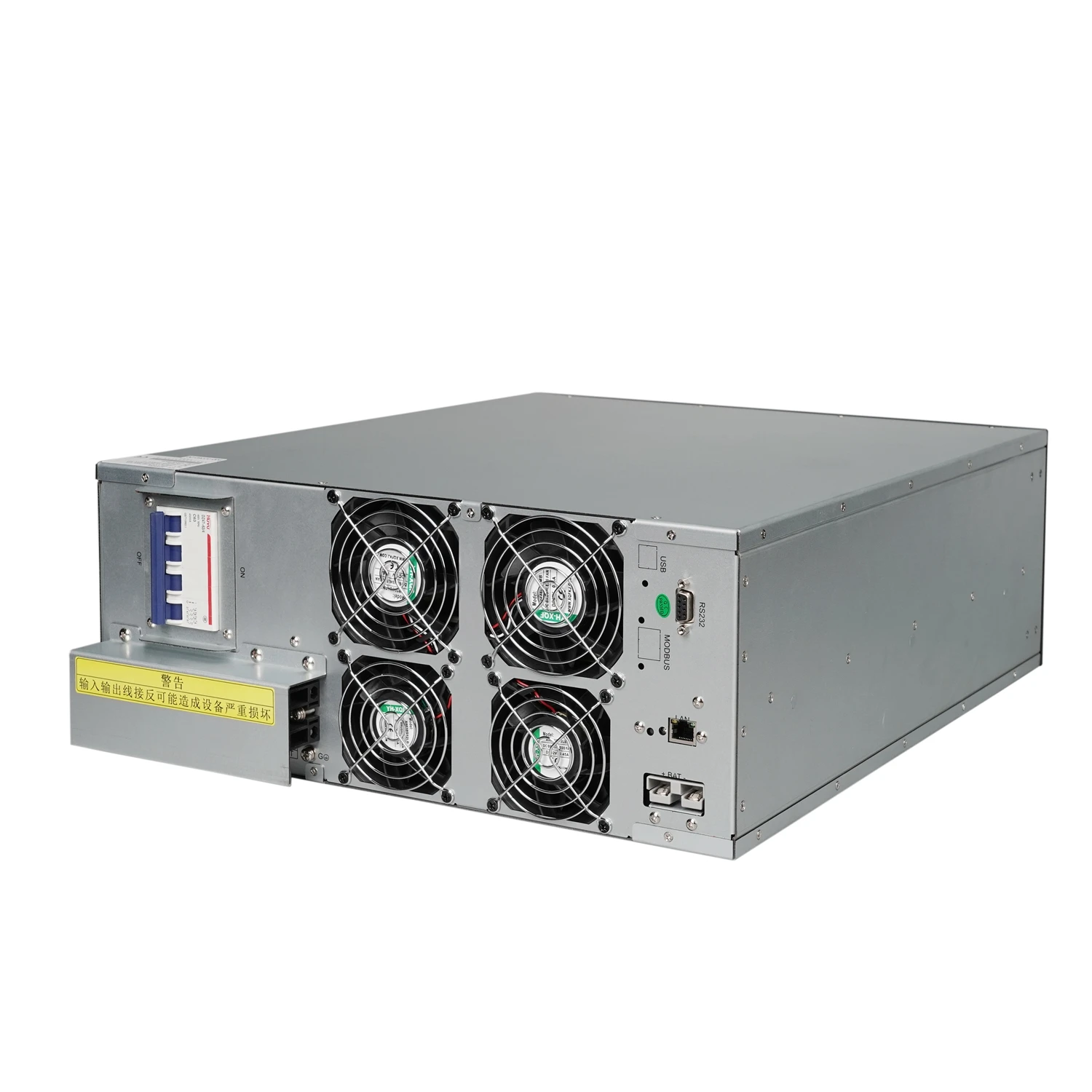

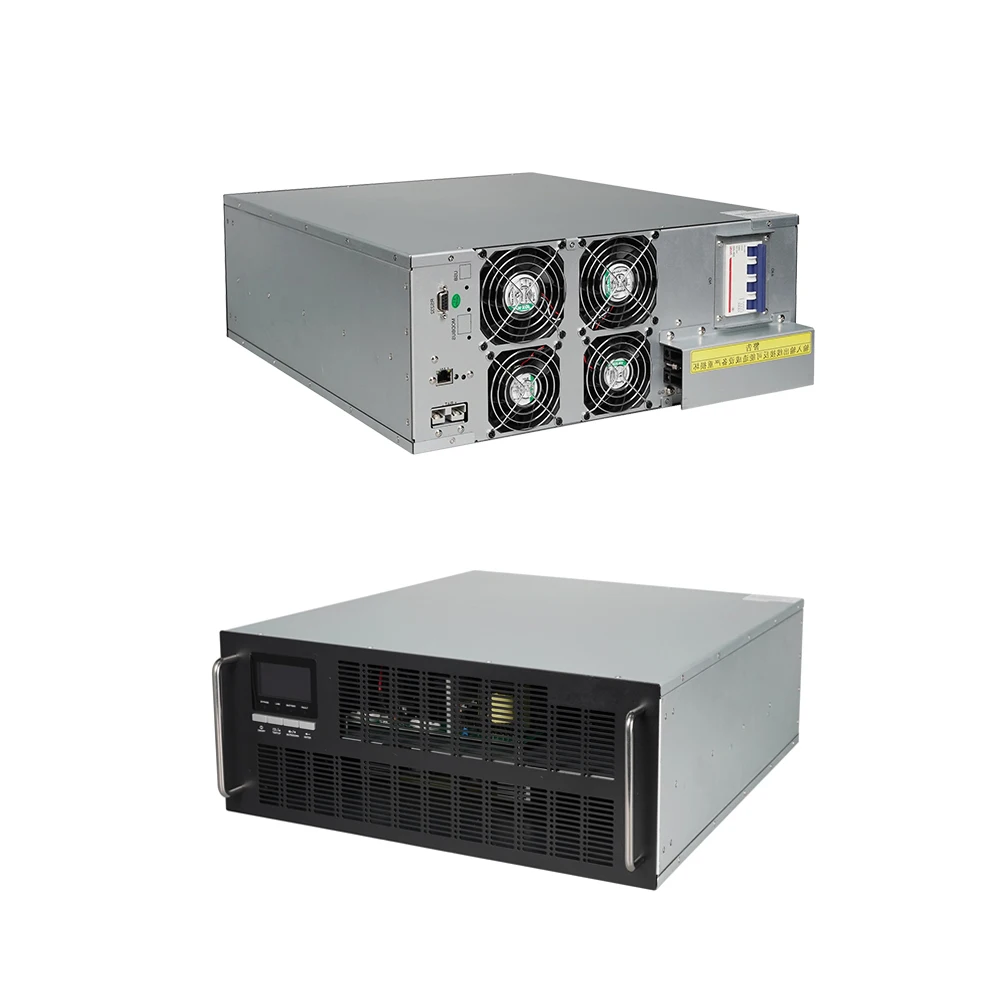

rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups
rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups

rack mount ups Charging device 3C20KRS Output Capacity 20KVA/18KW uninterruptible power supplies ups online ups

Share on (1601003942683):


Price:$350.00 - $800.00

Quantity:


Product Overview

Description



Product Description




This series of UPS is a uninterrupted power supply equipment with dual conversion online, single-phase input,three-phase input and single-phase output.Products With high efficiency and reliability, they provide reliable, high-quality AC power for your equipment.This series of 1-20kVA UPS is compact and convenient for customers to use,especially suitable for financial, telecommunication, government, transportation, manufacturing, education and other users of basic equipment.


Basic Electrical Specifications For Three-in-one-out Products
3C10KRS
3C15KRS
3C20KRS
Rated Output Capacity
10KVA/9KW
15KVA/13.5KW
20KVA/18KW
AC Input
Input Method
3-phase-4-wire+protection wire
or single phase 3 wire(neutral wire/live wire+protection wire)
Rated Voltage
208/220/230/240Vac
Rated Frequency
50Hz/60HZ
Input Voltage Range
Phase Voltage:90~300VAC±5VAC
Line Voltage：156~520VAC ±5VAC
Input Frequency Range
（40~70)±0.5Hz
Input Power Factor
>0.99
Bypass Voltage
180~265VAC×(1±3%)
Battery Input
Battery Pack Voltage
192V/240V(selectable)
Backup Time(Half Load/Full Load)
Long Term Machine:Depends on External Battry
Maximum Inplus Current
< Rated Current 150%
Battery Charging Time
5 hours to 90%(standard type)depending on external battery pack capacity(long-lasting type)
AC Output
Output Method
Single-phase-2-wire+protection wire)
Output Voltage
208/220/230/240Vac±2%（Inverter Output）
Output Frequency
50/60Hz±0.5%（Fixed Frequency Mode）
50±5Hz/60±6Hz（Phase-locked Mode）
Dynamic Voltage Transients
<9%
Dynamic Transient Recovery Time
< 100ms
Wave Form
Sine Wave THD <2%（Linear Load）
Sine Wave THD <7%（Nonlinear Loads）
Output Power Factor
0.9
Overload Capacity
Mains/ Battery（240VDC）105～125% 10 min，126～150% 1 min, >150% 100ms
Battery（192VDC）105～125% 1s，>126% 100ms
Conversion Time
Mains<-> Battry Mode 0ms
Communication and Monitoring Function
RS232，Network monitoring card，selectable Dry node，MODBUS serveillance card
Audio Noise
<65dB




Our products are sold to major provinces and cities in China, regularly sold to Southeast Asian markets, and have established stable trade relations with the Middle East, South Africa, Europe and America, as well as countries and regions


Certifications

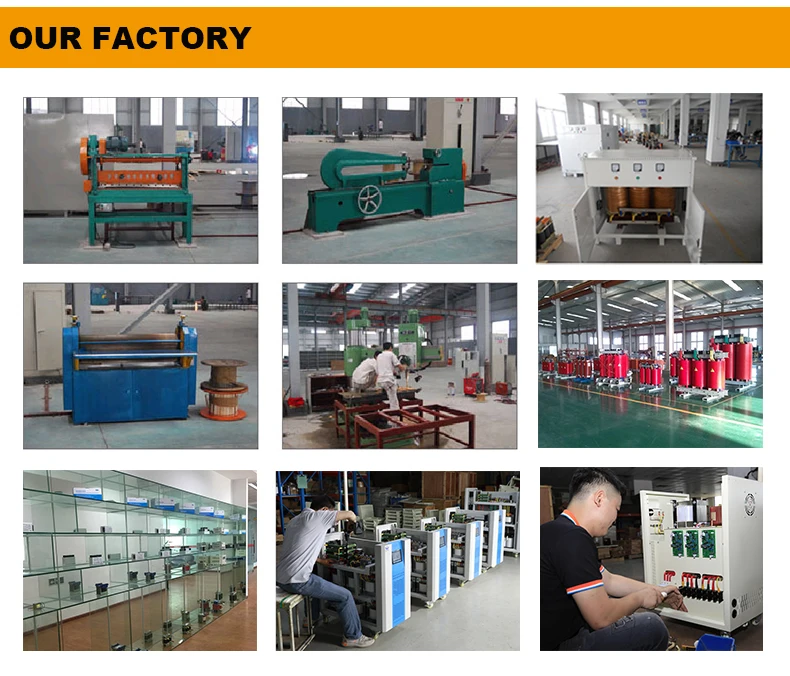

Our factory




Collaborative projects




FAQ


1 .Q: Why did you choose us?
A: We are a large-scale enterprise that mainly produces power supply and electrical equipment,incorporating science research,industrial production and trade service.Our main products include regulator,transformer,reactor,UPS uninterruptible power supply, variable frequency power supplies, voltage regulator, DC power supply, etc.
2 .Q:Our Honors
A: Our main products,including regulator, transformer, reactor, UPS uninterruptible power supply, variable frequency power supplies, voltage regulator, DC power supply, have won the Golden Brain Award, National Rock Award, Merit Gold Award, and the 8th, 9th, and 11th Excellent Products Awards. Awards
3 .Q: Our certificates
A: ISO9001:2000 International Quality System, ISO14000 Environmental Management System, China Electrical Product Certification and other international standards.
4 .Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
5.Q:How long is the warranty?
A:Our warranty is from 1 years.
6.Q:Can I get a solar generator power station sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
