Product Overview
Description
Product Description
Specification:
The SDKQ series high voltage reactance starting device string a reactance in the stator loop of the high voltage motor. When the motor starts, the device automatically controls the reactance input and start time, and closes the bypass switch within the predetermined time, passing the reactor and the motor into normal operation. It can effectively reduce the starting current of the motor, so as to reduce the electrical and mechanical impact on the motor, power grid and mechanical equipment. It can be widely used for the starting of high voltage AC motor of 3kV, 6kV and 10kV voltage class.
The SDKQ series high voltage reactance starting device string a reactance in the stator loop of the high voltage motor. When the motor starts, the device automatically controls the reactance input and start time, and closes the bypass switch within the predetermined time, passing the reactor and the motor into normal operation. It can effectively reduce the starting current of the motor, so as to reduce the electrical and mechanical impact on the motor, power grid and mechanical equipment. It can be widely used for the starting of high voltage AC motor of 3kV, 6kV and 10kV voltage class.
Performance characteristics

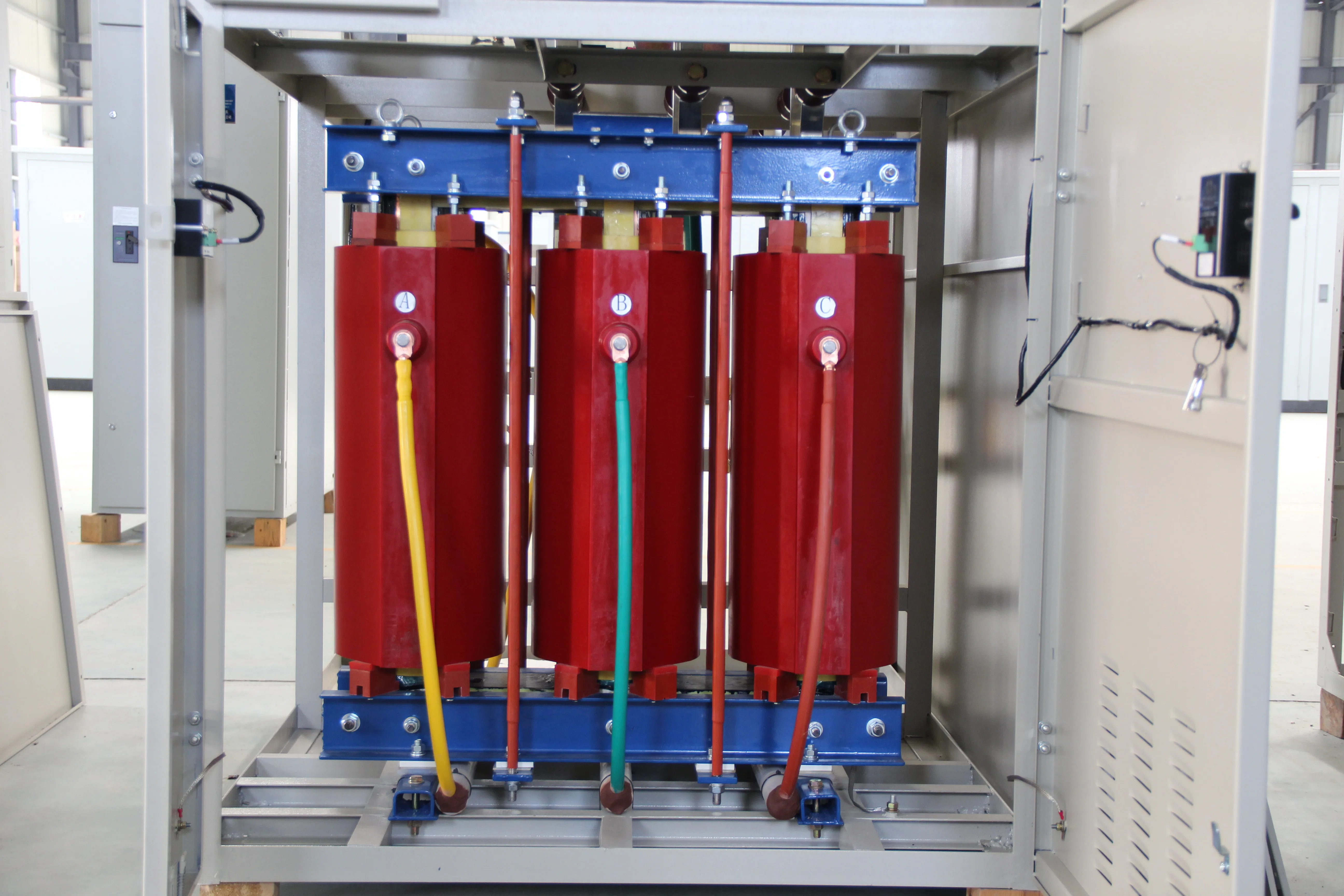

1. Dry iron corereactor has small loss, good electromagnetic compatibility, small volume;
2. Iron core adopts high quality cold rolled silicon steel sheet and advanced technology, high reactance value stability;
3. The iron core end surface adopts high quality end face glue, silicon steel sheet combined firmly, low noise during operation, good anti-corrosion performance;
4. The coil adopts epoxy resin pouring and advanced technology, good insulation performance, high mechanical strength, anti-aging;
5. General extraction of two reserved groups: 65%, 80% (starting current: about 3 ~ 4 Ie);.5
6. Start time: 10~60S (continuous continuously for 2 minutes, interval of 6 hours before starting again);
7. Stable performance, not affected by the ambient temperature;
8. Simple structure,easy to installation, use and maintenance;
9. High reliability and long service life.
Service environment
Service environment
1. Ambient temperature: - -15℃ - - + 40℃;
2. Relative humidity: <85%, no condensation;
3. Altitude: not more
than 1000m (more than 1000m requires special design);
than 1000m (more than 1000m requires special design);
4. Installation location: the vertical inclination shall not exceed
5, No fire, explosion risk, conductive dust, corrosive gas and violent vibration.
OUR COMPANY
Hubei Zhongsheng Electric Co., Ltd. Locates in National New&Hi-tech Industry district, Xiangyang city,Hubei province,China. Is a high-tech enterprise which integrated Products R&D, Producing and trading in one. With registered capital of RMB 120,000,000 since July,2008. The company now has more than 4000s square meters workshop and over 400 workers. Has conquered 30% of electric devices in China. Since its establishment, the company always adheres to interests of customers as focus, and solid scientific and technological development management as backup force.The company has been certified to ISO9001 Quality Management System, ISO14000 Environment Management System, OHSAS18000 Occupational Health and Safety System and CCC. The company has obtained more than 20 tech patents, and rewarded by governmental departments many times.
WORKSHOP
PROJECT REFERENCE
Congo buliveso hydropower station (China Gezhouba Group Co., Ltd)
Secondary heat exchange station project in Dushanbe, Tajikistan
Jbe-rz950+hot continuous rolling project in Tashkent Uzbekistan
Swak dam project(GezhoubaGroupNo.5EngineeringCo.,Ltd)
2.5 million ton ferronickel smelting integration project(PT.OBSIDIAN STAINLESS STEEL)
CERTIFICATE
SHIPPING &PACKAGING
FAQ
Q1: Do your products have export qualifications?
A1: Our products comply with IEC standards, and have passed and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider more than 10 years experience . According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense
A1: Our products comply with IEC standards, and have passed and CE certification (the European Union), and have export qualifications.
Q2: Can your company customize products?
A2: We are a professional one-stop enterprise energy management solution provider more than 10 years experience . According to the specific situation of customers, we can provide solutions to determine the parameter and accurate prices of products. So it can be customized.
Q3: How is the company's after-sales service?
A3: Our company can provide product installation and operation videos for overseas customers. When there is a problem, we can communicate with customers online. On-site overseas after-sales service is provided at the customer's expense
