HGH HA Series Heavy Duty HIWIN CNC Linear Guideway Rail and Linear Block Bearings HGH20HA/HGH25HA/HGH30HA/HGH35HA/HGH45HA/HGH55H

HGH HA Series Heavy Duty HIWIN CNC Linear Guideway Rail and Linear Block Bearings HGH20HA/HGH25HA/HGH30HA/HGH35HA/HGH45HA/HGH55H

Category: >>>
Supplier: Tianjin Tengqi International Trade Co. Ltd.

Price:

Quantity:

Product Overview

Description

Linear Guide Description

HG series linear guideways are designed with load capacity and rigidity higher than other similar products withcircular-arc groove and structure optimization. lt features equal load ratings in the radial, reverse radial and lateraldirections, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a longlife with high speed, high accuracy and smooth linear motion.

Linear Guide Features

[1] Self-aligning capability By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

[2] lnterchangeability Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range,which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance.And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

[3] High rigidity in all four directions Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

Linear Guide Major Applications

1.Machine Centers

2.NC Lathes 3.Grinding Machines 4.Precision Machining Machines

5.Heavy Cutting Machines

6.Automation Devices 7.Transportation Equipment

8.Measuring Equipment

9.Devices Requiring High Positional Accuracy

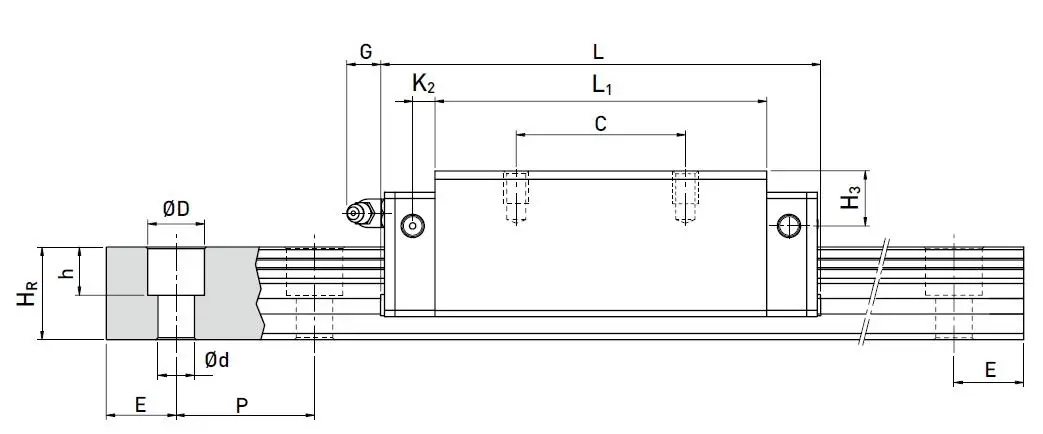

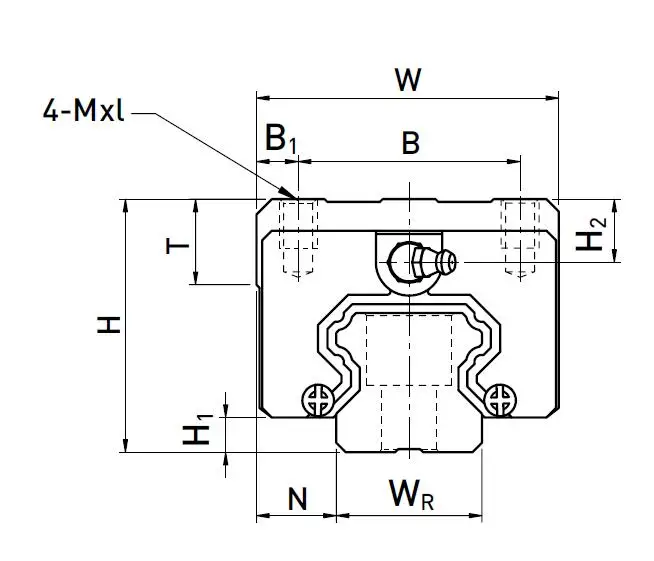

Linear Guide Data

Model code	Height	Width	Length	B	C	Rail Width	Pitch
HGH15CA	28	34	61.4	26	26	15	60
HGH20CA	30	44	77.5	32	36	20	60
HGH25CA	40	48	84	35	35	23	60
HGH30CA	45	60	97.4	40	40	28	80
HGH35CA	55	70	112.4	50	50	34	80
HGH45CA	70	86	139.4	60	60	45	105
HGH55CA	80	100	166.7	75	75	53	120
HGH65CA	90	126	200.2	76	70	63	150

HGH20HA	30	44	92.2	32	50	20	60
HGH25HA	40	48	104.6	35	50	23	60
HGH30HA	45	60	120.4	40	60	28	80
HGH35HA	55	70	138.2	50	72	34	80
HGH45HA	70	86	171.2	60	80	45	105
HGH55HA	80	100	204.8	75	95	53	120
HGH65HA	90	126	259.6	76	120	63	150

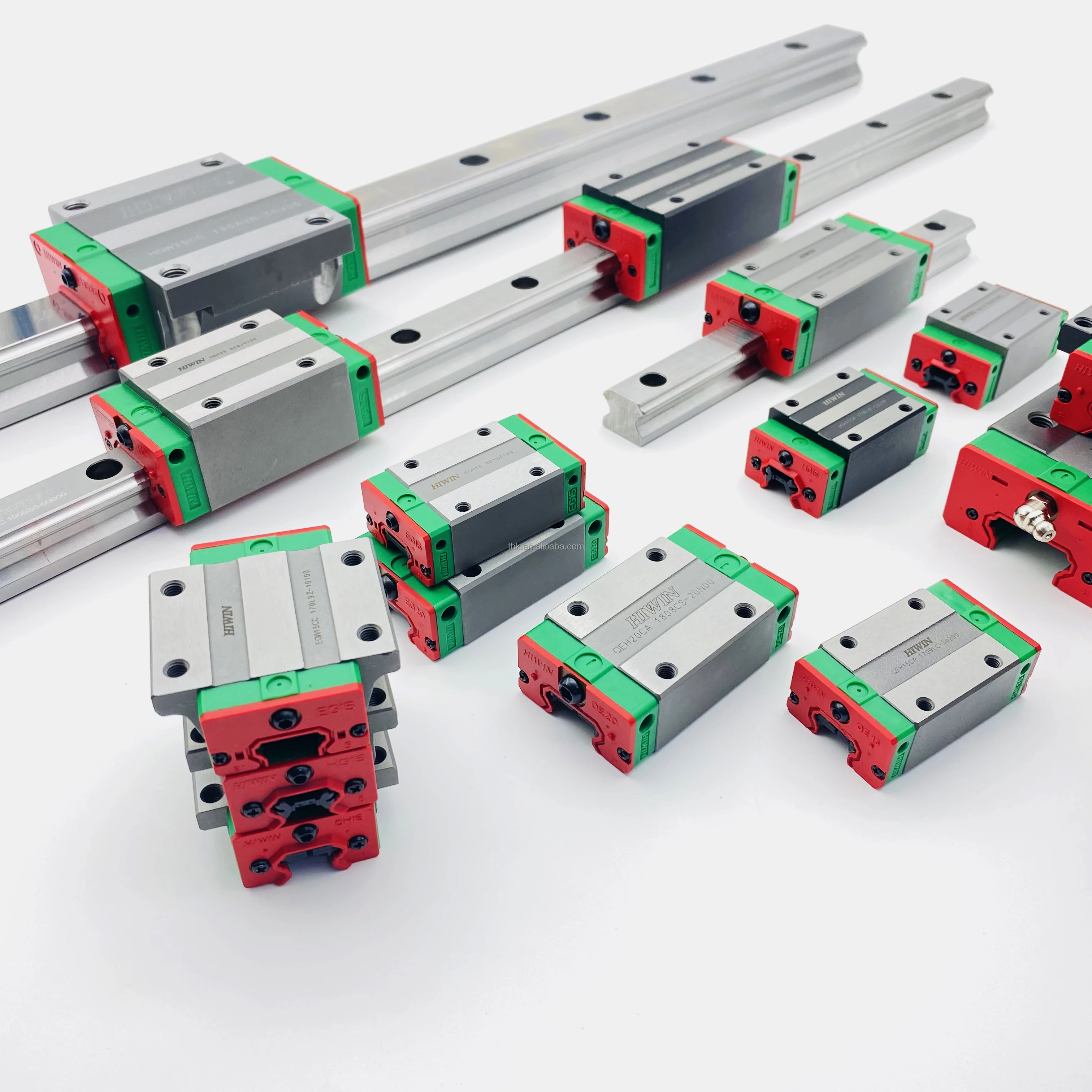

Linear Guide Type

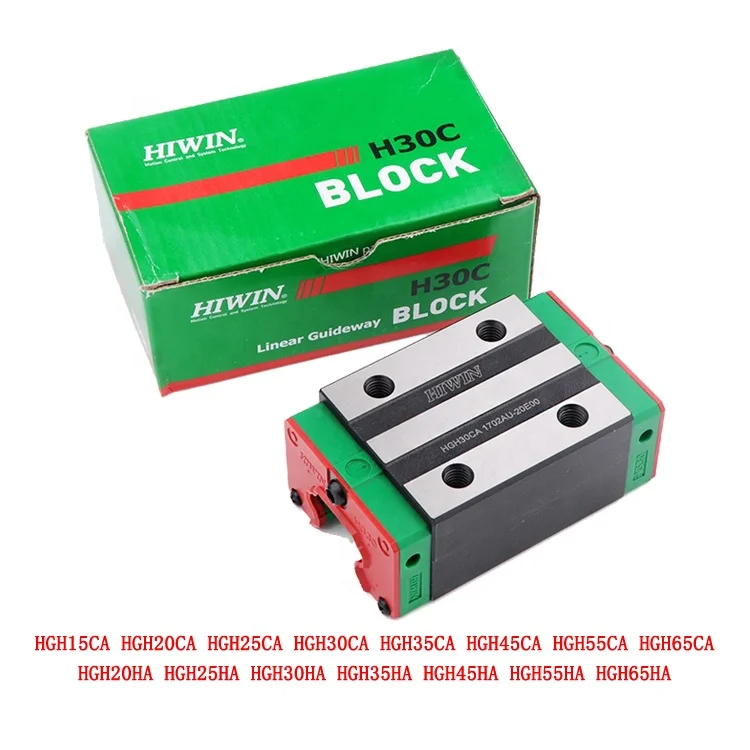

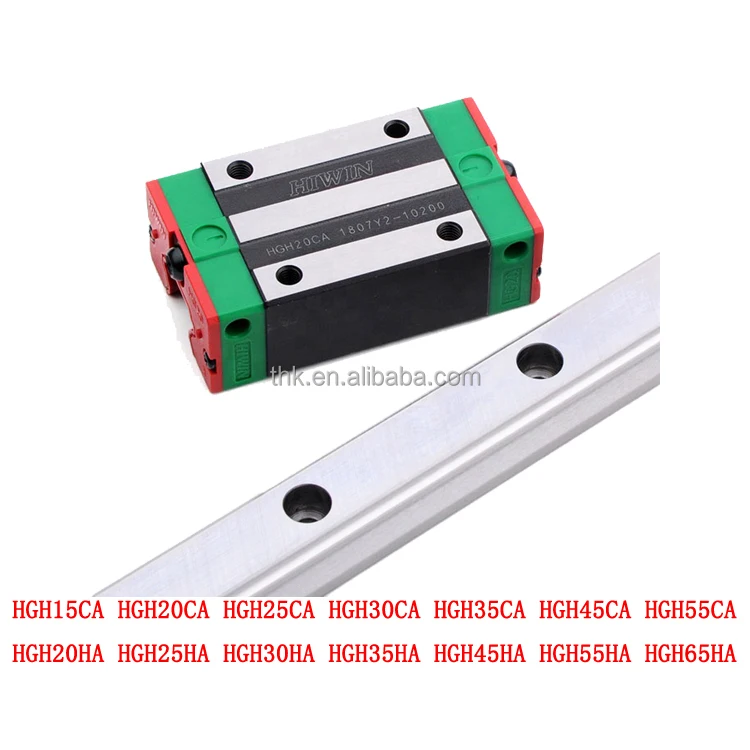

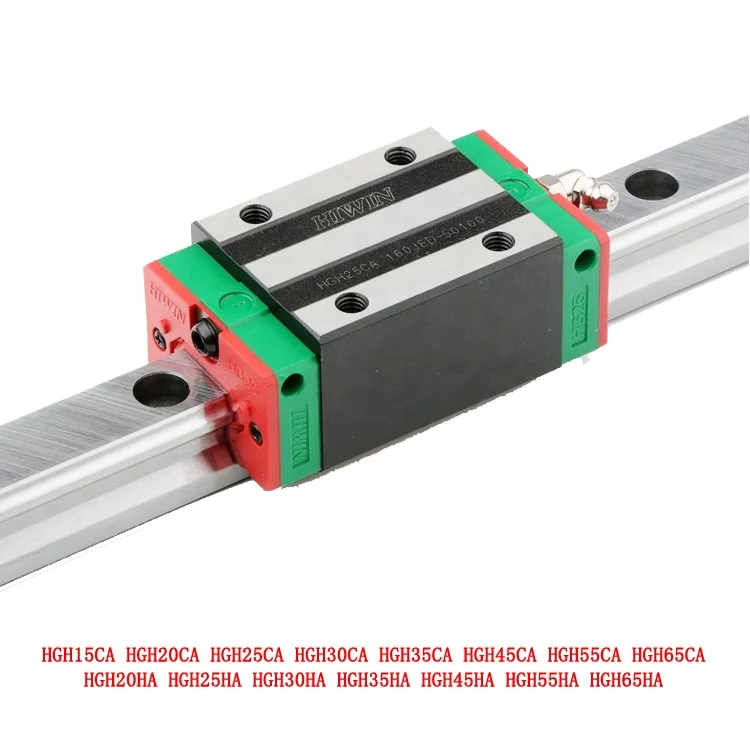

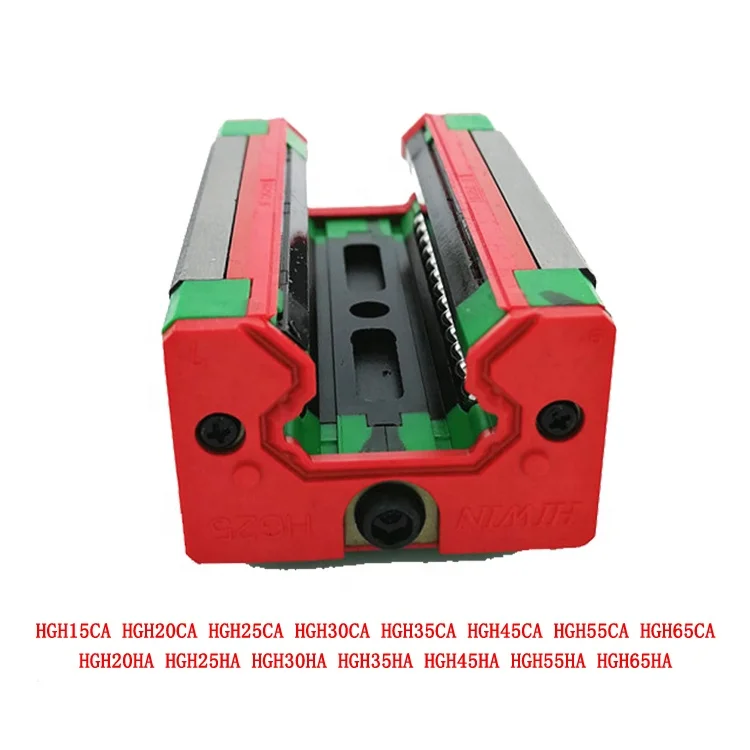

HGH-CA and HGH-HA square type

HGH15CA HGH20CA HGH25CA HGH30CA HGH35CA HGH45CA HGH55CA HGH65CA HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA

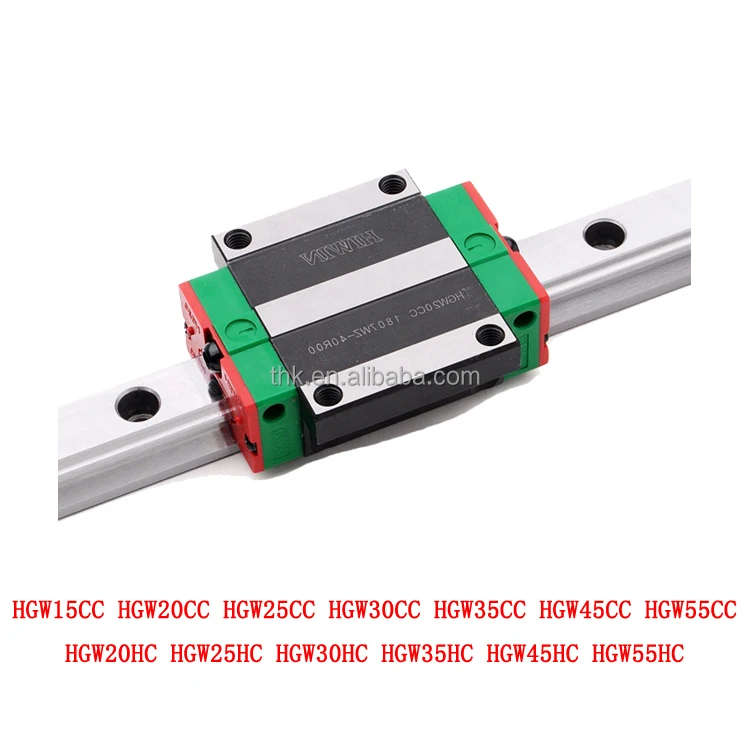

HGW-CC and HGW-HC flange type

HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC

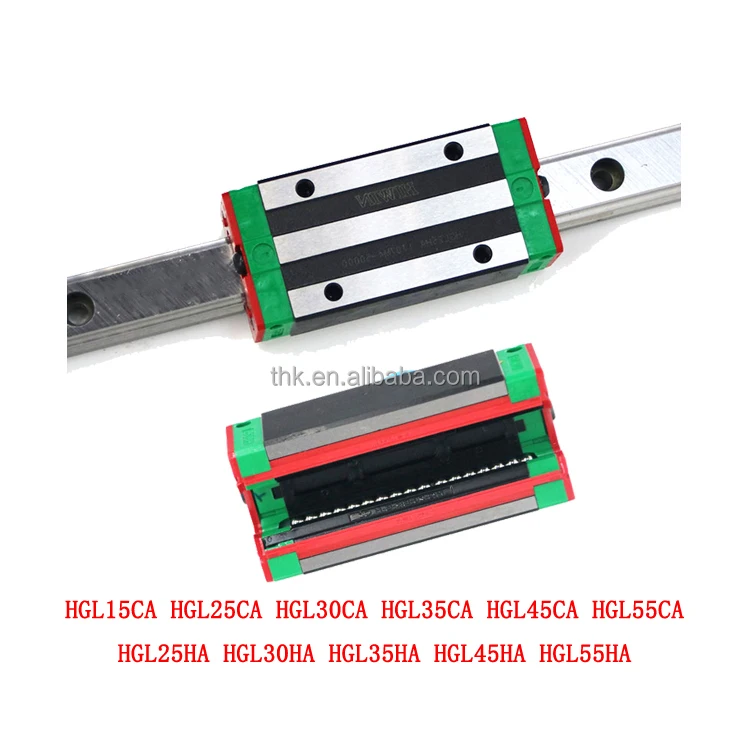

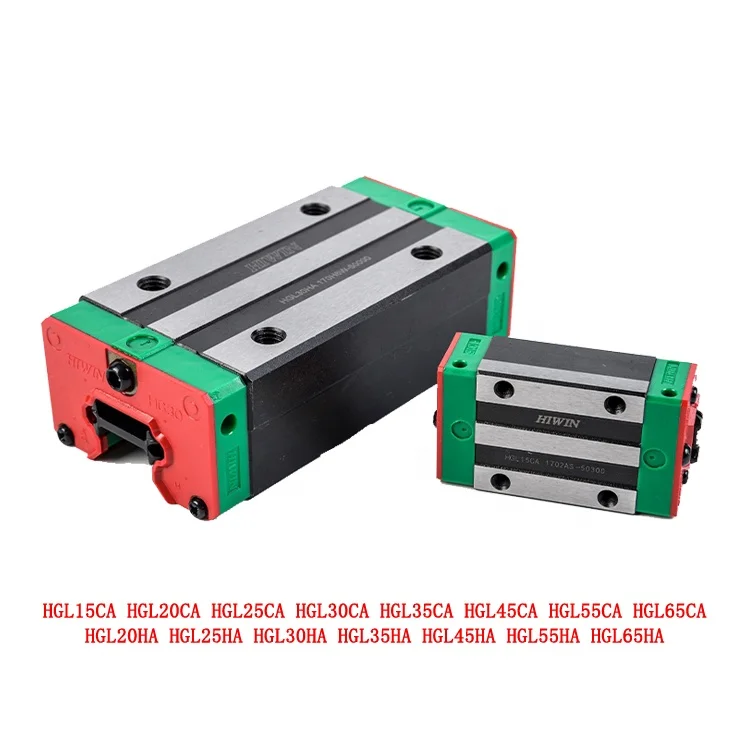

HGL-CA and HGL-HA

HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA HGL25HA HGL30HA HGL35HA HGL45HA HGL55HA

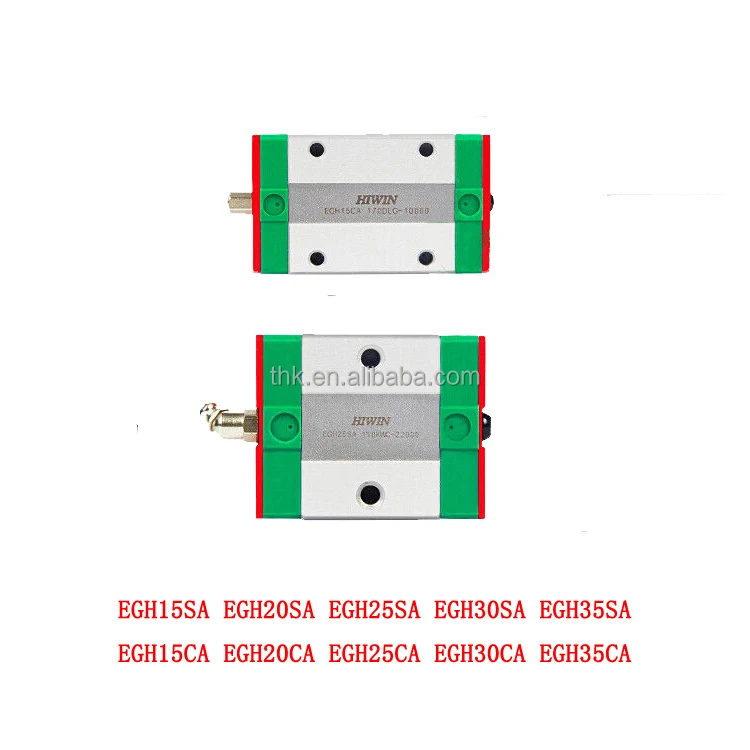

EGH-SA and EGH-CA

EGH15SA EGH20SA EGH25SA EGH30SA EGH35SA EGH15CA EGH20CA EGH25CA EGH30CA EGH35CA

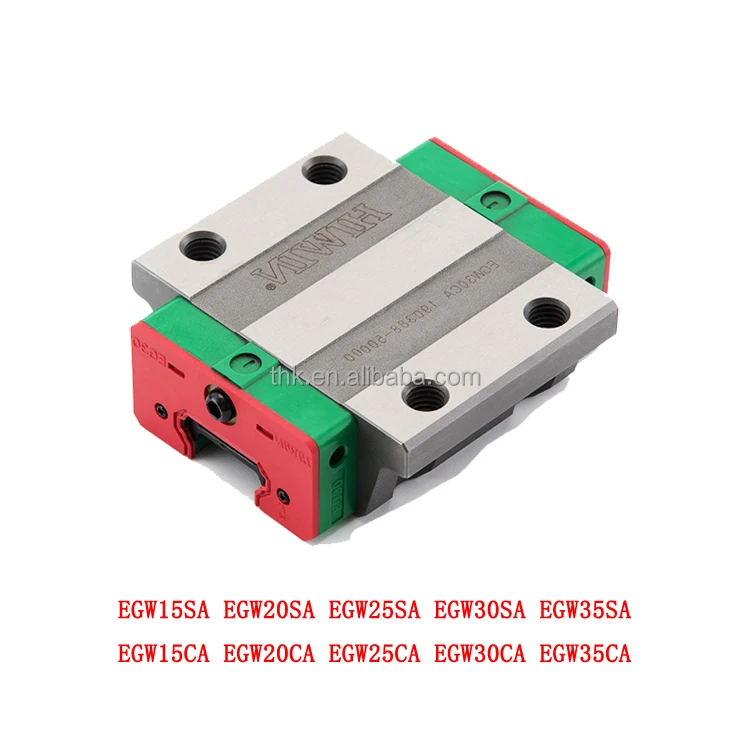

EGW-SA and EGW-CA

EGW15SA EGW20SA EGW25SA EGW30SA EGW35SA EGW15CA EGW20CA EGW25CA EGW30CA EGW35CA

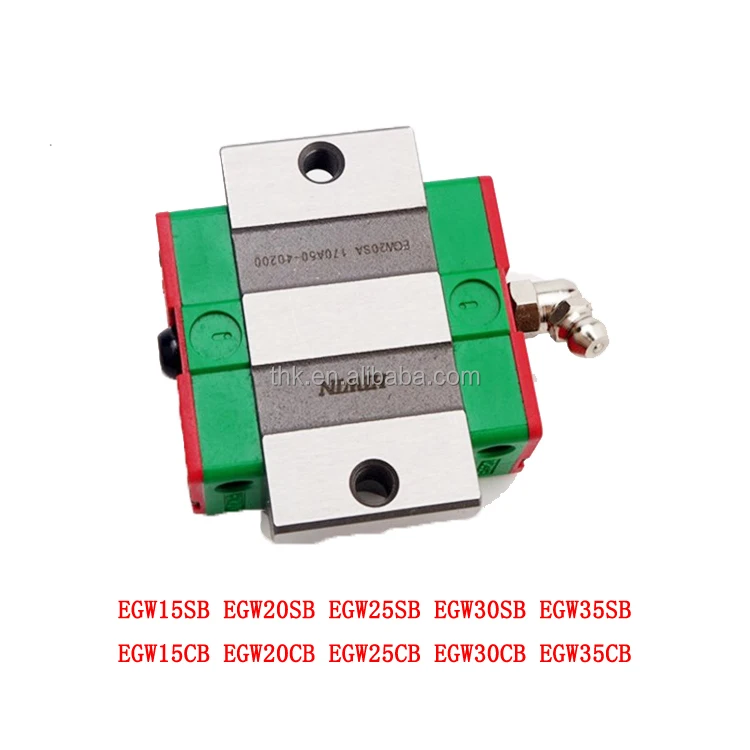

EGW-SB and EGW-CB

EGW15SB EGW20SB EGW25SB EGW30SB EGW35SB EGW15CB EGW20CB EGW25CB EGW30CB EGW35CB

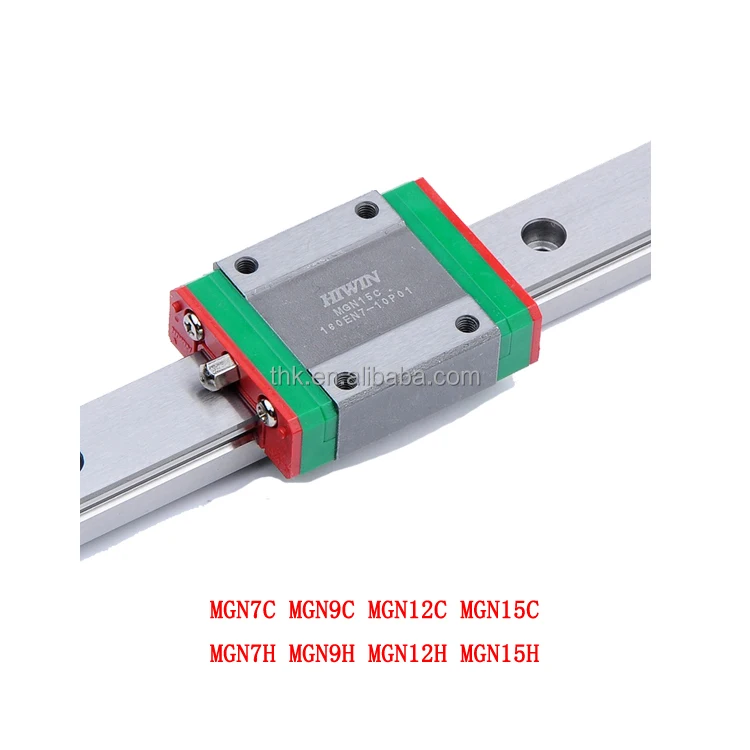

MGN-C and MGN-H

MGN7C MGN9C MGN12C MGN15C MGN7H MGN9H MGN12H MGN15H

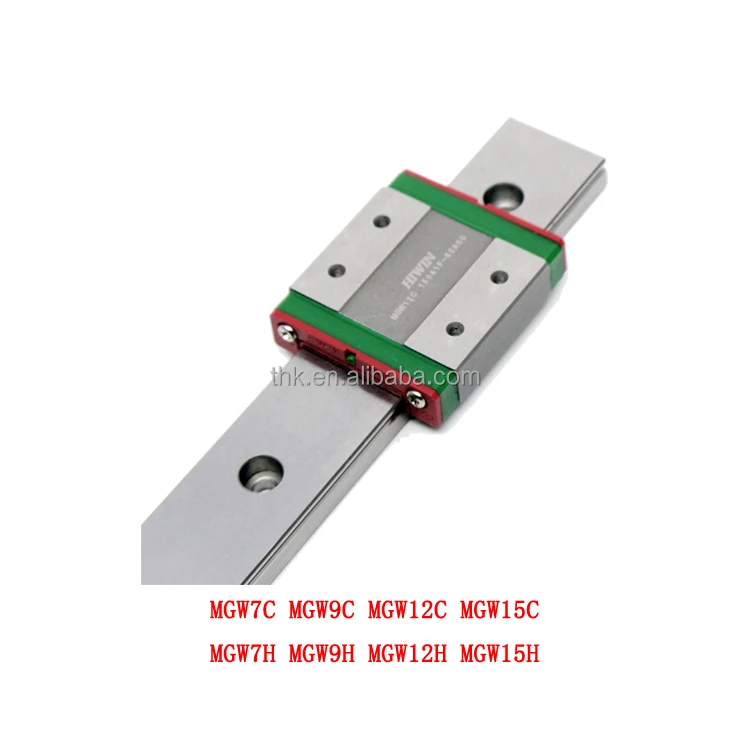

MGW-C and MGW-H

MGW7C MGW9C MGW12C MGW15C MGW7H MGW9H MGW12H MGW15H

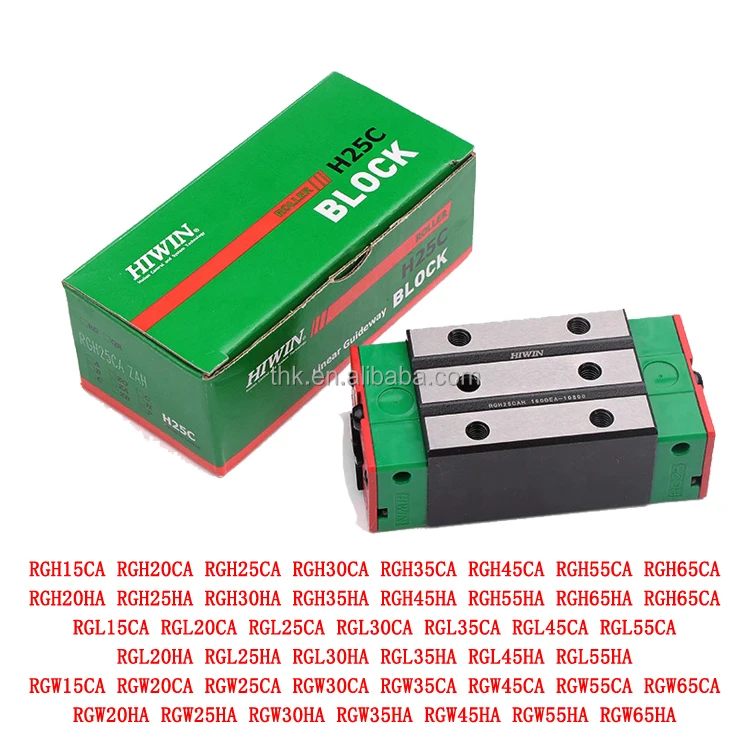

RGH RGL RGW

RGH15CA RGH20CA RGH25CA RGH30CA RGH35CA RGH45CA RGL15CA RGL20CA RGL25CA RGL30CA RGL35CA RGL45CA RGW15CA RGW20CA RGW25CA RGW30CA RGW35CA RGW45CA RGW55CA RGW65CA

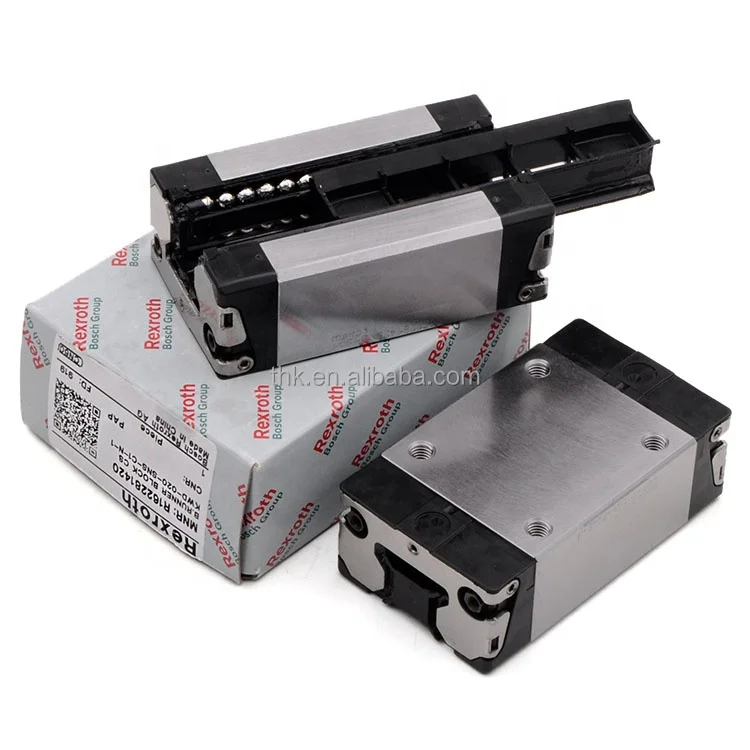

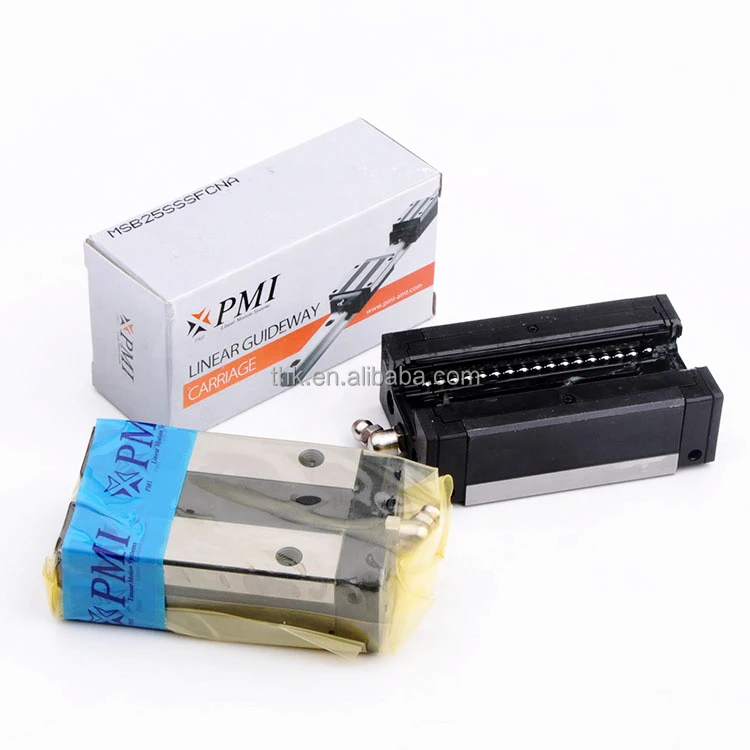

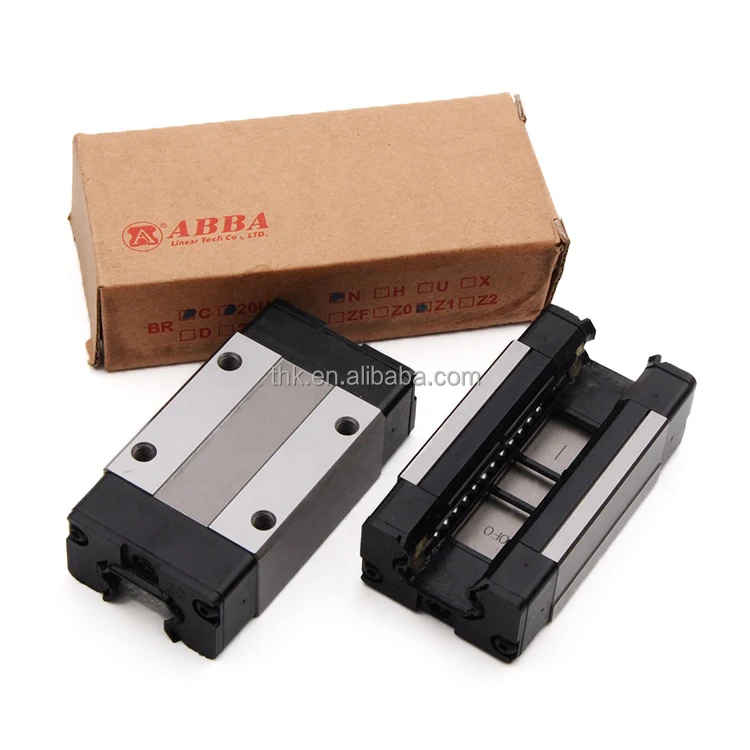

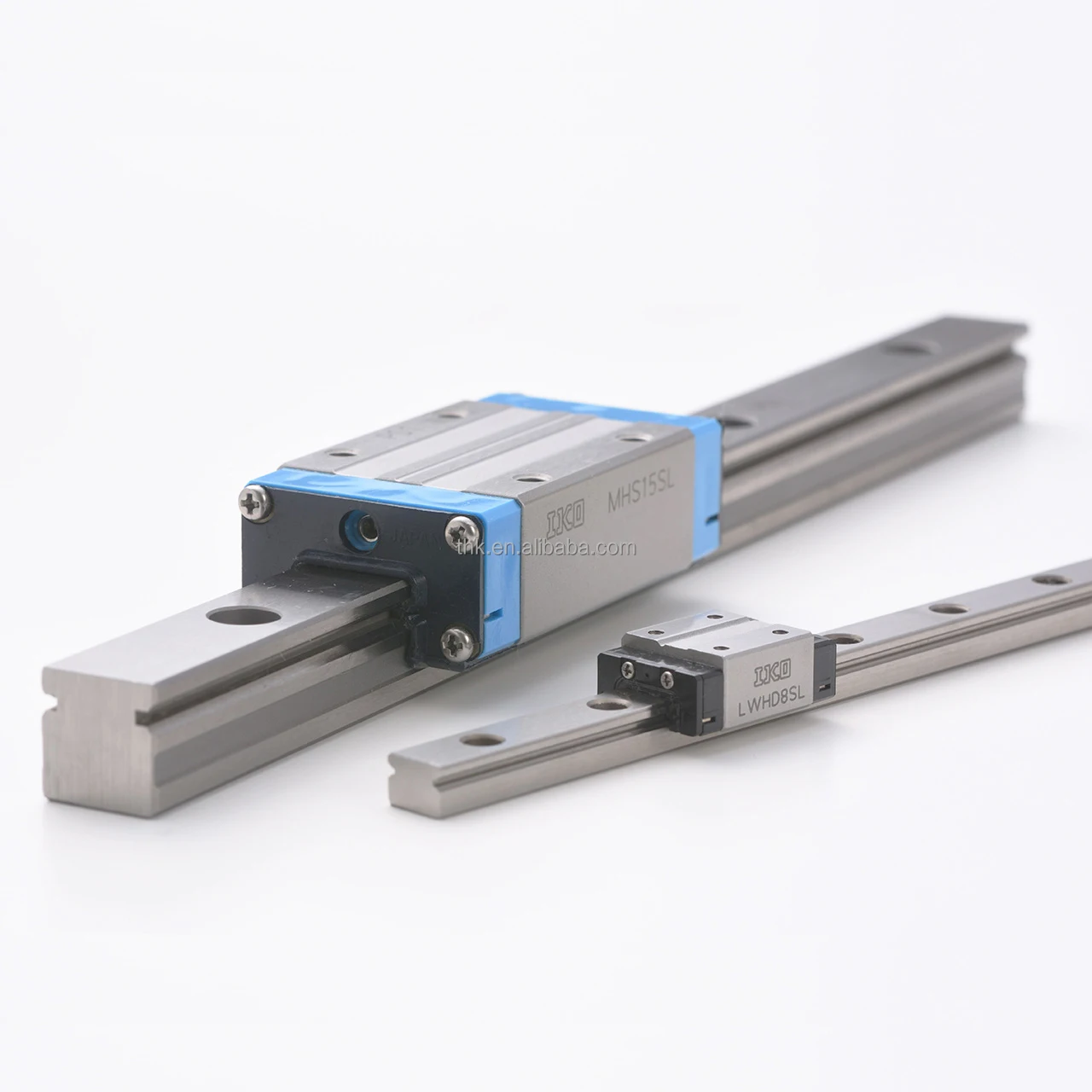

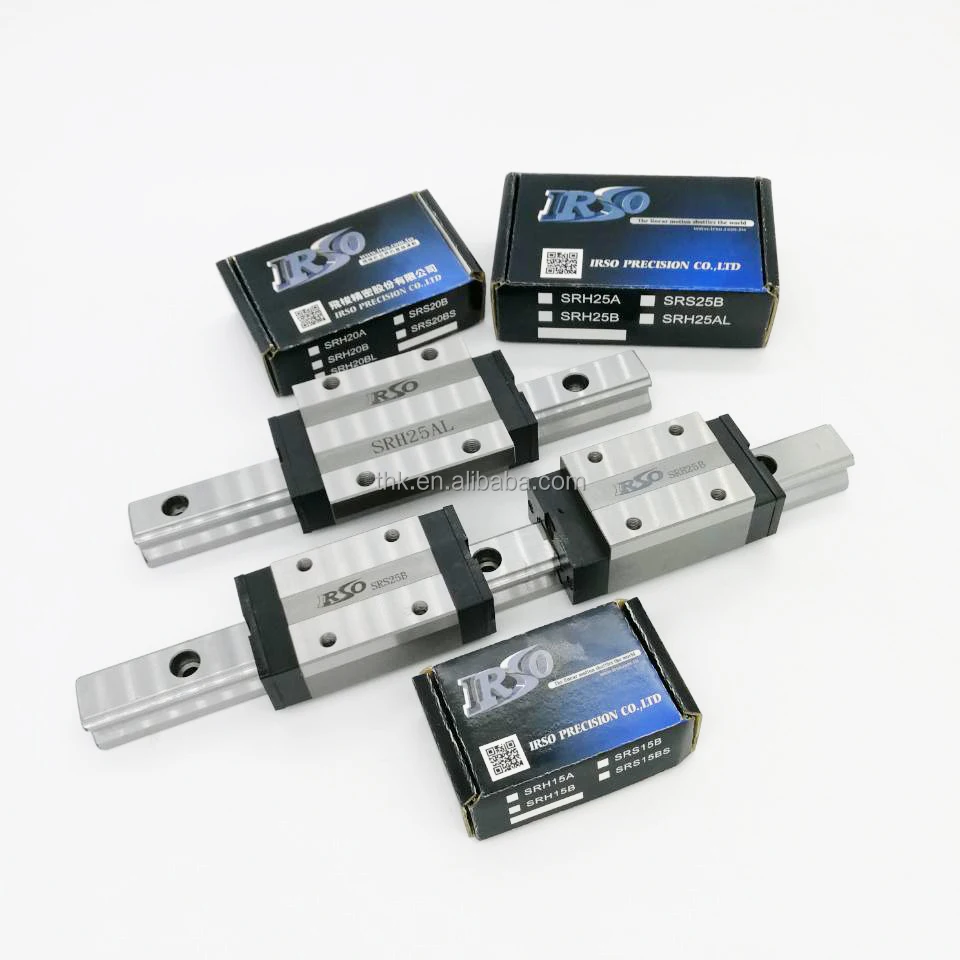

Other Brand Linear Guide
