5KW 6KW 8KW 10KW Wind Turbine Generator Complete Set 24V 48V 96V Free Energy Generators Wind With Controller Inverter 5000W
- Category: >>>
- Supplier: Helios Technology Co. Ltd.Helios Ltd.
Share on (1601003998513):
Product Overview
Description
Model | HK-3KW | HK-5KW | HK-8KW | HK-10KW | |||
Rated Power | 3KW | 5KW | 8KW | 10KW | |||
Max Power | 4KW | 5.5KW | 9KW | 12KW | |||
Wind Wheel Diameter | 4.0m | 5.3m | 5.8m | 7.5m | |||
Start-up Wind Speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |||
Rated Wind Speed | 11m/s | 11m/s | 11m/s | 11m/s | |||
Survival Wind Speed | 55m/s | 55m/s | 55m/s | 55m/s | |||
Product Assembly Weight | 248kg | 275kg | 330Kg | 400kg | |||
Rated Voltage | 96V/120V/220V/240V | 96V/120V/240V | 120V/220V/380V | ||||
Number of Blades | 3/5 | ||||||
Blades Material | Nylon Fiber/Reinforced glass fiber | ||||||
Generator Type | Three Phase AC Permanent Magnet Generator | ||||||
Magnet Material | NdFeB | ||||||
Generator Case | Casting Aluminum Alloy | ||||||
Control System | Electromagnet | ||||||
The Wind Adjustment | Automatic Windward Adjustment | ||||||
Working Temperature | -40℃ ~ +80℃ | ||||||
Overload Protection | Electromagnetic torque control and electricity brake | ||||||
1. Low starting wind speed, small volume, beautiful appearance and low operating vibration;

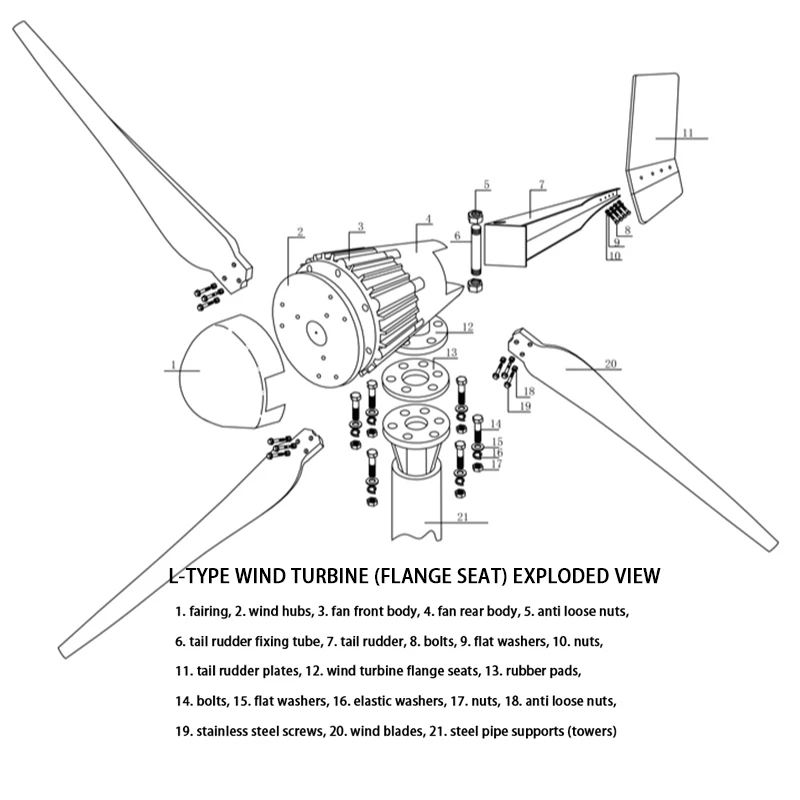

2. Humanized flange installation design is used to facilitate installation and maintenance; High temperature and cold resistance;

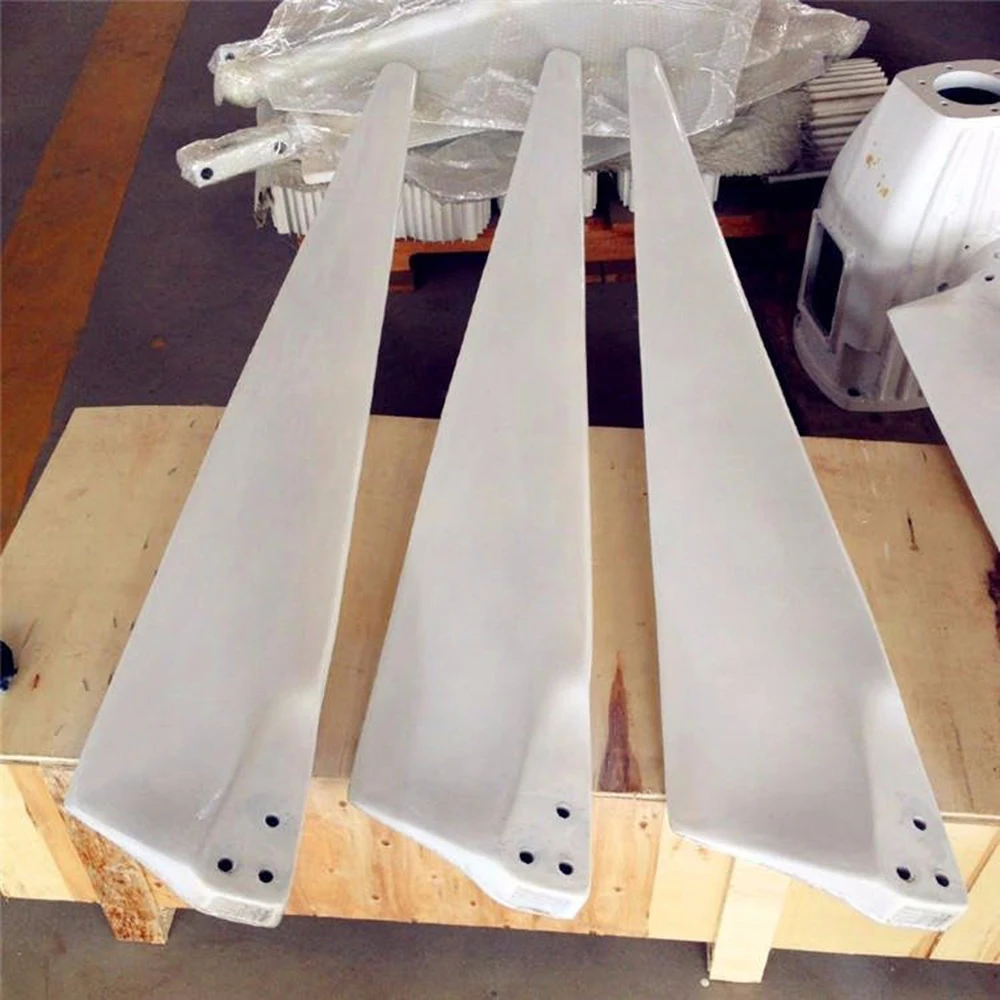

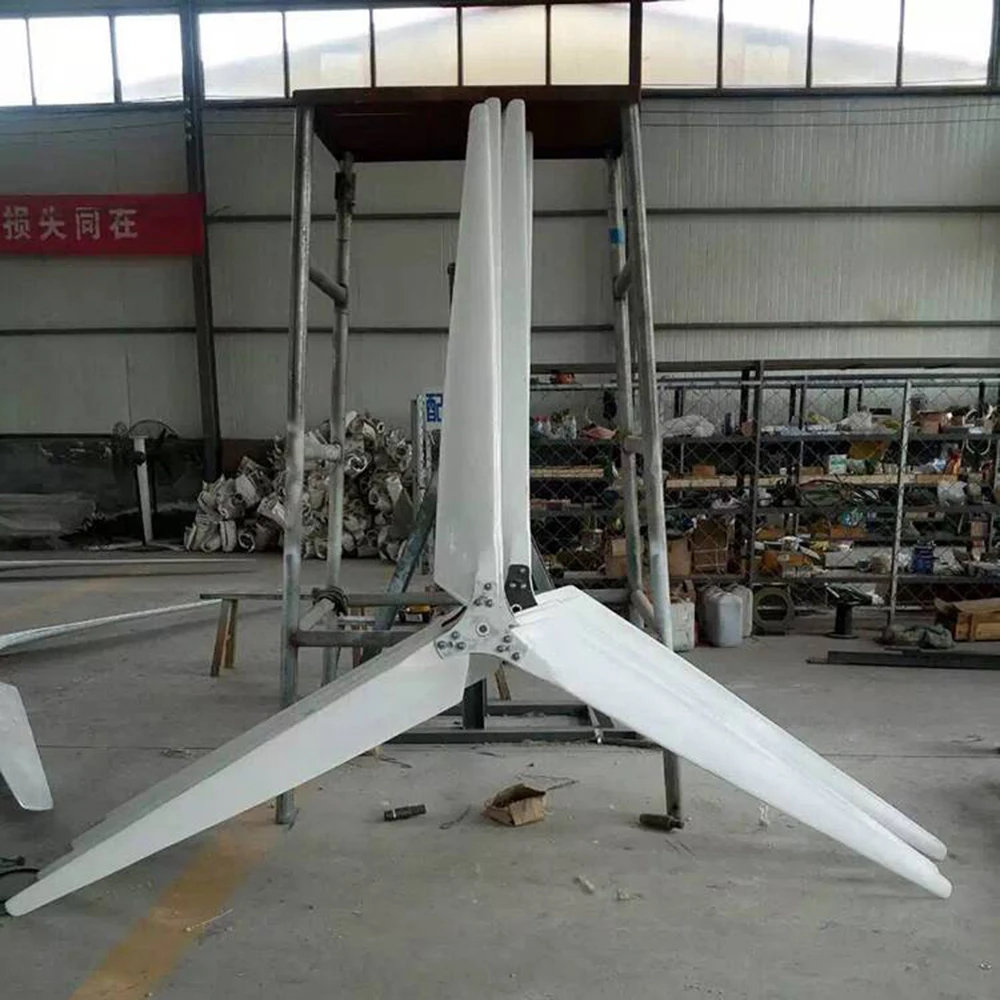

3. The wind turbine blade adopts nylon fiber, optimized aerodynamic shape design and structural design, low starting wind speed, and mass production color can be made according to customer requirements;

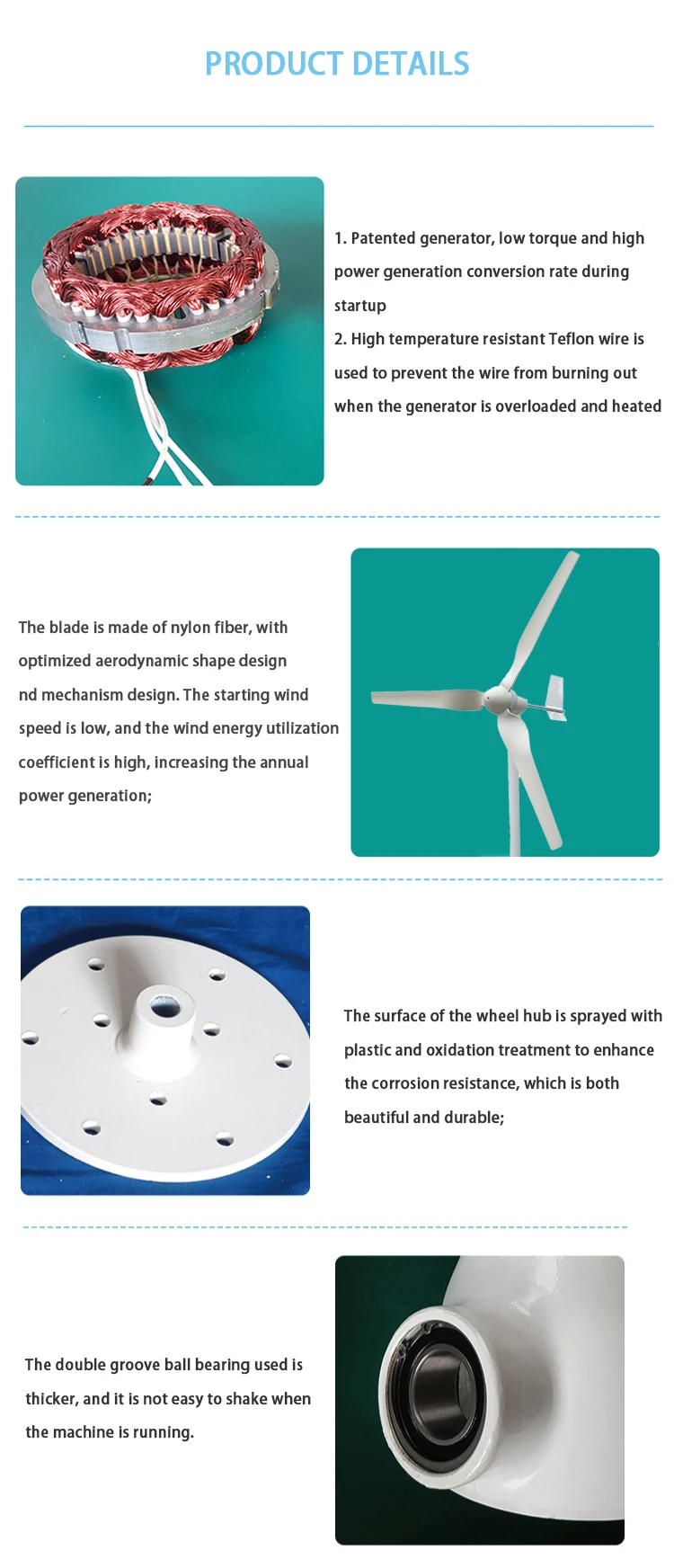

4. The generator adopts the patented permanent magnet rotor alternator with special rotor design, which can effectively reduce the resistance torque of the generator, which is only 1/3 of the ordinary motor; At the same time, the wind turbine and the generator have better matching characteristics and the reliability of unit operation;

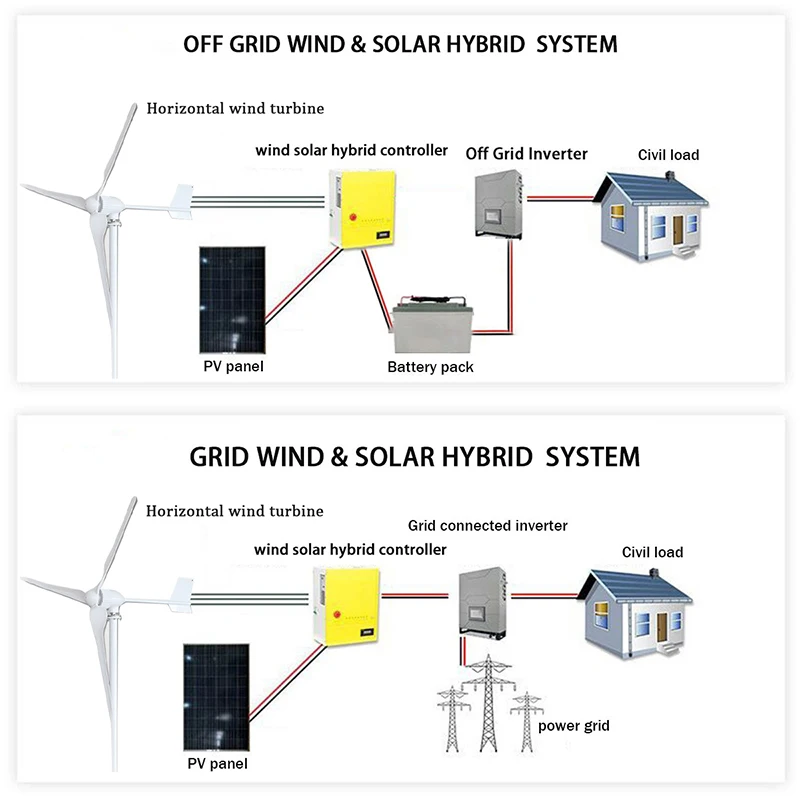

5. It can be used in combination with solar panels to provide continuous and stable power under various natural conditions;

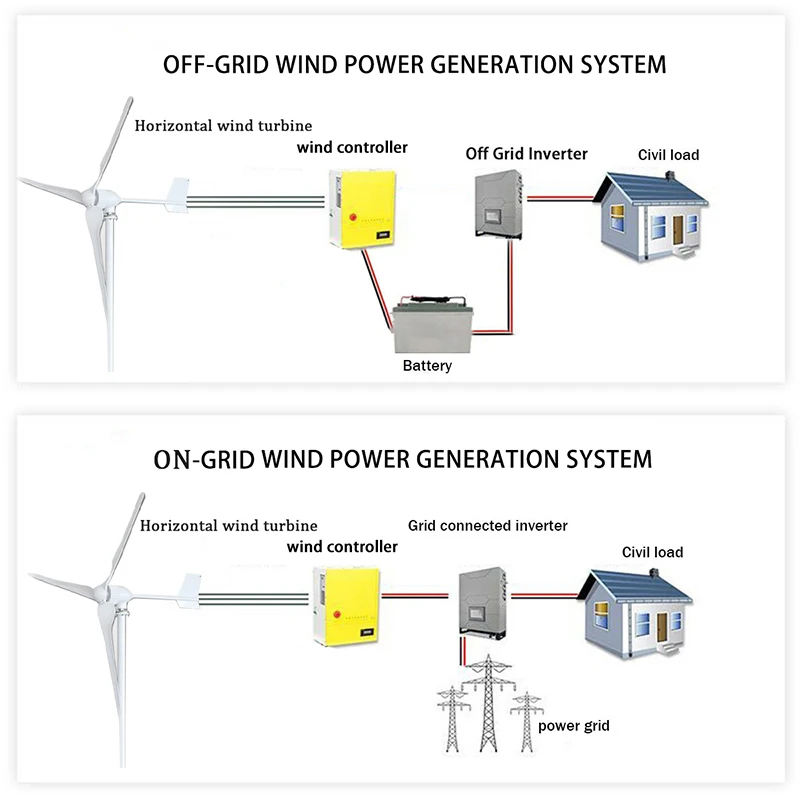

6. Supply matched Wind hybrid controller and inverter to effectively adjust the current and voltage, make solar and wind energy system more stable.
2. Humanized flange installation design is used to facilitate installation and maintenance; High temperature and cold resistance;
3. The wind turbine blade adopts nylon fiber, optimized aerodynamic shape design and structural design, low starting wind speed, and mass production color can be made according to customer requirements;
4. The generator adopts the patented permanent magnet rotor alternator with special rotor design, which can effectively reduce the resistance torque of the generator, which is only 1/3 of the ordinary motor; At the same time, the wind turbine and the generator have better matching characteristics and the reliability of unit operation;
5. It can be used in combination with solar panels to provide continuous and stable power under various natural conditions;
6. Supply matched Wind hybrid controller and inverter to effectively adjust the current and voltage, make solar and wind energy system more stable.
Q1. How can we guarantee quality?
Always a pre-production sample before mass production and final Inspection before shipment. Also can provide sample for quality inspection and market testing.

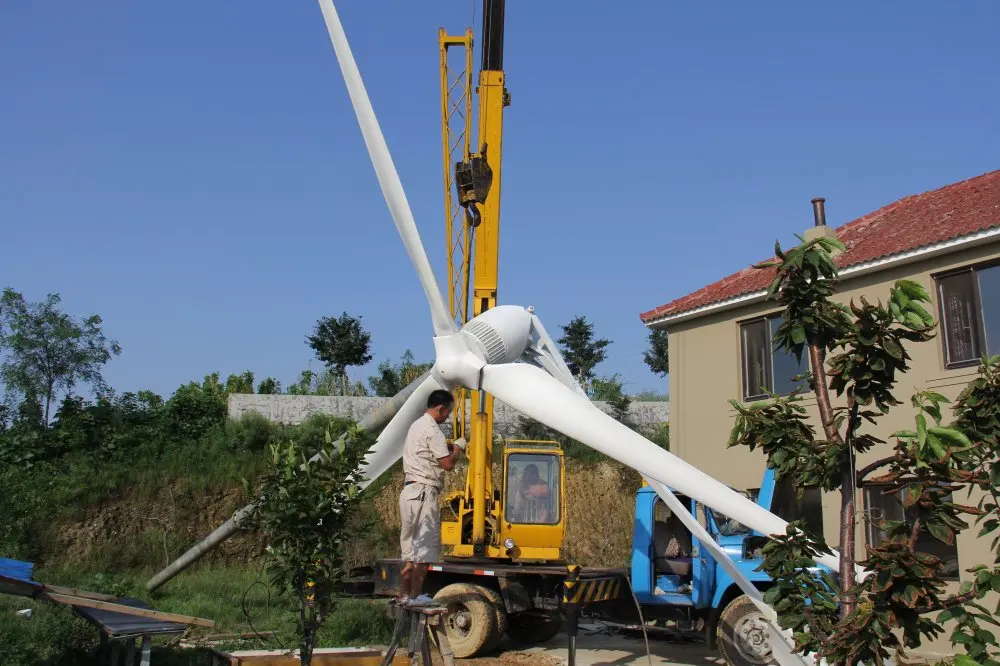

Q2. Are these products easy to be installed?

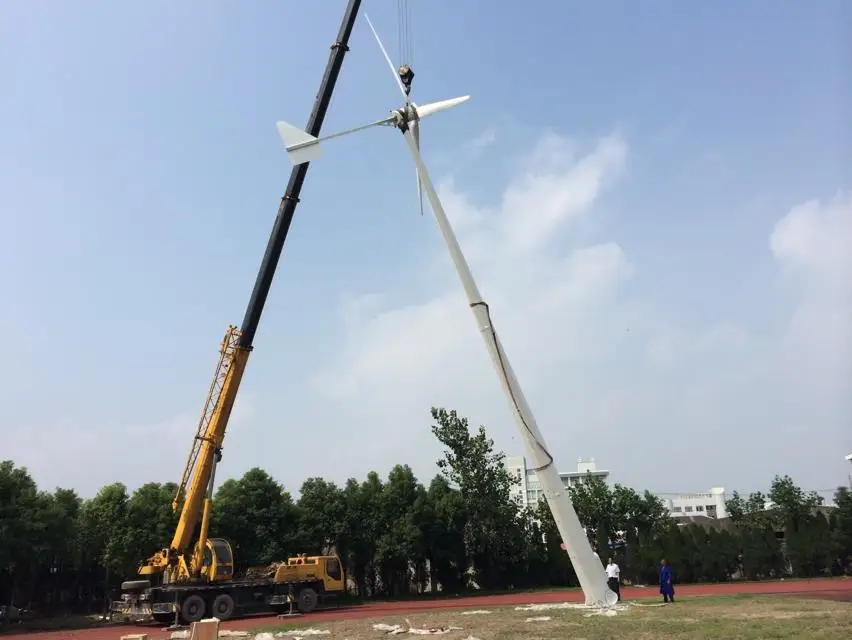

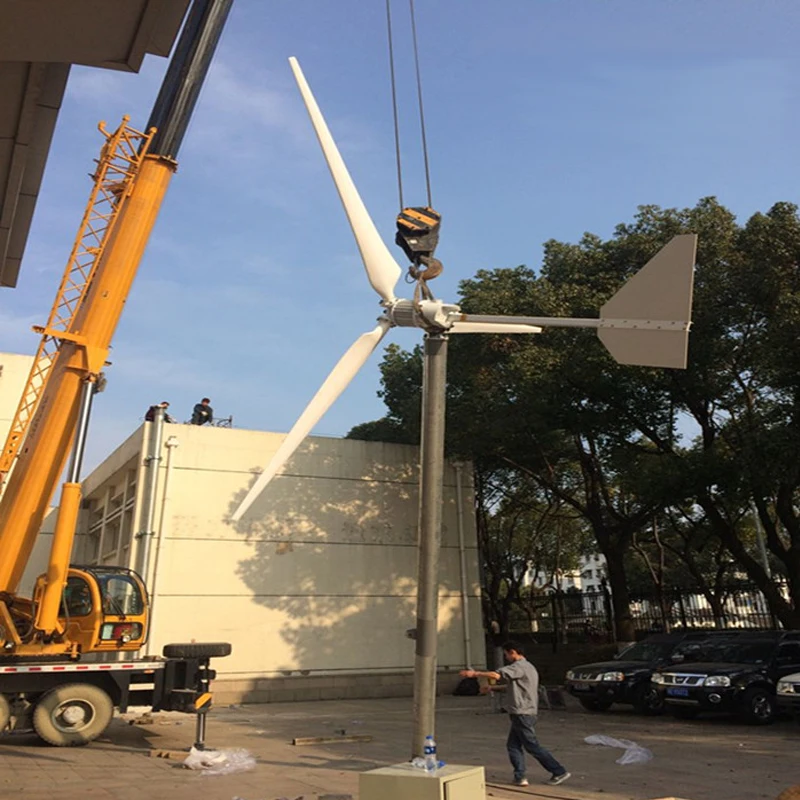

Yes, It is easy to be installed by themselves, we provide installation manual for reference. Our sales manager and engineer can also guide the installation by video if any query.
Q3. How far is the best distance between wind turbine, controller and battery?
Usually better within 10 Meters between wind turbine with controller, and controller to batteries; Batteries and inverter to load within 20-50 Meters.
Q4. For horizontal axis wind turbines & vertical axis wind turbines, which of type efficiency is better?
(1). For same watts at same wind speed, the output efficient of horizontal axis wind turbines is better than that vertical axis wind turbines.
(2). Low wind speed, we suggest to use vertical HLS series.
(3). Wind speed is over 8m/s, the generation efficiency of vertical wind turbine is around
Always a pre-production sample before mass production and final Inspection before shipment. Also can provide sample for quality inspection and market testing.
Q2. Are these products easy to be installed?
Yes, It is easy to be installed by themselves, we provide installation manual for reference. Our sales manager and engineer can also guide the installation by video if any query.
Q3. How far is the best distance between wind turbine, controller and battery?
Usually better within 10 Meters between wind turbine with controller, and controller to batteries; Batteries and inverter to load within 20-50 Meters.
Q4. For horizontal axis wind turbines & vertical axis wind turbines, which of type efficiency is better?
(1). For same watts at same wind speed, the output efficient of horizontal axis wind turbines is better than that vertical axis wind turbines.
(2). Low wind speed, we suggest to use vertical HLS series.
(3). Wind speed is over 8m/s, the generation efficiency of vertical wind turbine is around
80-90%. No noise & most popular.
Q5. Can you also provide the full sets of wind & solar system?
Yes, of course! We are a one-stop energy solution provider. we have qualified technician team to design for your system, including wind turbine,solar panel system and Energy storage system, also provide detailed installation instruction.
Q6. What kind of certificates your products have?
Our products have acquired CE, ISO & ROHS certificates.
Q7. What are your terms of payment?
Often like T/T & L/C, others can be negotiated;
Alibaba Trade Assurance are available, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount.
Q5. Can you also provide the full sets of wind & solar system?
Yes, of course! We are a one-stop energy solution provider. we have qualified technician team to design for your system, including wind turbine,solar panel system and Energy storage system, also provide detailed installation instruction.
Q6. What kind of certificates your products have?
Our products have acquired CE, ISO & ROHS certificates.
Q7. What are your terms of payment?
Often like T/T & L/C, others can be negotiated;
Alibaba Trade Assurance are available, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount.
