4F210 08 5/2 Way Without Lock Acting Foot Valve Pedal Switch Pneumatic Foot Pedal Control Air Valve
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1601004000887):
Product Overview
Description
4F210-08 5/2 Way Without Lock Acting Foot Valve Pedal Switch Pneumatic Foot Pedal Control Air Valve

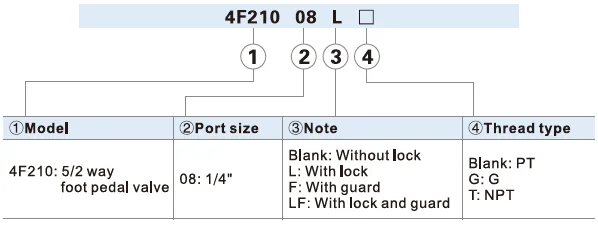

Ordering Code:
Specifications
Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | |||
Fluid | Air( to be filtered bu 40 µ m filter element) | ||||||
Acting | Acting type controlled by foot | ||||||
Port size | 1/4'' | ||||||
Pressure range | 0~1.0MPa(0~145psi) | ||||||
Proof pressure | 1.5MPa(215psi) | ||||||
Temperature °C | -20~70℃ | ||||||
Material of body | Aluminum Alloy | ||||||
Lubrication | Not required | ||||||
More products:
Other type for you to choose

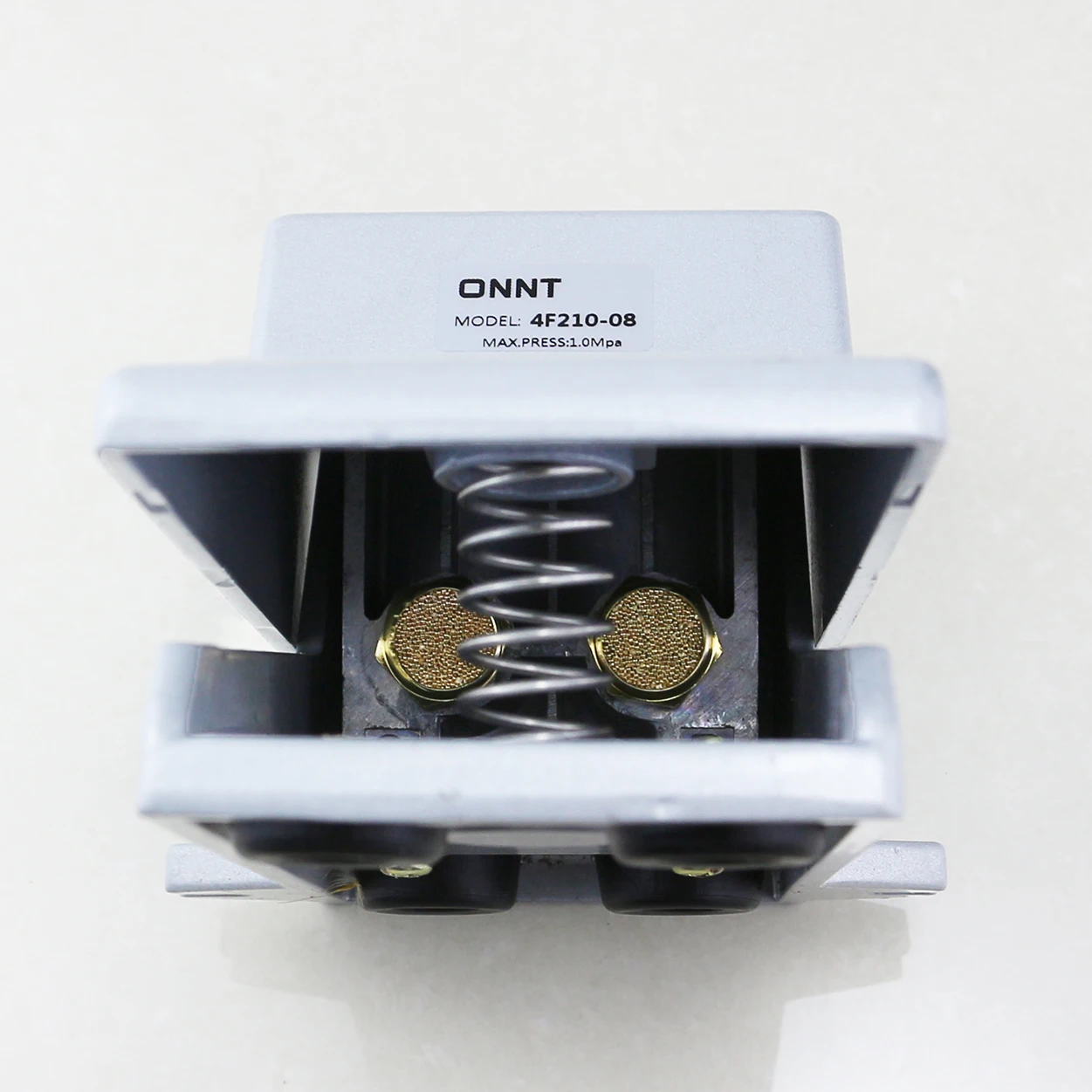

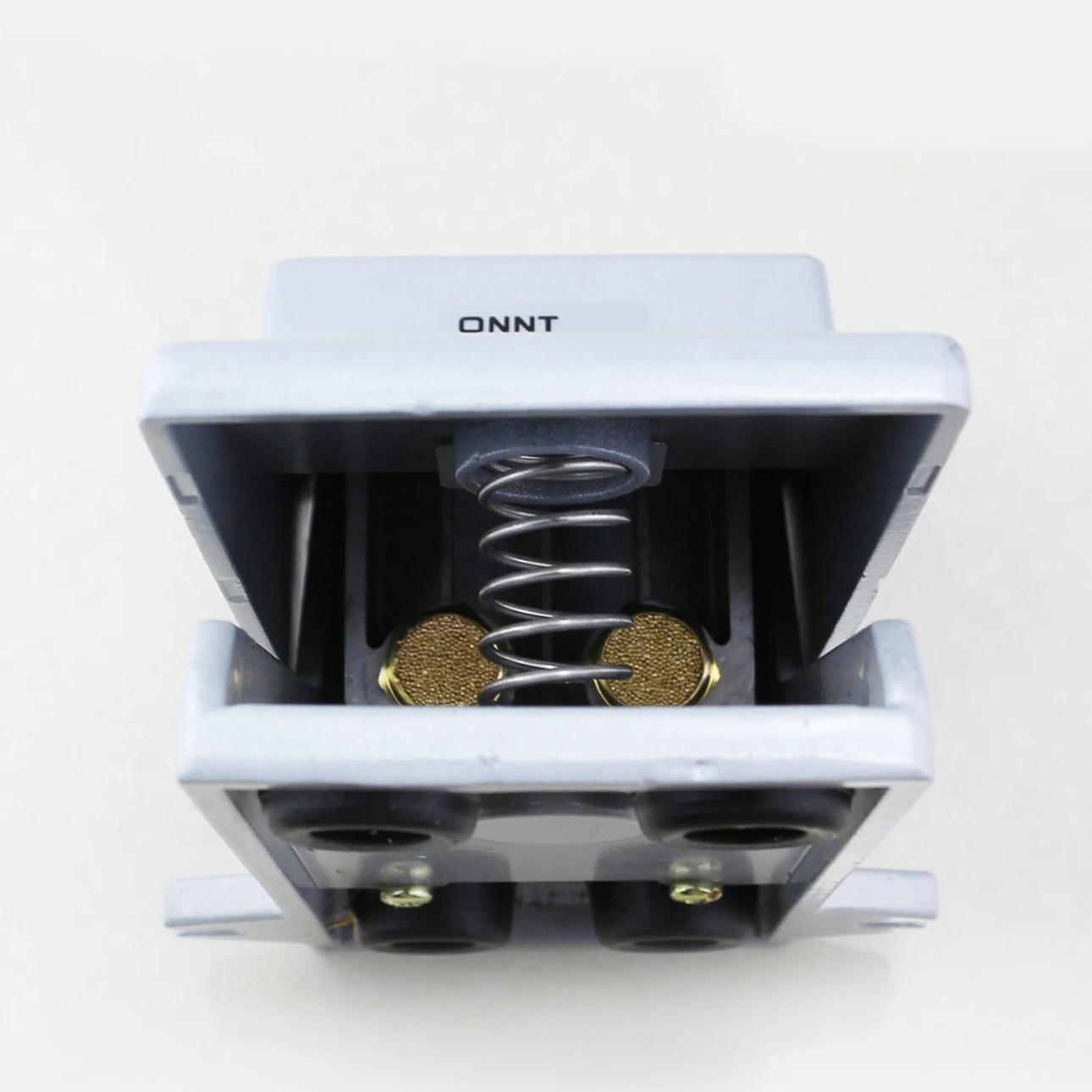

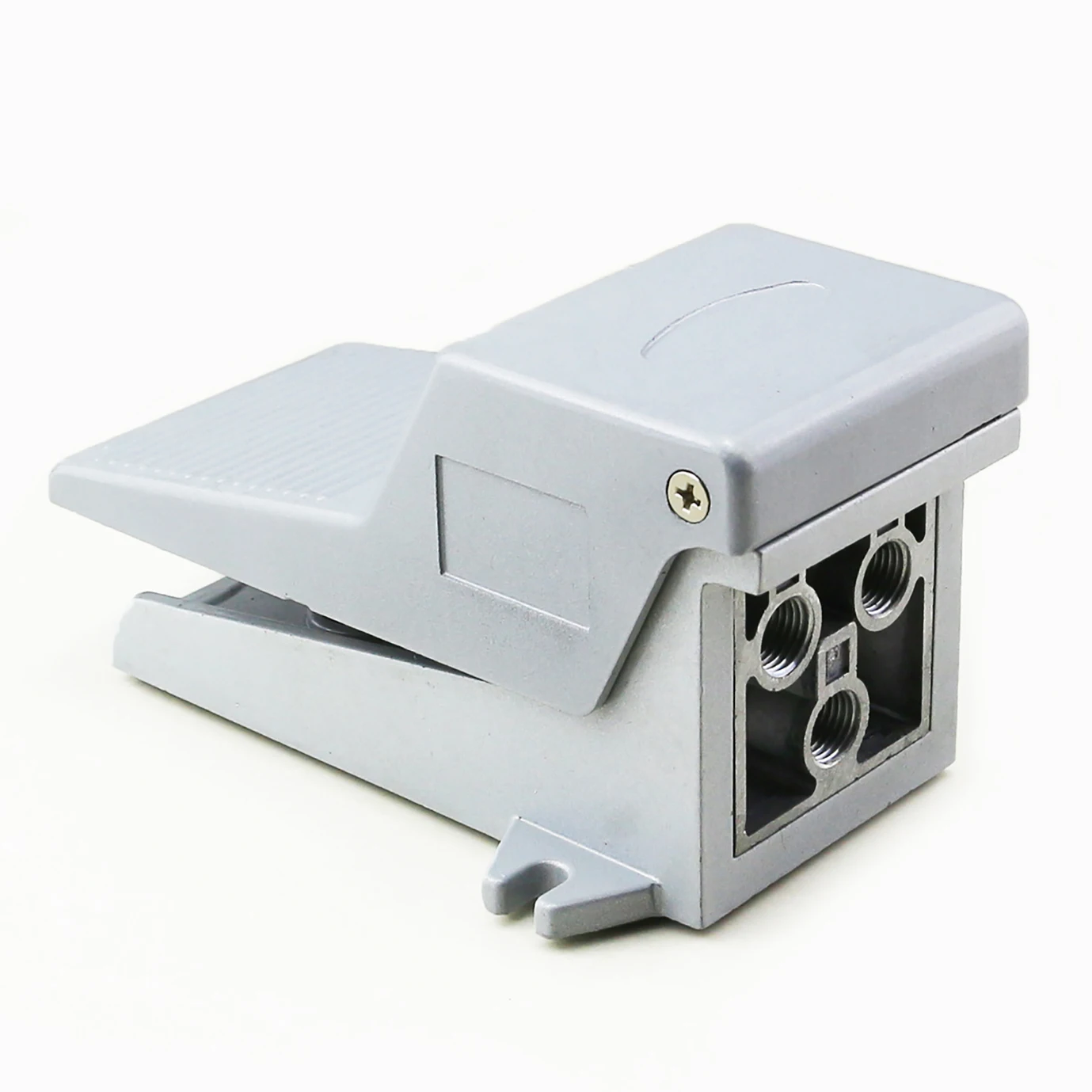

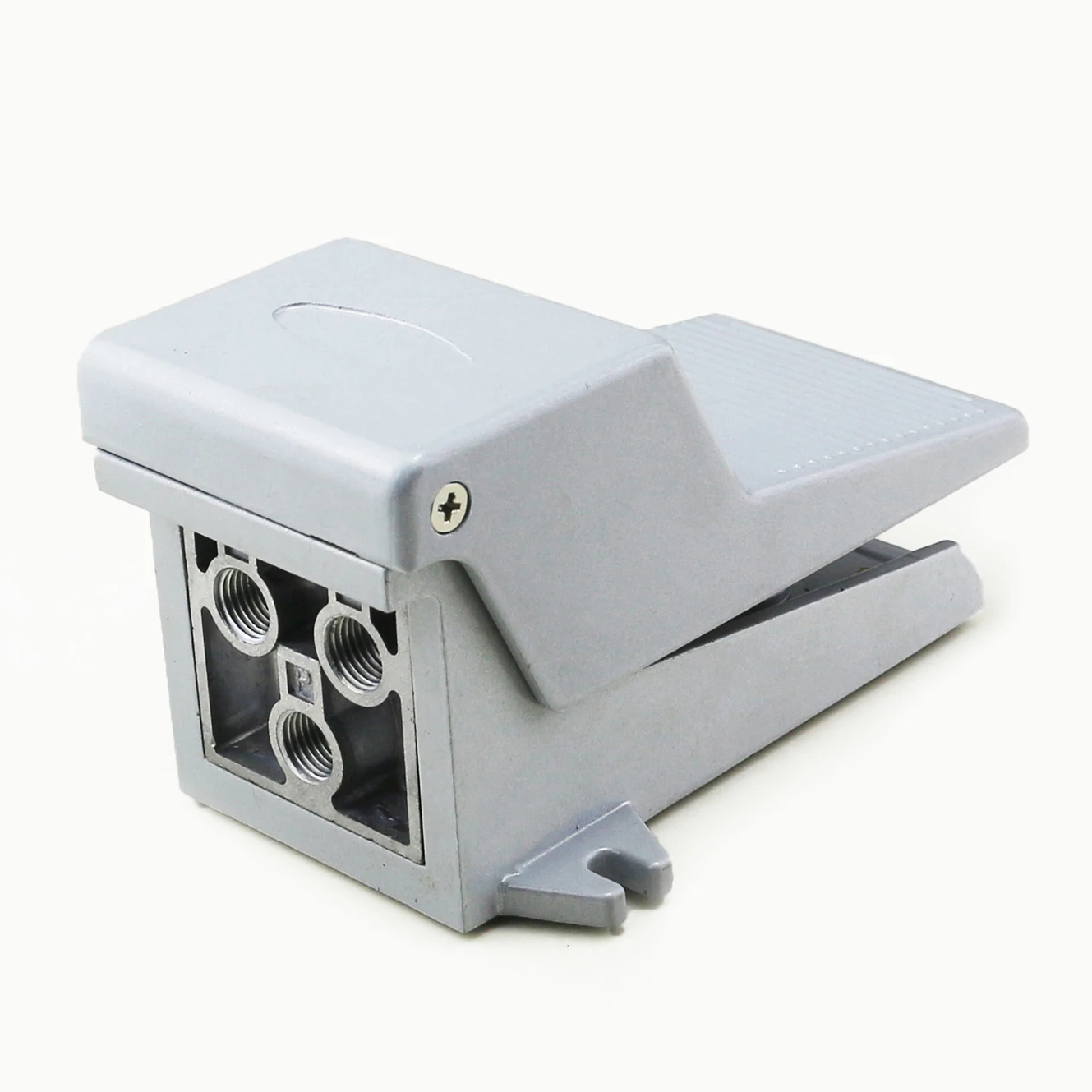

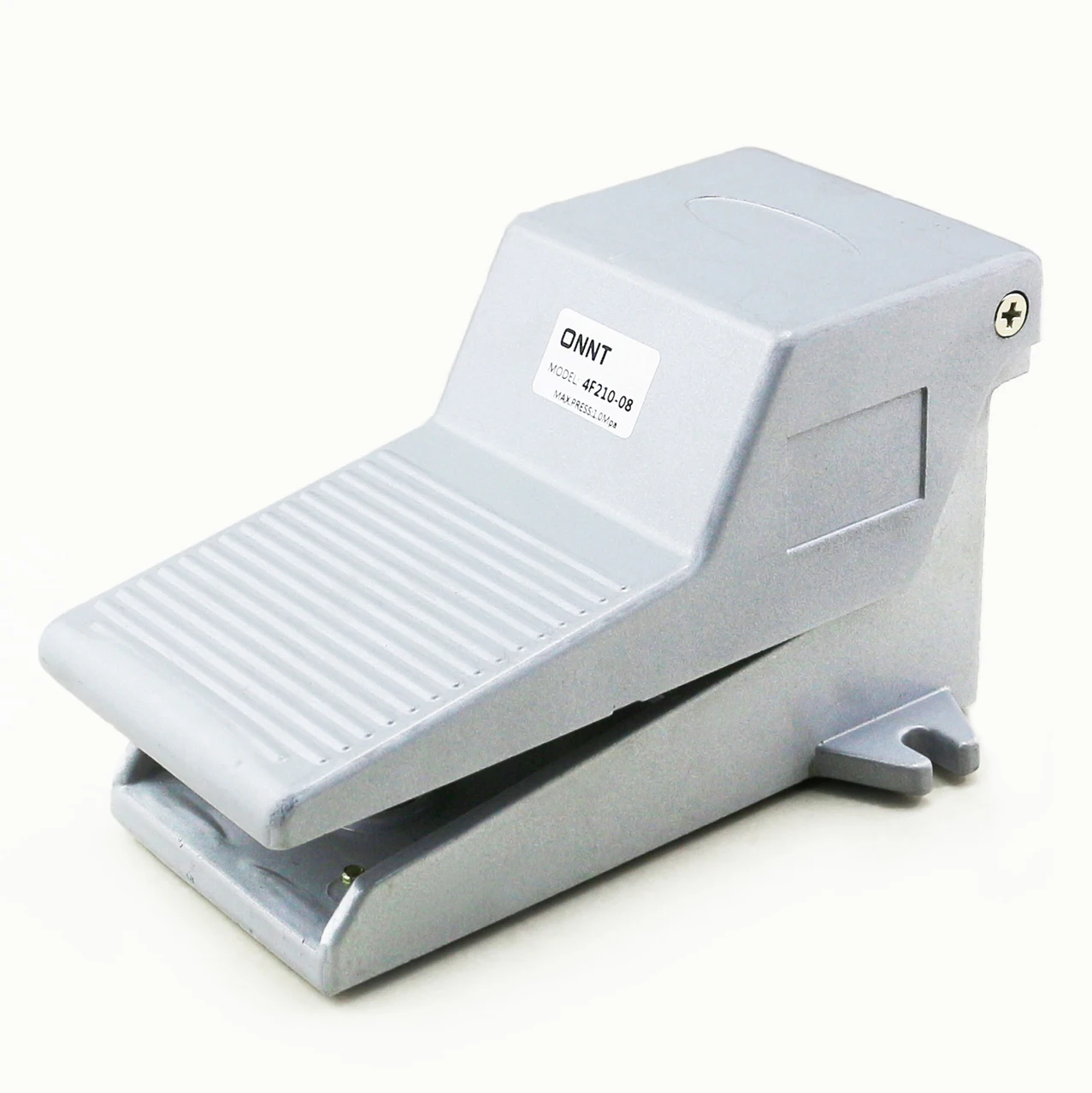

Details Images:

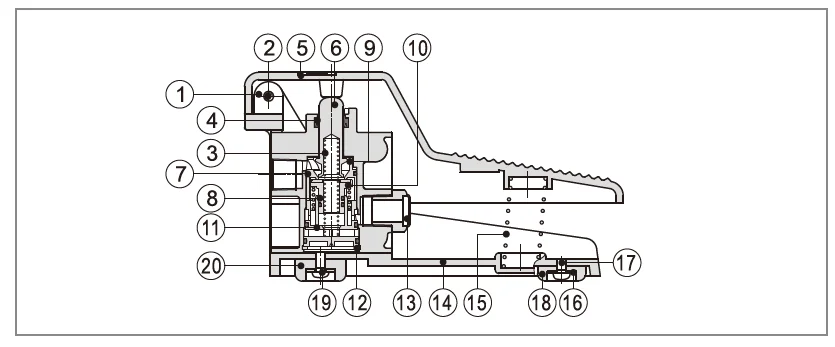

Inner structure and material of major parts:
NO | Item | NO | Item | NO | Item |
1 | Pin | 8 | O-ring | 15 | Pedal spring |
2 | Screw | 9 | Front cover | 16 | Washer |
3 | Spring | 10 | Piston | 17 | Screw |
4 | E clip | 11 | Bottom cover | 18 | Base pad |
5 | Pedal | 12 | C clip | 19 | Screw |
6 | Spool | 13 | Silencer | 20 | Base pad |
7 | O-ring | 14 | Base | ||
8 | Axle | 16 | Spring holder |

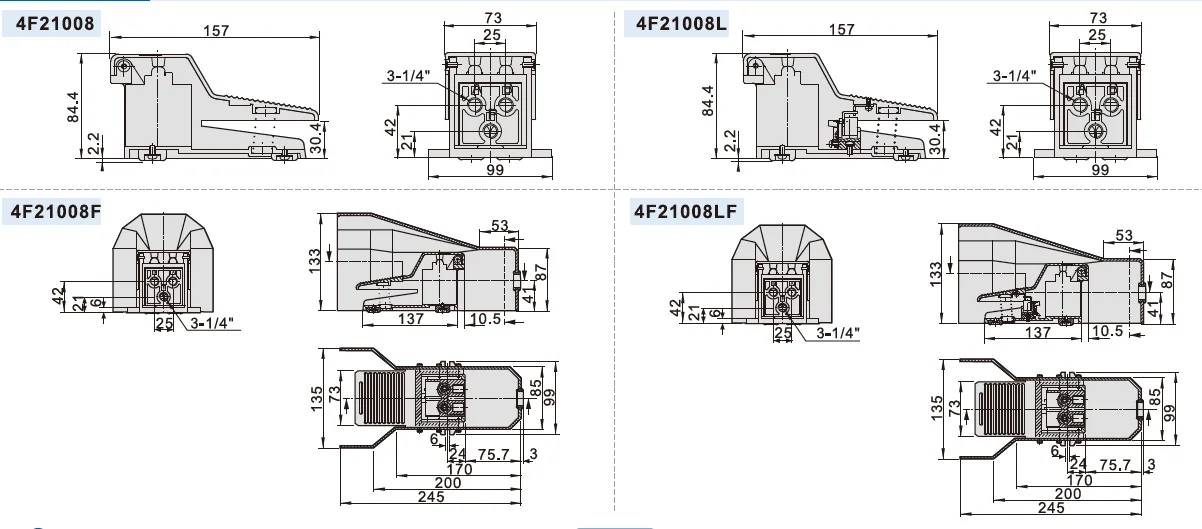

Dimensions
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
