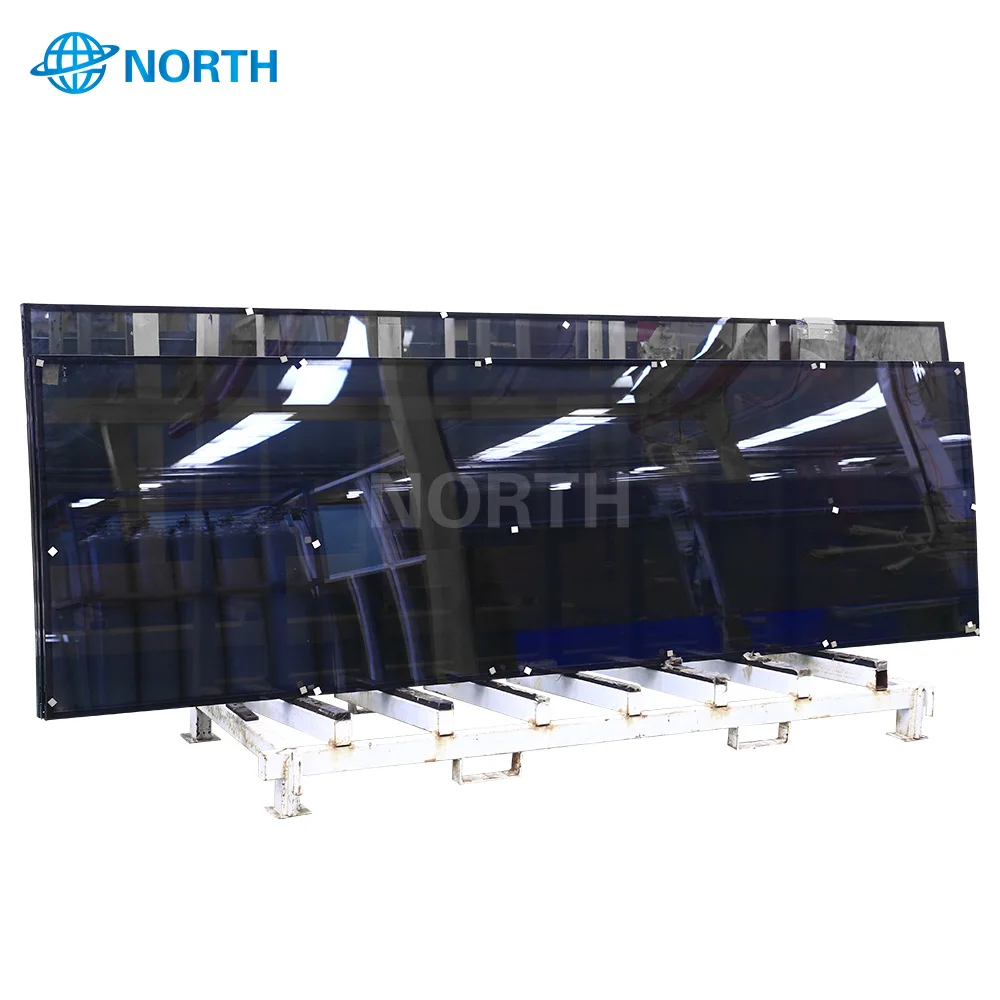

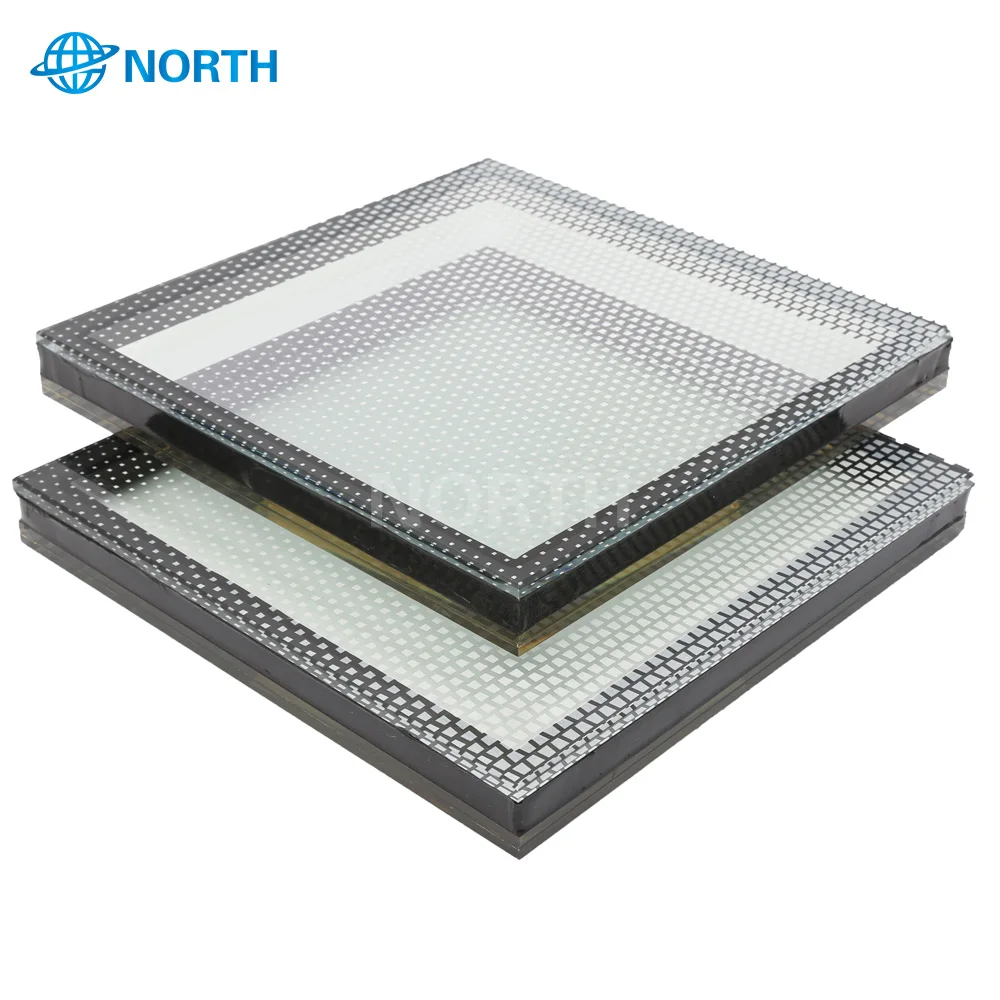

Northtech Custom Architectural Low E Insulated Tempered Glass
- Category: >>>
- Supplier: Beijing North Tech Group Ltd.
Share on (1601004018324):
Product Overview
Description
Products Description

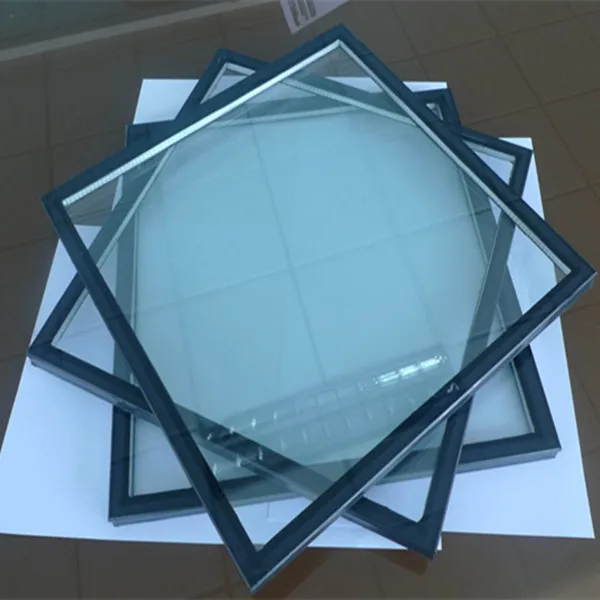

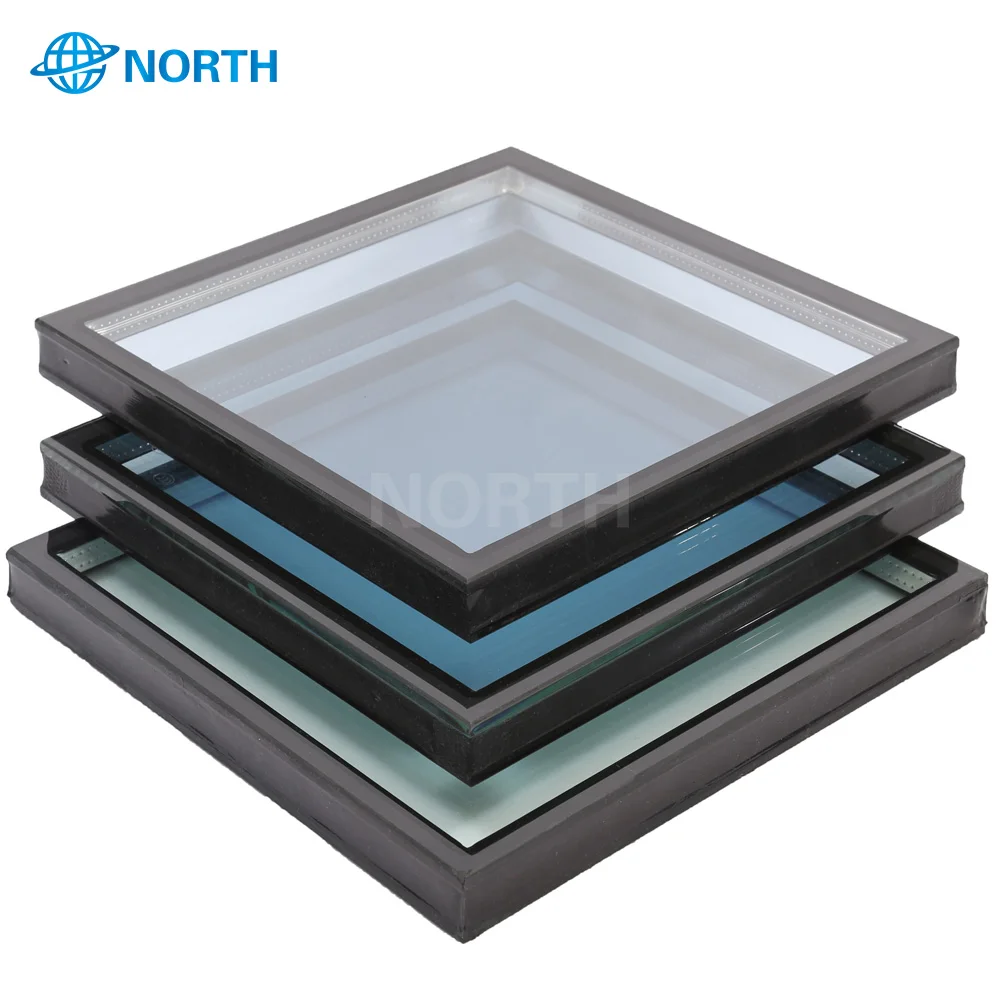

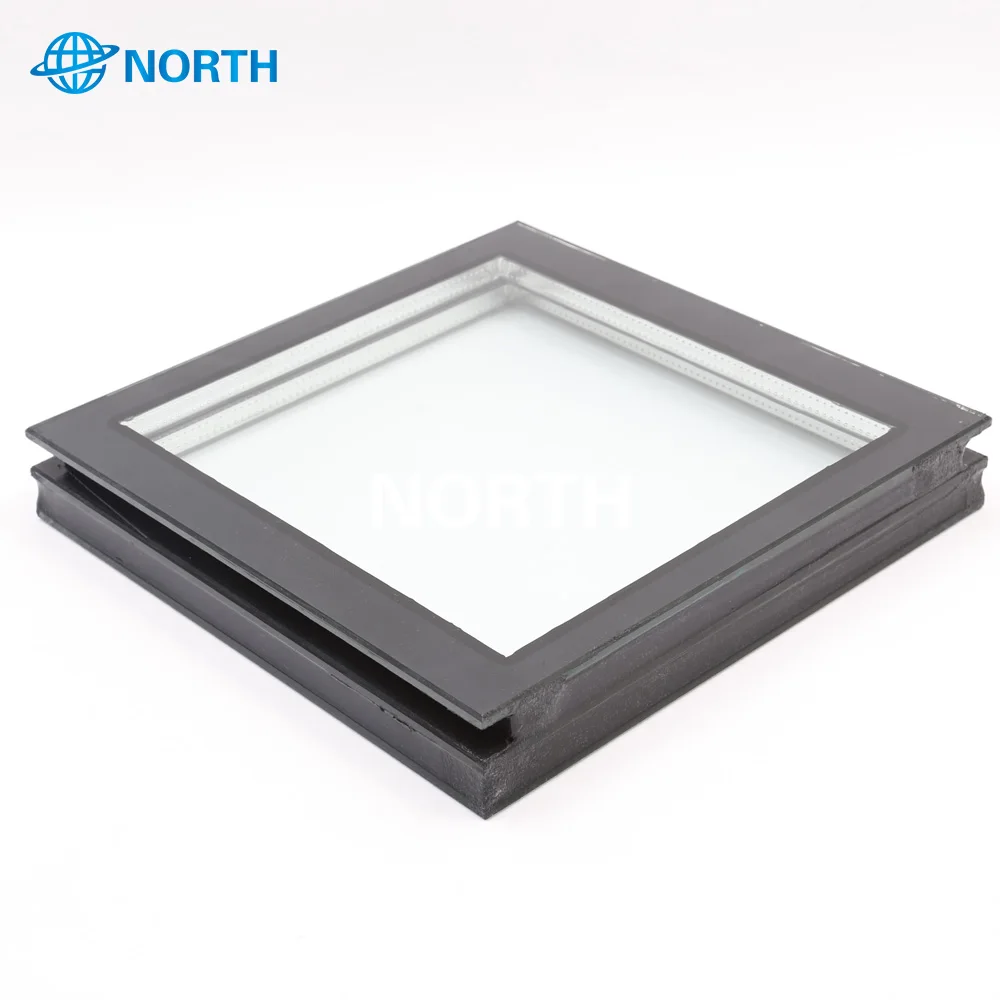

Insulating glass, also called insulated glass, are sealed units. It refers to two or more lites of glass glazed along the edges with spacers. The composed glass could be monolithic, or laminated glass, with or without coatings ( low e coating as typical). There are types of spacers available, such as stainless steel, aluminum, warm edge spacers in various colors. The space between the glass is sometimes filled with noble gas, such as argon or krypton. 90% filled, which is more helpful to reduce energy consuming. The most common architectural insulating glass unit configuration is 1/4" glass, 1/2" air space and 1/4" glass.
We always call it double glazed glass units, triple glazed glass units for its processing way, or sometimes it is called as double pane glass, or triple pane glass panels.
Commonly referred to as an “IGU,” insulating glass is the most effective way to reduce air-to-air heat transfer through the glazing. When used in conjunction with low-E or reflective glass coatings, IGUs become an effective means to save energy.
We always call it double glazed glass units, triple glazed glass units for its processing way, or sometimes it is called as double pane glass, or triple pane glass panels.
Commonly referred to as an “IGU,” insulating glass is the most effective way to reduce air-to-air heat transfer through the glazing. When used in conjunction with low-E or reflective glass coatings, IGUs become an effective means to save energy.
Glass Type | Insulating Glass |
Double Glass Thickness | 3mm+6A+3mm,5mm+6A+5mm, 6mm+9A+6mm, 6mm+12A+6mm, 6mm+16A+6mm,etc. 3mm+6Ar+3mm,5mm+6Ar+5mm, 6mm+9Ar+6mm, 6mm+12Ar+6mm, 6mm+16Ar+6mm,etc. |

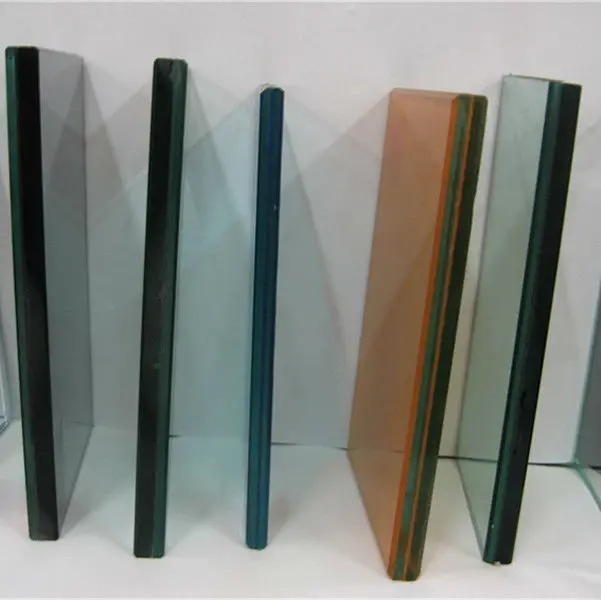

Glass Combination Type | Tempered Insulating glass, Laminated Insulating Glass, Low-e Insulating Glass, Frosted Insulating Glass, Silkscreen Printing Insulating Glass, Digital Printed Insulating Glass, Chrome Privacy Insulated Glass,etc. |
Low E Type | Double silver low e, triple silver low e, online hard coated low e: Vitro Solarban 60, Solarban 70, Guardian SN54 SN68 SN62/27, Saint Gobain low e and so on |
Spacer Options | Stainless steel, aluminum, TGI( warm spacer) , super spacer |
Spacer Thickness | 6mm, 9mm, 12mm, 16mm, 19mm(1/4'',11/32'',1/2'',9/16'',19/32'',5/8'')etc. |
Gas Filling | Air, Argon, Krypton,etc |
Glass Color Option | Clear, Low Iron, Super White, Super Clear, Extra White, Starphire, Optiwhite, Euro Grey, Dark Grey, Crystal Grey, Brown, Bronze, Ocean Blue, Ford Blue, Dark Blue,etc. |
Size | Custom Sizes, Max: 18000mm L*3660mm H(Flat), 3300x8000mm(Curved or Bent) |
Edge Processing | Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Flat Polished Edge, Round Edge |
Irregular Shape | Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished. |
Hole & Notch Available | Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be polished by CNC |
Trade Terms | EXW, FOB, CIF, DDU,etc |
Lead Time | Generally 2-4 weeks, depend on order quantity. |
Terms of Payment | 30% down payment before production, 70% balance TT at shipment; L/C |
MOQ | To be discussed |
Recommend Products
Our Services

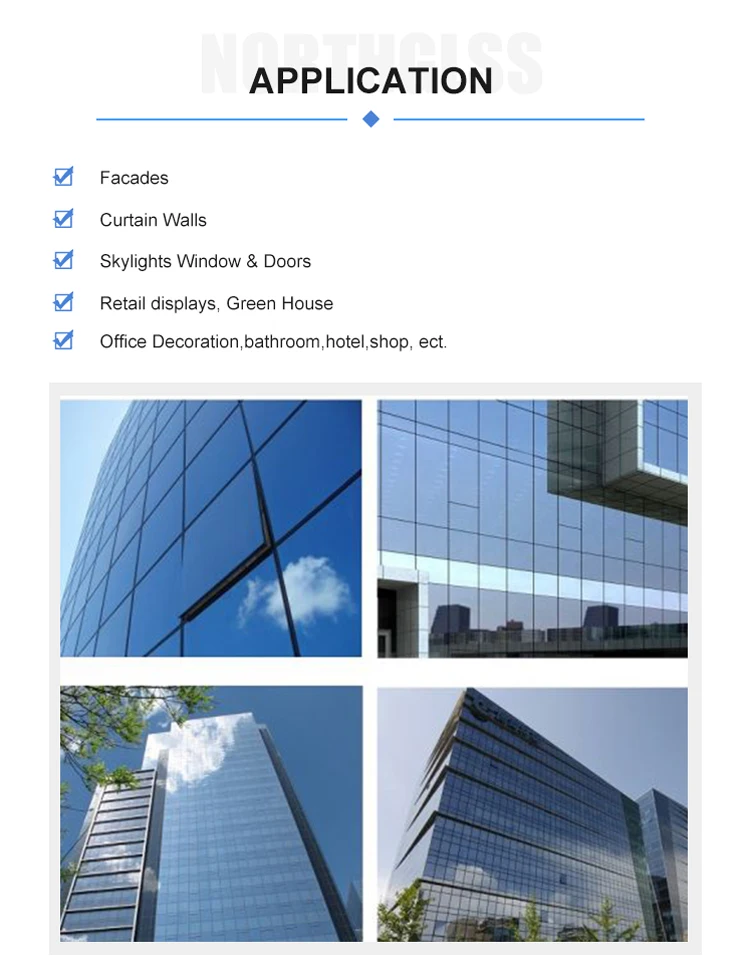

Product Application

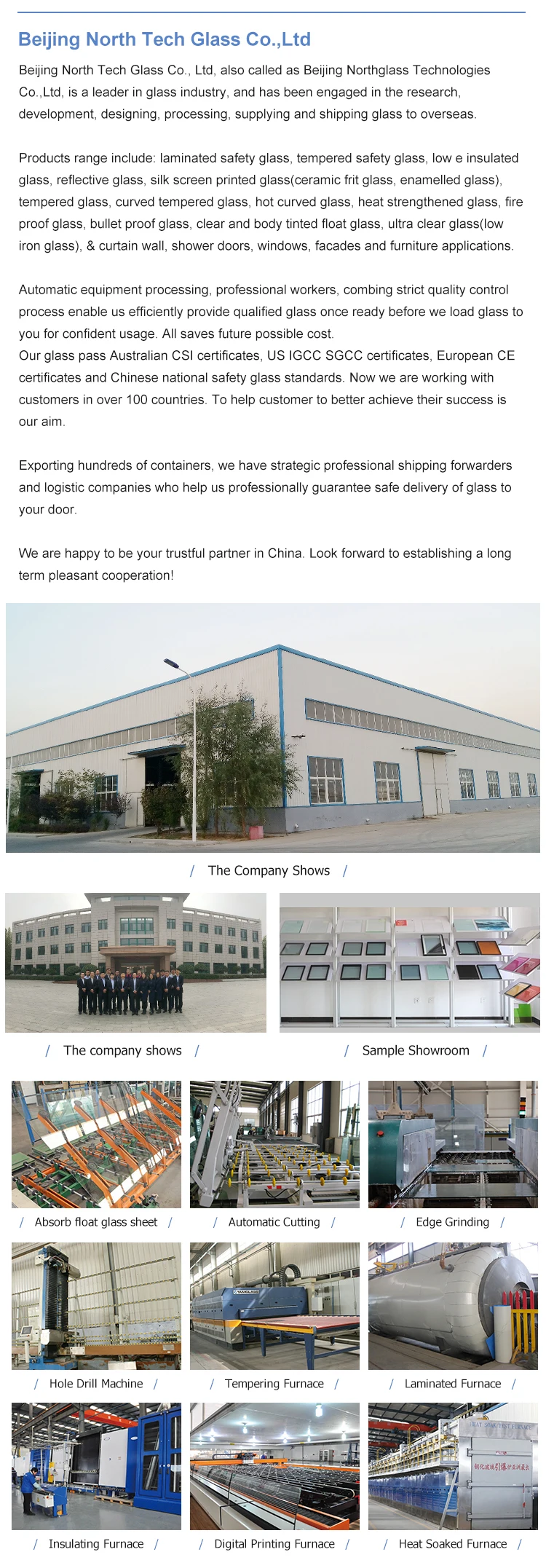

Company Profile
Beijing North Tech Group Ltd, located at capital city Beijing, have been constantly adapting, evolving, and growing to meet the changing needs of the market place. Integrating our many areas of expertise allows us to offer our partners and clients innovative end to end solutions that are unmatched in the market today. With over 20 years of experience, our group, which includes Beijing North Tech Glass Co.,Ltd and Beijing North Tech Windows Co.,Ltd, continues to successfully build our clients’ vision with passion.
Production Process
Product Packaging
FAQ
Q1: How about sample and charge?
A1: Sample is free, but freight cost should be paid by clients.
Q2: What about the payment?
A2: L/C, T/T , Western Union.
Q3: Can we get any discount from your company?
A3: We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q4: How long is the lead time?
A4: 2-4 weeks,depend on order quantity.
Q5: How to control your quality?
A5: A complete quality control and guarantee system: IQC→FAS & Self checking for each producing progress →OQC
Q6: How to guarantee punctual shipment for my order?
A6: We give priority to export orders and keep updating progress from production to delivery.
Q7: How can we get detailed price?
A7: Please office us detailed information of the production ,specific packaging requirements and purchasing quantity.
Q8: What about the after-sales service?
A8: Through emails, pictures, video or guest samples to confirm the real cause of the problem. If there is really a product problem, we will deliver replacement glass with no charge.
A1: Sample is free, but freight cost should be paid by clients.
Q2: What about the payment?
A2: L/C, T/T , Western Union.
Q3: Can we get any discount from your company?
A3: We offer extra discount for large purchasing quantity, or important clients or iconic projects.
Q4: How long is the lead time?
A4: 2-4 weeks,depend on order quantity.
Q5: How to control your quality?
A5: A complete quality control and guarantee system: IQC→FAS & Self checking for each producing progress →OQC
Q6: How to guarantee punctual shipment for my order?
A6: We give priority to export orders and keep updating progress from production to delivery.
Q7: How can we get detailed price?
A7: Please office us detailed information of the production ,specific packaging requirements and purchasing quantity.
Q8: What about the after-sales service?
A8: Through emails, pictures, video or guest samples to confirm the real cause of the problem. If there is really a product problem, we will deliver replacement glass with no charge.
