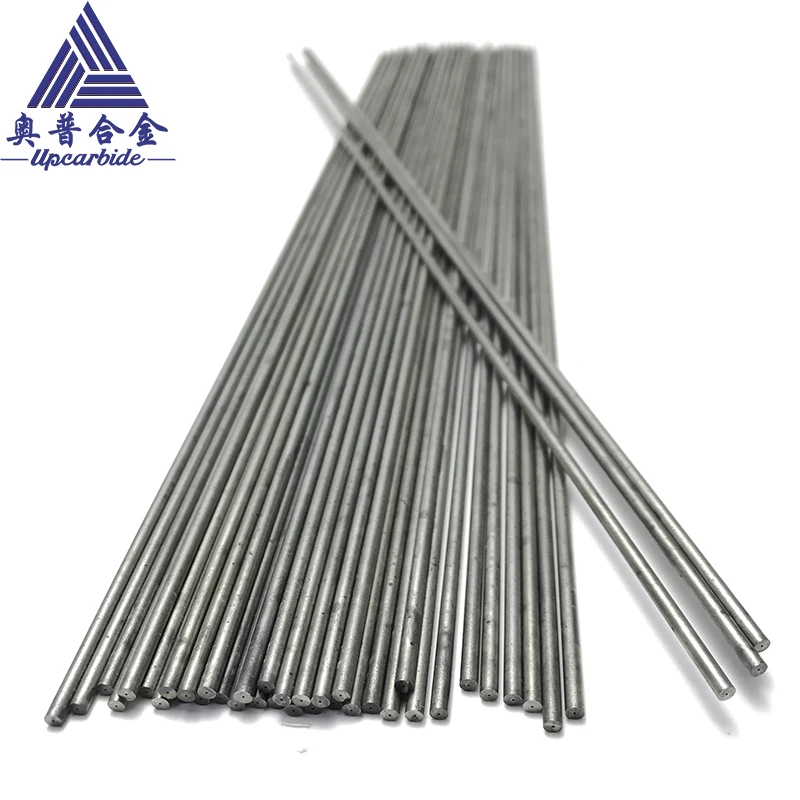

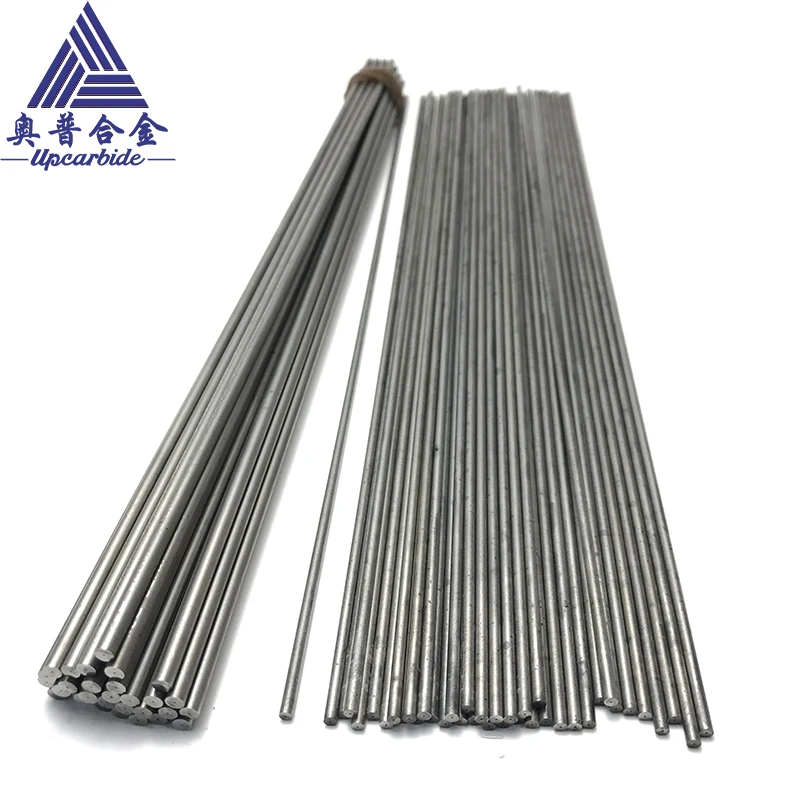

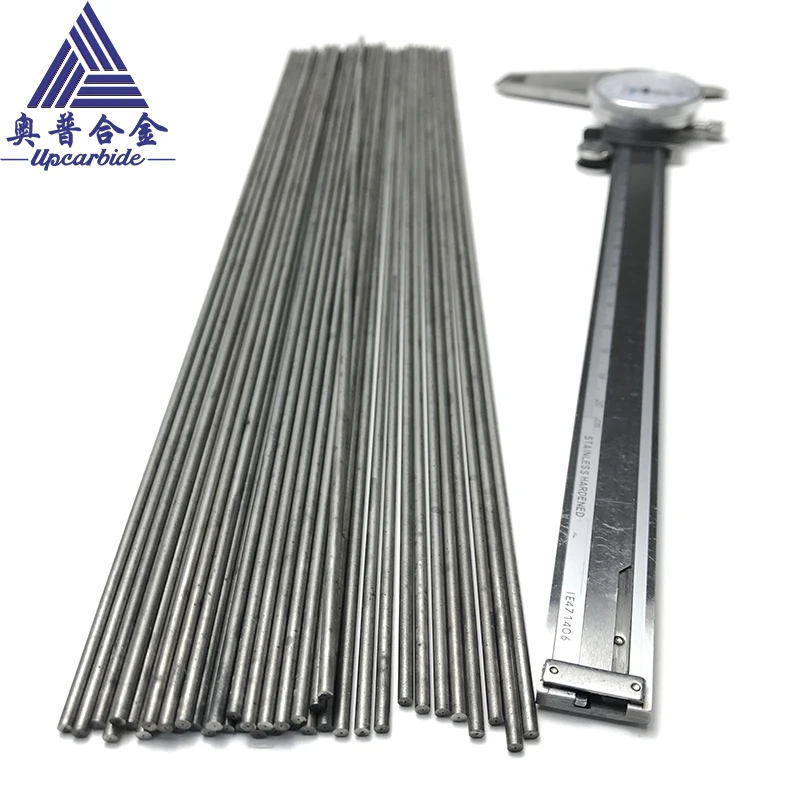

2mm Tungsten carbide unground rod with hole
- Category: >>>
- Supplier: Zhuzhou Up Cemented Carbide Co. Ltd.
Share on (1601004019212):
Product Overview
Description
YL10.2 fine grain size hardness 91.8hra diameter 4mm good wear resistant unground tungsten carbide solid rods
Product Description

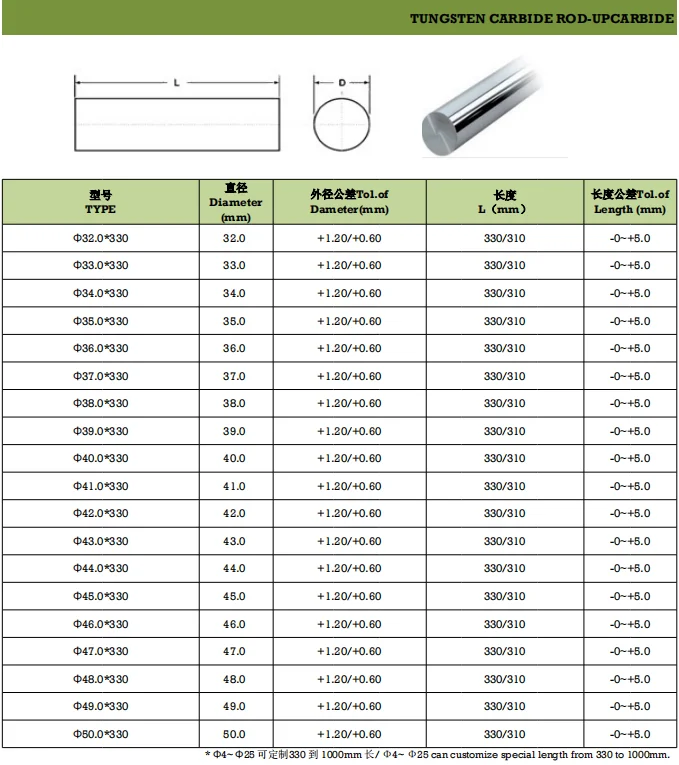

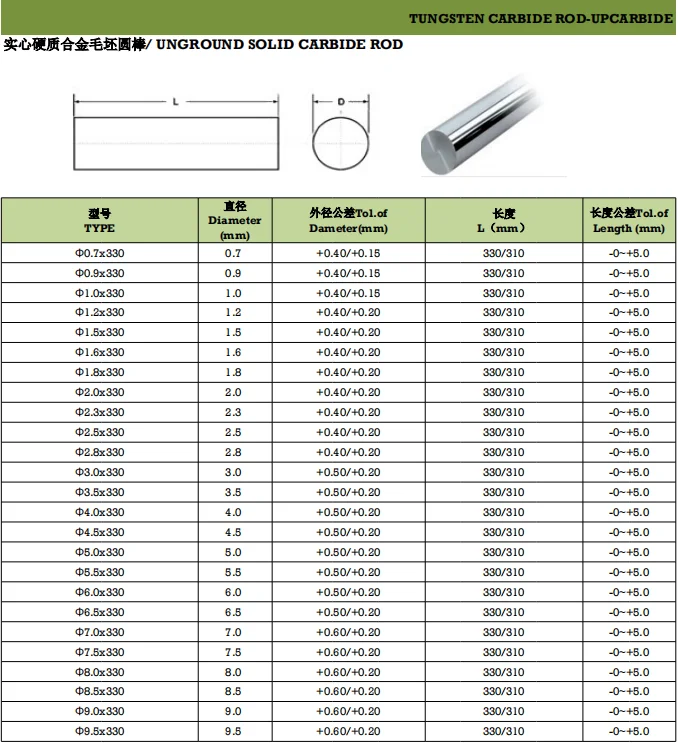

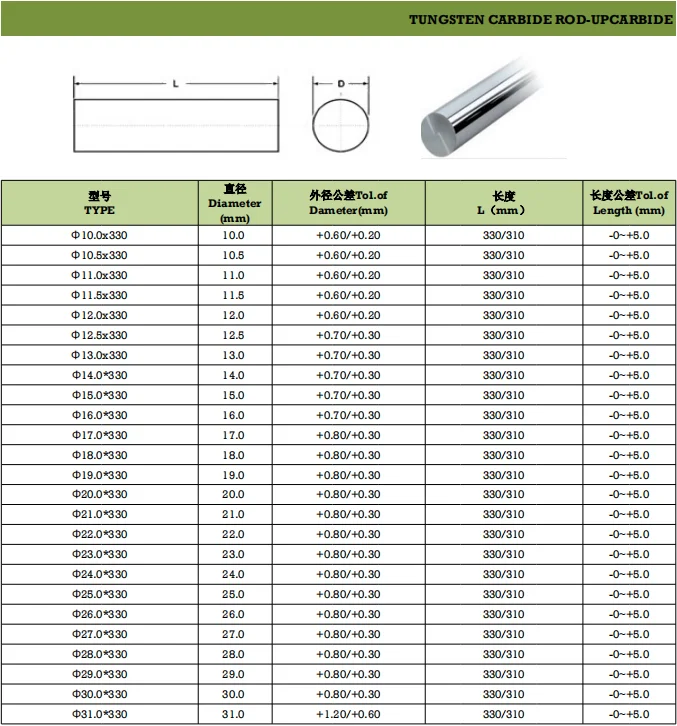

Specification
A. Overpressure sintering tungsten carbide rod have excellent red toughness,high hardness,good wear
resistance,high elasticmodulus,high strength,good chemical stability,acid,alkali,high temperature oxidation),low impact toughness,low expansion coefficient,thermal conductivity,the characteristics of the conductive similar to iron and other alloy.
1. having all kind sizes for your choose,can suply less than 1000mm length.
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.

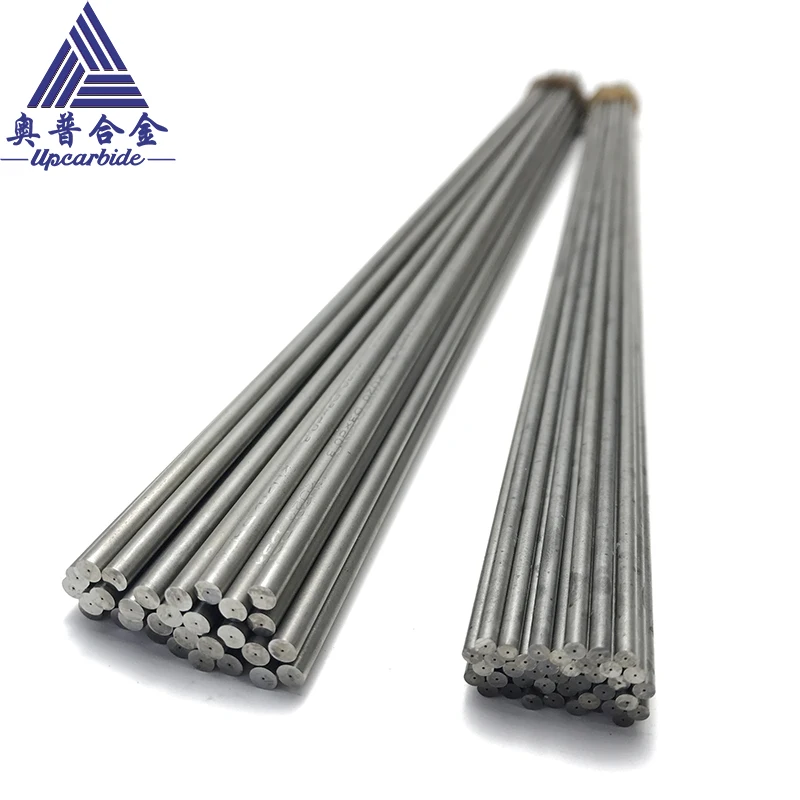

3. Solid rod, one hole rod ,two straight holes rod ,two 30° helical holes
4. we have unground rod instock ,also can grounding outdiameter H5,H6,H7,h6,h5,h7 etc
5. we have diferent hardnesses for choose: 84.5hra, 89.5hra, 90.5hra,91.5hra, 92.2hra, 92.5hra,93.2hra, 94.0hra, 94.1hra, the more details refer our follow grades.
6. Grain sizes: 0.2um , 0.4um ,0.6um, 0.7um etc

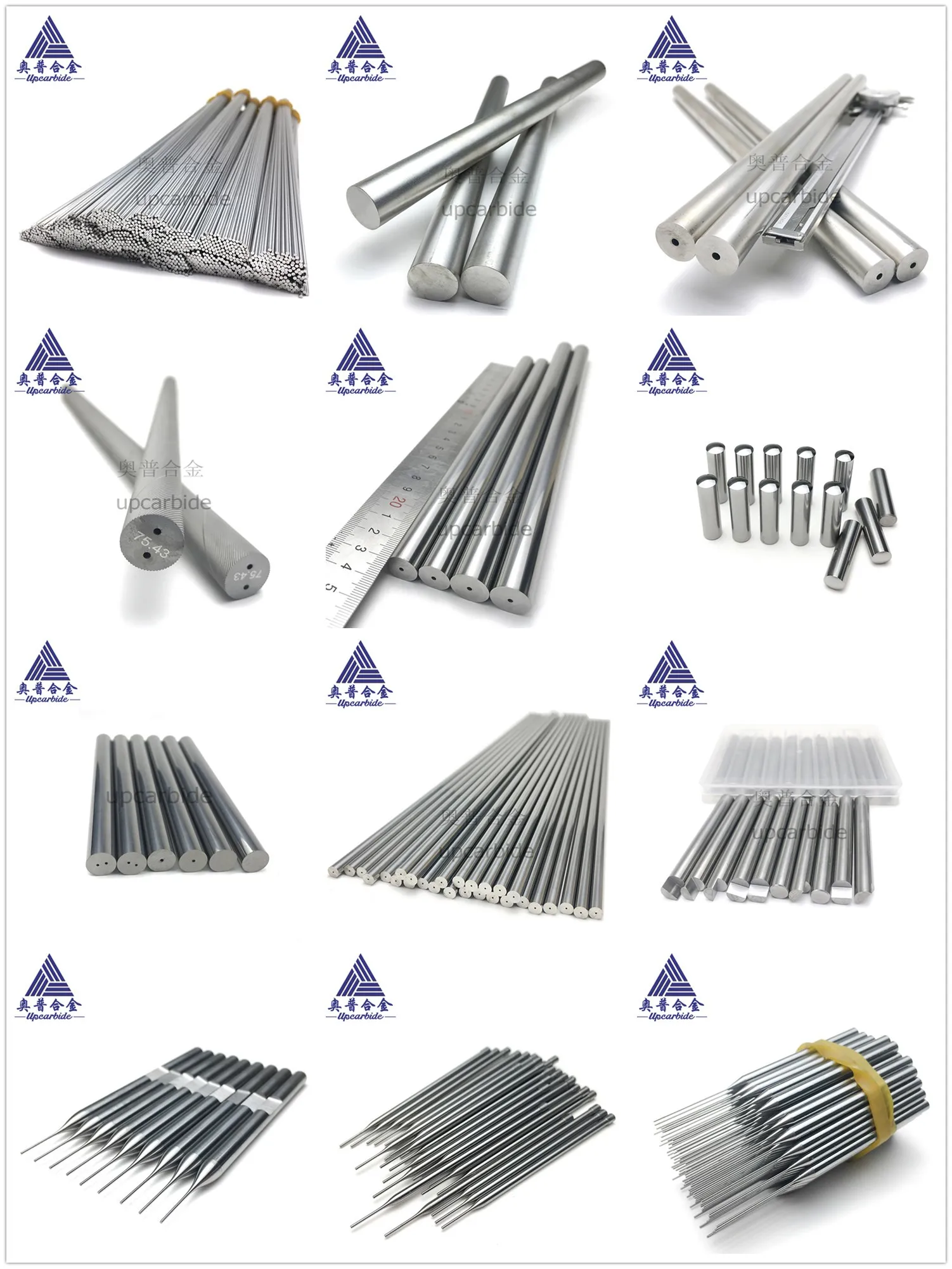

Products Show

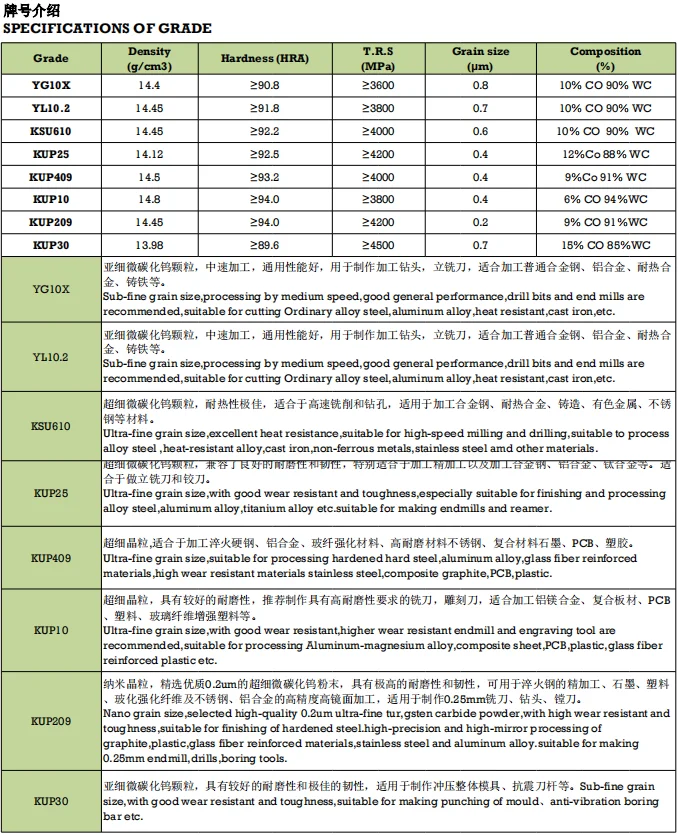

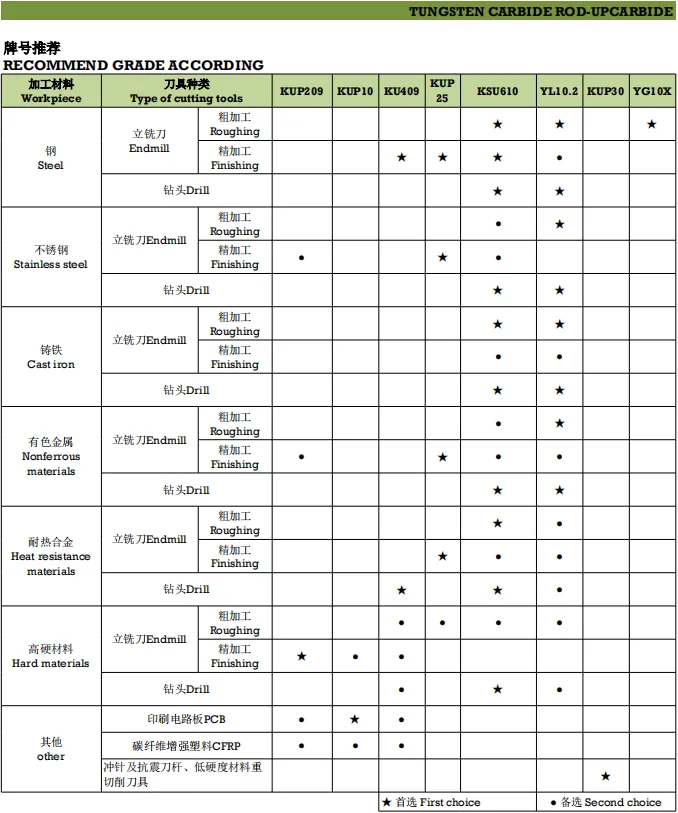

Grades choosing
| Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain size (μm) | Composition (%) |
| YG10X | 14.4 | ≥90.8 | ≥3600 | 0.6 | 10% CO 90% WC |
| YL10.2 | 14.45 | ≥91.8 | ≥3800 | 0.7 | 10% CO 90% WC |
| KSU610 | 14.45 | ≥92.2 | ≥4000 | 0.6 | 10% CO 90% WC |
| KUP25 | 14.12 | ≥92.5 | ≥4200 | 0.4 | 12%Co 88% WC |
| KUP409 | 14.5 | ≥93.2 | ≥4000 | 0.5 | 8%Co 92% WC |
| KUP10 | 14.8 | ≥94.1 | ≥3800 | 0.4 | 6% CO 94%WC |
| KUP209 | 14.45 | ≥94.0 | ≥4200 | 0.2 | 9% CO 91%WC |
| KUP30 | 13.98 | ≥89.0 | ≥4500 | 0.7 | 15% CO 85%WC |
Applications
having high red hardness, good weldability and the characteristics of high hardness, high wear resistance,
mainly used in making solid wood processing, density board, grey cast iron,Non-ferrous metal materials,
chilled cast iron, hardened steel, PCB, brake materials.When using, should according to specific purpose
to choose the right material of tungsten carbide bar.
Packaging & Shipping
Packing details
Shipping ways
Our Services
Zhuzhou Up Cemented Carbide Co.,Ltd services:
1.more than 19 years manufacture experience in tungsten carbide
2.Implement strict quality testing and control procedure to make superior quality. (ISO9001)
3.we can accept all kinds of international payment.(L/C, D/A,D/P,T/T, Paypal,western union,money gram, etc.)
4.we can accept all trade terms
5.Reply your inquiry within 10 hours
6.We are professional factory, so our price is lower than others
7.Professional sales person
8.Perfect Oral English communication service
Company Information
our factory specializes in manufacturing a series of Tungsten Carbide products.such as:
tungsten carbide Saw Tips
tungsten carbide Buttons for Rock Bits
tungsten carbide Inserts for Road Milling, Plaing Bits
tungsten Carbide Inserts for Coal Cutter Picks
tungsten Carbide Inserts for Snopw Plow Blades
tungsten Carbide Inserts for Mining Tools
tungsten Carbide finished or blank Round Rods (dia from 1.0 to 25.4 mm,length 1.0 to 330mm)
tungsten Carbide Tubes
tunsgten Carbide Rings
tungsten Carbide strips and plates
tunsgten Carbide tips for Debarking Bits
tungsten Carbide Brazed Inserts or Tips
tunsgten Carbide pins
Tire studs
tunsgten Carbide Blanks
tunsgten Carbide Wear-Parts
tungsten carbide circular cutter
alloy welding material,etc.
