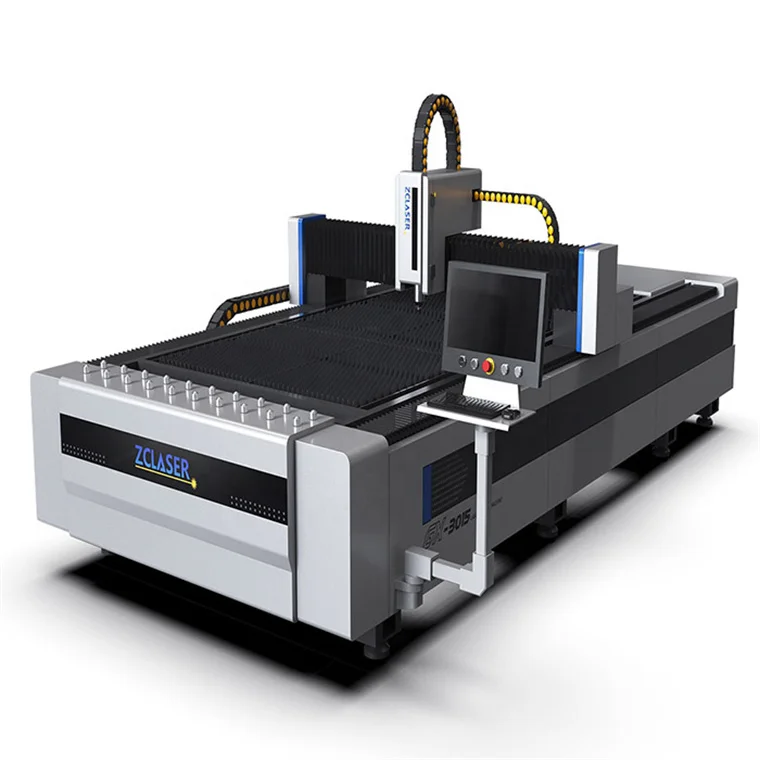

1500w 3000w Automatic CNC Fiber Laser Cutting Machine For Iron Sheet Steel Metal CNC Fiber Laser Cutting Machines Price
- Category: >>>
- Supplier: Jinan Zhancheng Automation Equipment Co. LTD
Share on (1601004029785):
Product Overview
Description
Production Display

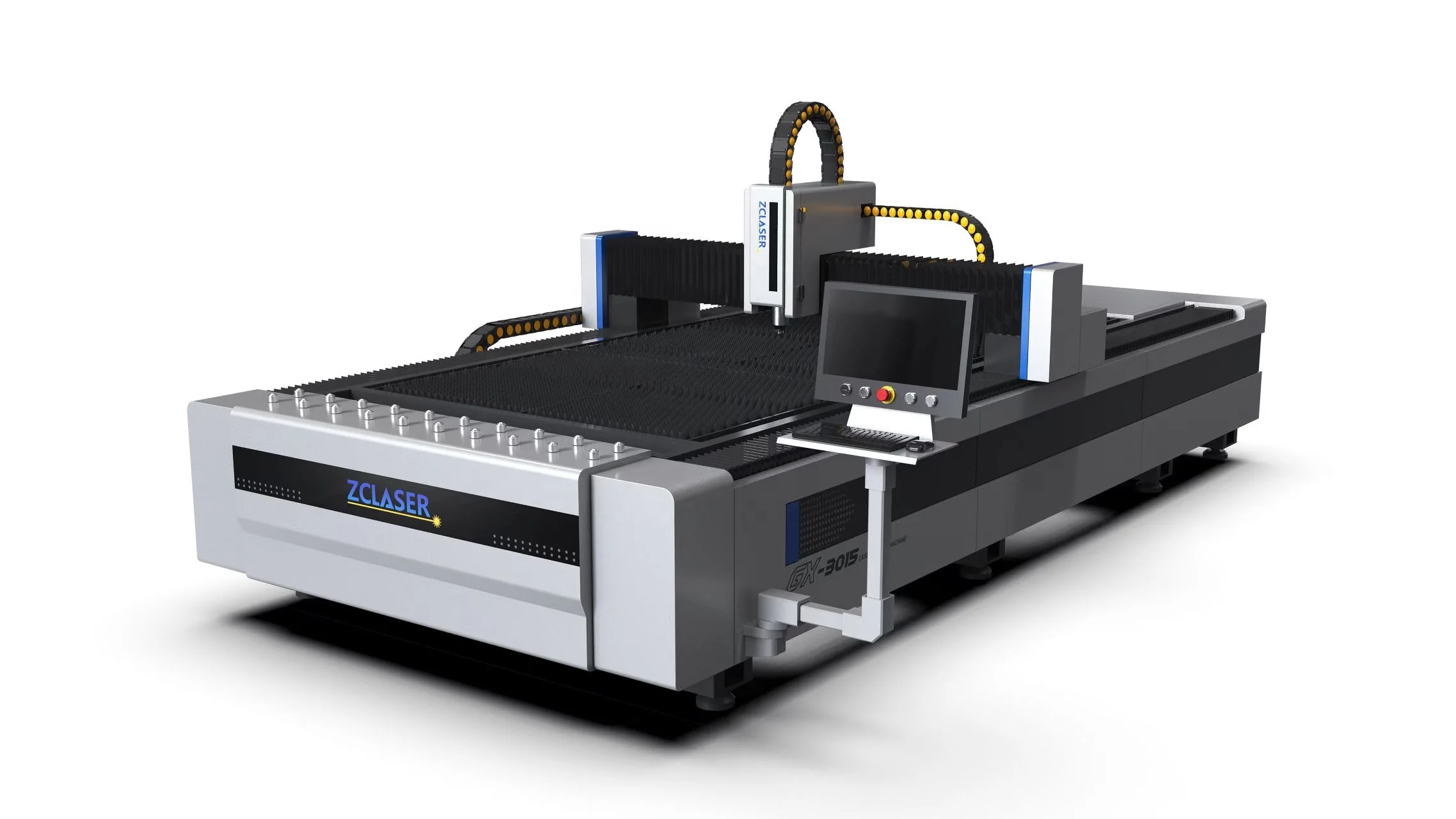

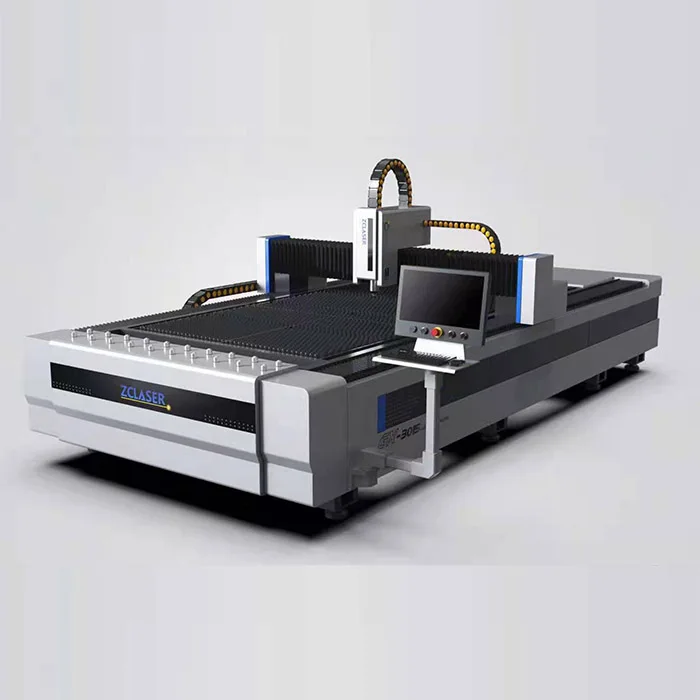

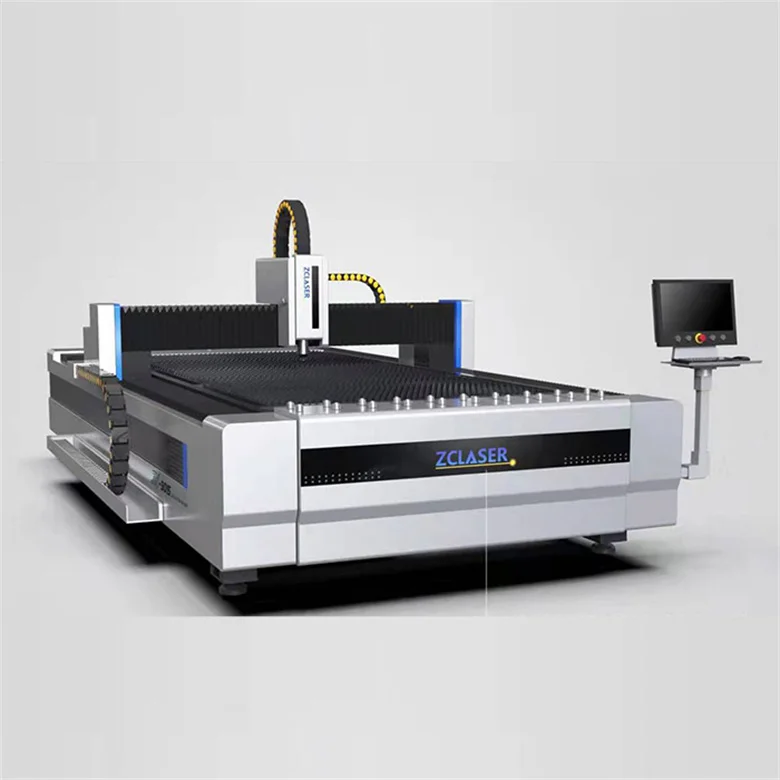

1500w 3000w Automatic CNC Fiber Laser Cutting Machine For Iron Sheet Steel Metal CNC Fiber Laser Cutting Machines Price
Products Description
laser power | 1000w/1500w/2000w/3000w | working area | 3m*1.5m | |||
fiber laserlaser type | fiber laser | cooling method | hanli water cooling | |||
Laser source | Raycus/RECI/Max | Machine bed | Raytools | |||
Packing Dimensions | 2.5T | Control computer | Industrial computer(Windows10) | |||
ser source : | Raycus/max/RECI | voltage: | 380v | |||
Machine maintenance time: | one year | Cutting control system | Raytools | |||
Reducer | Motovario | Proportional valve | : Inovance | |||
Rail rack | Taiwan J&T | Beam material | aviation aluminumwave filter | |||
Control cabinet | ZC | cutting speed | 40m/min | |||
Acceleration | 1.5G | Machin e accessories: | toolbox | |||
Gift accessories: 10 protective lenses, 10 laser nozzles Guide rail automatic refueling equipment | ||||||
Machin e accessories: toolbox (hexagonal wrench, protective glasses, u disk to store machine data) | ||||||
The fiber laser cutting machine focuses the laser light emitted by the laser into a high power density laser beam through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point, and the high-pressure gas coaxial with the beam blows away the molten or vaporized metal. As the relative position of the beam and the workpiece moves, the material will eventually form a slit, thereby achieving the effect of cutting

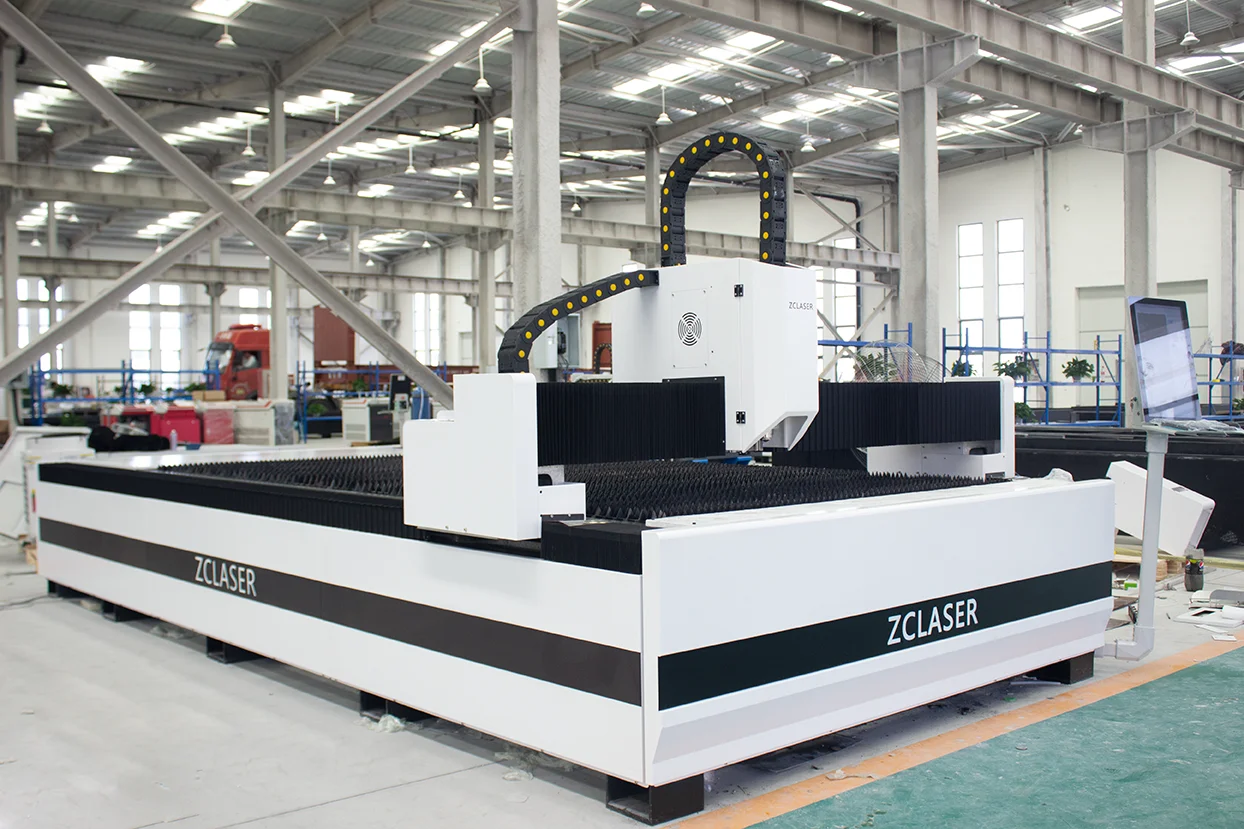

Fiber Laser Cutting Machine
1. The laser cutting machine has high processing precision, and the laser cutting precision can reach 0.2mm
.2. One-time processing by laser cutting machine, the surface is smooth, and secondary processing is not allowed
3.Laser cutting uses power saving, low power consumption, low post-processing cost
4.High safety, low pollution, basically no deformation of processed materials
5.Can process different materials, copper, aluminum, carbon steel, stainless steel, high thickness acrylic
Products Details

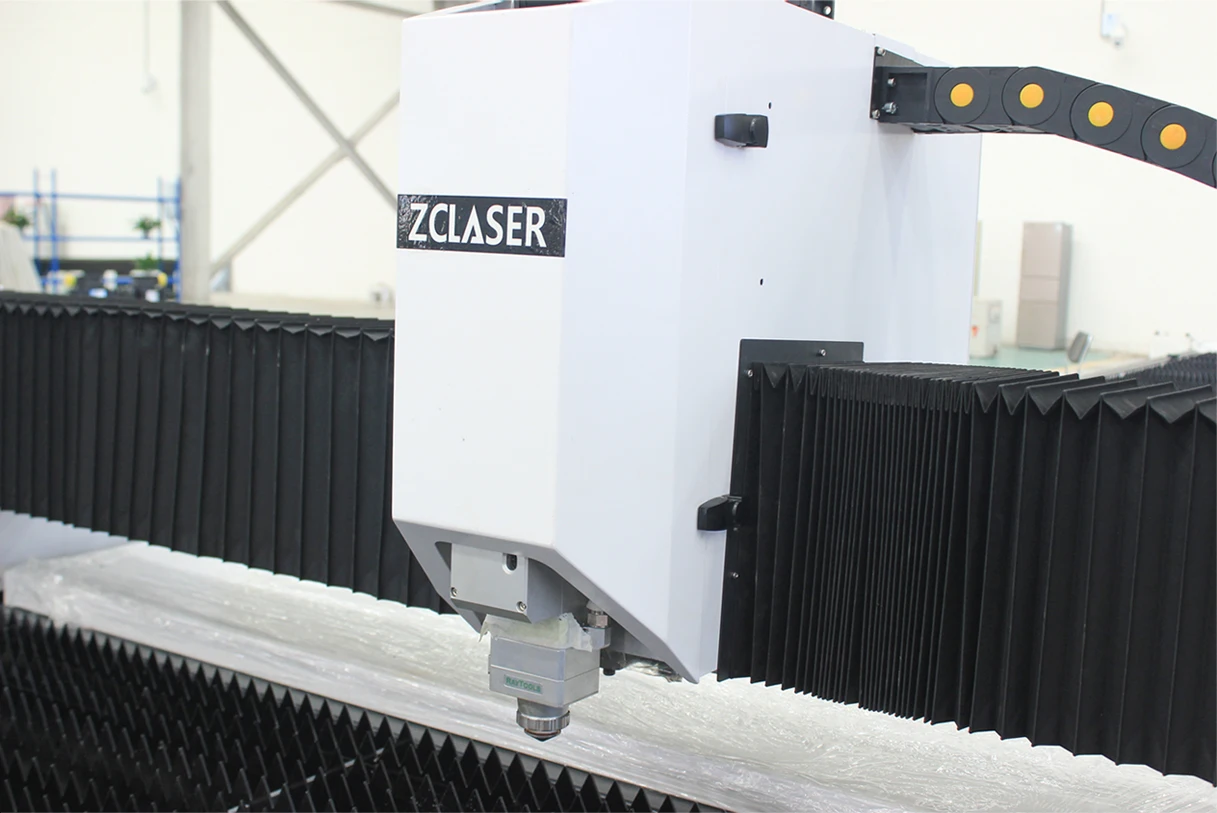

Raytools Cutting head
Raytools 220/110,Optional auto focus,High-speed stability, automatic obstacle avoidance, collision prevention, auto focus

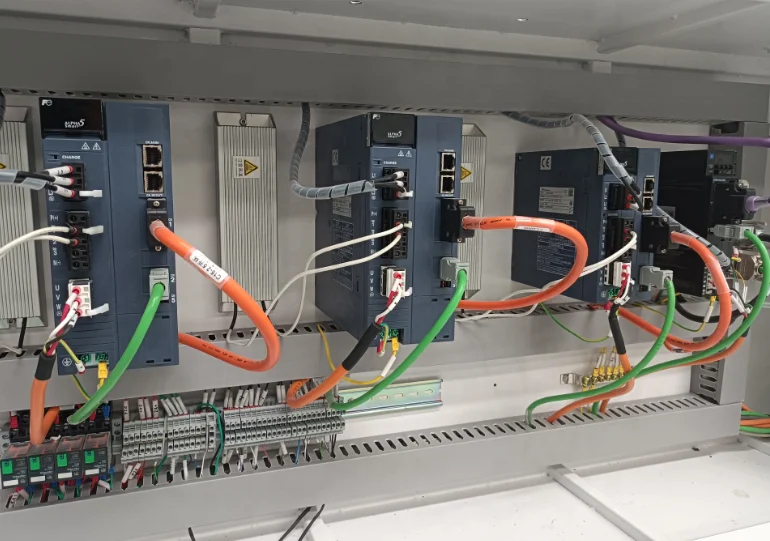

inovance servo motor
■ 16kHz current loop scheduling to reduce motor noise
■ A variety of encoders are adapted to support pulse/communication type gratings and magnetic gratings
■ Stably adaptable to various flat, U-shaped, cylindrical, voice coil and other linear motors
■ Support multiple control methods ■ Wizard-style debugging background, convenient to control the operation of the motor

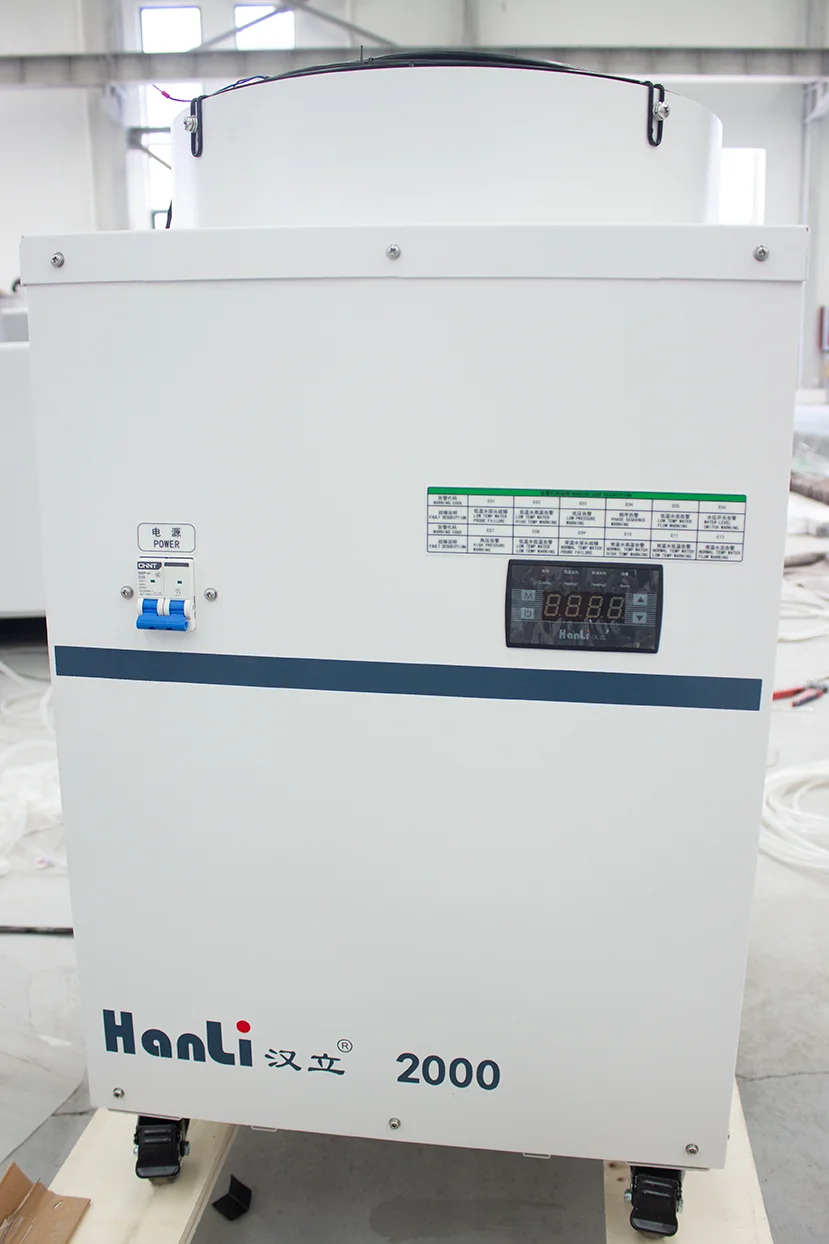

Hanli/J&T Water cooler
1. The temperature control accuracy can reach ±1℃;
2. Environmentally friendly refrigerant can be selected;
3. There are two temperature control modes, which are suitable for different use occasions; there are multiple settings and fault display functions
4. Low power consumption, high cooling efficiency

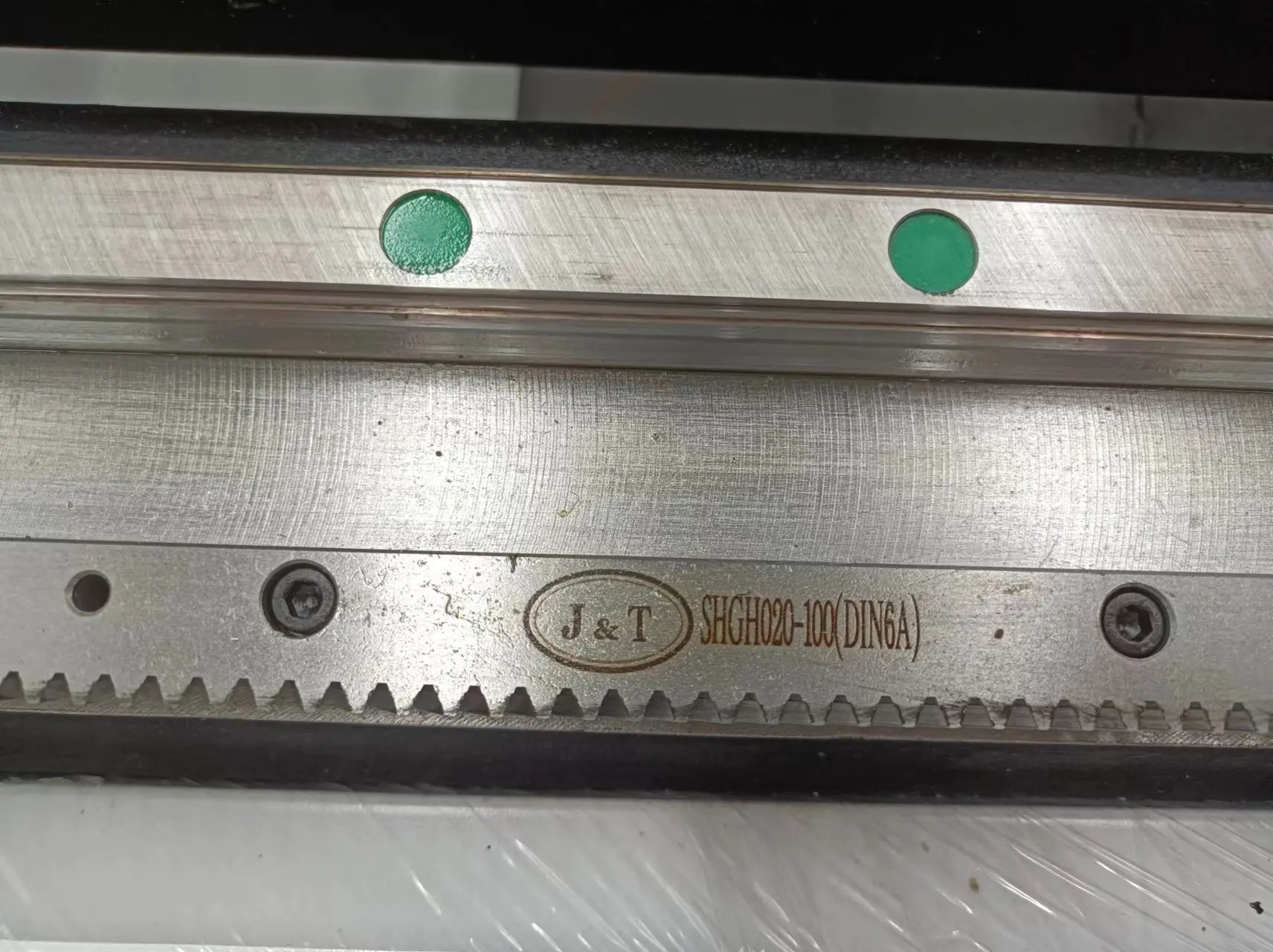

Rail rack
TaiwanJ&T/YYC/APEC
1. Good orientation and high rigidity
2. High positioning accuracy
3. Good wear resistance
4. Suitable for high-speed movement
2. High positioning accuracy
3. Good wear resistance
4. Suitable for high-speed movement
Linear Guides
1. Automatic oiling to keep the guide rail safe and stable
2. The oil output can be controlled and the oiling speed can be automatically adjusted
3. The oil pot has a large storage capacity and does not need frequent refueling

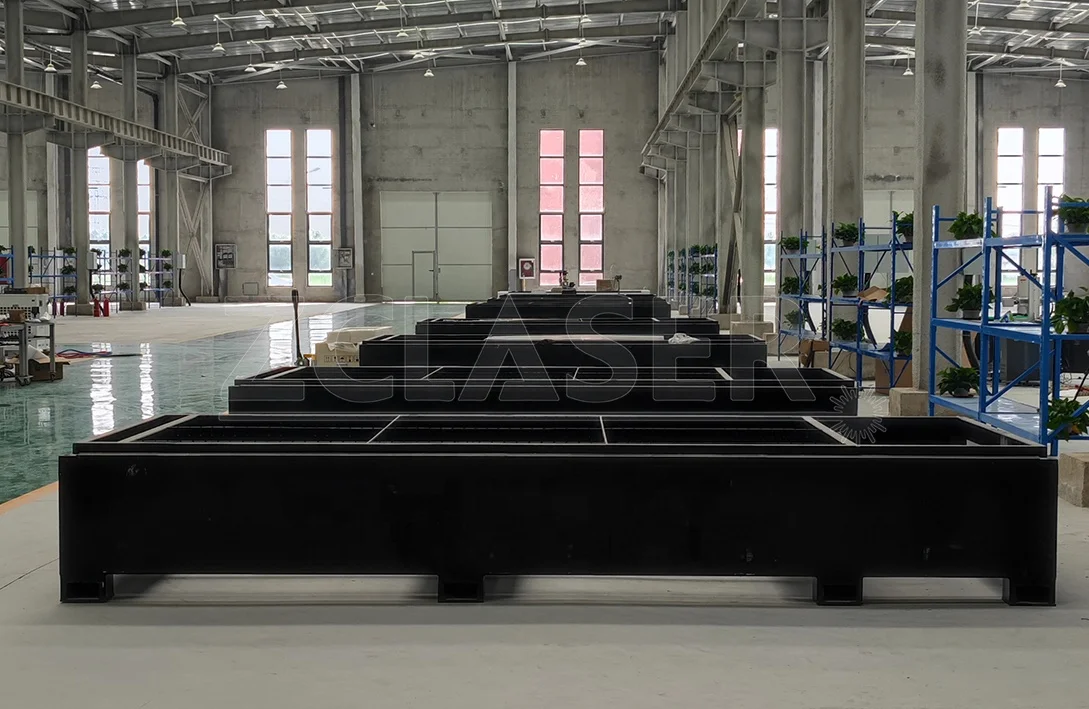

Machine bed
Steel pipe welding bed/steel plate welding machine bed/casting bed，Three types can be selected

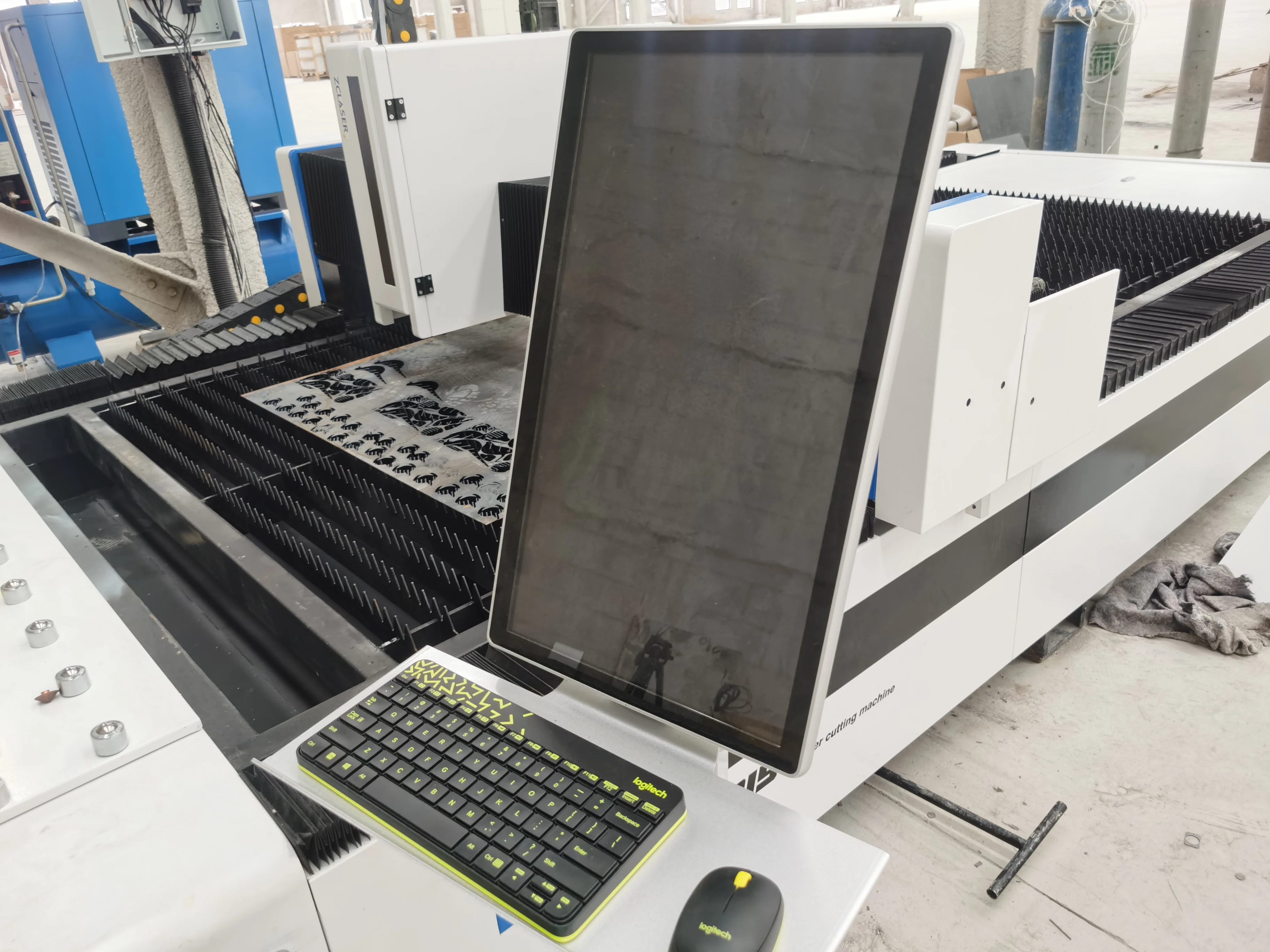

industrial computer
1.Install Win10 system, 2.cutting system, you can choose Cypcut/Raytools，3.Easy to operate and easy to use
free accessories
material transport vehicle
free accessories
Feeding slider
Cutter nozzle
.
protective lens

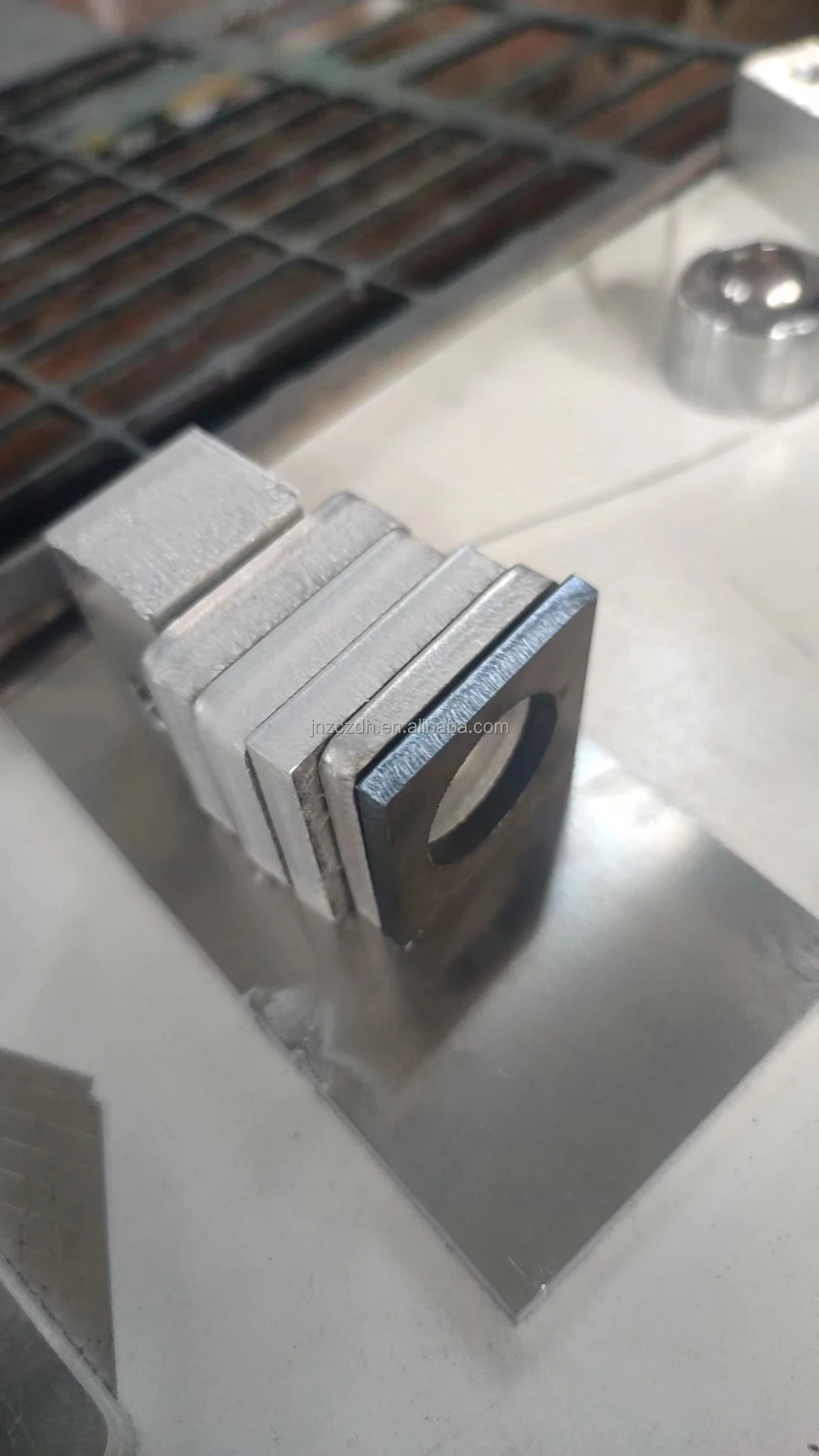

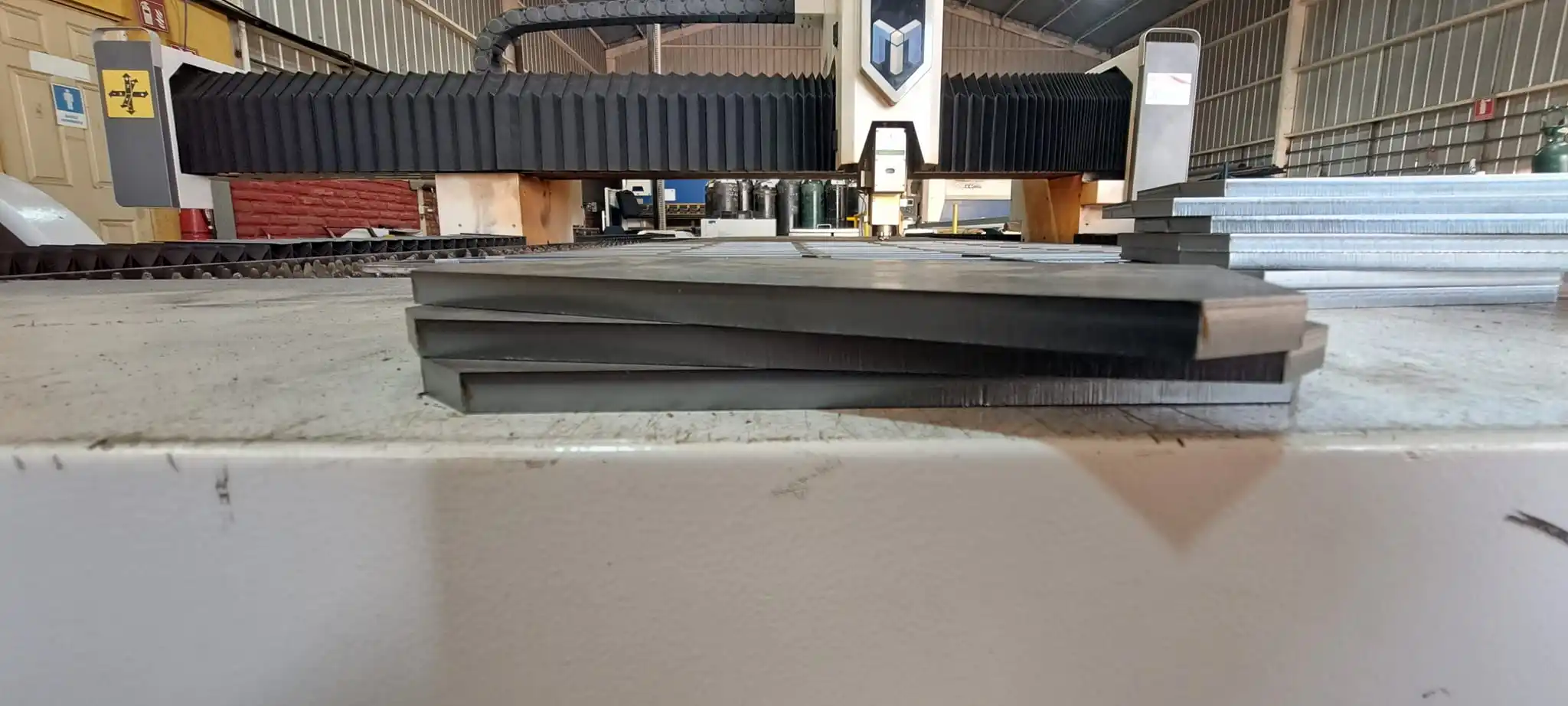

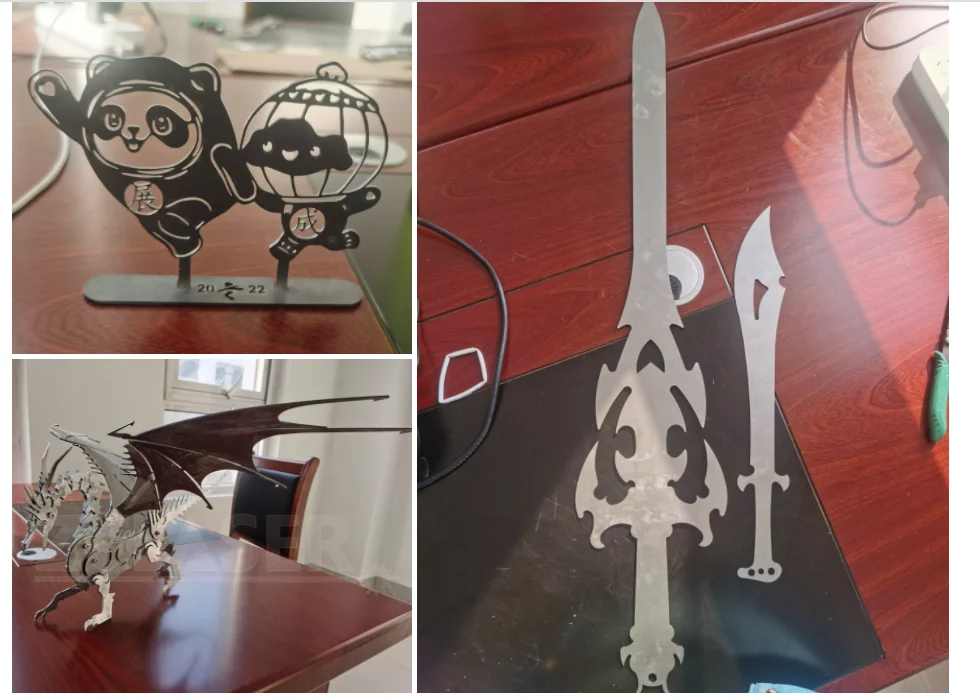

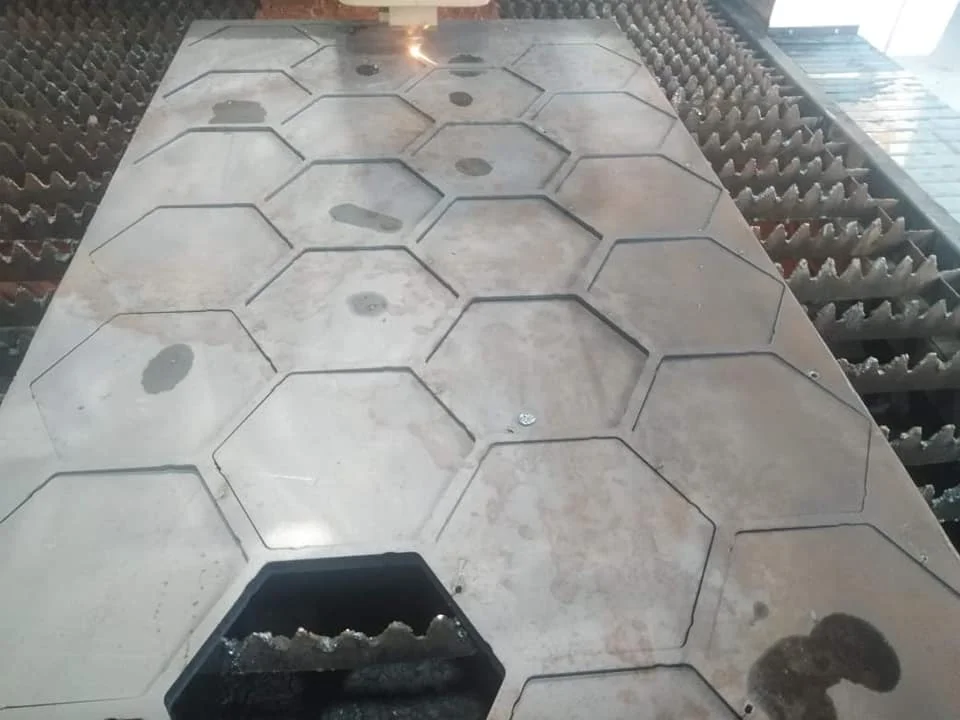

Sample Display
The machined surface is smooth, smooth and without burrs, no secondary processing is required

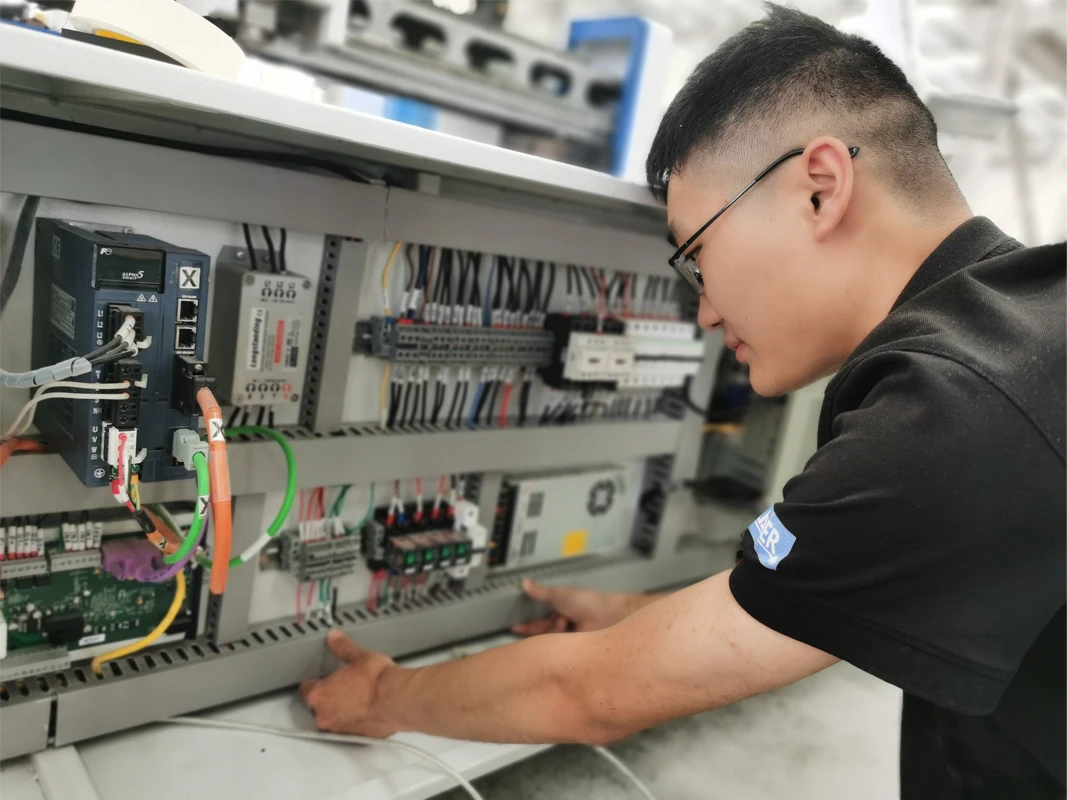

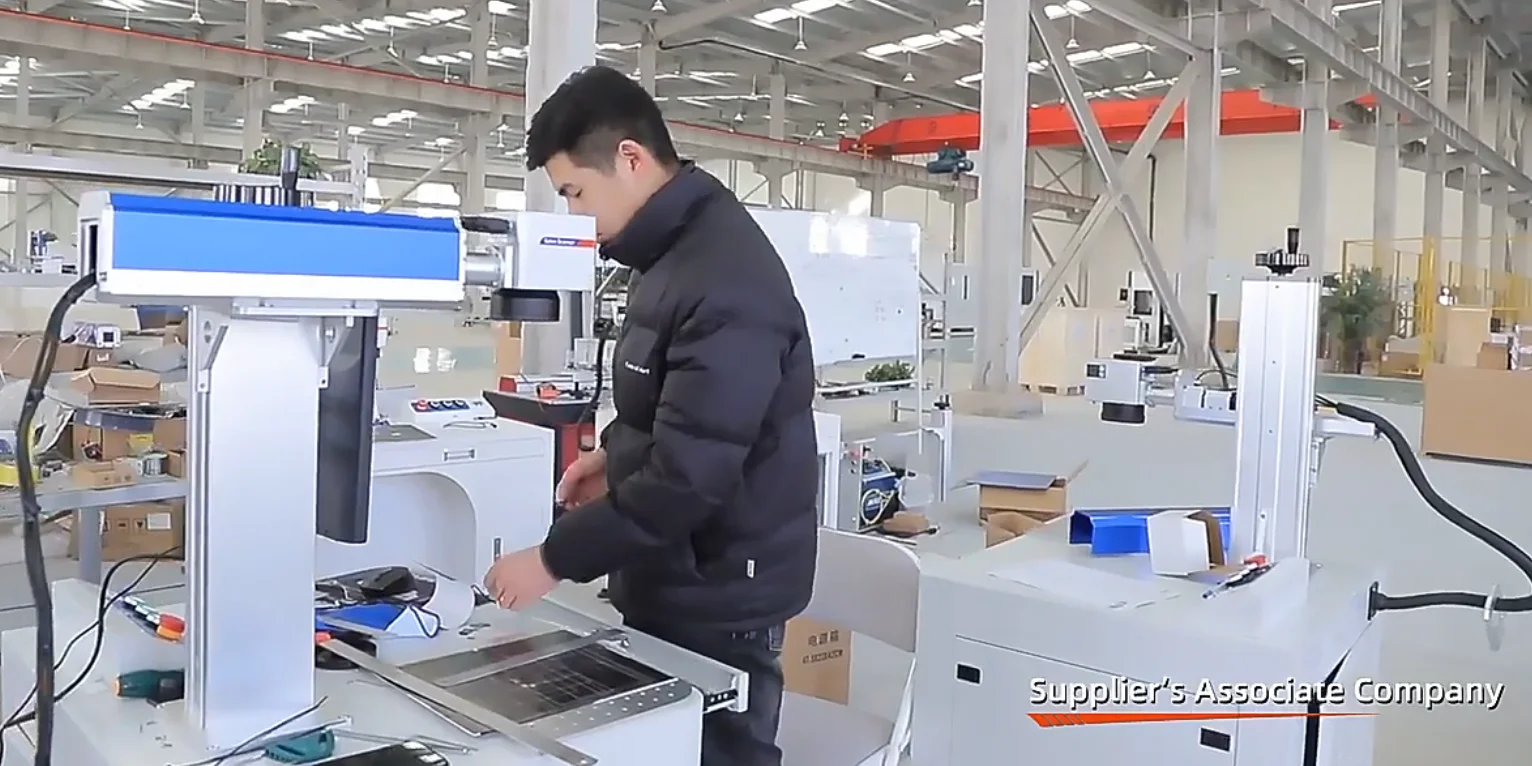

Company introduction
Customer FeedBack
Our products are well received by customers all over the world, and we have established long-term trade relations
FAQ
(1) What is a fiber laser handheld welding machine and what can it do?
Answer: This is a new type of metal welding technology, which has low technical requirements for skilled workers. It only needs light grinding and light polishing to produce exquisite effects, which is firm and reliable. It is another new welding method that reduces labor costs and increases production efficiency.
(2) How big products can the fiber laser handheld welding machine weld?
Answer: Strictly speaking, the general fiber cable is 8-15 meters, and it can be welded within the diameter range.
(3) What materials can be welded by the fiber laser handheld welding machine?
Answer: Fiber laser hand-held welding machine can weld 0.4-5.0 mm thick stainless steel, galvanized sheet, iron sheet, copper,
aluminum and other metal materials.
(4) After using the handheld laser welding machine, how many skilled workers can one machine hold?
Answer: It is conservative to say that you can have 3 welding technicians, and you can have a 1-2 years welding master when you
just get started. Of course, practice makes perfect, it depends on where your workers' comprehension ability can reach
(5) How long is the warranty for the handheld laser welding machine?
Answer: The laser has a two-year warranty,
the whole machine has a one-year warranty and lifetime maintenance (Note: Consumables are not included)
(6) Can laser welding with wire feed?
Answer: Yes, 0.8-1.0 for 1000 watts, 0.8-1.2
(2) How big products can the fiber laser handheld welding machine weld?
Answer: Strictly speaking, the general fiber cable is 8-15 meters, and it can be welded within the diameter range.
(3) What materials can be welded by the fiber laser handheld welding machine?
Answer: Fiber laser hand-held welding machine can weld 0.4-5.0 mm thick stainless steel, galvanized sheet, iron sheet, copper,
aluminum and other metal materials.
(4) After using the handheld laser welding machine, how many skilled workers can one machine hold?
Answer: It is conservative to say that you can have 3 welding technicians, and you can have a 1-2 years welding master when you
just get started. Of course, practice makes perfect, it depends on where your workers' comprehension ability can reach
(5) How long is the warranty for the handheld laser welding machine?
Answer: The laser has a two-year warranty,
the whole machine has a one-year warranty and lifetime maintenance (Note: Consumables are not included)
(6) Can laser welding with wire feed?
Answer: Yes, 0.8-1.0 for 1000 watts, 0.8-1.2
