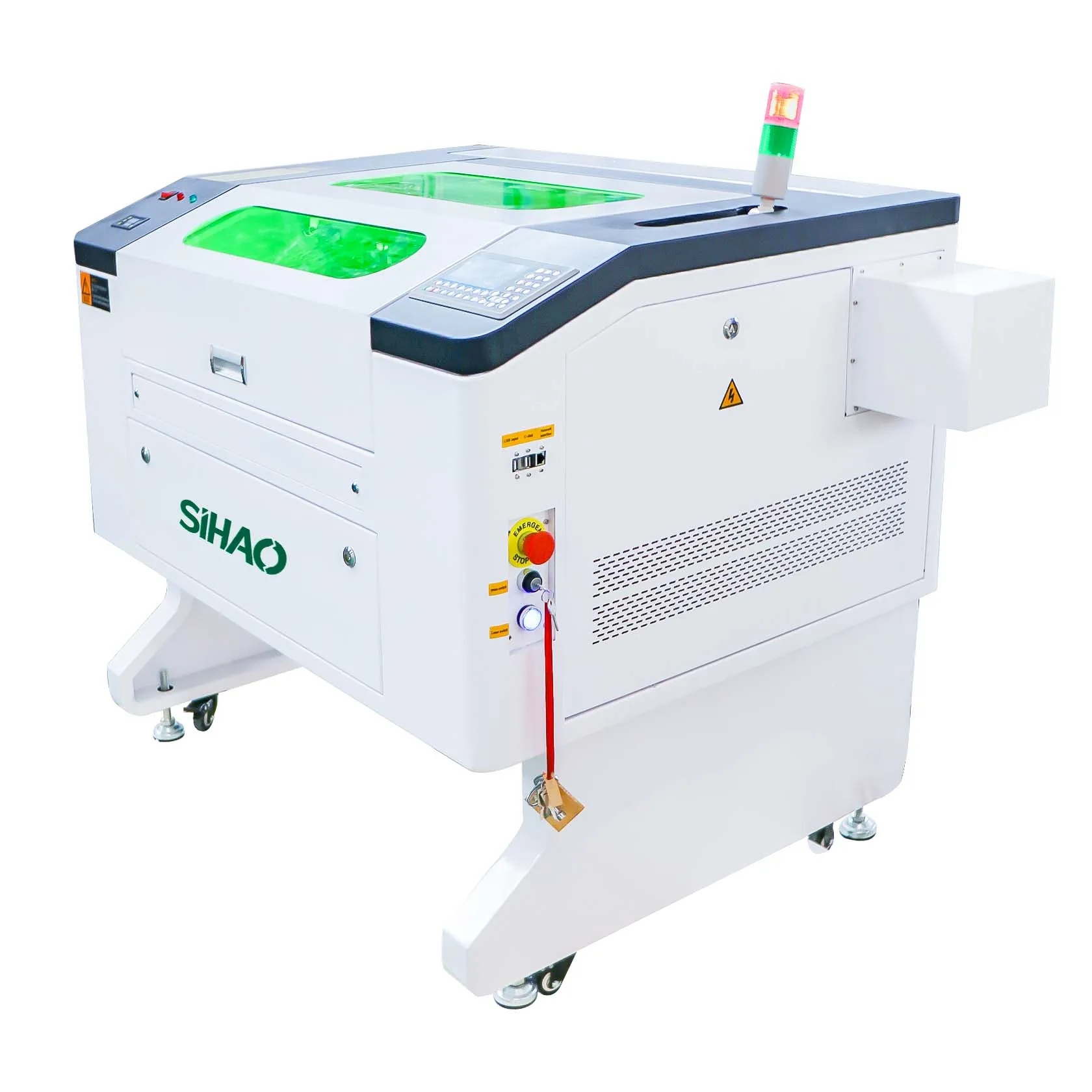

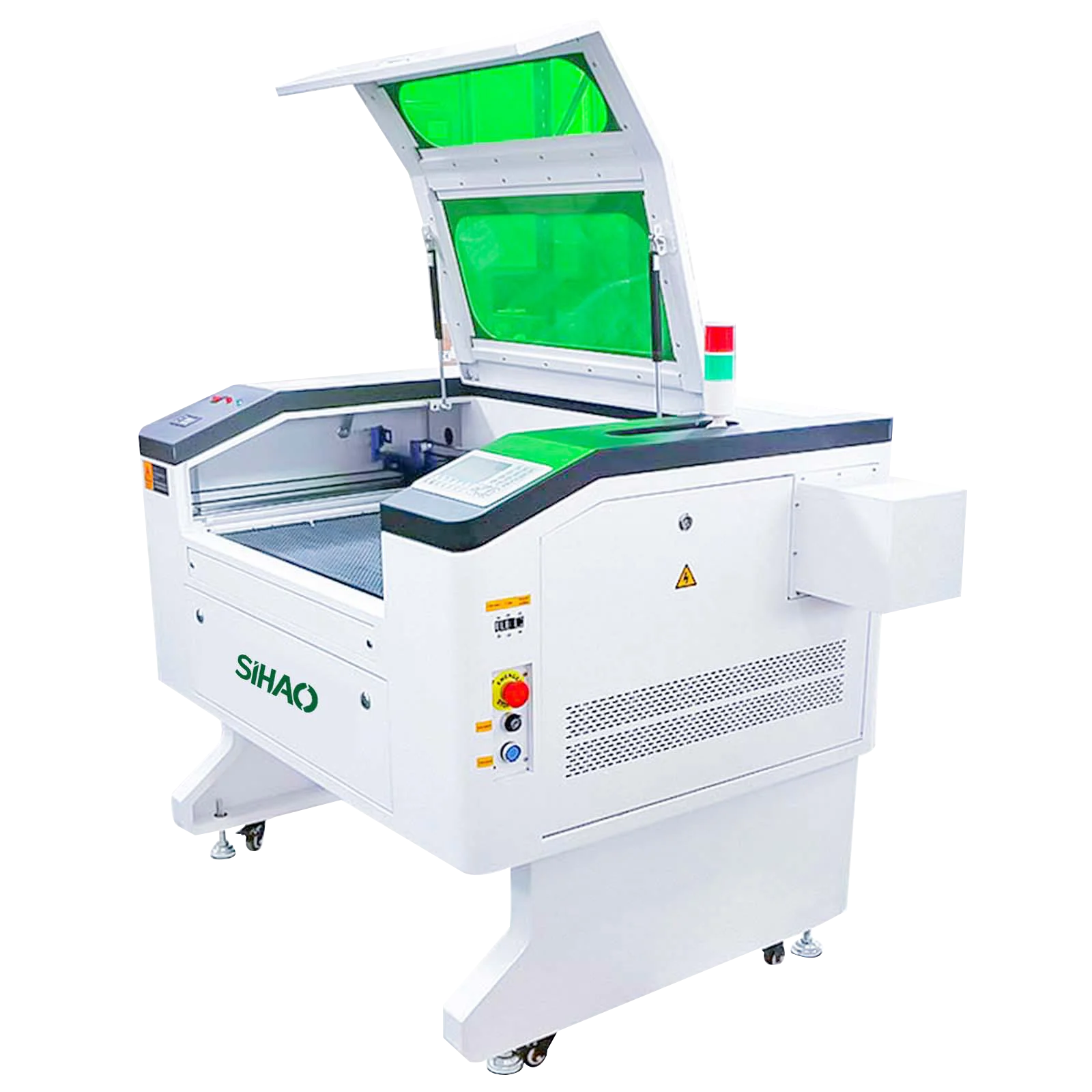

Sihao CO2 Laser 100w 7050 Laser Engraving Machine with water chiller
- Category: >>>
- Supplier: Shanghai Peixu Machinery Equipment Co. Ltd.
Share on (1601004036665):
Product Overview
Description
New Arrival 7050 100w Leather Wood Acrylic Cutting Laser Engraving Cutter Machine with Water Chiller
Product Description
| Working environment humidity | 5%-95% Non-condensing environment | |||||||||||
| Working temperature | 5-50℃ | |||||||||||

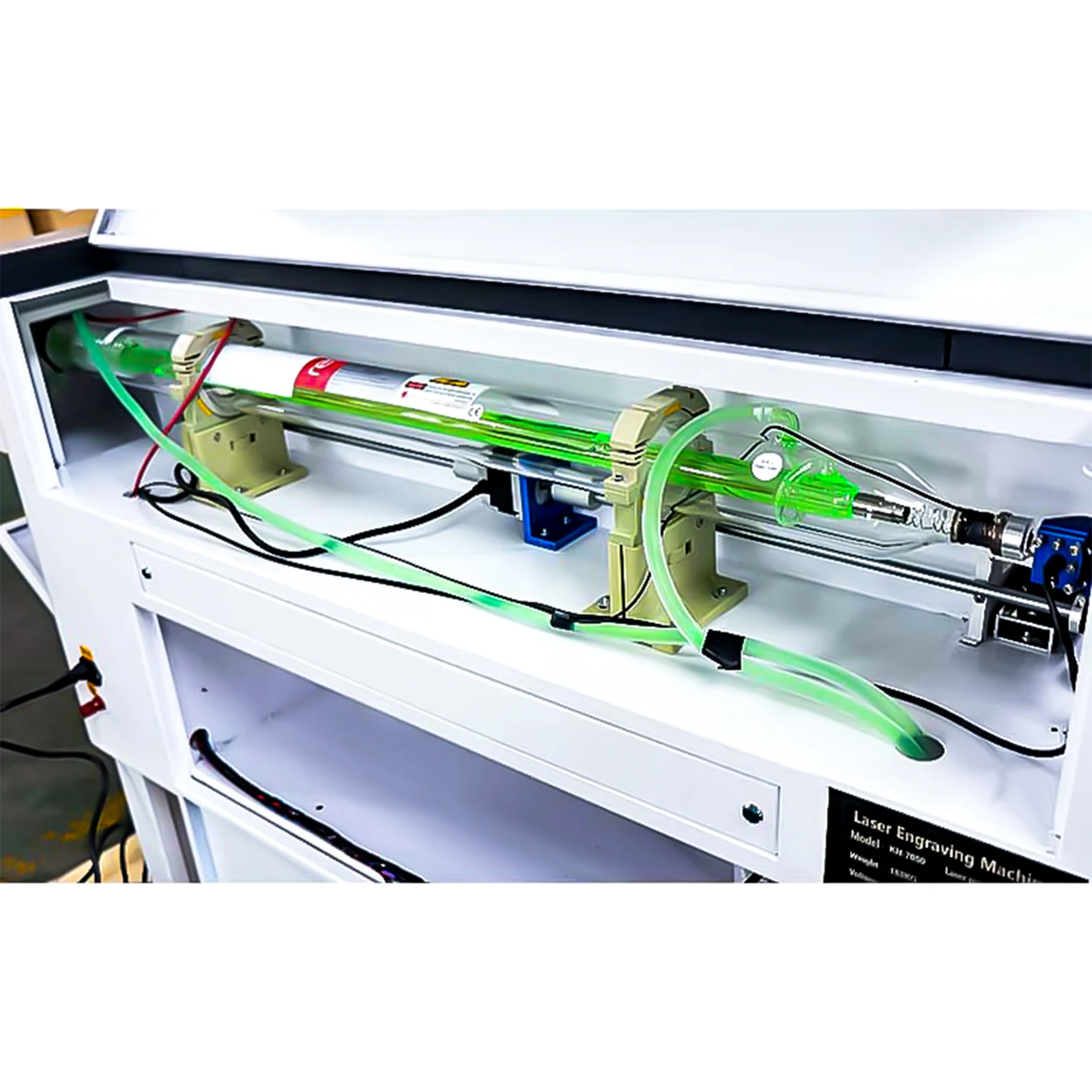

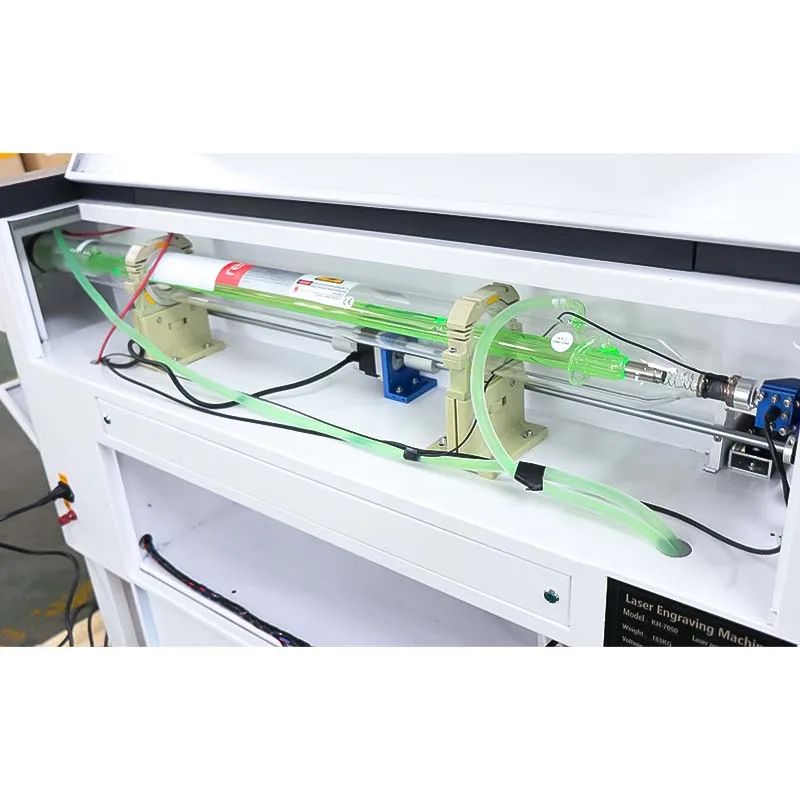

| Laser type | CO2 glass laser | |||||||||||
| Laser model | T1 | T1 | T2 | T4 | ||||||||
| Laser power | 75W-90W | 75W-90W | 90W-100W | 100W-130W | ||||||||
| Laser life | ≥8000h | |||||||||||
| How lasers work | High-voltage discharge excites high-concentration carbon dioxide gas to generate a laser with a wavelength of 10.6um | |||||||||||

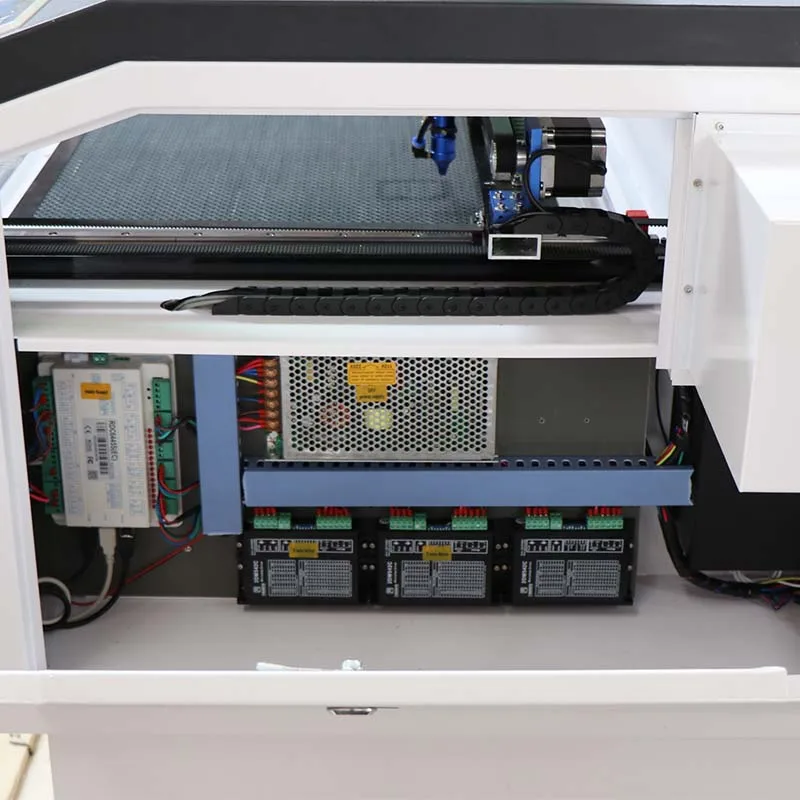

| Drive type | Digital two-phase stepper driver | |||||||||||
| Motor type | 57 Hybrid Stepper Motor | |||||||||||
| Working area | 300*500mm | 400*600mm | 500*700 | 600*900 | ||||||||

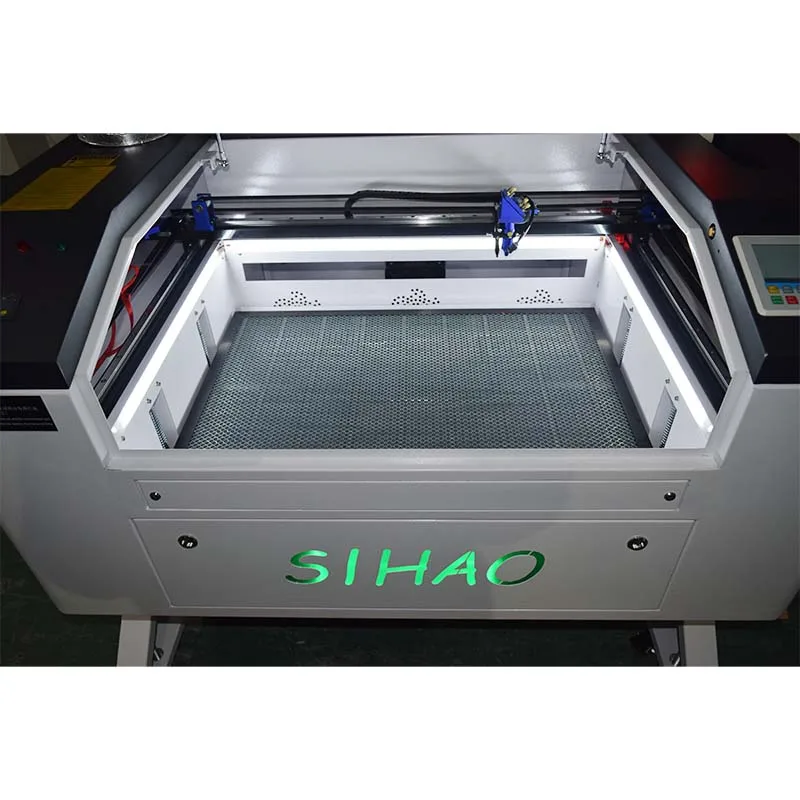

| Workbench style | Cellular and Knife Platforms | |||||||||||
| Workbench adjustment | Electric table (space 140mm) | |||||||||||
| Bracket | Detachable stand (height 340mm) | |||||||||||
| Laser cooling mode | Self-developed built-in compressor circulating water cooling system (water temperature is required to be lower than 35 degrees Celsius) | |||||||||||
| Idle speed | 0-500mm/s | |||||||||||
| Engraving speed | 0-500mm/s | |||||||||||
| Cutting speed | 0-400mm/s | |||||||||||
| Engraving cutting depth | 0-10mm (for reference only, depending on different materials and power) | |||||||||||
| Accessibility | Built-in red light positioning, auto focus | |||||||||||

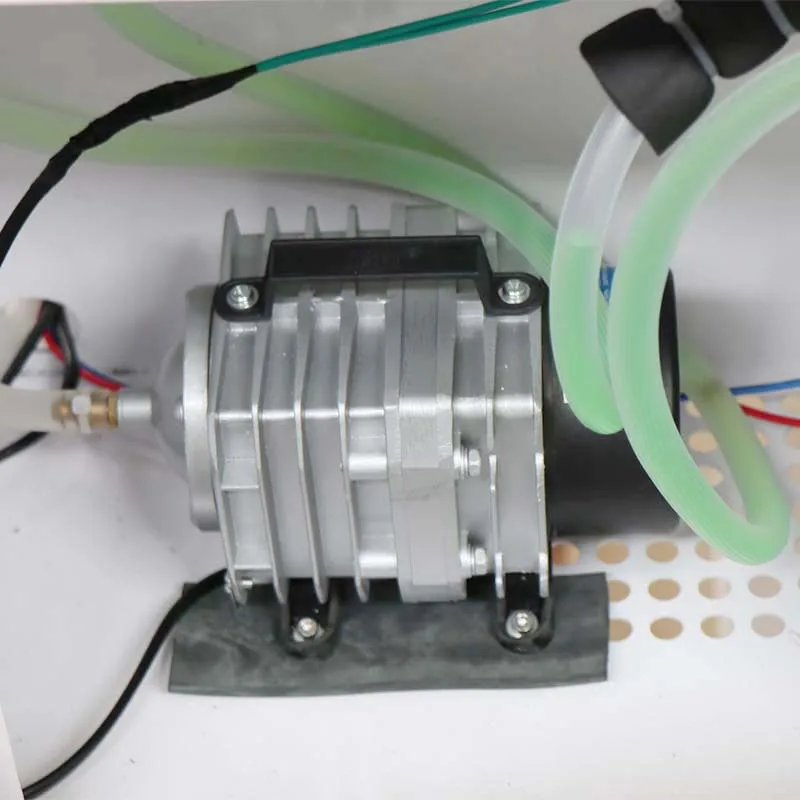

| Protective function | Built-in blowing flame retardant, circulating water protection, cover opening protection, working indicator | |||||||||||
| Name of software | RDworks v8 | |||||||||||
| Supported software | CorelDraw,AutoCAD,Illustrator | |||||||||||
| software operating environment | Windows | |||||||||||
| Graphic format supported | CorelDraw, AutoCAD, Illustrator recognizable formats such as: JPG, BMP, AI, PLT, etc. | |||||||||||
| Data transmission | USB2.0, U disk, network cable transmission | |||||||||||
| Power supply | AC220±10% / AC110±10% | |||||||||||
| Minimal shaped text | 2mm*2mm | |||||||||||
| Smallest formed letter | 1mm*1mm | |||||||||||
| Supported languages | Chinese Simplified, English, Chinese Traditional, Korean, Russian, Italian, Polish, French, German, Japanese, Indonesian, Turkish, Arabic, Finnish, Spanish, Portuguese, Vietnamese | |||||||||||
| Packing List | Maintenance tools Smoke pipe Software U disk Data cable Power cable Grounding cable | |||||||||||
superiority : |
| 1.Can read THE U disk, support network cable and LAN connection, realize the device offline work. |

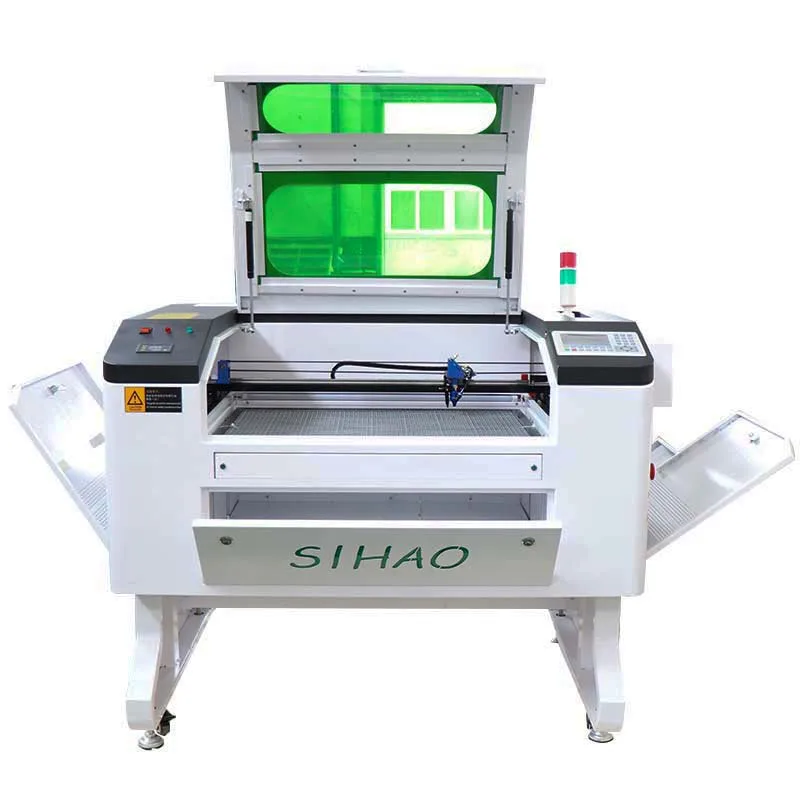

| 2.The window adopts green organic glass perspective board, the working process is clear and not dazzling. |

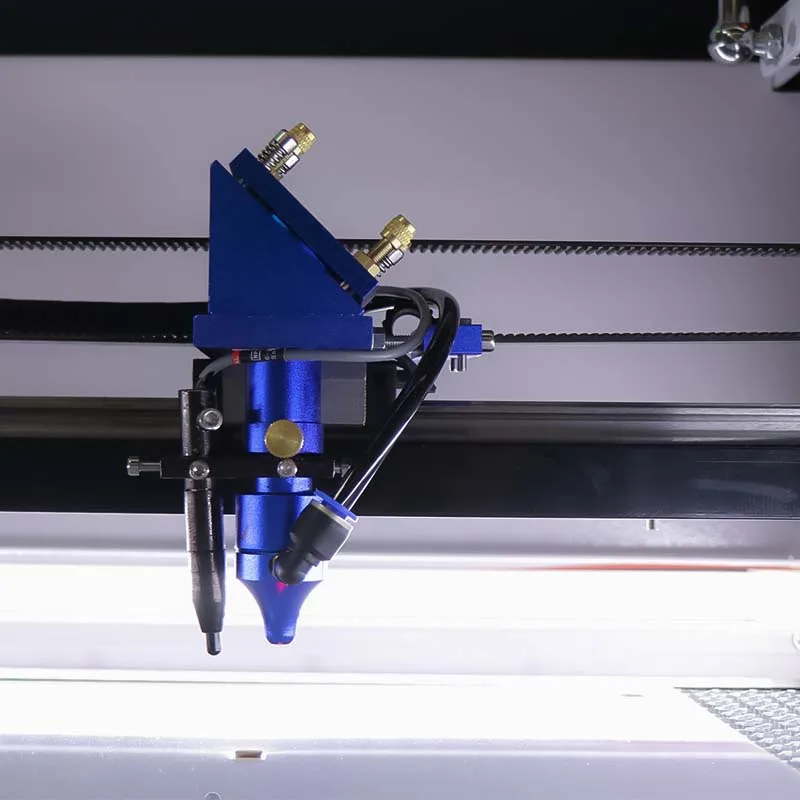

| 3.Automatic focusing machine, instead of the traditional manual measurement of focal length, greatly improve the work efficiency. |

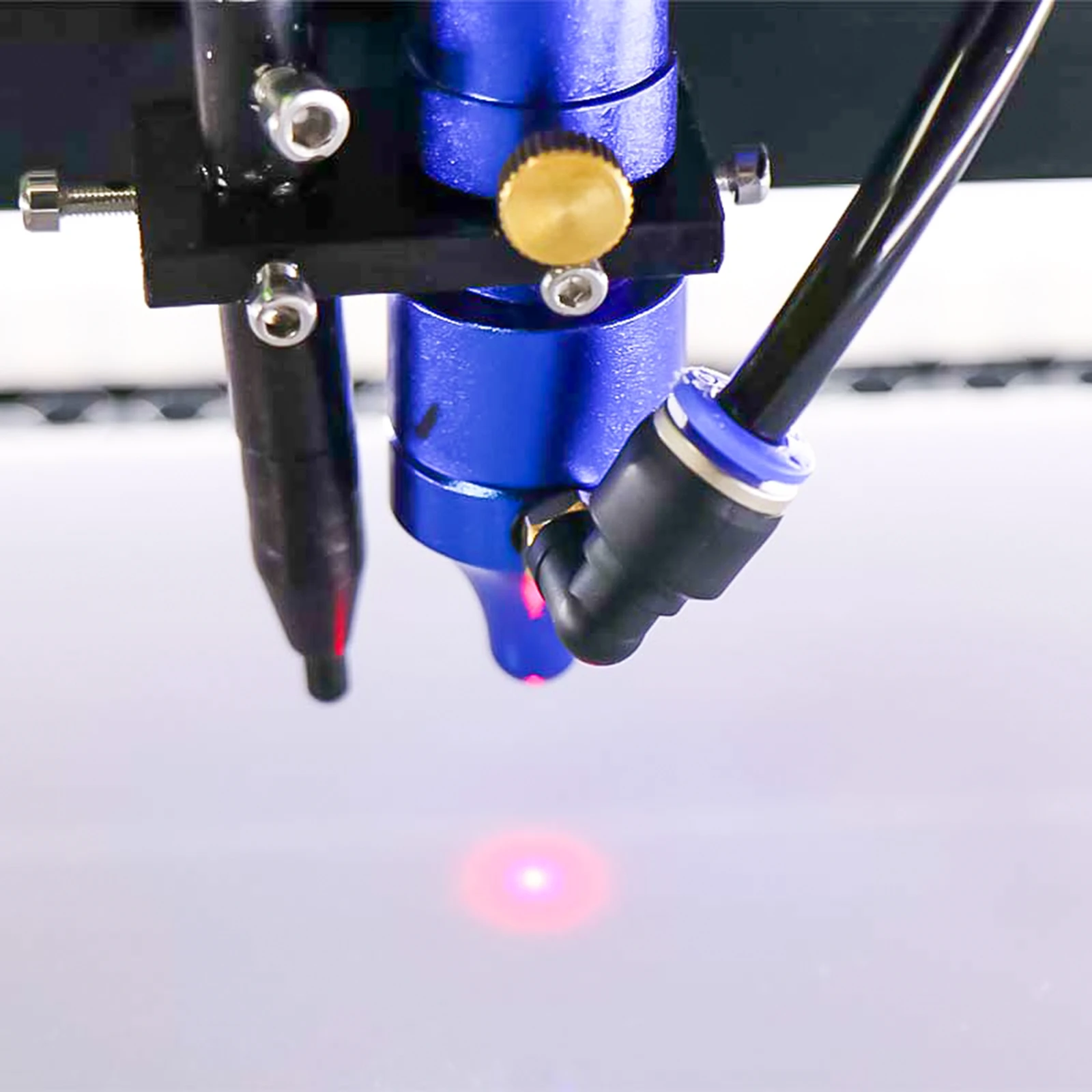

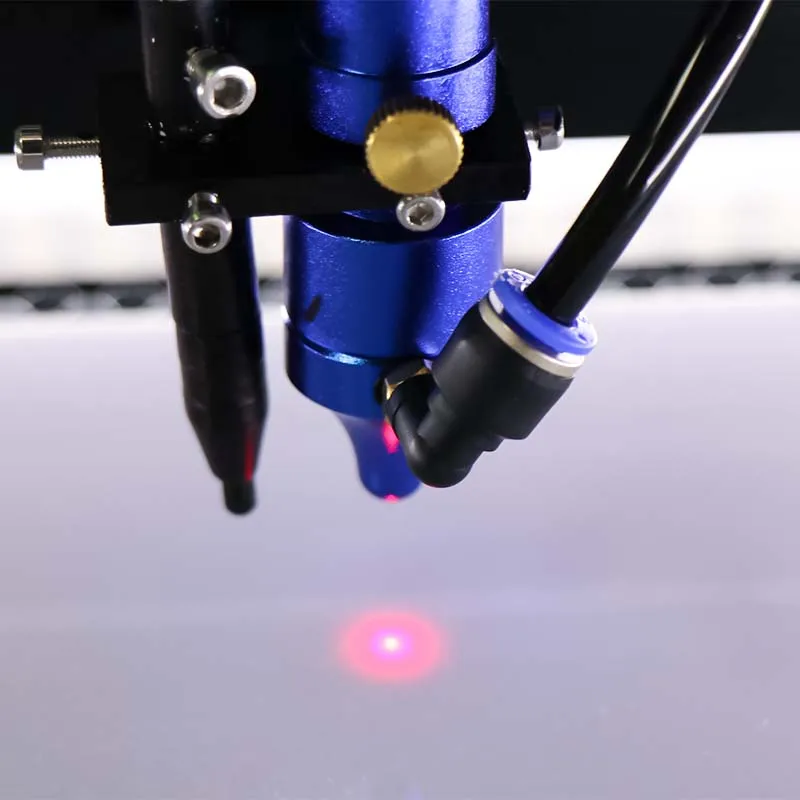

| 4.Red light assist positioning built-in, not easy to move, pointing precision. |

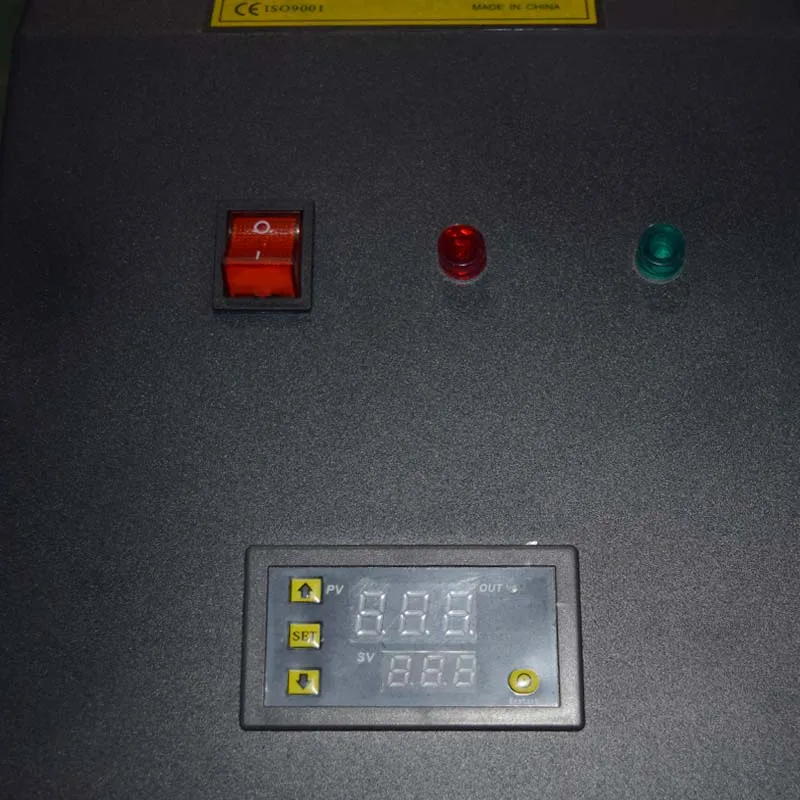

| 5.The laser cooling system developed by ourselves can display and control the temperature in real time. |

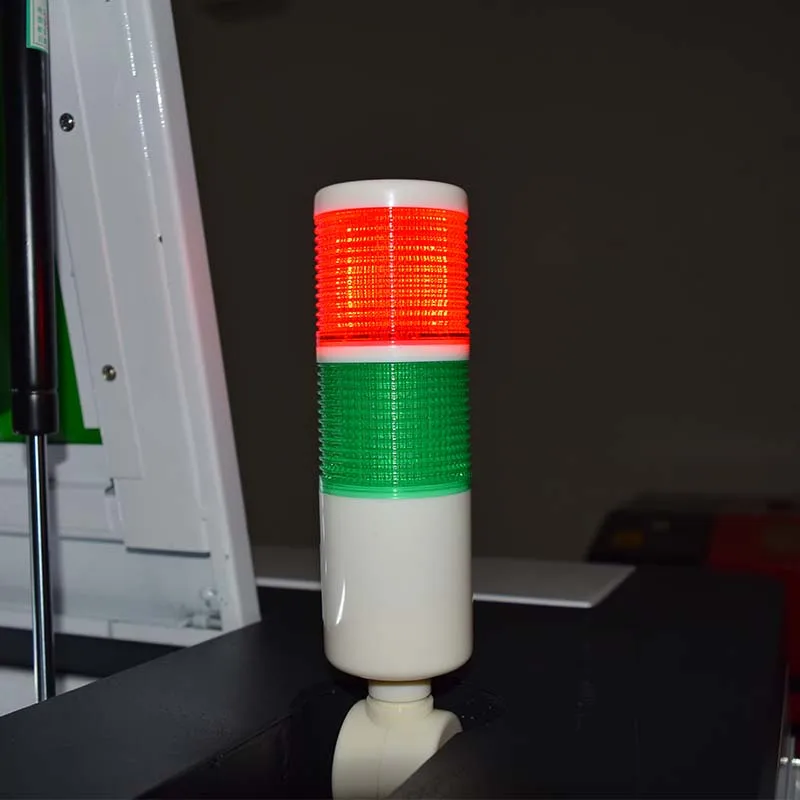

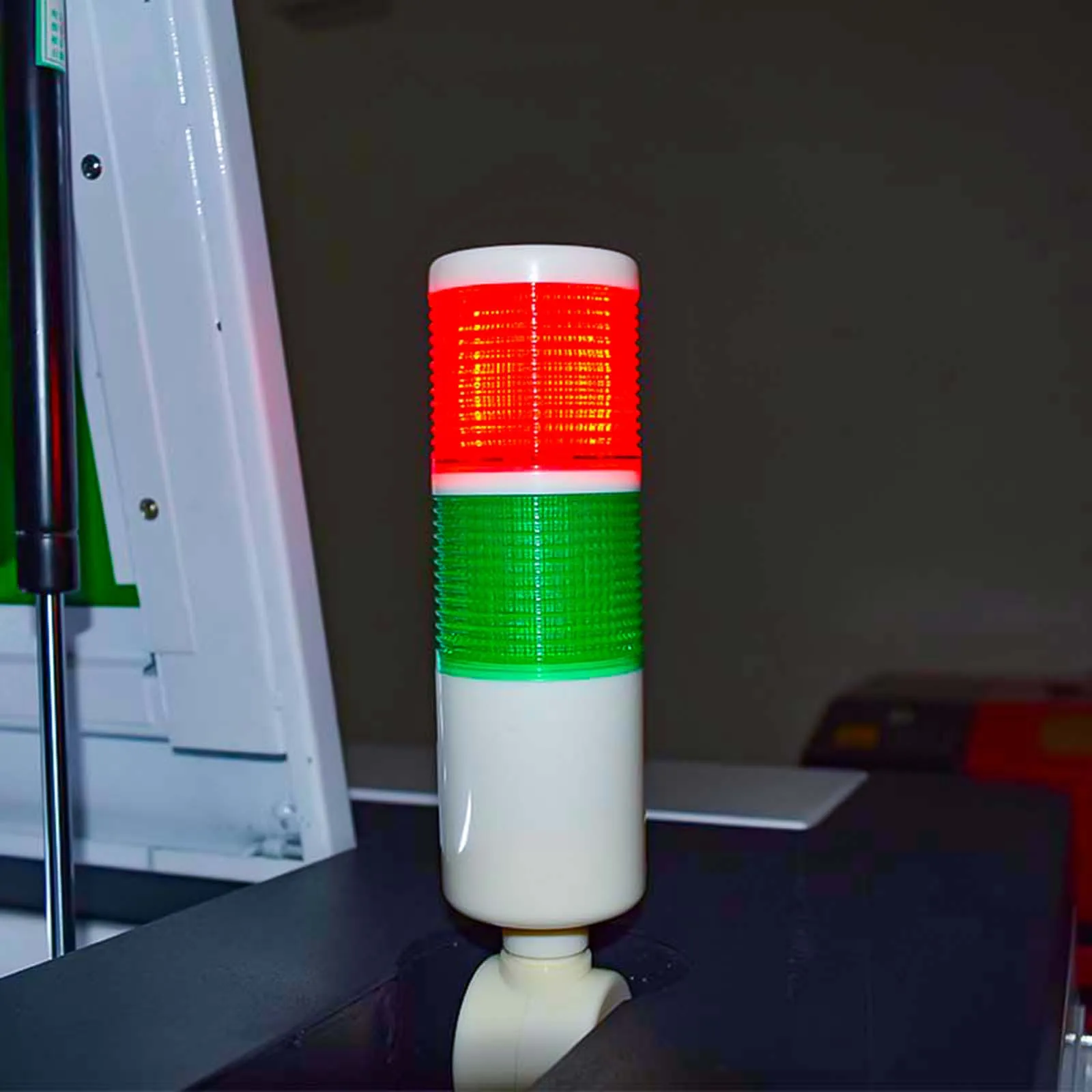

| 6.The equipment increases the laser emission indicator light, the use of laser is safer. |
| 7.Laser current digital display, more intuitive use. |
| 8.The biggest bright spot of this machine is, plug and play, realize the integration of supporting equipment and equipment. |
| 9.Wood, bamboo, acrylic, felt, cloth and other non-metallic materials can be carved and cut, no pressure; High precision, fast efficiency, wide application, simple operation |
