dc ups poe mini ups DC9V12V POE24V/48V USB5V power supply with dc poe mini ups for wifi router ONU GPON
- Category: >>>
- Supplier: Shenzhen Richroc Electronic Co. Ltd.
Share on (1601004062196):
Product Overview
Description
| product name | MINI DC UPS | Product number | POE04 |
| input voltage current | 110-240V | recharging current | 8.4V415mA |
| charging time | 11.3H | output voltage current | 9V1A, 12V1A, 5V1.5A, 24V0.45A /48V 0.16A |
| Output Power | 7.5W~14W | Maximum output power | 14W |
| protection type | Overcurrent protection, short circuit protection | Working temperature | 0℃~45℃ |
| Input Features | AC110-240V | Switch mode | Button switch, power on automatically |

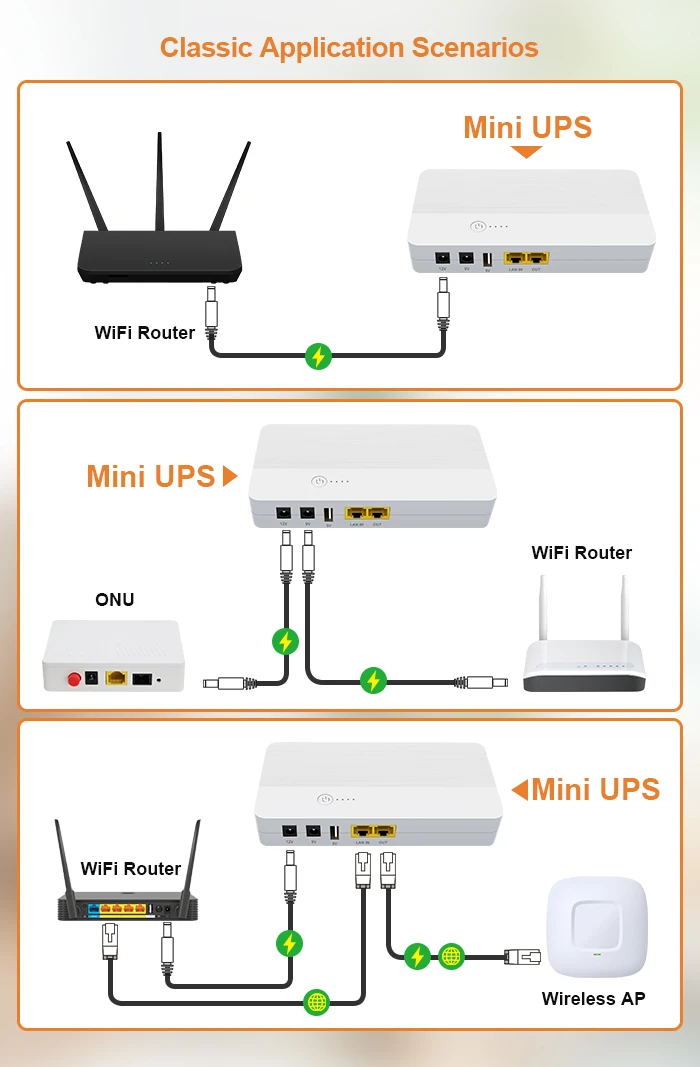

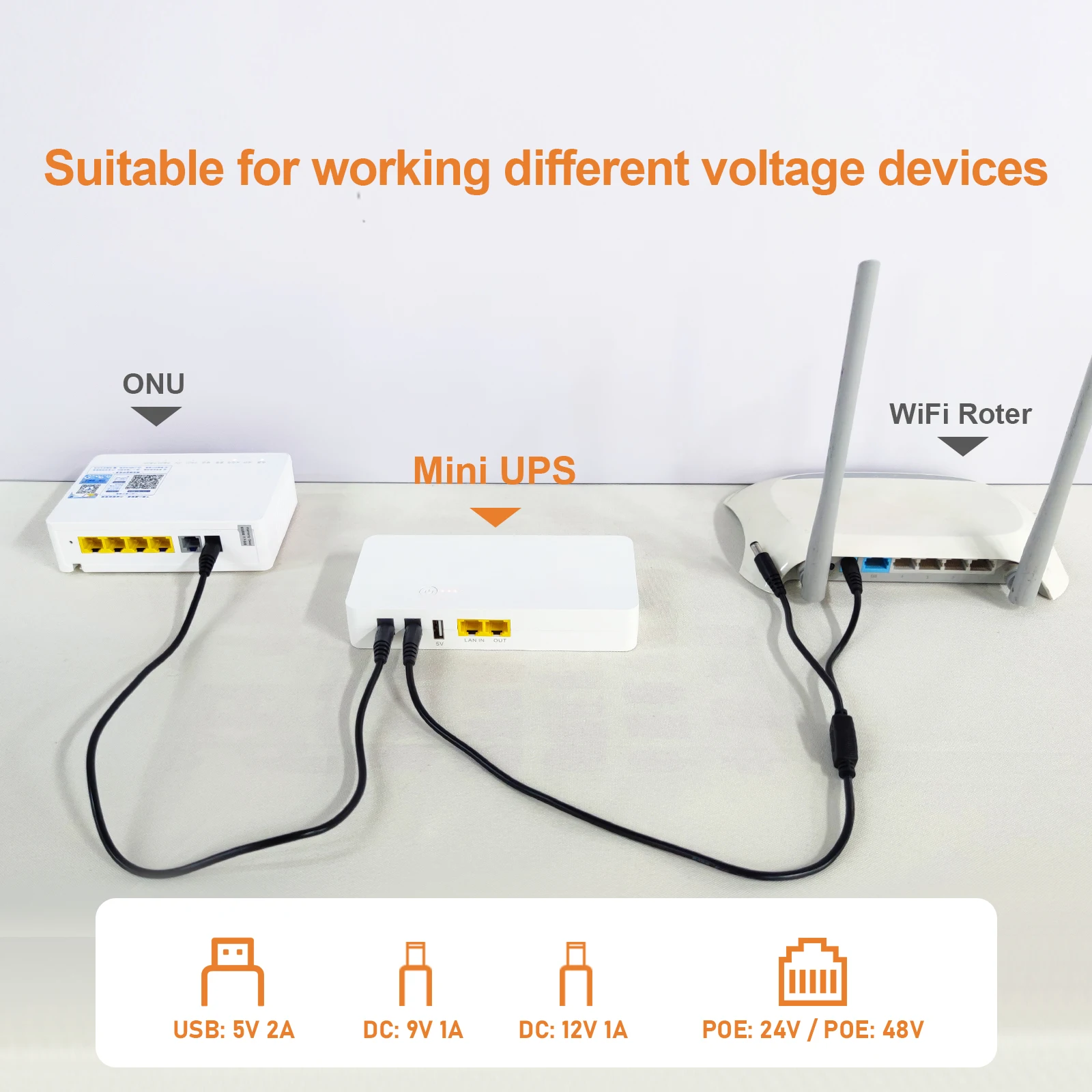

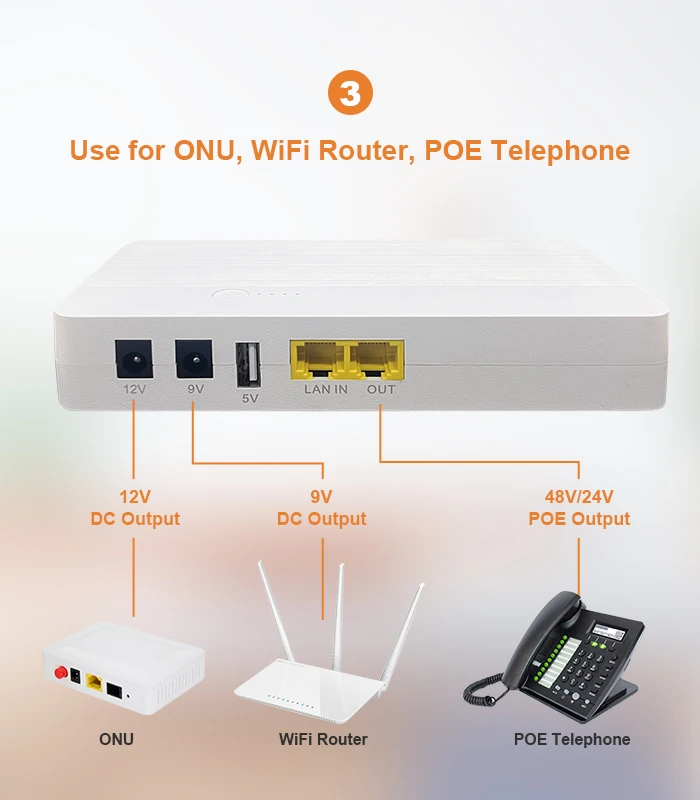

| Output port characteristics | DC5525 9V, 12V output, USB5V output, POE24V/48V output | Indicator light explanation | When charging, the LED flashes in 25% increments, and the four lights are always on when it is fully charged; when discharging, the four lights go out in 25% increments, until the four lights flash 10 times and then shut down |
| Product capacity | 7.4V/4400mAh/32.56Wh | Product color | white/black |
| Single cell capacity | 3.7V/4400mAh | Product Size | 159*77*27.5mm |
| Cell quantity | 2 sticks | Packaging accessories | 5525 to 5525DC cable*1, AC cable*1 (optional for US/UK/EU) |
| Cell type | 21700 | single product net weight | 281g |
| Cell cycle life | 500 | Gross weight of a single product | 431g |
| Series and parallel mode | 2S1P | FCL product weight | |
| box type | airplane box | Carton size | 450*440*190mm |
| Single product packaging size | 168*140*42mm | Qty | 30pcs/box |
